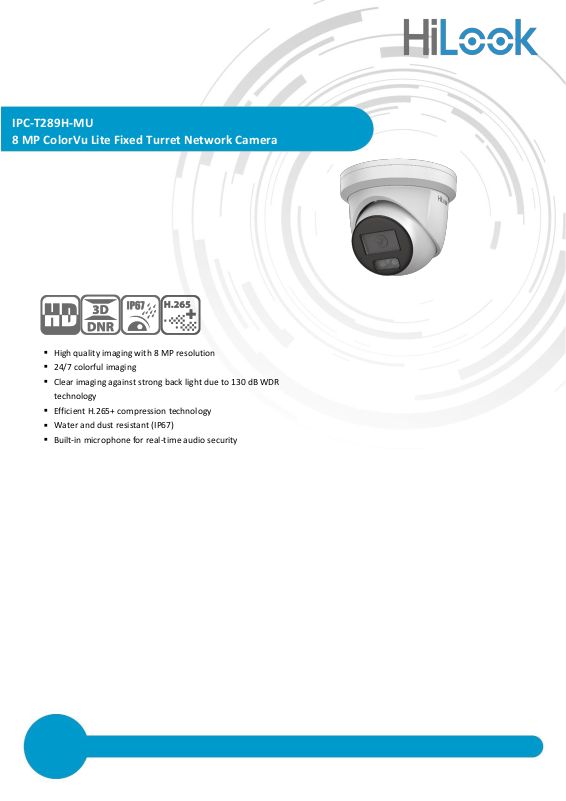

IPC-T289H-MU
8 MP ColorVu Lite Fixed Turret Network Camera
High quality imaging with 8 MP resolution
24/7 colorful imaging
Clear imaging against strong back light due to 130 dB WDR
technology
Efficient H.265+ compression technology
Water and dust resistant (IP67)
Built-in microphone for real-time audio security
Page 2
Specification
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Max. Resolution
3840 × 2160
Min. Illumination
Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with white light
Shutter Time
1/3 s to 1/100,000 s
Day ＆ Night
24/7 color imaging
Angle Adjustment
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Audio
Built-in mic
Lens
Lens Type
Fixed focal lens, 2.8, 4mm optional
Focal Length ＆ FOV
2.8 mm, horizontal FOV 104°, vertical FOV 55°, diagonal FOV 127°
4 mm, horizontal FOV 93°, vertical FOV 46°, diagonal FOV 112°
Lens Mount
M16
Iris Type
Fixed
Aperture
F1.0
Depth of Field
2.8 mm: 3.4 m to ∞
4 mm: 3.8 m to ∞
DORI
DORI
2.8 mm: D: 91 m, O: 36 m, R: 18 m, I: 9 m
4 mm: D: 111 m, O: 44 m, R: 22 m, I: 11 m
Illuminator
Supplement Light Type
White Light
Supplement Light Range
Up to 30 m
Smart Supplement Light
Yes
Video
Main Stream
50 Hz:
20 fps (3840 × 2160)
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 16 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
1 fixed region for main stream and sub-stream
Page 3
Audio
Audio Type
-U: Mono sound
Audio Compression
-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
-U: 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32
to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
-U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface ( Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client
iVMS-4200, HiLookVision Web Client, HiLookVision App
Web Browser
Plug-in required live view: IE10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch
Yes
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Image Enhancement
BLC, HLC, 3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Built-in Microphone
-U: Yes
Reset Key
Yes
Event
Basic Event
Motion detection, video tampering alarm, exception
General
Power
12 VDC ± 25%, 0.69 A, max. 8.5 W, Ø5.5 mm coaxial power plug , reverse polarity
protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.27A to 0.17 A, max: 10 W
Material
Metal
Dimension
Ø138.6mm × 115.2m (Ø5.4" × 4.5")
Package Dimension
170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight
Approx. 770 g (1.7 lb.)
With Package Weight
Approx. 1040 g (2.3 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
Page 4
English, Ukrainian
Approval
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,FCC: 47 CFR Part 15, Subpart B
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
Protection
IP67: IEC 60529-2013
Dimension
Available Model
IPC-T289H-MU(2.8mm)
IPC-T289H-MU(4mm)
