DELI
CASES
MODEL: OSAA
HANDBOOK
INSTALLATION & OPERATION
9/03
P061773M
Welcome to the ORIGIN2display case family. We’re very pleased you
joined us.
This installation and operation handbook has been especially
prepared for everyone involved with ORIGIN2display cases – owners,
managers, installers and maintenance personnel.
You’ll find this book different than traditional manuals. The most
dramatic difference is the use of many more illustrated instructions to
make it easier to read and to help you get the most from this innovative
new design. When you follow the instructions you should expect
remarkable performance, attractive fits and finish, and long case life.
We are interested in your suggestions for improvement both in case
design and in this handbook. Please call/write to:
Hill PHOENIX
Marketing Services Department
1925 Ruffin Mill Rd.
Colonial Heights, VA 23834
Tel: 804-526-4455
Fax: 804-526-7450
or visit our web site at
www.hillphoenix.com
We wish you the very best in outstanding food merchandising and a
long trouble-free operation.
1
TABLE OF CONTENTS
GENERAL INFORMATION – PAGES 2 - 4
General information, first step recommendations and case dimensional drawings.
THE USE OF CASTERS – PAGE 5
Cases roll on casters–general use and castor removal.
LINE-UP – PAGES 6 - 7
A ten step procedure for initial case lineup with illustrations.
TRIM-OUT – PAGES 8 - 9
A sixteen step procedure for trimming out cases with illustrations.
REFRIGERATION PIPING - PAGE 10
Diagram showing the refrigeration components of the self-contained deli case.
COMPONENT DEFINITIONS - PAGE 11
Operational descriptions of the refrigeration components.
PLUMBING – PAGE 12
Information on drain connections.
ELECTRICAL HOOKUP, WIRING DIAGRAMS, AND CONTROL SETTINGS - PAGES 13-16
Complete information on electrical connections.
CASE OPERATION – PAGE 17
Recommended settings for all case controls.
DEFROST AND TEMPERATURE CONTROL – PAGE 18
Defrost data. Sensor bulb locations.

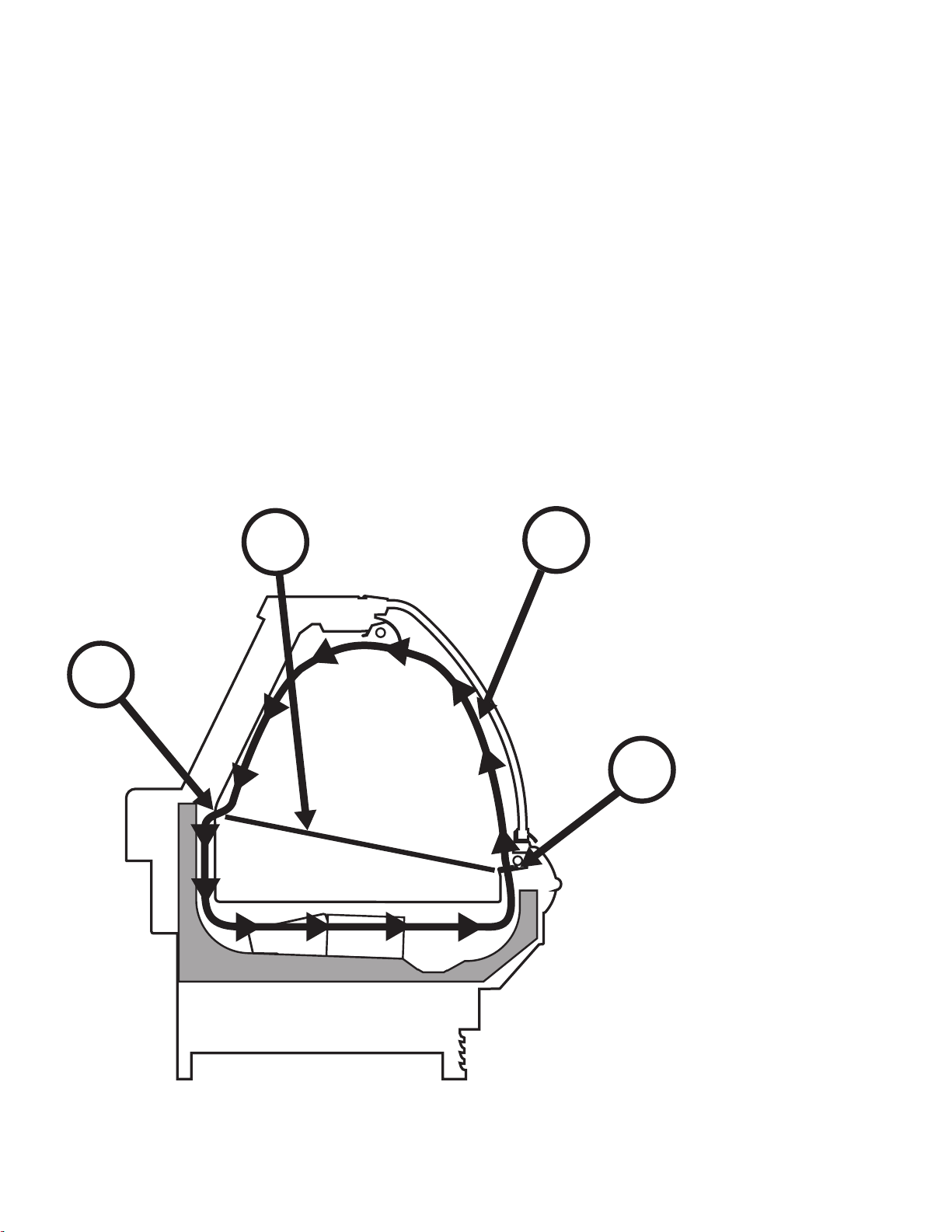

AIR FLOW AND PRODUCT LOADING – PAGE 19
Air flow and load limits.
USE AND MAINTENANCE – PAGES 20 - 21
Cleaning and fan information.

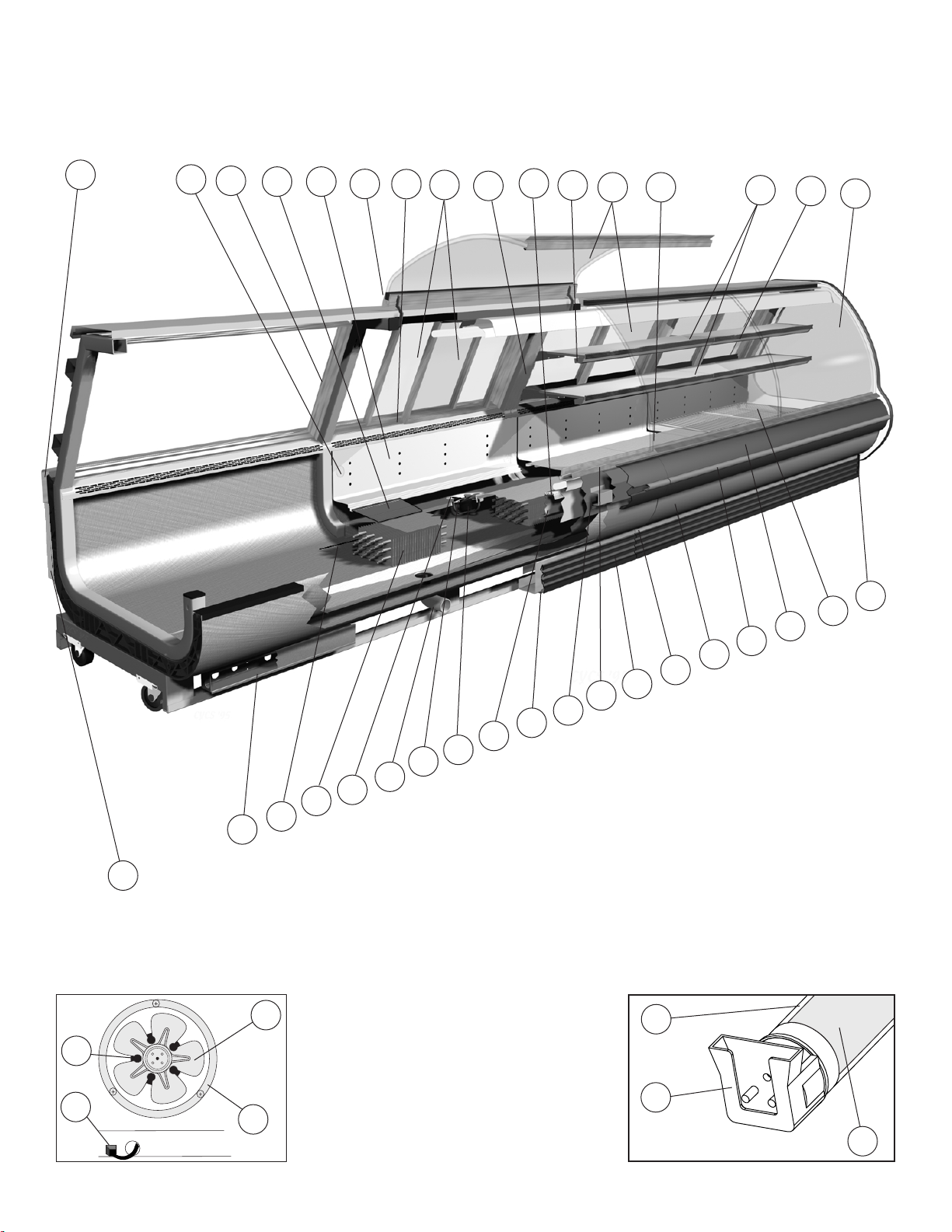

PARTS ORDERING – PAGES 22 - 24
Replacement parts identification.
NOTES - PAGES 25 - 26
PRODUCT WARRANTY - Inside Back Cover
GENERAL INFORMATION
DESCRIPTION OF CASES: The refrigerated display cases described in this handbook
are part of the Hill PHOENIX, Origin2design series. Specifically covered in this manual is
model OSAA, self-contained service deli case.
STORE CONDITIONS: Hill PHOENIX cases are designed to operate in an air conditioned
store with a system that can maintain 75
O
F (24OC) store temperature and 55 percent (maximum) relative humidity (CRMA conditions). Case operation will be adversely affected by
exposure to excessively high ambient temperatures and/or humidity.
REFRIGERATION SYSTEM OPERATION: Air cooled condensing units require ventilation for
efficient performance of condensers. Machine room temperatures must be a minimum of
65
O
F in winter and a maximum of 95OF in summer. Minimum condensing temperatures
should be no less than 70
O
F.
RECEIVING CASES: Examine fixtures carefully for shipping damage and shortages. For
information on shortages contact the Service Parts Department at 1-800-283-1109.
APPARENT DAMAGE: A claim for obvious damage must be noted on the freight bill or
express receipt and signed by the carriers agent, otherwise the carrier may refuse the claim.
CONCEALED DAMAGE: If damage is not apparent until after the equipment is unpacked,
retain all packing materials and submit a written request to the carrier for inspection within
15 days of receipt of equipment.
LOST ITEMS: This equipment has been carefully inspected to insure the highest level of
quality. Any claim for lost items must be made to Hill PHOENIX within 48 hours of receipt
of equipment.
TECHNICAL SUPPORT: If any technical questions arise regarding a refrigerated display
case contact our Customer Service Department in Richmond at 1-804-526-4455. For any
questions regarding our refrigeration systems or electrical distribution centers contact our
Customer Service Department in Conyers at 1-770-285-3200.
CONTACTING FACTORY: Should you need to contact Hill PHOENIX regarding a specific
fixture, be sure to know the case model number and serial number. This information is on
the serial plate located on the rear panel of the case (see next page for details). Ask for a
Service Parts Representative at 1-804-526-4455.
2
3
REAR SLIDING DOORS
MODEL
OSAA-6’
AMP PLATE &
SERIAL PLATE
LOCATION
10 5/16 in
[26.1 cm]
5 13/16 in [14.7 cm]
FLAT REAR SILL
(OPTIONAL)
54 15/16 in
[139.5 cm]
1 3/16 in [3.0 cm]
5 13/16 in [14.7 cm]
33 1/4 in
[84.5 cm]
11 1/2 in
[29.2 cm]
21 1/2 in
[54.6 cm]
35 11/16 in [90.7 cm]
38 5/16 in [97.3 cm]
49 1/16 in [124.6 cm]
30 1/2 in
[77.5 cm]
32 3/16 in [81.8 cm]
PLENUM
28 3/8 in [72.0 cm]*
COIL
DRAIN PAN
(optional)
22 1/2 in
[57.2 cm]
CONDENSING UNIT
27 1/4 in
[69.2 cm]
49 1/16 in
[124.6 cm]
JUNCTION BOX
34 1/2 in
[87.6 cm]
(STANDARD)
21 1/2 in
[54.6 cm]
**
ELECTRICAL
25 9/16 in [64.9 cm]
28 1/16 in [71.2 cm]
FRONT OF CASE
72 in [182.9 cm] {6' case}
NOTES:
* STUB-UP AREA
** RECOMMENDED STUB-UP CENTERLINE FOR ELECTRICAL AND HUB DRAINS
l
ENDS ADD APPROXIMATELY 1 INCH TO CASE HEIGHT
l
AVAILABLE SHELF SIZES: 10" & 12"
C
L
34 9/16 in
[87.7 cm]
1 1/2" PVC DRAIN
CONNECTION
38 5/16 in
[97.3 cm]
1 1/2 in [3.8 cm]
{END}
4

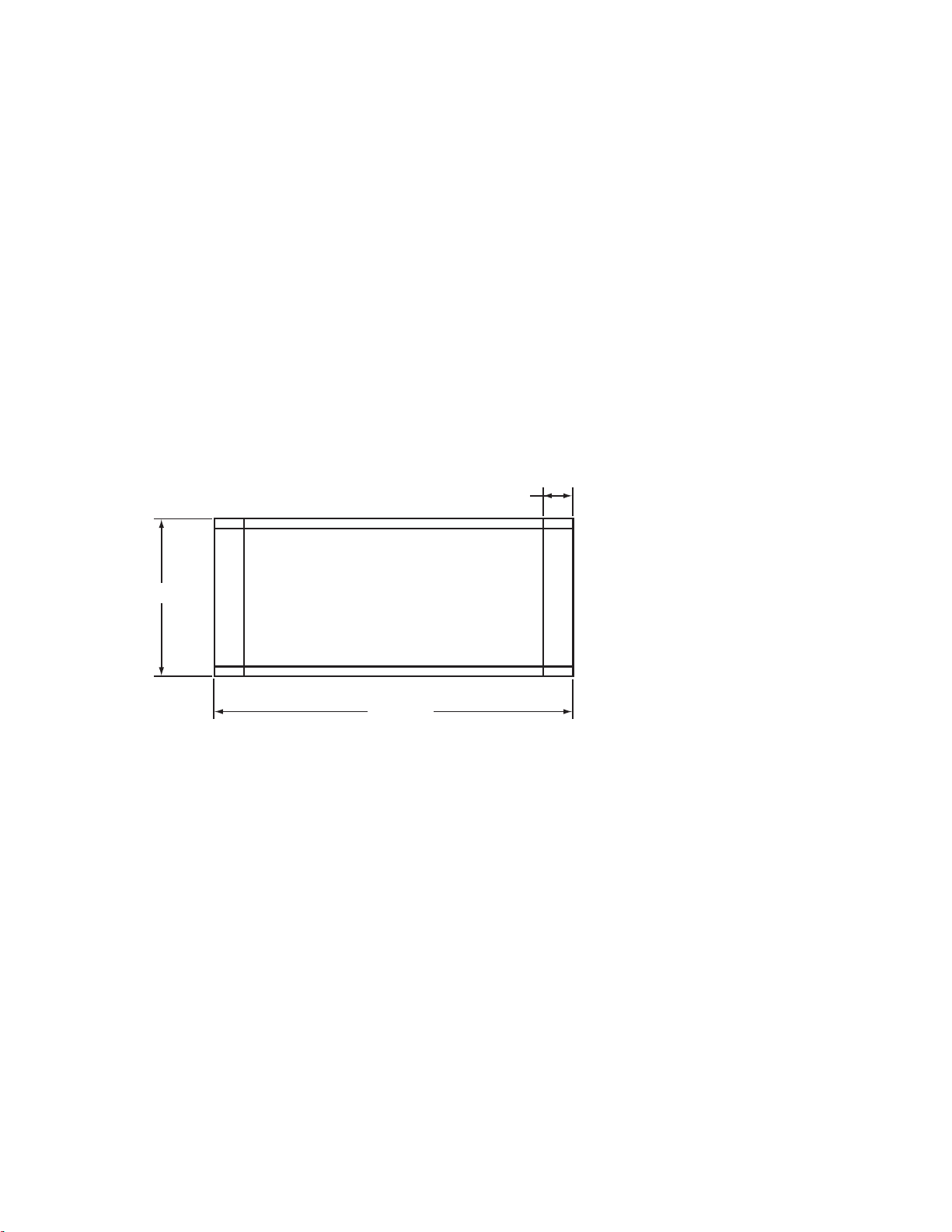

GENERAL INFORMATION
BASEHORSE
LOCATIONS FOR
MODEL
OSAA
4"
31 11/16"
6' CASE
FRONT OF CASE
71 1/4"
5
34
12
CASES
MOVE ON
CASTERS
FOR EASIER INSTALLATION
CASTERS MAY BE DISCARDED.
ROLL OUT OF TRUCK. When there is a truck - level
delivery dock, cases may be rolled directly from the
truck to the store floor. [CAUTION] If skid boards are
required to unload cases, casters should be removed
prior to sliding them down the skid; after which they
can be reinstalled on case.
ROLL TO LINEUP POSITION. Casters may remain in
place to move the cases to staging areas around the
store, prior to final installation. When ready for final
line-up, roll the case to set position, then remove
casters.
REMOVE COTTER PIN. Removing the casters is
easy. Simply flatten and hammer out cotter pins
then lift the case with “J” bar, and the casters will
fall off.
[CAUTION] Make certain hands are out of the way.
ORIGIN2cases are manufactured and shipped to
stores with casters installed on the base frame to
make the job of moving cases easier for everyone
involved with the manufacturing, shipping and installation process.
Casters not only speed up the process, but they also
reduce the chance of damage from raising and lowering cases with ”J” bar to place them on dollies,
skates or rollers. In most situations, one or two persons can move the case with ease.
6
LINE UP
1
5

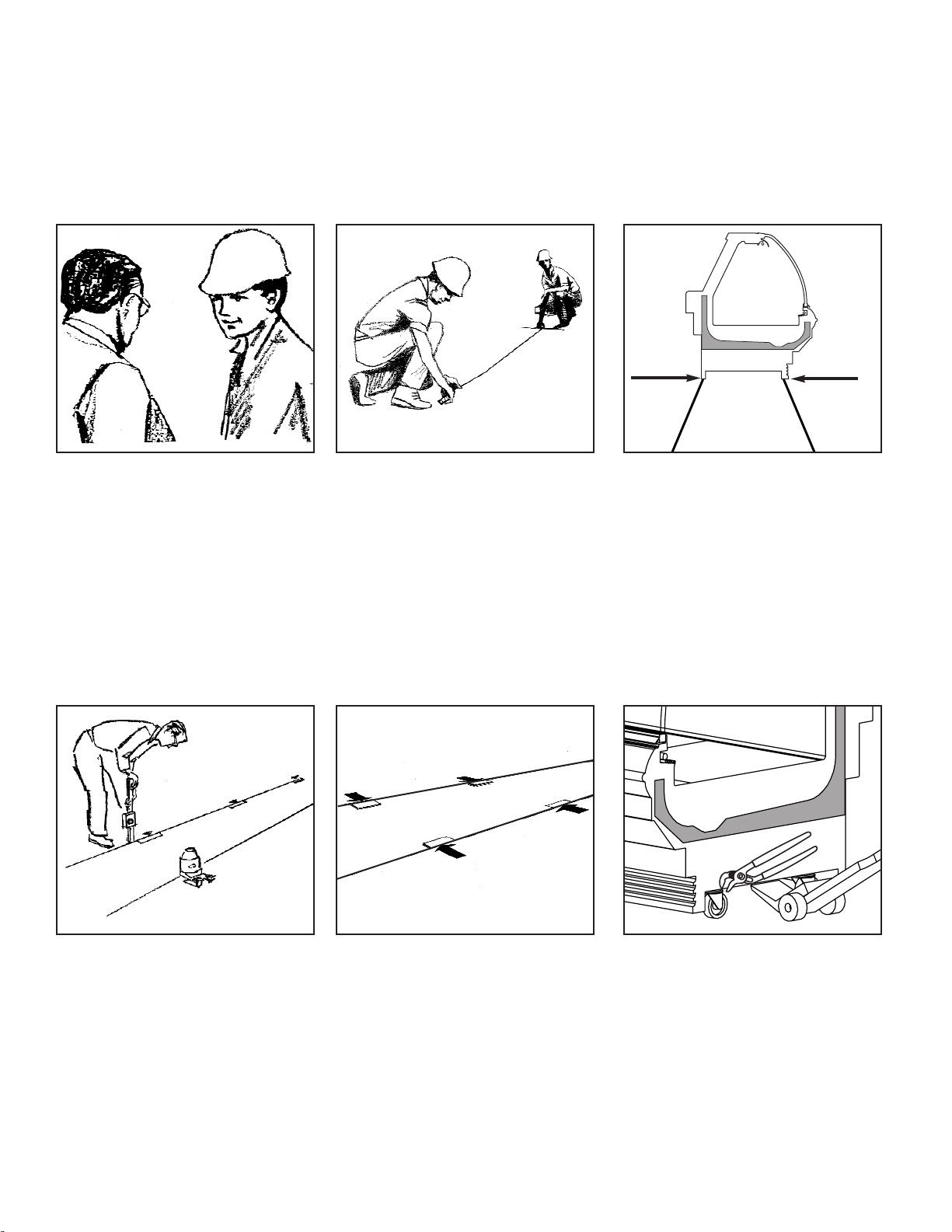

Consult With General Contractor
Ask the general contractor if there
have been changes in the building
dimensions since the print you are
using was issued. Also, ask the
points of reference from which you
should take dimensions to locate the
cases.
Set Shims On Basehorse Locations
Locate basehorse positions along
chalk lines. Spot shim packs at each
basehorse location.
2
Snap Chalk Lines
Mark floor where cases are to be
located for the entire lineup.
3
Snap Lines On Base Rail
Locations
Snap lines where base rails are positioned, not the front or back edges of
the cases. See case cross section
drawing, pages 3-4 for rail location
dimensions.
4
Level Floor. Use Laser Transit
Leveling is necessary to assure proper case alignment. Locate highest
point on chalk line as reference for
determining height of shim-pack
levelers. A laser transit is recommended for precision and requires
just one person.
6
Position First Case In Lineup,
Remove Casters, Level
Roll first case into position. Raise
case from end under cross support
using “J” bar. Remove cotter pins and
casters. [CAUTION! Keep hands from
under case] Level case on shims.
BASE RAIL
BASE RAIL
10
Bolt Cases Together Using Bolt
Holes Provided
Push cases tightly together. Bolt
cases together through the five holes
provided in the “C” frame and pipe
chase as shown in illustration.
Tighten until all margins are equal; do
not over tighten.
9
Loosen Bumper And Cornice
Loosen screws on master bumper.
Move bumper joint to a position for
sliding between adjoining case
bumper.
8
Remove Shipping Accessories
From Case. Add Sealant.
Remove anything from case that may
interfere with case joining (eg. shipping braces). Run a bead of sealant
around entire end before pushing
cases tightly together.
7
7
Position Next Case In Line Up
Roll case approximately 2’ from
adjoining case. Remove casters on
the end nearest to the next case.
Allow casters to remain on opposite
end to assist in pushing cases together - then remove them.
Ask about our case installation video available by request through your local Hill PHOENIX Sales or Field Service
Representative. Spanish version available.
CAULK
3
5
4
1
2
8

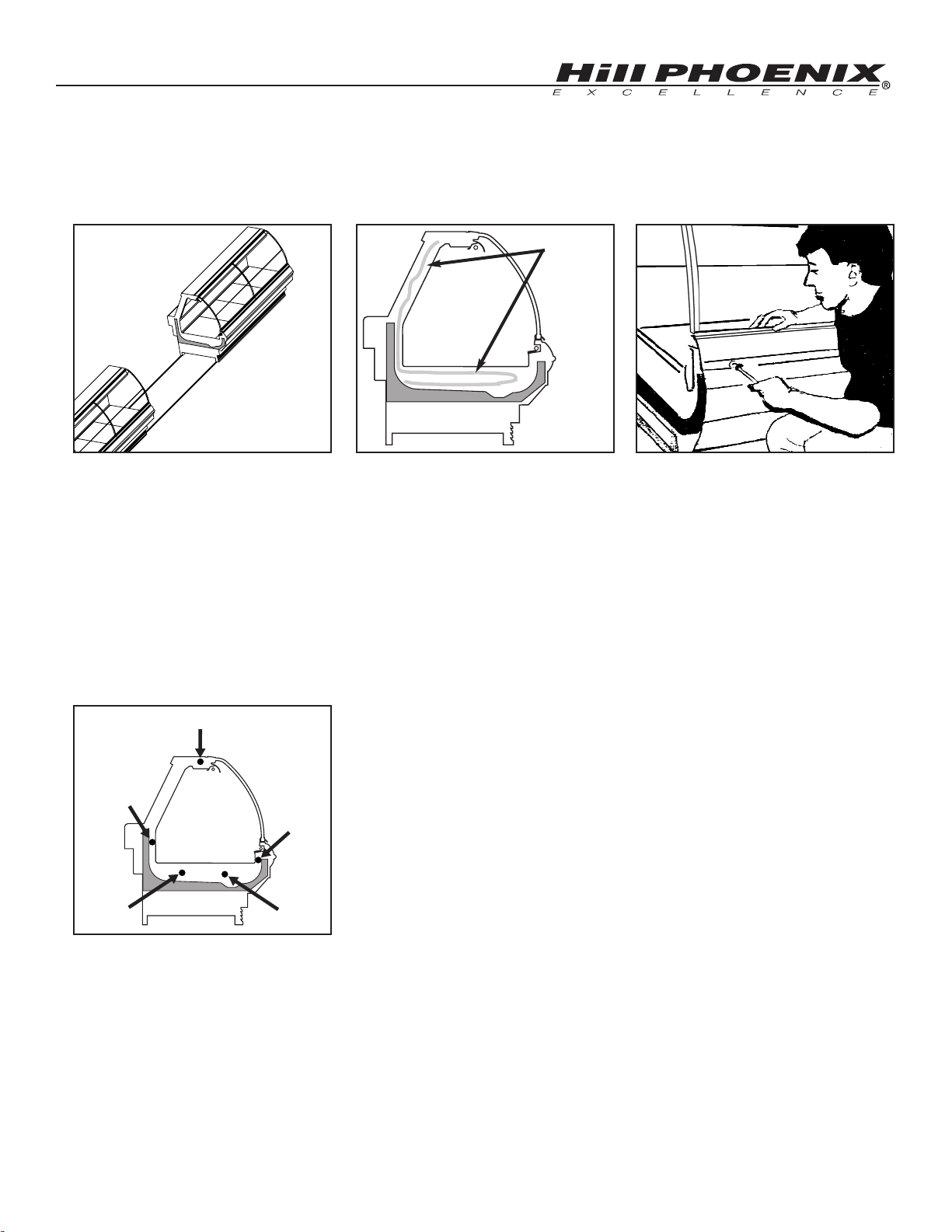

Install plenum covers under deck pans.
The plenum covers are shipped loose in
the case and are installed between the
lower rear baffle and the fan plenum.
6
Seal joints along pipe chase seam with
the caulk provided.
Now that cases have been
positioned and leveled, you
may proceed to trim-out
case lineup. Trim parts have
been designed to be applied
easily with only a small
number of fasteners
required. Most external
parts are adjustable to
achieve almost invisible,
snug-fitting joints and a
high level of excellence in
fit and finish.
8
TRIM OUT
1
Tighten all joint bolts. Draw up tightly,
but do not over tighten.
2
Adjust polymer master bumper joints, if
required. First loosen bumper screws.
3
Slide bumper joint to the center of the
joint between the two cases. Use screw
driver in hole provided.
4
Slide master bumper left or right to
close seam as required. Bumper joint
neatly finishes any gap that may remain.
5
Close seam where bumper joins case
end. Bumper joint closes seam that
may develop if master bumper is moved
away from end to close case-to-case
joint seam.
COIL
PLENUM
DECK PAN
PLENUM
COVER
LOWER
REAR
BAFFLE
7
Apply acrylic tape over pipe chase seam.
Tape is found with the ship loose items
and acts as a watershed preventing
water from settling in case joint.
ACRYLIC
TAPE
PIPE
CHASE
9
9
Close joints of front panel. The panel is
slotted on the bottom to allow left or
right adjustment as required.
10
Install curved front panel joint (if cases
come equipped with curved front panels). Curved panel joints are shipped
loose in the case and are attached with
the screws provided. Wide joints (1”)
are for case-to-case joining and narrow
joints (1/2”) are for cases with ends.
11
Attach lower front panel (for cases on
11” baseframes). Slots and tabs are
designed for easy installation without
fasteners. The lower front panel is slotted to allow adjustment left or right as
required.
12
Install top sill joint. The top sill joints are
shipped loose in the case. The front lip
of the joint fits into the crevice between
the top sill and the glass pressure bar.
The rear lip is attached to the back of
the case with the screws provided.
13
Install rear sill joint. The rear sill joints
are shipped loose in the case. The bottom portion of the joint should be slid on
the rear sill first then the top lip fits
between the rear sill and the mullion.
Secure the joint underneath the rear sill
with the screws provided.
14
Install the “J” rail onto the case base
rail. For cases with an 11” baseframe,
the “J” rail easily slides over the base
rail and requires no fasteners. Space
“J” rails evenly along the base rail (2 “J”
rails per 6’, 8’, and 12’ case). For cases
with the 7” baseframe there is a single
“J” rail that is screwed into place.
15
Insert kickplate into “J” rail. Slide the
kickplate up and behind the lower front
panel bracket then down on the “J” rail.
NOTE: An easy technique for one
person is to press against nose
bumper with leg as you guide
bumper into channel with a screen
spline. Insert bottom first.
CURVED FRONT
PANEL JOINT
CURVED FRONT
PANEL
TOP SILL
JOINT
TOP SILL
GLASS
PRESSURE
BAR
REAR SILL
JOINT
REAR SILL
MULLION
16
Insert nose bumper into master bumper
channel. Roll nose bumper into channel
along entire lineup (up to 96’). We recommend that the nose bumper be left in
the store 24 hours before installing. DO
NOT STRETCH the bumper during
installation as it will shrink to its original
length and leave a gap.
REFRIGERATION
COMPONENTS
Refrigeration components for the
OSAA-6’ are easily accessible in the tank and
underneath the case. The expansion valve
and suction line 1/4” access valve are both
located in the left hand front side of the tank
and are accessible without lifting the fan
plenum. These components may be reached
by lifting only the left hand deck pan which
minimizes the need to remove product.
The diagram below illustrates all of the
refrigeration components in the OSAA-6’ case.
The components surrounded by the box are
located within the case tank. Basic definitions of
these components are listed on the following
page.
TXV
Bulb
Fan
Plenum
Condenser
Fan
Service
Valve
TXV
1/4”
Access
Valve
Evaporator
Condenser
Accumulator
Compressor
Receiver
Service
Valve
Filter
Drier
Tank
Area
Flow Direction
Suction Line
Solenoid
Dual Pressure
Control
High Pressure
Warning Light
Flow Direction
11
Access Valve - Access port on the evaporator that allows service personnel to check system pressure.
Accumulator
- A device installed on the suction line that is used to boil off small amounts of liquid refrig-
erant so liquid does not reach the compressor.
Compressor
- An electrically driven piston pump that pumps vapor refrigerant from a low pressure level
to a higher pressure level.
Condenser
- The component in a refrigeration system that transfers the heat that was absorbed by the
refrigerant in the evaporator and the heat of compression from the system by condensing the refrigerant.
Condenser Fan
- Fan that forces air through the air cooled condenser to aid heat transfer.
Dual Pressure Control
- A device that protects the compressor from low charge and high pressure.
Evaporator
- The component of the refrigeration system that absorbs heat from the air by boiling liquid
refrigerant to vapor.
Evaporator Fans
- Fans that circulate air through the case and force air through the evaporator to aid heat
transfer.
Filter Drier
- A device installed on the liquid line of a refrigeration system that removes water and other
impurities from the refrigerant in the lines during initial start-up.
High Pressure W
arning Light - Indicator light that warns the operator that the system pressure is to high.
Receiver
- The component in a refrigeration system that stores liquid refrigerant that is not being used by
the system in low load conditions or when the system is shut down.
Service V
alve - A manually operated valve in the refrigeration system that is used for various service oper-
ations such as isolating the high or low sides of the system.
Suction Line Solenoid
- A device that prevents liquid from entering the compressor.
Thermostatic Expansion V
alve (TXV) - A valve that controls the flow of liquid refrigerant to the evapo-
rator coil and also separates the high pressure side of the system from low pressure side of the system.
Thermostatic Expansion V
alve (TXV) Bulb - A bulb that is attached to the suction line of the evapora-
tor that controls the TXV. Inside the bulb is a charge that reacts to temperature and regulates the flow of
refrigerant through the expansion valve.
COMPONENT DEFINITIONS
12
PLUMBING
The drain outlet is located front and
center of the cases for convenient access
and is specially molded out of ABS material.
The “P” trap, furnished with the case, is
constructed of schedule 40 PVC pipe. Care
should be given to assure that all connections are water tight and sealed with the
appropriate PVC or ABS cement.
The drain lines can be run left or right
of the tee with the proper pitch to satisfy
local drainage requirements. The drain can
be piped to a evaporative drain pan at the
owners option.
The kickplate is shipped loose with the
case for field installation, therefore you
should have open access to the drain line
area.
If the kickplate has been installed, you
will find it very easy to remove. See instructions below, or the trim out section of this
manual on page 9.
LIFT UP FROM “J”
RAIL AND PULL OUT
KICKPLATE
“J” RAIL
HOW TO REMOVE KICKPLATE
MODEL OSAA
5 13/16 in [14.7 cm]
21 1/2 in
[54.6 cm]
**
49 1/16 in
[124.6 cm]
34 1/2 in
[87.6 cm]
DRAIN PAN
(optional)
34 9/16 in
[87.7 cm]
38 5/16 in
[97.3 cm]
NOTES:
** RECOMMENDED STUB-UP CENTERLINE FOR ELECTRICAL AND HUB DRAINS
C
L
FRONT OF CASE
72 in [182.9 cm] {6' case}
1 1/2" PVC DRAIN
CONNECTION
1 1/2 in [3.8 cm]
{END}
13
ELECTRICAL HOOKUP
DEFROST HEATERS, 208/240 VOLTS L1
L2
RED
BLUE
EVAPORATOR FANS, 120 VOLT
WIRE NUMBERCOMPONENT COLOR CODING
BLACK
TEMPERATURE CONTROL, 120 VOLT
LIGHTS, 120 VOLT
DEFROST TERMINATION CONTROL, 120 VOLT
WHITE
3
4
11
12
19
20
21
YELLOW
YELLOW
PURPLE
ORANGE23
WIRING NUMBERS AND COLORS
EQUIPMENT GROUNDING CONDUCTOR GREEN
-
BLACK
WHITE
ANTI-CONDENSATE HEATERS, 120 VOLT
13
14
WHITE
BLACK
MODEL OSAA-6’
REAR SILL
BALLAST
LOCATION
REMOVABLE
COVER
BALLAST
LOCATION
Electrical hookups for the OSAA are made
to a junction box located underneath the case on
the bottom left hand front. The light ballasts for
the case are located under the rear sill behind a
removable access cover as shown below.
For case-to-case wiring, run “greenfield”, or other conduit, between junction
boxes. When connecting to the junction box
field connections should be made on the
right hand side of the box to allow more room
inside for wire connecting.
5 13/16 in [14.7 cm]
21 1/2 in
[54.6 cm]
**
ELECTRICAL
25 9/16 in [64.9 cm]
28 1/16 in [71.2 cm]
49 1/16 in
[124.6 cm]
JUNCTION BOX
34 1/2 in
[87.6 cm]
(STANDARD)
38 5/16 in
[97.3 cm]
1 1/2 in [3.8 cm]
{END}
C
L
FRONT OF CASE
72 in [182.9 cm] {6' case}
NOTES:
** RECOMMENDED STUB-UP CENTERLINE FOR ELECTRICAL AND HUB DRAINS
14
CONTROL SETTINGS-
MODEL
OSAA-6’
Factory Settings
Parameter Description OSAA-6’
Setpoint
HY Hysteresis (differential) [1 to 9oF/oC]
LL Setpoint Low Limit [67oF (55oC) to HL]
HL Setpoint High Limit [LL to 99oF/oC]
CC Anti-Short Cycling Timer [0 to 9 min.]
Co Deep Freeze Cycle Time [0 to 99 min.]
AH High Temperature Alarm Value (degrees above setpoint) [0 to 55oF/oC]
AL Low Temperature Alarm Value (degrees below setpoint) [-50 to 0oF/oC]
Ad Alarm Differential [1 to 9oF/oC]
At Alarm Time Delay [0 to 99 min.]
dF Defrost Type (0-electrical; 1-hot gas)
dE Defrost End Mode (0-timed defrost; 1-temperature terminated defrost)
dt Defrost Termination Temperature [32oF to 68oF (0oC to 20oC)]
di Defrost Interval [0 to 99 hours]
dd Maximum Defrost Duration [1 to 99 min.]
dC Dripping Time After Defrost [0 to 99 min.]
dU Initial Defrost Interval (time before first defrost after startup) [0 to 99 min.]
dP Defrost Display (0-displays last value before defrost; 1-displays setpoint)
dr Display Delay After Defrost [1 to 99 min.
iF Digital Input Type (0-no digital input;
1-if digital input open, compres. off w/alarm on:
2-if digital input open, alarm on (contacts closed);
3-if digital input open, fan off w/alarm on)
id Digital Input Time Delay [0 to 99 sec.]
FF Fan Function (0-fan runs parallel with compressor; 1-fan on)
Fd Fan Start-Up Delay (after defrost) [0 to 99 min.]
Fr Fan Start-Up Temp. [-22oF to 41oF/-30oC to 5oC]
SF Sensor Failure Operation (0-compressor off; 1-compressor on;
2-compressor on/off based on last 4 cycles)
So Temperature Sensor Offset [-20oto 20oF/oC]
Un Units Used (0-oC; 1-oF)
PU Display Refresh Rate [1 to 99 sec.]
Factory Control Settings
22
3
18
30
1
60
10
-10
5
3
0
1
50
8
45
0
0
0
5
0
0
1
0
40
1
0
1
1
Compressor
Status
LED
Manual Defrost
Button
Enter
Button
Fan
Status
LED
Defrost
Status
LED
Up
Button
Down
Button
15
Error Code System Status
F2 Indicates an open or
shorted evaporator
sensor. Correct
problem to reset
control.
F1 Indicates an open or
shorted temperature
sensor. Cycle Power
to reset control.
A2 Digital input is closed
and digital input option
(if) 1 is selected.
A3
Digital input is open
for longer than time
delay (id) and digital
input option (if) 3 is
selected.
HI
Temperature has
exceeded the high
temp. alarm value (AH).
LO
Temperature has fallen
below the low temp.
alarm value (AL).
EE Program failure: control
must be replaced.
A1 Digital input was open
for longer than time
delay (id) and digital
input option (if) 1 is
selected.
Alarm output on defrost
cycle is controlled by parameters di (defrost initiation)
and dd (defrost duration)
Alarm output on compressor
runs according to the sensor
failure mode selected (parameter sf)
Alarm output is on
Fan output is off
Alarm output is on
Alarm output is on
Alarm output is on
Alarm output is on
Other outputs off
Compressor off
Alarm output on
IMPORTANT: Disconnect loads before
beginning self test.
Cycle power to
resume operation.
Press the “Up” and the “Down” buttons
in sequence and hold for 5 seconds.
To Initiate Self-Test:
Press and the “Enter” and “Up” buttons
in sequence and hold for five seconds.
The compressor status LED will light.
To Initiate a deep freeze cycle:
Press the “Enter,” the “Up,” and the
“Down” buttons in sequence and hold
them all down until “- - -” is displayed.
Hold for about 10 seconds until the
current temperature is displayed.
To lock and unlock the unit:
1. Hold down the “Enter” button down
for 3 seconds. The display will change
to show the setpoint.
2. Press the “Up” or “Down” button until
you reach the new setpoint.
3. Press the “Enter” button to save the
new setpoint.
To change setpoint:
1. Hold the “Enter” button down for
about 10 seconds. The display will
change to “Hy.”
2. Press the “Up” and “Down” button
until the desired parameter is shown
3. Press the “Enter” button. The parameter’s current value will be shown.
4. Press the “Up” and “Down” button
until the desired value is shown.
5. Press the “Enter” button to save the
new value. After 10 seconds of inactivity, the display will return to its normal
function.
To program parameters:
Hold the Defrost button down for 3
seconds.
To Initiate Manual Defrost:
}
}
}
16
WIRING DIAGRAMS-
MODEL
OSAA-6’
L6
(OPTIONAL)
NOSE LIGHTS
L5
PRIMARY CORNICE LIGHTING
L4
L2
TWO ROW CORNICE LIGHTING (OPTIONAL)
L3
L1
BLU
BLU
RED
RED
BLU
BLU
EB1
EB2
YEL
YEL
BLK
WHT
BLK
RED
WHT
WHITE
BLACK
REAR SILL
WHITE
BLACK
BACK OF CONTROL MODULE
TEMP PROBE (LOCATION- RETURN AIR)
DEFROST PROBE (LOCATION- COIL)
L8
L7
BLU
BLU
EB6
BLK
WHT
RED
WHITE
BLACK
D
S1
E
R
E
IT
H
W
SC
E
IT
H
W
S2
D
E
R
D
02
N
E
E
R
G
01
D
E
R
V2
E
IT
H
W
V1
E
U
L
B
FRONT GLASS ANTI-COND HEATER
TEMP. CONTROL (OPTIONAL)
DEF. TERM. CONTROL (OPTIONAL)
HTR2
HTR1
YELLOW
YELLOW
WHITE
BLACK
BLU
BLU
EB6
BLK
RED
WHT
PURPLE
TEMP
PROBE
WIRES FROM PROBES
PROBE
DEFROST
WIRES FROM POWER MODULE
DEFROST HEATERS (OPTIONAL)
BLUE
BLUE
RED
J2-1
J2-2
GREEN
PURPLE
RED
SW1
WHITE
BLACK
P3
J3
RED
SHELF LIGHTS (OPTIONAL)
YELLOW
YELLOW
BLACK
WHITE
FAN MOTOR
M1 M2
FAN MOTOR
WHITE
BLACK
GREEN
INSIDE CASE
BLUE
RED
4
{
3
{
L2
L1
{
13
{
20 14
19
{
21
23
{
12
11
TO CONTROL J-BOX
FANS
120V FANS
208/240V
OPT DEFROST
120V
HEATERS
ANTI-COND.
COMP. ROOM
TO
COMP. ROOM
TO
120V LIGHTS
GROUND
SCREW
T
N
K
H
R
L
G
B
W
CONDENSING UNIT J-BOX
48
47
242221
52
BLU
111214
51
DUAL PRESSURE SWITCH
BLK
WIRE
CAPS
(3)
K
L
K
L
B
B
51
CONDUIT
52
CONTROL
MODULE
CONTROL J-BOX
PROBES
49
54
(2)
WIRE
CAPS
)
T
E
H
R
IG
U
L
S
E
S
E
IC
R
V
R
I P
E
S
(H
CONDENSING UNIT
GROUND
SCREW
SOLENOID
VALVE COIL
SUCTION LINE
39
01
BLUE
02
WHITE
V2
V1
RED
GREEN
48
47
WIRING
HOLE
3
50
32
4
HOT
14
16
BLK
BLK
BLK
53
BLK
53
(WHITE)
JUMPER
NEUTRAL
BLOCKS
NEUTRAL
TERMINAL
2
12
WIRING
HOLE
1
11
TERMINAL
BLOCKS
13
15
33
HOT
JUMPER
(BLACK)
42
42
42
42
57
BLOCK
GROUND
TERMINAL
POWER
SWITCH
SW1
GRN
BLK
2
240120 DH2DH1
CP2CP1
BLK
48
FNCALM
FNOL2
57
58
BLK
58
38
48
50
49
TO CONTROL J-BOX
33
32
CHASSIS
GROUND
P061904A/P061905K
CPC
ESC3
JOHNSON CONTROL
P055258H
MR4PMUHV
CAP
WIRE
47
J4-120Vac Neu In
J4-120Vac Hot In
120
L2
WIRE
CAPS
J6-120V Hot
J6-Fan
Common DH1
FNO
CP1
J6-Defrost
J5-Amb temp S1
J6-Compressor
DH2
CP2
HI
PRESSURE
SWITCH
DRAIN
PAN
RECEPTACLE
AC PLUG
J5-Common
J5-Def temp
S2
SC
Def temp
Common
J5J6
Defrost
Amb temp
Common
120V Hot
Fan
120VacN
J4
120VacH
Compressor
6
5
1
HOT
NEUTRAL
GROUND
1
4
48
42
CPC-ESC3
CONVERSION
CONNECT CONDENSING
17
CASE OPERATION
American Style Self-Contained Curved Glass Service Deli Merchandiser
OSAA - 6’
All measurements are taken per CRMA specifications.
Medium Temperature Defrost Schedule
No. Per Day Hours
1 12 midnight
2 12 am - 12 pm
3 6 am - 2 pm - 10 pm
4 12 - 6 am - 12 - 6 pm
4
NOTE: - - - not an option on this case model.
Defrost Controls
Volts
1
Phase
115
HP
1/3
RLA
2
(amps)
7.45
LRA
3
(amps)
37.5
Refrig.
R134A
60
Frequency
(Hz)
2.5
Condensing Unit Data
lbs of
Refrig.
OSAA-6’
Model
Electric Defrost
Defrosts
Per Day
2
Model
OSAA-6’
Timed Off Defrost Hot Gas Defrost Reverse Air Defrost
Fail-safe
(min)
- - -
Termination
Temp. (°F)
- - -
Fail-safe
(min)
- - -
Termination
Temp. (°F)
- - -
Fail-safe
(min)
- - -
4
Termination
Temp. (°F)
- - -
Fail-safe
(min)
35
Termination
Temp. (°F)
49
2
RLA - Running Load Amps.
3
LRA - Locked Rotor Amps.
Guidelines & Control Settings
1
Average discharge air velocity at peak of defrost.
Model
24 hr Energy
Usage (kWh)
Suction Pressure @
Case Outlet (psig)
Discharge Air
(
o
F)
Return Air
(
o
F)
Discharge Air Velocity
1
(FPM)
30
20
39
235
OSAA-6’
Superheat Set Point
@ Bulb (oF)
6-8
6’
Volts
120
System Requirements
OSAA
Model
WireHz
2 wire + ground60
Maximum
Fuse
Size
15
Minimum
Circuit
Ampacity
9.74
6’
Standard Fans
Amps
1.02
Watts
51
Defrost
Heaters
120 Volts
Amps
5.0
Watts
600
Anti-Condensate
Heaters
120 Volts
Amps
0.42
Watts
50
Fans per
Case
3
Electrical Data
OSAA
Model
120 Volts
Condenser
Fan
120 Volts
Amps
0.53
Watts
66
120 Volts
Amps
4.16
Watts
500
Drain Pan
Heater
18
DEFROST
AND
TEMP CONTROL
• Electric defrost termination control sensor bulb location
• Electric defrost termination probe location
• Temperature control sensor bulb location (OSA)
It is important to consult the control
setting guidelines shown on page 17 before
setting defrost times. Further adjustment may
be required depending on store conditions.
These cases are equipped with Electric
Defrost. The sensor bulb and probe for electric
defrost termination and the sensor bulb for
temperature control are located behind the
front baffle at the location shown in diagram 1
below.
The defrost termination control thermostat and the temperature control thermostat
are located under the rear sill behind an easily
removable cover, as shown in diagram 2.
1
Thermostat
Location
Rear Sill
2
Ballast
Cover
19
AIR FLOW
AND
PRODUCT LOADING
Cases have been designed to provide maximum product capacity within the refrigerated
air envelope. It is important that you do not
overload the food product display so that it
impinges on the air flow pattern.
DISCHARGE..............1
LOAD LIMIT...............2
AIR FLOW..................3
RETURN AIR GRILL...4
MODEL
OSAA
Overloading will cause malfunction and the
loss of proper temperature levels, particularly when discharge and return air sections are
covered. Please keep products within the
load limit lines shown on the diagram.
2
3
4
1
20
USE
AND
MAINTENANCE
CASE CLEANING
Case is designed to facilitate cleaning. There is a wide
radius formed on the front and back of the inside bottom
that helps accelerate liquid flow and eliminates difficult-toclean sharp corners. All surfaces pitch to a deep-drawn
drain trough that angles toward the front and center of case
where the waste outlet is located for easy access.
The coil is covered to keep food fluids from entering, but
the cover lifts up easily when coil cleaning is desired. The
fan plenum also lifts up for cleaning, exposing a major
portion of the inside bottom of the tank. Make certain the
coil cover is properly closed after cleaning to avoid air
leaks. Front return air grills snap out for cleaning; no fasteners are used.
COIL COVER AND PLENUM LIFT UP
POSITIVE DRAIN OFF
CLEAN DISCHARGE AIR GRILL
DISCHARGE AIR GRILL
(Remove for Cleaning)
FRONT BAFFLE
(Pull Forward)
PLENUM
COIL
COIL
COVER
CLEANING PROCEDURES
• A periodic cleaning schedule should be established to maintain proper sanitation, insure maximum operating efficiency, and
avoid the corrosive action of food fluids on metal parts that are left on for long periods of time. W
e recommend cleaning once
a week.
• To avoid shock hazard, be sure all electrical power is turned off before cleaning. In some installations, more than one
disconnect switch may have to be turned off to completely de-energize the case.
• Check waste outlet to insure it is not clogged before starting the cleaning process and avoid introducing water faster than the
case drain can carry it away.
• Avoid spraying cleaning solutions directly on fans or electrical connections.
• Avoid using high pressure water to flush the tank. A hose without a nozzle should provide enough pressure for cleaning
purposes. Always use cold water.
• Allow cases to be turned off long enough to clean any frost or ice from coil and flue areas.
• Remove and clean discharge honeycomb. You may need to use spray detergent and a soft, long bristle brush.
• Use mild detergent and warm water. When necessary, water and baking soda solution will help remove case odors. Avoid
abrasive scouring powders or pads.
• When cleaning non-glare glass be sure to use a standard glass cleaner and not a multi-purpose cleanser or combination
cleanser.
• A mixture of white vinegar and water or isopropyl alcohol straight from the bottle is very effective in cleaning “build-up” on
non-glare glass.
• Under no circumstances should abrasive cleaning solutions such as scouring powders or steel wool be used to clean nonglare glass.
• When cleaning rear door tracks be sure to remove the rear doors and clean from the outside channel to the inside channel
using the wipe-out groove machined into the track.
• Remove front panels and clean underneath the case with a broom and a long handled mop. Instructions for removing the
front panels can be found on page 9 of this manual.
• Use warm water and a disinfecting cleaning solution when cleaning underneath the cases.
21
FANS
The evaporator fans are equipped with 5 watt
fan motors, 1550 RPM’s. The motor has a counter
clockwise rotation when viewed from the shaft end.
The fan blades are 6” in diameter and the blades are
pitched according to the charts below. It is impor
tant that the blade pitch be maintained as specified. Do not attempt a field modification by
altering the blades.
Fan motors may be changed with an easy
two-step process without lifting up the plenum,
thereby avoiding the necessity to unload the entire
product display to make a change:
1. Unplug the fan motor, easily accessible out
side the plenum
2. Remove three fasteners, then lift out the
entire fan basket
2
1
MODEL
OSAA-6’
Model OSAA
No.
Fans
Blade
Pitch
6’
2
37
o
E10
E11
E09
23
11
24
9
1
26
2
17
88
87
22
5
28
20
3
48
53
55
56
46
9a
69
21
29
36
42
49
E01
77
81
82
66
PARTS ORDERING
MODEL
OSAA
22
50
E06
E07
E09
E11
E10
E20
23
Location Part Descriptions
Number
1 Kickplate, Storm Grey
2 Master Bumper, Featherstone, Smoke, White, French Vanilla, Black
3 Lower Front Panel, Painted or Stainless
5 Front Glass, Lift-Up Thermopane
9 Deck Pan, Painted, Unpainted, Stainless
9a Plenum Cover
11 Front Baffle, Aluminum, Painted White, Custom Color, or Stainless
17 Nose Bumper, Custom Color
20 Lower Rear Baffle, Painted White, Custom Color, or Stainless
21 Shelf Standard, Specify standard or Vieler Shelving
22 Shelves, Lighted or Unlighted, Painted White, Custom Color or Stainless
23 Electrical Junction Box, or Sliding Ballast Tray
24 “J” Rail, for Kickplate
25 Top Flue Panel, Painted Custom Color or Stainless (Not Shown)
26 Front Panel, Painted Custom Color, or Stainless
28 Discharge Air Grill
29 Lightrod,
36 Plug Button
42 Glass Pressure Bar
46 Glass Clamp
48 Rear Sill, Stainless Steel
49 Rear Filler Panel
50 Lamp Shield
53 Mullion Cover, Stainless Steel
54 Inside Mullion Cover, (Not Shown)
55 Doors, Specify Outside or Inside when ordering
56 Door Frame
62 Light Rod Cover (Not Shown)
66 Front Extensions, Inside and Outside
69 Coil, Specify upper or lower coil
77 P-Trap
81 Wire Racks
82 Tag Moulding
83 Thermometer, and Bracket (Not Shown)
87 End Assembly, Solid, Full view, Custom Color
Identify, Left or Right hand, Color of Panel, and color of PVC End Trim
88 End Kickplate, Storm Grey
E01 Defrost Heaters
E02 Anti-Condensate Heaters, (Not Shown)
E03 Thermostats, Temperature and Defrost Termination Control, (Not Shown)
E05 Light Switch, (Not Shown)
E06 Lamp Holder
E07 Bulb
E08 Ballast, Electronic, (Not Shown), (Identify by brand name and model number)
E09 Fan Motor - State High Efficiency or Standard
E10 Fan Blade 6”
E11 Fan Basket, 6”
E19 Receptacle, Recessed, Shelf Light Outlet, White (Not Shown)
E20 Fan Cord-Set - High Efficiency or Standard (Not Shown)
Note
: Ballasts are located under the rear sill for cases equipped with a standard rear sill . Cases equipped with a flat
rear sill have the ballasts located in a sliding ballast tray underneath the case.
24
PARTS ORDERING
Procedure
1. Contact the Service Parts Department
Hill PHOENIX
1925 Ruffin Mill Road
Colonial Heights, Virginia 23834
Tel: 800-283-1109
Fax: 804-526-3897
2. Provide the following information about the part you are ordering:
• Model number and serial number of the case on which
the part is used.
• Length of part, if applicable, I.E. 6’.
• Color of part if painted, or color of polymer part.
• Whether part is for left hand or right hand application.
• Whether shelves are with or without lights.
• Quantity
*Serial plate is located on rear panel on the right hand side of
the case (See illustrations on page 3).
3. If parts are to be returned for credit, ask the Parts Department to
furnish you with a Return Materials Authorization Number.
25
NOTES
26
NOTES
6/00
WARRANTY
HEREINAFTER REFERRED TO AS MANUFACTURER
FOURTEEN MONTH WARRANTY. MANUFACTURER’S PRODUCT IS WARRANTED TO BE FREE FROM
DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USE AND MAINTENANCE FOR A
PERIOD OF FOURTEEN MONTHS FROM THE DATE OF ORIGINAL SHIPMENT. A NEW OR REBUILT
PART TO REPLACE ANY DEFECTIVE PART WILL BE PROVIDED WITHOUT CHARGE, PROVIDED THE
DEFECTIVE PART IS RETURNED TO MANUFACTURER. THE REPLACEMENT PART ASSUMES THE
UNUSED PORTION OF THE WARRANTY.
This warranty does not include labor or other costs incurred for repairing, removing, installing, shipping,
servicing, or handling of either defective parts or replacement parts.
The fourteen month warranty shall not apply:
1. To any unit or any part thereof which has been subject to accident, alteration, negligence, misuse or
abuse, operation on improper voltage, or which has not been operated in accordance with the
manufacturer’s recommendation, or if the serial number of the unit has been altered, defaced, or removed.
2. When the unit, or any part thereof, is damaged by fire, flood, or other act of God.
3. Outside the continental United States.
4. To labor cost for replacement of parts, or for freight, shipping expenses, sales tax or upgrading.
5. When the operation is impaired due to improper installation.
6. When installation and startup forms are not properly complete or returned within two weeks after startup.
THIS PLAN DOES NOT COVER CONSEQUENTIAL DAMAGES. Manufacturer shall not be liable under any
circumstances for any consequential damages, including loss of profit, additional labor cost, loss of
refrigerant or food products, or injury to personnel or property caused by defective material or parts or for
any delay in its performance hereunder due to causes beyond its control. The foregoing shall constitute
the sole and exclusive remedy of any purchases and the sole and exclusive liability of Manufacturer in
connection with this product.
The Warranties are Expressly in Lieu of All Other Warranties, Express of Implied and All Other
Obligations or Liabilities on Our Part. The Obligation to Repair or Replace Parts or Components
Judged to be Defective in Material or Workmanship States Our Entire Liability Whether Based on Tort,
Contract or Warranty. We Neither Assume Nor Authorize Any Other Person to Assume for Us Any
Other Liability in Connection with Our Product.
MAIL CLAIM TO:
Hill PHOENIX
Display Merchandisers
1925 Ruffin Mill Road
Colonial Heights, VA 23834
804-526-4455
Hill PHOENIX
Refrigeration Systems &
Electrical Distribution Products
709 Sigman Road
Conyers, GA 30013
770-285-3200
1925 Ruffin Mill Road, Colonial Heights, VA 23834
Due to our commitment to continuous improvement all specifications are subject to change without notice.
Hill PHOENIX is a Sustaining Member of the American Society of Quality.
CRMA endorsed
Visit our web site at www.hillphoenix.com
804-526-4455
ASH3090
Warning
Maintenance & Case Care
When cleaning cases the following must be performed
PRIOR to cleaning:
To avoid electrical shock, be sure all electric power is
turned off before cleaning. In some installations, more
than one switch may have to be turned off to completely
de-energize the case.
Do not spray cleaning solution or water directly on fan
motors or any electrical connections.
All lighting receptacles must be dried off prior to insertion
and re-energizing the lighting circuit.
Please refer to the Use and Maintenance section of this installation manual.
Loading...
