Hill Laboratories Hill Mat Reference Manual

Hill Mat

Treatment Table

R E F E R E N C E M A N U A L

Congratulations!

And welcome to the Hill Laboratories family

HillLaboratories Company has been making

quality a family business since 1945.

Your Hill Mat Table is built in a tradition of

innovation and value that Hill Laboratories products

have become known for.

Our good name rests on the confidence that

your Hill Chair will provide you with solid, reliable service

for many years to come.

At Your Service

The Hill Laboratories Guarantee

Your Hill Laboratories Mat Table has been thoroughly tested and inspected before

shipment. All parts are guaranteed against defect in materials for one full year

from date of purchase. During this period, any such defect will be remedied by

Hill Laboratories or by a factory-authorized repair service without charge.

Tables damaged by mishandling or accident will be

repaired at a reasonable charge.

All correspondence should be directed to your local dealer, or when this is not

possible, to Hill Laboratories directly.

We appreciate your business and your confidence in our product. Our aim is to

provide you with excellent service and satisfaction for many years to come.

President of Hill Laboratories Company

Table Serial Number_______________________________

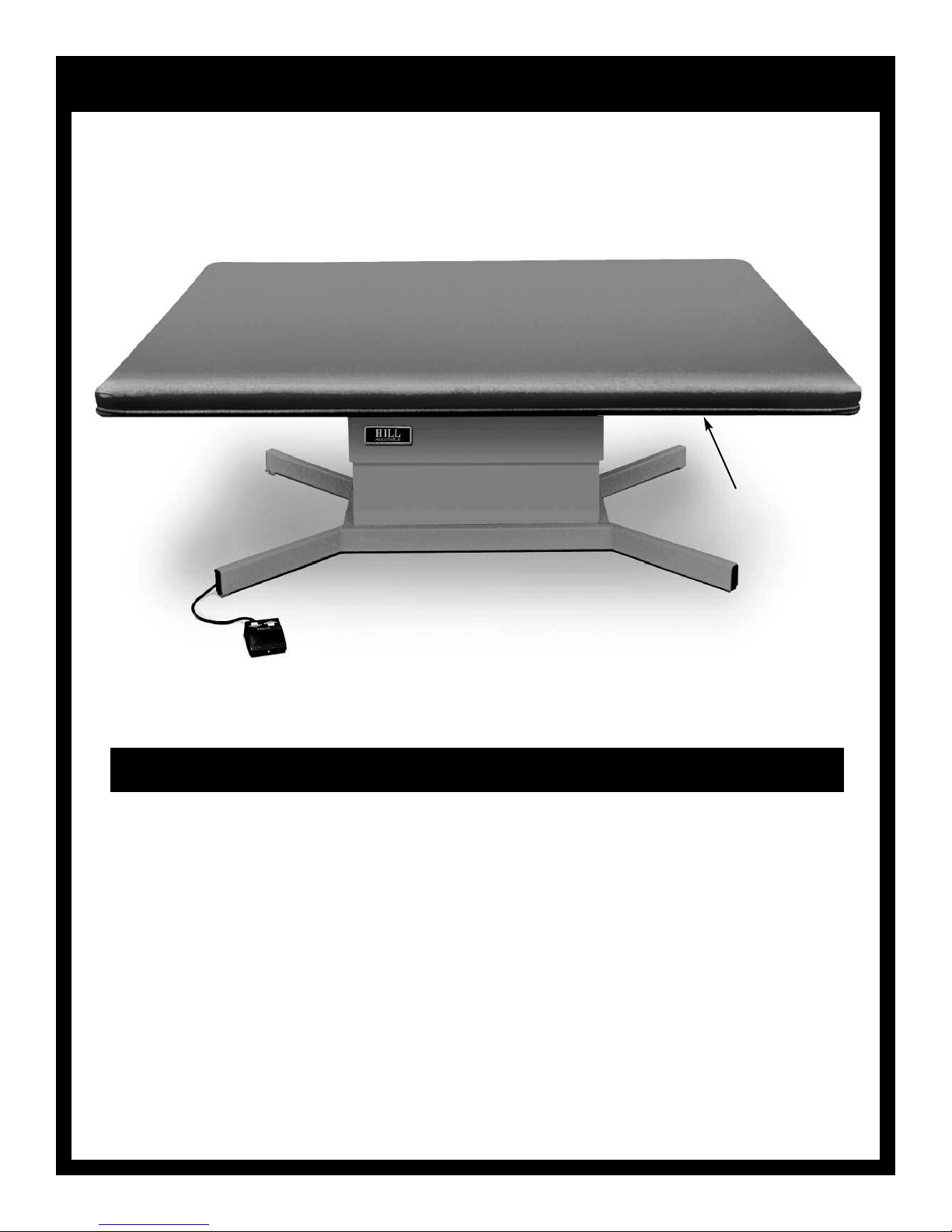

Your Hill Mat Table comes ready to plug into any 115 v~ outlet.

Protective

acrylic base

Encloses all

interior parts

Ready for use

Stain Resistant Vinyl Upholstery

Vinyl Bumber Guard

Protects table perimeter

For easy mobility around the table

Electric Foot Pedal

for height adjustment

Specifications

Lifting Capacity

700 lbs.

Height Range - 20”- 33”

Standard Sizes

4'x7', 5'x7', 6'x8'

Table Base Skirting

Acrylic thermo-plastic

Foam

Ultra-Cell®for comfort and shape retention

Shipping Weight

Approximately 250 lbs

Recessed Legs

Electric Requirements

115 v~, 60 Hz., 5 A (single motor), 10 A (2 motor),
where specified - 230 v~, 50 Hz.

Note: Grounding reliability can only be achieved
when the equipment is connected to an equivalent
receptacle marked hospital only or hospital grade.
There is no EMI concern related to the safe
operation of this table.

Transportation and Storage Conditions

Ambient Temperature Range:

-30°C to +60°C (-22°F to 140°F)

Relative Humidity

0% to 90% (non-condensing)

3

Table Care

Cleaning Your Table

Your Hill Table comes upholstered in a highly durable vinyl material. Its appearance is guarded by Prefixx

brand protective finish. Your upholstery may be cleaned with the Hill Laboratories Vinyl Cleaner or any non-

abrasive household detergent without change to surface luster. Stubborn stains can be cleaned with most

common solvent cleaners such as naphtha (lighter fluid), rubbing alcohol (IPA type), toluene, Coleman

gas, turpentine (paint thinner), and nail polish remover (50/50 mixture of acetone and water) with no change

to surface luster or color. One hundred percent acetone can also be used for short periods but it is sug-

gested that it first be tested on an inconspicuous area of the table.

Caution: These solvents are highly flammable; exercise proper care when cleaning with these materials and

do not use near open flame or intense heat. Wear rubber gloves during all cleaning activities. When clean-

ing other parts of your table (besides upholstery) use only nonabrasive household detergents and water.

™

Cautions and Symbol Explanation

Caution: Be sure to unplug your Hill Table before performing any maintenance on the table.

Caution: The table should be checked once a year to make sure all internal and external bolts are secure.

Caution: The table should be in its lowest height position when not attended.

Caution: In case of power outage, the table will rely on the generator back-up of the facility where the table

is installed for powering the table to its lowest position.

Caution: The power cord shall be located to avoid objects being rolled over or placed on top of it and also to

avoid people tripping over it. Damaged cords should be replaced with another of hospital grade.

Caution:

equivalent receptacle marked hospital only or hospital grade.

Symbols - Each of the symbols below are used in your product labeling. An explanation of

each is below.

Attention Symbol

consult accompanying

Grounding reliability can only be achieved when the equipment is connected to an

Dangerous Voltage

Symbol

documents

Type BF Applied

Part Symbol

Ground

Symbol

Alternating Current

~

Symbol

4

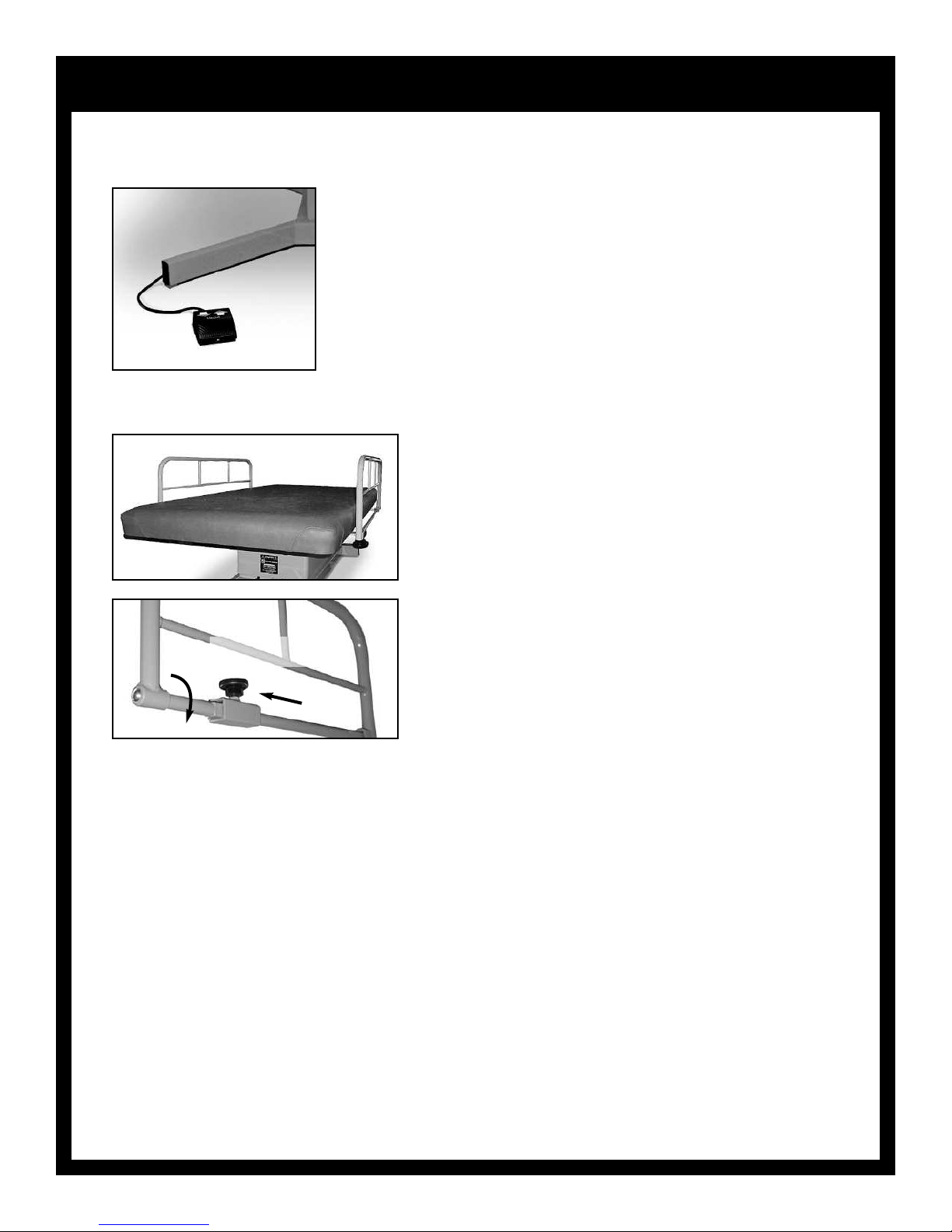

Foot Pedals

Table Features

Two foot pedals may be included on your Mat Table. One,

marked Height, controls table elevation. For Mat tables with the

lift back function, a second pedal marked Back, controls the

angle of the back cushion. Foot pedals should be carefully locat-

ed so as to avoid creating a tripping hazard.

Side Rails

Optional side rails are mounted at each side of the

mat cushion and very helpful for increased security

while patient is positioned on the table. To move the

Loosen knob, push back,
then swing down

rails to the down position, loosen the black knob (see

photo), push rail towards the left to disengage the

square locking tube, and then swing the rail to the

down position.

5

 





RU



[[









[









[

 

+HLJKW5DQJH

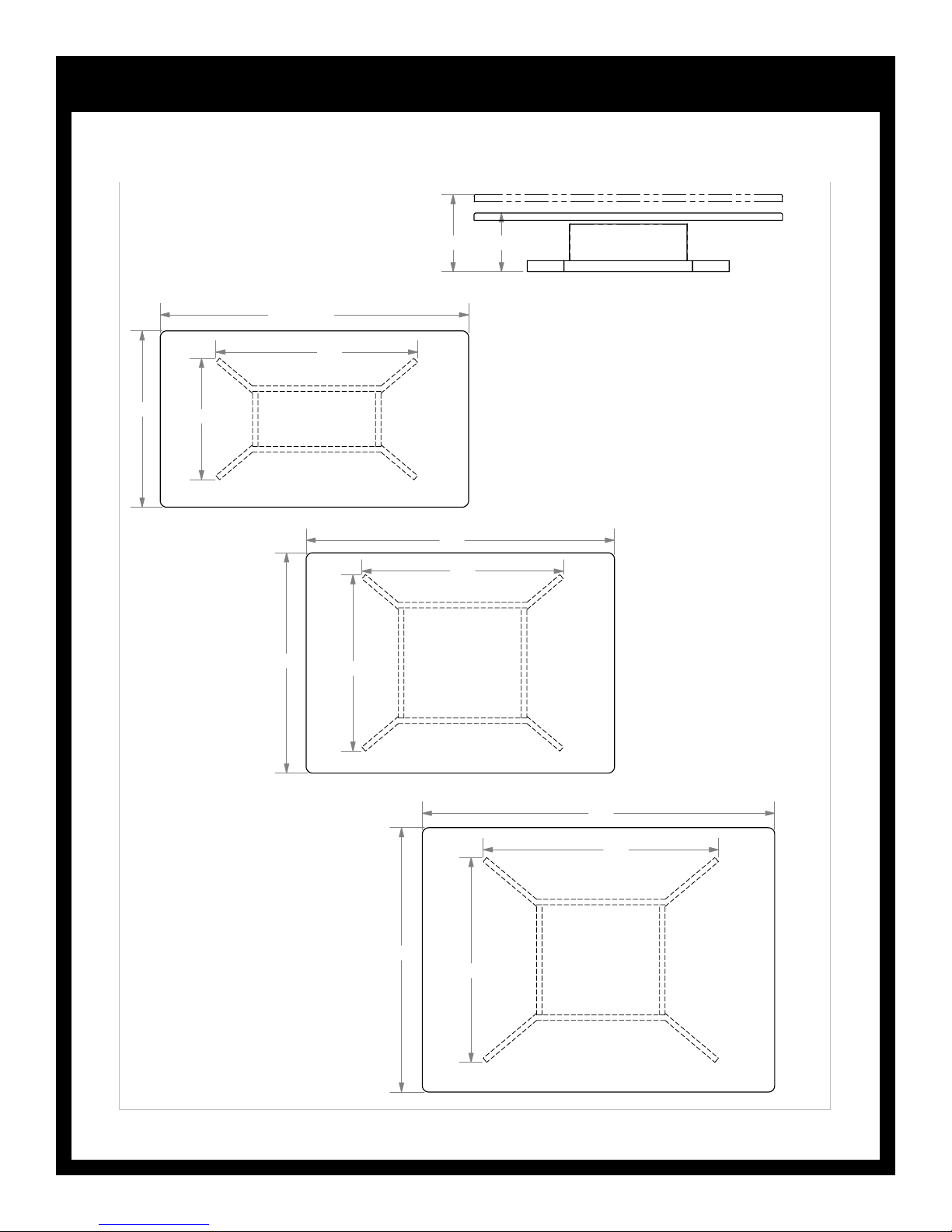

Diagrams

HA90 Dimensions

6

Wiring Diagrams

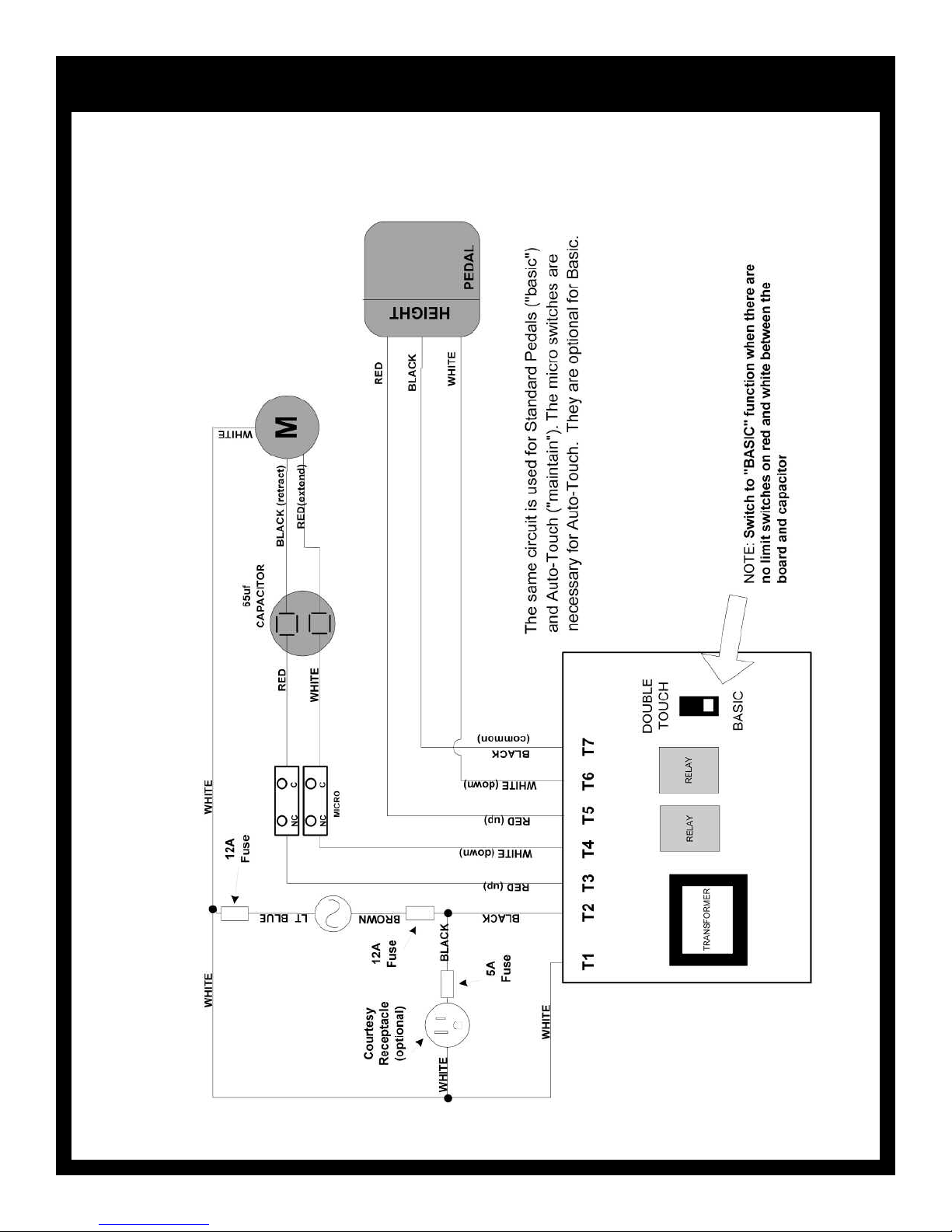

Single Motor Diagram

7

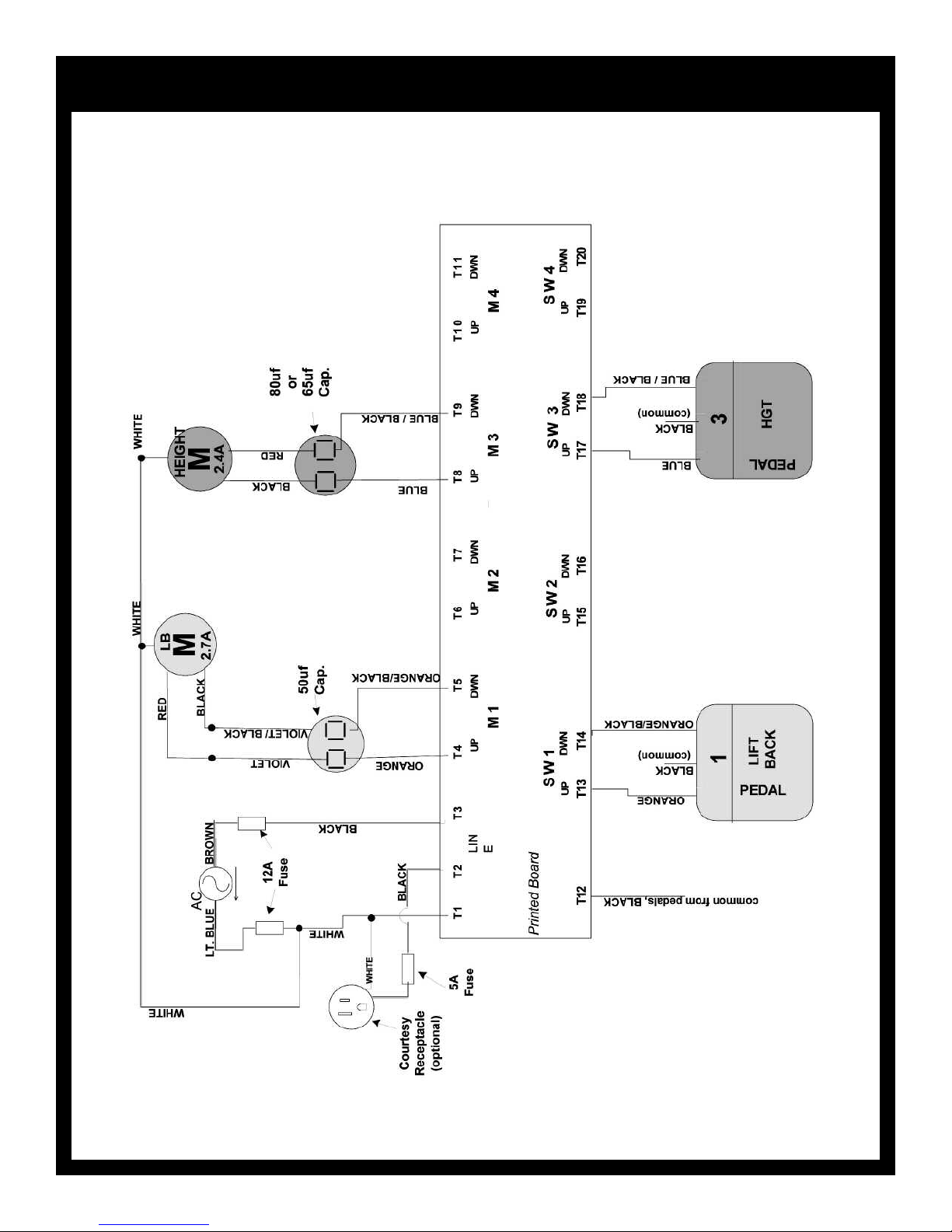

Wiring Diagrams

Two Motor Diagram

8

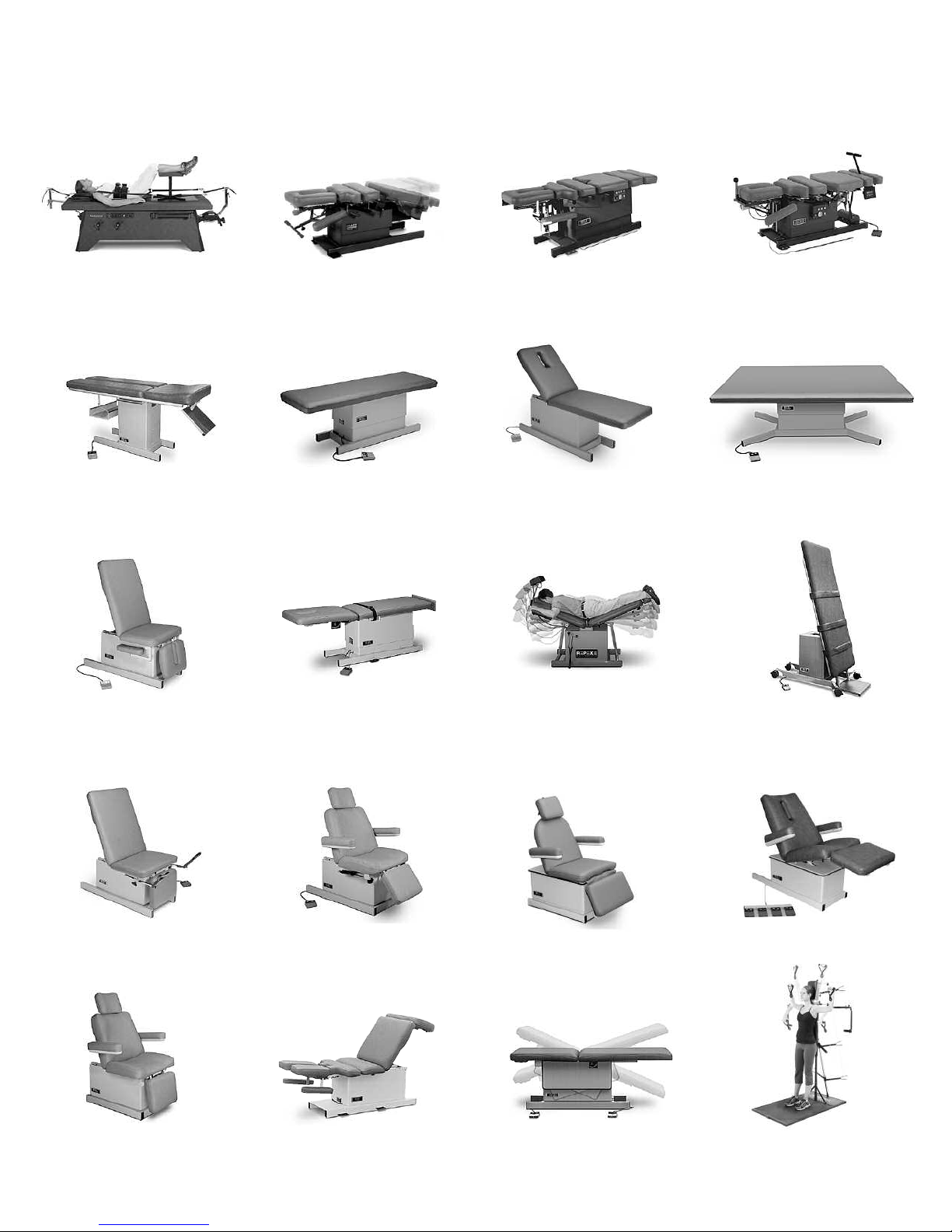

Tables Manufactured by Hill Laboratories

Anatomotor

Massage w/Traction

Hi-Lo

PT Mobilization

90C

HA90

Rath Mechanical

McKenzie Technique

Air90C

HA90 Lift Back

Repex Table

McKenzie Technique

Air-Flex

w/4 Drops

Mat Table

PT Tilting

HA90E

Podiatry Model

Counterstrain

(multi-positional)

90MD

90D Dermatology

Chair

HA90V Tilt

Vascular/Diagnostic

90W Wound Care Chair

Posture Angel™

Active Rehab System

P.O. Box 2028, 3 Bacton Hill Road, Frazer, PA 19355 • phone [phone] • 610-644-2867 • fax [phone] • www.HillLabs.com
