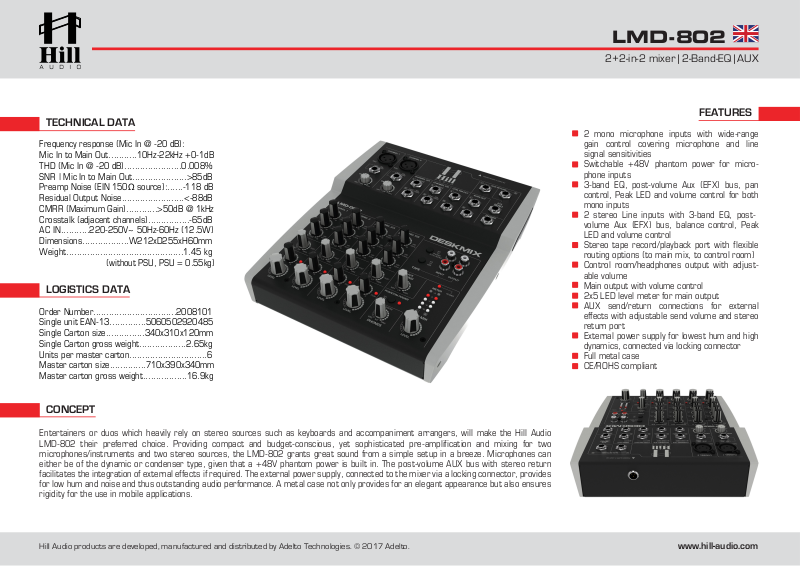

Hill Audio LMD-802 Technical data
TECHNICAL DATA
Frequency response (Mic In @ -20 dB):
Mic In to Main Out...........10Hz-22kHz +0-1dB
THD (Mic In @ -20 dB)......................0.008%
SNR | Mic In to Main Out.....................>85dB
Preamp Noise (EIN 150Ω source):......-118 dB
Residual Output Noise........................<-88dB
CMRR (Maximum Gain)............>50dB @ 1kHz
Crosstalk (adjacent channels)................-65dB
AC IN...........220-250V~ 50Hz-60Hz (12.5W)
Dimensions..................W212xD255xH60mm
Weight.............................................1.45 kg
(without PSU, PSU = 0.55kg)
LOGISTICS DATA
Order Number................................2008101
Single unit EAN-13..............5060502920485
Single Carton size...............340x310x120mm
Single Carton gross weight..................2.65kg
Units per master carton..............................6
Master carton size..............710x390x340mm
Master carton gross weight.................16.9kg
LMD-802
2+2-in-2 mixer | 2-Band-EQ | AUX
FEATURES
2 mono microphone inputs with wide-range
gain control covering microphone and line
signal sensitivities
Switchable +48V phantom power for microphone inputs
3-band EQ, post-volume Aux (EFX) bus, pan
control, Peak LED and volume control for both
mono inputs
2 stereo Line inputs with 3-band EQ, postvolume Aux (EFX) bus, balance control, Peak
LED and volume control
Stereo tape record/playback port with flexible
routing options (to main mix, to control room)
Control room/headphones output with adjustable volume
Main output with volume control
2x5 LED level meter for main output
AUX send/return connections for external
effects with adjustable send volume and stereo
return port
External power supply for lowest hum and high
dynamics, connected via locking connector
Full metal case
CE/ROHS compliant
CONCEPT
Entertainers or duos which heavily rely on stereo sources such as keyboards and accompaniment arrangers, will make the Hill Audio
LMD-802 their preferred choice. Providing compact and budget-conscious, yet sophisticated pre-amplification and mixing for two
microphones/instruments and two stereo sources, the LMD-802 grants great sound from a simple setup in a breeze. Microphones can
either be of the dynamic or condenser type, given that a +48V phantom power is built in. The post-volume AUX bus with stereo return
facilitates the integration of external effects if required. The external power supply, connected to the mixer via a locking connector, provides
for low hum and noise and thus outstanding audio performance. A metal case not only provides for an elegant appearance but also ensures
rigidity for the use in mobile applications.
Hill Audio products are developed, manufactured and distributed by Adelto Technologies. © 2017 Adelto.
www.hill-audio.com
