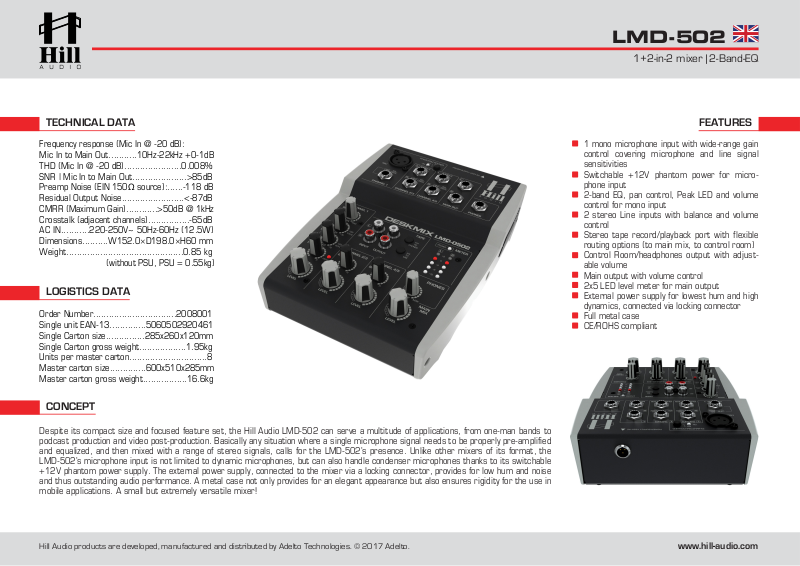

Hill Audio LMD-502 Technical data
LMD-502
1+2-in-2 mixer | 2-Band-EQ
FEATURESTECHNICAL DATA
Frequency response (Mic In @ -20 dB):
Mic In to Main Out...........10Hz-22kHz +0-1dB
THD (Mic In @ -20 dB)......................0.008%
SNR | Mic In to Main Out.....................>85dB
Preamp Noise (EIN 150Ω source):......-118 dB
Residual Output Noise........................<-87dB
CMRR (Maximum Gain)............>50dB @ 1kHz
Crosstalk (adjacent channels)................-65dB
AC IN...........220-250V~ 50Hz-60Hz (12.5W)
Dimensions..........W152.0×D198.0×H60 mm
Weight.............................................0.85 kg
(without PSU, PSU = 0.55kg)
LOGISTICS DATA
Order Number................................2008001
Single unit EAN-13..............5060502920461
Single Carton size...............285x260x120mm
Single Carton gross weight..................1.95kg
Units per master carton..............................8
Master carton size..............600x510x285mm
Master carton gross weight.................16.6kg
CONCEPT
1 mono microphone input with wide-range gain
control covering microphone and line signal
sensitivities
Switchable +12V phantom power for microphone input
2-band EQ, pan control, Peak LED and volume
control for mono input
2 stereo Line inputs with balance and volume
control
Stereo tape record/playback port with flexible
routing options (to main mix, to control room)
Control Room/headphones output with adjustable volume
Main output with volume control
2x5 LED level meter for main output
External power supply for lowest hum and high
dynamics, connected via locking connector
Full metal case
CE/ROHS compliant
Despite its compact size and focused feature set, the Hill Audio LMD-502 can serve a multitude of applications, from one-man bands to
podcast production and video post-production. Basically any situation where a single microphone signal needs to be properly pre-amplified
and equalized, and then mixed with a range of stereo signals, calls for the LMD-502’s presence. Unlike other mixers of its format, the
LMD-502’s microphone input is not limited to dynamic microphones, but can also handle condenser microphones thanks to its switchable
+12V phantom power supply. The external power supply, connected to the mixer via a locking connector, provides for low hum and noise
and thus outstanding audio performance. A metal case not only provides for an elegant appearance but also ensures rigidity for the use in
mobile applications. A small but extremely versatile mixer!
Hill Audio products are developed, manufactured and distributed by Adelto Technologies. © 2017 Adelto.
