Page 1
13450 Monte Vista Avenue
Chino, California 91710
Telephone: (909) 465-1999
Toll Free: (800) 465-0211
Fax: (909) 465-0907
www.hilitemfg.com
1. Holding the rack in the desired position on wall mark the locations where the mounting holes fall. If wood screws are to be used,
be sure the marks are located on studs. If molly bolts are to be used be sure the marks are clear of studs. Use a level to check alignment.
2. Drill the required size and depth of holes for the attachment hardware selected. If molly bolts are used, tap the bolt body into place, seat it
by compressing it with the screw and withdraw the screw..
3. Align the rack's mounting holes with the holes drilled in the wall and screw in the wood or molly bolt.screw.

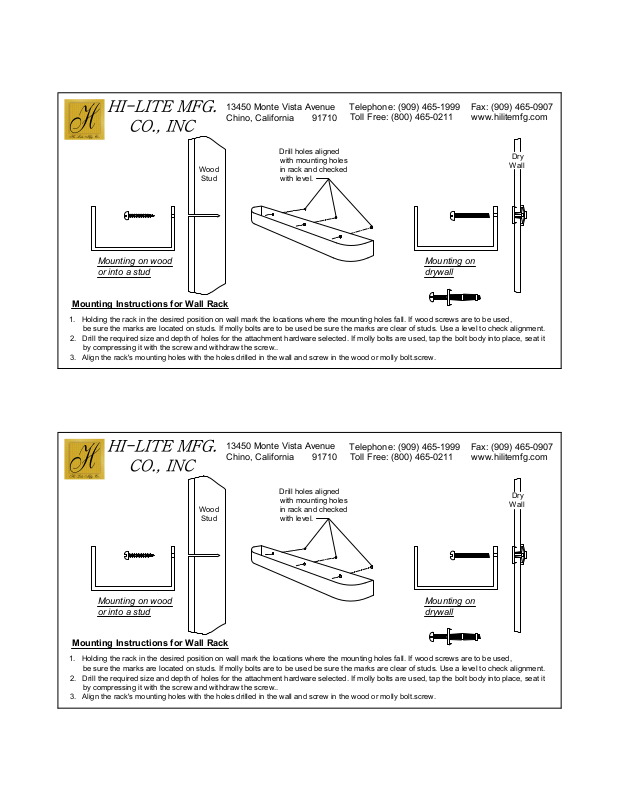

Mounting Instructions for Wall Rack
Wood
Stud
Dry
Wall
Mounting on wood
or into a stud
Mounting on
drywall
Drill holes aligned
with mounting holes
in rack and checked
with level.
13450 Monte Vista Avenue
Chino, California 91710
Telephone: (909) 465-1999
Toll Free: (800) 465-0211
Fax: (909) 465-0907
www.hilitemfg.com
1. Holding the rack in the desired position on wall mark the locations where the mounting holes fall. If wood screws are to be used,
be sure the marks are located on studs. If molly bolts are to be used be sure the marks are clear of studs. Use a level to check alignment.
2. Drill the required size and depth of holes for the attachment hardware selected. If molly bolts are used, tap the bolt body into place, seat it
by compressing it with the screw and withdraw the screw..
3. Align the rack's mounting holes with the holes drilled in the wall and screw in the wood or molly bolt.screw.
Mounting Instructions for Wall Rack
Wood
Stud
Dry
Wall
Mounting on wood
or into a stud
Mounting on
drywall
Drill holes aligned
with mounting holes
in rack and checked
with level.
