Assembly Diagram
H-78Y,H-88Y,H-85Y,H-10Y,H-12Y,H-11Y,H-24Y,H-22Y,H-32Y,H-34Y,H-13Y,
H-77Y,H-42-Y,H-44Y,H-52Y,H-60Y,H-64Y,H-71Y,H-72-Y,H-81Y,H-82Y,
H-90Y,H-91Y,H-92Y,H-93Y,H-76Y
13450 Monte Vista Avenue
Chino, California 91710
Telephone: (909) 465-1999
Toll Free: (800) 465-0211
Fax: (909) 465-0907
www.hilitemfg.com
Frame
Chain (2)
Variable Length
1/4" Threaded
nipple assembly (1)
Heavy duty ball (1)
1/4" Hex nut (1)
1/4" Nipple (1)
U-Loop assembly (2)
1/8" Hex nut (4)
1/8" Lock washer (4)
Adjust chain length
to suit fixture height
Chain from fixture
Junction box
Grounding screw (1)
Mounting strap (1)
8-32 (2)
8-32 (2)

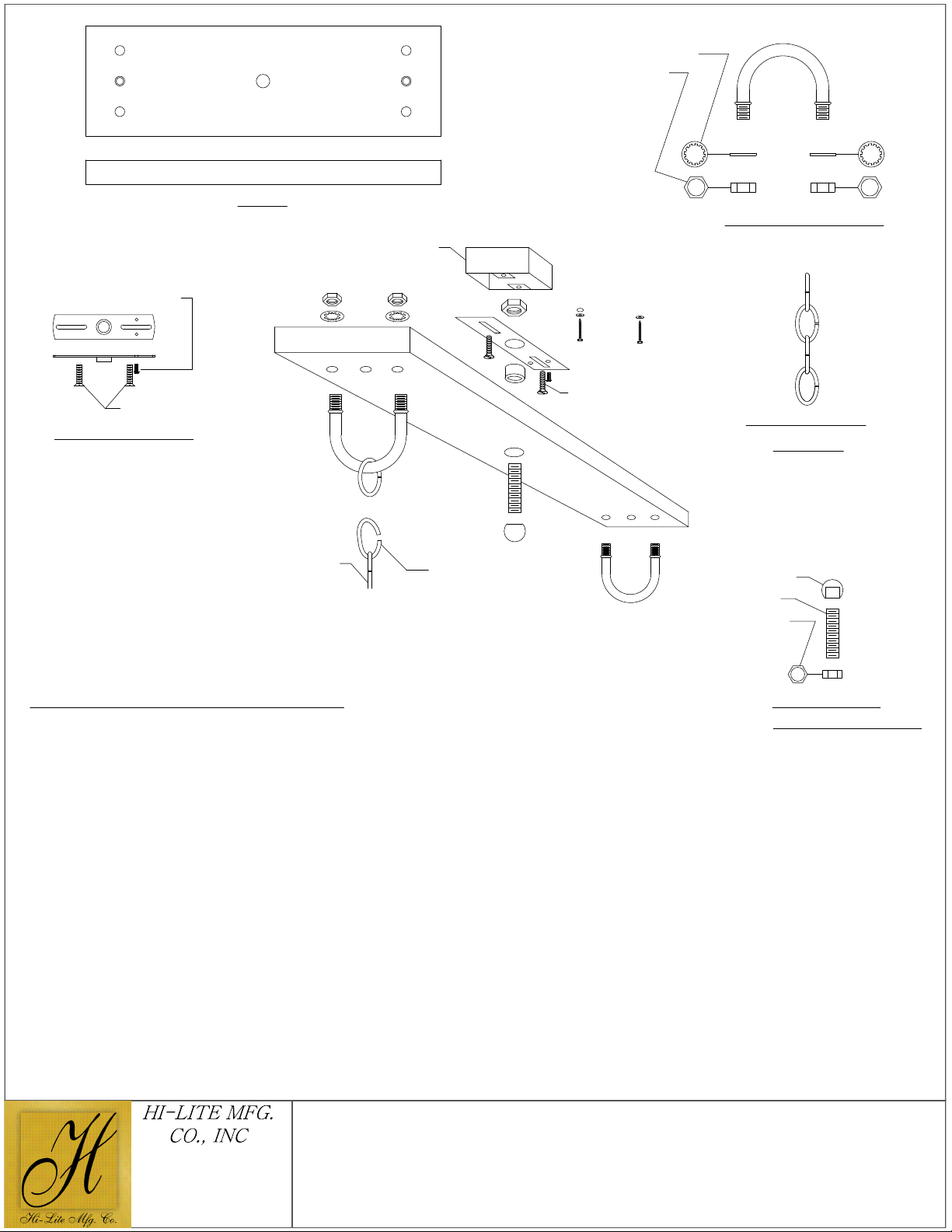

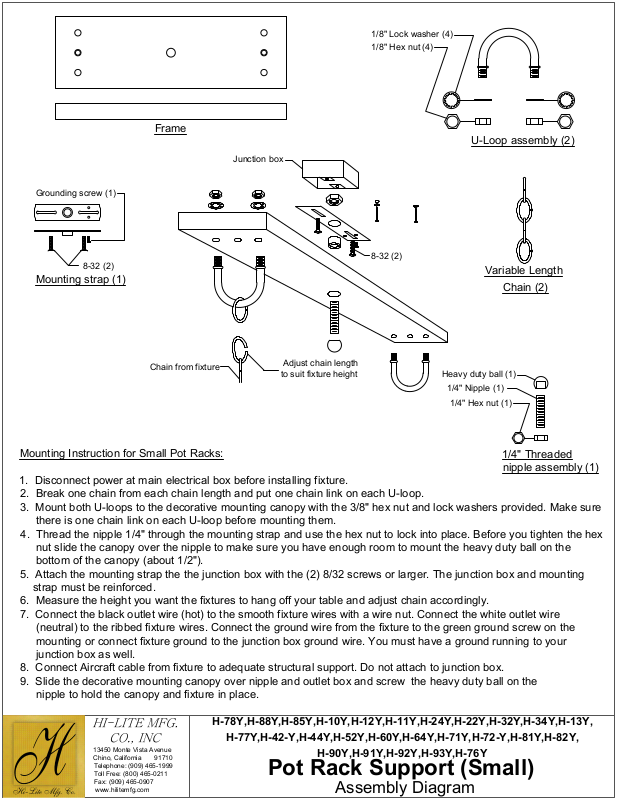

Mounting Instruction for Small Pot Racks:
1. Disconnect power at main electrical box before installing fixture.
2. Break one chain from each chain length and put one chain link on each U-loop.
3. Mount both U-loops to the decorative mounting canopy with the 3/8" hex nut and lock washers provided. Make sure
there is one chain link on each U-loop before mounting them.
4. Thread the nipple 1/4" through the mounting strap and use the hex nut to lock into place. Before you tighten the hex
nut slide the canopy over the nipple to make sure you have enough room to mount the heavy duty ball on the
bottom of the canopy (about 1/2").
5. Attach the mounting strap the the junction box with the (2) 8/32 screws or larger. The junction box and mounting
strap must be reinforced.
6. Measure the height you want the fixtures to hang off your table and adjust chain accordingly.
7. Connect the black outlet wire (hot) to the smooth fixture wires with a wire nut. Connect the white outlet wire
(neutral) to the ribbed fixture wires. Connect the ground wire from the fixture to the green ground screw on the
mounting or connect fixture ground to the junction box ground wire. You must have a ground running to your
junction box as well.
8. Connect Aircraft cable from fixture to adequate structural support. Do not attach to junction box.
9. Slide the decorative mounting canopy over nipple and outlet box and screw the heavy duty ball on the
nipple to hold the canopy and fixture in place.
Pot Rack Support (Small)
