HF / VHF Transceiver
PT-8000A
Operating Manual
Version 2.00.33
Copyright-notice to the ring binder title
All Figure rights reserved by: Bundeswehr / PIZ Marine, DGzRS and Hilberling GmbH
i
HF / VHF Transceiver
Hilberling PT-8000A
Operating Manual
PT-8000A, HN-8000 and T9
are
developed and manufactured in the EU
by
Hilberling GmbH
Kieler Strasse 53
24768 Rendsburg
Germany
Logo and name of Hilberling GmbH are registered trademarks
Distribution of the complete Document is desired
However, each partial copy or distribution is prohibited
Errors and changes excepted
ii
IMPORTANT NOTE AND PRECAUTIONS
Important
Read and save this Operating Manual carefully before attempting to operate the HF/VHF PT-8000A
transceiver. This manual contains important safety and operating instructions for the transceiver.
Precautions
WARNING HIGH VOLTAGE! NEVER touch an antenna or internal antenna connector during
transmission. This may result in an electrical shock or burn of your skin by high-frequency.
NEVER apply AC to the DC socket on the transceiver rear panel. This will ruin the transceiver and
may cause fire.
NEVER allow any object touch any internal parts or connectors on the rear panel of the
transceiver. This could cause electrical shock and severe injury.
NEVER expose the PT-8000A to precipitation like rain or any liquid nor operate the transceiver in
excessively dusty or very humid environment.
NEVER allow children or any unauthorized persons to operate the transceiver.
AVOID placing and using the transceiver in areas with temperatures below -15°C or above +50°C. If the
environment temperature drops so low that the dew point is undercut, avoid operating before the devices
are dried completely.
AVOID placing the transceiver and the power supply against a wall. This may inhibit proper air circulation
and could cause overheat. Do not cover any air inlets and outlets at top, bottom and rear panel of the
devices.
USE CARE when connecting the transceiver to a linear amplifier. Keep in mind the performance limits or
operating ranges of electrical connectors and interfaces. Set the PT-8000A RF-output level to less than the
linear amplifier’s maximum input level to prevent amplifier damage.
USE CARE when not operating the transceiver with Hilberling T9 microphone. Others may have different
pin assignments and connecting to the transceiver may cause damage to the transceiver and the
microphone.
Copyright © 2008-2013 by Hilberling GmbH
PT-8000A Operating Manual v2.00.33 iii
TABLE OF CONTENT
Important Note And Precautions ii
Table of Content iii
Federal Communications Commission (FCC) Statement vi
3 Introductory Notes
3.1 Scope Of Delivery .................................................................................................................................... 1
3.2 About This Manual .................................................................................................................................. 1
3.3 Notes On Locating ................................................................................................................................... 2
3.4 Antenna Considerations / Antenna Tuner .................................................................................................. 3
4 Connectors PT-8000A

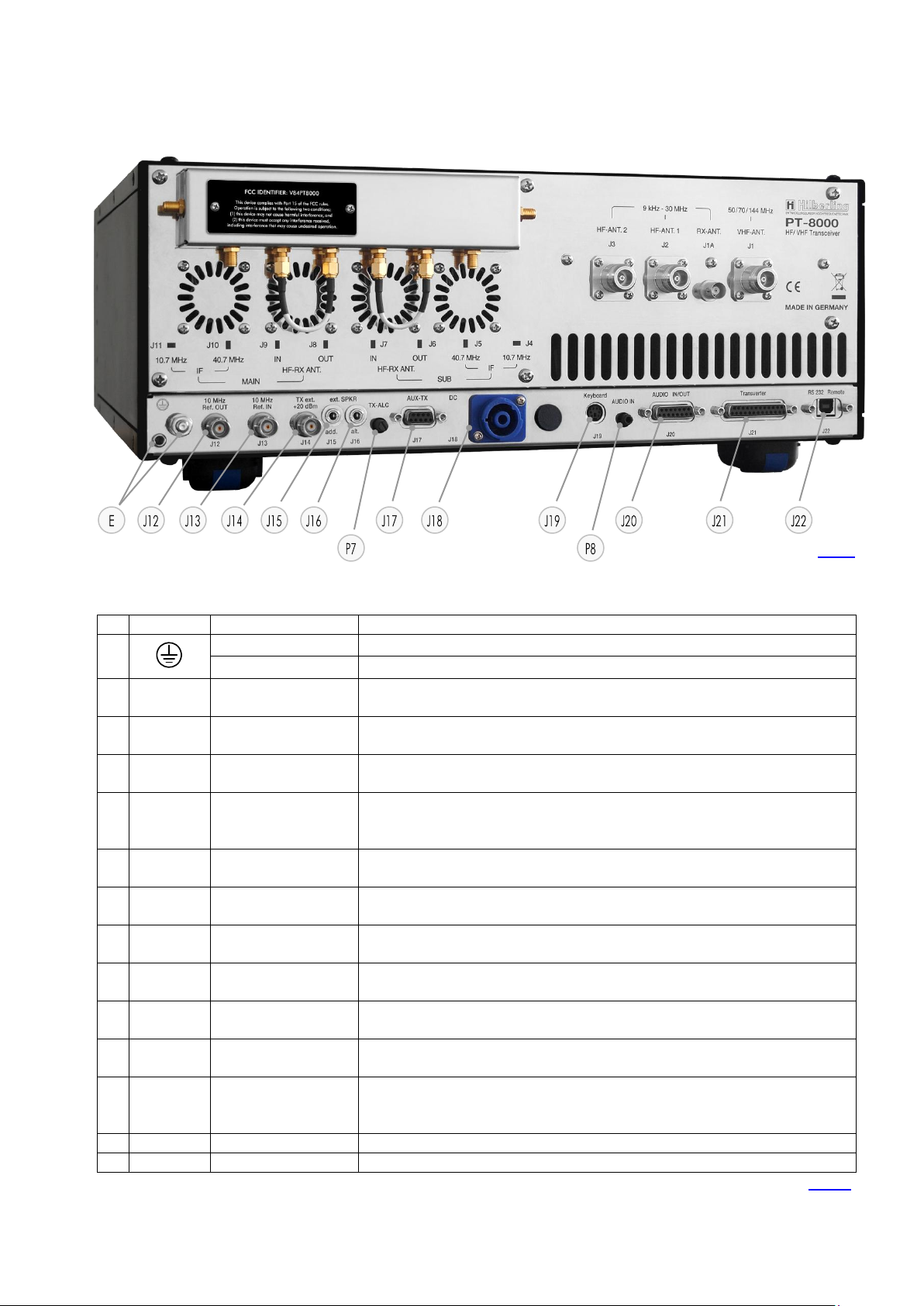

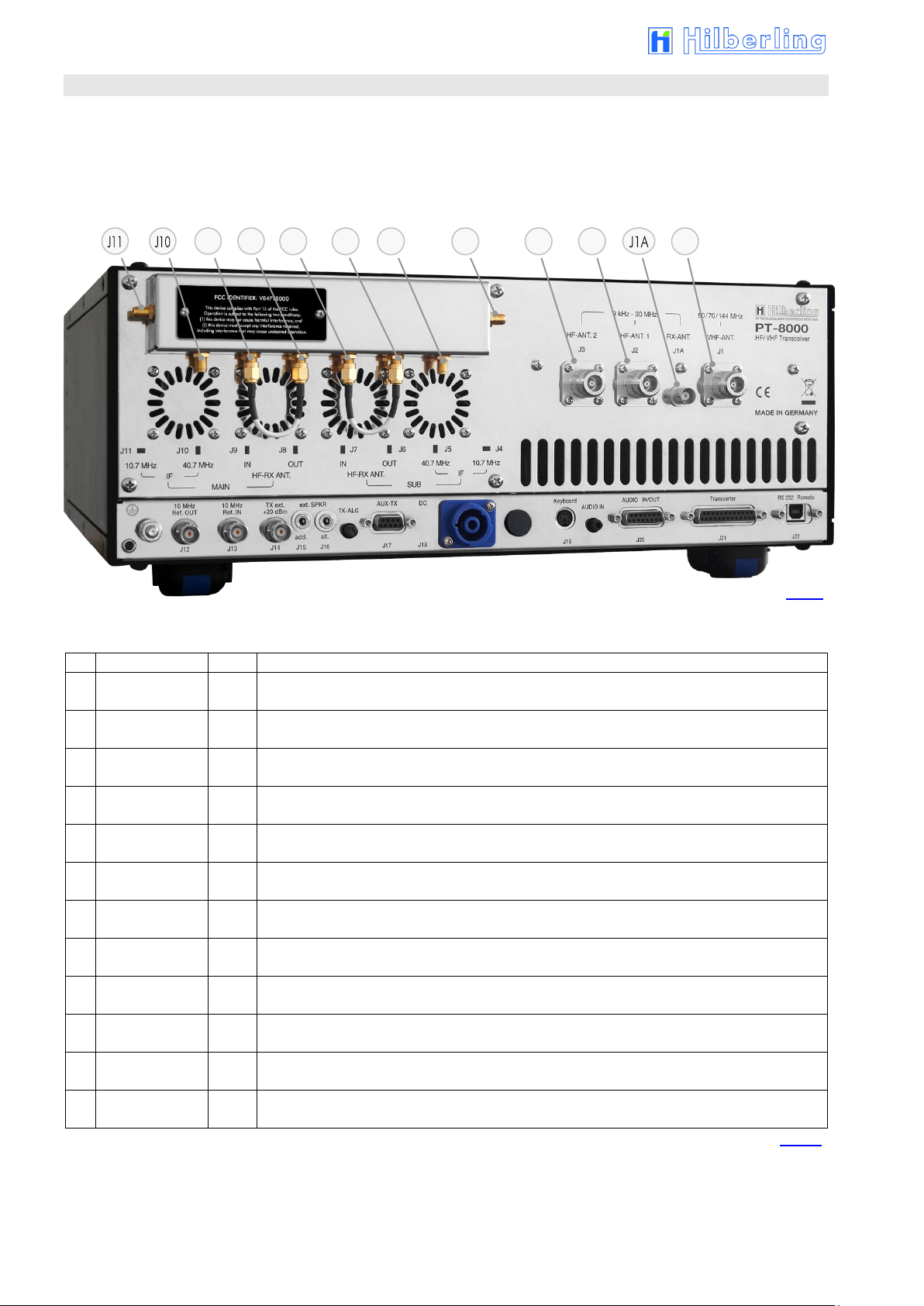

4.1 Connectors at Rear Panel ......................................................................................................................... 4
4.1.1 HF/VHF Connectors J1 - J11 ........................................................................................................... 4
4.1.2 Connection Sockets J12 - J22 and Operating Elements ..................................................................... 5

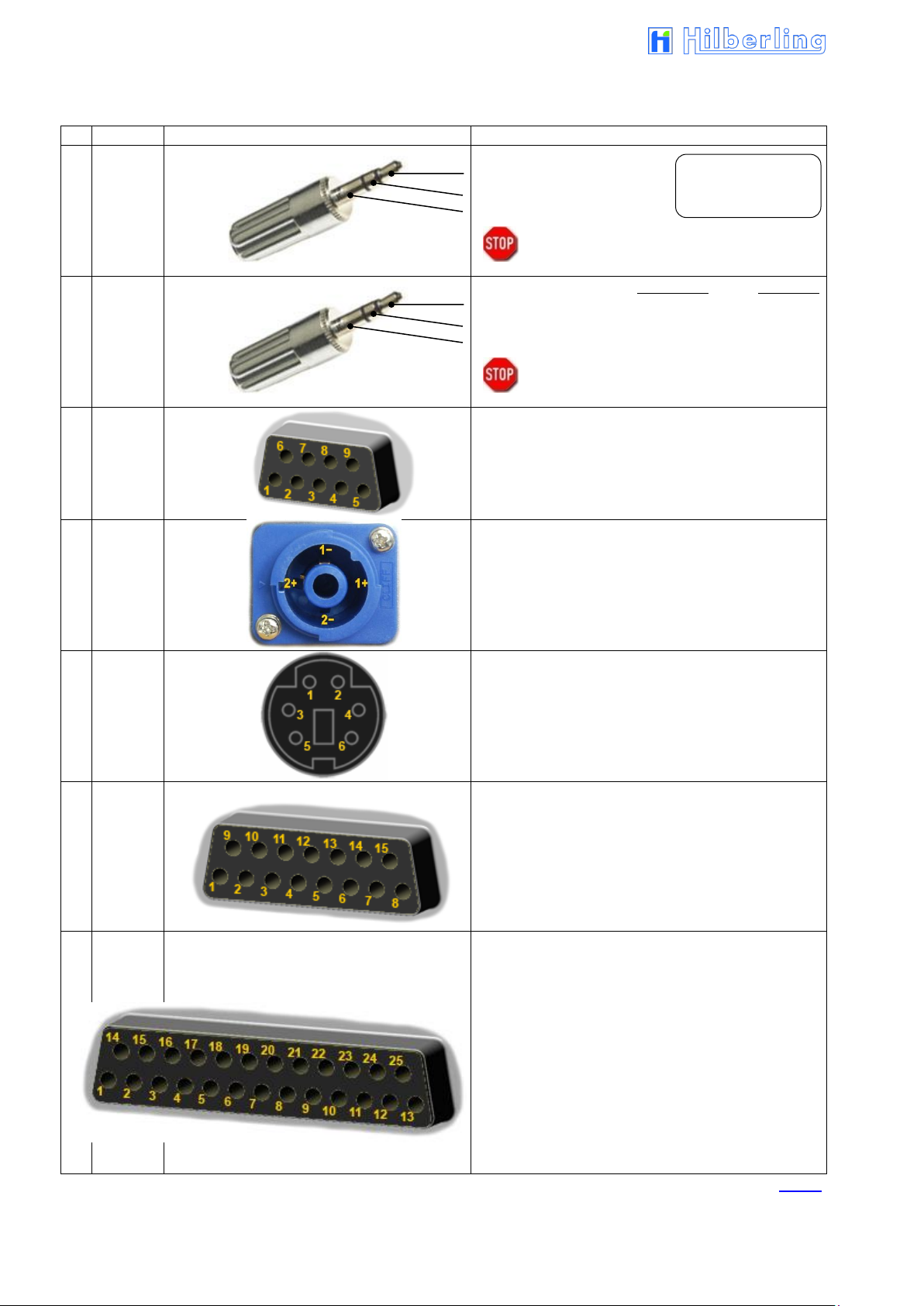

4.1.3 Wiring of J15 - J21 ........................................................................................................................ 6
4.2 Connectors at Front Panel ........................................................................................................................ 7

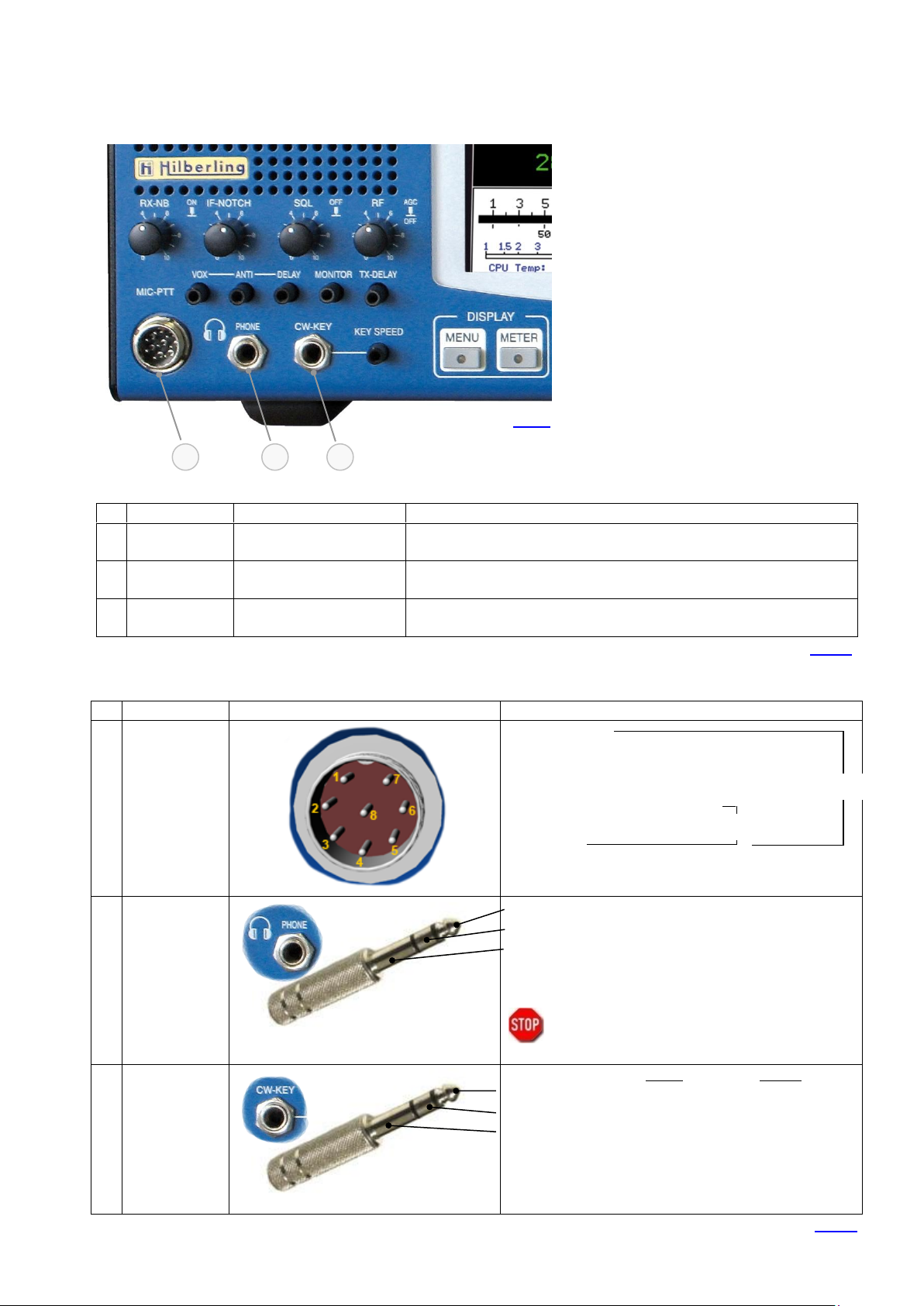

4.2.1 Connection Sockets 1 - 3 ............................................................................................................... 7
4.2.2 Wiring .......................................................................................................................................... 7
5 Power Supply HN-8000
5.1 General Description ................................................................................................................................. 8

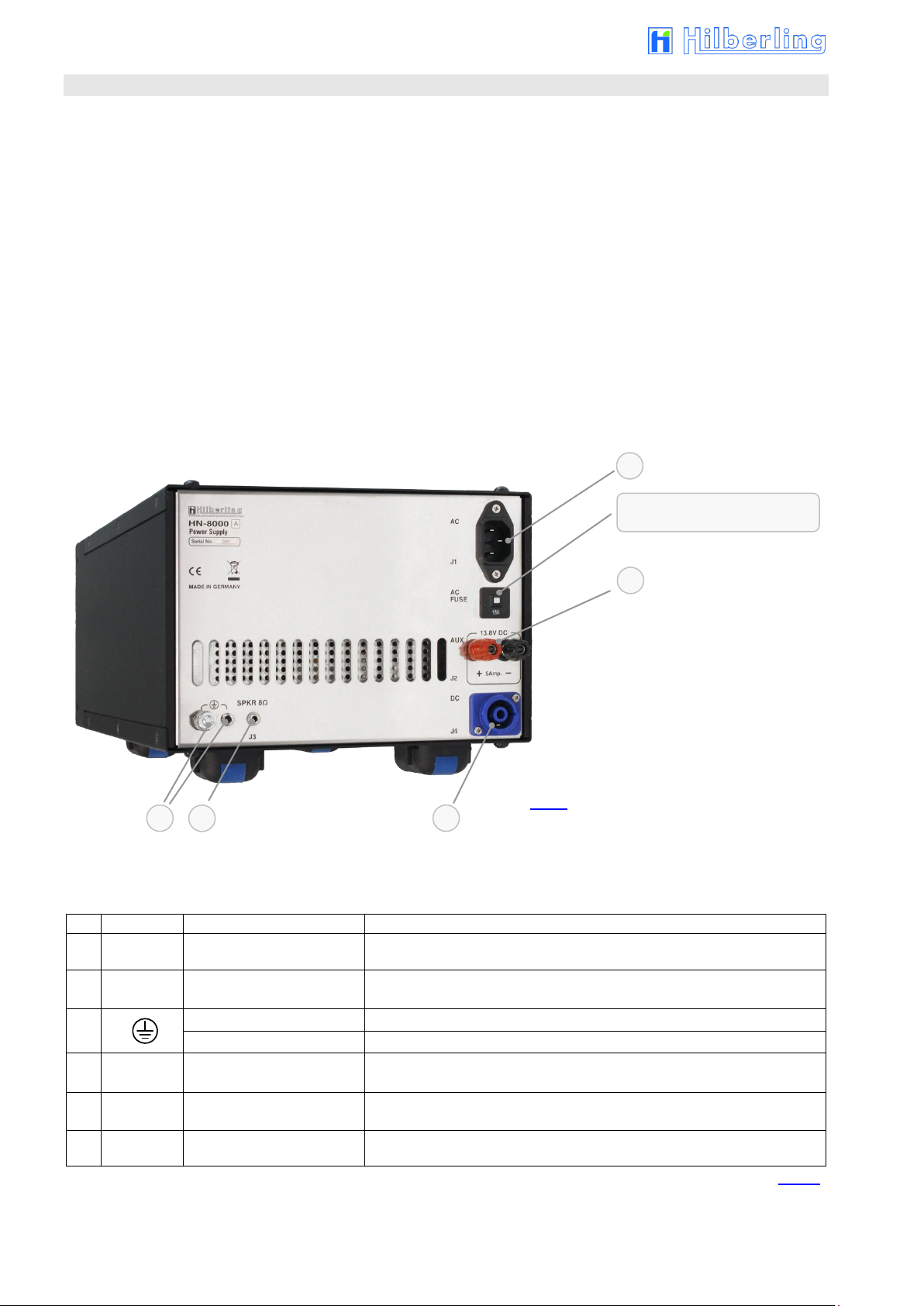

5.2 Connectors at Rear Panel / Connection Sockets J1 up to J4 ......................................................................... 8
5.3 Operating and Display Elements at Front Panel .......................................................................................... 9
6 Accessories
6.1 Microphone Hilberling T9 ......................................................................................................................... 9

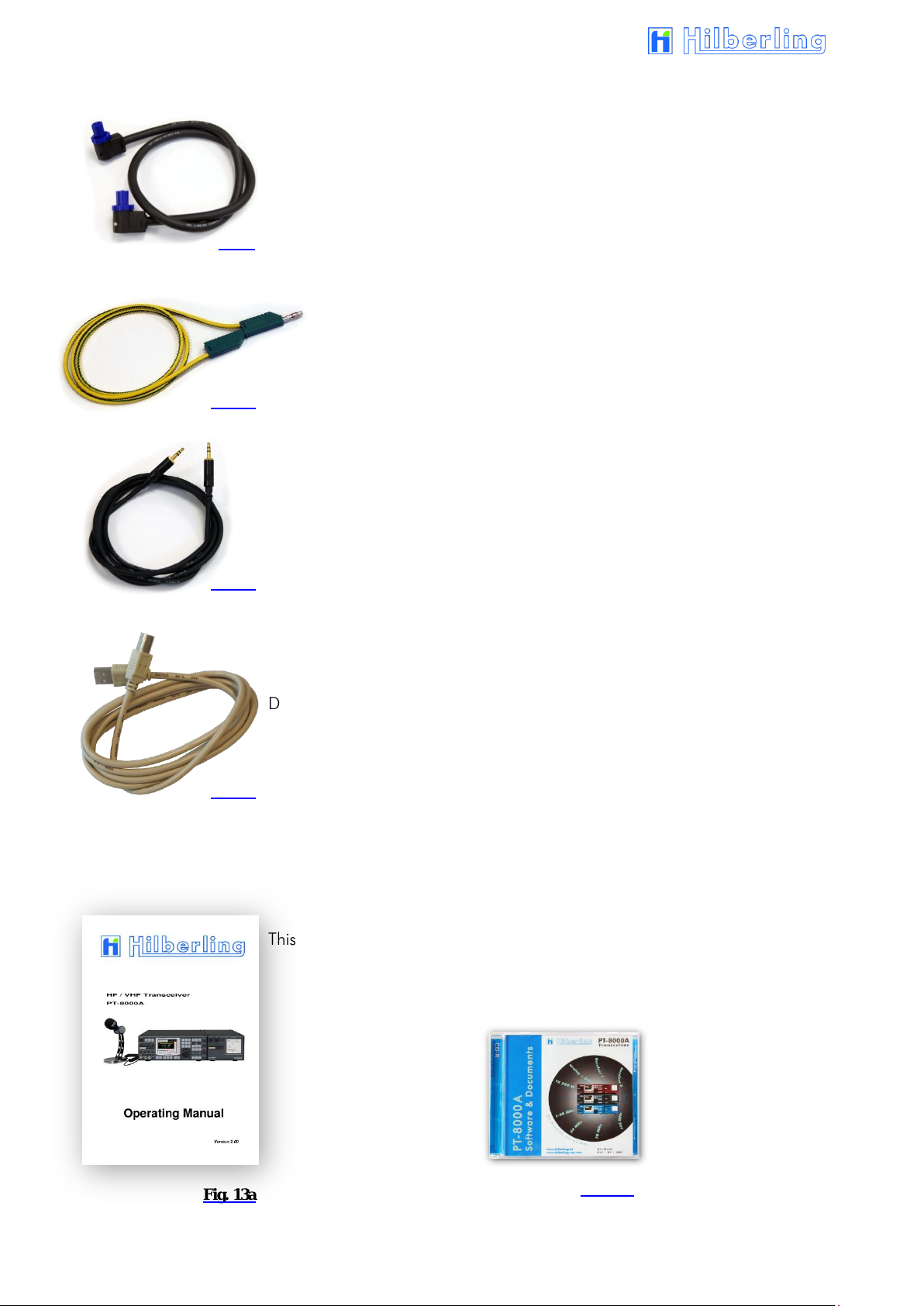

6.2 Wiring / Cables ....................................................................................................................................... 9
6.3 Operating Manual and Software/Documention CD .................................................................................... 10
7 Installation / Initial Operation
7.1 Introduction ......................................................................................................................................... 11
7.2 Cable Connectors .................................................................................................................................. 11
7.3 Initial Settings ...................................................................................................................................... 11
8 Operating and Display Elements

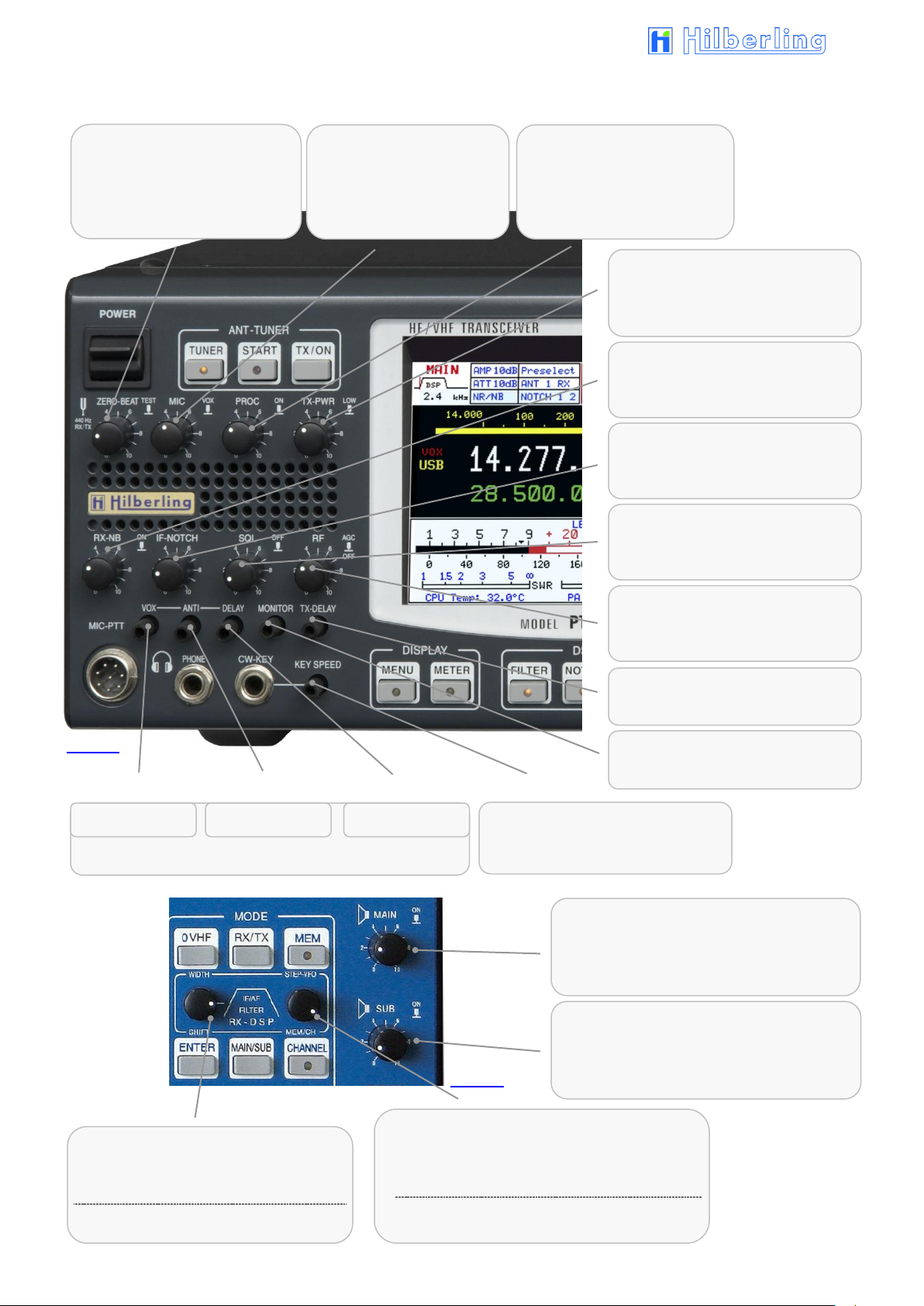

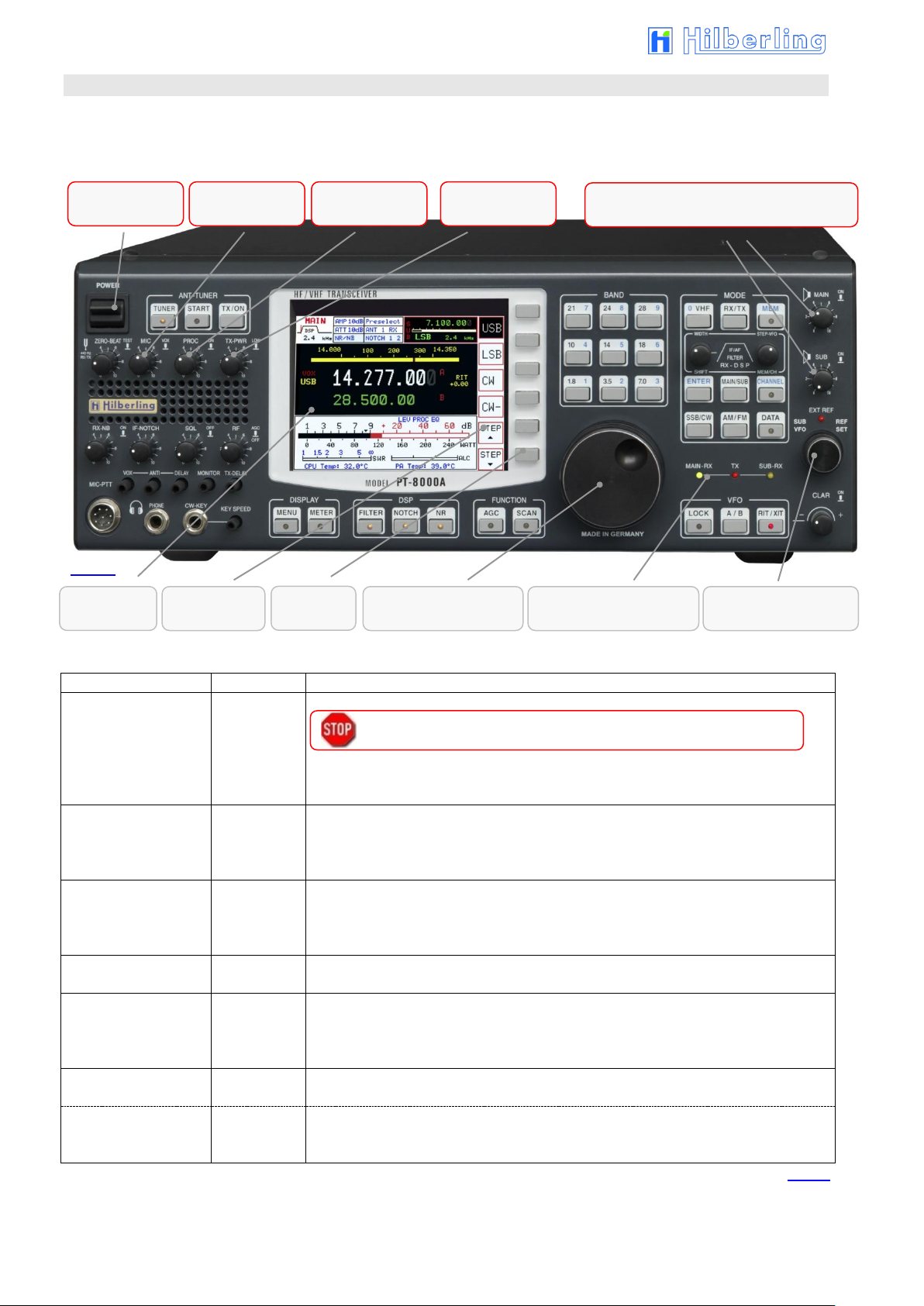

8.1 Main Operating and Display Elements ..................................................................................................... 12

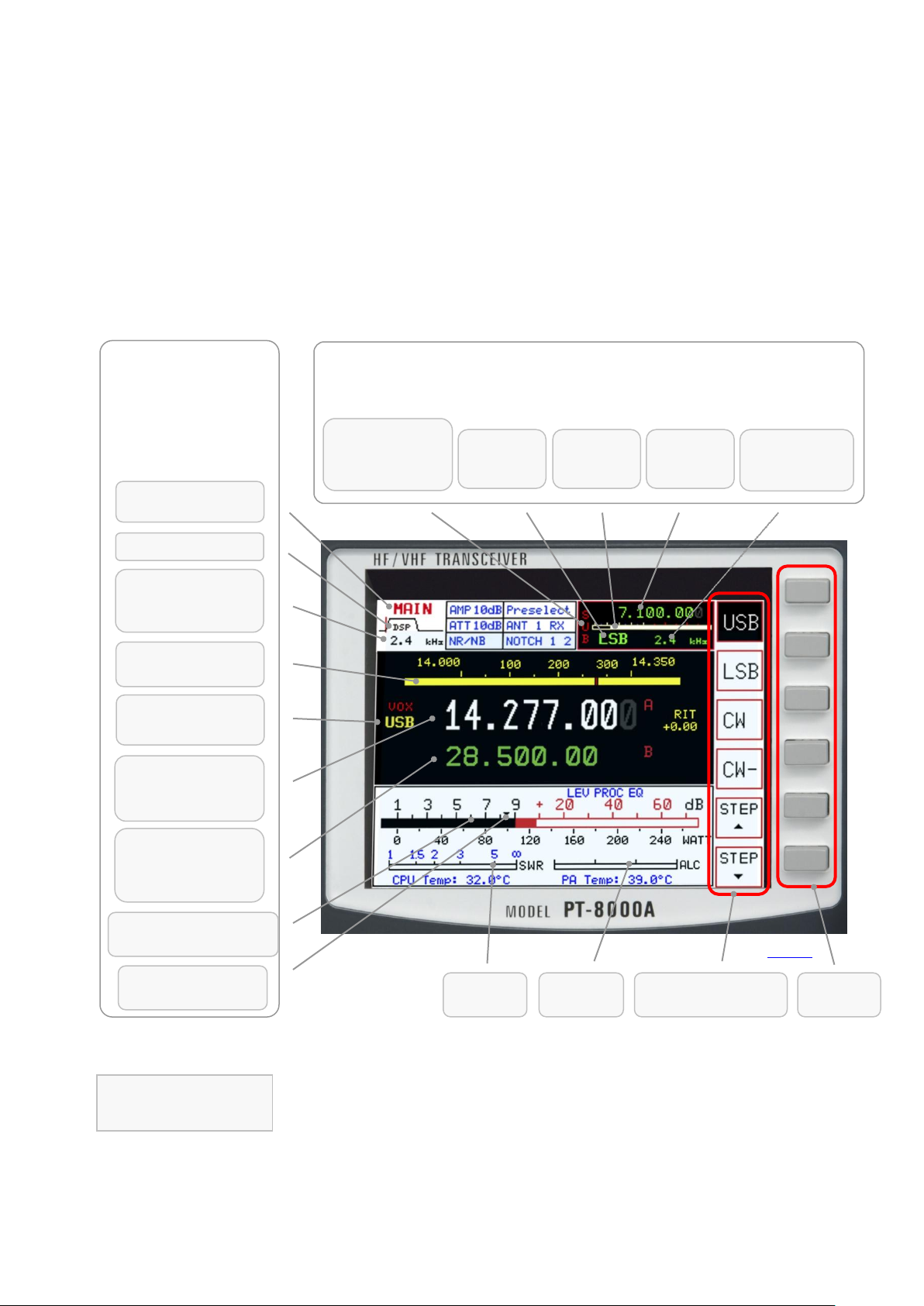

8.2 TFT-Display .......................................................................................................................................... 13

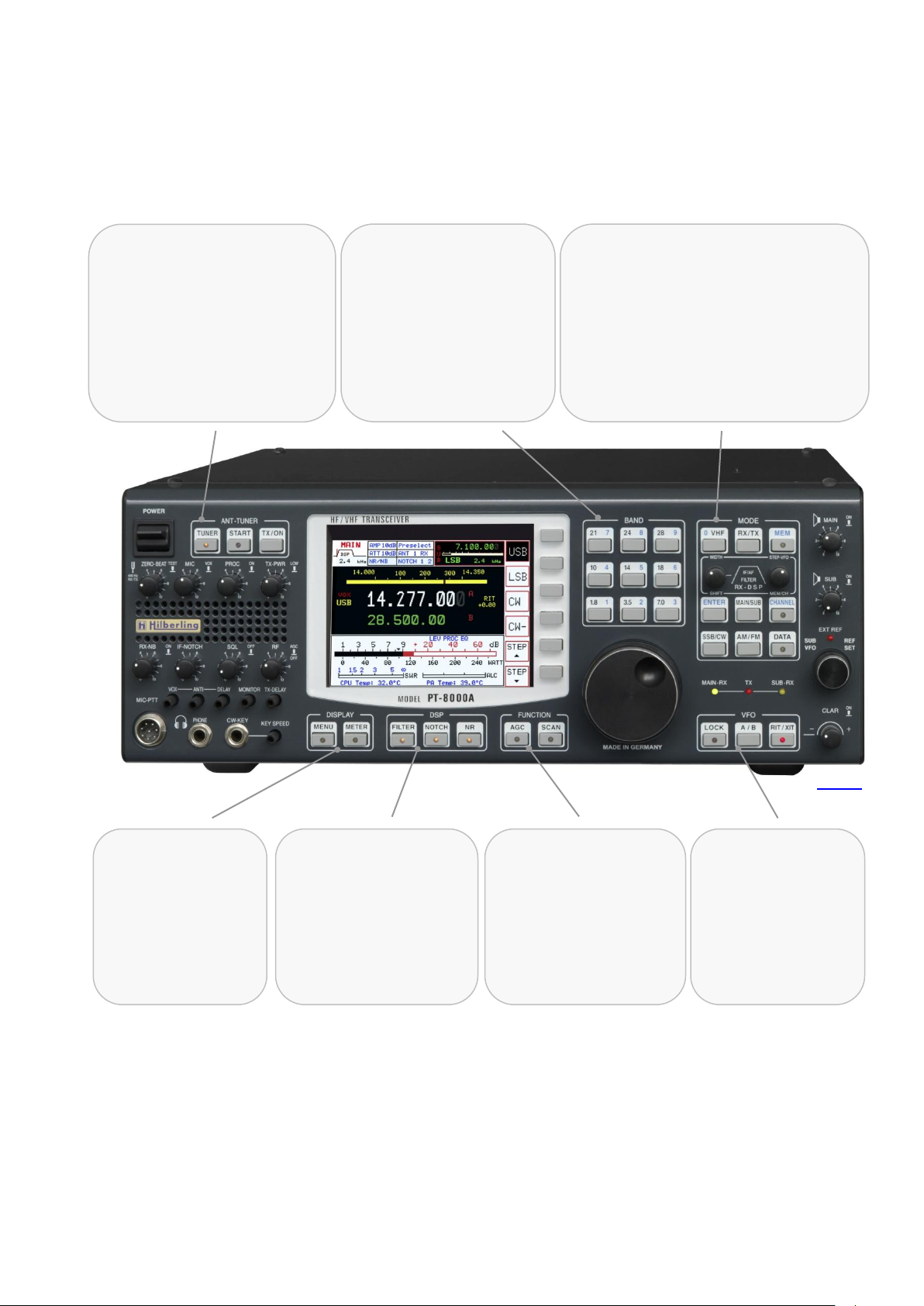

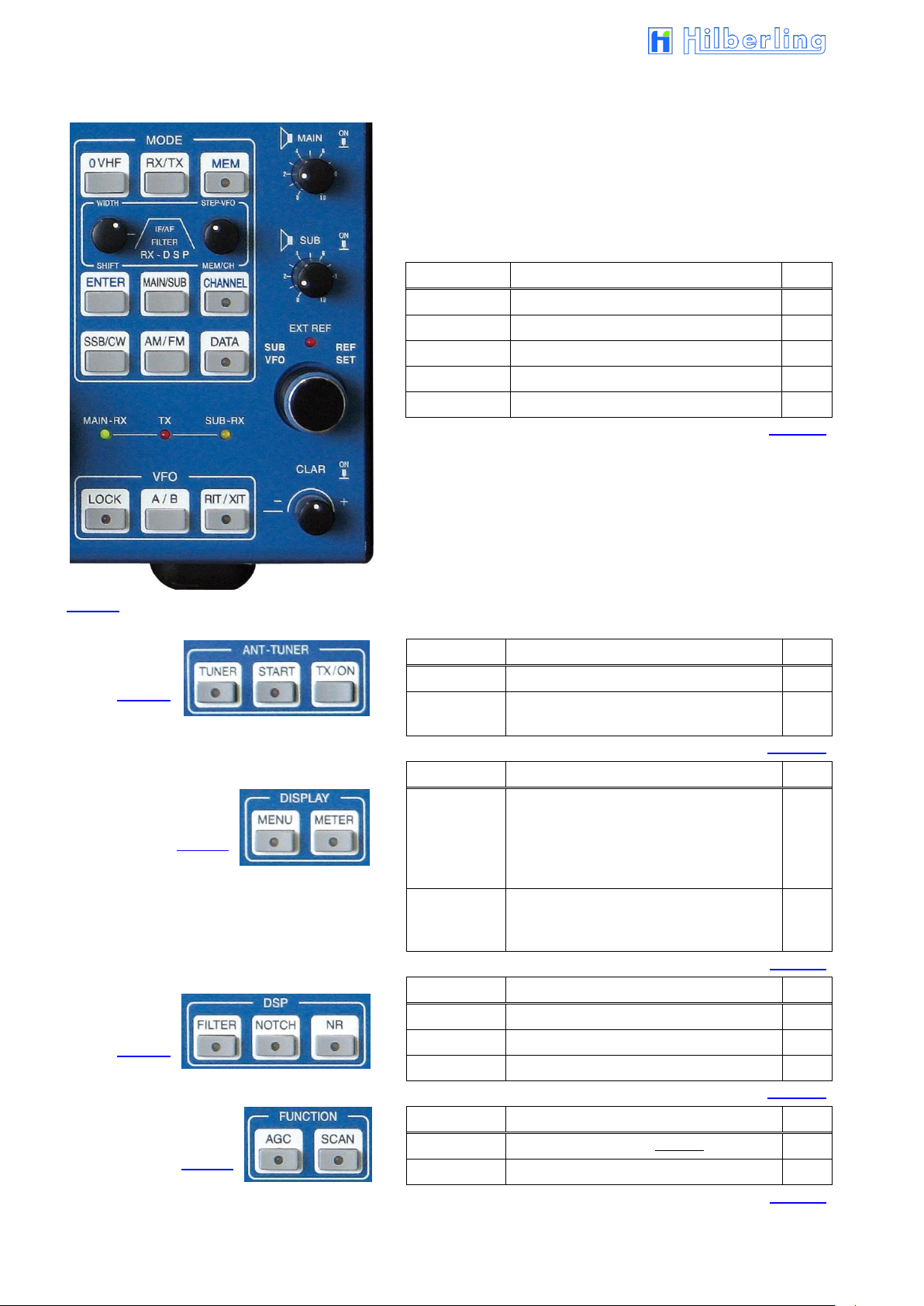

8.3 Clustered Front Panel Controls ............................................................................................................... 15
8.4 Controls with Integrated Push-Button Function and Controls for Adjustments ............................................. 16

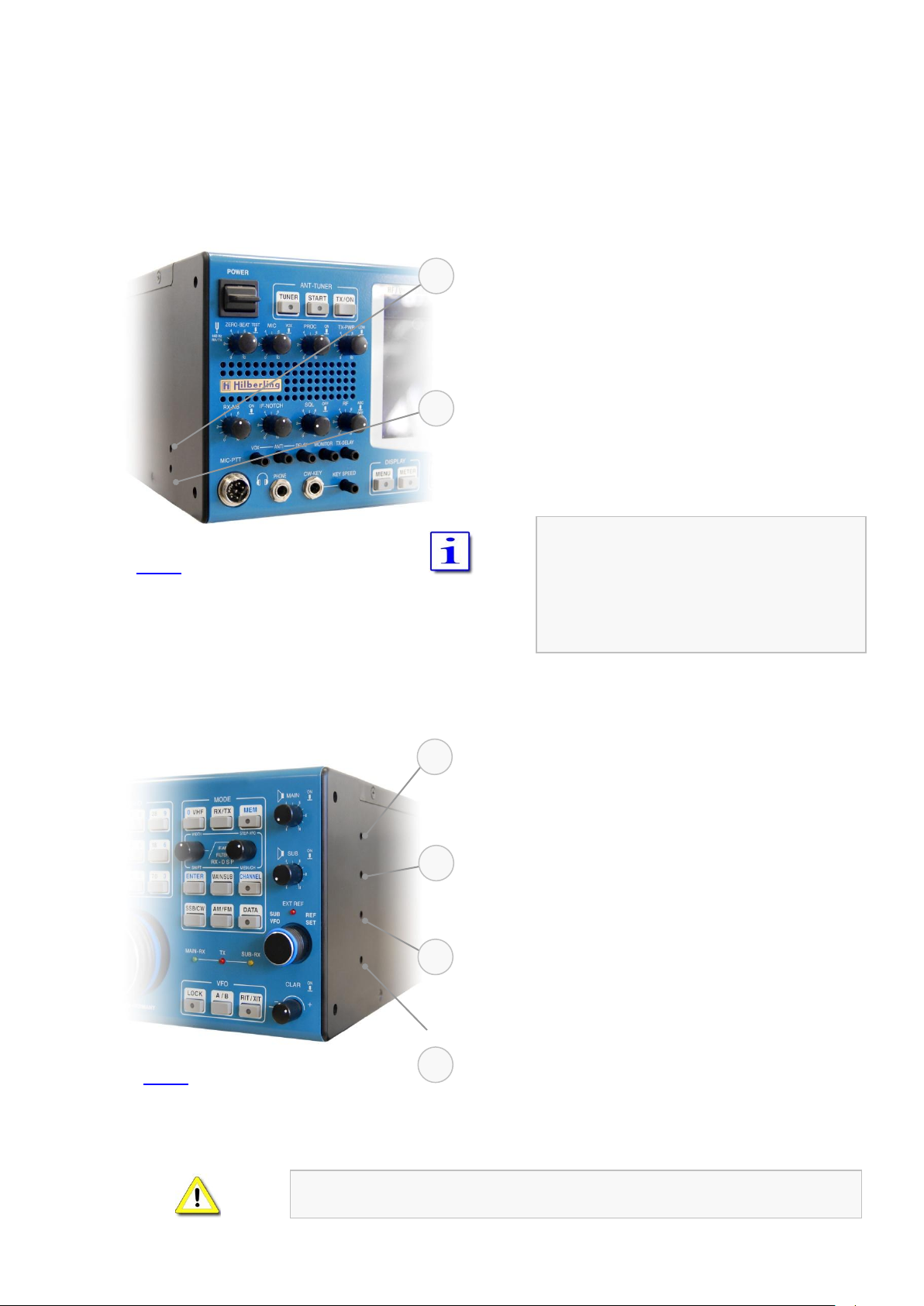

8.5 Side Panel Controls (Level Adjustments) .................................................................................................. 17
8.5.1 Input Level – Left Hand Side ........................................................................................................ 17
8.5.2 Output Level – Right Hand Side .................................................................................................... 17
8.6 Pushbuttons With LED Status Display ...................................................................................................... 18

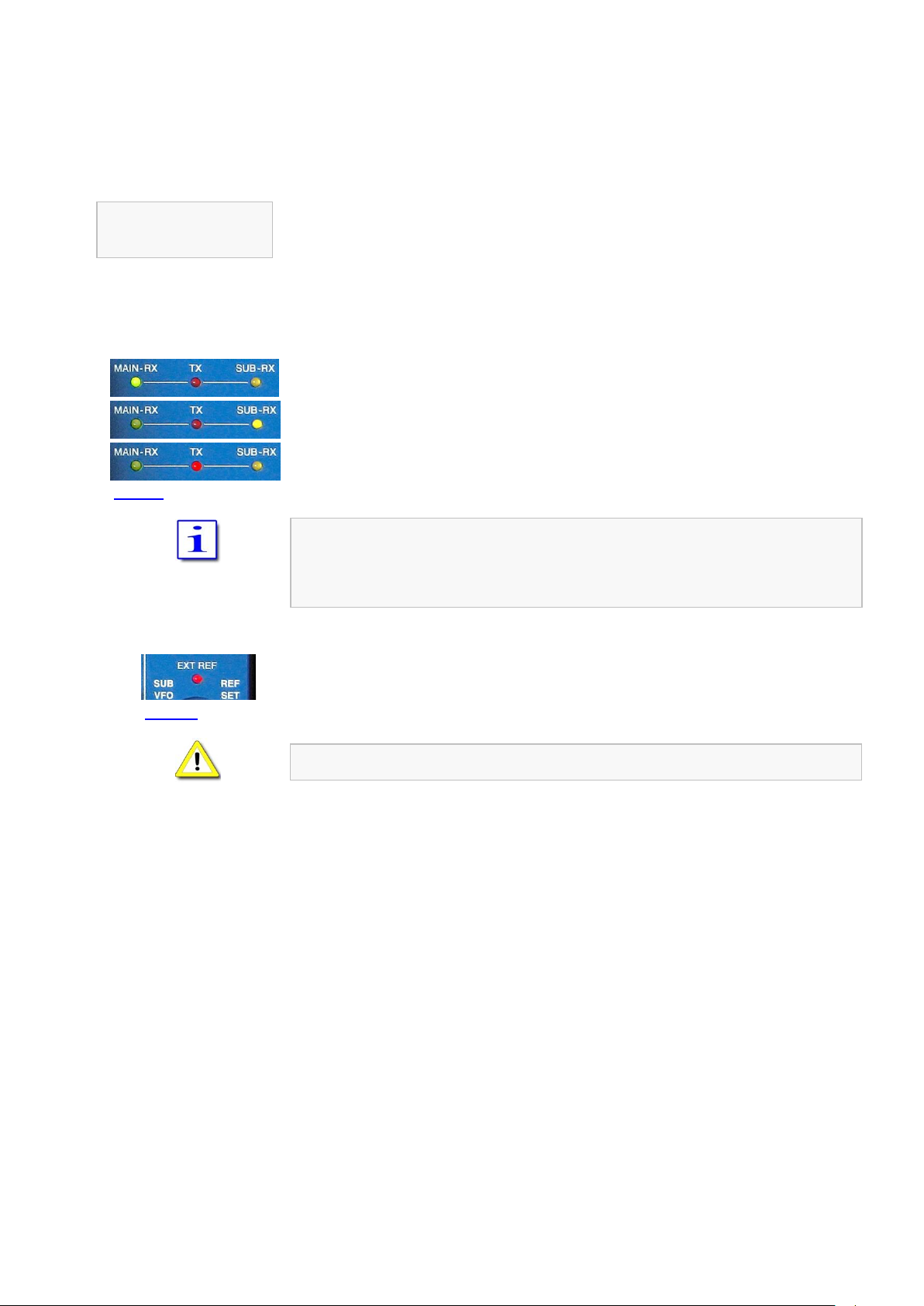

8.7 LED Status Display ................................................................................................................................ 19
9 MAIN- and SUB-RX Operations 20
10 Modes of Operation MODE 22

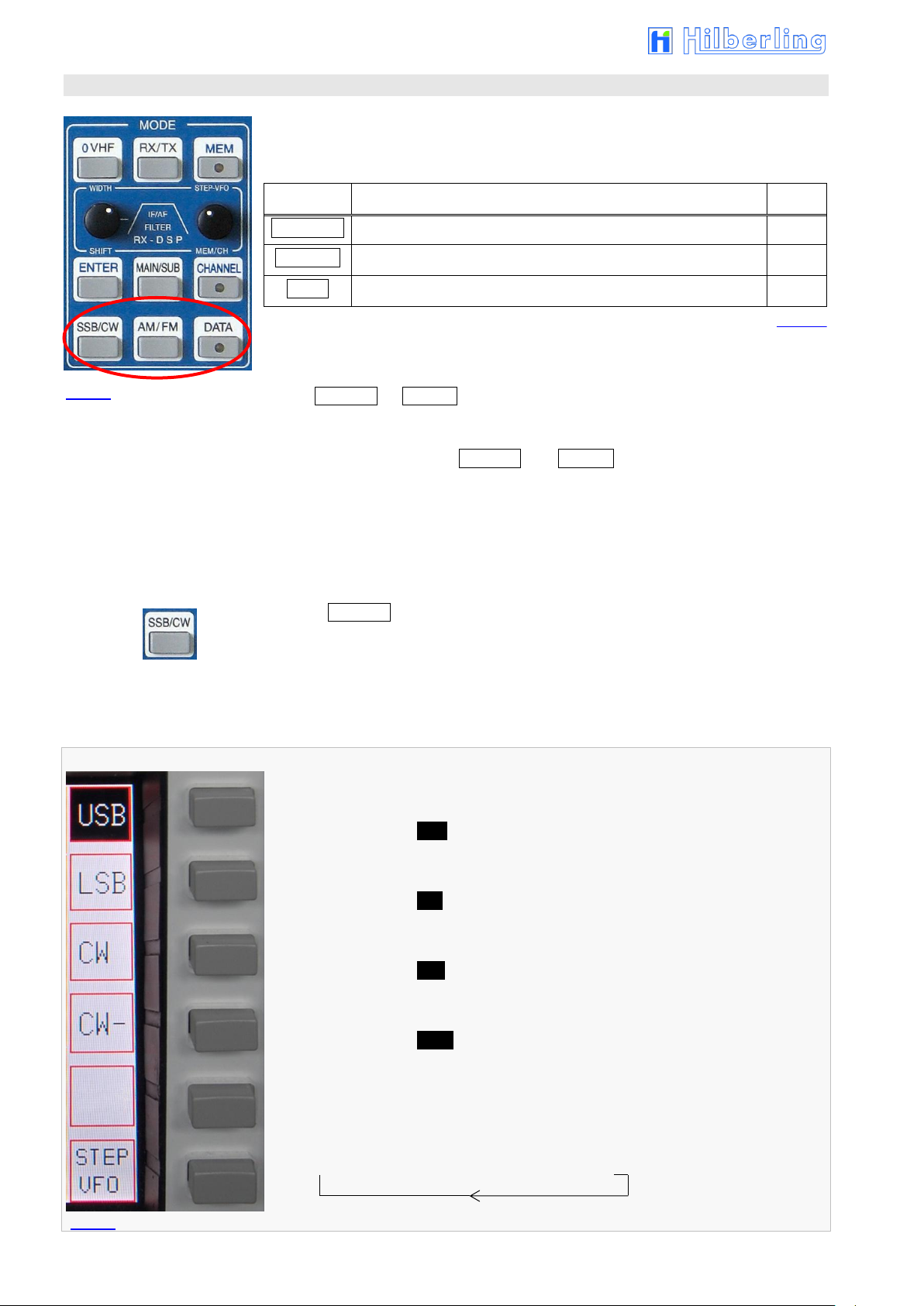

10.1 Single Side Band and Continuous Wave SSB / CW ................................................................................ 22
10.1.1 SSB Single Side Band ............................................................................................................... 22
10.1.2 CW Continuous Wave .............................................................................................................. 23

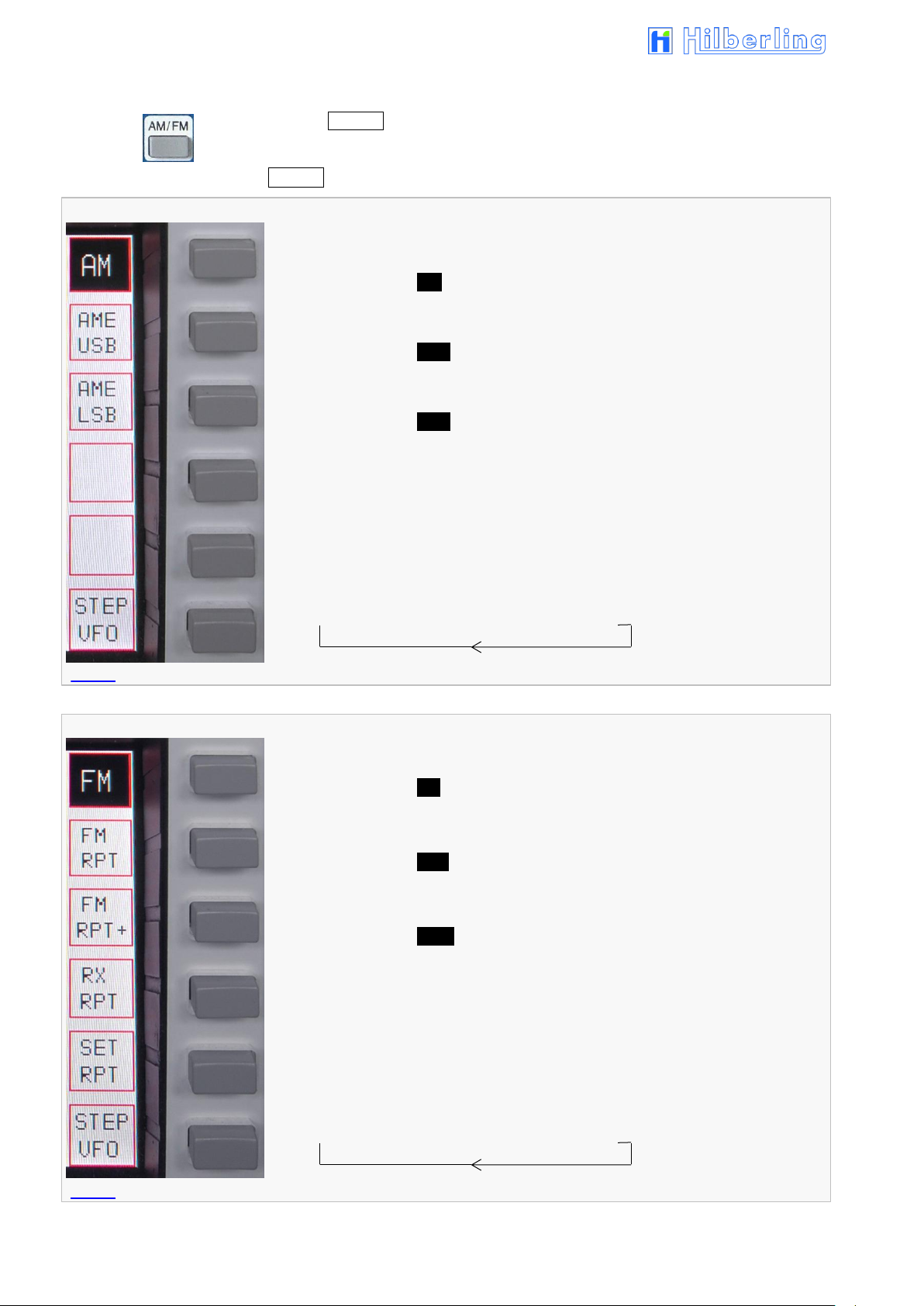

10.2 AM / FM Amplitude Modulation / Frequency Modulation ........................................................................ 24
10.2.1 Repeater Mode – How to Set the Repeater Frequency Shift ........................................................... 25
10.2.2 Repeater Mode – TX Frequency Display ....................................................................................... 25

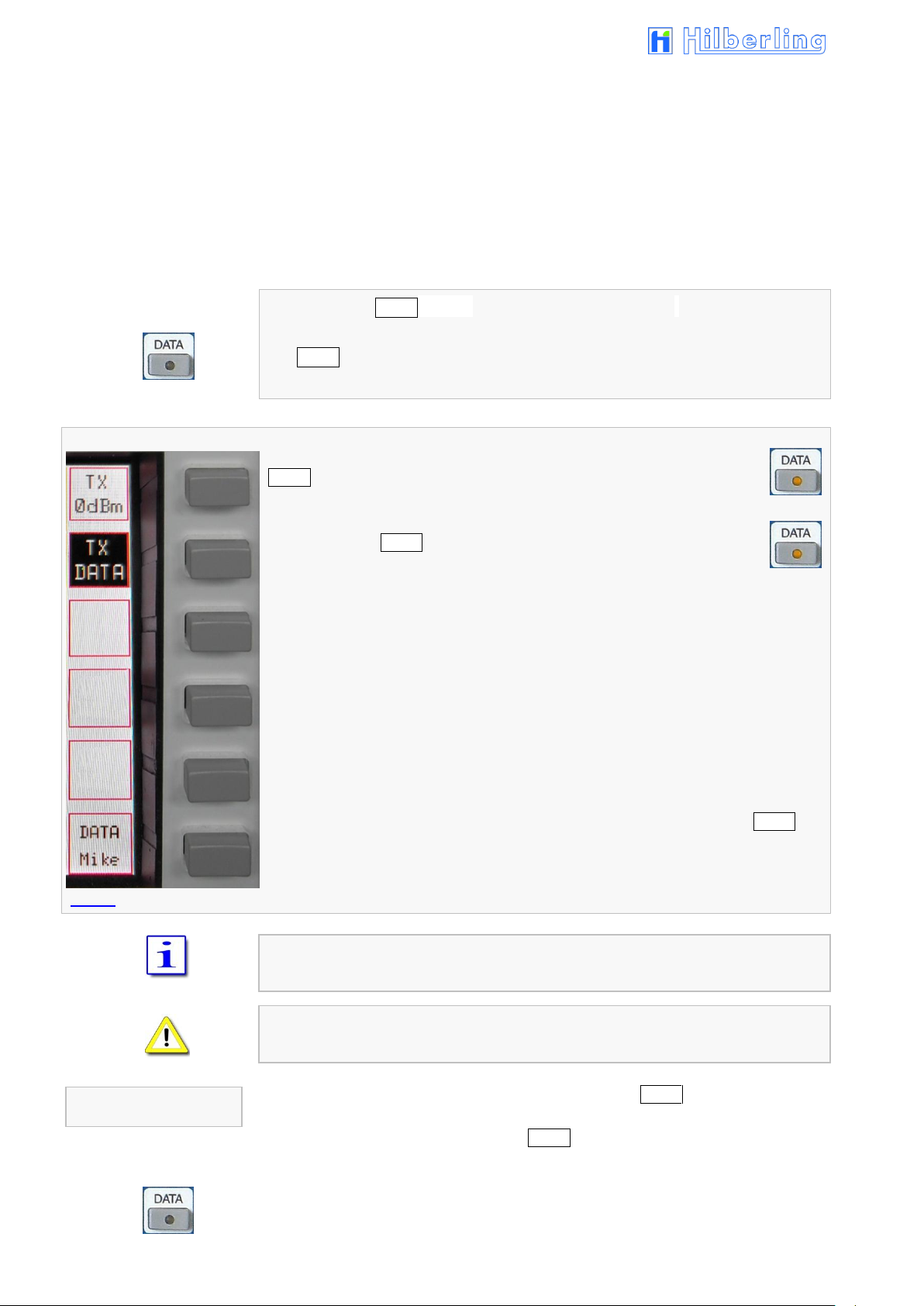

10.3 DATA Transmission (Digital Operation Modes) ....................................................................................... 26
11 Selecting Frequencies 27
11.1 Select with BAND Keys ......................................................................................................................... 27
11.1.1 HF Amateur Radio Bands ........................................................................................................... 27

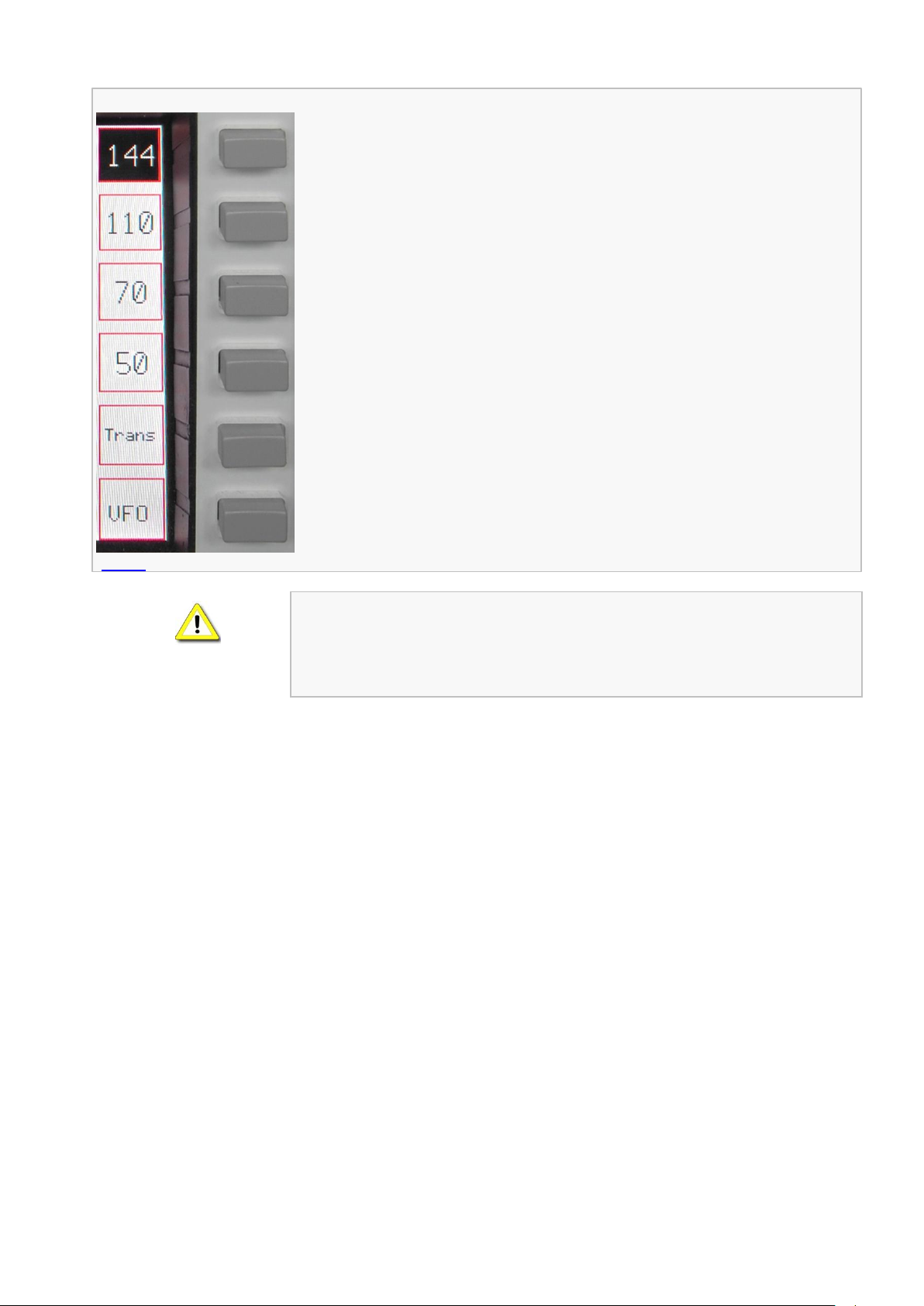

11.1.2 VHF Amateur Radio Bands ......................................................................................................... 28

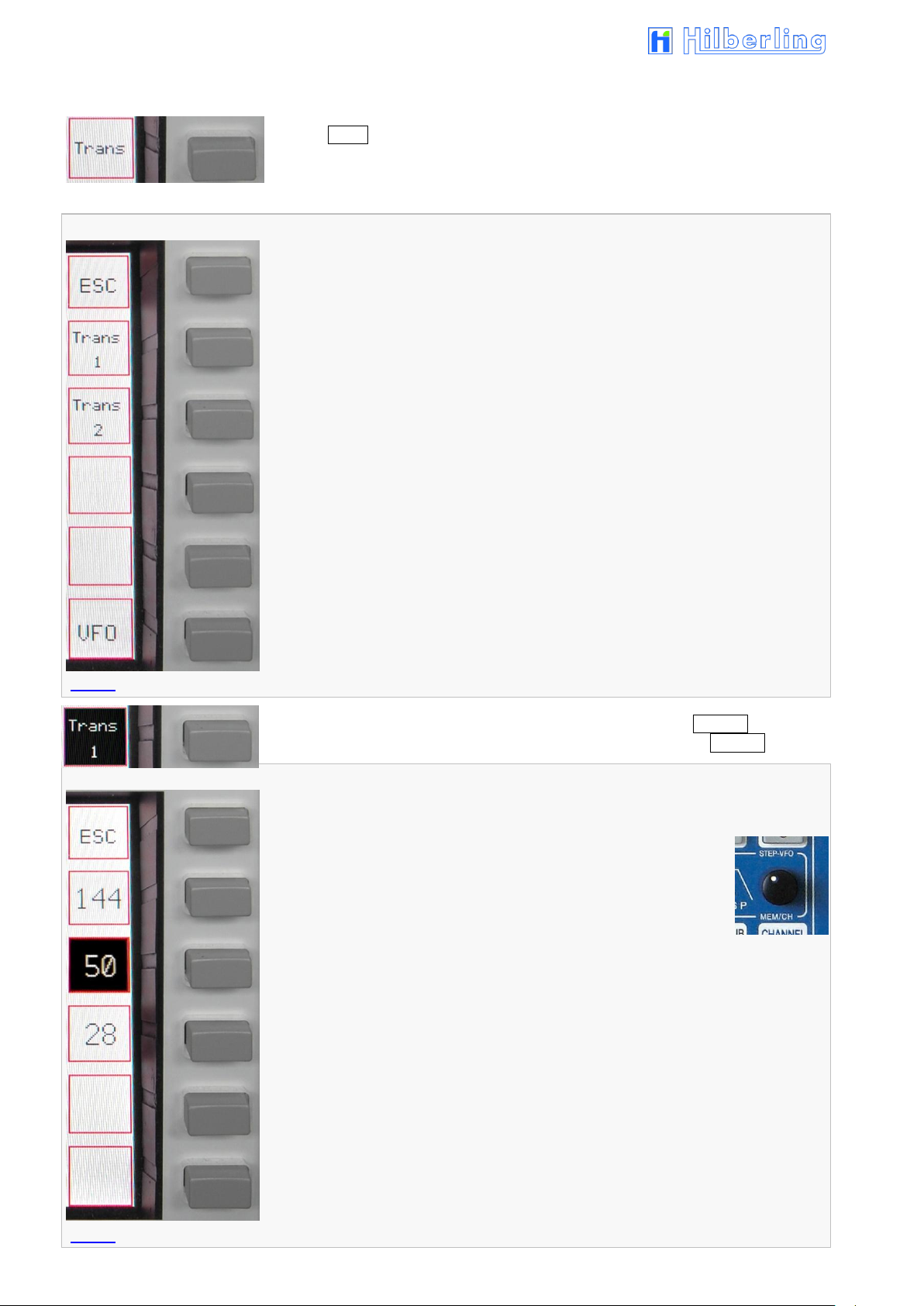

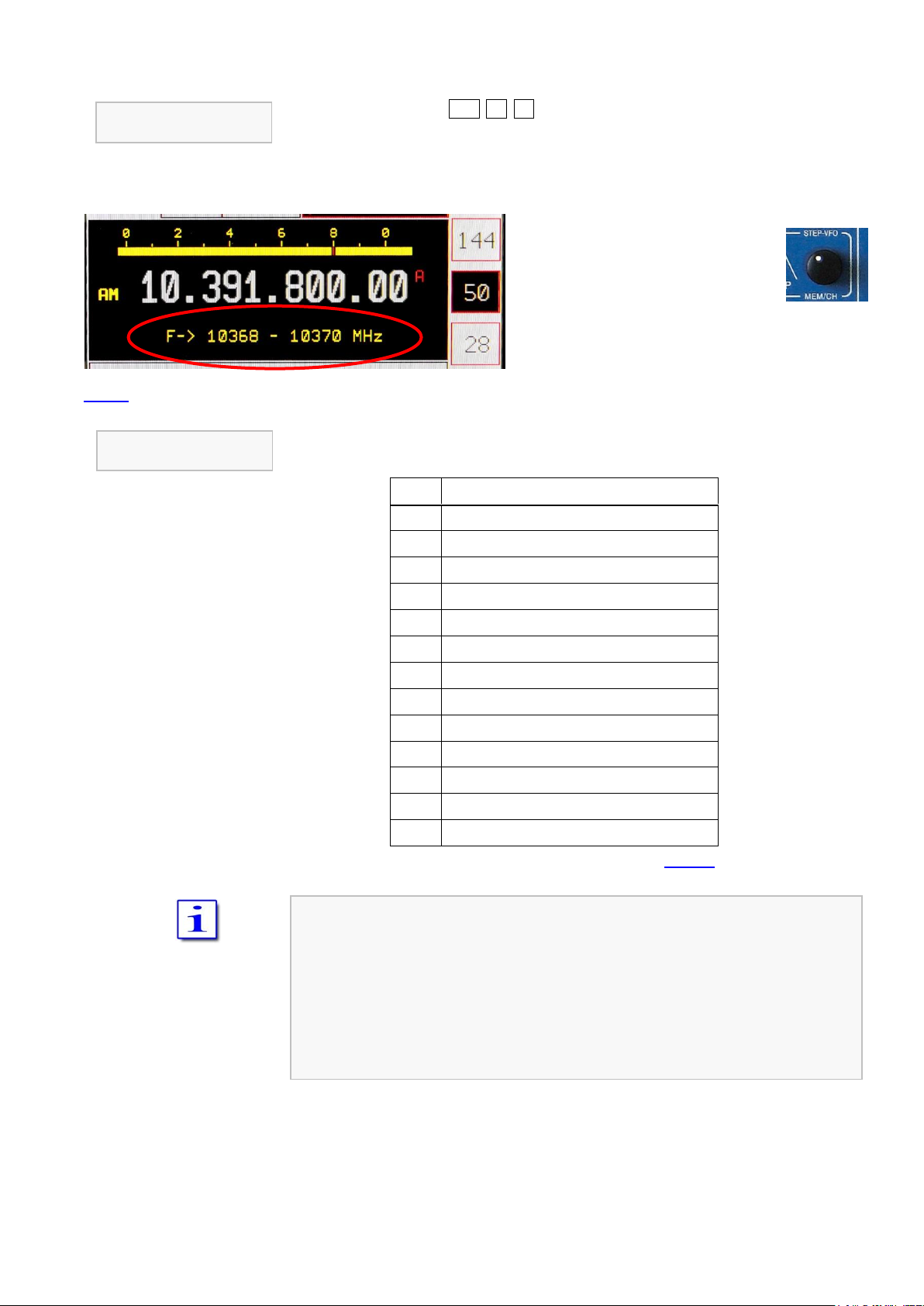

11.1.3 Transverter Operation ................................................................................................................ 30

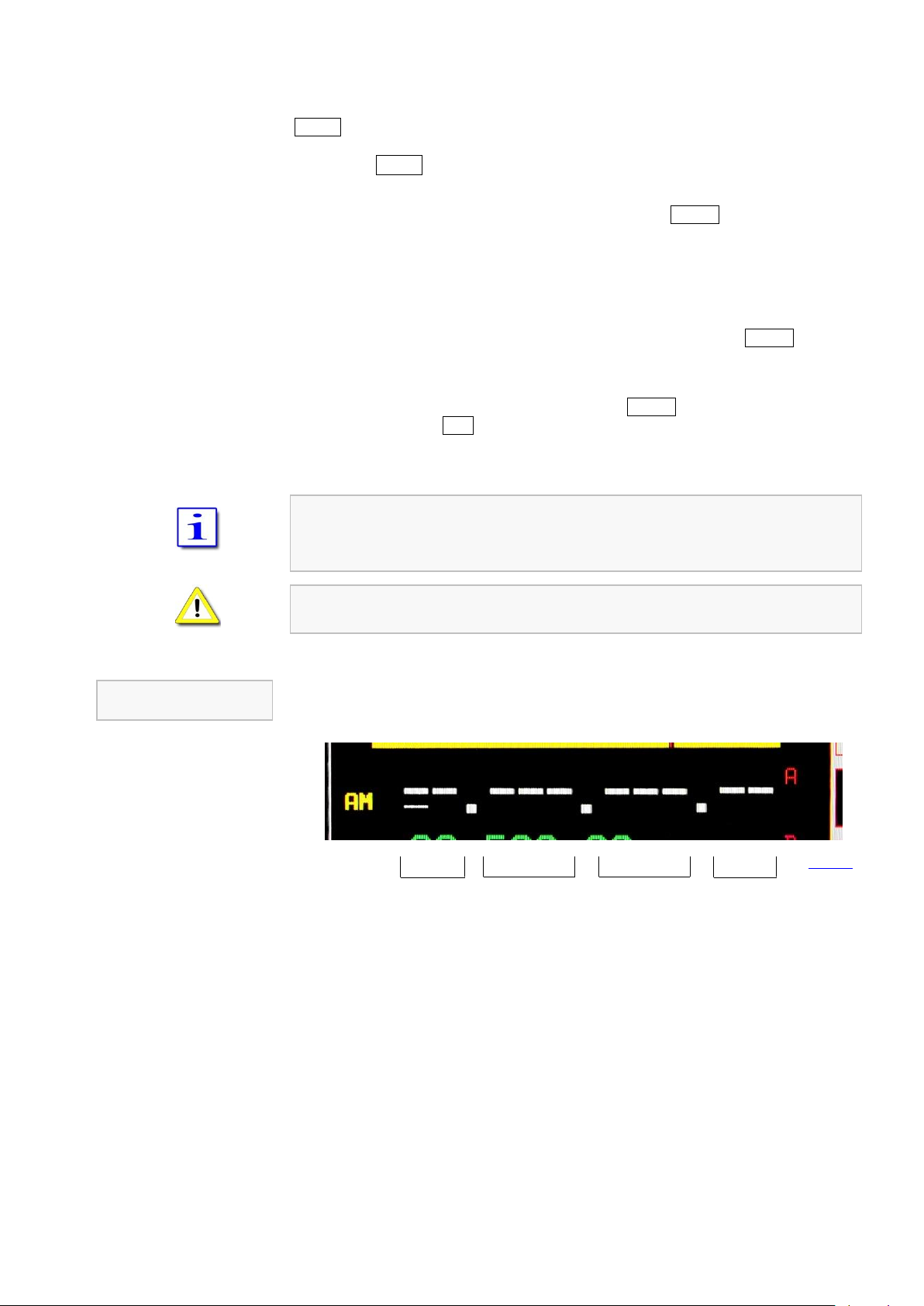

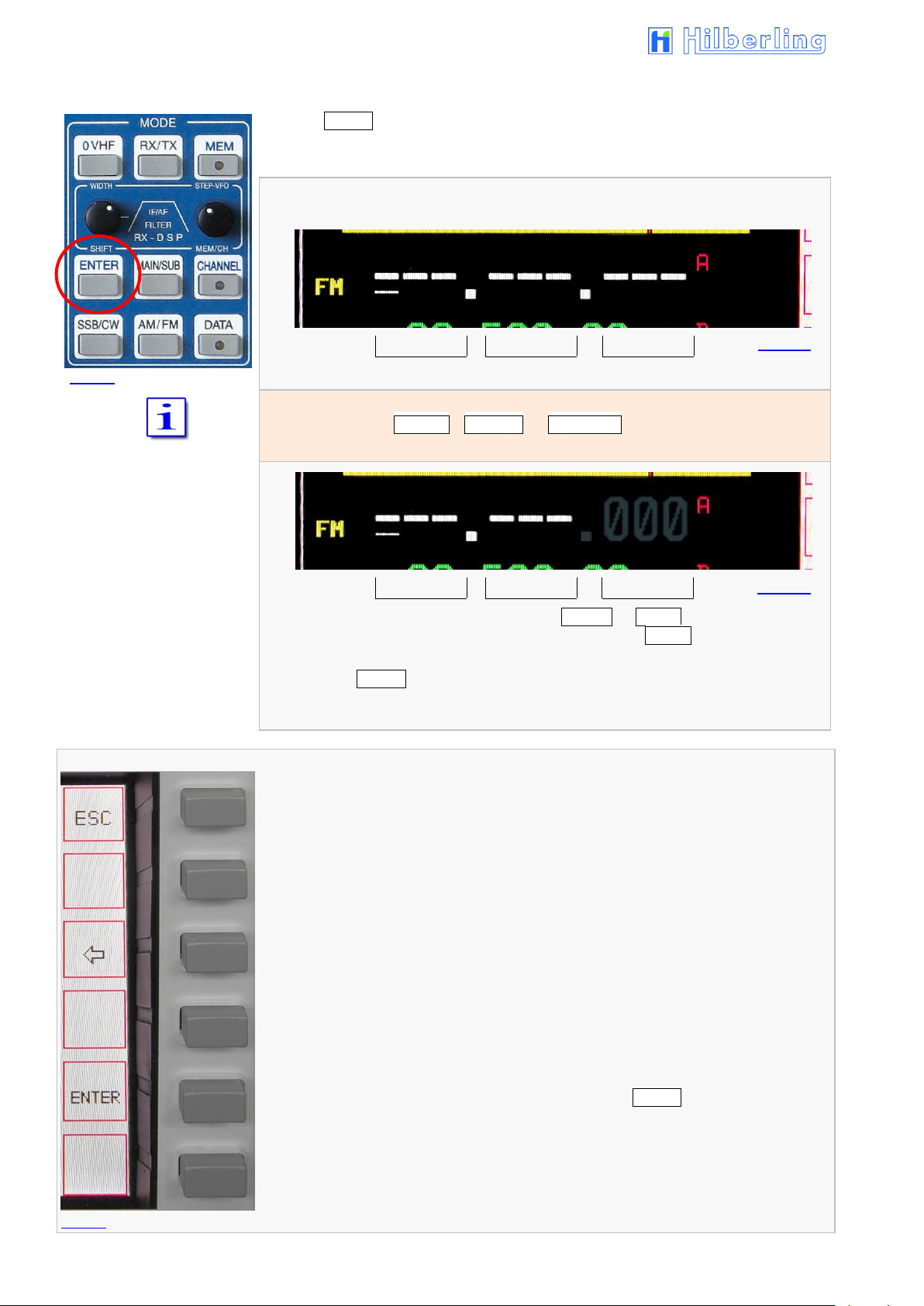

11.2 Numerical Frequency Input ENTER ..................................................................................................... 32
iv
11.3 Channel Operation

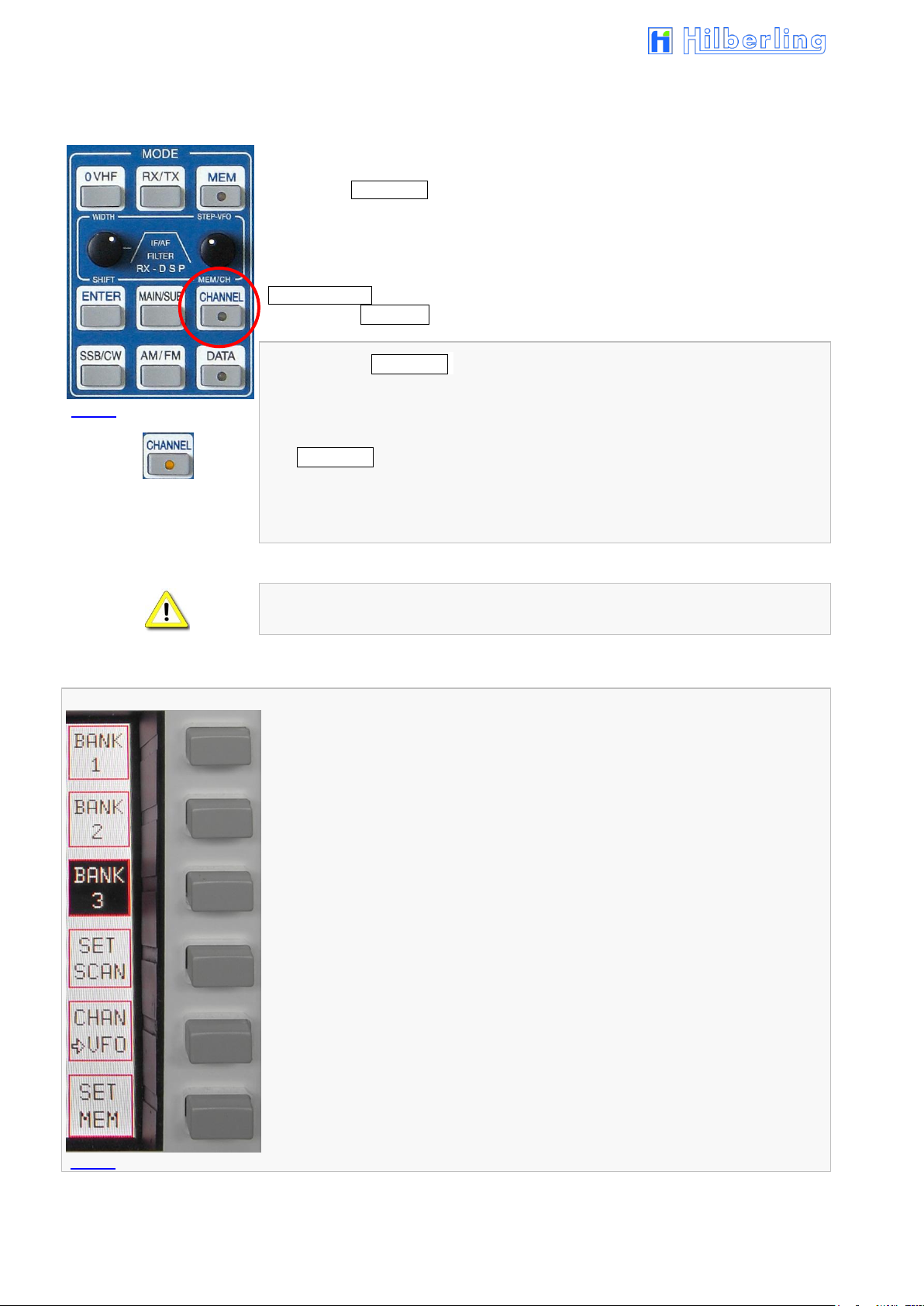

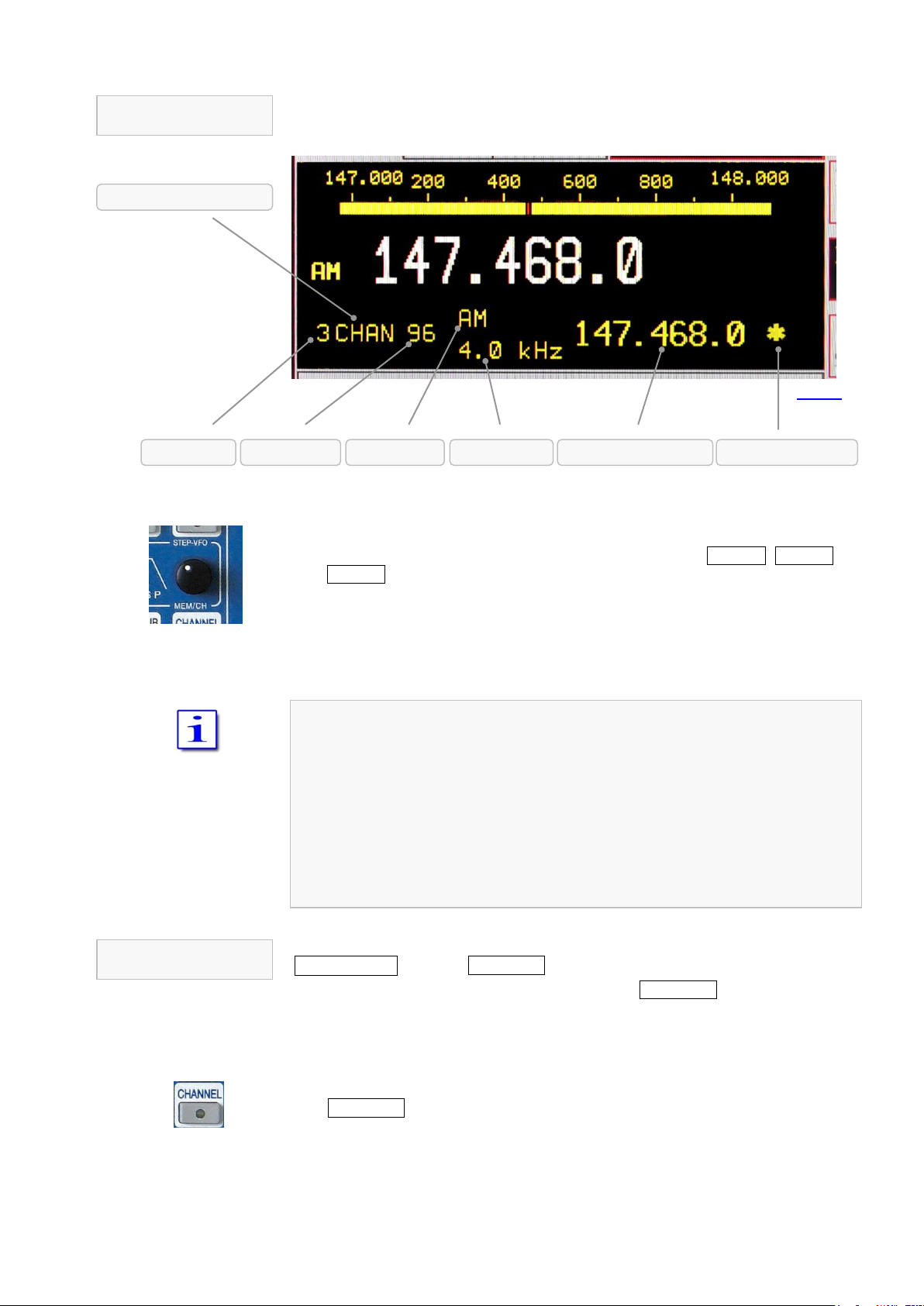

11.3.1 Recall of Stored Frequencies CHANNEL ...................................................................................... 34

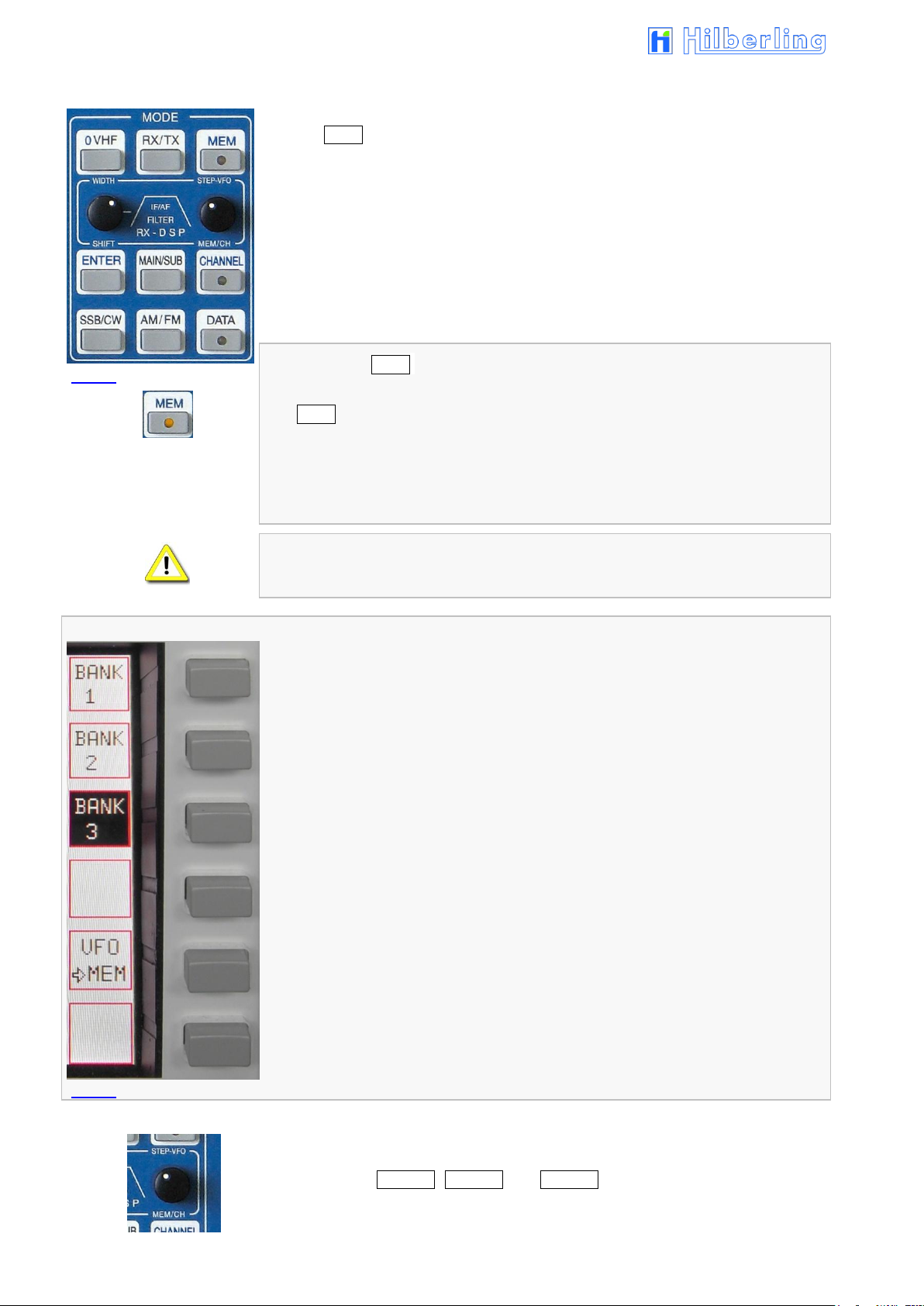

11.3.2 Storage of Frequencies MEM .................................................................................................... 36
11.4 VFO Main Tuning Knob (

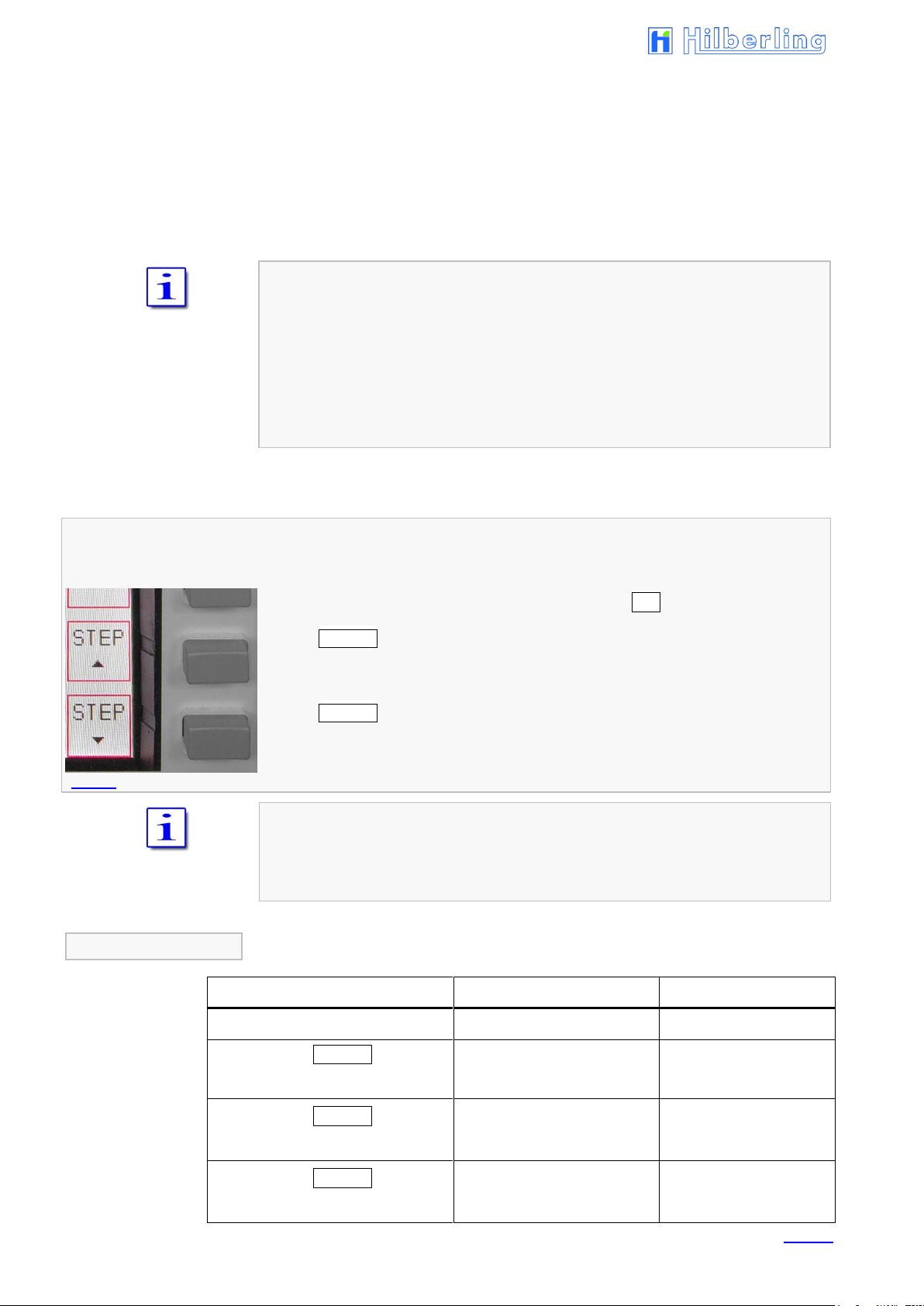

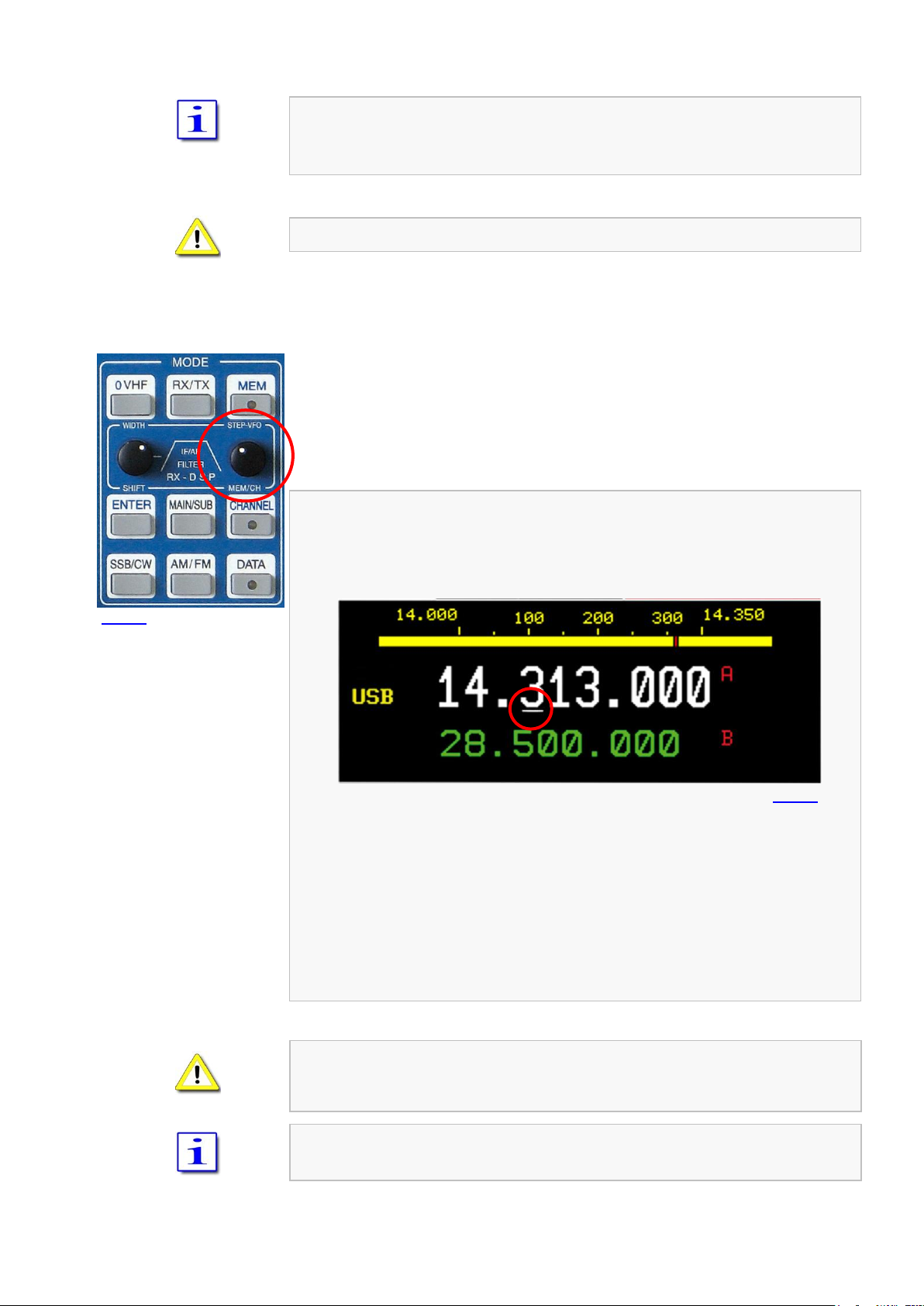

11.5 STEP VFO Control ................................................................................................................................ 39
11.6 VFO Mangement ................................................................................................................................. 40

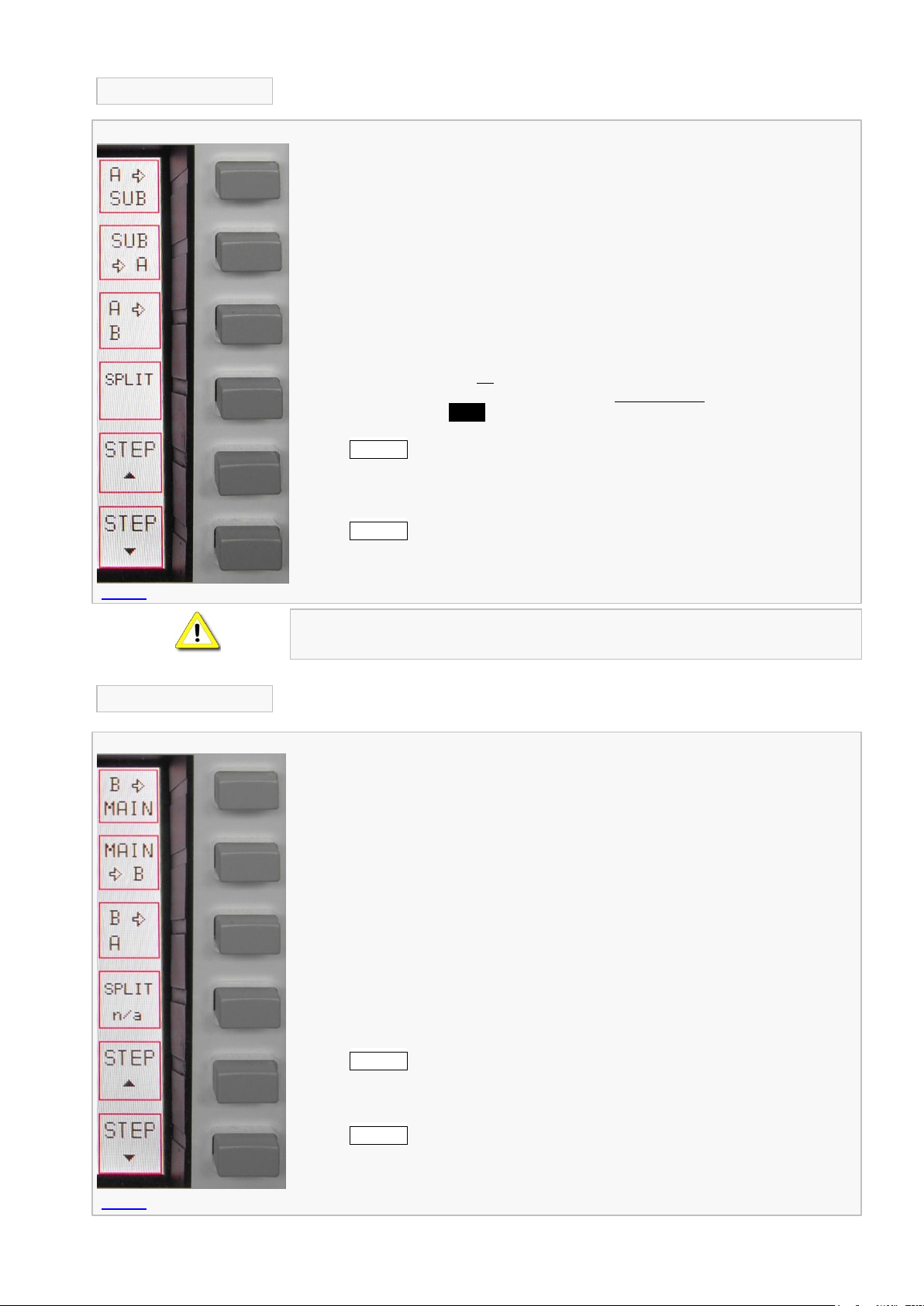

11.7 SPLIT Operation .................................................................................................................................. 42

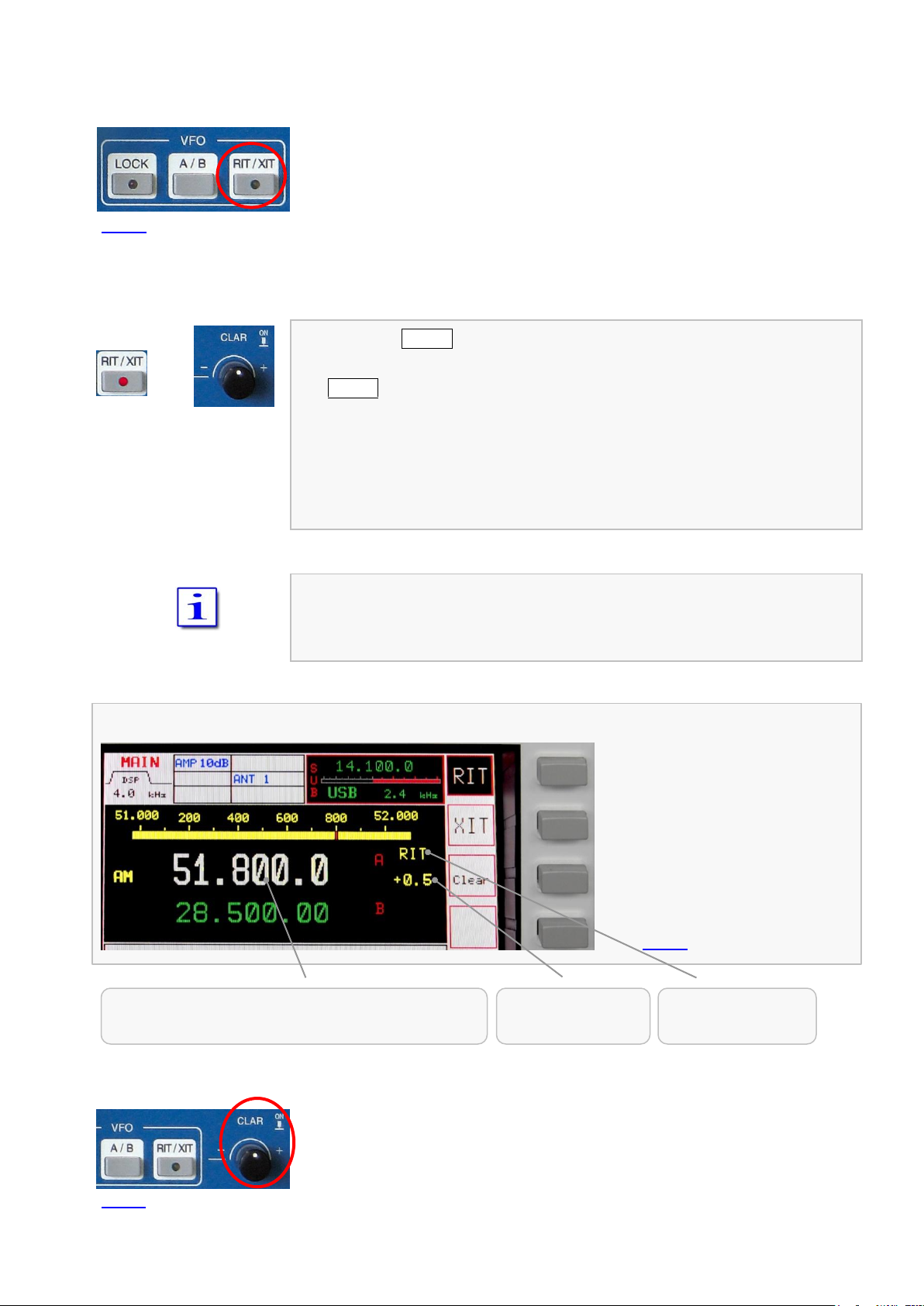

11.8 RIT / XIT Operation ............................................................................................................................. 43

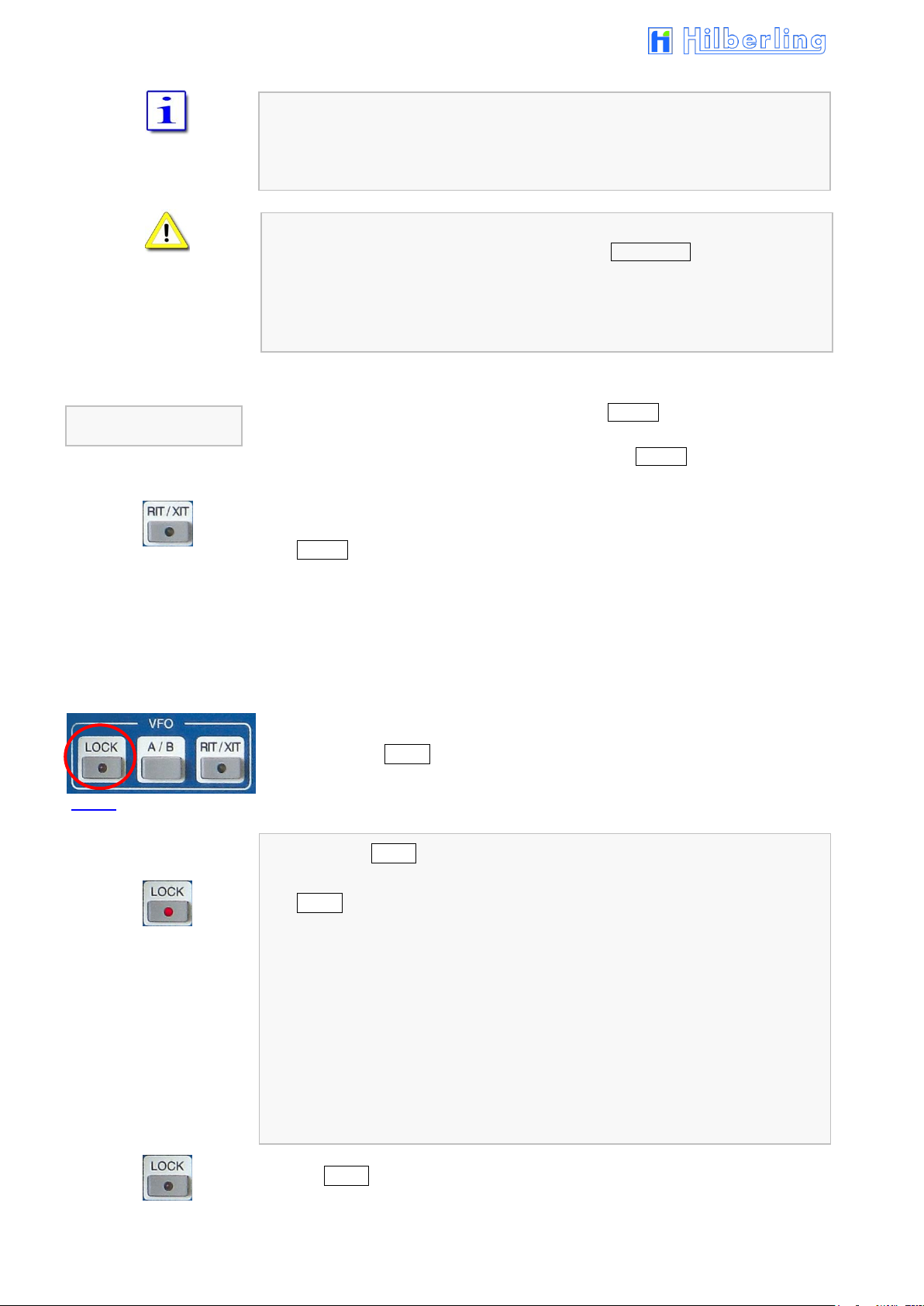

11.9 Locking VFO Settings LOCK ................................................................................................................ 44

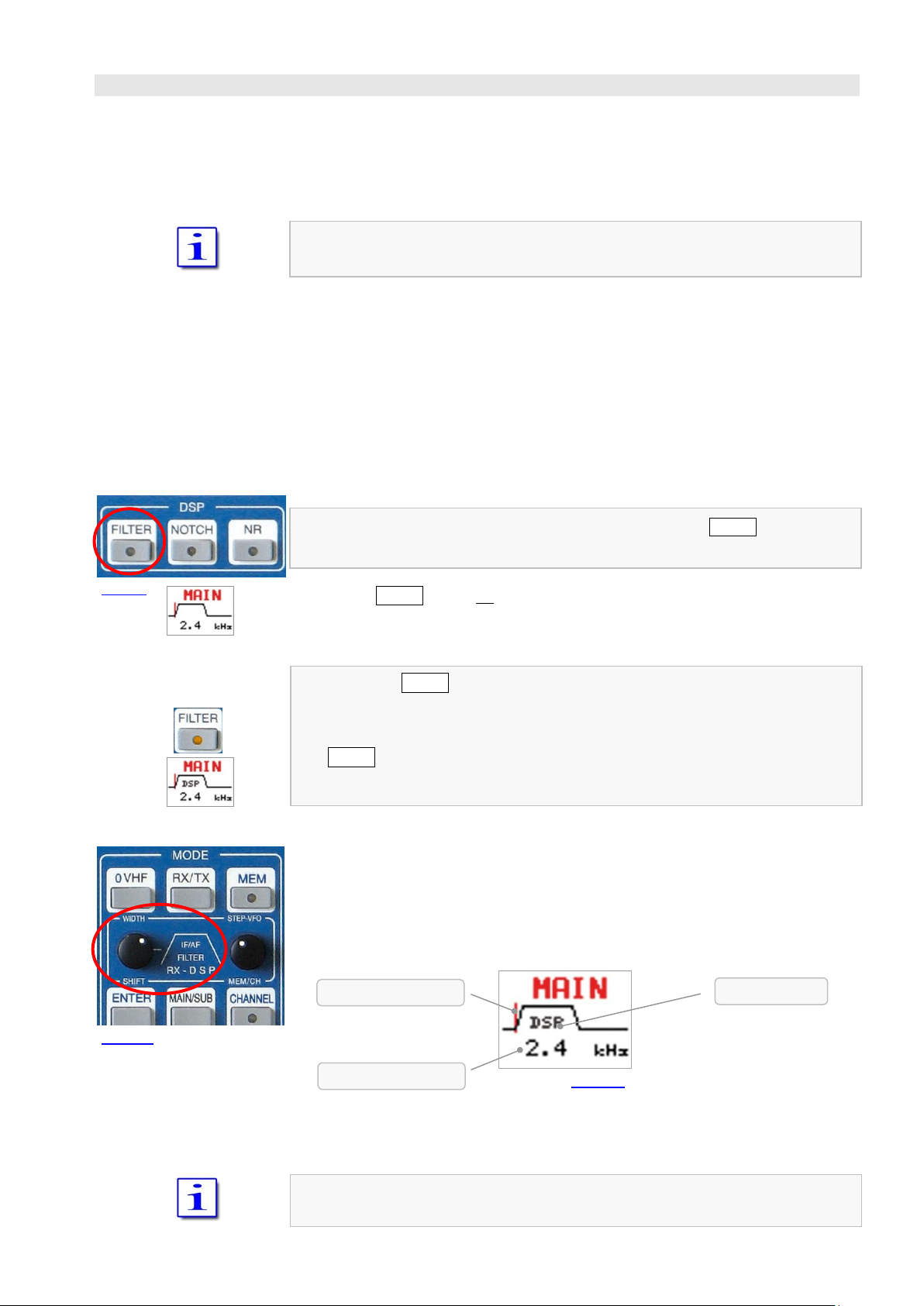

12 Filter Bandwidth and Shift Function FILTER WIDTH / SHIFT 45
12.1 Filter Bandwidth DSP Off ....................................................................................................................... 46
12.2 Filter Bandwidth DSP On ....................................................................................................................... 46
13 Notch Filter / Noise Reduction / Noise Blanker NOTCH / NR / NB

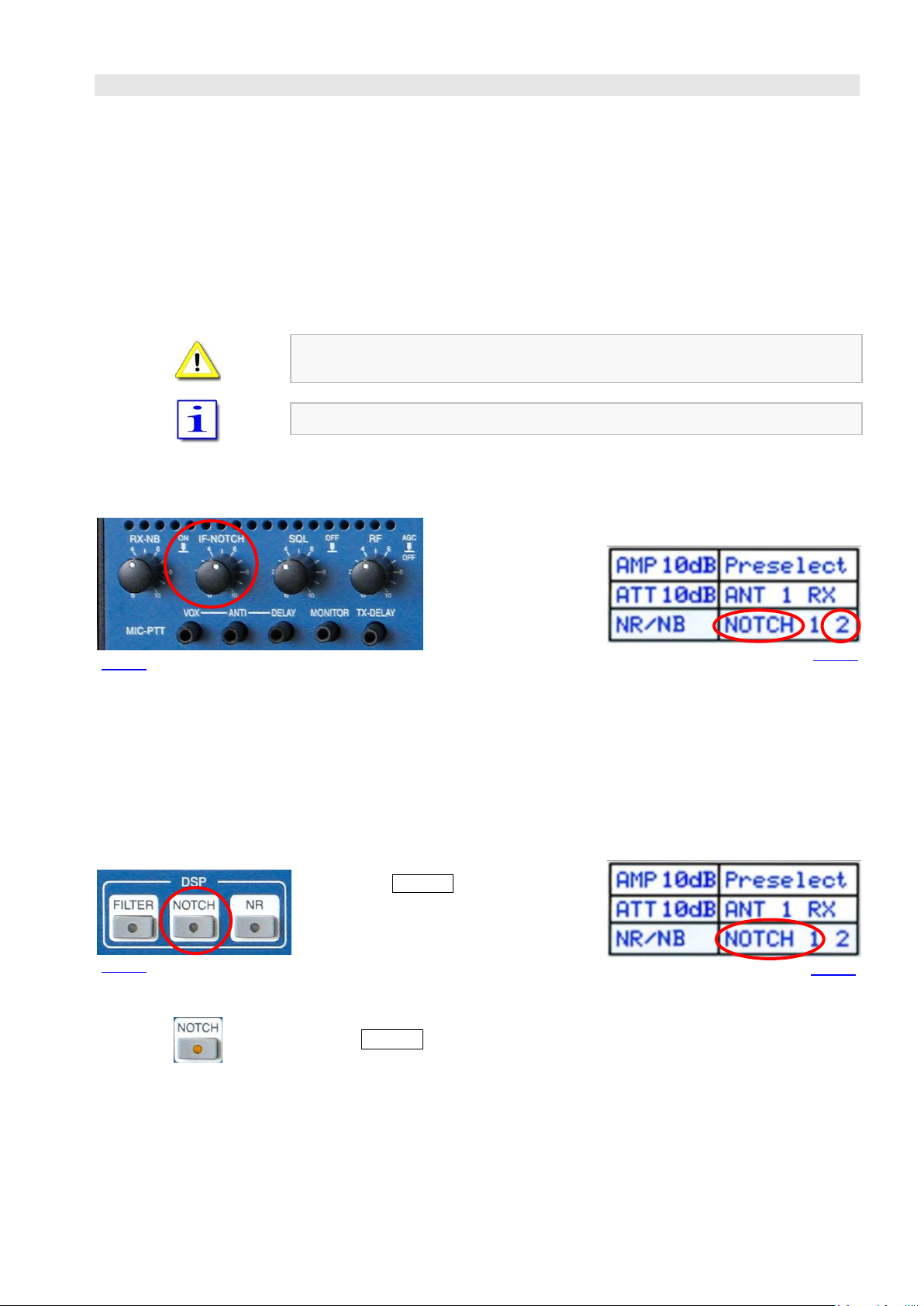

13.1 Notch Filter: IF-Notch and DSP Multi Notch .......................................................................................... 47
13.1.1 IF NOTCH Filter ......................................................................................................................... 47
13.1.2 DSP Multi NOTCH Filter („digital“ MNF) ........................................................................................ 47

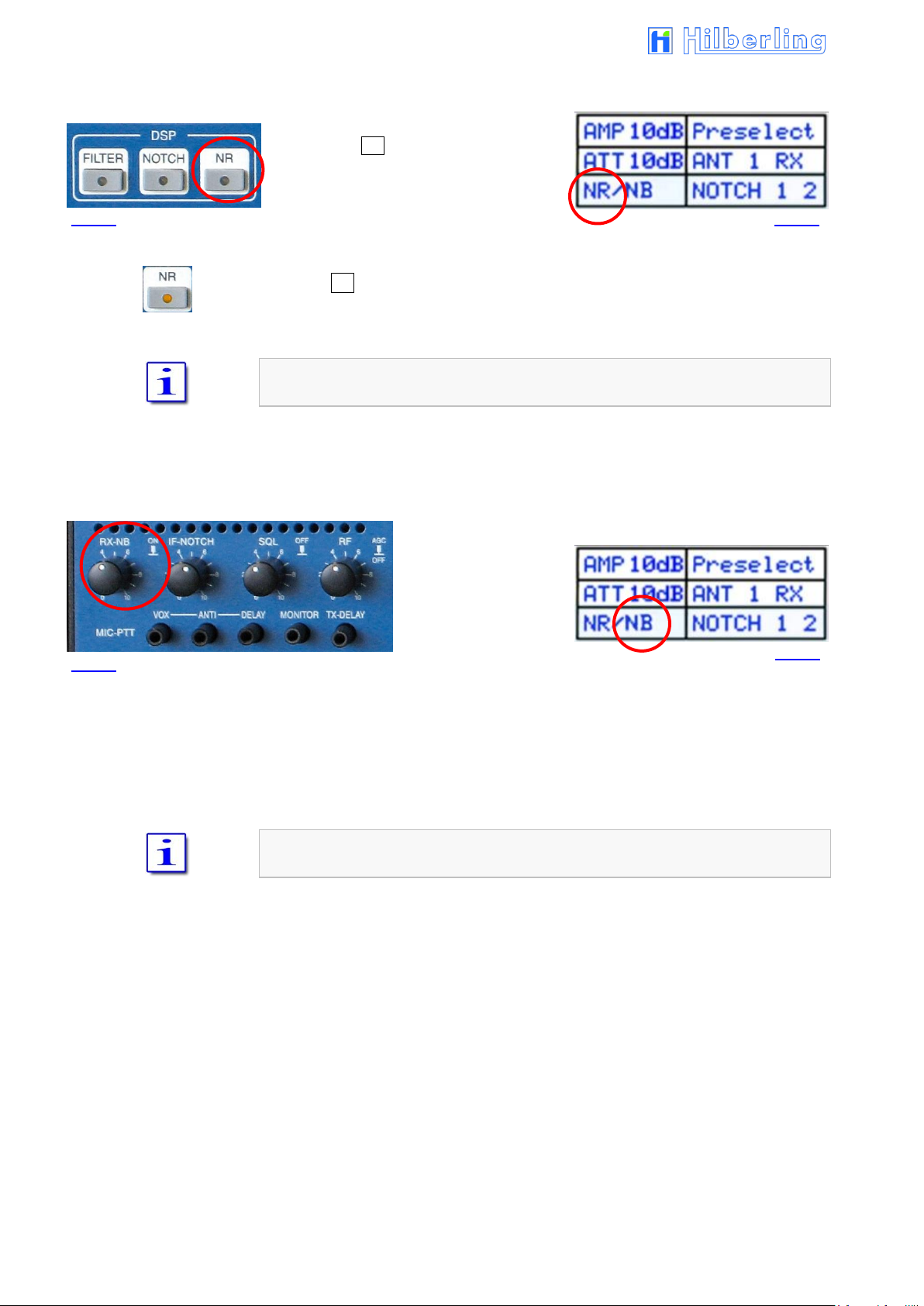

13.2 DSP Noise Reduction NR .................................................................................................................... 48
13.3 Noise Blanker NB ............................................................................................................................... 48
14 Squelch SQL 49
15 RX Gain Control AGC / RF-GAIN

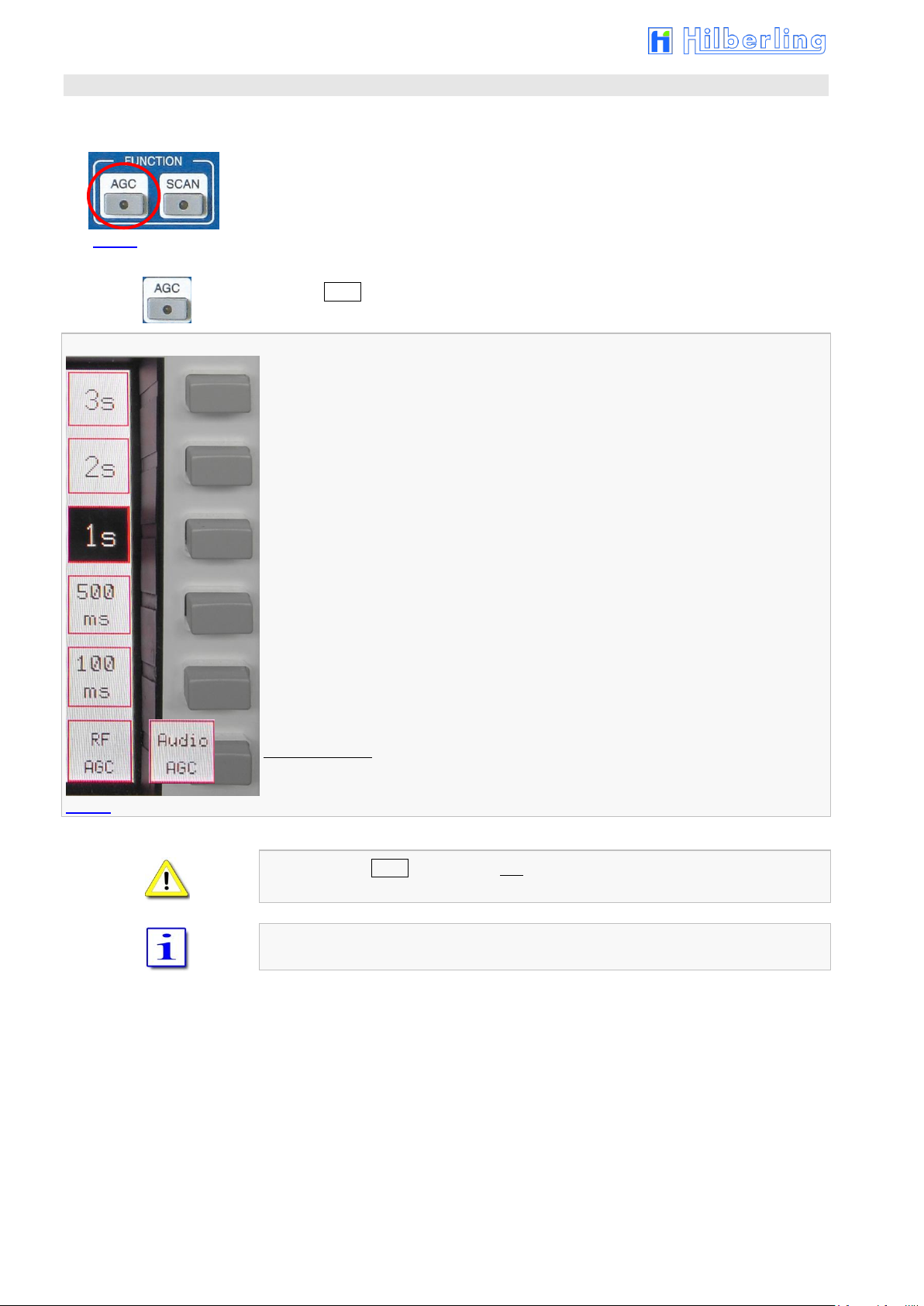

15.1 Automatc Gain Control AGC ................................................................................................................ 50

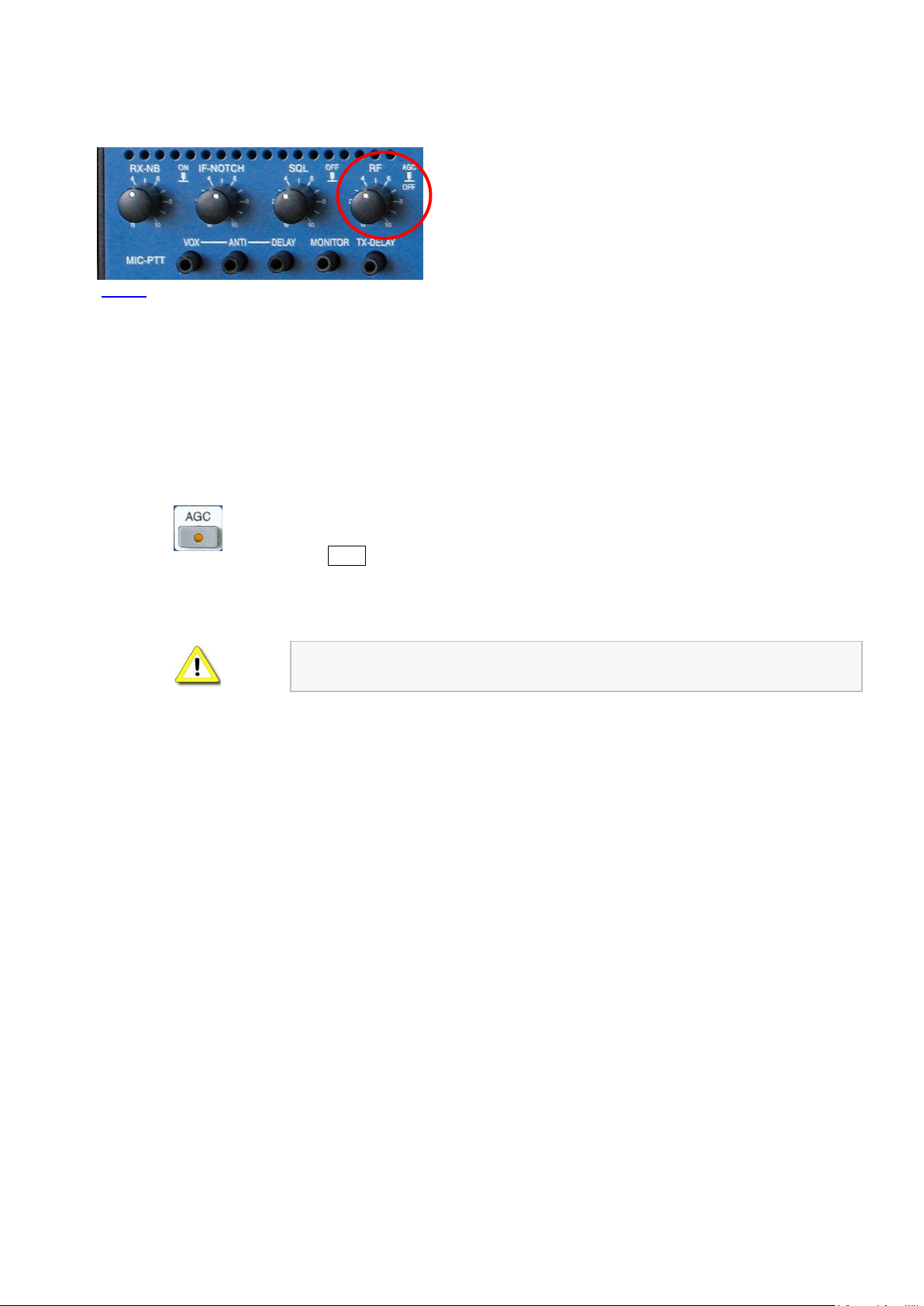

15.2 Manual Gain Control RF-GAIN ............................................................................................................. 51
active
RX) and SUB VFO Tuning Knob (RX
in the Background
) .............................. 38
16 Storage Frequency Scanning SCAN

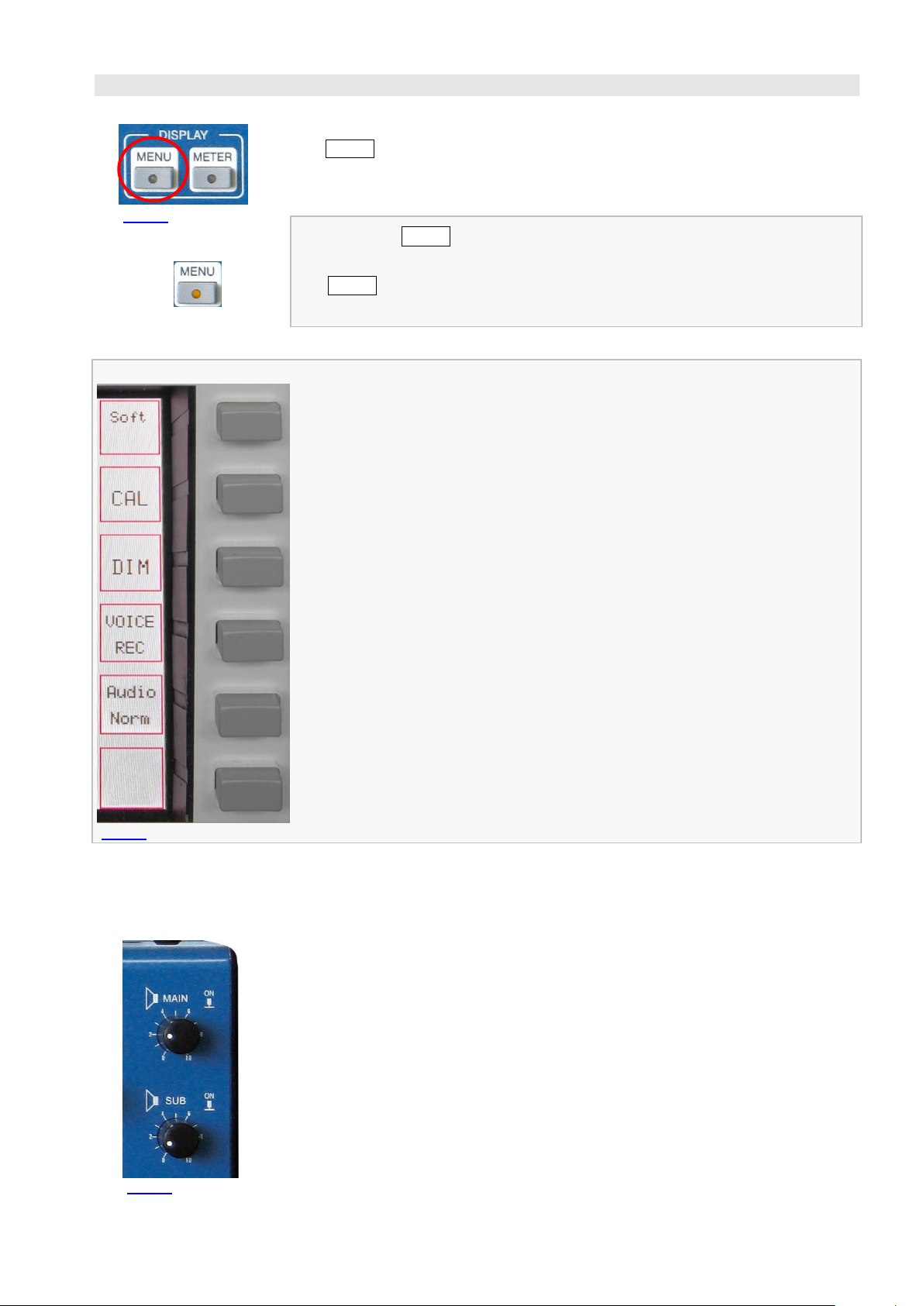

17 Speaker / Calibration / Display / Voice Recorder MENU 53
17.1 RX–Speaker Allocation Audio NORM / SPLIT ......................................................................................... 53

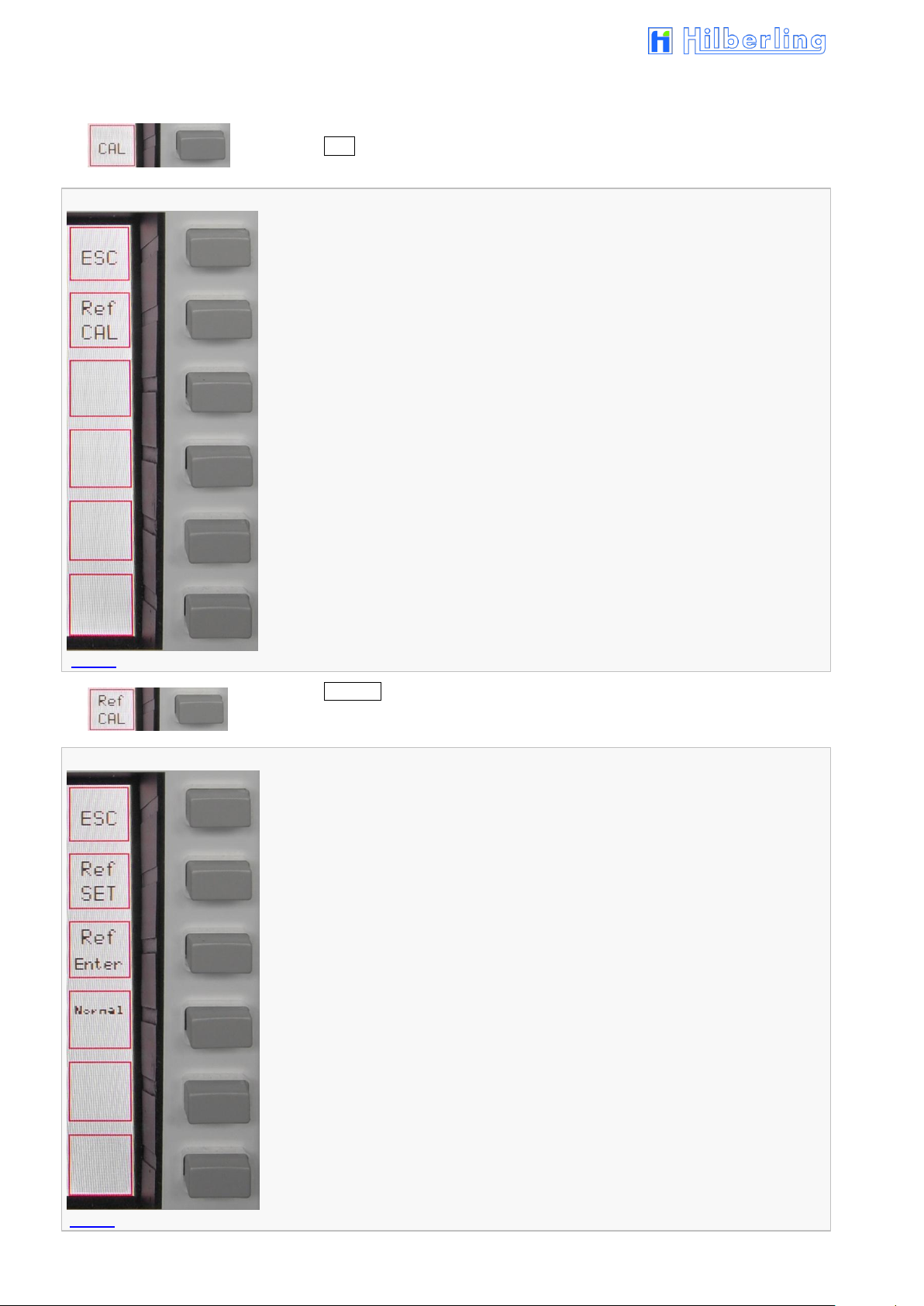

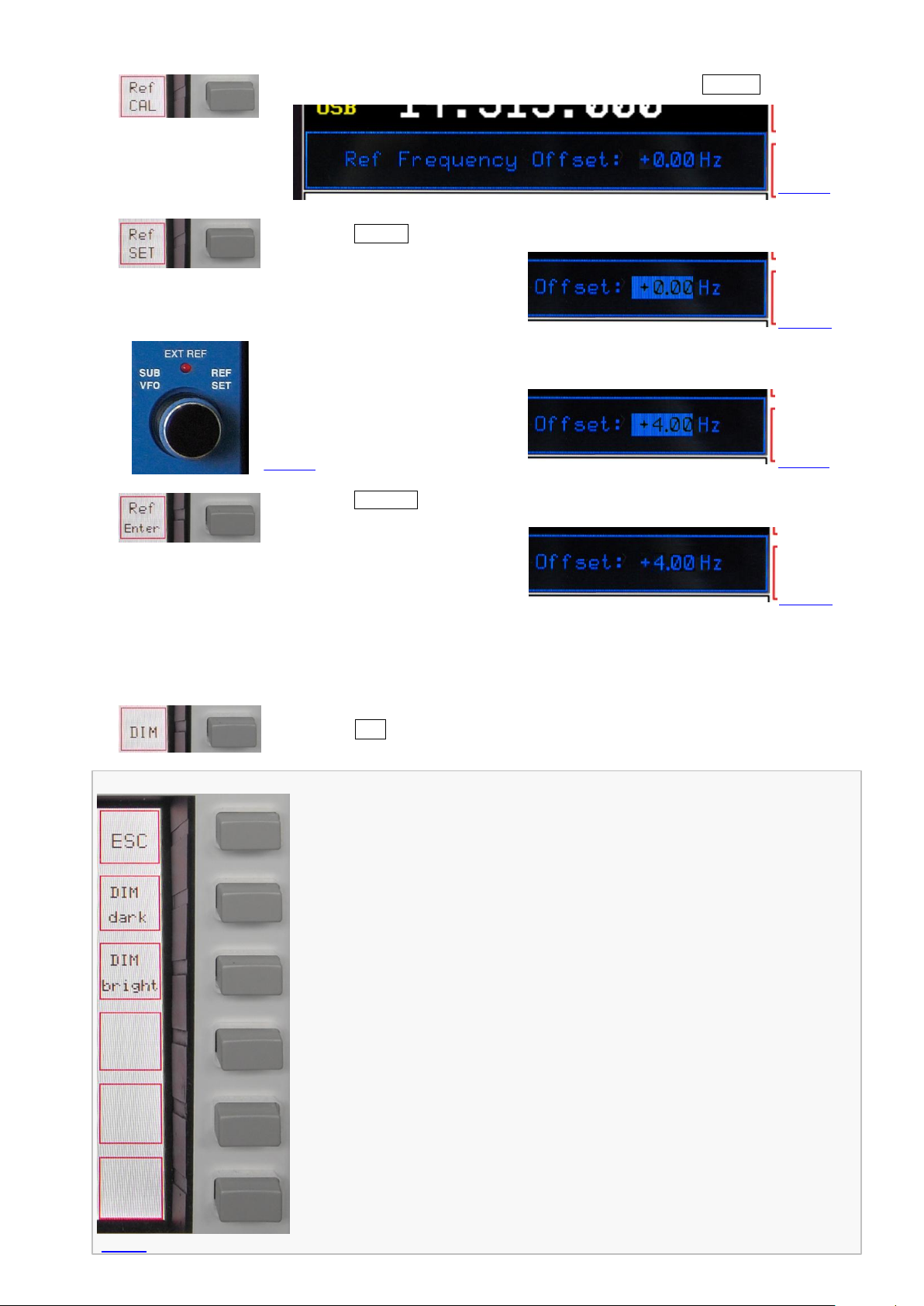

17.2 Calibration of Internal Reference REFERENCE CALIBRATION ................................................................. 54
17.3 Brightness of Display DIM .................................................................................................................. 55

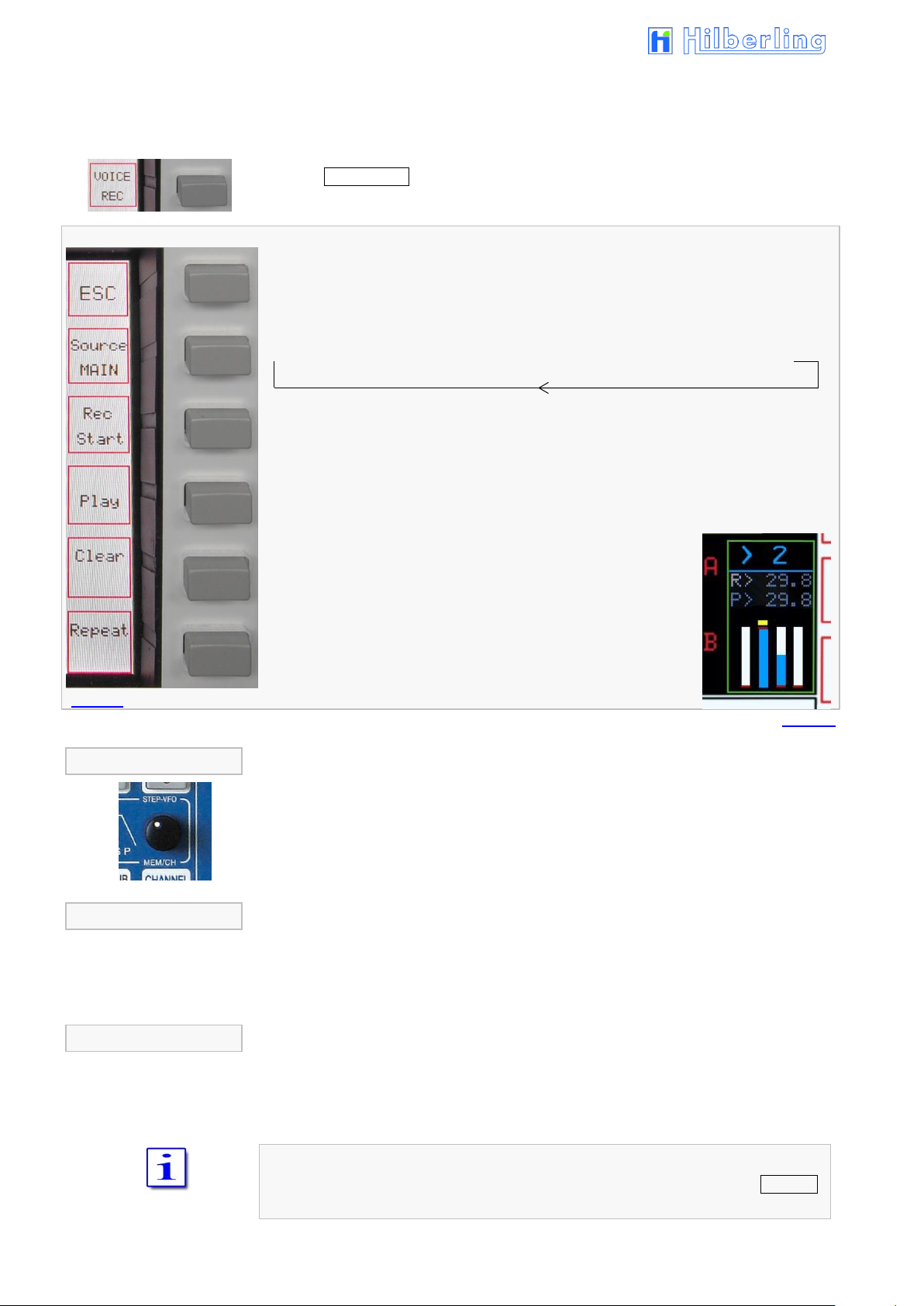

17.4 NF Recording VOICE RECORDER ......................................................................................................... 56

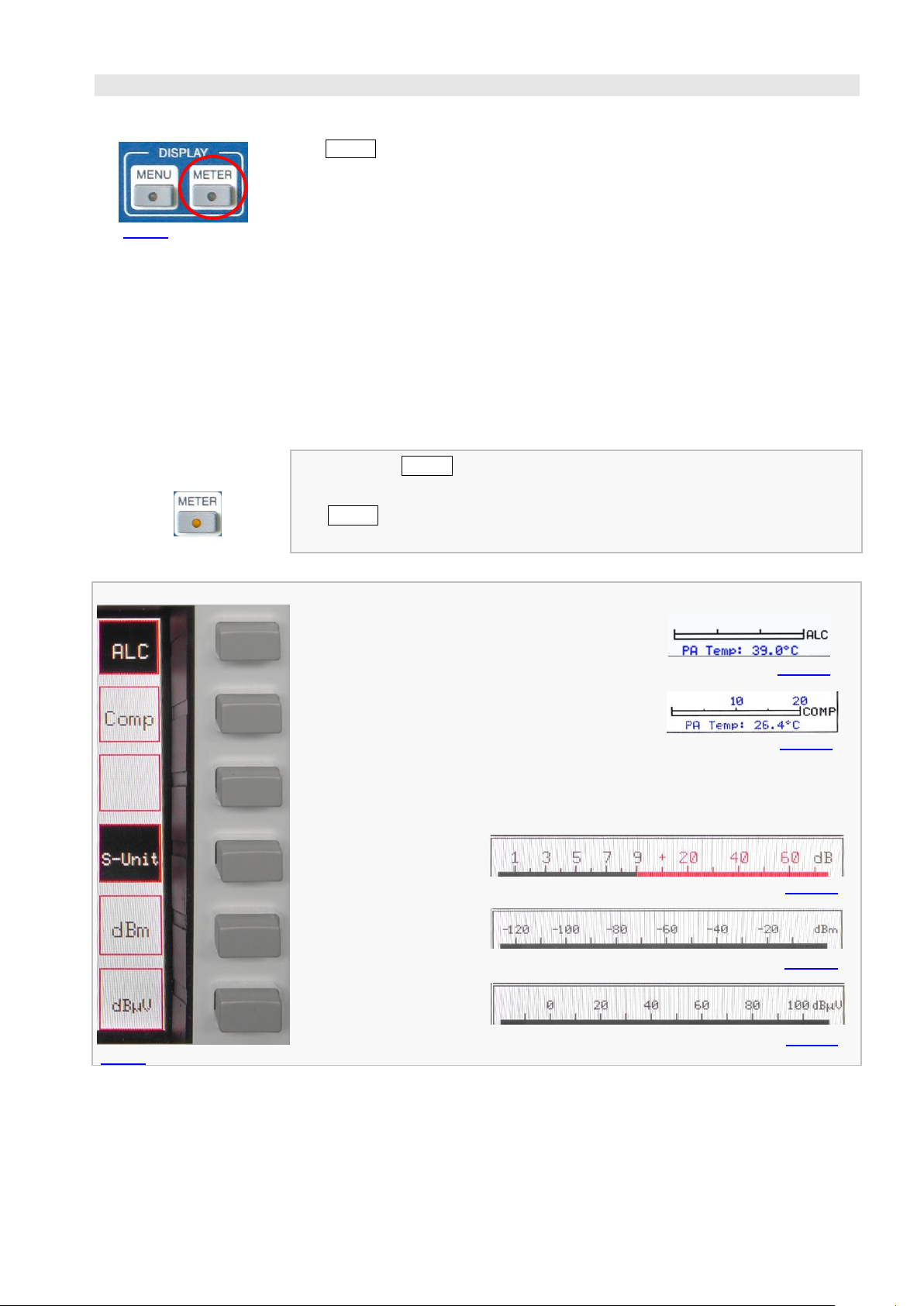

18 Scale Select METER 57
19 Basic Settings RX/TX 58

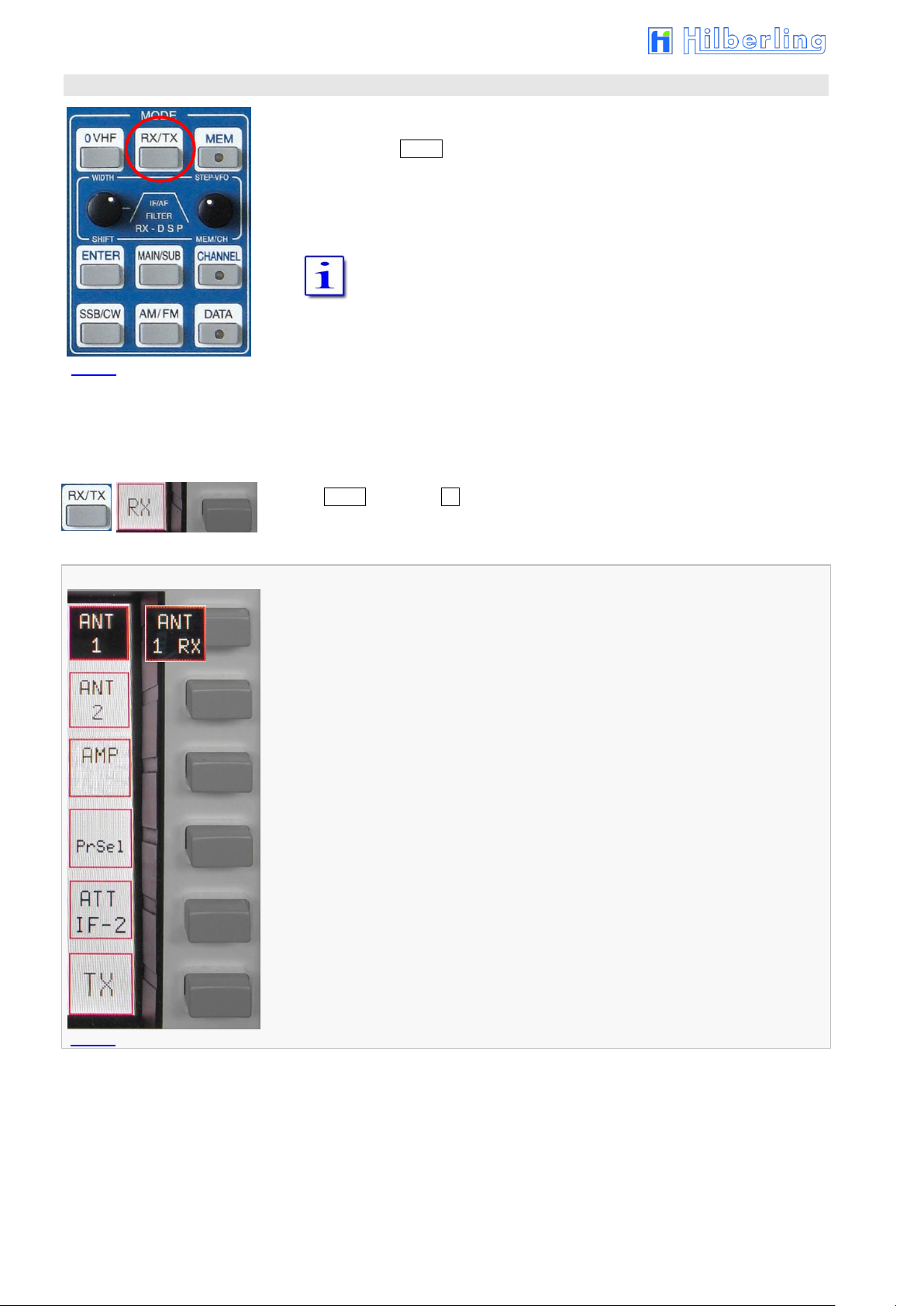

19.1 RX Settings ......................................................................................................................................... 58
19.1.1 HF: Antenna Select / Preamplifier / Preselector / Attenuator / IF-2 Filters ....................................... 58
19.1.2 HF: Attenuator / IF-2 Filter Select ............................................................................................... 59

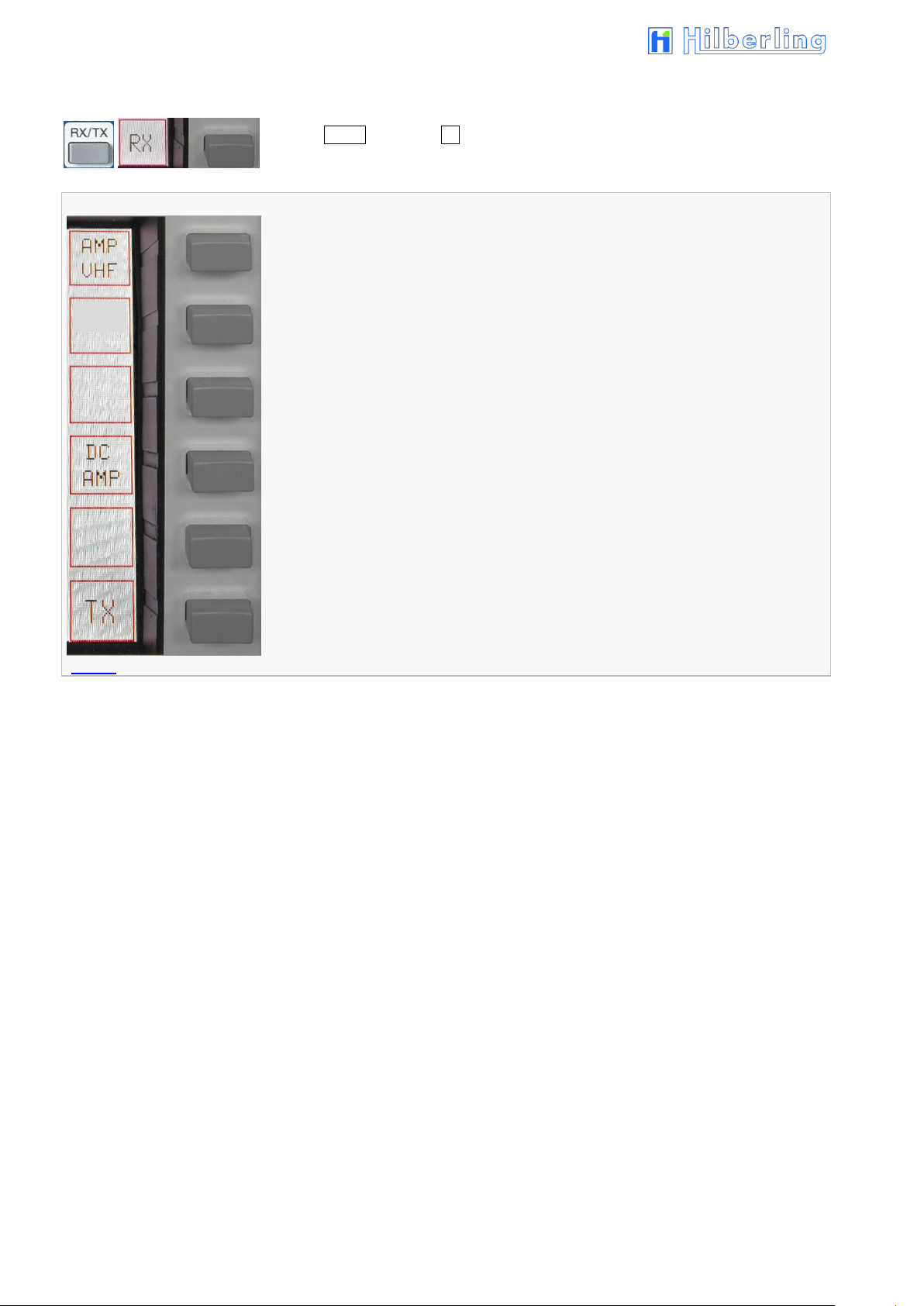

19.1.3 VHF: Preamplifier PRE AMP / DC on Antenna OUT DC AMP ........................................................ 60
19.1.4 VHF: IF-2 Filter Select ................................................................................................................ 61
19.2 TX Settings ......................................................................................................................................... 62
19.2.1 Leveler TX Audio LEV ............................................................................................................... 62

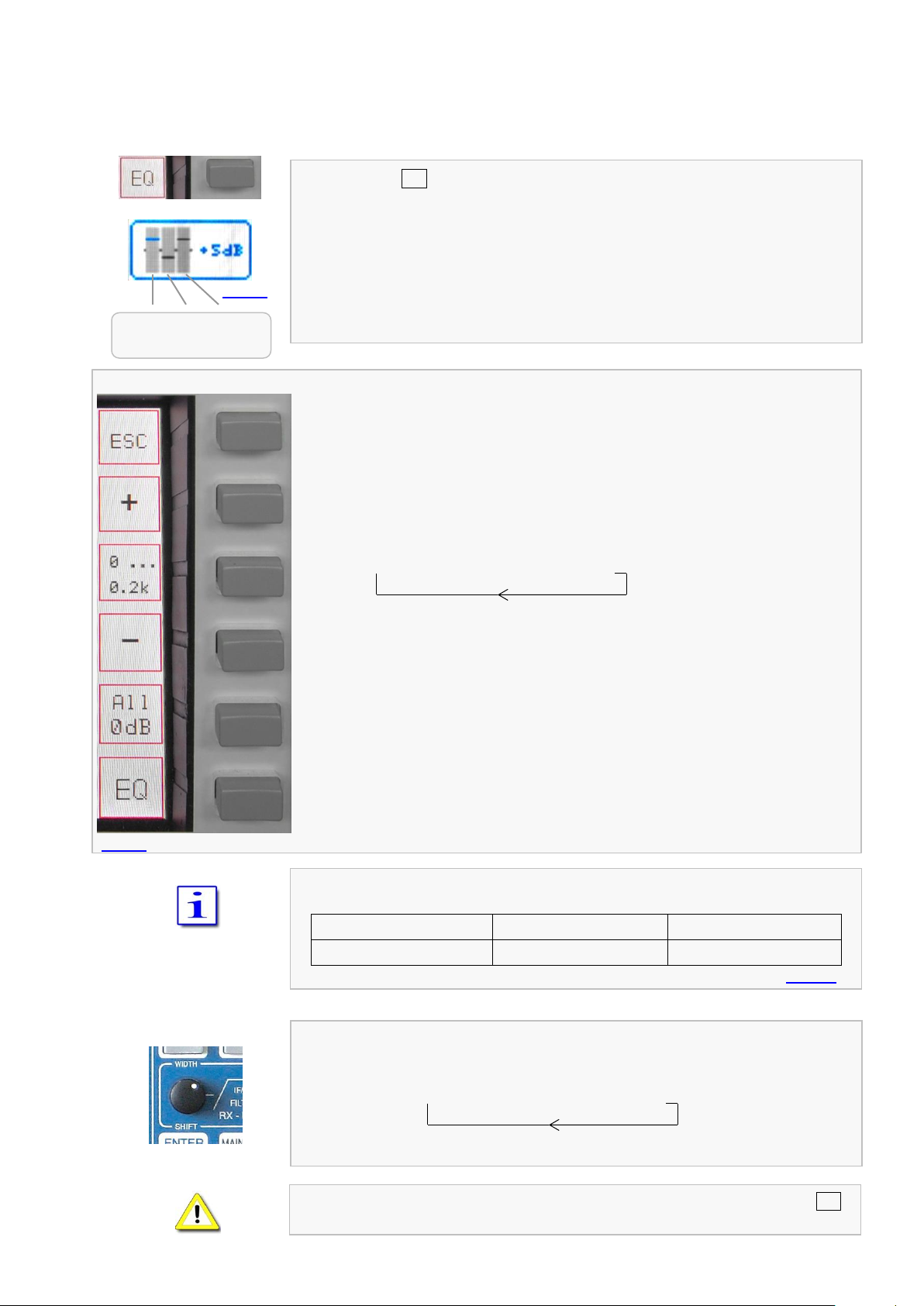

19.2.2 Equalizer Operation TX-Audio EQ .............................................................................................. 63

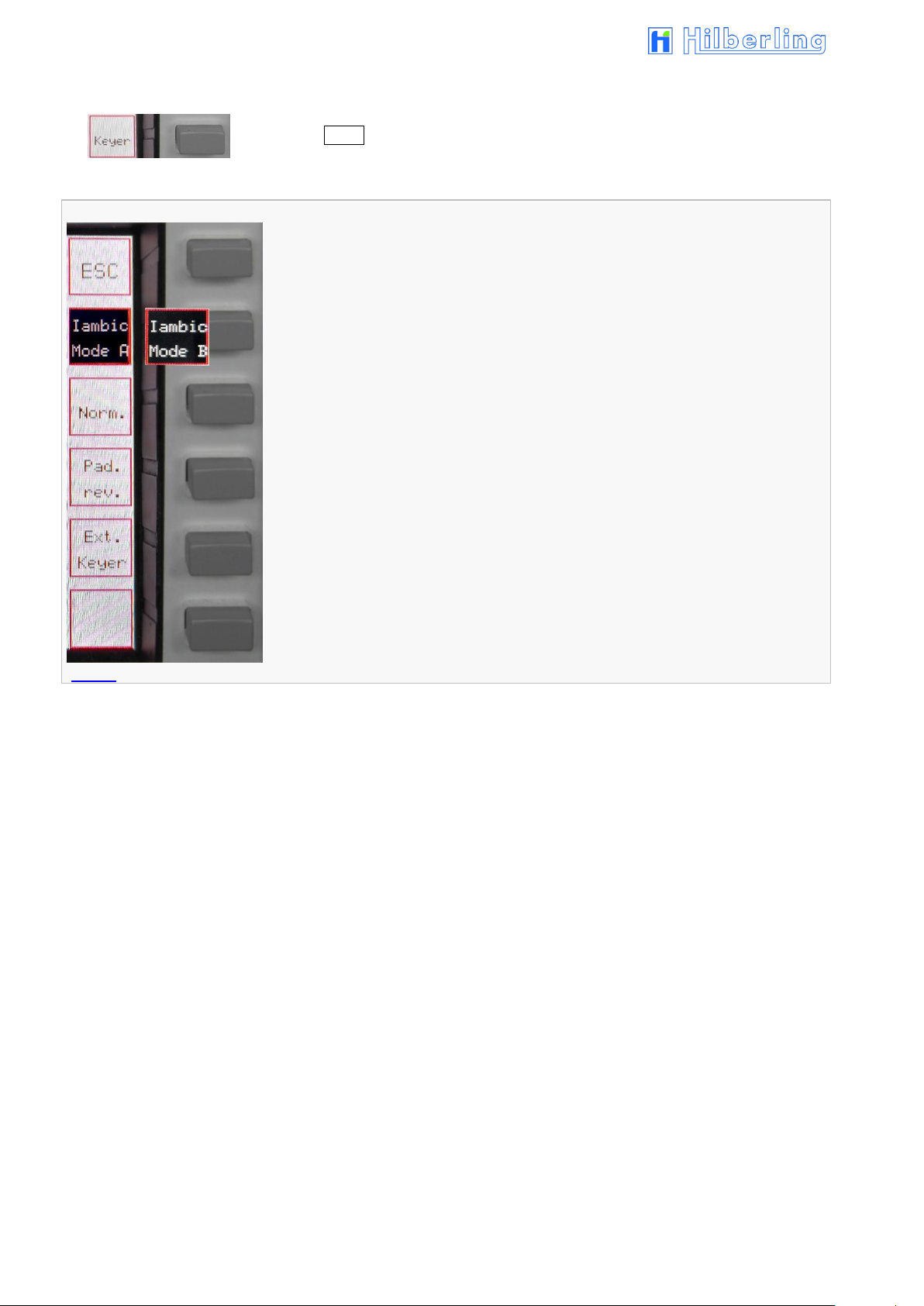

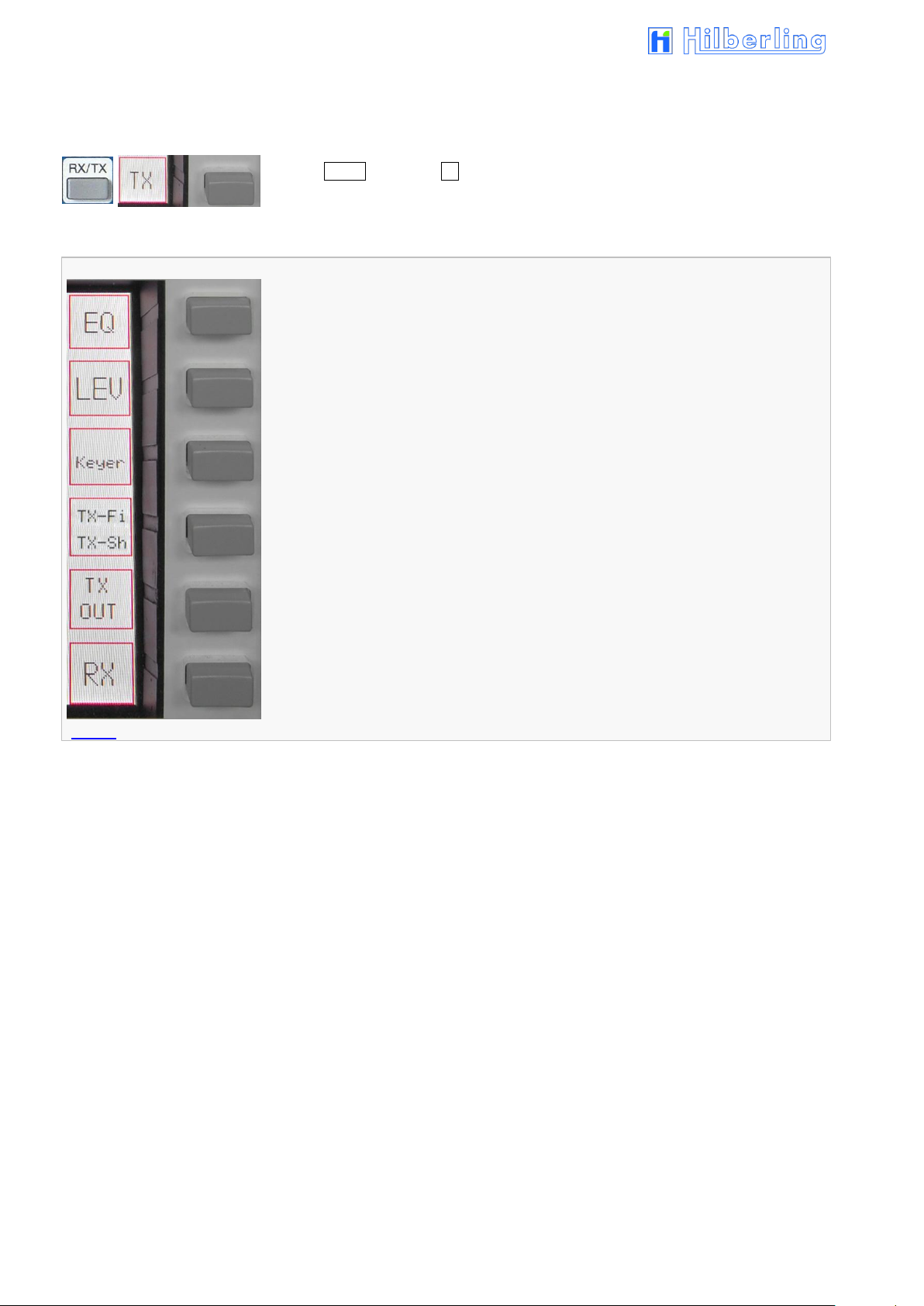

19.2.3 Keyer Select .............................................................................................................................. 64
19.2.4 TX Filter Select / TX Shift Select .................................................................................................. 65

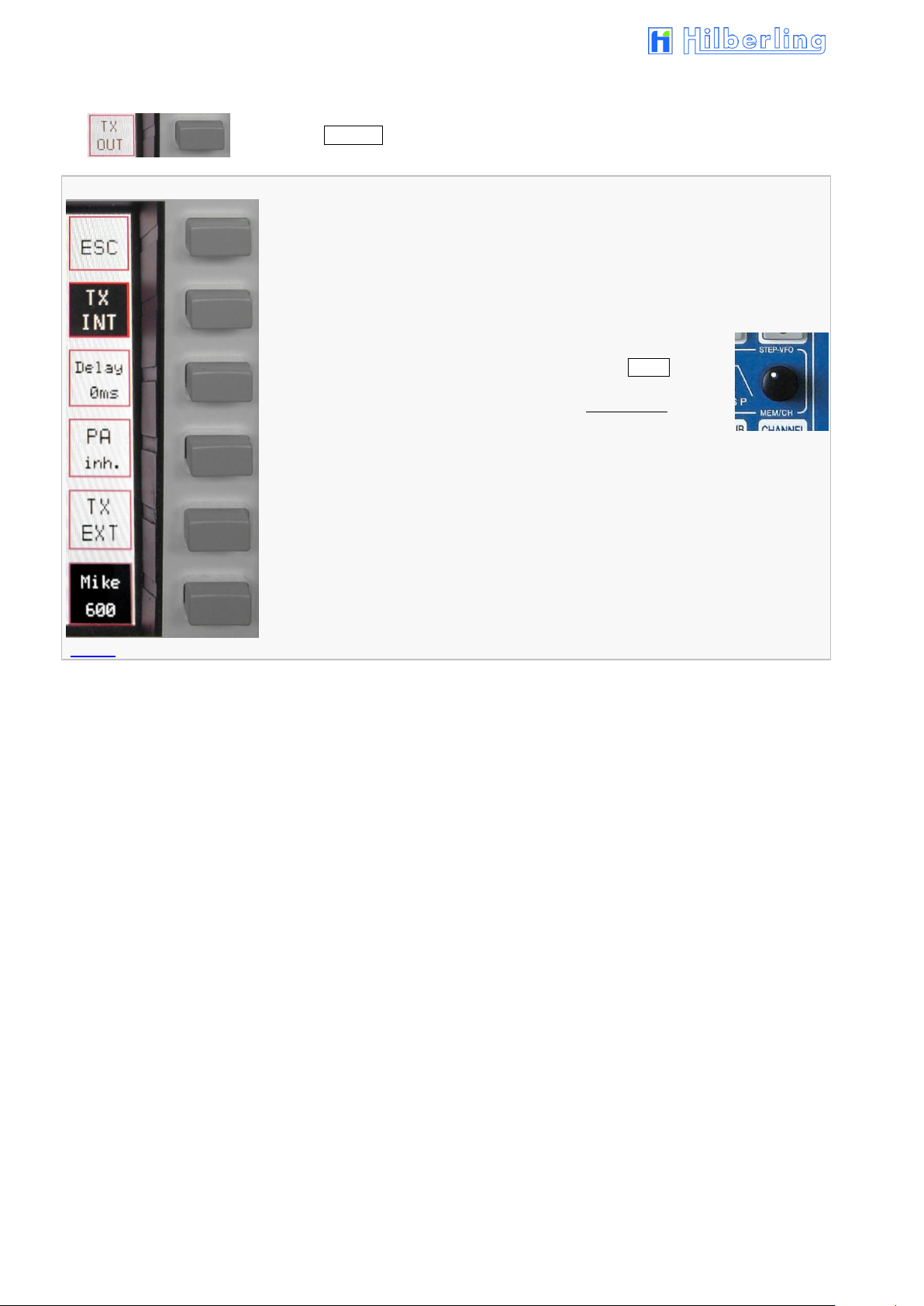

19.2.5 TX Signal Settings ..................................................................................................................... 66
20 Transmitter Controls 58

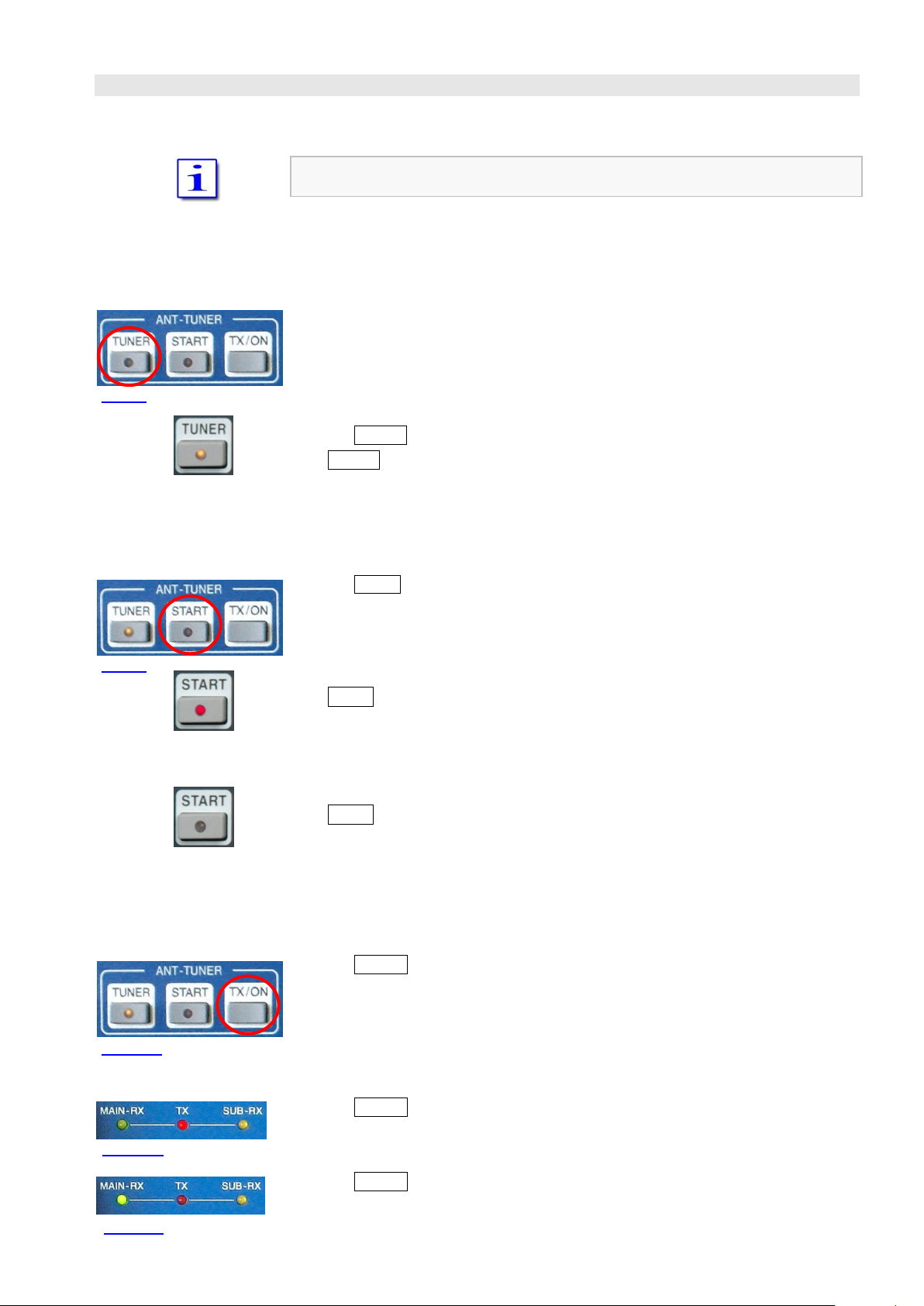

20.1 Antenna Tuner .................................................................................................................................... 67
20.1.1 Activate TUNER ....................................................................................................................... 67
20.1.2 Start Re-Tuning Cycle START..................................................................................................... 67
20.1.3 Permanent Transmit Operation TX / ON .................................................................................... 67

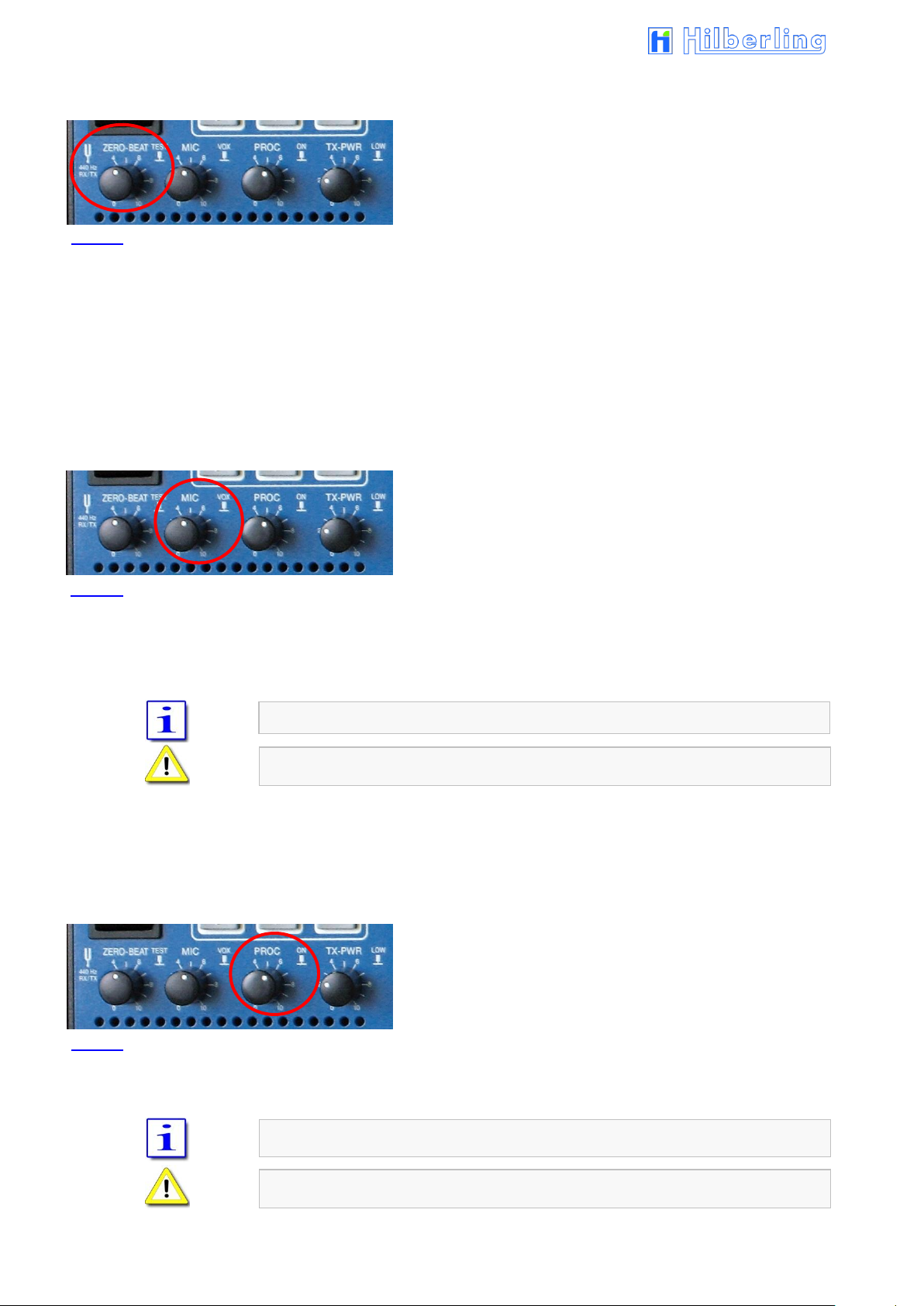

20.2 ZERO-BEAT ......................................................................................................................................... 68
20.3 Microphone Sensitivity MIC (Gain) ....................................................................................................... 68
20.4 Compression TX Audio PROC .............................................................................................................. 68
20.5 Transmit Power Control TX-PWR ......................................................................................................... 69

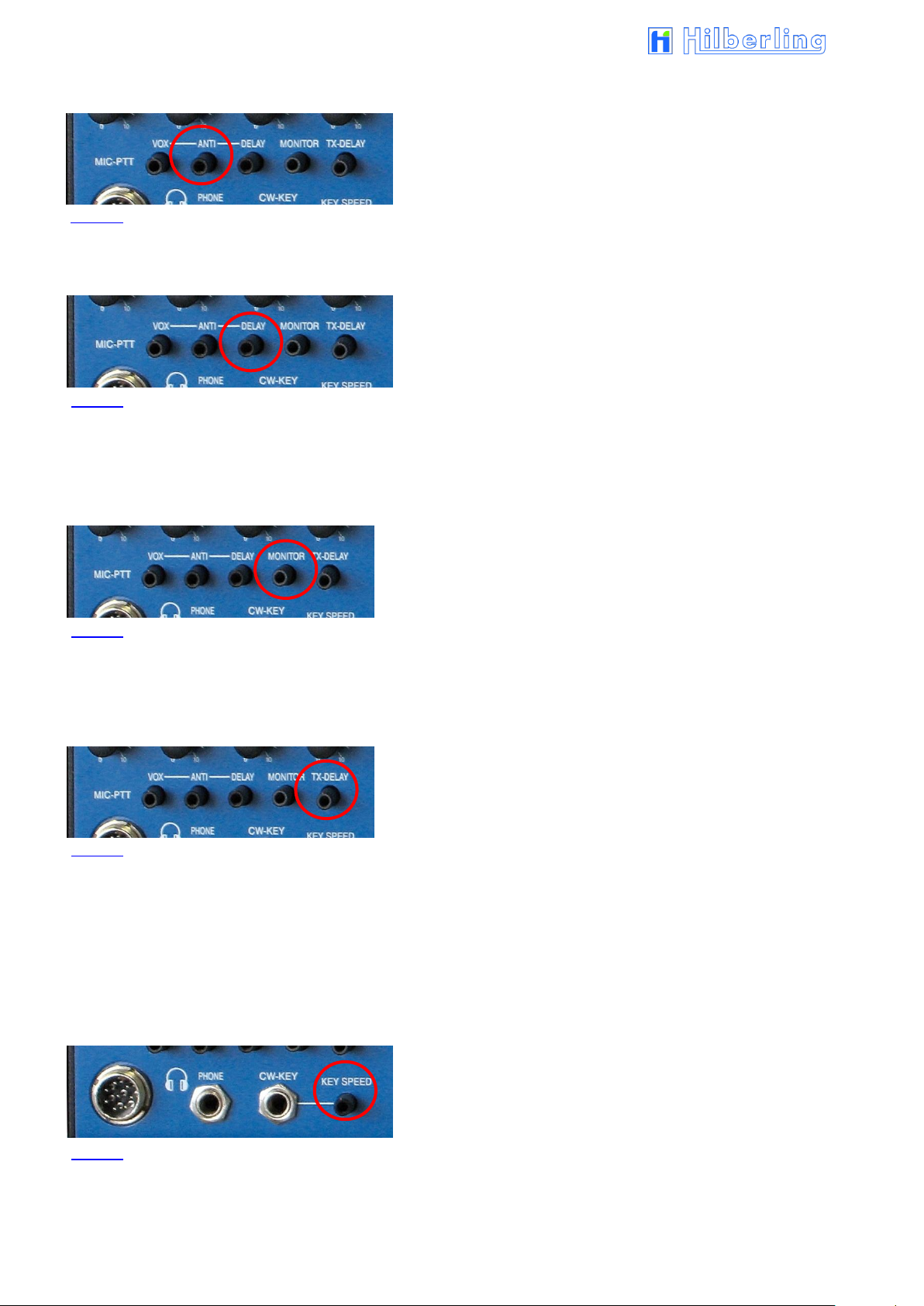

20.6 VOX Operation .................................................................................................................................... 69
20.6.1 VOX Threshold .......................................................................................................................... 69
20.6.2 VOX ANTI-TRIP Activating Suppression ..................................................................................... 70
20.6.3 VOX DELAY Hold Time ............................................................................................................. 70
20.7 Monitoring TX Signal MONITOR .......................................................................................................... 70
20.8 Fall Time TX for CW TX-DELAY ........................................................................................................... 70
20.9 Keying Speed CW KEY SPEED ............................................................................................................. 70
temporary disabled
52
PT-8000A Operating Manual v2.00.33 v
Appendix

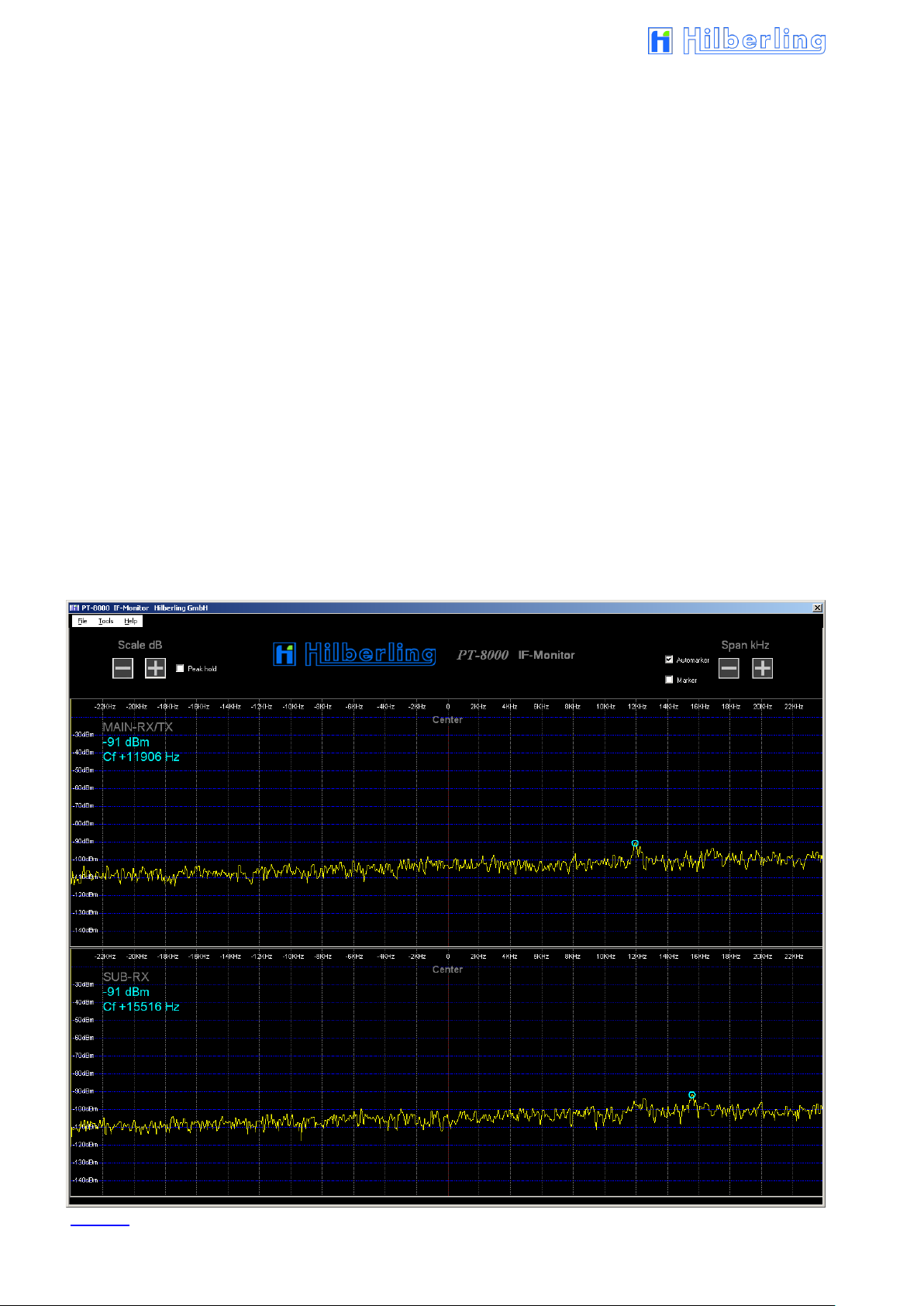

A1 IF Monitor Software (Windows® Program)
A1.1 Introduction .................................................................................................................................... A1- 1
A1.2 Hardware Requirements ................................................................................................................... A1- 1
A1.3 Setup Software ................................................................................................................................. A1- 1
A1.4 Installation of the IF Monitor Program ................................................................................................ A1- 1

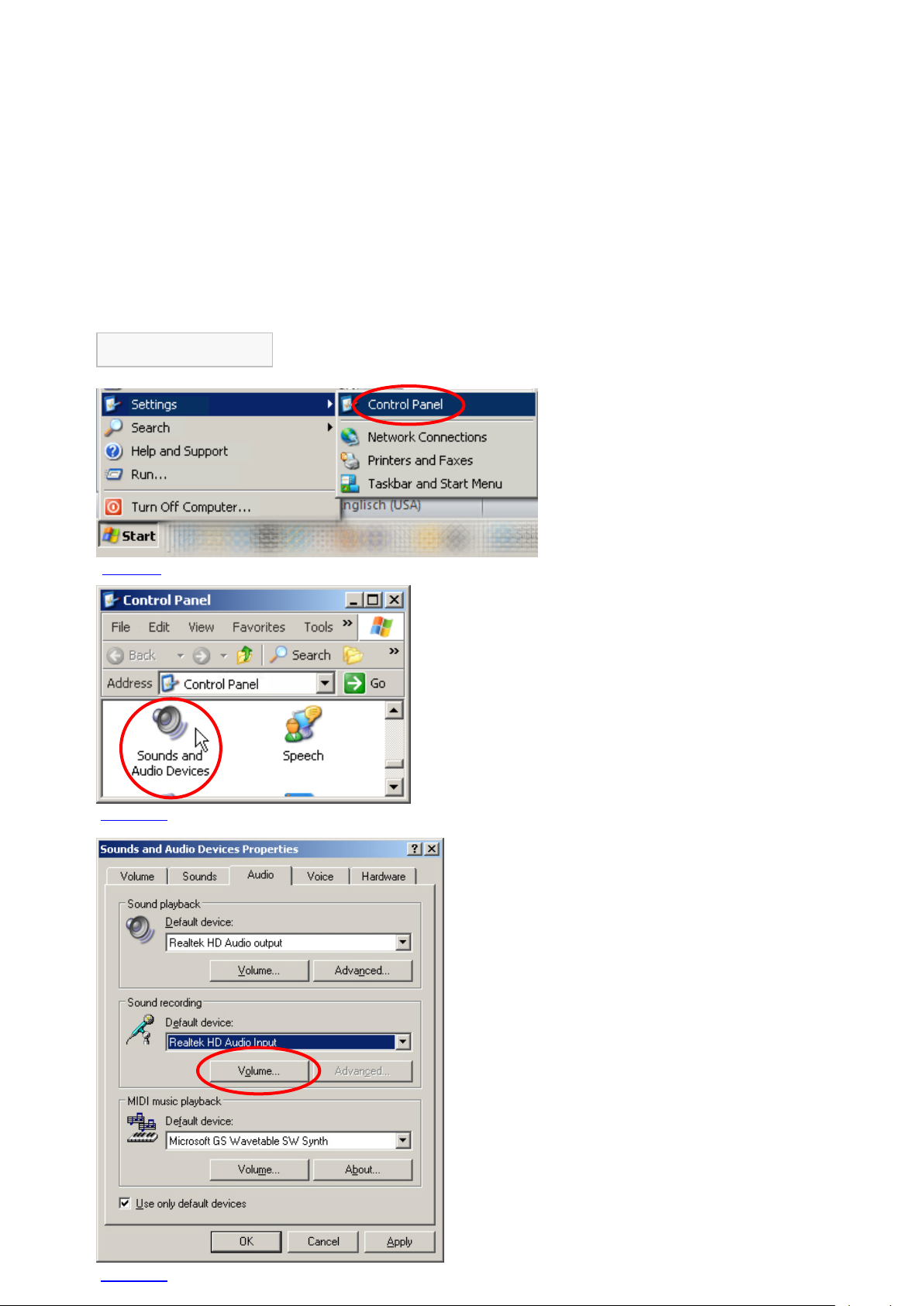

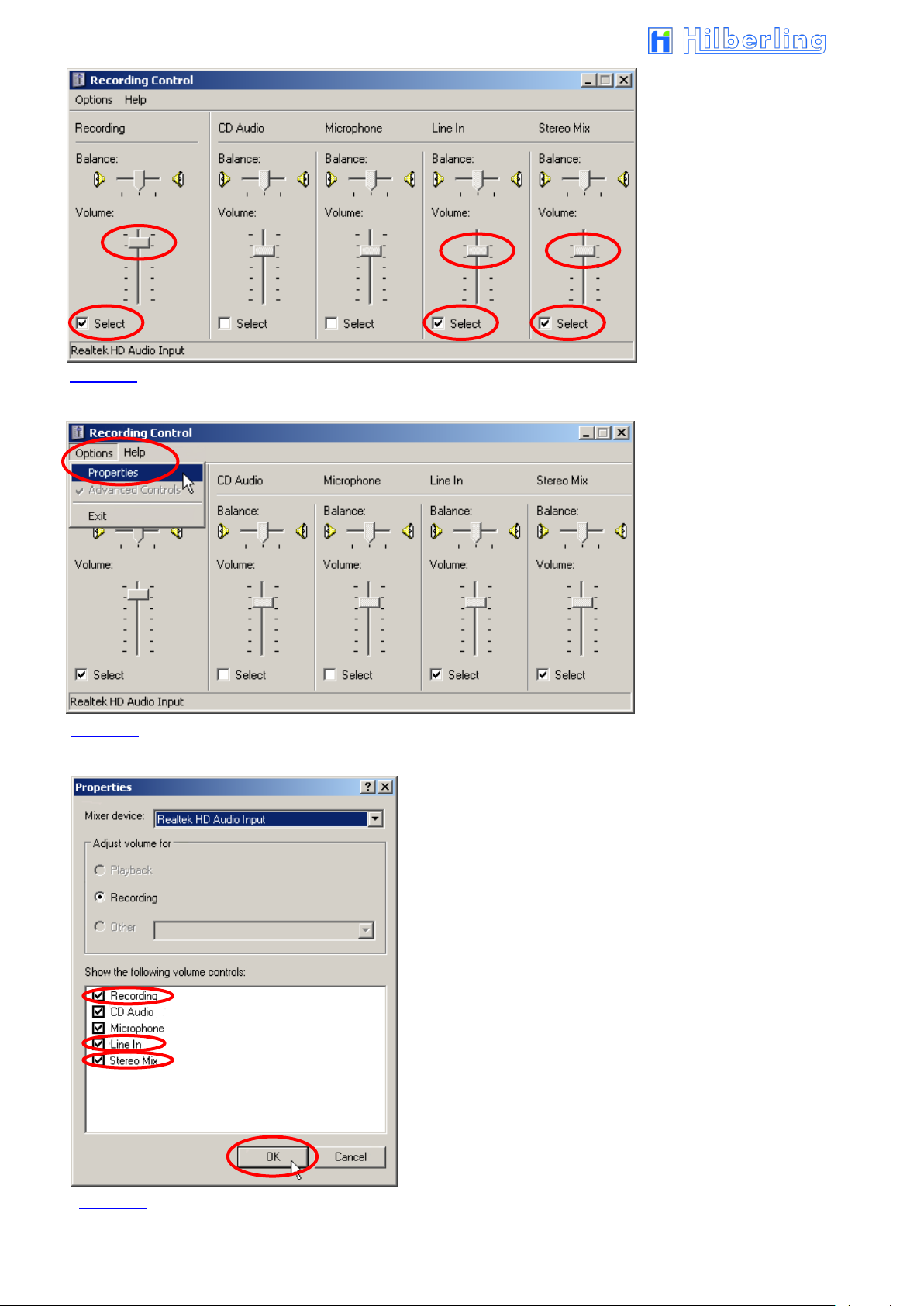

A1.5 Connect PT-8000A to PC by Audio Cable ............................................................................................ A1- 2
A1.6 Start and set up the Program ............................................................................................................ A1- 2

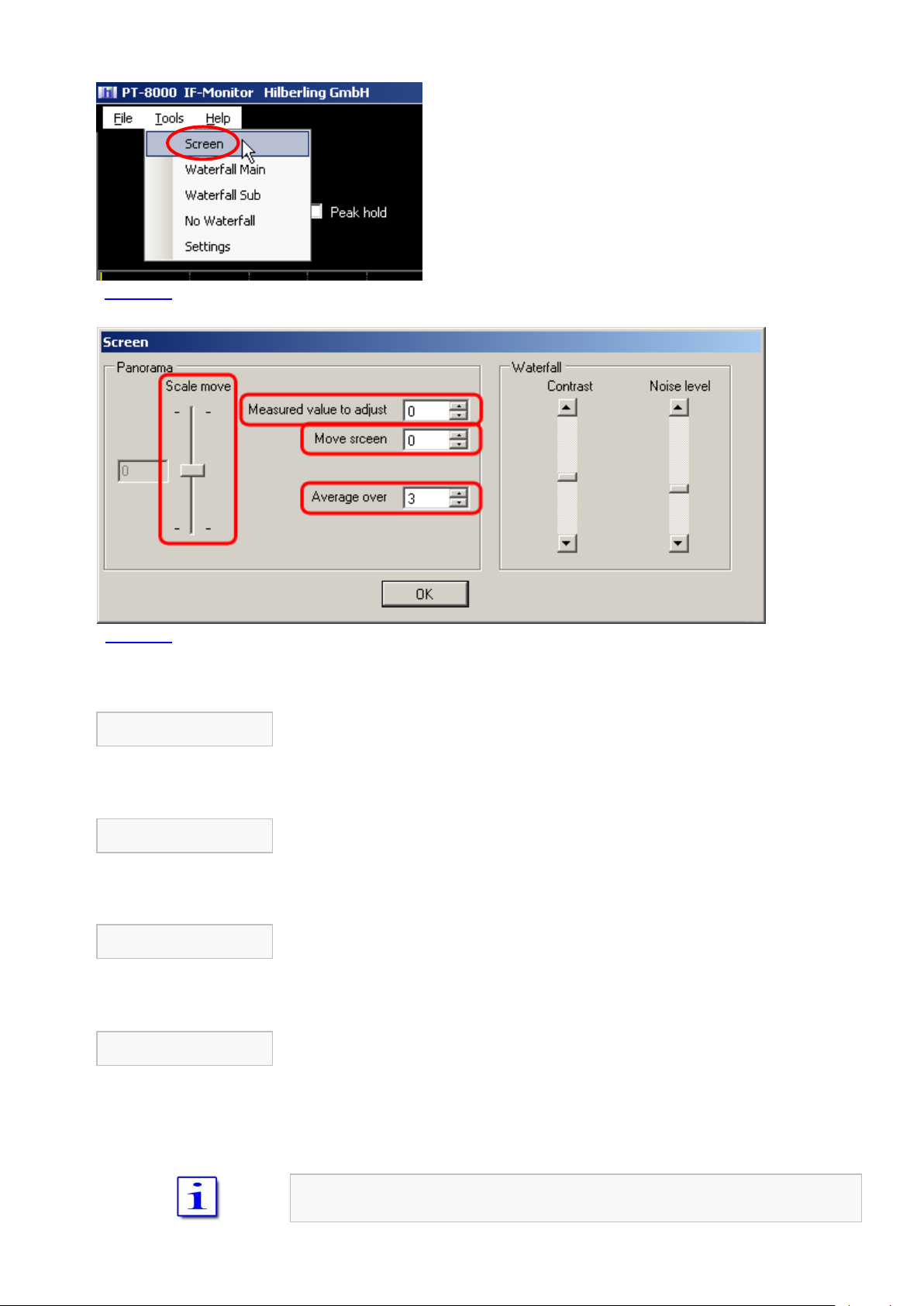

A1.6.1 Program Window ................................................................................................................... A1- 3

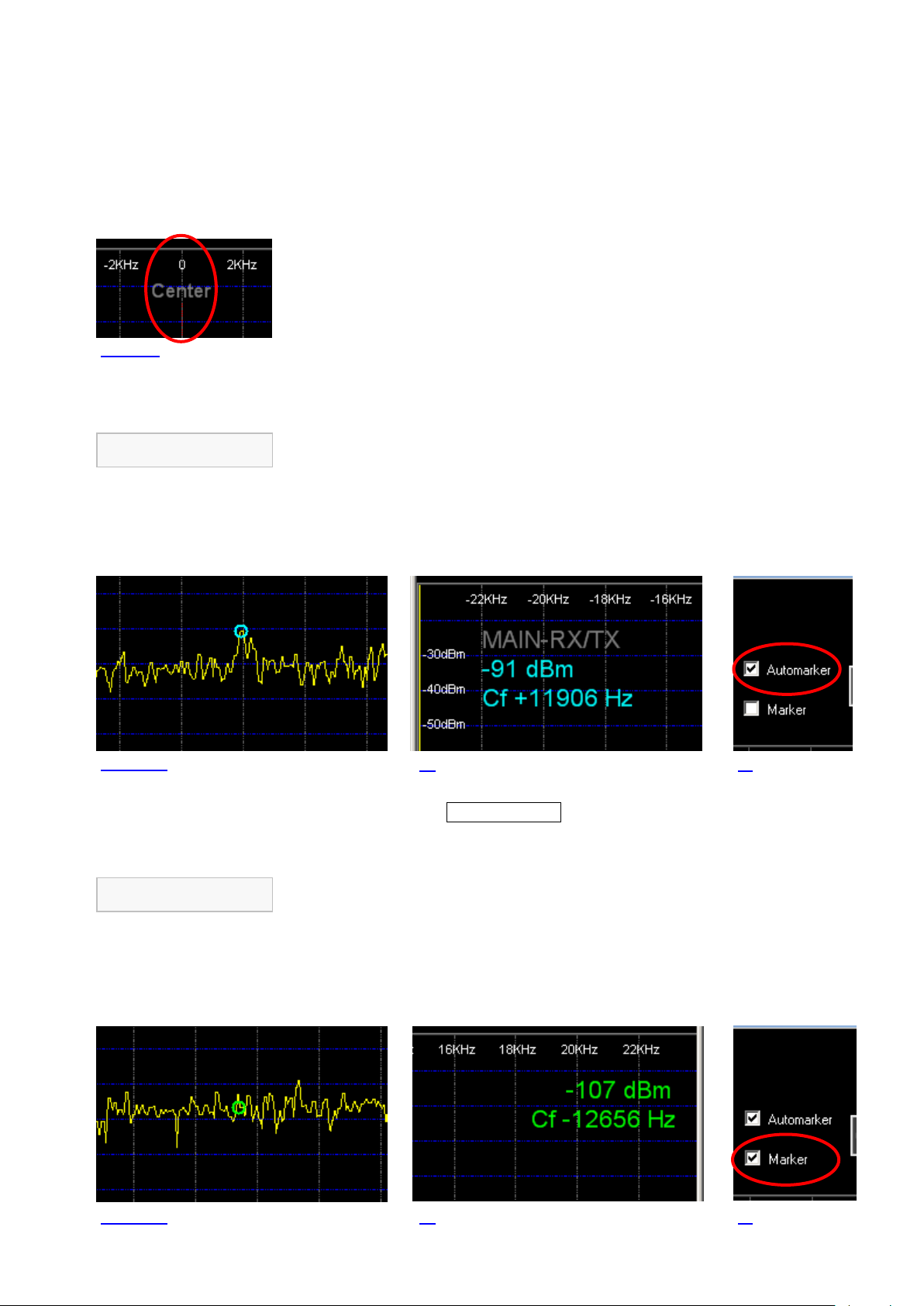

A1.6.2 Automarker and Marker .......................................................................................................... A1- 3

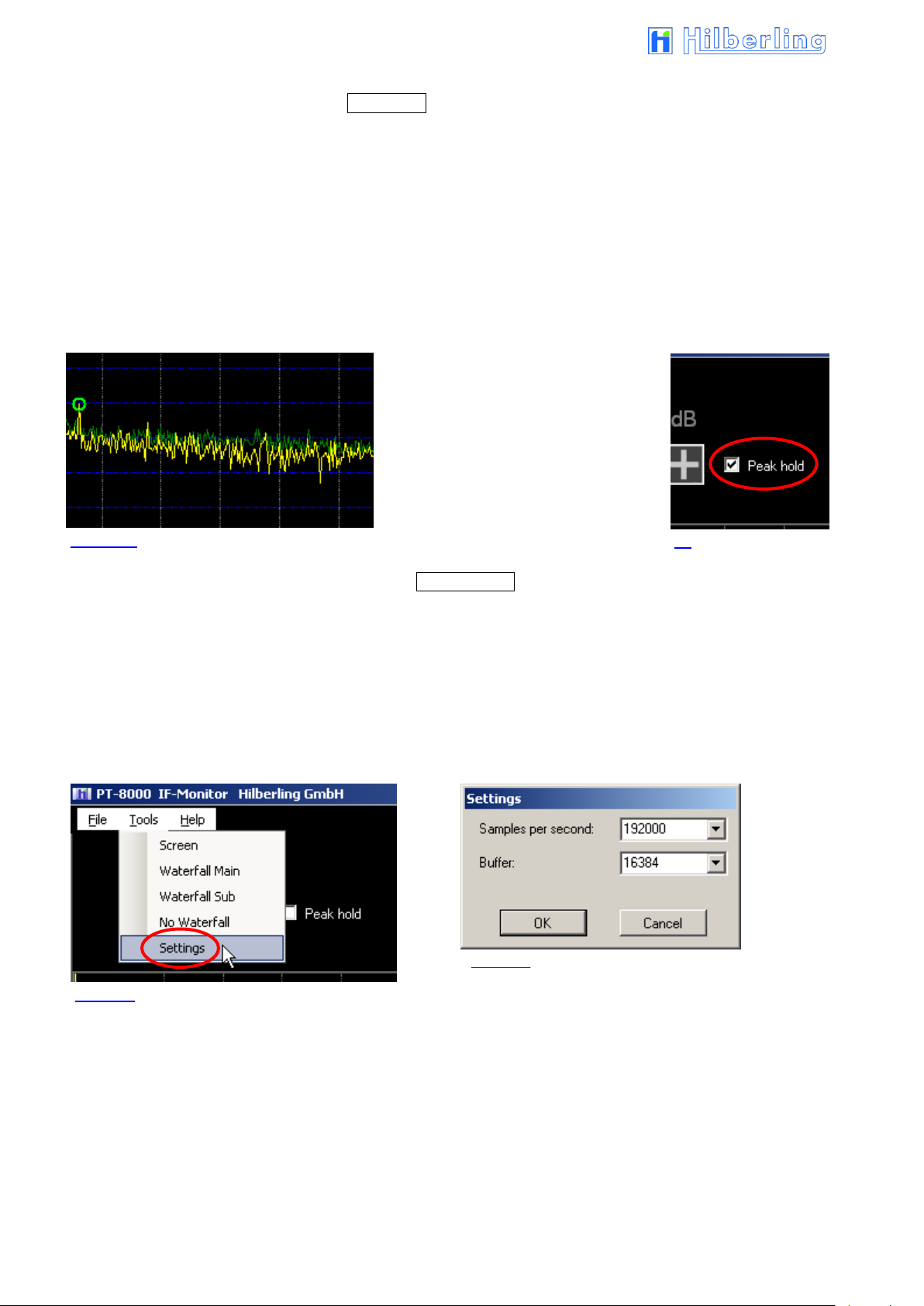

A1.6.3 Peak Hold .............................................................................................................................. A1- 4
A1.6.4 Sample Rate and Buffer Setup ................................................................................................. A1- 4
A1.6.5 Signal Level Adjustment .......................................................................................................... A1- 5

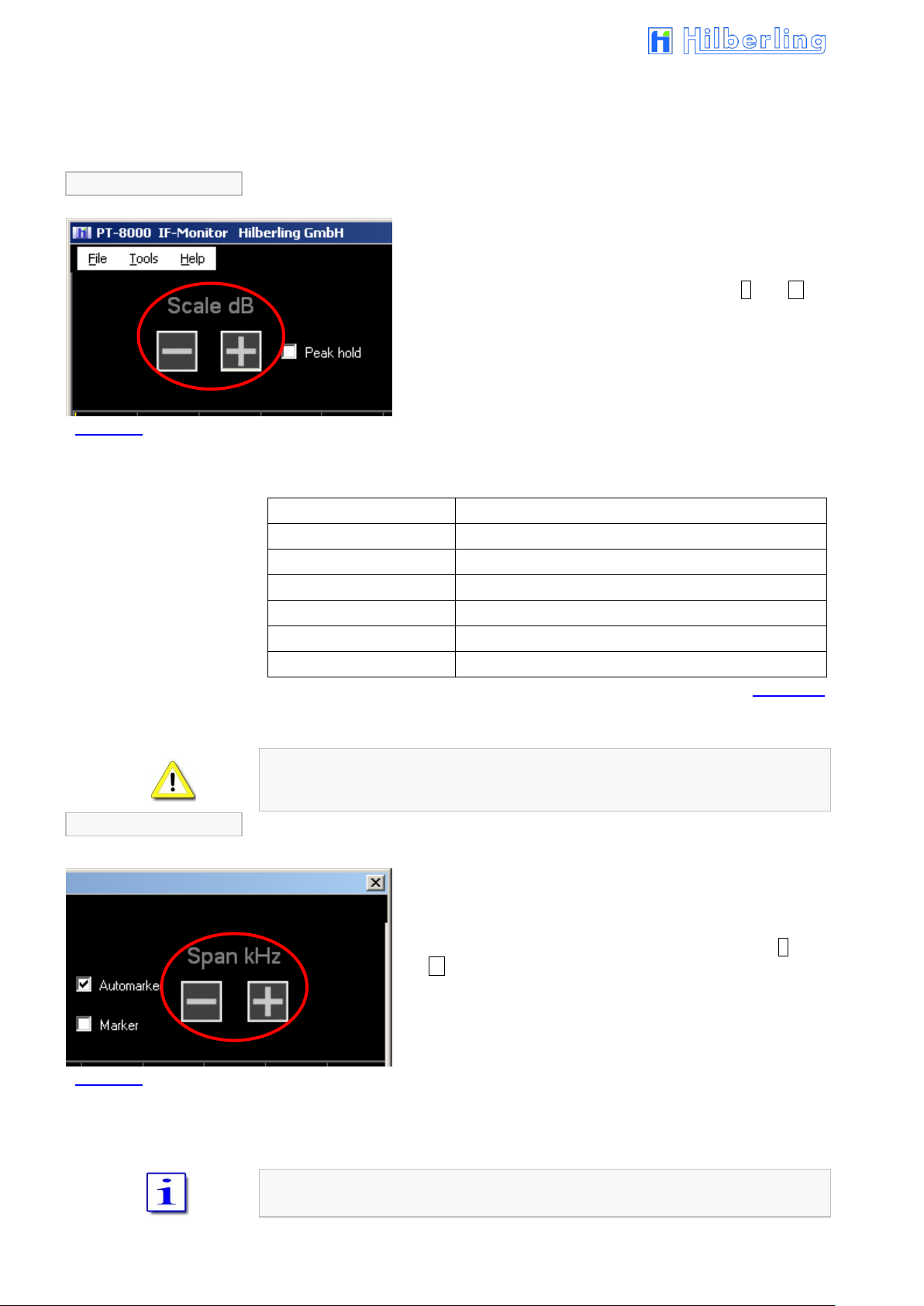

A1.6.6 Signal Level and Panorama Width Scaling ................................................................................. A1- 8

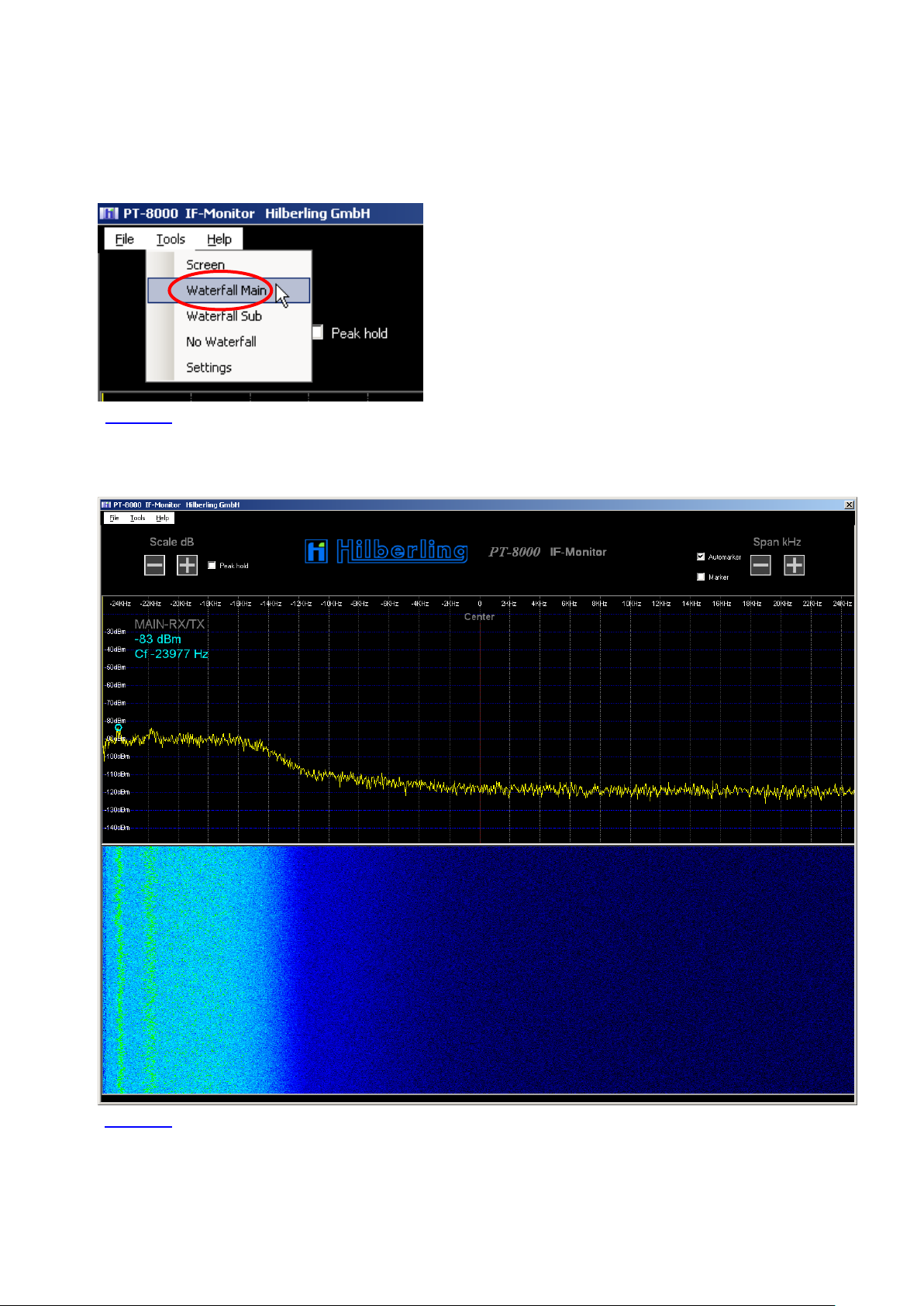

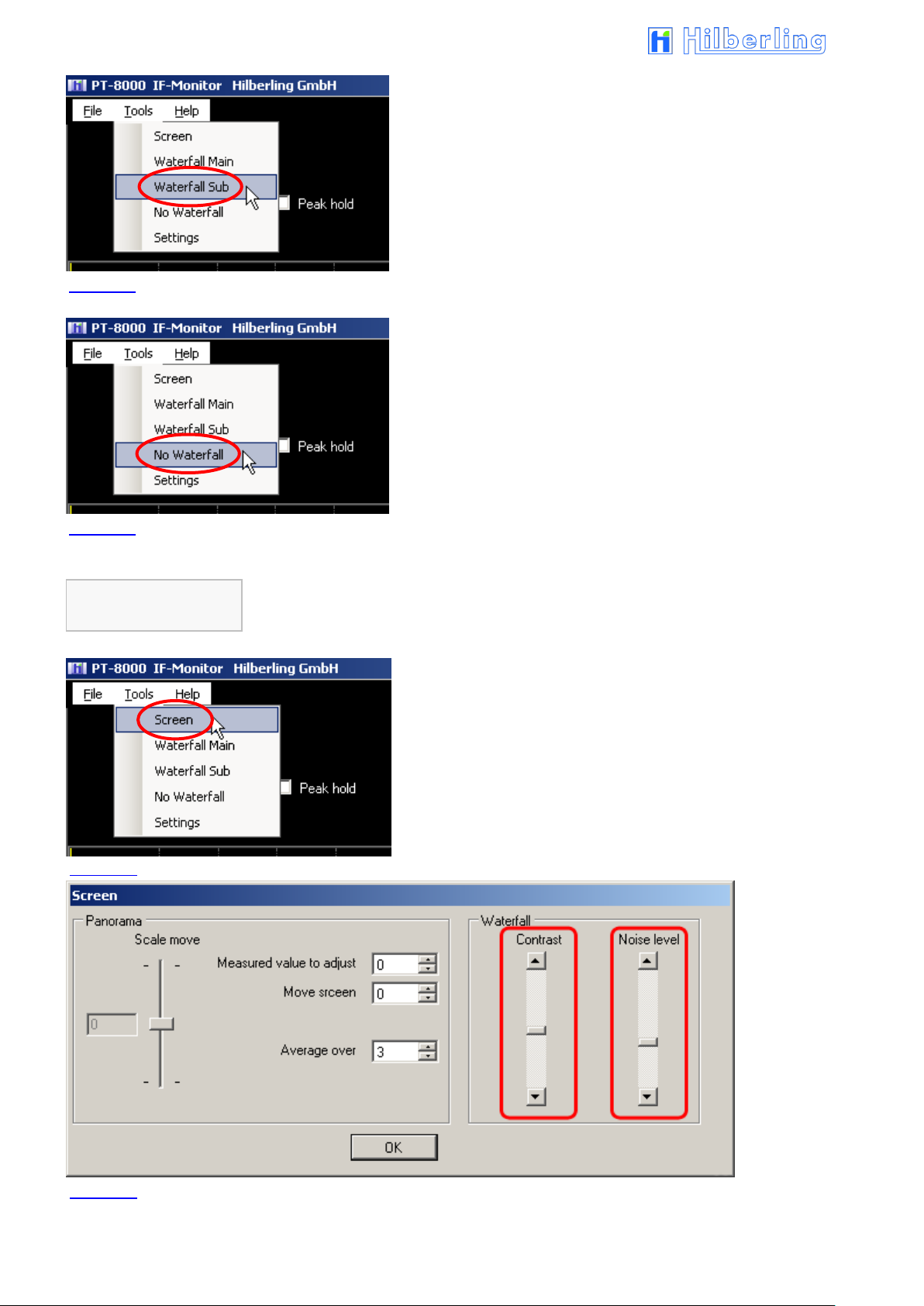

A1.6.7 Waterfall Chart ...................................................................................................................... A1- 9
A2 Firmware Update and Update Software (Windows® Program)
A2.1 Preliminary Note .............................................................................................................................. A2- 1
A2.2 Introduction .................................................................................................................................... A2- 1
A2.3 Requirements and Procedure ............................................................................................................ A2- 1
A2.4 Setup Software and Firmware ........................................................................................................... A2- 2
A2.5 Install Update Program on PC ........................................................................................................... A2- 2
A2.6 Connect PT-8000A to PC by USB Data Cable ....................................................................................... A2- 2

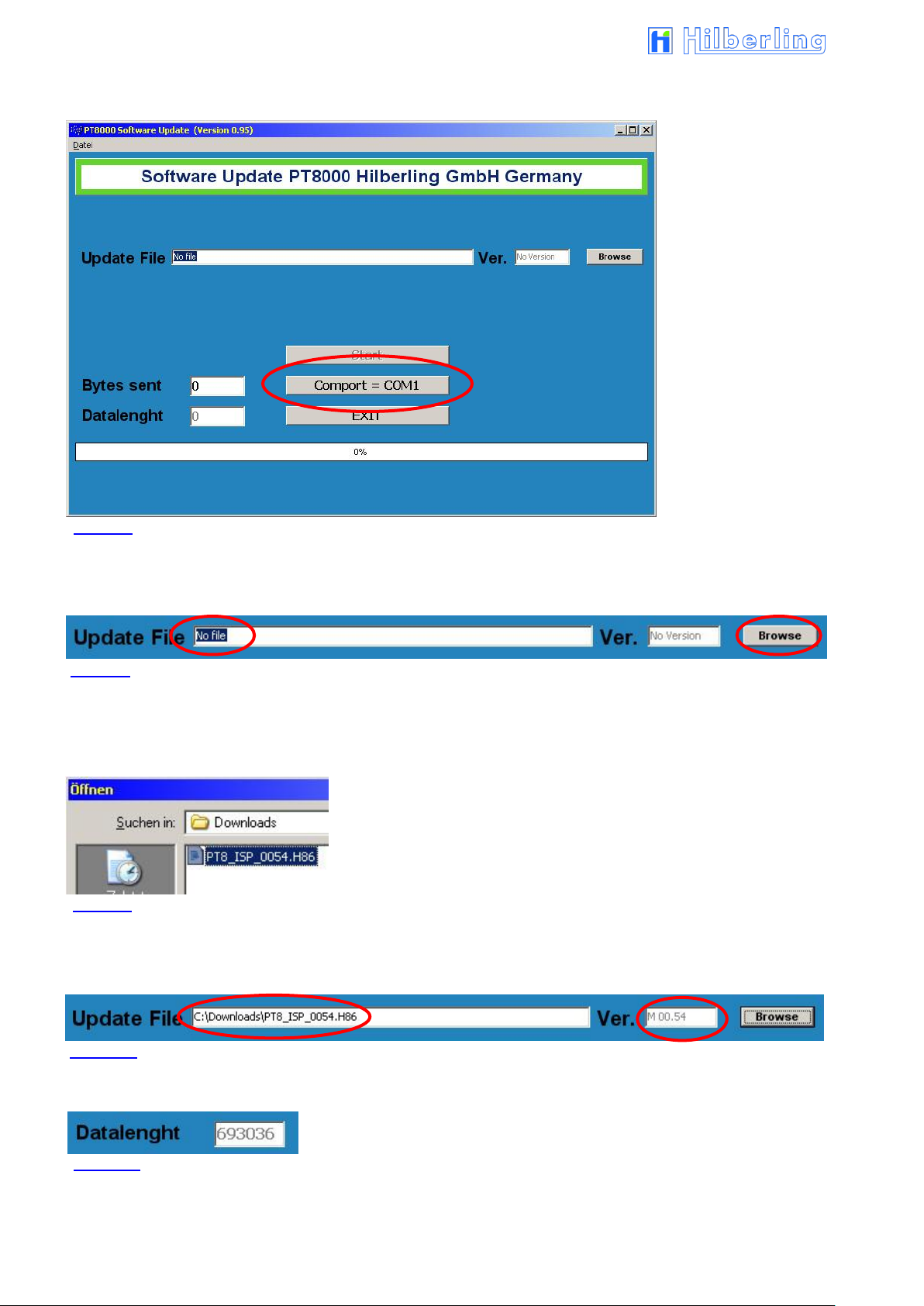

A2.7 Start and set up the Update Program ................................................................................................. A2- 3

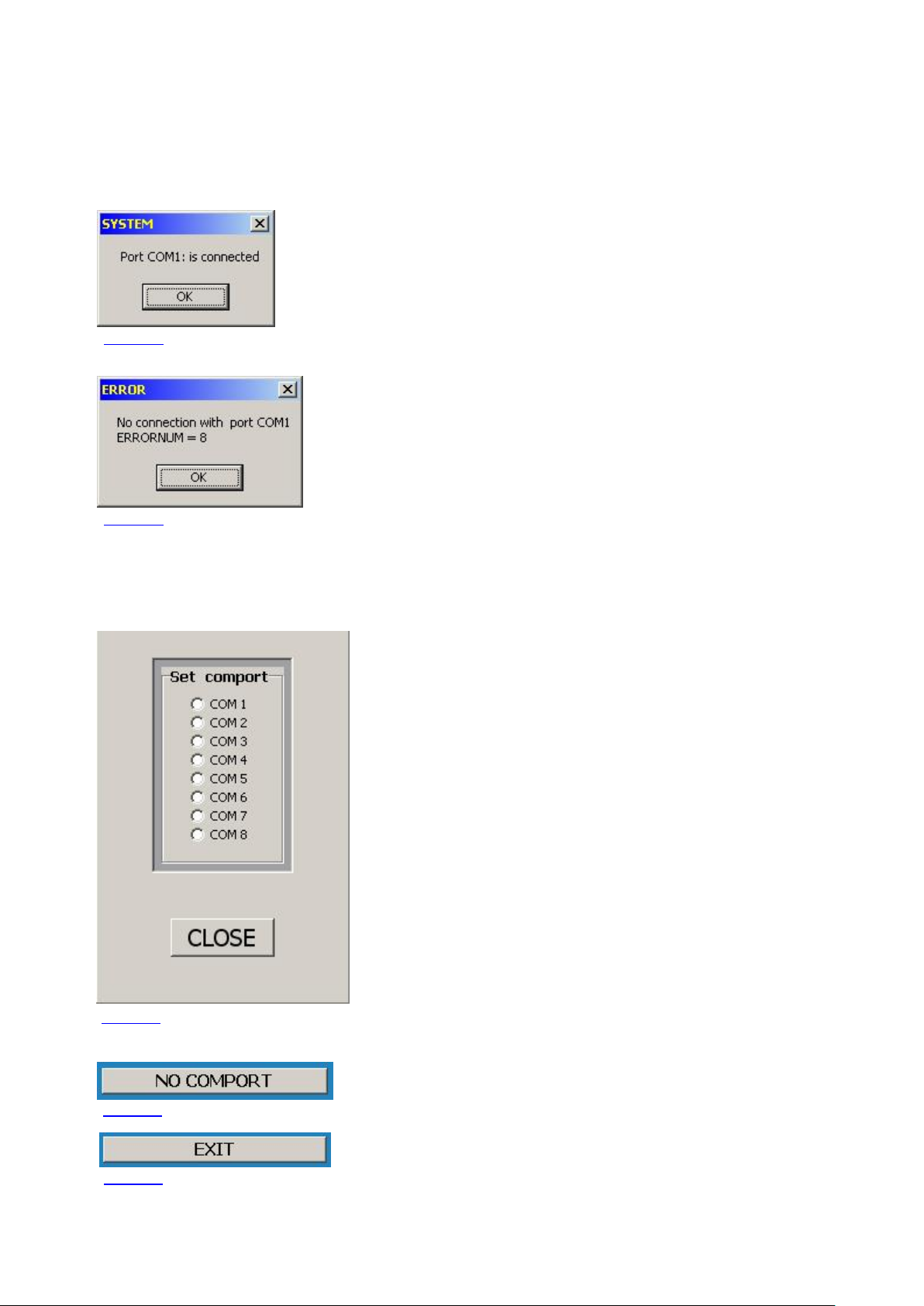

A2.7.1 Manual COM Port Setting ........................................................................................................ A2- 3

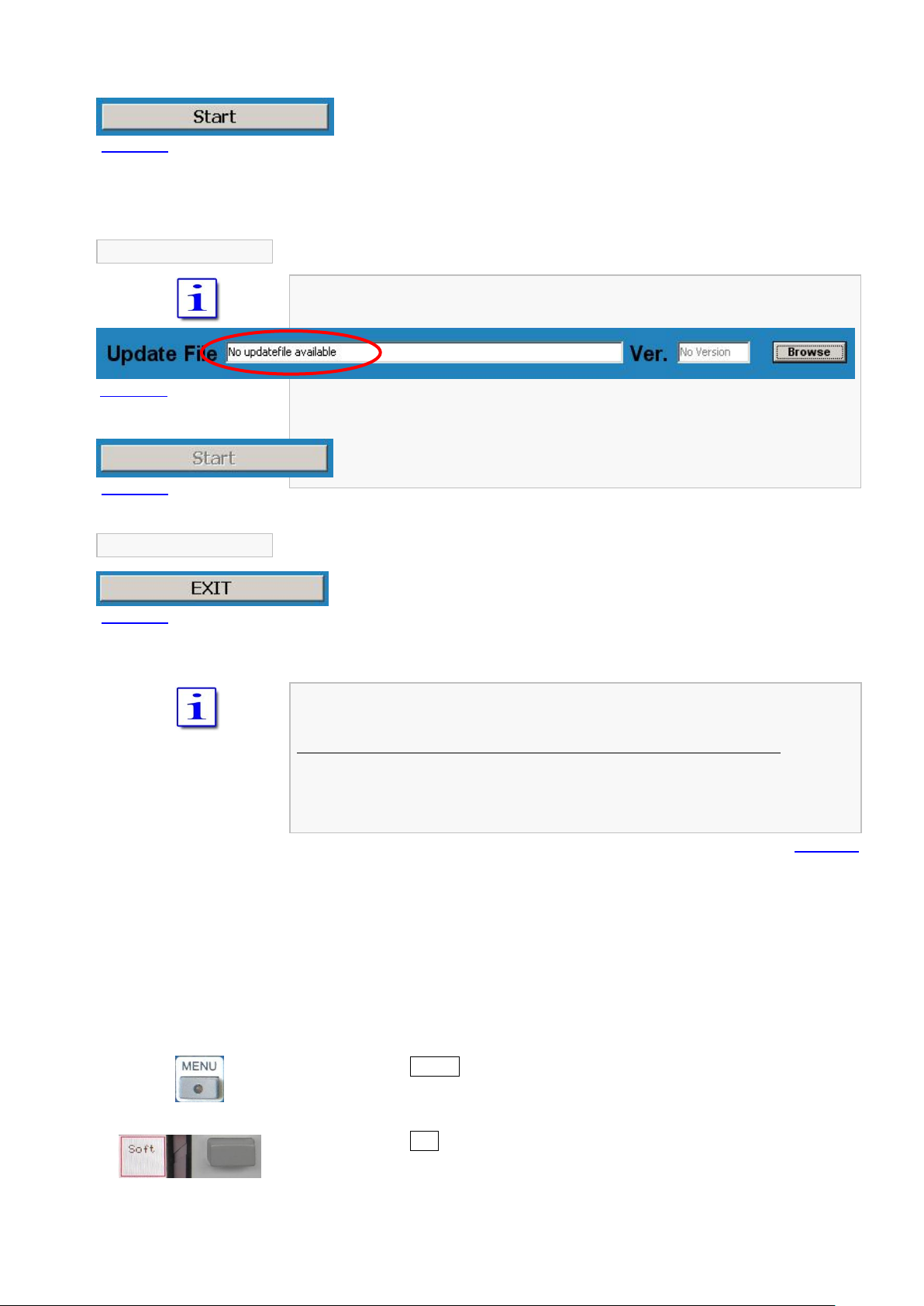

A2.7.2 Select Firmware ..................................................................................................................... A2- 4

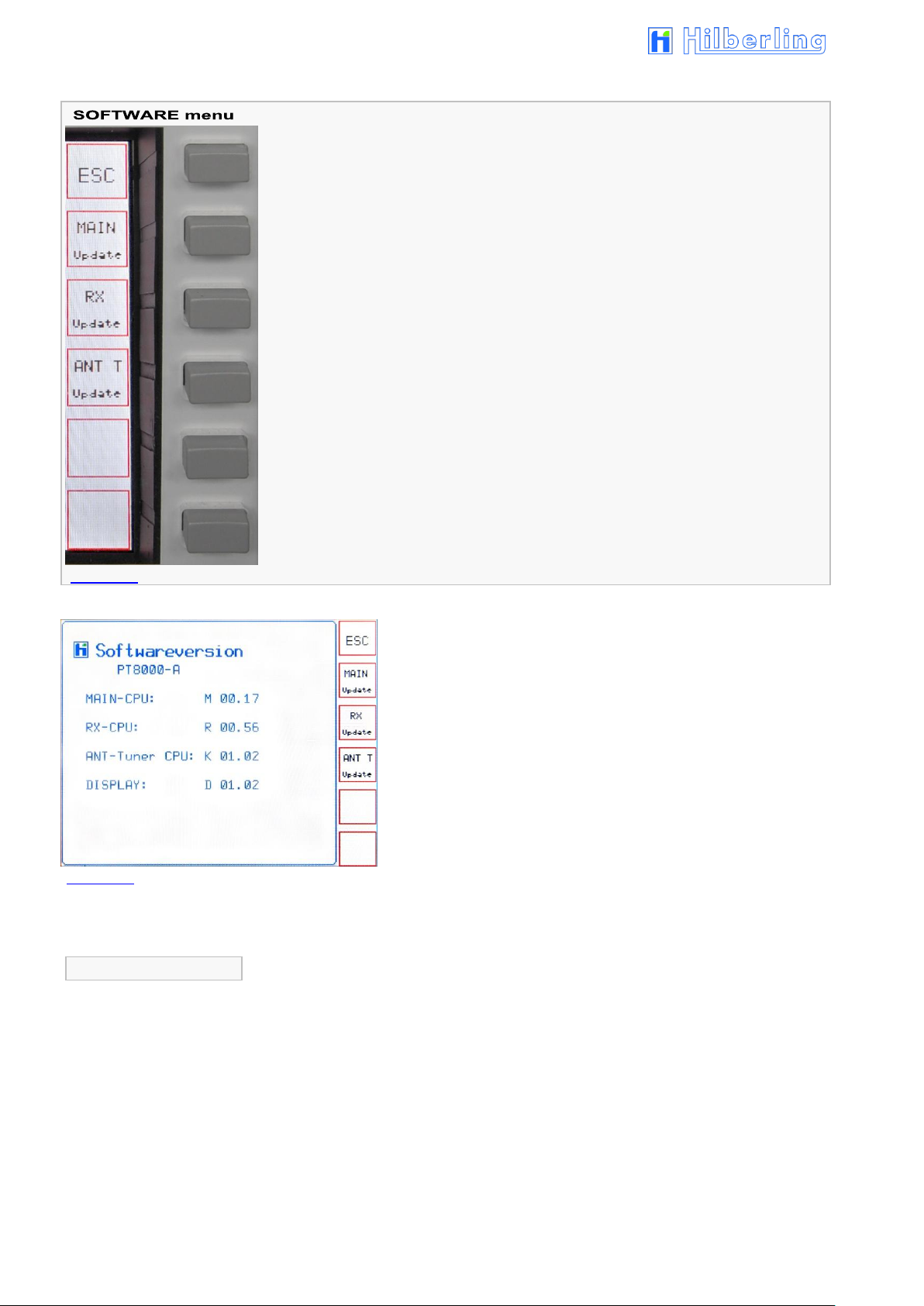

A2.8 Get PT-8000A ready to update .......................................................................................................... A2- 5

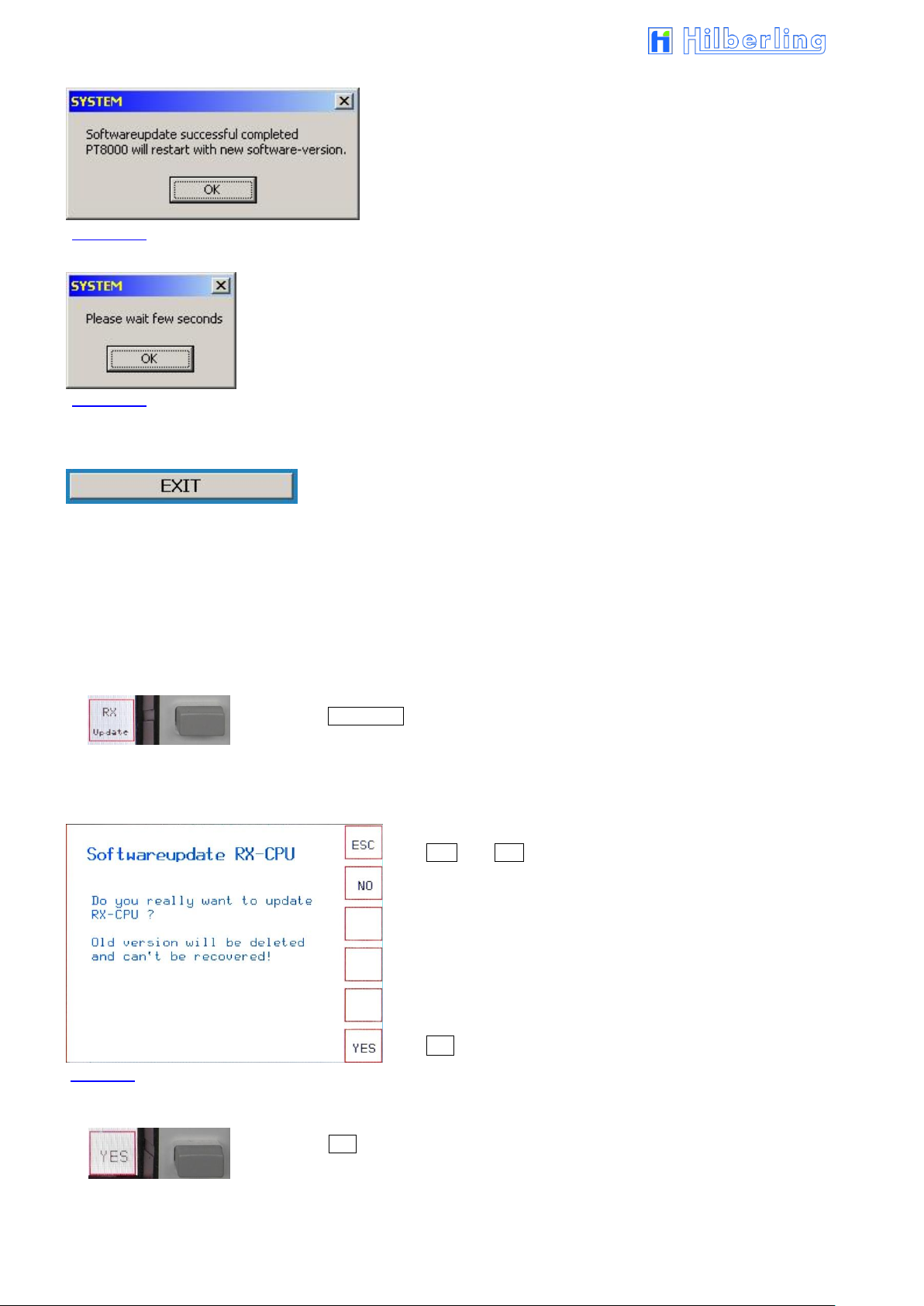

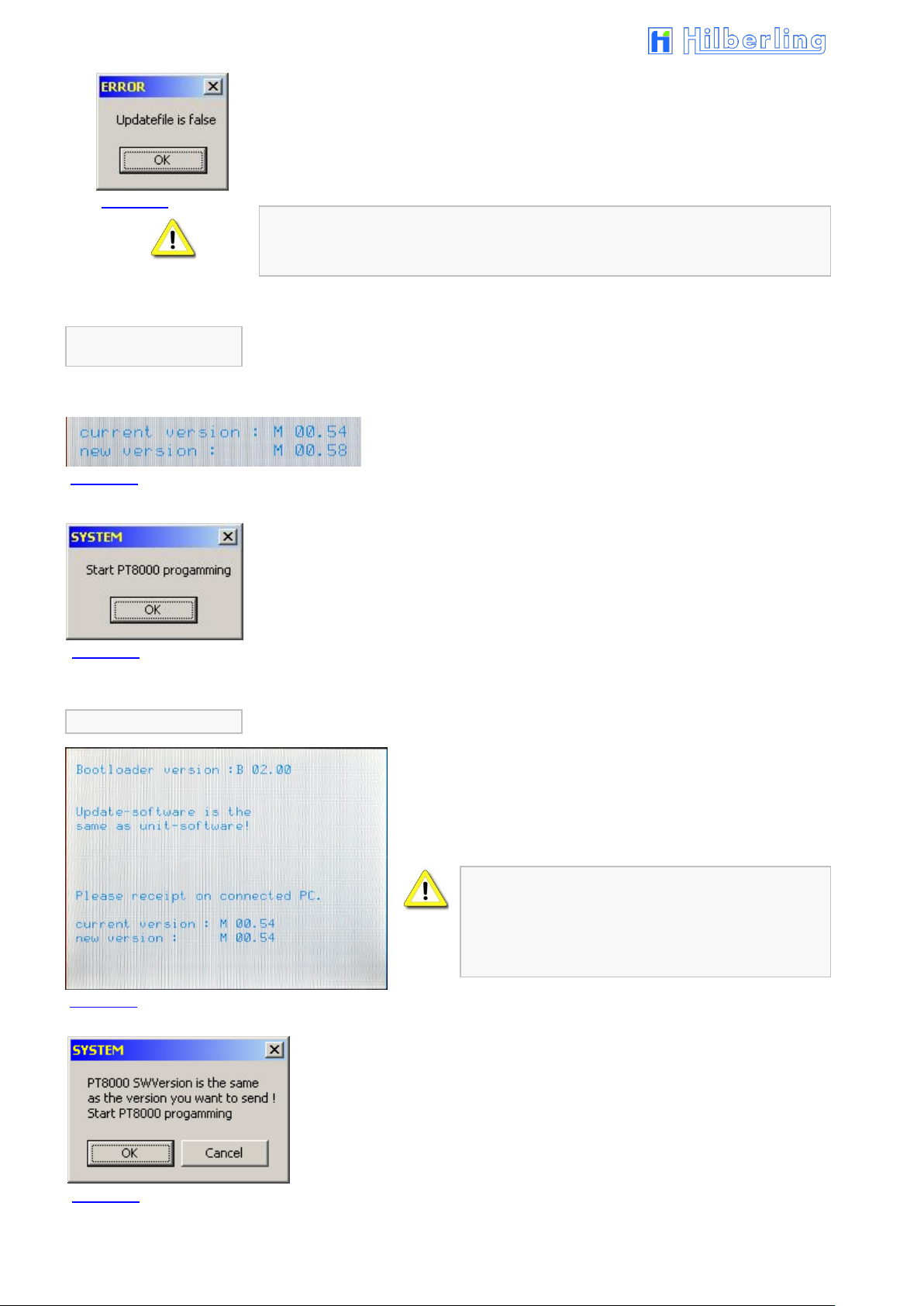

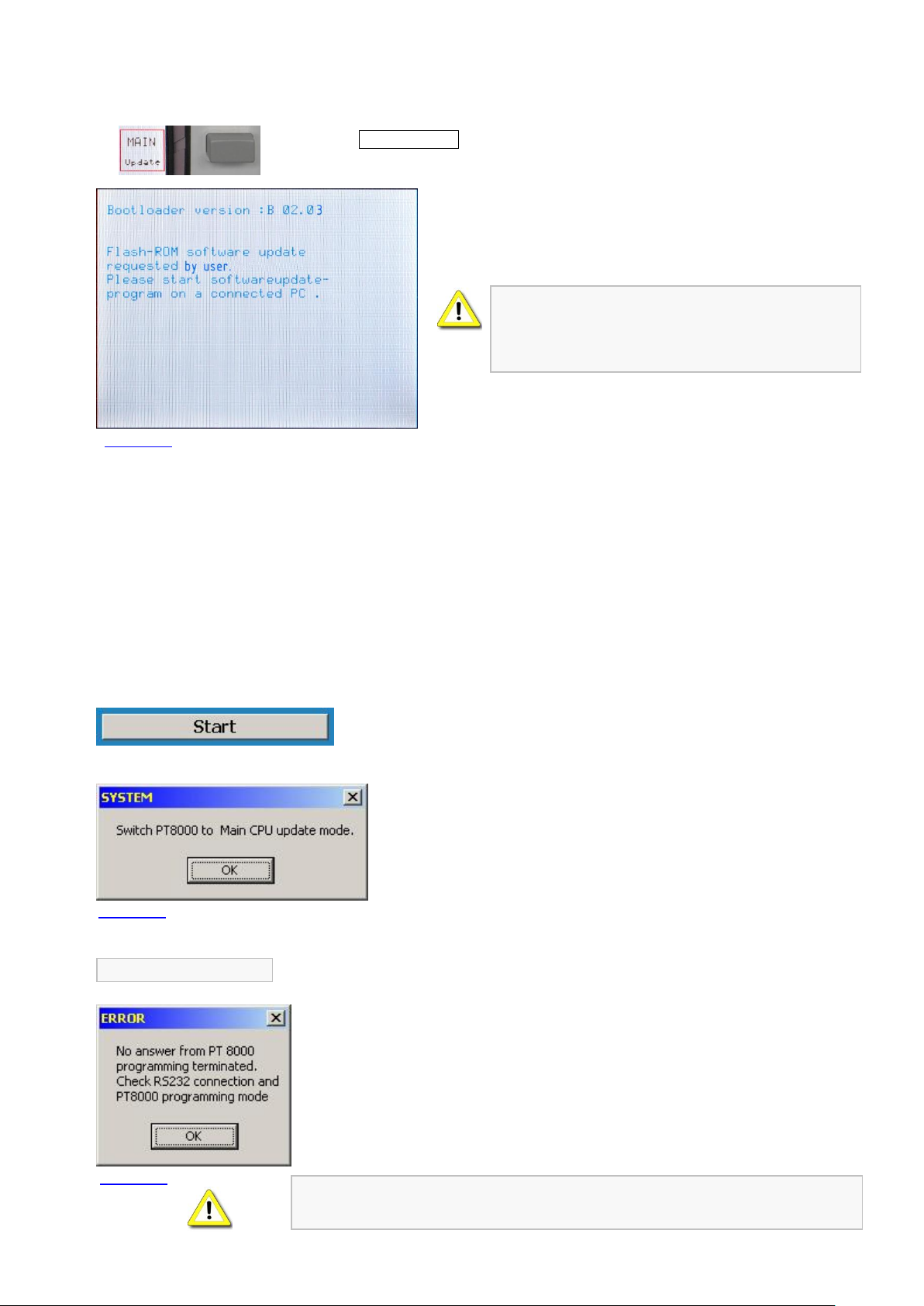

A2.9 Update of MAIN-CPU ........................................................................................................................ A2- 7
A2.10 Update of RX- and ANT-Tuner-CPU ................................................................................................ A2- 10
A3 Technical Documents
A3.1 Technical Data ................................................................................................................................. A3- 1
A4 Customer Information
A4.1 User Information
A4.2 Warranty Terms
A4.3 Disposal Scheme
A5 Lists
A5.1 Index .............................................................................................................................................. A5- 1
A5.2 List of Figures .................................................................................................................................. A5- 3
A5.3 List of Tables ................................................................................................................................... A5- 6
A5.4 Glossary .......................................................................................................................................... A5- 7
German only
German only
German only
.......................................................................................................... A4- 1
............................................................................................................ A4- 1
........................................................................................................... A4- 2
vi
FEDERAL COMMUNICATONS COMMISSION (FCC) STATEMENT
The Hilberling PT-8000A was tested and found to be in compliance with 47 CFR, Part 15 of the FCC
Rules, as an unintentional radiator and as a generic receiver. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
FCC ID: V84PT8000
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: Changes or modifications to the PT-8000A not expressly approved by Hilberling GmbH could
void your authority to operate this transceiver under FCC regulations
PT-8000A Operating Manual v2.00.33 1
Quantity
Description
Fig.
1

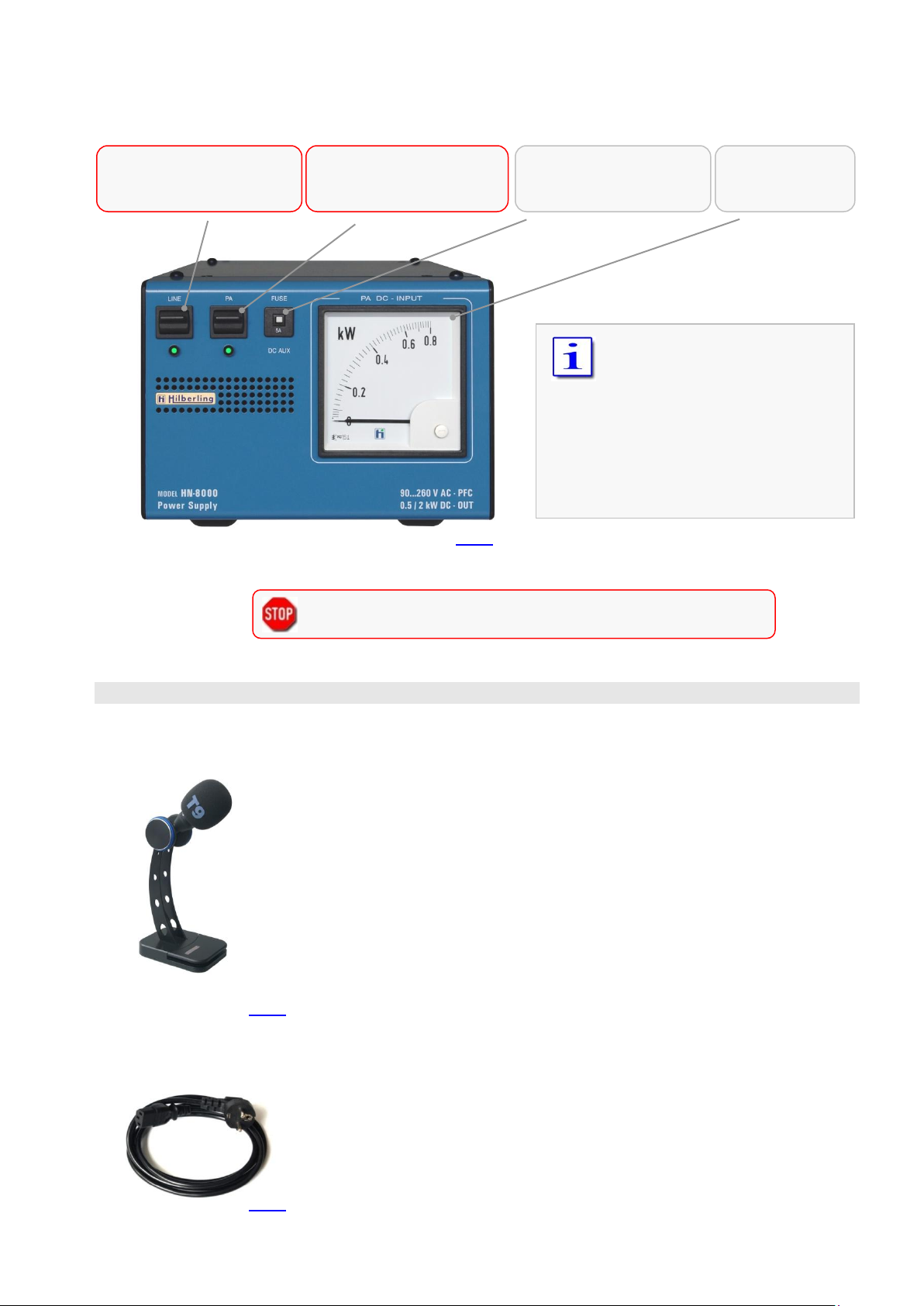

Power Supply HN-8000
6
1
Microphone T9
7
1
AC Line Voltage Cable (Power Grid ⬄ HN-8000)
8
1
DC Power Cable (HN-8000 ⬄ PT-8000A)
9
1
Ground Cable (HN-8000 ⬄ PT-8000A)
10
1
Speaker Cable (HN-8000 ⬄ PT-8000A)
11
1
Data Cable (PC/Notebook ⬄ PT-8000A)
12
1
Phono Plug 6,3mm
1
DB-25 Male Plug (DSUB 25-pol)
1
DA-15 Male Plug (DSUB 15-pol)
1
DE-9 Male Plug (DSUB 9-pol)
1
Operating Manual
13a
1
Software CD
• PT-8000A IF Monitor Program (Windows®)
• PT-8000A Update Program (Windows®)
• Operating Manual (PDF)
13b
Tab. 1
3 INTRODUCTORY NOTES
3.1 Scope Of Delivery
Examine your PT-8000A for signs of damage during shipping. Should any damage be apparent please
take appropriate measures (contacting your carrier). We recommend to retain all packing material – it
might be used for shipment of the radio.
Listed below are the hardware and all accessories delivered with your PT-8000A. Make sure you have
received and unpacked everything:
3.2 About This Manual
The PT-8000A represents primarily state of the art analog RF-design. However digital signal processing
and microprocessor controlled circuits add to this transceiver in a synergistic way. Hence, features and
functions can be easily improved and/or tailored to customer needs through updating the Hilberling
GmbH firmware using the USB interface (please have a look at Appendix A2).
2
In this manual the following signs and symbols are used:
The STOP sign indicates a warning that must be obeyed for safety reasons.
This sign indicates an important explanation or a specific advice which should be obeyed.
An additional information or explanation is indicated this way.
3.3 Notes On Locating
When selecting the place for operating the PT-8000A bear in mind the general limitation
concerning environmental conditions as outlined in the specifications and the cautions at
the very beginning of this manual (P. ii).
Always handle the PT-8000A with care – consider the weight of more than 50 lbs, please!
Please make sure proper air circulation. Do not cover any air inlets and outlets at top,
bottom and rear panel of the devices.
Choose the place of installation so that all connectors of the PT-8000A are reachable any
time.
Select a power outlet that is capable to handle the power requirements. Connect your PT8000A to a proper ground system – which is important for optimum operation of any HF
transceiver – especially when operating high power by using an external amplifier. In the
past, a ground connection to a copper water pipe was often used for this purpose. Recent
revisions to the National Electric Code has made this practice a code violation. Bear in
mind that modern supply water installations utilize plastic pipe – which do not function
grounding purposes. Never use a gas or electric pipe since the connection could cause an
explosion or electric shock. A good grounding system not only prevents electrical shock but
also helps to ensure trouble free operation and will diminish television and broadcast
interference (TVI/BCI).

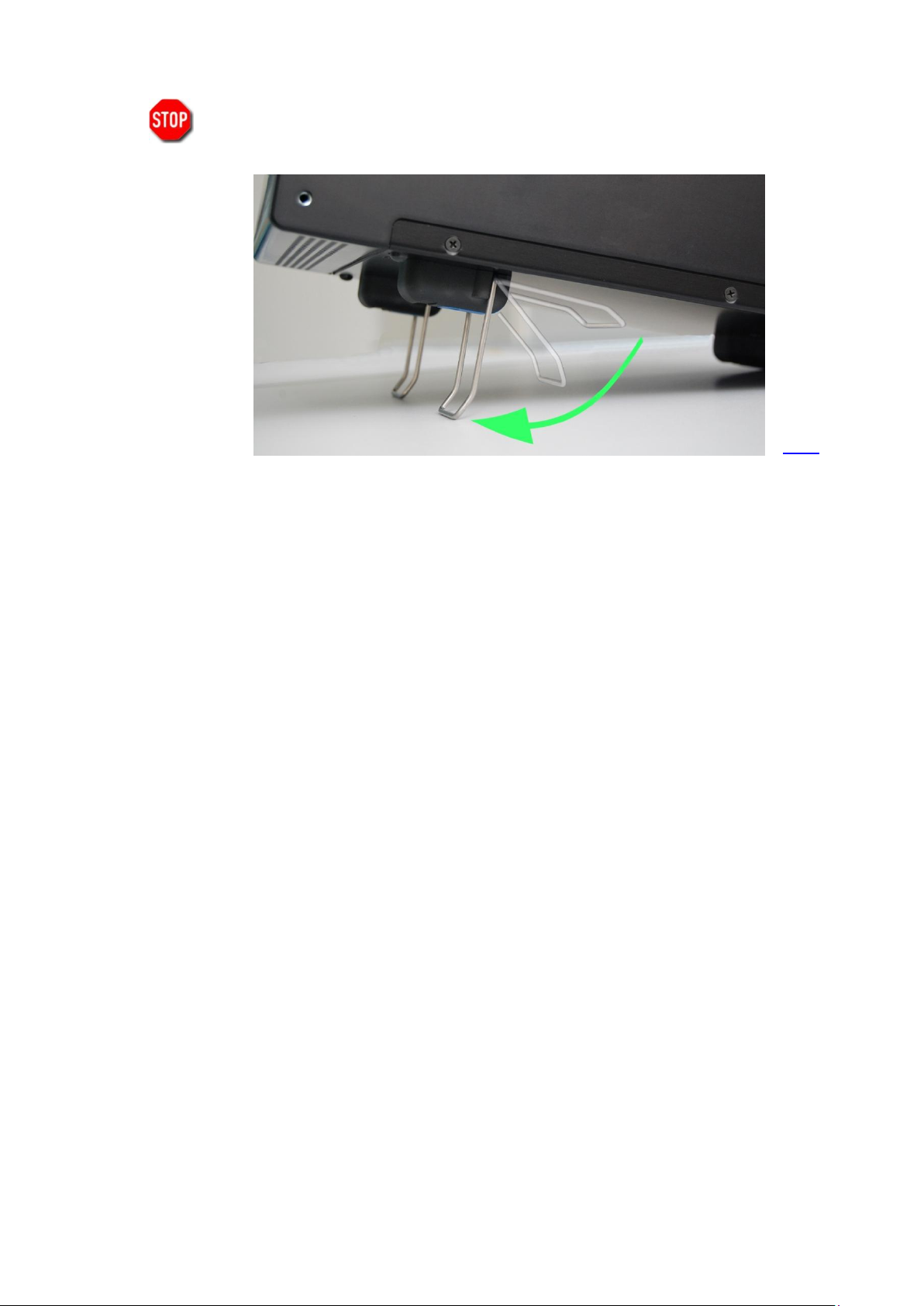

For your convenience you might raise the front of PT-8000A and HN-8000 by unfolding and locking tilt
bails mounted at the front equipment feet into front position as shown on Fig. 1 (see next page).
PT-8000A Operating Manual v2.00.33 3
Fig. 1
If a large resistance will complicate the unfolding, please spread the bail easy for hurdle the
locking nib to avoid damage of the equipment foot.
3.4 Antenna Considerations / Antenna Tuner
Standing wave ratio (SWR) may increase significantly when using an antenna outside of the specific
frequency range for which it is tuned. The final power amplifier will operate at peak performance only
when its load is resistive – i.e. the SWR is close to 1.0.
Therefore the PT-8000A is equipped with an automatic antenna tuner (ATU) which does not actually tune
the antenna. The ATU instead matches the feed line to the final amplifiers so they always “see” a SWR
close to 1.0. The ATU has its limits – tuning mismatches with SWR greater than 2.0 become difficult and
will exceed the capabilities of the ATU. Using a tuned or resonant antenna with 50 Ohm impedance at the
feed point for the specific frequencies is highly recommended. The purpose of the ATU is to ensure that a
resonant antenna can be used at the limits of the band selected with optimum performance of both PT8000A and antenna system.
Never try to hook up a symmetrical open feeder line (balanced, twin-lead, ladder line etc.) directly to the
PT-8000A. Instead use 50 ohm coaxial feeders only. The connectors supplied on the PT-8000A are all
Type N.
With the ATU it is acceptable to use a broadband antenna system like a log periodic or T2FD system which
trade wide bandwidth for an SWR ranging as high as 2.0.
4
No.
Name
Type
Description
J1
VHF-ANT
50/70/144 MHz
N
Input / Output VHF Antenna Range 110 ... 143,990 MHz (RX only)
50 / 70 / 144 MHz Band (RX and TX)
J1A
RX-ANT
9 kHz ... 30 MHz
BNC
Input VLF/LF/MF/HF Antenna Range 9 kHz … 30 MHz (RX only)
For DUPLEX mode the input may stay open during transmission.
J2
HF-ANT 1
9 kHz ... 30 MHz
N
Input / Output VLF/LF/MF/HF Antenna Range 9 kHz ... 30 MHz (RX and TX)
J3
HF-ANT 2
9 kHz ... 30 MHz
N
Input / Output VLF/LF/MF/HF Antenna Range 9 kHz ... 30 MHz (RX and TX)
J4 IF 10,7 MHz
SUB
SMA
Output 2nd IF 10.7 MHz of SUB-RX. The output is tapped after the 2nd mixer. No AGC and no 10.7MHz
Xtal filter at that point. Thus bandwidths are determined by prefilters
J5
IF 40,7 MHz
SUB
SMA
Output 1st IF 40.7 MHz of SUB-RX. The output is tapped after the 1st mixer – thus being broadband when
preselector is disengaged
J6
HF-RX ANT SUB
OUT
SMA
HF Antenna Signal for SUB-RX after passing internal antenna switch respectively TX/RX relay. Connected to
J7 (by default) or to input of external equipment (QRM-eliminator, ANT-switch panel etc.)
J7
HF-RX ANT SUB
IN
SMA
HF signal input for SUB-RX. Connected to J6 (by default) or to output of external equipment (QRMeliminator, ANT-switch panel etc.)
J8
HF-RX ANT MAIN
OUT
SMA
HF Antenna Signal for MAIN-RX after passing internal antenna switch respectively TX/RX relay. Connected to
J9 (by default) or to input of external equipment (QRM-eliminator, ANT-switch panel etc.)
J9
HF-RX ANT MAIN
IN
SMA
HF signal input for MAIN-RX. Connected to J8 (by default) or to output of external equipment (QRMeliminator, ANT-switch panel etc.)
J10 IF 40,7 MHz
MAIN
SMA
Output 1st IF 40.7 MHz of MAIN-RX. The output is tapped after the 1st mixer – thus being broadband when
preselector is disengaged
J11
IF 10,7 MHz
MAIN
SMA
Output 2nd IF 10.7 MHz of MAIN-RX. The output is tapped after the 2nd mixer. No AGC and no 10.7MHz
Xtal filter at that point. Thus bandwidths are determined by prefilters.
Tab. 2
Fig. 2
J1
J2
J3
J5
J4
J9
J8
J6
J7
4 CONNECTORS PT-8000A
In this chapter the connectors at the front and rear panel of the PT-8000 are explained.
4.1 Connectors at Rear Panel
4.1.1 HF/VHF Connectors J1 - J11
PT-8000A Operating Manual v2.00.33 5
No
Name
Type
Description
E
Socket 4 mm
Grounding wire (p 10 / Fig. 10) – must be connected toHN-8000 power supply
Threaded Pin M6
Grounding stud – must be connected to station ground
J12
10 MHz Ref.
OUT
BNC
Input for an external 10 MHz reference signal (clock) for synchronization of PT-8000A to other
equipment. The signal delivers +1dBm ±3dB level
J13
10 MHz Ref.
IN
BNC
Output of an external 10 MHz reference clock for synchronization of external equipment to
PT-8000A. Input 10 MHz signal level > -10dBm.
J14
TX ext.
+20 dBm
BNC
TX external output (1.8…148 MHz). Level is +20 dBm to drive transverter or external power
amplifier
J15
ext. SPKR
add.
EIA-453 / IEC 60603-11
TRS 3.5 mm Socket
60 kHz output: Connection to sound card for panorama display/waterfall diagram.
Requirements: Soundcard with 192 kHz sample rate ; Windows® PC ; Hilberling software „PT8000A IF-Monitor“, connecting cable
J16
ext. SPKR
alt.
EIA-453 / IEC 60603-11
TRS 3.5 mm Socket
Output audio MAIN- and SUB-RX/ only SUB-RX (Audio Norm/Split); 4.5 W max. @ 8 Ω;
connection external speaker, by default to Power Supply HN-8000 (cable P. 10 / Fig. 11);
J17
AUX-TX
(PTT/ALC)
DE-9
(D-SUB 9-pol)
Auxiliary output/input for TX (wiring see P. 6 / Tab. 4)
J18
DC
IN
CliffCon
4-pol
Power connector for interconnection cable to HN-8000 power supply DC 13.8V / 50V (cable
P. 10 / Fig. 9)
J19
Keyboard mini-DIN
PS/2 Socket
Access to Main-CPU; further functions TBD
J20
AUDIO
IN/OUT
DA-15
(D-SUB 15-pol)
Various audio signals MAIN/SUB in- and output (wiring see P. 6 / Tab. 4)
J21
Transverter DB-25
(D-SUB 25-pol)
Connect control cable to transverter (wiring see P. 6 / Tab. 4)
J22
RS232
Remote
USB-B
Input/output data (cable P. 10 / Fig. 12)
1. Connect external equipment to remotely control the PT-8000A (CAT)
2. Interface to update firmware of PT-8000A
P7
TX-ALC
Sensitivity of ALC input (J17, pin 6) from external PA to reduce TX power out (0 ... −10 V)
P8
AUDIO IN
Sensitivity of Audio data input (J20, pin 2) – rated 0 dBm @ 50 Ω
Tab. 3
Fig. 3
4.1.2 Connection Sockets J12 - J22 and Operating Elements
6
No
Name
Type
Function And Outline
J15
ext. SPKR
add.
1 Tip 60 kHz OUT MAIN RX
2 Ring 60 kHz OUT SUB RX
3 Sleeve GND
Caution: Using mono type plugs will shorten the
audio output and may damage the
transceiver
J16
ext. SPKR
alt.
STATUS: Audio NORM Audio SPLIT
1 Tip AUDIO OUT MAIN and SUB RX SUB RX
2 Ring <not connected>
3 Sleeve GND GND
Caution: Using mono type plugs will shorten the
audio output and may damage the
transceiver
J17
AUX-TX
(PTT/ALC)
1 PTT to HF-PA 6 EXT ALC IN (0 ... −10 V **)
2 PTT EXT IN 7 PTT to HF-PA
3 PO FORWARD DC OUT 8 PO REFLECTED DC OUT
4 PTT to VHF-PA * 9 EXT TUN/PA READY=LOW
5 GND
* Circuit to ground ** adjustable by P7
J18
DC
IN
2− 13.8 V DC (RX ; switched by relay)
1+ 50 V DC (PA ; switched by relay)
1− GND
2+ 13.8 V DC (Relay HN ; switched to GND by
PT8000 switch POWER
J19
Keyboard
1 DATA
2 <not connected>
3 GND
4 VCC
5 CLK
6 < not connected >
J20
AUDIO
IN/OUT
1 PTT AUDIO A 9 PTT AUDIO B
2 AUDIO DATA IN 10 AUDIO DATA GND
3 AUDIO DATA GND 11 AUDIO DATA OUT
4 GND 12 GND
5 AUDIO OUT MAIN-RX 13 GND
6 GND 14 AUDIO OUT SUB-RX
7 GND 15 TP1
8 TP2
J21
Transverter
1 GND 14 AGC VOLTAGE MAIN
2 AGC VOLTAGE SUB 15 DATA EXT PA A
3 DATA EXT PA B 16 DATA EXT PA C
4 DATA EXT PA D 17 GND
5 +12V Transverter 1 *** 18 PTT Transverter 1 A
6 PTT Transverter 1 B 19 GND
7 +12V Transverter 2 *** 20 PTT Transverter 2 A
8 PTT Transverter 2 B 21 GND
9 < not connected > 22 < not connected >
10 DC EXT PA CONTROL 23 GND
11 GND 24 Debug TX
12 Debug RX 25 GND
13 GND *** max. 1 Ampere
Tab. 4
Connector for
Panorama Display /
Waterfall Diagram
4.1.3 Wiring of J15 - J21
PT-8000A Operating Manual v2.00.33 7
No.
Name
Type
Description
1
MIC-PTT
Microphone Threaded Socket
8-pol
Microphone connector for Hilberling T9 and Data input 0 dBm
2
PHONE
EIA-453 / IEC 60603-11
TRS 6.3 mm Socket
Headphones (impedance 8 ... 600 Ohm)
3
CW-KEY
EIA-453 / IEC 60603-11
TRS 6.3 mm Socket
Connector: –Keyer for CW (morse key/ keyer with Paddle / automatic keyer)
– Control of internal CW Keyer
Tab. 5
No.
Name
Figure
Function And Outline
1
MIC-PTT
0 dBm
1 MIC AUDIO IN
2 PTT
3 MAIN-RX AUDIO OUT (e.g. headset)
4 0 dBm IN
5 MIC AUDIO IN / DC +10 V internal
6 SUB- RX AUDIO (e.g. headset)
7 MIC GND
8 PTT GND
2
PHONE
1 Tip + Audio OUT MAIN
2 Ring + Audio OUT SUB
3 Sleeve GND
NOTE: Audio for PHONE is derived from audio preamplifier
especially designed for phone operations.
Caution: Using mono type plugs will shorten the
audio output and may damage the
transceiver
3
CW-KEY
STATUS: Int. Keyer * Ext. Keyer **
1 Tip DOT CW-Key
2 Ring DASH <not connected>
3 Sleeve GND GND
* using the internal keyer (iambic or normal) (s. P. 64)
** using an external keyer (s. P. 64)
Tab. 6
1 2 3
Fig. 4
Electret Mic
Dynamic Mic
4.2 Connectors at Front Panel
4.2.1 Connection Sockets 1 - 3
4.2.2 Wiring
8
No
Name
Type
Description
J1
AC
IEC-60320-C13 male connector
Input main power 90 – 260 V AC 50/60 Hz (cable P. 10 / Fig. 8);
J2
AUX
13.8 VDC
2x Socket 4 mm;
+ Clamp
Auxiliary output 13.8 V DC / 5 Amp.
E
Socket 4 mm
Grounding wire – must be connected to PT-8000A transceiver (cable P.10 / Fig. 10)
Threaded Pin M6
Grounding stud – must be connected to PT-8000A transceiver and to station ground
J3
SPKR 8 Ω
EIA-453 / IEC 60603-11
TRS 3.5 mm Socket
Input audio signal MAIN- and SUB-RX/ only SUB-RX (Audio Norm/Split) from PT8000A socket J16 to built-in speaker; 4.5 W max. @ 8 Ω; (cable P. 10 / Fig. 11)
J4
DC
Cliffcon Socket
4-pol
Power connector for interconnection cable to PT-8000A (cable P. 10 / Fig. 9; PT8000A Socket J18)
AC-FUSE
Circuit breaker for AC mains at rear panel socket J1 rated 16 Amp @ 90 – 260 V AC
Tab. 7
E
J3
J4
J1
J2
Circuit breaker for AC/J1
Fig. 5
5 POWER SUPPLY HN-8000
5.1 General Description
Each PT-8000A is equipped with its power supply HN-8000, which delivers 13.8 V DC @ 8 Amps internal
/ 5 Amps. external and additional 50 V DC @ 14 Amp. max., i.e. the overall performance is about 900
W.
Operating voltages from the mains can be in the range of 90 VAC to 260 VAC without any degradation in
output power. Only the efficiency will vary slightly. It complies with special regulations in some countries
regarding power factor compensation (PFC). The HN-8000 provides triple HF shielding and feedthrough
filters.
In addition the HN-8000 provides an auxiliary output 13.8 VDC @ 5 Amp at the back panel, e.g. to
deliver further shack equipment.
5.2 Connectors at Rear Panel
Connection Sockets J1 - J4
PT-8000A Operating Manual v2.00.33 9
Make sure before connecting to mains to turn OFF (press down) both
switches (LINE and PA).
ON/OFF for DC Low Power
13.8 V (J4) PT-8000A RX and
DC AUX 13.8 V (J2) rear panel
ON/Off for DC Output
50 V (J4) PT-8000A
TX-Power Amplifier
Automatic Fuse for DC-
Output 13.8 V / 5 A (J2)
AUX rear panel
Power Meter
PA DC-Input
Fig. 6
Fig. 7
Fig. 8
The power meter indicates the
5.3 Operating and Display Elements at Front Panel
DC input power of the final
power amplifier – hence
computation of efficiency could
be easily done by comparing
RF-power out as indicated on
PT-8000 display and DC-input
shown here.
6 ACCESSORIES
6.1 Base Station Microphone Dynamic T9
6.2 Wiring / Cables
Best suited for all voice operations is the Hilberling Dynamic T9 especially
designed for the PT-8000A.
Isolated from any mechanical vibrations and designed to be used from more
closer as well as from greater distance it will always guarantee high fidelity
audio and if desired an extra punch to the signal.
It is equipped with a microphone preamp.
Impedance is 600 Ω @ 1 kHz. The acoustic characteristic is kidney-shaped.
Finish: Black anodized
AC line voltage cable (power grid ⬄ HN-8000) length approx. 1.7 m
10
Fig. 9
Fig. 10
Fig. 11
Fig. 12
Fig. 13a
Fig. 13b
DC power cable (HN-8000 ⬄ PT-8000A) length approx. 1.2 m
Ground cable (HN-8000 ⬄ PT-8000A) length approx. 1.0 m
Speaker cable (HN-8000 ⬄ PT-8000A) length approx. 0.9 m
Data cable (PT-8000A / USB-B ⬄ PC / USB-A) length approx. 1.8 m
6.3 Operating Manual and Software/Documention CD
This manual version 2.00.xx
CD
PT-8000A Operating Manual v2.00.33 11
Power On
7 INSTALLATION / INITIAL OPERATION
7.1 Introduction
Prior to any operation of the PT-8000A read this Operation Manual carefully
notably before activating the transmitter.
The PT-8000A will be delivered with the following presettings:
The preselectors of both RX are aligned and all data are stored in RX-
CPU memory which is buffered through a NiCd battery.
The transmitter is unlocked according to the band plans of that IARU
region (see Page 36) the PT-8000A is delivered.
The IARU region can be changed by software update.
Prior applying main power to the power supply HN-8000 please verify the
following points (7.2).
7.2 Cable Connectors
7.3 Initial Settings
Please check at the rear panel of PT-8000A and HN-8000:
Antenna(s) is/are connected properly
Grounding stud is connected to station ground
Grounding wire is connected to both PT-8000A and HN-8000
DC cable is connected to both PT-8000A and HN-8000
For initial operation we recommend not to connect external amplifier,
transverter or devices for remote operation.
Please check at the front panel of HN-8000 (see Page 9):
Both switches (LINE und PA) are pushed down (off)
Please check at the front panel of PT-8000A (see Page 12):
Main switch (POWER) is pushed down (off)
Volume controls MAIN and SUB are set fully counter clockwise
TX-PWR knob is set fully counter clockwise
MIC-GAIN knob is set fully counter clockwise
PROC knob is set fully counter clockwise
Microphone T9 is connected
Connect power supply HN-8000 to main power
Turn on both LINE and PA on HN-8000
Turn on POWER at PT-8000A
It is up to the operator to switch PA off (switch PA at the HN-8000) during
reception only.
12
Function
Name
Description
Power ONOFF
POWER
All supply voltages from power supply HN-8000 are disconnected by this switch
Before turning ON verify settings for MIC-GAIN, PROC, TX-PWR and audio
volume settings for MAIN and SUB-RX are turned fully counter-clockwise.
After switching ON:
LED MAIN-RX will illuminate
LEDs of all pushbuttons will illuminate for 1 second (functional check)
Volume MAIN-RX
(PT + HN / PT only)
ONOFF Speaker
(PT only)
MAIN
Volume for audio MAIN-Receiver.
The RX is always turned on – audio is always present regardless of RX-status (active or in the
background – see below).
Pushing toggles the speaker of PT-8000A ON and OFF (s. P. 53).
Volume SUB-RX
(PT + HN / HN only)
ONOFF Speaker
(HN only)
SUB
Volume for audio SUB-Receiver.
The RX is always turned on – audio is always present regardless of RX-status (active or in the
background – see below).
Pushing toggles the speaker of HN-8000 ON and OFF (s. P. 53).
TFT-Display
÷
The display represents the primary means to control through soft switches (“Softkeys”) and to show
all relevant data for RX and TX operations.
Primary VFO Tuning Knob
active RX
÷
Tuning of VFO A/B of active RX. MAIN- and SUB-RX are always receiving. The term active is used in
the following context: Active means which RX (MAIN or SUB) is controlled by the main Display
(through soft switches) and which RX-Data is completely shown in the display.
Default setting: MAIN RX is the active RX.
Secondary VFO Tuning
Knob background RX
SUB VFO
Tuning of VFO A/B of RX, which is not the active one i.e. working in the Background (see above).
Default setting: SUB-RX is in the background

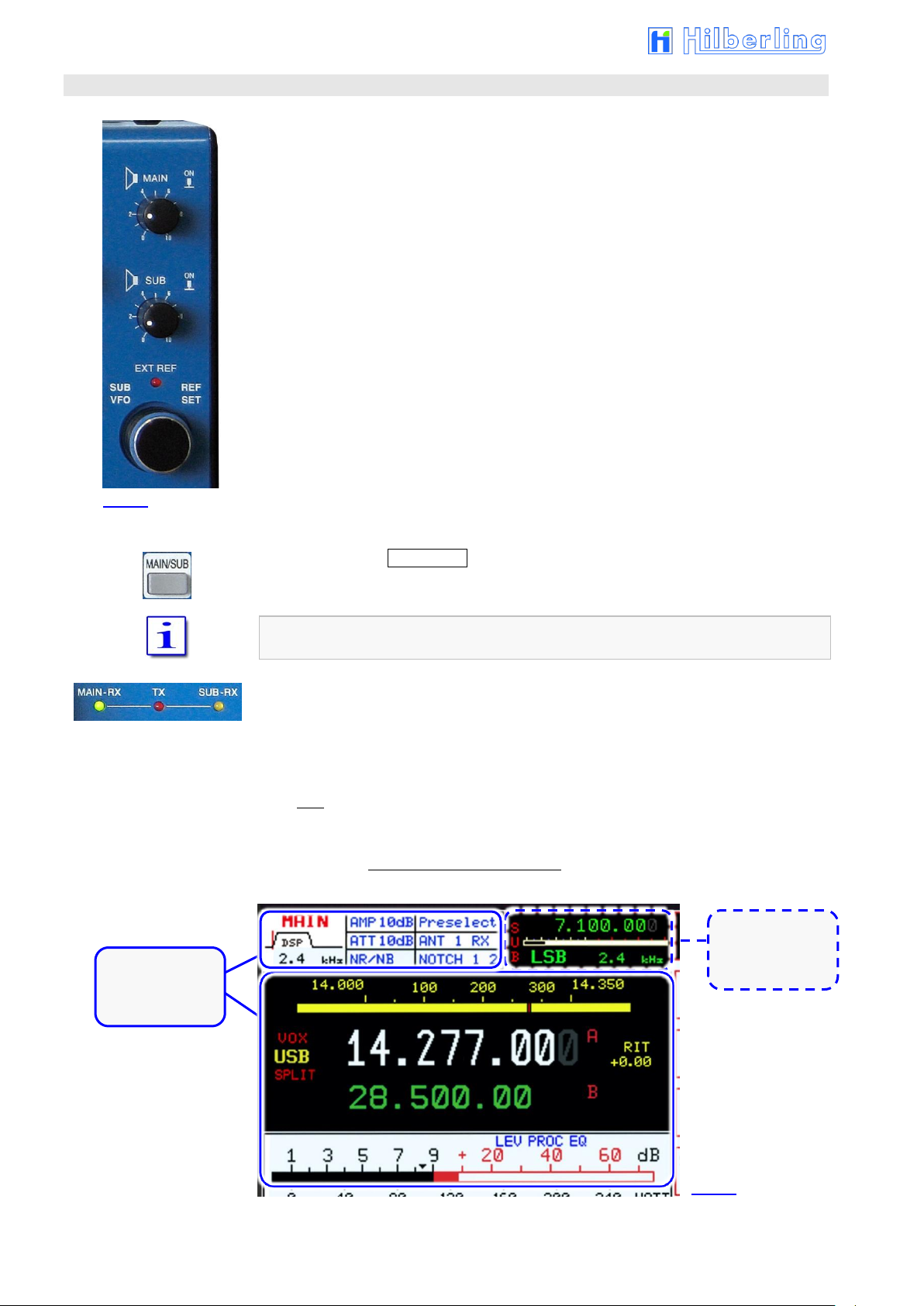

Set internal Reference
REF-SET
When operating the PT-8000A with its internal reference (10MHz-VCXO) this control will allow
calibration the VCXO. Tuning range ± 1 ppm (s. P. 54). The LED EXT-REF will illuminate if an
external reference signal is detected
Tab. 8
POWER
ONOFF
TFT Display
(s. P. 13)
Volume MAIN- and SUB-RX
Speaker ON⬄OFF
VFO (MAIN) Tuning
„active“ RX (s. P. 38)
VFO (SUB) Tuning
RX „in the background“
MAIN-RX / TX / SUB-RX
LED for status (s. P. 19)
Softkeys
(s. P. 13)
Fig. 14
Softkey menu
(s. P. 13)
MIC-GAIN
(s. P. 68)
PROC
(s. P. 68)
TX-PWR
(s. P. 69)
8 OPERATING AND DISPLAY ELEMENTS
In this chapter the operating and display elements will be introduced.
8.1 Main Operating and Display Elements
PT-8000A Operating Manual v2.00.33 13
RX in the background
(limited access through controls)
selected VFO
active RX
(full access through
controls)
Note: Each VFO setting
includes bandwidth and
mode
SWR
Squelch Marker
RX: S-Meter
TX: RF Power Meter
Softkeys
Softkey Menu
Selected VFO
Frequency + ID
(A/B)
Bandwidth 2nd IF
Filter allocated to
selected VFO
RX ID
(MAIN/SUB)
Standby VFO
Frequency + ID
(B/A)
Selected VFO
allocated Mode
Operating
Mode
Frequency
Bandwidth of
2nd IF filters
DSP Filter Marker
ALC/COMP
Band Information
or Linear Scale
RX ID
(MAIN/SUB resp.
TRV/CONV)
Fig. 15
Softkeys
and
Softkey Menu
S-Meter

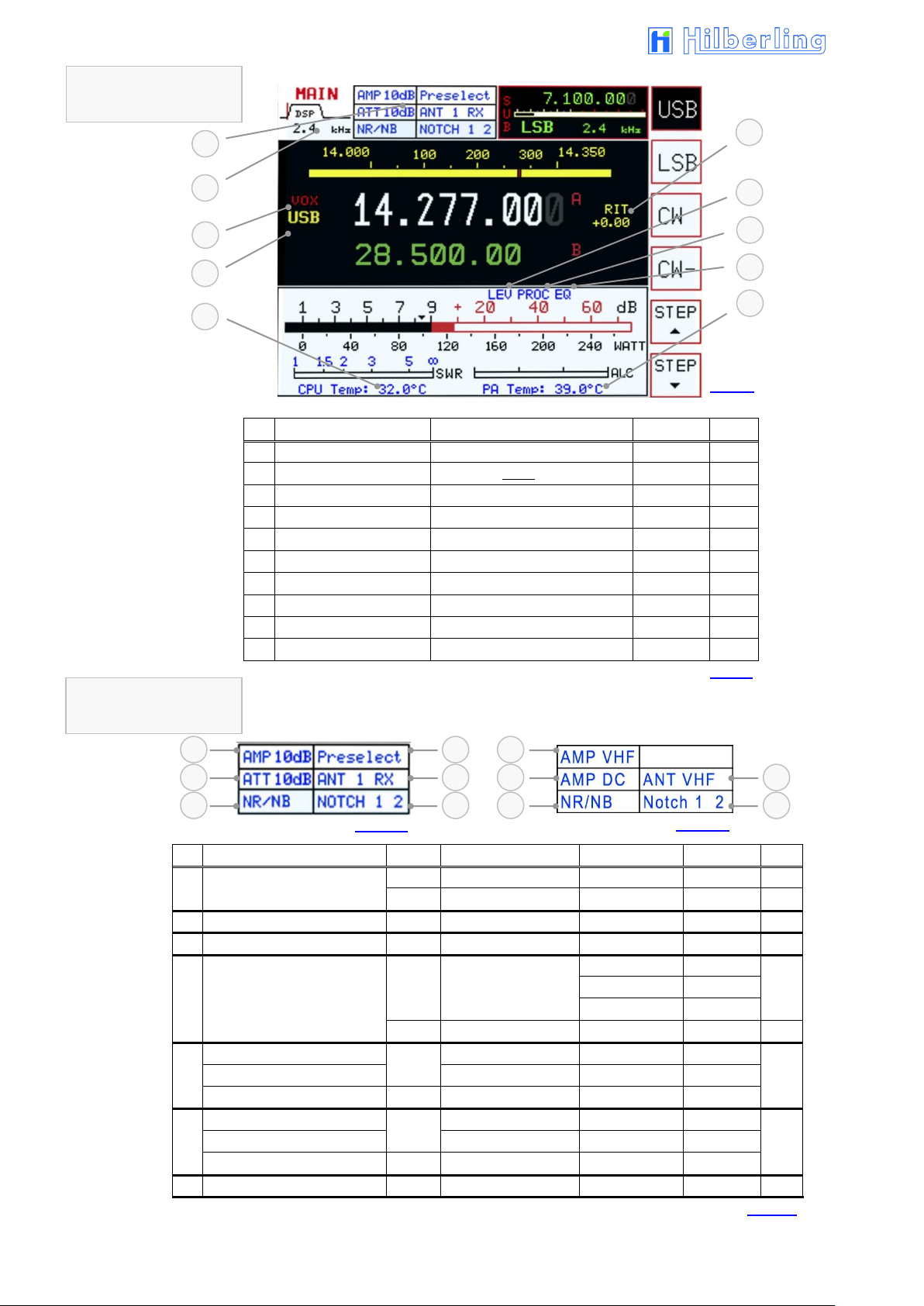

8.2 TFT-Display
The display of the PT-8000A shows relevant data of MAIN- and SUB-RX and
the TX:
All settings for the active RX
Main settings for the RX in the background
General Data for RX and TX
Functions to be activated by the adjacent keys (softkeys)
The six keys (so-called softkeys) right next to the display give access to the
functions named on the display at right border (in the Softkey Menu). The
functions can be: Activate a device function, selection of an adjustment
option, call up of superior or submenu.
Thus adapted softkey menus for almost all pushbuttons on the front panel
allow direct access to many allocated functions.
14
No
Module/Function
Mode
Description
Options
Display
Page
1
Antenna Preamplifier
HF
1.8 ... 30MHz
ON / OFF
AMP 10dB
58
VHF
50 ... 148MHz
ON / OFF
AMP VHF
60
2
Preselector
HF
1.8 ... 30MHz
ON / OFF
Preselect
58 3 Antenna Attenuator
HF ON / OFF
ATT 10dB
59
4
Antenna Connector
HF
Alternatively select
HF-ANT 1
ANT 1
58
HF-ANT 1+RX
ANT 1 RX
HF-ANT 2
ANT 2
VHF
Firmly assigned
VHF-ANT
ANT VHF
5
Noise Reduction
HF/VHF
DSP NR
ON / OFF
NR
48
Noise Blanker
RX NB
ON / OFF
NB
both ON
NR/NB
6
Notch Filter DSP
HF/VHF
DSP Notch Filter
ON / OFF
Notch 1
47
Notch Filter IF
IF Notch Filter
ON / OFF
Notch 2
both ON
Notch 1 2
7
12V Power Supply
VHF
For external purpose
ON / OFF
AMP-DC
60
Tab. 10
No
Module/Function
Description
Options
Page
1
VOX
Voice Operated TX
ON / OFF
69
2
3-Band TX-EQ Display
Only if EQ menu is active
63
3
Status-Field
Antenna and RX adjustments
s. Tab. 10
s. b.
4
Temperature MAIN-CPU
— 5 LEVELER
TX Audio Dynamic Controller
ON / OFF
62
6
PROCESSOR
TX IF-2 Compression
ON / OFF
68
7
EQUALIZER
TX 3-Band EQ
ON / OFF
63
8
Temperature PA
— 9 RIT / XIT
ON / OFF
43
10
SPLIT
ON / OFF
41/42
Tab. 9
Displayed Options
in the
Status Field
HF Mode
VHF Mode
1 2 3 4 5 6 5 6 7 4 1
Fig. 16
1
2 3 4
5
6
7 8 9
More indications
on the
Display
Fig. 17a
Fig. 17b
10
PT-8000A Operating Manual v2.00.33 15
BAND
HF Ham Radio Bands
(except for 60m band)
/
Numeric Button for
Numerical Frequency Input
ANT-TUNER
(MOX –Manually Operated Transmit)
DISPLAY
MENU
– Software Update
– Calibration
– Brightness Display
– Voice Recorder
METER
– ALC / COMP (TX)
– S-Meter Scales
DSP
Activation of:
Digital FILTER (2
nd
IF)
Automatic Multi NOTCH Filter
Automatic Noise Reduction
NR
FUNCTION
Automatic Gain Control
AGC
Search over Memory
Channels SCAN **
VFO
LOCK VFOs
Toggle VFO AB
Activation of RIT/XIT
MODE
VHF Ham Radio Bands /
„0“- Key for Numerical Frequency Input
Basic Settings RX/TX

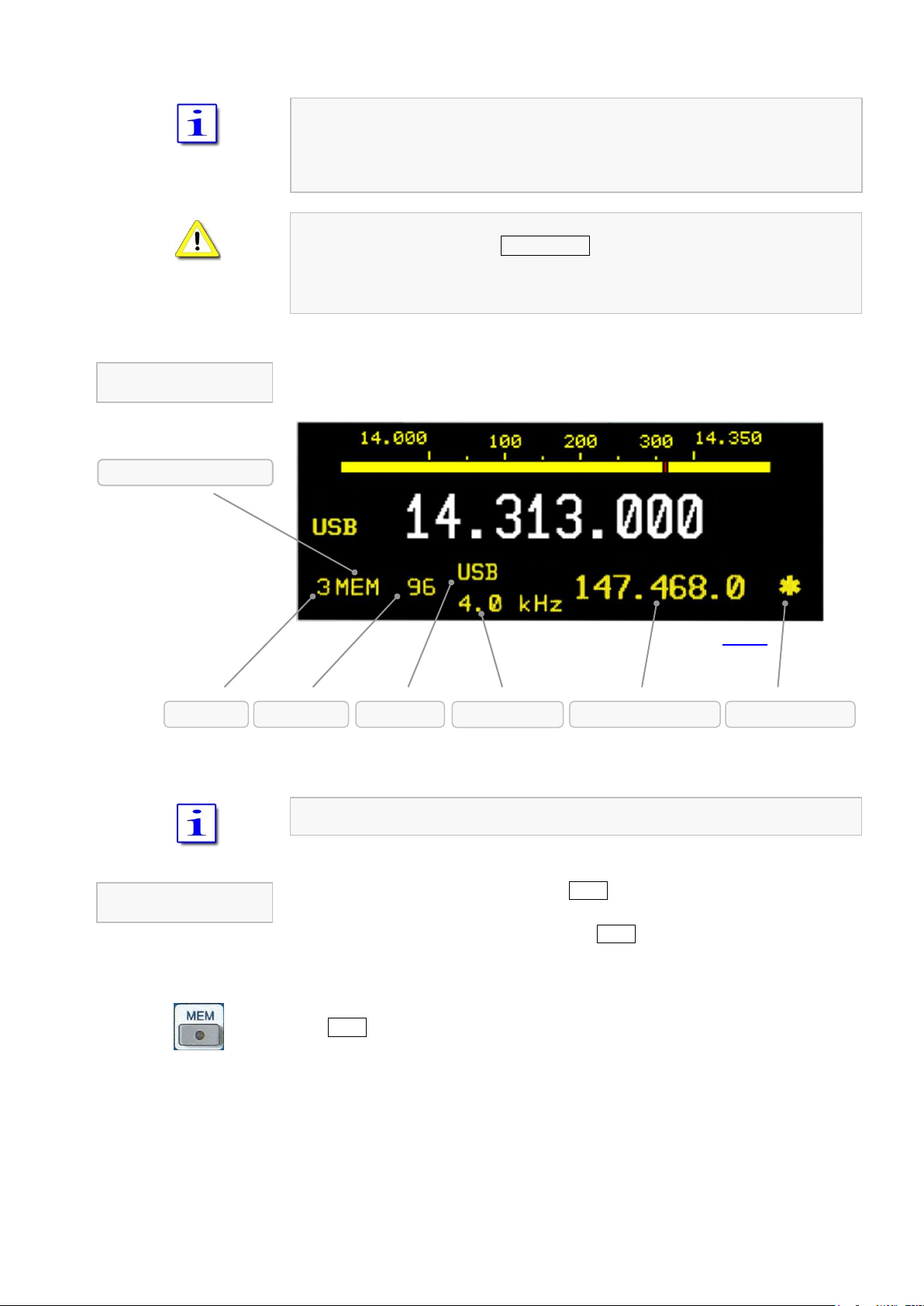

Memory Channels Write and – MEM
Filter Selection (Xtal and DSP)
STEP-VFO
Numerical Frequency Input - ENTER
Toggle MAIN-RX / SUB-RX
Channel storage management - CHANNEL
Modes of Operation (SSB/CW/AM/FM/DATA)
Fig. 18
** Function temporary disabled
8.3 Clustered Front Panel Controls
Various fix function keys (pushbuttons; in opposite to softkeys with variable functions, right of display, see
Page 13) are clustered in several button areas as shown below. Detailed description starts at Page 20.
16
NOISE BLANKER
Activate (OFF⬄ON)
Adjust Limit of Disturbance
IF-NOTCH FILTER
Activate (OFF⬄ON)
Adjust Frequency

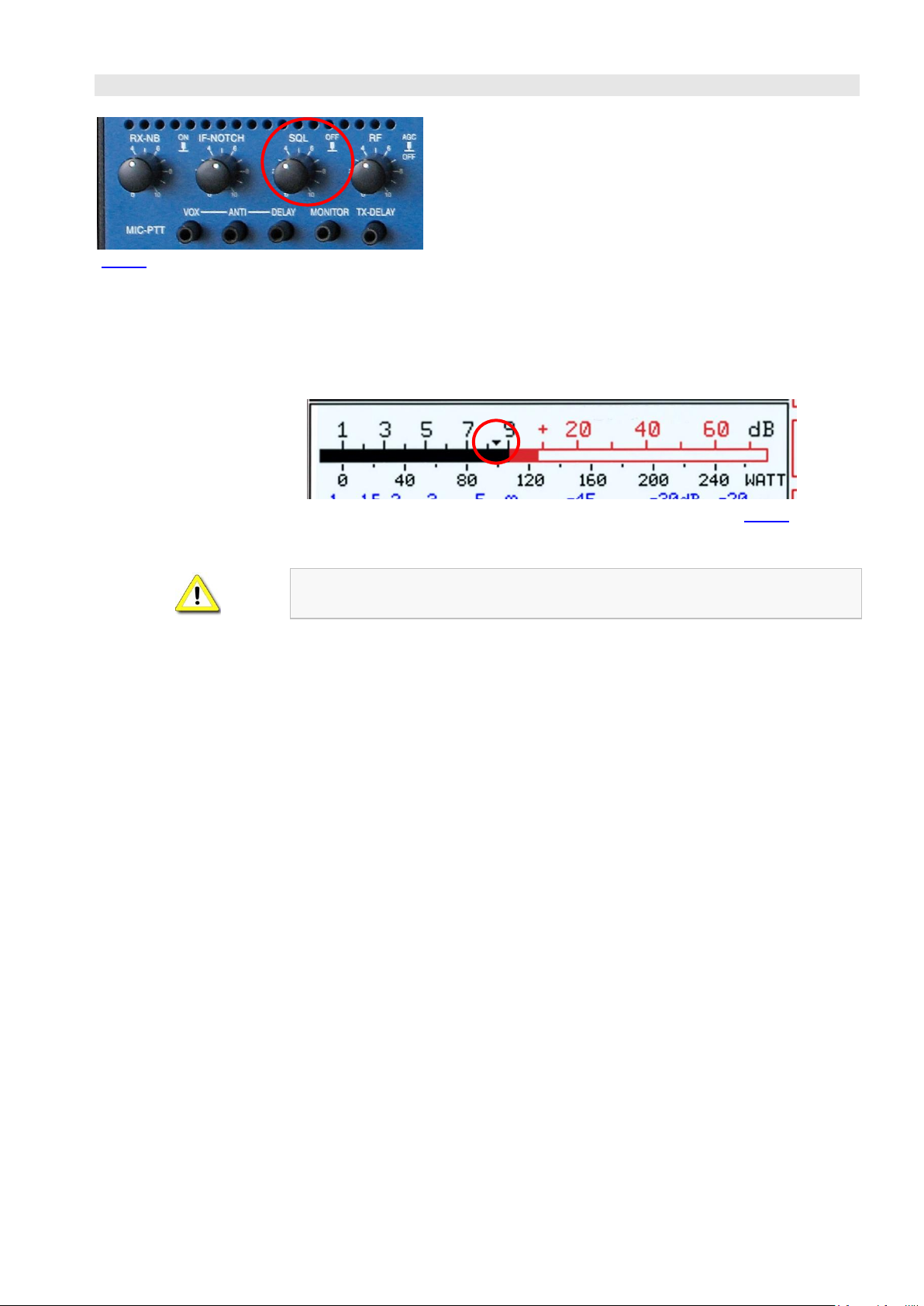

SQUELCH
Activate (ON⇨OFF)
Adjust Threshold
RF-GAIN
Adjust RF-Gain
Deactivate AGC (ON⬄OFF)
TX-MONITOR
Adjust TX Volume
TX-DELAY
Adjust Switch Time TX⇨RX
Adjustments / Settings for VOX Operation
Threshold
ANTI TRIP
DELAY
ZERO-BEAT
(Test Tone)
Activate 440Hz (OFF⇨ON)
(FM-Mode: 1750 Hz)
Adjust Level
MIC-GAIN
Adjustment Level
----------------------------VOX
Activate (OFF⬄ON)
MIC-PROCESSOR
(Speech Processor)
Activate (OFF⬄ON)
Adjust Compression Ratio
0 ... 20 dB

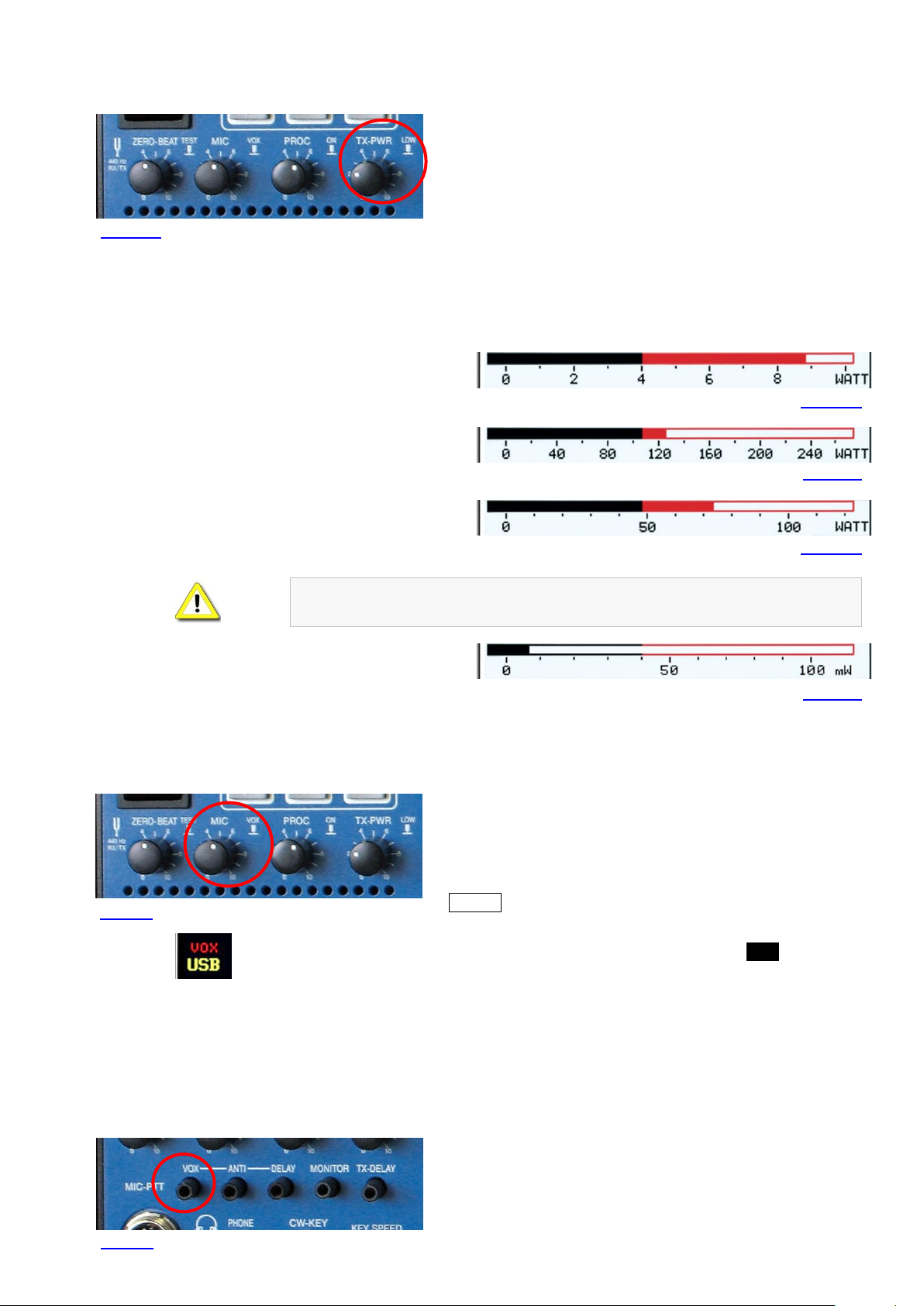

TX-POWER
(PA-Power)
Switch10W⬄200W
Adjust Power Level
CW KEY SPEED
Adjust Automatic Key Speed CW
MAIN-RX
Adjust Audio Volume MAIN-RX
Deactivate Speaker PT-8000A
(ON⬄OFF)
SUB-RX
Adjust Audio Volume SUB-RX
Deactivate Speaker HN-8000
(ON⬄OFF)

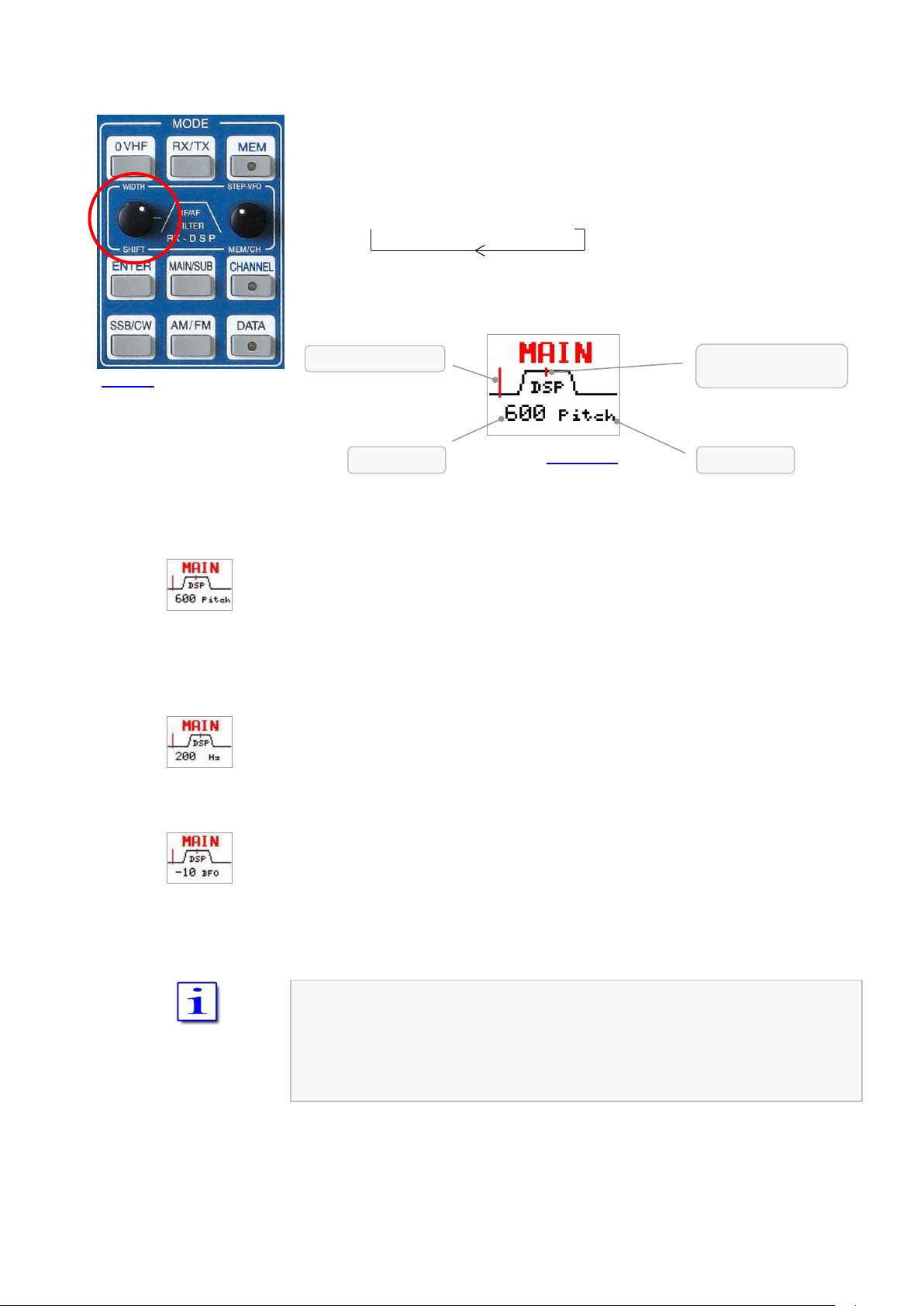

RX FILTER WIDTH/SHIFT
Switch WIDTH⇨SHIFT⇨BFO
Adjust WIDTH/SHIFT/BFO
Select TX EQ Band
STEP-VFO / MEM/CH
Select VFO Decimal Place
Adjust VFO Frequency
Select MEM/CHANNEL
Select: TX Filter / VOICE REC Track /
HF Delay TX-Ext / TRV Operating Band
Fig. 19a
Fig. 19b
8.4 Controls with Integrated Push-Button Function and Controls for Adjustments
PT-8000A Operating Manual v2.00.33 17
Fig. 20
Fig. 21
8.5 Side Panel Controls (Level Adjustments)
Sometimes it can be necessary to customize the input and output level of the
PT-8000A for special requirements. Boreholes in both left and right hand side
enable the access to trim potentiometers which allow manipulating the
preadjustment of levels.
8.5.1 Input Level – Left Hand Side
P2 Microphone Sensitivity (Preadjustment)
Socket MIC-PTT Pin 1/5 (front panel);
fine adjustment with knob MIC
(see Page 68)
P6 Adjustment Level DATA Input / 0dBm Input
Socket J20 AUDIO IN/OUT Pin 2
(rear panel)
Socket MIC-PTT Pin 4 (front panel)
The adjustment of sensitivity from MIC and
Data Input are twofold: Coarse adjustment
(P2) is Done at an early stage right after the
input transformers. MIC gain settings from
the front panel controls amplifier and gain
leveler circuit on the TX board.
8.5.2 Output Level – Right Hand Side
P1 MAIN-RX Adjustment of audio volume
Headphones Speaker
Socket MIC-PTT Pin 3 (front panel)
Socket PHONE (Output Headphones)
(front panel)
P3 MAIN-RX Volume (Preadjustment)
Socket J20 AUDIO IN/OUT Pin 5
(rear panel)
P4 SUB-RX Adjustment of audio volume
Headphones Speaker
Socket MIC-PTT Pin 6 (front panel)
Socket PHONE (Output Headphones)
(front panel)
P5 SUB-RX Volume (Preadjustment)
Socket J20 AUDIO IN/OUT Pin 14
(rear panel)
Please use an appropriate tool to adjust the controls to prevent any damage to
the variable resistors.
18
LED glows
Meaning
Page
TUNER
Antenna Tuner activated
67
START
Automatic Antenna Tuner Adjustment
activated
67
Tab. 11b
LED glows
Meaning
Page
MENU *
MENU menu activated
– Calibration of internal Reference
– Brightness of Display
– Recording Functions (Voice-Recorder)
– Audio NORMAL/SPLIT Setting
53
54
55
56
53
METER *
Scale selection
– ALC / COMP
– S-Meter / dBm / dBµV
57
Tab. 11c
LED glows
Meaning
Page
FILTER
DSP Filter activated
45
NOTCH
Automatic DSP Multi-Notch Filter activated
47
NR
DSP Noise Reduction activated
48
Tab. 11d
LED glows
Meaning
Page
AGC
Automatic Gain Control disabled
50

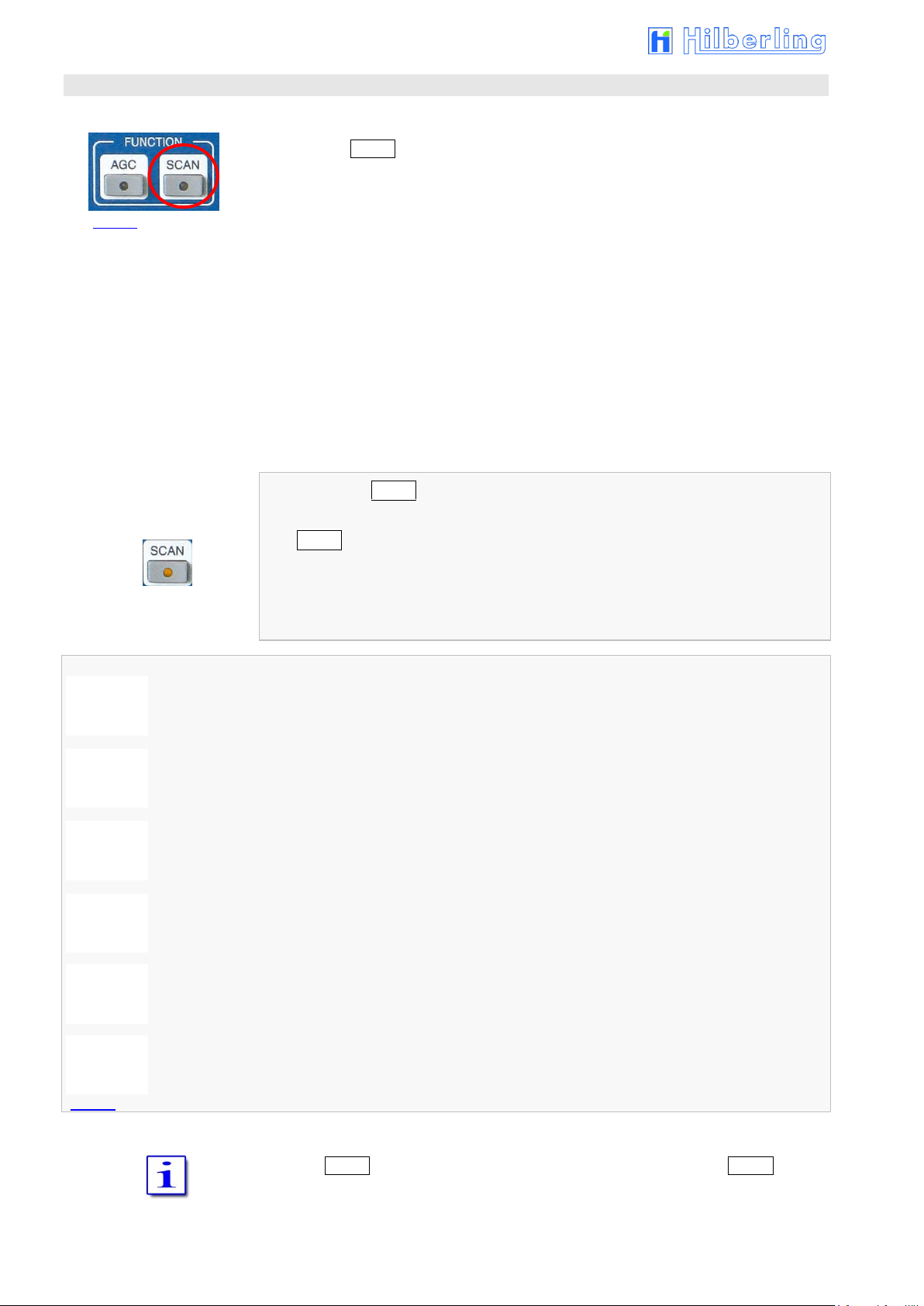

SCAN **
Storage Frequency Scanning activated
52
Tab. 11e
LED glows
Meaning
Page
MEM
Memory mode activated
36
CHANNEL
Memory operation mode activated
34
DATA
Data mode activated
26
LOCK
VFO locking activated
44
RIT/XIT
RIT/XIT frequency deviation activated
43
Tab. 11a
Fig. 22a
Fig. 22b
Fig. 22c
Fig. 22d
Fig. 22e
* LED temporary disabled
** Function temporary disabled
8.6 Pushbuttons with LED Status Display
To inform about the status of several main functions of the
PT-8000A – in addition to display information – some
pushbuttons are equipped with LED, respectively the status
of fundamental operating conditions are indicated by LED.
Status displays as follows:
Further status displays:
PT-8000A Operating Manual v2.00.33 19
MAIN-RX
and
SUB-RX
Fig. 22f
Fig. 22g
8.7 LED Status Display
The three main modes of PT-8000A (MAIN-RX / SUB-RX / TX) are displayed
with colored LED.
The PT-8000A incorporates a transmitter and two independent receivers
(MAIN RX and SUB-RX). Both receivers are permanently operating. Even if a
receiver is in the background i.e. not fully accessible through all main controls
the receiver is operating with its last settings when it has been the active one.
One transmitter and two receivers are operated in three main modes:
MAIN-RX is active and SUB is working in the background
(green MAIN-RX LED is on)
SUB-RX is active and MAIN is working in the background
(yellow SUB-RX LED is on)
TX is operating (red TX-LED is on)
Note: The MAIN RX VFOs will always determine the transmit (TX) frequencies
and other operating parameters.
Exception Split-Mode: In this case the selected (displayed) SUB-RX-VFO
determines the transmit frequency (see Page 42).
The red LED EXT REF will be on when an external 10 MHz signal is
representing the frequency reference.
The internal 10 MHz system clock no longer takes effect.
20
Fig. 23
Settings of the
RX which is the
active one
Settings of the RX
background
Fig. 24

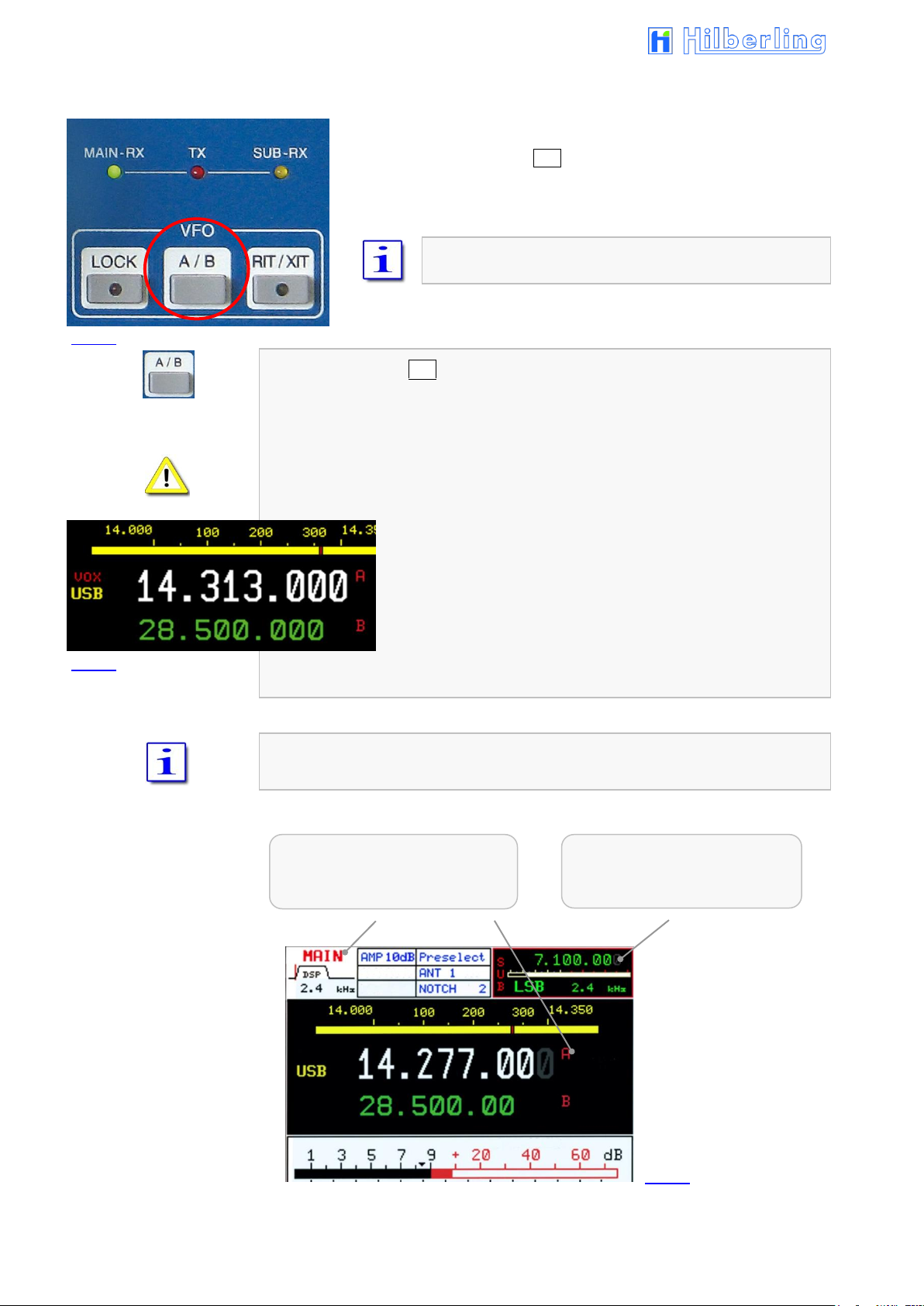

9 MAIN- AND SUB-RX OPERATIONS
The PT-8000A incorporates a transmitter and two independent receivers
(MAIN-RX and SUB-RX). Both receivers are permanently operating. Even if a
receiver is in the background i.e. not fully accessible through all main controls
the receiver is operating with its last settings when it has been the active one.
Using MAIN- and SUB-RX allows duplex operation mode.
Each of the two RX provides again two VFO: VFO A and VFO B. The active
VFO is called selected VFO, the other is called VFO in standby (s. P. 40).
Two controls are doubled, hence for these functions MAIN-/SUB-RX are
always accessible regardless of their status active or stand-by:
1. The selected VFO of the active RX (usually MAIN-RX) is always accessible
through MAIN tuning knob. The selected VFO of the RX working in the
background (usually SUB RX) is always accessible through SUB VFO knob.
2. The volume of MAIN- and SUB-RX is permanently adjustable through the
respective controls MAIN und SUB.
Both knobs have a push function:
Pushing MAIN will turn off PT-8000A speaker, pushing SUB will turn off
HN-8000 speaker. (see also Page 53).
The push button MAIN/SUB (located in the cluster MODE) toggles between
the two RX changing their status active or background.
After power on the PT-8000A the MAIN-RX is the active one (corresponding
SUB-RX is working in the background).
LED MAIN-RX and LED SUB-RX indicate which RX is the active one and so
which is accessible through all knobs and buttons on the front panel.
In the upper left corner the display shows the label of the active one
(MAIN or SUB).
Frequency, mode, filter bandwidths and S-meters are displayed for MAIN
and SUB respectively (see Figure 24).
Activation of noise reduction (NR), noise blanker (NB), DSP Filter, DSP-
Notch, IF-Notch, preamplifier, preselector and the squelch marker are
displayed for the active RX exclusively.
which is in the
PT-8000A Operating Manual v2.00.33 21
Example
When toggling between MAIN- and SUB-RX the actual settings of the controls
used at last are not transferred to the new active RX – instead the former
settings of this RX are the actual one – until they are overwritten by the
respective control.
The squelch threshold set to the RX working in the background will stay the
actual one when this RX becomes the active – until one touches the squelch
control to set the threshold to a new setting.
The large S-meter is always allocated to the active RX. The smaller S-meter is
indicating the field strength of the RX working in the background.
Transmitting (TX) is only possible when MAIN-RX is the active one and SUB-RX
is working in the background.
When transmitting the SUB-RX may be used to monitor own RF-signal.
Receiving with SUB-RX on a separate antenna is limited however: Excessive
field strength may trip the protection circuits. Receiving at frequencies adjacent
to the transmitting frequency may be limited even by the superior dynamic
characteristics of the PT-8000A receivers - which are of course finite.
22
SSB/CW menu
Key
Mode
Page
SSB / CW
USB / LSB and CW / CW–
s. b.
AM / FM
AM / AME USB / AME LSB and FM / FM RPT / FM RPT–
24
DATA
shiftable „submode“
26
Tab. 12
Fig. 25
Fig. 26
10 MODES OF OPERATION MODE
In order to select different operating modes pushbuttons (keys) are available in
the clustered area MODE:
When SSB/CW or AM/FM button is pushed the last selected mode (SSB/CW
or AM/FM) is memorized and reactivated.
When e.g. a band key with other adjustments were active before, the
adjustments of the buttons SSB/CW and AM/FM are preserved.
The display shows the activated mode left hand of frequency. The
corresponding softkey is shown inverse.
10.1 Single Side Band and Continuous Wave SSB / CW
10.1.1 SSB Single Side Band
Pushing SSB/CW button activates the allocated last used mode (USB, LSB,
CW or CW–) and will call up the SSB/CW menu.
If this is e.g. a SSB mode, a second press toggles to the last activated CW
mode.
Upper Side Band;
the softkey will be displayed inverse (as shown here);
the display will show USB (left of frequency).
Lower Side Band;
the softkey will be displayed inverse;
the display will show LSB (left of frequency).
Continuous Wave normal mode (CW-pitch in USB);
the softkey will be displayed inverse;
the display will show CW (left of frequency).
Continuous Wave inverse mode (CW-pitch in LSB);
the softkey will be displayed inverse;
the display will show CW– (left of frequency).
Cyclic change of frequency tuning steps:
1 Hz 10 Hz 100 Hz 1 kHz
PT-8000A Operating Manual v2.00.33 23
Parameter
Value
Transceiver Operation
Frequency
BFO Frequency
Figure 27b
* Factory hardware extension
Fig. 27a
10.1.2 CW Continuous Wave
In CW (resp. CW–) mode the parameters Pitch, Width und BFO as well as
their specific value can be selected by using the knob WIDTH/SHIFT.
Pushing WIDTH/SHIFT knob will cycle between the parameters:
Pitch Width BFO
The chosen parameter and its current value are displayed left of status field in
combination with a small graphic:
Turning WIDTH/SHIFT knob will allow the following:
Pitch Varying the distance of the BFO frequency against the transceiver
operation frequency (and against the filter center frequency;
transceiver operation frequency and filter are linked).
The tone pitch of the received signal is changing.
Tuning range: 400 … 1000 Hz
Increments: 50 Hz (DSP on and off)
Width Select filter bandwidth to following values:
DSP on: 50 / 100 / 200 / 400 / 500 Hz
DSP off: 500 Hz (fixed) ( / 250 Hz with optional hardware
extension *)
BFO Shifting the filter (filter center frequency) against BFO frequency and
transceiver operation frequency (BFO frequency and transceiver
operation frequency are linked).
The tone pitch of the received signal does not change.
Tuning range: –250 Hz ... +250 Hz
Increments: 10 Hz (DSP on and off)
After power on the BFO offset is set to zero (default value).
The frequency of the monitoring TX signal (800 Hz ; volume adjustable by the
Monitor control, see page 70 ; 20.7 ; Fig. 109), is not influenced by the Pitch
value.
24
FM menu
AM menu
Fig. 28
Fig. 29
10.2 AM / FM Amplitude Modulation / Frequency Modulation
Pushing AM/FM button activates the last used mode (AM, AME USB, AME
LSB, FM, FM RPT or FM RPT+) and will call up the allocated softkey menu
(AM menu respectively FM menu). Is this e.g. one of the AM modes, pushing
AM/FM again toggles to the last activated FM mode.
Amplitude Modulation (carrier and two sidebands);
the softkey will be displayed inverse (as shown here);
the display will show AM (left of frequency).
AM Synchronous (AME – AM Equivalent; carrier and Upper Sideband);
the softkey will be displayed inverse;
the display will show AME (left of frequency).
AM Synchronous (AME – AM Equivalent; carrier and Lower Sideband);
the softkey will be displayed inverse;
the display will show AME (left of frequency).
Cyclic change of frequency tuning steps:
1 Hz 10 Hz 100 Hz 1 kHz
Frequency Modulation (standard mode);
the softkey will be displayed inverse (as shown here);
the display will show FM (left of frequency).
FM repeater mode “standard”; the transmit frequency is lower (0 ... 2 MHz)
than the receive frequency; the softkey will be displayed inverse;
the display will show FM– (left of frequency).
FM repeater mode “inverse”; the transmit frequency is higher (0 ... 2 MHz)
than the receive frequency; the softkey will be displayed inverse;
the display will show FM+ (left of frequency).
Push and hold to monitor the repeater receive frequency (the softkey will be
displayed inverse); squelch is deactivated; only available if repeater mode is
selected.
Push to set the frequency shift for repeater mode (the softkey will be displayed
inverse flashing; range 0 … 2 MHz (see next Page).
Cyclic change of frequency tuning steps:
1 Hz 10 Hz 100 Hz 1 kHz
PT-8000A Operating Manual v2.00.33 25
10.2.1 Repeater Mode – How to Set the Repeater Frequency Shift
When pushing SET RPT softkey (FM menu):
SET RPT softkey will flash inverse.
VFO display will show the actual transmit frequency.
Band- respectively linear scale changes (range 0 ... 2.000)
Set VFO to desired transmit frequency hence define the shift within a
tuning range from 0 … 2000 kHz.
The frequency resolution selected for the VFO will apply for this setting. It
can be modified by STEP-VFO softkey in the same menu.
Alternatively use STEP-VFO knob to set the frequency shift.
Pushing SET RPT again will terminate the SET RPT mode.
The frequency shift is used both for RPT– and RPT+.
Switch to a different operating mode will terminate the setting as well.
Numerical frequency shift input is not possible.
10.2.2 Repeater Mode – TX Frequency Display
Activation of PTT (pushing TX-ON button in the cluster ANT-TUNER
respectively TX pushbutton at Microphone T9) changes frequency display of
the selected VFO:
Now the TX frequency – decreased (FM-) or increased (FM+) by adjusted
frequency shift - is shown.
26
DATA menu
Fig. 30
Alternative Termination
of DATA Operation
10.3 DATA Transmission (Digital Operation Modes)
The function DATA enables to send out signals which modulate the transmitter
by using following inputs:
0 dBm IN (microphone socket MIC-PTT pin 4, see Page 7 Tab. 6)
AUDIO DATA IN (J20 AUDIO IN/OUT pin 2, see Page 6 Tab. 4)
This is basically possible with all modes – where appropriate. Thus why it is
called „submode“
When pushing DATA button located in the cluster MODE:
DATA-LED will stay off.
DATA menu will be called up.
In case this softkey is activated (the softkey will be displayed inverse;
DATA-LED will turn on) the signal at the 0dBm input (MIC-PTT Pin 4)
will be transmitted when PTT is switched.
In case this softkey is activated (the softkey will be displayed inverse
as shown here; DATA-LED will turn on) the signal at the AUDIO
DATA IN input (J20 Pin 2+3/10) will be transmitted when PTT is
switched.
In case this softkey is activated (the softkey will be displayed inverse; DATALED will not turn on) the signal at the AUDIO DATA IN input (J20 Pin
2+3/10) will be transmitted when PTT is switched by an external software
command (USB interface).
TX 0dBm, TX DATA and DATA Mike are only working alternatively.
DATA mode may be selected in all operating modes.
Only when DATA mode is selected a PTT signal can be fed through USB
interface (handshake signal).
In case the DATA softkey menu is displayed pushing DATA will only terminate
TX 0dBm or TX DATA modus.
If the menu is not displayed pushing DATA will call it up and a second push
will terminate the aforementioned DATA operations:
DATA-LED will turn off.
PT-8000A Operating Manual v2.00.33 27
Fig. 31

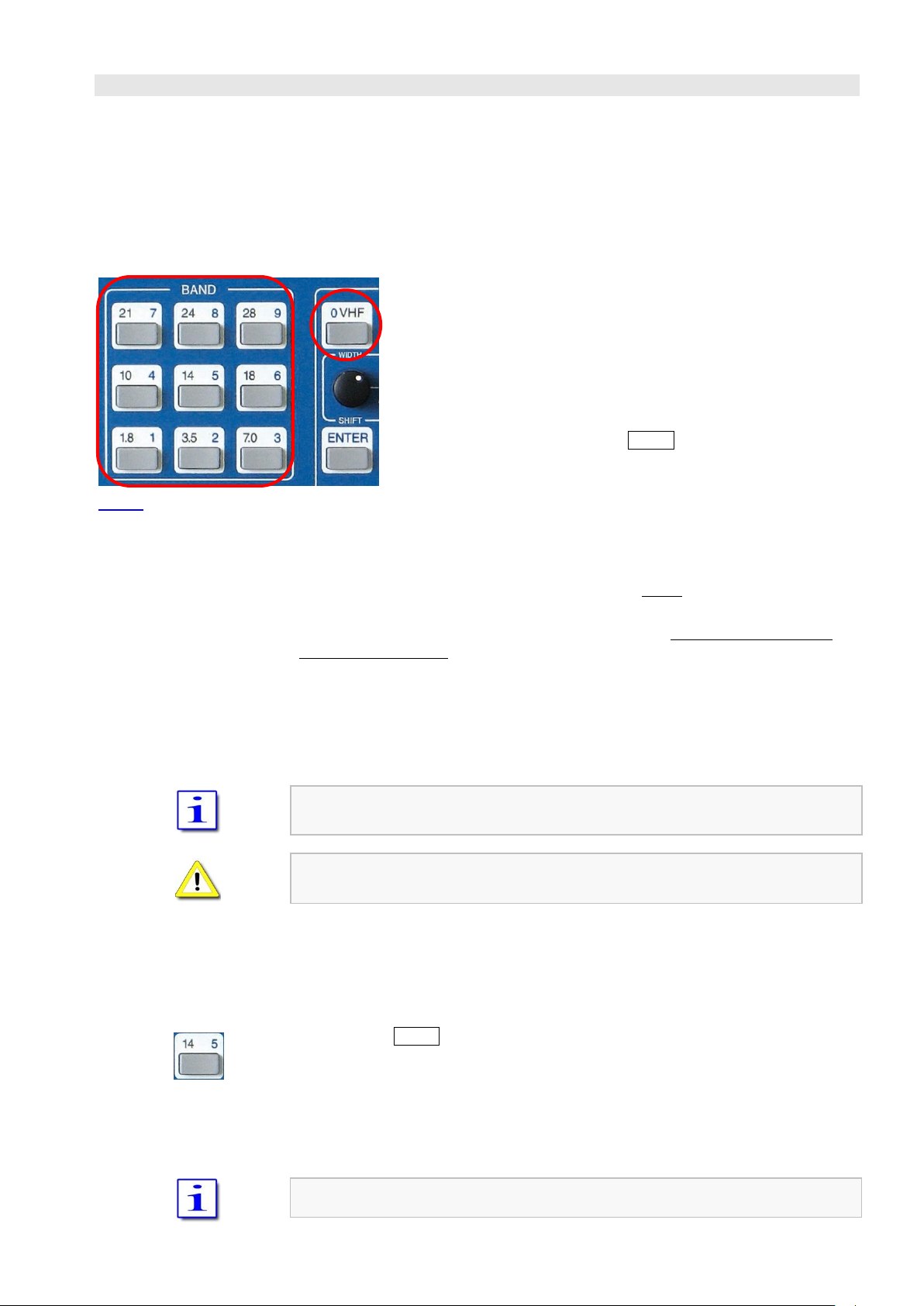

11 SELECTING FREQUENCIES
To select or change a frequency different means are available:
Select with band buttons (see below).
Numerical input (see Page 32).
Recall from a memory channel (see Page 34).
11.1 Select with BAND Buttons
Pushing a band pushbutton selects one of two stored
frequencies within the desired band (see Table 13 and 14).
The MF and each HF amateur radio band (excl. 60 m) is
allocated to a pushbutton in the cluster BAND.
The VHF amateur radio bands and the RX-only range from
110 MHz are accessible by the 0 VHF button in the cluster
MODE and additional select in the VHF softkey menu.
Each band button stores two frequencies exclusively for this band. Pressing the
button again will toggle between the last two frequencies used within this
band.
The last used frequency within a band is stored automatically, so the stored
frequency will change continuously when tuning within the band with VFO
knob or STEP-VFO knob.
In case the BAND limits are exceeded trough tuning the last valid frequency
that has been stored will remain. Press button again for return the PT-8000A
to the last used frequency.
The two stored frequencies of a band are correlated to each VFO. Selecting
the alternate VFO will give access to another two frequencies in that band
(which were used with this VFO). Of course this is applicable for both MAINand SUB-RX.
Mode, filter adjustments (width/shift), antenna and tuning increments (STEP
VFO) are stored along with the respective frequency.
A numerical input of a frequency (see Page 32) within the selected band will
overwrite one of the two stored frequencies (the last frequency used).
11.1.1 HF Amateur Radio Bands
Pressing e.g. 14 5 button (located in the cluster BAND) selects the last used
frequency within the 20 m band of the selected VFO.
The VFO menu (see Page 41) will be displayed.
Pressing band key again will toggle between the last two frequencies used
within this band.
Two more frequencies are allocated to the „stand-by“-VFO.
28
Button
Band
Sign
Frequency Range
1.8 1
160 m
MF
1.8101 /1.800
2,3
...
2.000 MHz
3.5 2
80 m
HF
3.500
...
3.8001 / 4.0002 / 3.9003 MHz
–
60 m
5.260
...
5.410 MHz
7.0 3
40 m
7.000
...
7.2001 / 7.300
2,3
MHz
10 4
30 m
10.100
...
10.150 MHz
14 5
20 m
14.000
...
14.350 MHz
18 6
17 m
18.068
...
18.168 MHz
21 7
15 m
21.000
...
21.450 MHz
24 8
12 m
24.890
...
24.990 MHz
28 9
10 m
28.000
...
29.700 MHz
Tab. 13
Button
Band
Sign
Frequency Range
0 VHF → Softkey 50
6 m
VHF
50.000
...
52.0001 / 54.000
2,3
MHz
0 VHF → Softkey 70
4 m
70.0001 / 69.9002 ... 70.5001 / 70.7002 MHz
0 VHF → Softkey 144
2 m
144.000
...
146.0001 / 148.00
2,3
MHz
0 VHF → Softkey 110
RX Range
110.000
...
143.999 MHz
Tab. 14
1
= IARU Region 1 2 = IARU Region 2 3 = IARU Region 3
1
= IARU Region 1 2 = IARU Region 2 3 = IARU Region 3
The following MF/HF amateur radio bands – slightly modified depending on
IARU region the TRX will operate – are defined in the PT-8000A software as TX
bands. They are directly selectable with band pushbuttons (except 60 m):
11.1.2 VHF Amateur Radio Bands
Pushing 0 VHF button (located in the cluster MODE) will call up the VHF
menu and will recall the last frequency used in VHF (50 MHz, 70 MHz,
144 MHz or 110 MHz).
The respective band will be displayed inverse in the VFO softkey menu (s. P.
41).
Like on HF the last two frequencies used on VHF are recalled through the
0 VHF button.
Two more frequencies are allocated to the stand-by-VFO.
The following VHF amateur radio bands are defined in the PT-8000A software
and selectable with softkeys (plus one additional RX range):
If a transverter has been used the last time VHF was activated the respective
softkey will be displayed inverse. The specific transverter will be activated
again.
VHF menu
Fig. 32
PT-8000A Operating Manual v2.00.33 29
Select 2 m band; the softkey will be displayed inverse (as shown here);
pressing this key again will toggle between the last two frequencies used within
this band.
Select RX Range 110 ... 143.990 MHz; the softkey will be displayed inverse;
pressing this key again will toggle between the last two frequencies used within
this band.
Select 4 m band; the softkey will be displayed inverse; pressing this key again
will toggle between the last two frequencies used within this band.
Select 6 m band; the softkey will be displayed inverse; pressing this key again
will toggle between the last two frequencies used within this band.
Transverter select menu will be called up (see next Page); if Transverter is
already selected the softkey is displayed inverse.
VFO menu will be called up (see Page 41).
Only one transverter can be activated at a time for each of the receivers. To
operate two transverters MAIN- and SUB-RX must be allocated to different
transverters.
It should be noted that it is not possible to form a transceiver with SUB-RX.
Hereby the transverter only works as a converter.
30
Transverter Band Select menu
Transverter Select menu
Fig. 33
Fig. 34
11.1.3 Transverter Operation
Pushing Trans softkey (VHF menu) will call up allocated Transverter Select
menu. If a transverter is already selected the softkey is displayed inverse.
Return to VHF menu (see previous Page).
Select transverter #1; the softkey will be displayed inverse; pushing again will
call up the Transverter Band Select menu (see below).
Select transverter #2; the softkey will be displayed inverse; pushing again will
call up the Transverter Band Select menu (see below).
VFO menu will be called up (see Page 41).
If transverter 1 is selected (displayed inverse) pushing again Trans 1 softkey will
call up the Transverter Band Select menu (applies accordingly Trans 2)
Return to VHF menu (see previous Page).
Activates 2 m band (144 ... 148 MHz); the softkey will be
displayed inverse; push again and hold allows to select a
transverter operating band using STEP-VFO knob.
Activates 6 m band (50 ... 54 MHz); the softkey will be displayed inverse (as
shown here); push again and hold allows to select a transverter operating
band using STEP-VFO knob.
Activates 10 m band (28 … 30 MHz); the softkey will be displayed inverse;
push again and hold allows to select a transverter operating band using STEPVFO knob.
PT-8000A Operating Manual v2.00.33 31
No.
Frequency Range
1
432
...
434 MHz
2
435
...
437 MHz
3
1.268
...
1.270 GHz
4
1.296
...
1.298 GHz
5
2.320
...
2.322 GHz
6
3.400
...
3.402 GHz
7
3.456
...
3.458 GHz
8
5.760
...
5.762 GHz
9
10.368
...
10.370 GHz
10
10.450
…
10.452 GHz
11
24.048
…
24.050 GHz
12
47.088
...
47.090 GHz
13
75.976
...
75.978 GHz
Tab. 15
Changing of allocated
transverters
Transverter Operation
Frequency Bands
Fig. 35
If one of the softkeys (144/50/28) is pushed and held the transverter operation
frequency band is displayed instead of the standby VFO frequency, see Figure
35.
Using control STEP-VFO /
MEM/CH gives access to all
transverter operation frequency
bands as listed below (Table 15).
When releasing the transverter
softkey the new frequency band is
transferred and will be stored.
The following 13 transverter operation frequency bands are available:
When the PT-8000A operates in transverter mode the transmitter output is
directed to the TX-ext. connector on the rear panel (see Page 5 / Table 3 /
socket J14).
A transverter for one of the bands shown in Table 15 must be selected so that it
can operate properly with drive power 10 m, 6 m or 2 m.
Maximum power level at J14 is +20 dBm.
Hooking up multiple transverters requires external distribution of TX signals
from TX-ext. J14.
32
ENTER menu
Fig. 37a
Fig. 38
MHz
kHz
Hz
MHz
kHz
Fig. 37b
Can not be
edited
Fig. 36
11.2 Numerical Frequency Input ENTER
Pushing ENTER button located in the cluster MODE will call up the ENTER
menu and will activate the numerical frequency input:
The frequency display will show blanks for all digits. A cursor indicates
(„_“) which digit can be edited.
The number of blanks/digits are shown depends on the resolution selected by
using the Softkeys STEP , STEP or STEP VFO (s. P. 41). E.g. the
resolution is 1 kHz the frequency will be displayed as follows:
Pushing the respective numbers from 1.8 1 to 28 9 allocated to the
BAND buttons (located in the cluster BAND) and 0 VHF (located in the
cluster MODE) will insert the digits from left to right.
Pushing ENTER button (located in the cluster MODE or softkey) again will
complete the input; the RX transfers the frequency; the VFO menu will be
displayed:
Numerical input will be aborted;
the last used frequency will be displayed instead;
the last used softkey menu will be called up.
The curser will jump to the next left position; the last digit input will be deleted;
a leading empty digit will reappear.
Frequency input will be completed;
the RX transfers the frequency (function the same as ENTER key in the cluster
MODE);the VFO softkey menu will be displayed.
PT-8000A Operating Manual v2.00.33 33
Numerical Input
Transverter Operation
MHz
kHz
Hz
GHz
Fig. 39
Because the numerical input always starts with the 100 MHz digit possibly the
0 VHF button first must be pushed. So this digit disappears and the Cursor
jumps one digit to the right to the 10 MHz digit. These can be deleted as well
by pushing 0 VHF button again, the cursor jumps to the 1 MHz digit, etc.
It is not necessary to key all digits (e.g. “0”). Pushing ENTER after the last digit
will set all lower digits to zero. After a valid numerical input is acknowledged
the frequency will be displayed and the respective RX will operate on that
frequency.
In case the least significant digit is typed in the numerical input is terminated
and the frequency is transferred to the respective VFO (Pushing ENTER is not
required). The RX operates with the new frequency.
In case the input is not acknowledged through ENTER or completely input or
not aborted through ESC, after a period of 10 seconds without any activity the
numerical input will be terminated and the last frequency used will be selected
again. The last used softkey menu will be called up.
If the entered frequency is outside of RX frequency ranges of the PT-8000A the
VFO will jump to the upper border of the next lower RX frequency range. If
input frequency is < 9 kHz it will jump to 9 kHz.
In case the input frequency is a valid BAND frequency one of the two stored
frequencies of this BAND will be overwritten by the numerical input.
In transverter operation two additional digits will be displayed for 1 and 10
gigahertz range:
In this case the 1 Hz digit is not available for numerical input.
34
CHANNEL menu
Fig. 41
Fig. 40
** Function temporary disabled
11.3 Channel Operation
11.3.1 Recall of Stored Frequencies CHANNEL
Recalling of VFO adjustments (frequency, mode and filter bandwidth) is done
pushing the CHANNEL button located in the cluster MODE. It gives access to
3 banks of memory each storing 99 channels provided by PT-8000A.
When a memory channel is selected the stored adjustments are active with the
current RX immediately. They can be transferred to the VFO permanently
(CHAN⇨VFO) or can be restored with changed parameters as well
(overwriting) (SET MEM).
When pushing CHANNEL:
The last used channel will be activated and the RX operates with its
frequency and the other stored adjustments.
CHANNEL LED will be on.
CHANNEL menu will be called up (see below).
The frequency display of the standby VFO will be substituted by
information about the active channel (see Page 35 Figure 42).
When CHANNEL function is active toggling between MAIN-/SUB-RX and VFOA/B is inhibited.
Select bank #1; the softkey will be displayed inverse.
Select bank #2; the softkey will be displayed inverse.
Select bank #3; the softkey will be displayed inverse (as shown here).
Select (earmark) actual channel for SCAN modus **; this can also be done by
pushing the knob MEM/CH / STEP-VFO.
Writing channel to selected VFO from active RX. The CHANNEL mode will be
terminated and the VFO menu will be called up (see Page 35).
Writing current VFO adjustments to selected memory channel; if this channel
was selected for SCAN-modus the earmark will be deleted; it must be selected
again if required (see also Page 36 – MEM).
PT-8000A Operating Manual v2.00.33 35
Displayed Memory Channel
Information
Termination of
CHANNEL Operation
Bank #
Channel #
Mode
Bandwidth
Stored Frequency
SCAN Marker
Fig. 42
CHANNEL Operation
** SCAN Function temporary disabled
After selecting the memory bank through pushing softkeys BANK 1, BANK 2
and BANK 3 the control MEM/CH / STEP-VFO gives access to 99 memory
channels by turning.
Both MAIN- and SUB-RX can read and write into the memory.
The frequency resolution of the stored value depends on the resolution of the
current frequency. It will be written to the VFO in the same manner.
Channels which are selected for SCAN operation (see chapter 16, Page 52)
are marked by an asterisk (*). If the frequency of the marked channel lies within
the SCAN boundaries it will be used for SCAN operations. **
If there was no memory content written to the VFO by pushing softkey
CHAN⇨VFO, pushing CHANNEL again will terminate CHANNEL operation.
If the CHANNEL menu is not displayed, pushing CHANNEL will call it up and
second pushing will terminate CHANNEL operation:
The last used VFO frequency will be activated.
VFO menu will be called up.
CHANNEL LED will turn off.
36
MEM menu
Fig. 43
Fig. 44
11.3.2 Storage of Frequencies MEM
Pushing MEM button located in the cluster MODE will store the frequency and
additional VFO values of the active RX to one of the 297 memory channels
organized in three banks with 99 memory channels each bank.
Other than CHANNEL operation (see Page 34) the RX will stay on its current
VFO adjustments while MEM functions are executed.
When pushing MEM:
MEM LED will be on.
MEM menu will be called up (see below).
The frequency display of the standby VFO will be substituted by
information about the selected memory channel (see Page 37 Figure 45).
When MEM function is activated toggling between MAIN- and SUB-RX is
inhibited; same with toggling VFO-A and B.
Select bank #1; the softkey will be displayed inverse.
Select bank #2; the softkey will be displayed inverse.
Select bank #3; the softkey will be displayed inverse (as shown here).
Writing current VFO adjustments to selected memory channel; if this channel
was selected for SCAN-modus the earmark will be deleted; it must be selected
again if required (see also Page 34 – CHANNEL).
Pushing softkey BANK 1, BANK 2 and BANK 3 gives access to the banks. Use
MEM/CH / STEP-VFO to select desired memory channel (0 … 99).
PT-8000A Operating Manual v2.00.33 37
Termination of
MEM Operation
Bank #
Channel #
Mode
Bandwidth
Stored Frequency
SCAN Marker
Fig. 45
Displayed Memory Channel
Information
MEMory Operation
Mode and filter bandwidth are stored as well.
When MEM function will be activated at first always the last used bank # is
selected and displayed with its first (lowest number) empty memory.
In case all memory channels are written the last used memory channel will be
displayed and when pushing VFO⇨MEM overwritten.
When overwriting a memory channel there is no warning.
Memory channels are accessible from both MAIN- and SUB-RX.
If the MEM menu is displayed pushing MEM will terminate this modus and the
VFO menu will be displayed.
If the MEM menu is not displayed pushing MEM will call it up and a second
push will terminate MEM operation:
VFO menu will be called up.
MEM LED will turn off.
38
VFO menu (detail)
Displayed VFO Frequency
Transceiver Frequency
Tuning Increments
1.234.567
1,234.567 kHz
1 Hz
1st pushing STEP
1.234.560
1,234.560 kHz
10 Hz
2nd pushing STEP
1.234.500
1,234.500 kHz
100 Hz
3rd pushing STEP
1.234.000
1,234.000 kHz
1 kHz
Example
Tab. 16
Fig. 46
11.4 VFO Main Tuning Knob (active RX) and SUB VFO Tuning Knob (RX in the Background)
Primary means of tuning the active RX (MAIN- or SUB-RX) is the VFO Main
Tuning Knob. With a full rotation it generates 512 steps, so that depending on
the chosen tuning increments 512 Hz, 5.12 kHz, 51.2 kHz or 512 kHz can be
run through.
The SUB VFO Tuning Knob generates 256 steps with a full rotation, so that
depending on the chosen tuning increments 256 Hz, 2.56 kHz, 25.6 kHz or
256 kHz can be run through.
General frequency coverage of both RX is 9 kHz to 30 MHz, 50 to 54 MHz,
69.9 MHz to 70.7 MHz and 110 MHz to 148 MHz. Due to the frequency
scheme of the PT-8000A the ranges between them are blanked out.
Transmit operation is only possible on the allocated amateur radio bands of
that IARU region in which one the TRX will operate after delivery (see Page 28 /
Table 13 and 14).
In case the transmit boundaries are to be modified (commercial application;
signal generator operation; new amateur radio frequencies) please contact
Hilberling GmbH for further information about a software update.
The tuning increments of the VFO are adjustable through STEP selection, which
is allocated to the VFO softkey menu.
If the VFO menu is not displayed, push button VFO A/B (see Page 40).
Softkey STEP (towards fine tuning) decreases the tuning increments by
power of 10. Additional digits appear at the VFO frequency readout.
Softkey STEP (towards coarse tuning) increases the tuning increments by
power of 10. Lesser digits appear at the VFO frequency readout.
Selectable increments are 1 Hz / 10 Hz / 100 Hz / 1 kHz.
Digits below the selected tuning width are set to 0 and will be displayed in dark
grey.
PT-8000A Operating Manual v2.00.33 39
Fig. 48
Fig. 47
Each mode has been allocated a default tuning increment setting:
FM: 100 Hz
SSB / CW / AM: 10 Hz
Changing the operating mode will reset the current setting to default values.
11.5 STEP-VFO Control
Operation with knob STEP-VFO allows VFO tuning with further increments.
The STEP-VFO Control is placed in the cluster MODE. The control enables
tuning in 10 kHz, 100 kHz and 1 MHz increments.
Pushing the knob activates the STEP-VFO function:
A cursor appears at the 100 kHz digit of the frequency display:
Turning the knob will now tune the VFO by 100 kHz steps.
Pushing the knob a second time will move the cursor to the 10 kHz digit.
Turning the knob will result in tuning the VFO by 10 kHz steps.
Pushing the knob a third time will move the cursor to the 1 MHz digit –
hence tuning can now be established by 1 MHz steps.
Pushing the knob again will result in a movement of the curser again to
the 100 kHz digit, then 1 kHz, 1 MHz, and so on.
Neither pushing the knob nor turning the control for more than 3 seconds will
terminate the STEP-VFO function. If re-activated by pushing the knob the cursor
will appear at the last used position.
When power up the PT-8000A and STEP-VFO will be activated the curser will
initially occur at the 100 kHz position.
40
active RX
(shown: MAIN-RX)
selected VFO (shown: A)
RX in the background
(shown: SUB-RX)
selected VFO (A or B)
Fig. 49
Fig. 51
Fig. 50
11.6 VFO Management
Both receivers (MAIN- and SUB-RX) have its own two VFOs –
VFO A and VFO B. Switching between VFO A and VFO B is
established through VFO A/B pushbutton. The button is located in
the cluster VFO.
In addition to frequencies the VFOs store filter
bandwidth and operation mode.
When pushing VFO A/B:
In case the VFO softkey menu is already displayed the active RX will
change its VFO (A⇨B or B⇨A).
If a different softkey menu is displayed the first push will call up the VFO
menu. The second push will alter the VFO A and VFO B.
Both frequencies displayed for the active RX will alter its
position. The white display always shows the selected
VFO. The VFO can be identified through the red
nominators A respectively B.
The smaller green display always shows the alternate VFO
that is in standby mode.
Only the SUB-RXs selected VFO frequency is displayed without its identifier A or
B.
PT-8000A Operating Manual v2.00.33 41
VFO menu active RX: MAIN-RX with selected VFO A
VFO menu active RX: SUB-RX with selected VFO B
Fig. 52
Fig. 53
Example
Example
In case the MAIN-RX is the active RX and its VFO A is the selected VFO, the
VFO menu is displayed as follows:
The frequency of the selected VFO (shown: A) from the active RX (shown:
MAIN-RX) will be copied to the selected VFO (without identifier) from the RX in
the background (shown: SUB-RX).
The frequency of the selected VFO (without identifier) from the RX in the
background (shown: SUB-RX) will be copied to the selected VFO (shown: A)
from the active RX (shown: MAIN-RX).
The frequency of the selected VFO (shown: A) from the active RX (shown:
MAIN-RX) will be copied to the VFO in standby (shown: B) from the active RX
(shown: MAIN-RX).
VFO SPLIT: The Frequency of the selected VFO (shown VFO A) from the active
MAIN-RX will be used for RX; the selected VFO (without identifier) from the
SUB-RX in the background will determine the TX frequency (see also P. 42); to
the left of the Display SPLIT will be displayed; the softkey will be displayed
inverse.
Softkey STEP (towards fine tuning) decreases the tuning increments by
power of 10. Additional digits appear at the VFO frequency readout.
Softkey STEP (towards coarse tuning) increases the tuning increments by
power of 10. Lesser digits appear at the VFO frequency readout.
SPLIT operation using VFO A and VFO B (= VFO SPLIT) is only possible with
the MAIN-RX (the active RX. SUB-RX is in the background).
In case the SUB-RX is the active RX and its VFO B is the selected VFO, the VFO
menu is displayed as follows:
The frequency of the selected VFO (shown: B) from the active RX (shown: SUBRX) will be copied to the selected VFO (without identifier) from the RX in the
background (shown: MAIN-RX).
The frequency of the selected VFO (without identifier) from the RX in the
background (shown: MAIN-RX) will be copied to the selected VFO (shown: B)
from the active RX (shown: SUB-RX).
The frequency of the selected VFO (shown: B) from the active RX (shown: SUBRX) will be copied to the VFO in standby (shown: A) from the active RX (shown:
SUB-RX).
VFO SPLIT is not applicable if SUB-RX is the active one; for SPLIT operation the
MAIN-RX must be active, see above.
Softkey STEP (towards fine tuning) decreases the tuning increments by
power of 10. Additional digits appear at the VFO frequency readout.
Softkey STEP (towards coarse tuning) increases the tuning increments by
power of 10. Lesser digits appear at the VFO frequency readout.
42
11.7 SPLIT Operation
The VFO SPLIT operation in the PT-8000A is realized by using the MAIN and
the SUB-RX. The selected VFO from the MAIN-RX determines the RX frequency,
the selected VFO from the SUB-RX determines the TX frequency.
To enable the VFO SPLIT operation, the MAIN-RX must be the active RX and
the SUB-RX operates in the background.
The PT-8000A stays in the current operation mode of the MAIN-RX when
transmitting, even though there is selected a different mode in the SUB-RX.
Only the frequency of the SUB-RX will be used.
Procedure:
Tune with the active VFO from the MAIN-RX to the desired receive
frequency.
Tune with the active VFO from the SUB-RX to the desired transmit
frequency.
When pushing SPLIT softkey (VFO menu):
When pushing PTT, the desired frequency from the SUB-RX will be used for
transmit instead the receive frequency of the MAIN-RX.
To the left of the Display, below operation mode indicator, SPLIT will be
displayed
The softkey will be displayed inverse
Pushing SPLIT again will terminate VFO SPLIT operation.
PT-8000A Operating Manual v2.00.33 43
RIT/XIT menu / RIT/XIT offset
Fig. 55
oder
RIT: Resulting RX Frequency when receiving
XIT: Resulting TX Frequency when transmitting
Offset Frequency
RIT / XIT
Status
RIT or XIT
Fig. 54
Fig. 56
11.8 RIT / XIT Operation
RIT (Receiver Incremental Tuning) allows to shift/adjust the receiving frequency
plus/minus 9.999 kHz against the transmit frequency. The MAIN-RX and the
transmitter are no longer „transceive“. RIT is only possible with the MAIN-RX.
XIT (Transmitter Incremental Tuning) allows to shift/adjust the transmitting
frequency plus/minus 9.999 kHz against the receiving frequency. The MAIN-RX
and the transmitter are no longer „transceive“. RIT is only possible with the
MAIN-RX.
When pushing RIT/XIT button located in the cluster VFO:
RIT/XIT LED will be on.
RIT/XIT menu will be called up. RIT or XIT will be displayed inverse (after
power-on RIT will be activated = power-on default).
CLAR knob will be activated (functions see below, Fig. 56).
RIT or XIT and the offset frequency will be displayed right next to the
frequency (after power-on RIT will be activated; the offset frequency will be
set to 0.000 kHz = power-on default).
In case of RIT is activated, the display will show the RX frequency affected by
offset frequency (= resulting frequency). When TX operation during XIT
activation, the display will show the TX frequency affected by offset frequency
(= resulting frequency).
Activation RIT (as shown here)
Activation XIT
Reset the offset to zero
Turning the knob CLAR (clarifier) located right next to the cluster VFO will
adjust the offset frequency.
Pushing the knob CLAR will toggle the offset frequency between selected
value and 0.000 kHz.
44
Termination of
RIT/XIT Operation
Fig. 57
The tuning range of RIT/XIT amounts to ±9.999 kHz.
The tuning increments of the CLAR control is identical to the selected STEP rate
for frequency tuning of selected VFO.
RIT/XIT are not available for SUB-RX.
In case the SUB-RX is the active one (pushbutton MAIN/SUB) RIT/XIT and the
offset are no longer displayed for the MAIN-RX which now operates in
background.
Changing MODE will always terminate RIT/XIT operation.
If the RIT/XIT softkey menu is displayed, pushing RIT/XIT will terminate this
modus and the VFO menu will be called up.
If the RIT/XIT softkey menu is not displayed, pushing RIT/XIT will call it up and
a second push will terminate RIT/XIT operation:
VFO menu will be called up.
RIT/XIT-LED will turn off.
Display of RIT / XIT and the offset frequency will be blanked out.
11.9 Locking VFO Settings LOCK
All controls that will have an effect on the frequency selected can be locked
through pushing LOCK button which is located in the cluster VFO.
When pushing LOCK:
LOCK LED will be on.
The following controls (knobs, buttons) are locked:
MAIN-RX VFO
SUB-RX VFO
STEP-VFO
BAND
CHANNEL / MEM
RIT / XIT
MAIN / SUB
VFO A / B
Pushing LOCK again will terminate locking of controls; LED will turn off.
PT-8000A Operating Manual v2.00.33 45
Fig. 59a
Filter Bandwidth
Transceiver Frequency
DSP activated
Fig. 59b
Fig. 58
12 FILTER BANDWIDTH AND SHIFT FUNCTION FILTER WIDTH / SHIFT
Filtering in the PT-8000A is obtained in the 1st IF @ 40.7 MHz with a 6-pol.
Filter and in the 2nd IF (IF-2) @ 10.7 MHz with an "IM3 Protector" said prefilter
with bandwidth 0.5 kHz, 3 kHz and 15 kHz.
Prefilters are selected automatically depending on operation mode (default
filter; manual filter selection see Pages 59 and 61)
After passing through the 16-pol. quartz filter ladder the channel selection can
be further enhanced by Digital Signal Processing (DSP) working in the audio
range.
The DSP performs the following tasks:
Interpolation between analogue filter bandwidths @ 10.7 MHz.
Slope increase of the filter flanks @ 10.7 MHz and elimination of effects
of group delays by the filters.
Shift the placement of the filters (SHIFT function respective band-pass
tuning).
Activating DSP filtering is accomplished by the pushbutton FILTER located in
the cluster DSP (Bandwidth and Shift/Pitch see Page 46 – 12.2).
In case the FILTER LED is off (shown in pic 58) only the analogue (Xtal-) filters
are active. The selected bandwidth is displayed and graphically expressed (see
Page 46 / 12.1).
When pushing FILTER:
The DSP will be activated.
FILTER-LED will be on.
The display will indicate “DSP” operation.
WIDTH and SHIFT control located in the cluster MODE is used to adjust the
filter bandwidth and to shift the passband across the spectrum.
Pushing the knob will toggle between WIDTH and SHIFT function, turning will
select the current value.
For specific feature in CW mode see Page 23.
Depending on operation MODE there are analogue filters available which are
interpolated in bandwidth by the DSP (see Page 46).
46
LSB/USB
CW
AM
FM
LSB/USB
CW
AM
FM
* Factory hardware extension
12.1 Filter Bandwidth DSP Off
Depending on MODE the following Xtal-filters (analogue filters) and passband
shifts are available (using WIDTH and SHIFT control) when DSP is not activated:
Width 1.8 / 2.0 / 2.4 / 2.7 / 3.1 / 6.0 kHz
Shift -200 Hz ... 600 Hz in 100 Hz steps
The 3.0 and 15.0 kHz filter are the allocated IF-2 filter for SSB mode.
Width 0.5 kHz ( / 0.25 kHz with optional hardware extension *)
Shift/Pitch 400 Hz ... 1,000 Hz in 100 Hz steps
The 0,5 kHz filter is the allocated IF-2 filter for CW mode.
Width 15.0 kHz
Shift n/a
The 15.0 kHz filter is the allocated IF-2 filter for AM mode.
Width 15.0 kHz
Shift n/a
The 15.0 kHz filter is the allocated IF-2 filter for FM mode.
For 15.0 kHz bandwidth the 10.7 MHz- Xtal filters are bypassed.
12.2 Filter Bandwidth DSP On
Depending on MODE the following bandwidths (Xtal-filters and analogue
filters) and passband shifts are available (using WIDTH and SHIFT control)
when DSP is activated:
Width
2.6 / 2.7 / 2.8 / 2.9 / 3.0 / 3.1 / 3.2 / 3.3 / 3.4 / 3.5 / 4.6 / 6.0 kHz
Shift 0 Hz ... 600 Hz in 50 Hz steps
Width 50 / 100 / 200 / 400 / 500 Hz
Shift/Pitch 400 … 1,000 Hz in 50 Hz steps
Width
Shift n/a
Width
Shift n/a
For bandwidth > 4.6 kHz the 10.7 MHz Xtal filters are bypassed.
For FM the “bandwidth” is related to the audio response only; RF-bandwidth
remains always 15.0 kHz.
1.0 / 1.2 / 1.4 / 1.6 / 1.8 / 1.9 / 2.0 / 2.1 / 2.2 / 2.3 / 2.4 / 2.5
The 3.0 and 15.0 kHz filter are the allocated IF-2 filter for SSB mode.
The 0.5 kHz filter is the allocated IF-2 filter for CW mode.
2.4 / 2.5 / 2.6 / 2.7 / 2.8 / 2.9 / 3.0 / 3.1 / 3.2 / 3.3 / 3.4 / 3.5
4.6 / 6.0 kHz
The 15.0 kHz filter is the allocated IF-2 filter for AM mode.
2.4 / 2.5 / 2.6 / 2.7 / 2.8 / 2.9 / 3.0 / 3.1 / 3.2 / 3.3 / 3.4 / 3.5
4.6 / 6.0 kHz
The 15.0 kHz filter is the allocated IF-2 filter for FM mode.
PT-8000A Operating Manual v2.00.33 47
Fig. 60
Fig. 61
Fig. 63
Fig. 62
13 NOTCH FUNCTIONS / NOISE REDUCTION / NOISE BLANKER
13.1 Notch Filter: IF-Notch and DSP Multi Notch
Two notch filters of different type are available in the PT-8000A.
One is working at 1st IF @ 40.7 MHz – it´s the classical type of manual notch
filtering using a Xtal bridge – the IF-NOTCH.
The other one is part of the DSP – it´s an Automatic Multi-Notch Filter
(ANF/MNF) – here called the DSP NOTCH.
IF-NOTCH and DSP-NOTCH may be engaged simultaneously.
Notch filtering is not available in AM and FM. In case NOTCH filtering is
active and modes are changed to AM/FM both NOTCHs will cease operation.
After power on both NOTCH filters are off.
13.1.1 IF-NOTCH Filter
The IF-NOTCH will
be activated by
pushing the control
IF-NOTCH which is
located as depicted:
On the display it is outlined as NOTCH 2.
Turning IF-NOTCH will adjust the variable notch through the passband hence
the interference will be almost nullified.
13.1.2 DSP Multi NOTCH Filter („digital“ MNF)
Pushing the NOTCH button located in
the cluster DSP will activate the
automatic multi-notch filtering
(ANF/MNF):
On the display the DSP NOTCH is outlined as NOTCH 1.
DSP NOTCH-LED will be on.
The DSP will now detect even multiple interferences and will cancel them
effectively.
48
Fig. 64
Fig. 66
Fig. 67
Fig. 65
13.2 DSP Noise Reduction NR
Pushing the NR button located in the
cluster DSP will active the Automatic
Noise Reduction (ANR or NR):
On the display the DSP NR is outlined as NR.
DSP NR-LED will be on.
NR is off after power on.
13.3 Noise Blanker NB
The RX-NB will be
activated by pushing
the control RX-NB
which is located as
depicted:
On the display it is outlined as NB.
Turning the RX-NB control will adjust the threshold of the noise blanker to the
specific situation. Noise is dramatically reduced hence improving the
readability of weak signals.
NB is off after power on.
PT-8000A Operating Manual v2.00.33 49
Fig. 69
Fig. 68
14 SQUELCH SQL
The SQUELCH (SQ) is activated by default and will be
affected by the control SQL which is located as depicted.
The threshold for squelch operation is adjusted by turning
the knob.
Once the SQL is activated and the threshold has
engaged i.e. the RX is silent, push and hold the SQL to
override the threshold momentarily.
For permanently deactivating squelch function set knob SQL fully counter
clockwise.
A triangle ("") is moving in the S-meter (active RX only) according to the
threshold setting of the SQL control.
Squelch function is not possible in any operation mode if AGC is deselected
and manual gain control is engaged (see Page 51).
50
AGC menu
Fig. 70
RF-AGC
Audio-AGC
Fig. 71
15 RX GAIN CONTROL AGC / RF-GAIN
15.1 Automatic Gain Control AGC
The AGC (Automatic Gain Control) is active after power on. Its hang time is
1 second (factory default value). Manual control of the AGC system is initiated
through the AGC pushbutton. The hang time can be modified. When PT8000A is powered off the modified hang time is stored.
Deselect AGC by pushing the Knob RF (see Page 51)
Pushing AGC located in the cluster FUNCTION will call up the AGC menu:
Select AGC hang time 3 s; the softkey will be displayed inverse.
Select AGC hang time 2 s; the softkey will be displayed inverse.
Select AGC hang time 1 s (default value); the softkey will be displayed inverse
(as shown here).
Select AGC hang time 500 ms; the softkey will be displayed inverse.
Select AGC hang time 100 ms; the softkey will be displayed inverse.
CW Mode only: Toggles between RF-AGC (default value) und Audio-AGC
(see annotation below)
When pushing AGC the LED will not turn on! It is only switched on when AGC
is deselected by pushing knob RF (see next Page).
To prevent missing of weak signals during tuning the MAIN- or SUB-RX the
AGC hang time will be set to 100 ms automatically.
The AGC-voltage is derived from the RF-signal after it has passed the channel
filters (10.7 MHz). The DSP will narrow the passband – hence out of (DSP)filter signals may still derive AGC voltage. This can be annoying especially
during CW operation. The solution is to switch to Audio-AGC.
AGC is derived from the audio to overcome situations described above. This is
recommended in CW operation with small bandwidths because narrowest Xtal
filter is 500 Hz. Normal operation is RF-AGC.
PT-8000A Operating Manual v2.00.33 51
Fig. 72
AGC threshold
AGC off
15.2 Manual Gain Control RF-GAIN
The control knob RF (Manual Gain Control RF-GAIN) is
located as depicted. It allows to cut off AGC action by
pushing (AGC off) and to adjust an RF threshold by
turning.
Turning the control RF will adjust the AGC threshold to a level which can be
monitored by observing the S-Meter (active RX). The AGC threshold can be
raised to a certain level where signals below are significantly less audible than
signals above the threshold where AGC action will level out the audio
Pushing the RF control:
Any AGC action will cut off.
AGC-LED located in the cluster FUNCTION will be on.
S-Meter will possibly fall back to zero.
Caution: In case a signal is present the audio volume may exceed the comfort
level.
Turning the RF control allows to adjust the RF gain according to the situation.
52
SCAN menu
5 s
10 s
15 s
20 s
25 s
Fig. 73
Fig. 74
16 STORAGE FREQUENCY SCANNING SCAN FUNCTION TEMPORARY DIS ABLED
Pushing the SCAN button located in cluster FUNCTION will activate scanning
of channels which are earmarked for scanning (CHANNEL - see Page 34).
These frequencies will be checked for a signal.
The RX will scan the channels from lower to higher frequencies.
If the squelch is engaged scanning will stop when a signal on a scanned
channel opens the squelch
If the squelch is open, the RX will pause on the scanned frequency for a
time defined. After this time has elapsed the scanning will continue.
If the squelch engages during the pause scanning will continue
immediately.
When pushing SCAN
SCAN-LED will be on
the frequency of the standby VFO will disappear. Instead information
about the scanned channel is displayed as in channel modus (see Page
34)
SCAN softkey menu will be called up:
Delay time is 5 seconds
Delay time is 10 seconds
Delay time is 15 seconds
Delay time is 20 seconds
Delay time is 25 seconds
Delay time is infinite
Scanning will be terminated upon activating PTT, VFO tuning, STEP-VFO or
pushing SCAN. The frequency of the standby VFO will reappear, SCAN-LED
will be off.
PT-8000A Operating Manual v2.00.33 53
MENU menu
Fig. 75
Fig. 77
Fig. 76
* LED temporary disabled
17 SPEAKER / CALIBRATION / DISPLAY / VOICE RECORDER MENU
The MENU button located in the cluster DISPLAY provides access to various
settings and calibration routines of the PT-8000A, to the display brightness,
audio routing and the voice recorder.
When pushing MENU:
MENU-LED will be on. *
MENU menu will be called up.
Display software version MAIN-, RX-, ANT-Tuner- and Display-CPU and access
to update PT-8000A firmware (SOFTWARE menu; see Appendix A2).
Access to Calibration options; e.g. internal reference (CAL menu; see next
Page).
Access to Setting brightness of display (DIM menu; see Page 55).
Access to recording functions (VOICE REC menu; see Page 56).
17.1 RX-Speaker Allocation Audio NORM / SPLIT
RX speaker allocation;
the key toggles between Audio Norm / Split (see below).
Audio Norm will feed audio from MAIN-RX and SUB-RX to both speakers (PT-
8000A and HN-8000).
Audio Split will separate audio from MAIN-RX and SUB-RX hence the MAIN-
RX signal will be fed to PT-8000A speaker and the SUB-RX signal
to HN-8000 speaker.
True for both settings of speaker allocation:
Turning • MAIN will adjust the volume of the MAIN-RX signal.
• SUB will adjust the volume of the SUB-RX signal.
Pushing • MAIN will turn on/off PT-8000A speaker.
• SUB will turn on/off HN-8000 speaker.
54
CAL menu
Ref CAL menu
Fig. 78
Fig. 79
17.2 Calibration of Internal Reference
Pushing CAL softkey (MENU menu) will call up the Calibration menu:
Return to MENU menu (see previous Page).
The Ref CAL menu will be called up for Calibration of internal Reference (see
below); a dialog box is displayed instead of the standby VFO frequency (see
Page 55 Figure 80a).
Pushing Ref CAL softkey (CAL menu) will call up Reference Calibration menu; a
dialog box is displayed instead of the standby VFO frequency (see next Page
Figure 80a):
Return to CAL menu (see above).
Activate input mask for correction value of reference oscillator (displayed
inverse; see next Page Figure 80b).
Store the correction value (see next Page Figure 80d).
Set correction value back to zero.
PT-8000A Operating Manual v2.00.33 55
DIM menu
Fig. 81
Fig. 80a
Fig. 80c
Fig. 80b
Fig. 80d
Fig. 80e
The dialog box for calibration of reference when pushing Ref CAL:
Pushing Ref SET will activate the input mask:
The correction value for the reference oscillator is adjustable by turning the
SUB VFO / REF SET knob. Tuning range ± 10 Hz Ref (±1 ppm).
Pushing Ref Enter will terminate the input procedure; the new value will be
stored permanently:
17.3 Brightness of Display DIM
Pushing DIM softkey (MENU menu) will call up DIM softkey menu:
Return to the MENU menu.
Pushing repeatedly will dim the display.
Pushing repeatedly will increase background light of display.
56
VOICE REC menu
Fig. 82a
Recording
Playback
Graphics Display
Fig. 82b
17.4 NF Recording VOICE RECORDER
For audio signal recordings there are 4 memory tracks available with a
capacity of 29.8 seconds each track.
Pushing VOICE REC softkey (MENU menu) will call up the VOICE REC menu;
a graphic (Figure 82b) will be displayed right next to the frequency:
Return to MENU menu.
Cyclic change of record source when pushing repeatedly.
MAIN (-RX) SUB (-RX) MIC (-TX) 0dBm (-TX) DATA (-TX)
Start and Stop of recording (toggle mode); Start and Stop will be displayed
accordingly.
Play and Stop playing (toggle mode) of all takes of the current track; Play and
Stop will be displayed accordingly.
Clear recording memory (current track only).
Loop all recordings (current track only).
The selected memory track is shown as a blue number and a yellow
marker above the track graphic; select track by turning STEP-VFO knob.
Recording position and status is shown as R> [seconds] and a blue bar in
the graphic.
Play position is shown as P> [seconds] and a red marker line in the
graphic.
If one track is only partially written one or more recordings can be added.
In case the memory track has reached its capacity the recording will be
ceased. Rec Start will be displayed. However, a new record is not possible
until the memory has been cleared.
Playback will always start at the very beginning of the track.
When playback is finished (end of record or Stop) Play softkey is displayed.
The loop function may be activated during playback; the record will be
repeated endless until Stop is activated.
All Audio Signals (CW, SSTV etc.) can be recorded.
If the records are to be transmitted simply key the TX (transmit key T9; TX / ON-
Taste).
PT-8000A Operating Manual v2.00.33 57
METER menu
Fig. 83
Fig. 84
* LED temporary disabled
Fig. 85a
Fig. 85b
Fig. 86a
Fig. 86b
Fig. 86c
18 SCALE SELECT METER
The METER button located in the cluster DISPLAY will call up the METER menu
with following options:
1. Selection of meter display right below the S-Meter (Figure 85a/b):
Control voltage of the Automatic Level Control (ALC)
MIC compression level (COMP)
2. Selection of scale units for input signal strength (Figure 86a/b/c):
Hams radio units (S + dB)
Input power @ 50 Ohm (dBm)
Input voltage @ 50 Ohm (dBµV).
When pushing METER:
METER-LED will be on *
METER menu will be called up:
Control voltage of the ALC will be displayed (SSB
mode only);
the softkey will be displayed inverse (as shown here).
Compression level from MIC / TX will be
displayed;
the softkey will be displayed inverse.
S-Meter indicates S + dB;
softkey displayed inverse
(as shown here).
S-Meter indicates dBm;
softkey displayed inverse.
S-Meter indicates dBµV;
softkey displayed inverse.
58
RX menu HF
Fig. 87
Fig. 88
19 BASIC SETTINGS RX/TX
19.1 RX Settings
19.1.1 HF: Antenna Select / Preamplifier / Preselector / Attenuator / IF-2 Filters
Pushing the button RX/TX located in the cluster MODE will call up two types of
menus which gives access to various basic settings for RX and TX.
The last used menu (TX or RX) will be called up.
Depending on whether HF or VHF is selected the menus and
display described below may vary.
Pushing RX/TX button or RX softkey (TX menu) will call up the RX menu HF with
following options:
Select antenna #1 or – second press – antenna #1 for TX and an additional
RX antenna; the display will show ANT 1 or ANT 1 RX if appropriate. (see Page
14, Table 10, No. 4), the softkey will display as well (inverse as shown).
Select antenna #2 – the display will show ANT 2 if appropriate (see Page 14,
Table 10, No. 4), the softkey will be displayed inverse.
Activate Preamplifier (on / off); the display will show AMP 10dB (see Page 14,
Table 10, No. 1); the softkey will be displayed inverse.
*** only available 1.8 to 30 MHz ***
Activate Preselector (on / off); the display will show Preselect (see Page 14,
Table 10, No. 2); the softkey will be displayed inverse.
*** only available 1.8 to 30 MHz ***
Access to ATT/IF-2-Filter menu HF to activate the attenuator and to select a
different IF-2 filter (see next Page).
Access to TX menu (see Page 62).
PT-8000A Operating Manual v2.00.33 59
ATT / IF-2-Filter menu HF
Fig. 89
19.1.2 HF: Attenuator / IF-2 Filter Select
Pushing ATT / IF-2 softkey (RX menu HF) will call up ATT / IF-2-Filter menu HF:
Return to the RX menu HF (see previous Page).
Activate 6dB Attenuator (on / off); the display will show ATT (see Page 14,
Table 10, No. 3); the softkey will be displayed inverse.
Select 15.0 kHz IF-2 filter; default filter for AM and FM mode as well as for
SSB if filter bandwidth ≥ 2.9 kHz; the softkey will be displayed inverse.
Select 3.0 kHz IF-2 filter; default filter for SSB mode if filter bandwidth ≤ 2.8
kHz; the softkey will be displayed inverse (as shown here).
Select 0.5 kHz IF-2 filter; default filter for CW mode;
the softkey will be displayed inverse.
If the Noise Blanker (NB) is activated the 15 kHz IF-2 filter will always be
selected.
If MODE is changed the default filters will be activated immediately. Same is
true for power ON condition.
60
RX menu VHF
Fig. 90
19.1.3 VHF: Preamplifier PRE AMP / DC on Antenna OUT DC AMP
Pushing RX/TX button or RX softkey (TX menu) will call up the RX menu VHF
with following options:
Preamplifier may be switched on (on/off); the display will show AMP VHF (see
Page 14, Table 10, No. 1); the softkey will be displayed inverse.
Access to IF-2-Filter menu VHF to select a different IF-2 filter
(see next Page).
When activating this function 12 Volt DC are fed to the VHF antenna
connector (J1) in order to run remote switches or remotely operated amplifiers
through this supply voltage. The current is rated to 1 Amp;
the softkey will be displayed inverse.
Access to TX menu (see Page 62).
PT-8000A Operating Manual v2.00.33 61
IF-2-Filter menu VHF
IF-2
Fig. 91

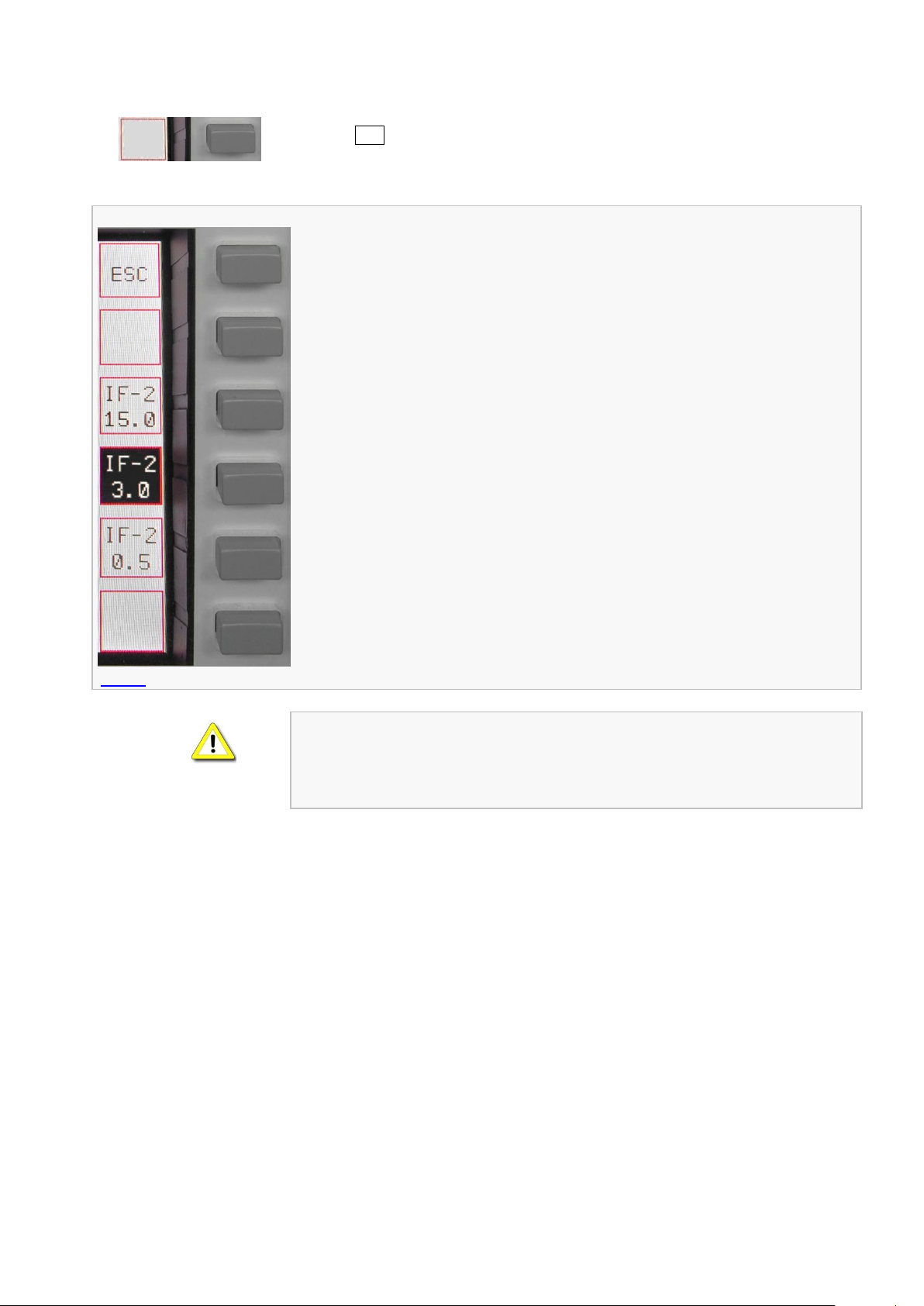

19.1.4 VHF: IF-2 Filter Select
Pushing IF-2 softkey (RX menu VHF) will call up IF-2-Filter menu VHF:
Return to the RX menu VHF (see previous Page).
Select 15.0 kHz IF-2 filter; default filter for AM and FM mode as well as for
SSB if filter bandwidth ≥ 2.9 kHz; the softkey will be displayed inverse.
Select 3.0 kHz IF-2 filter; default filter for SSB mode if filter bandwidth
< 2.9 kHz; the softkey will be displayed inverse (as shown here).
Select 0.5 kHz IF-2 filter; default filter for CW mode;
the softkey will be displayed inverse.
If the Noise Blanker (NB) is activated, the 15 kHz IF-2 filter will always be
selected.
If MODE is changed the default filters will be activated immediately. Same is
true for power-on condition.
62
TX menu
Fig. 92
19.2 TX Settings
19.2.1 Leveler TX-Audio LEV
Pushing RX/TX button or TX softkey (RX menu HF or VHF) provides access to
the TX menu which offers following functions:
Access to 3 band equalizer for TX (see next Page).
Activating TX Audio Leveler (on/off); the display shows LEV (above S-Meter);
the softkey will be displayed inverse.
Access to KEYER menu (see Page 64).
Access to TX filter / TX shift menu (see Page 65).
Access to TX OUT menu (see Page 66).
Access to RX menu (see Page 58).
PT-8000A Operating Manual v2.00.33 63
EQUALIZER menu
EQ Band 1
EQ Band 2
EQ Band 3
0 ... 200 Hz
200 ... 1500 Hz
1500 ... 3000 Hz
Tab. 17
Fig. 94
1 2 3
EQU bands
Fig. 93
19.2.2 Equalizer Operation TX-Audio EQ
For adjusting the sound of TX audio signals the PT-8000A provides a 3 band
equalizer.
When pushing EQ softkey (TX menu):
The display will show the EQ settings in the upper left corner instead of
filter adjustments (as long as the EQUALIZER menu will be displayed).
Cursors will represent the values of the three bands.
The selected band cursor is blue colored; in addition its value in dB for
increase/decrease will be displayed.
EQUALIZER menu will be called up:
Return to TX menu (see previous Page).
Increase gain of selected EQ band in 1dB Steps. Maximum gain is +9dB.
Select EQ band in a cyclic manner (see Table 17 below).
Band 1 Band 2 Band 3
Decrease gain of selected EQ band in 1dB Steps. Maximum gain is -9dB.
Reset all previous settings to 0 dB for all 3 EQ bands.
Activating Equalizer settings (on/off); the display shows EQ (above S-Meter);
the softkey will be displayed inverse.
The 3 EQU-bands are defined:
Adjustment of EQ bands is also possible with WIDTH/SHIFT control (as long as
the EQUALIZER menu will be displayed):
Pushing will select EQ band in a cyclic manner.
Band 1 Band 2 Band 3
Turning will adjust the value of increase/decrease.
Settings only will take effect when equalizer has been activated by softkey EQ
(EQUALIZER menu, see Figure 94).
64
KEYER menu
Fig. 95
19.2.3 Keyer Select
Pushing Keyer softkey (TX menu) will call up the KEYER menu:
Return to TX menu (see Page 62).
Select “Iambic” mode of the internal keyer; toggles Mode A ⬄ Mode B;
the softkey will be displayed inverse (shown).
Select “normal” mode of internal keyer;
the softkey will be displayed inverse.
Reverses paddle function to accommodate left-/right hand operation (on/off);
the softkey will be displayed inverse.
Shuts off internal keyer to allow use of external keying device;
the softkey will be displayed inverse.
Adjust CW keying speed of the internal keyer see Page 70.
PT-8000A Operating Manual v2.00.33 65
TX-Filter / TX-Shift menu
Fig. 96

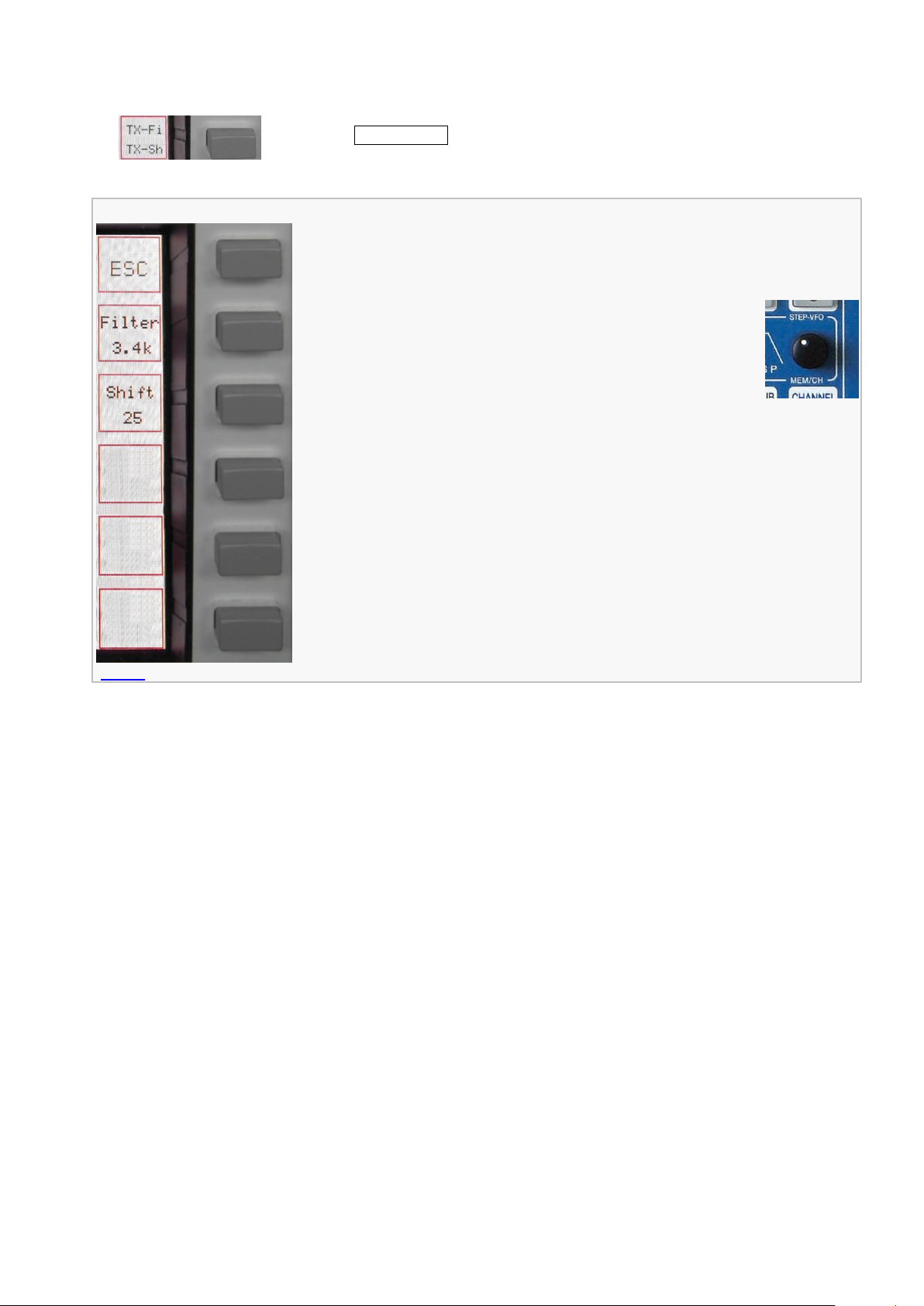

19.2.4 TX Filter Select / TX Shift Select
Pushing TX-Fi / TX-Sh softkey (TX menu) will call up the TX-Filter TX-Shift menu:
Return to TX menu (see Page 62).
Select TX filter bandwidth; softkey t will be displayed inverse for
4 seconds; along the way turn STEP-VFO knob to select new
value; after a period of 4 seconds without any activity or when
pushing the knob selecting mode will be terminated.
Select TX passband shifting: The Softkey will be displayed inverse
for 4 seconds; along the way turn STEP-VFO knob to select new
value; after a period of 4 seconds without any activity or when
pushing the knob selecting mode will be terminated.
Turning STEP-VFO/MEM/CH knob will allow the following:
Filter – Select TX filter bandwidth.
Tuning range: 2.2 ... 3.4 kHz
Increments: 0.1 kHz
Shift – Select TX passband shifting.
Tuning range: 0 ... 300 Hz
Increments: 25 Hz
Pushing STEP-VFO/MEM/CH knob or a period of 4 seconds without any
activity will terminate selecting mode.
66
TX OUT menu
Fig. 97
19.2.5 TX Signal Settings
Pushing TX-OUT softkey (TX menu) will call up TX OUT menu:
Return to TX menu (see Page 62)
TX signal will be routed to internal power amplifier; the display will show the
10 Watt or 250 Watt Scale OUTPUT POWER (see Page 69);
the softkey will be displayed inverse (shown).
Additional delay of the RF signal in relation to the PTT signal
between 0 ms and 50 ms with 5 ms steps; pushing Delay (the
softkey will be displayed inverse)and turn STEP-VFO knob; input
modus deactivated after 5 seconds inactivity (TX EXT only).
Activation “Wait for External Device”: The PT-8000A sends out
no RF signal unless an enable signal (e.g. from an external PA) is present at
J17 pin 9.
TX signal will be routed to socket TX ext. +20dBm (J14; BNC; rear panel), to
drive external equipment (power amplifier, transverter). The internal power
amplifier will be shut down; the softkey will be displayed inverse; the display
will show the 100mW Scale OUTPUT POWER (see Page 69).
PT-8000A Operating Manual v2.00.33 67
Fig. 98
Fig. 99
Fig. 100a
Fig. 100b
Fig. 100c
20 TRANSMITTER CONTROLS
Various controls for transmitter settings are located on the front panel as
depicted.
Transmitting (TX) is only possible when MAIN-RX is the active one and SUB-RX
is working in the background.
20.1 Antenna Tuner ANT-TUNER
20.1.1 Activate TUNER
For protecting the power amplifier the output power will be reduced if SWR is
greater than 1.5. Up to SWR close to 2.0 the internal antenna tuner enables to
increase the antenna adjustment (see also Page 3)
Pushing TUNER button will activate the antenna tuner.
TUNER-LED will be on.
20.1.2 Start Re-Tuning Cycle START
Pushing START button will start the detection and storage for optimal
adjustment of the antenna tuner at the current frequency. The output power is
reduced to driver power.
START-LED will be on.
The antenna tuner starts its automatic alignment and will terminate
automatically.
START-LED will be off.
20.1.3 Permanent Transmit Operation TX / ON
Pushing TX/ON button will switch PTT permanently.
E.g. when antenna tuner has been adjusted (20.1.1 and 20.1.2) the output
power can be checked.
Pushing TX/ON will activate TX operation.
TX-LED will be on.
Pushing TX/ON again will terminate TX operation.
MAIN-RX LED will be on.
68
Fig. 102
Fig. 101
Fig. 103
20.2 ZERO-BEAT
Press and hold knob ZERO-BEAT will activate a 440 Hz
sinus tone in RX and TX mode, in FM mode there is a
1750 Hz sinus tone.
In RX mode the tone will be heard in both RX. The volume
might be adjusted by turning the knob.
In TX mode the tone will be transmitted with microphone signal.
Given both transmitting and receiving stations can activate a 440 Hz tone, an
interference might be heard in case both station vary in RX and/or TX
frequencies.
20.3 Microphone Sensitivity MIC (Gain)
Turning knob MIC (Gain) will adjust microphone
sensitivity.
When operating by microphone Hilberling T9 and in
normal mode of speaking the knob should be adjusted
between position clock 9 and clock 12.
The correct modulation can be monitored on the ALC display (see Page 57,
SSB mode only). If the yellow or red range is shown, the microphone sensitivity
should be reduced.
For preadjustment of microphone sensitivity see Page 17.
ALC display is only available in USB/LSB mode.
Pushing the knob will (de-)activate VOX functions (see next Page).
20.4 Compression TX Audio PROC
Pushing knob PROC will turn on and off microphone
processor.
Turning the knob will increase the processor level
(compression level).
Adjust not to exceed COMP limits shown on the COMP-meter (s. P. 57).
If PROC is active PROC will be displayed (above S-Meter).
PROC is only available in USB/LSB mode.
PT-8000A Operating Manual v2.00.33 69
Fig. 104a
Fig. 104b
Fig. 104c
Fig. 104e
Fig. 106
Fig. 105
Fig. 104d
20.5 Transmit Power Control TX-PWR
Pushing the TX-PWR control will toggle the transmitter
between low- (driver power 10 Watt) and high power (PA
200 Watt HF / 100 Watt VHF).
Turning the knob allows to adjust the power continuously between 10 mW and
10 Watt respectively 1 Watt and 200/100 Watt (HF/VHF).
Power is displayed in W
The Power Meter is accordingly scaled:
Driver Power 10 W
PA Power 200 W (HF)
PA Power 100 W (VHF)
If the internal PA is deactivated for use an external one, (choose TX EXT in the
TX OUT menu, Page 66), the scale below is always shown:
TX EXT Power 100 mW
PEP
.
20.6 VOX Operation
20.6.1 VOX Threshold
Pushing the knob MIC will activate VOX („Voice
Operated TX”) operation.
Voice operated transmission enables switching PTT
without pushing TX button on microphone T9 nor button
TX/ON.
To the left of the display, above operation mode indicator, VOX will be
displayed.
Turning the knob MIC will affect the microphone gain (MIC-Gain; see previous
Page).
If VOX has been turned on this control adjusts the trigger
level for VOX activation. Adjust sensitivity to your
convenience and speech habits.
70
Fig. 110
Fig. 111
Fig. 108
Fig. 109
Fig. 107
20.6.2 ANTI-TRIP VOX
Signals from the speaker(s) might trigger or trip the VOX
unintentionally. VOX ANTI-TRIP will counteract this. Adjust
to get both reliable action and anti-trip of VOX circuit.
20.6.3 Hold Time VOX DELAY
DELAY of VOX circuit allows adjusting the hold time of
VOX activation hence to get smooth VOX operation and
to counteract any VOX switching between fluently spoken
voice.
20.7 Monitoring TX Signal MONITOR
20.8 Fall Time TX for CW TX-DELAY
Turning TX-DELAY clockwise will increase the turn-around which allows
alignment to individual CW habits.
TX⇨RX turn-around time: about 15 ms … 2 s.
Turning the MONITOR control will adjust the volume of
the audio to monitor the transmission of PT-8000A
(avoiding acoustic feedback). Setting control fully counter
clockwise for terminate MONITOR function.
Turning TX-DELAY will impact the time for transmit-receive
switching (turn-around time) during CW mode. Setting
TX-Delay fully counter clockwise ensures the shortest T/R
turn-around possible – called BK (break in).
20.9 Keying Speed CW KEY SPEED
Turning KEY SPEED controls the speed of the internal
keyer (normal and iambic keyer mode A and B; see Page
64).
The CW weight remains constant.
CW keying speed: 5 … 60 WPM (words per minute).
Appendix
A1 IF Monitor Software (Windows® Program)
A2 Firmware Update and Update Software (Windows® Program)
A3 Technical Documents
A4 Customer Information
A5 Lists
< Blank Page >
PT-8000A Appendix A1 v2.00.33 A1- 1
A1 IF-MONITOR SOFTWARE
A1.1 Introduction
This appendix gives a description how to install and setup the Hilberling IF-Monitor software on your PC.
Using this software you can monitor a frequency band with a maximum range of 50 kHz (max. 25 kHz
both left and right to the PT-8000A center frequency.
Please note: Installation and use of the IF-Monitor software needs basic knowledge in handling a
Windows® computer. If you are unsure to install and setup of new programs please look for help in your
personal environment or get in touch directly to your dealer or Hilberling GmbH.
A1.2 Hardware Requirements
The IF-Monitor software will work only with a PC or laptop (the following only refers to PC) with Microsoft
Windows® operating system. Processing audio data sent by PT-8000A to the PC requires an audio input
(sound card) with a 192 kHz sample rate and 24 bit resolution.
All in all is required:
1. Windows computer featuring:
Windows XP/Vista/7
3 MB free disk space memory
Audio input (internal or external sound card) with a 192 kHz sample rate / 24 bit resolution
2. IF-Monitor program (will be installed on PC)
3. Audio connection cable stereo 3.5 mm phone jack
®
(administrator rights required!)
A1.3 Setup Software
The setup software is delivered with the PT-8000A transceiver on CD-ROM. It
will install the Hilberling IF-Monitor program on your PC.
Load the CD-ROM into the CD/DVD/BD drive.
Say on your PC this drive is allocated to the character D: the setup file can be
found in the following directory:
D:\Software\
Alternatively, the setup file first can be copied to the Windows desktop or into
any other directory on the PCs hard disk drive, e.g.:
C:\Downloads\
A1.4 Installation of the IF Monitor Program
To start the installation double-click the file
setup_PT8000_IFMonitor.exe.
On CD-ROM it can be found in the directory \Software\.
If the file was first copied to the Windows desktop or to another directory on
the hard disk, e. g. to C:\Downloads\, double-click it there.
A1- 2
Fig. A1- 2
I
II
III
The IF-Monitor program will be installed by default into the standard
directory depending on current Windows version.
A program linkage (PT8000_IF_Monitor) will be added by default to the
Windows start menu folder Start Programs PT8000_IF_Monitor.
Optional a program linkage can be created on the Windows desktop.
A1.5 Connect PT-8000A to PC by Audio Cable
For transmission of the audio data connect audio input of the PC (Line IN, 3.5
mm stereo phone jack) to the PT-8000A (socket J15 ext. SPKR add., 3.5 mm
stereo phone jack, see Operating Manual page 5).
A1.6 Start and set up the Program
The IF-Monitor program will be started from the Windows start menu:
Start Programs PT8000_IF_Monitor PT8000_IF_Monitor
The program window will be opened with a fixed size of 1280x1024 pixels.
PT-8000A Appendix A1 v2.00.33 A1- 3
Automarker
Marker
Fig. A1- 4a 4b 4c
Fig. A1- 5a 5b 5c
Fig. A1- 3
A1.6.1 Program Window
The program window is structured in three areas.
In the upper area (I) options are accessible for Automarker, Marker and Peak
Hold (see chapter A1.6.2 and A1.6.3), as well as for scaling of signal level
and panorama width (see chapter A1.6.6); below, the areas are arranged for
the panorama display of MAIN-RX/TX (II) and SUB-RX (III).
A vertical red line in the middle of both display areas depicts the center
frequency of the panorama display and therefore it represents the current
frequency of the PT-8000A. Right of center line is shown the frequency range
above the PT-8000A frequency, left of it appropriate the frequency range
below.
A1.6.2 Automarker and Marker
The Automarker (light blue circular ring) indicates the strongest signal within
the current panorama width, for each MAIN- and SUB-RX.
The strength of this signal and the frequency shifting against center frequency
are displayed in the upper left corner of the relative display area using a light
blue font (Fig. A1- 4b).
Automarker is activated each time the program was started and can be deactivated by clicking Automarker (Fig. A1- 4c).
The Marker (light green circular ring) can be used for indication of strength
and frequency of any desired signal in the panorama.
The strength of this signal and the frequency shifting against center frequency
are displayed in the upper right corner of the relative display area using a light
green font (Fig. A1- 5b).
A1- 4
Fig. A1- 8
Peak curve (green)
Current curve (yellow)
Fig. A1- 6a 6b
Fig. A1- 7
Marker is deactivated each time the program was started and can be activated
by clicking Marker (Fig. A1- 5c).
When Marker is activated click into the relative display area (MAIN- (II) or
SUB-RX (III)) on a frequency shift (-line) of your choice.
A1.6.3 Peak Hold
The function Peak Hold stores the maximum value of each frequency in the
panorama over a period of three seconds and displays them as a green curve.
At the end of this period the curve will be deleted and the procedure starts
from the beginning.
Peak hold is deactivated each time the program was started and can be
activated by clicking Peak hold (Fig. A1- 6b).
A1.6.4 Sample-Rate and Buffer Setup
When the program is new installed it is recommended to check the settings for
sample rate and buffer.
Click in the menu Tools the entry Settings (Fig. A1- 7).
The window Settings will be opened (Fig. A1- 8).
Samples per second: This should be 192000 (required sample rate).
If not, select this value from the drop down list.
Buffer: Interval width of frequency analysis. You may experiment with the
given values of buffer size.
Optimal depiction of the panorama curves is the goal.
For every new value click OK and check the result.
PT-8000A Appendix A1 v2.00.33 A1- 5
PC Adjustment
Fig. A1- 9
Fig. A1- 10
Fig. A1- 11
A1.6.5 Signal Level Adjustment
Because of variation in audio settings of each single computer system (PC) it is
necessary to synchronize the signal level display of IF-Monitor software and
PT-8000A.
At first please check the following notes:
1. The PT-8000A is on, receives a constant signal and displays the signal
strength with the dBm scale (see chapter 18 / page 57)
2. PT-8000A and PC are proper connected according to A1.5 (page A1- 2)
3. The PC is prepared for audio signal recording (192 kHz)
If note 1 and 2 are ok, but the PT-8000A receiving signal cannot be seen in
the panorama display, check note 3.
Then proceed as follows:
Click in the Windows start menu
Start Settings
Control Panel.
The window
Control Panel
will be opened (Fig. A1- 10).
Double-click the icon
Sounds and Audio Devices.
The window
Sounds and Audio Devices Properties
will be opened (Fig. A1- 11).
Click under Audio tab
in the area Sound recording
the button
Volume...
The Recording Control panel will be opened
(Fig. A1- 12).
A1- 6
Fig. A1- 12
Fig. A1- 13
Fig. A1- 14
Make sure that sliders
for Recording, Line In
and Stereo Mix are
located in upper position
and the allocated Select
boxes are checked.
Now the PT-8000A
signal should be seen on
IF-Monitor.
If not all controls are
shown which should be
verified, open the menu
Options and click
Properties.
The window
Properties
will be opened
(Fig. A1- 14).
Make sure that the boxes of Recording, Line In and
Stereo Mix are checked at least.
Click OK
Then proceed as described in Fig. A1- 12.
Close all opened windows of audio settings.
PT-8000A Appendix A1 v2.00.33 A1- 7
Fig. A1- 16
Scale move
Measured value to adjust
Move screen
Average over
Fig. A1- 15
In the IF-Monitor window open the menu
Tools
and click the entry
Screen (Fig. A1- 15).
The window Screen will be opened
(Fig. A1- 16).
This window offers to you three options of settings to adjust the display of the
signal level.
Proceed as follows:
1. Use slider Scale move to shift dBm scale vertically, so that Automarkers
displayed Peak value is close to the dBm value shown on the PT-8000A
display.
(Range ±50 dBm in 10 dBm steps, default value is 0)
2. Use up and down arrows or input value directly to shift the curve up and
down, so that Automarkers displayed Peak value is equal to value shown
on the PT-8000A display.
(Range ±20 dBm in 1 dBm steps, default value is 0)
3. If the curve exceeds the display range, both dBm scale and curve jointly
can be moved vertically by using up and down arrows or direct value
input.
(Range ±40 dBm in 1 dBm steps, default value is 0)
This parameter allows to control the smoothing of curve. The number of
measured points which are the source of an average value can be modified by
using up and down arrows or direct value input.
(Range 0 ... 20 increment 1, default value is 3)
Click OK to terminate the adjustment.
Made changes are stored and will be used when program has been started
the next time.
A1- 8
Width [dBm]
Range from ... to ... [dBm]
140
-10 ... -150
105
-45 ... -150
70
-80 ... -150
52.5
-97.5 ... -150
42
-108 ... -150
35
-115 ... -150
Table A1- 1
Fig. A1- 17
Fig. A1- 18
Signal Level Scaling
Panorama Width Scaling
A1.6.6 Signal Level and Panorama Width Scaling
The two display areas for MAIN and SUB-RX can be scaled both vertically
(signal level / dBm) and horizontally (panorama width / kHz).
For scaling the signal level click the buttons – and +
below Scale dB top left of the program window.
The following 6 scales are adjustable:
Default width is 140 dBm respectively -10 ... -150 dBm.
In case other ranges of scale are displayed as shown in the right column, then
at least one of the two values for Scale move and Move screen in the dialog
window Screen is unequal to 0 (see Fig. A1- 16).
For scaling the panorama width click the buttons – and
+ below Span kHz top right of the program window.
There are panorama widths available of ± 25 kHz to ± 3 kHz with 1 kHz
increments.
Default width is ±25 kHz.
Changes done to Scale dB and Span kHz are stored and will be used on
program restart.
PT-8000A Appendix A1 v2.00.33 A1- 9
Fig. A1- 20
I
II
III
Fig. A1- 19
A1.6.7 Waterfall Chart
For each RX a waterfall chart can be shown in addition to its panorama
display. The panorama display for the other RX will be omitted.
To view the waterfall chart of MAIN RX open the menu
Tools
and click the entry
Waterfall Main.
The waterfall chart will be displayed instead of the
panorama display of SUB-RX in the lower area (III) of
the program window. It will begin to grow from the
top straight down to the maximum display range of
about 35 seconds.
A1- 10
Color Display
Adjustment
Fig. A1- 24
Fig. A1- 21
Fig. A1- 22
Fig. A1- 23
To view the waterfall chart for the SUB RX open the menu
Tools
and click the entry
Waterfall Sub.
Now the frequency panorama of the SUB-RX will be
displayed in the middle area (II), the corresponding
waterfall chart in the lower area (III).
To stop the waterfall display, open the menu
Tools
and click the entry
No Waterfall.
Now both panorama displays of MAIN- and SUB-RX will
be displayed in the areas II and III of the program
window.
To adjust the panorama display to make out useful signals and noise by
different colors, proceed as follows:
Open the menu
Tools
and click the entry
Screen
The window Screen will be opened
(Fig. A1- 24)
Vary the settings of the sliders Waterfall contrast and Noise level, until it
reaches a good representation (useful signal light, noise dark).
PT-8000A Appendix A2 v2.00.33 A2- 1
A2 FIRMWARE UPDATE AND UPDATE SOFTWARE
A2.1 Preliminary Note
This appendix describes how to update the operation software of your PT-8000A transceiver (= firmware
update).
Please note: Update of the PT-8000A operation software needs basic knowledge in handling a Windows®
computer. If you are unsure to install and set-up programs on your computer please look for help in your
personal environment or get in touch directly to your dealer or Hilberling GmbH.
A2.2 Introduction
The PT-8000A is controlled by 5 microprocessors. Therefore, a plurality of functions is defined by software.
This has clear advantages: The insertion of new features and changes in performances are possible as well
as the realization of special needs, especially for commercial applications. The update is done with a PC /
laptop (hereafter referred only to the PC) running the operating system Microsoft Windows®.
A2.3 Requirements and Procedure
To update the PT-8000A operation programs (= firmware) are required:
1. Windows computer featuring:
Windows XP/Vista/7
®
(Administrator rights are required!)
12 MB free memory space on hard disk drive
USB connector
2. Update program (will be installed on PC).
3. PT-8000A operation program (firmware) in the latest version (will be transferred by the update
program to the PT-8000A); updatable is the firmware of the following microprocessors (CPUs):
MAIN-CPU
RX-CPU
ANT-Tuner-CPU
4. USB data cable (USB-A ⬄ USB-B, see Operating Manual Page 10 / Fig. 12)
For the entire update procedure, we recommend the following execution, which is also reflected in the
following chapter sequence:
Preparation:
A2.4 Download the operation program(s) / the update program from the Internet
A2.5 Install the update program
A2.6 Connect the PT-8000A to the PC by USB data cable
Execution:
A2.7 Start and setup the update program
A2.8 Get PT-8000A ready to update
A2.9 Update of the MAIN-CPU or
A2.10 Update of the RX- and the ANT-Tuner-CPU
A2- 2
A2.4 Setup Software and Firmware
The setup software is delivered with the PT-8000A transceiver on CD-ROM. It
will install the Hilberling update program on your PC.
Load the CD-ROM into the CD/DVD/BD drive.
Say on your PC this drive is allocated to the character D: the setup file can be
found in the following directory:
D:\Software\
Alternatively, the setup file first can be copied to the Windows desktop or into
any other directory on the PCs hard disk drive, e.g.:
C:\Downloads\
Do the same with the new PT-8000A firmware. If you get it on CD-ROM it is
located in the directory
D:\Firmware\
If the firmware exists as a compressed archive file (ZIP file) it must be
unpacked before further use.
A2.5 Install Update Program on PC
To start the installation double-click the file
setup_PT8000_Update.exe.
On CD-ROM it can be found in the directory \Software\.
If the file was first copied to the Windows desktop or to another directory on
the hard disk, e. g. to C:\Downloads\, double-click it there.
The update program will be installed by default into the standard
directory depending on current Windows version.
A program linkage (PT8000_Update) will be added by default to the
Windows start menu folder Start Programs PT8000_Update.
Optional a program linkage can be created on the Windows desktop.
A2.6 Connect PT-8000A to PC by USB Data Cable
For software update (see the following chapter A2.7) connect the PC (any USB
connector; Type A) and the PT-8000A (connector J22, Type B, see Operating
Manual Page 5) using the included USB data cable.
PT-8000A Appendix A2 v2.00.33 A2- 3
Fig. A2- 2
Fig. A2- 4
Fig. A2- 5
Fig. A2- 6
Fig. A2- 3
A2.7 Start and set up the Update Program
The update program will be started from the Windows Start menu:
Start Programs PT8000 Update Start PT8000 Update
First the program checks whether the PC's internal serial port COM 1 is
available and not already in use elsewhere.
If COM 1 is available the update program will be connected automatically
and a message box will be displayed (Fig. A2- 2).
Click OK to close the message box; the program's main window will be
opened ( continue with chapter A2.7.2 Select Firmware).
If COM1 is currently not available on the PC because another application
already has access to it, an appropriate error message will be displayed
(Fig. A2- 3).
Now it is necessary to set the COM port manually (see the following
chapter A2.7.1).
A2.7.1 Manual COM Port Setting
After clicking OK in the error message box (Fig. A2- 3), the Set COM
port window (Fig. A2- 4) will be opened to select a different COM
port (in the background the main program window already will be
displayed).
It is advisable now to proceed in ascending order, i.e. next, select
COM port 2 by clicking COM 2.
If there appears a message box similar to Fig. A2- 2, then COM Port
2 is connected. Click OK to close both this box and the Set COM
port window ( continue with chapter A2.7.2 Select Firmware).
However, if there appears a message box similar to Fig. A2- 3 (error
message), then next, select COM port 3, etc.
If no unconnected COM port can be found, close the Set COM port
window (Fig. A2- 4) by clicking Close.
The large button in the middle of the main window labeled NO COM
PORT indicates the missing link.
In this case stop the update program (click Exit) and all other
applications running on the PC.
Then restart the update program and try again as described above to get a
COM port connection.
A2- 4
Fig. A2- 9
Fig. A2- 11
Fig. A2- 7
Fig. A2- 10
Fig. A2- 8
A2.7.2 Select Firmware
If COM port 1
(or another port) is
available, the
program's main
window will open with
a corresponding entry
in the large middle
button. (If a different
COM port is to be
used, click the
button).
The entry No file in the field Update File indicates that no operation program
has been selected yet:
Use the Browse button to navigate to the directory where you have stored the
new operation program(s) (firmware) received from Hilberling GmbH, e.g.
C:\Downloads\.
Select from the dialog box Open the new operation program (in
this example, the operation program for the MAIN-CPU in the
Downloads directory) and then click Open.
Now the selected new operation program will be displayed in the field Update
File, the version number in the field Ver.:
The field Data Length displays the file size in bytes of the operation
program.
PT-8000A Appendix A2 v2.00.33 A2- 5
Fig. A2- 12
Fig. A2- 14
Fig. A2- 15
Fig. A2- 13
Tab. A2- 1
No operation program
Terminate update program
The Start button is now set to active (black font) and thus the update
program is ready for program transfer
( continue with chapter A2.8 Get PT-8000A ready to update).
If in the Open dialog box no program will be selected (by clicking Cancel), the
following message will be displayed:
In this case the Start button remains inactive (grey font).
Using the Exit button, the update program may be terminated at any
time.
Each PT-8000A CPU is upgraded separately. The file names give clues to the
CPU, as well as the version number:
CPU File Name Version
MAIN CPU PT8_MAIN_0100.H86 M 01.00
RX CPU PT8_RX_0121.H86 R 01.21
ANT-Tuner CPU PT8_ANT-T_0110.H86 K 01.10
A2.8 Get PT-8000A ready to update
Once the PC is ready for the update, now the PT-8000A needs to be set to the
update standby mode.
1. Pushing MENU button located in the cluster DISPLAY:
The MENU menu will be displayed (see Manual Page 53).
2. Pushing Soft softkey:
The SOFTWARE menu will be called up (Fig. A2- 16).
An overview of the currently loaded software versions will be
shown on display (Fig. A2- 17).
A2- 6
Fig. A2- 16
Fig. A2- 17
CPU selection
Return to MENU menu (see Manual Page 53).
Select MAIN-CPU for Update, see A2.9.
Select RX-CPU for Update, see A2.10.
Select ANT-Tuner-CPU for Update, see A2.10.
The screen Software Version with a list of the currently
loaded software versions of PT-8000A will be shown on the
main display area.
An update of the DISPLAY software is currently not required.
Select from the Software menu (Figure A2-16) the one CPU, of which new
operation program you have selected in Chapter A2.7.2 to the PC program.
Depending on CPU selection, the update process will be slightly different:
The update of the MAIN-CPU is described in the following chapter A2.9.
The update of the RX- and the ANT-Tuner-CPU is described in the after
next chapter A2.10
PT-8000A Appendix A2 v2.00.33 A2- 7
Fig. A2- 18
Fig. A2- 19
Fig. A2- 20
Error Messages
A2.9 Update of MAIN-CPU
Pushing MAIN Update softkey (SOFTWARE menu; Fig. A2- 16/17) will start the
update process for the MAIN-CPU.
The display will show the boot loader screen with a prompt
to start the update program on the connected PC.
If the update procedure should not be further
continued at this point, the PT-8000A is set back
to the normal mode by turning off (POWER) and
restart (after a wait of about 10 seconds).
The PT-8000A is now ready to update, and the program transfer can begin.
Requirements for a successful program transfer are:
1. PT-8000A and PC are connected via USB cable (A2.6).
2. The update program has been started, a COM port is connected and
the new operation program (update file) is loaded (A2.7).
3. The PT-8000A is ready to update (A2.8).
4. The Update standby mode of the PT-8000A and the loaded operating
program agree respecting the CPU (MAIN-CPU).
Click the Start button in the main window of the update program.
The adjacent message box prompts you to set the PT-8000A
ready to update.
This is already done, so click OK (Otherwise please catch up
before clicking, see chapter A2.8).
If a connection error is occurred (e.g. PT-8000A is not ready to update), the
adjacent message box will be shown (Fig. A2- 20).
Check the correct connection of PT-8000A and PC (by the supplied USB data
cable).
A2- 8
Comparing Version
Numbers
Fig. A2- 21
Fig. A2- 22
Fig. A2- 23
Fig. A2- 24
Fig. A2- 25
Warning Notice
Does the new operation program loaded in the PC not match to the selected
CPU of the PT-8000A, this is pointed out with an error message box
(Fig. A2- 21).
Note that the selected CPU of the PT-8000A matches to the operation
program loaded in the PCs update program (letters M, R and K are prefixed to
the version number).
Now the update program compares the version numbers of the current and
the new operation program. Depending on the outcome different messages
are shown on the PT-8000A display and PC message boxes.
In case the new operation program has a higher version
number than the current version on PT-8000A, the display will
show these numbers in the lower area.
On the PC a message box prompts you to start the program transfer.
Click OK to start the program transfer.
In case the new operation program has the same version
number as the current version on PT-8000A, the display will
show a warning notice and in the lower area these
(identical) numbers.
If the update procedure should not be further
continued at this point, the PT-8000A is set back
to the normal mode by turning off (POWER) and
restart (after a wait of about 10 seconds).
On the PC, a message box will show a warning notice that the new
program version number is identical to the current version.
The message box prompts you to start or abort the program transfer.
Click OK to start the program transfer.
By clicking Cancel, the program transfer will not performed.
PT-8000A Appendix A2 v2.00.33 A2- 9

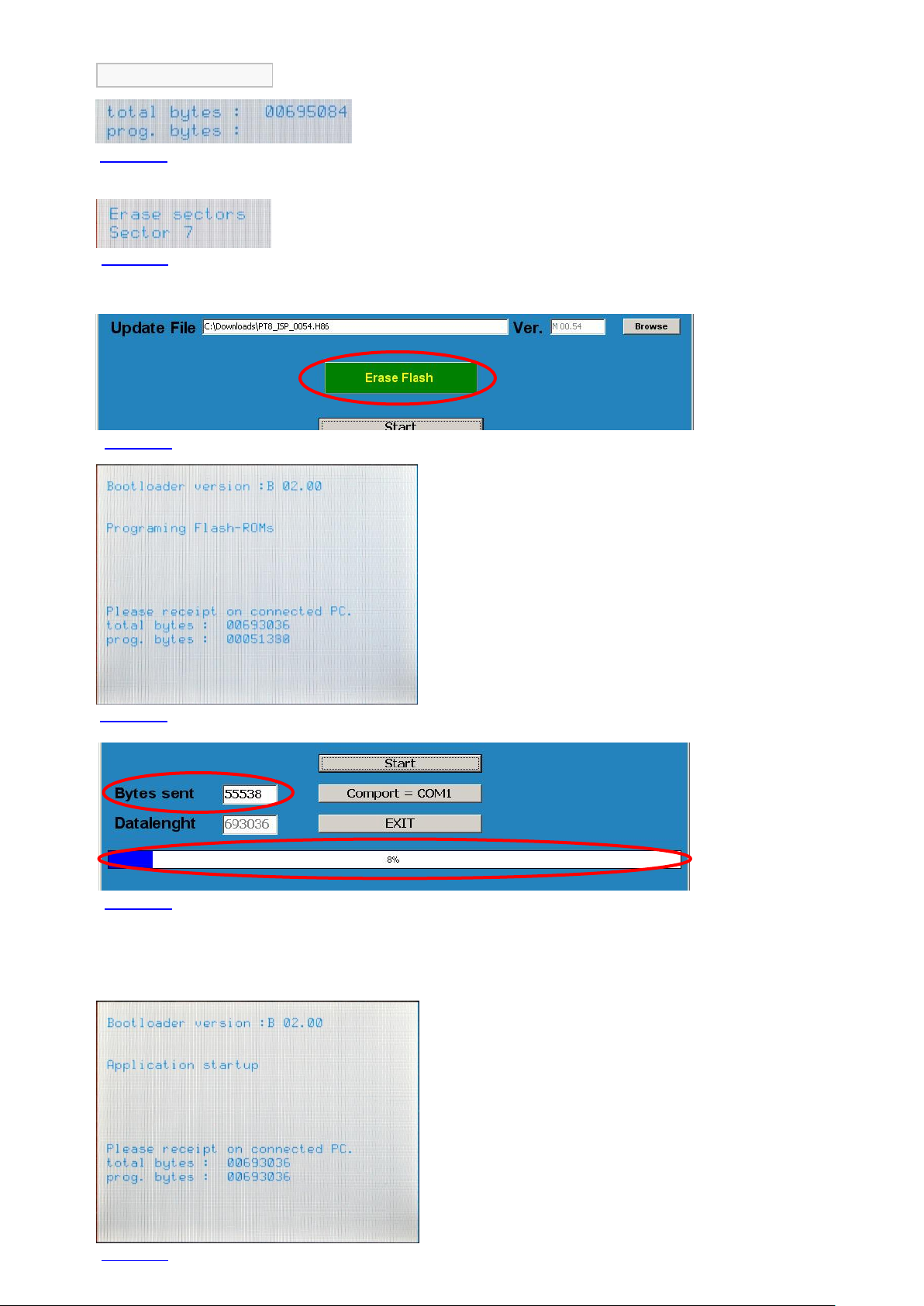

Fig. A2- 31
Fig. A2- 29
Fig. A2- 27
Fig. A2- 26
Update Process starts
Fig. A2- 28
Fig. A2- 30
If the prompt in the message boxes (Fig. A2- 23/25) has been
answered with OK, the display will show the amount of data to be
transferred in bytes.
Now, the data transfer will be prepared by memory erasing.
The display will show the erasing of memory sectors 1 ... 15.
The update program will show an appropriate notice:
When erasing is complete, the data transfer starts.
Now the display of the PT-8000A will show the total
number of bytes to be transferred and the state of the bytes
current transferred.
In the PC update
program the field
Bytes sent and the
blue progress bar
also will show the
state of the transfer.
It is: Total Bytes = Data Length (entire amount of data to be
transferred)
Prog. Bytes = Bytes Sent (amount of data transferred by now)
When the data transfer is complete, on the display of the
PT-8000A the message Application startup will point out
the automatic restart of the transceiver after a short
waiting period.
A2- 10
Fig. A2- 34
Abb. A2- 32
Abb. A2- 33
On the PC, the update program displays in a message box
the successful transfer of data and points out the automatic
restart of the PT-8000A as well; click OK.
On the PC, another message box appears and points out the automatic restart
of the transceiver after a short waiting period; click OK.
The PT-8000A will now restart automatically with the new MAIN-CPU
software.
If you would like to make no more updates, exit the update program
by clicking the EXIT button.
A2.10 Update of RX- and ANT-Tuner-CPU
At this point, an example of the update process for the RX CPU is displayed.
The ANT-Tuner CPU is updated in the same manner.
Pushing RX Update softkey (SOFTWARE menu; Fig. A2- 16/17) will start the
update process for the RX-CPU. The Display will show the Softwareupdate RX-
CPU screen.
At first a confirmation prompt and a warning notice will be shown (Fig. A2- 34).
The ESC and NO softkeys lead back to the screen and the
softkey menu Softwareversion (Fig. A2- 16/17).
Confirmation prompt if the RX CPU is really to be updated.
Warning notice: The old version will be deleted and cannot
be restored!
The YES softkey confirms the update process.
Pushing YES confirms the update process. Now the display will prompt to start
the update program on the connected PC (Fig. A2- 35).
