Hikvision iDS-9632NXI-I8-4F, iDS-9632NXI-I8-16S Quick Start Guide

Network Video Recorder
Quick Start Guide
Network Video Recorder Quick Start Guide
TABLE OF CONTENTS
Chapter 1 Panels Description ..................................................................................................... 8
1.1.1 iDS-96000NXI-I16(B) Series ............................................................................................. 8
1.1.2 iDS-96000NXI-I24(B) Series ............................................................................................. 9
1.1.3 iDS-9600NXI-I8/8F(B) and iDS-9600NXI-I8/16S(B) Series ............................................... 10
1.1.4 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series ........................................... 11
1.1.5 iDS-7700NXI-I4/(16P)/16S(B) Series .............................................................................. 12
1.1.6 iDS-6700NXI-I/8F(B) and iDS-6700NXI-I/16S(B) Series .................................................. 13
1.1.7 iDS-9600NXI-I8/4F(B) ..................................................................................................... 13
1.2.1 iDS-96000NXI-I16/24(B) Series ...................................................................................... 15
1.2.2 iDS-9600NXI-I8/8F(B) and iDS-9600NXI-I8/16S(B) Series ............................................... 16
1.2.3 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series ........................................... 17
1.2.4 iDS-7700NXI-I4/(16P)/16S(B) Series .............................................................................. 19
1.2.5 iDS-6700NXI-I/16S(B) and iDS-6700NXI-I/8F(B) Series .................................................. 20
1.2.6 iDS-9600NXI-I8/4F(B) ..................................................................................................... 23
Chapter 2 Installation and Connections ..................................................................................... 25
2.2.1 iDS-96000NXI-I16/24(B) Series ...................................................................................... 25
2.2.2 iDS-7700NXI-I4/(16P)/16S(B) Series .............................................................................. 28
2.2.3 Other Series ................................................................................................................... 29

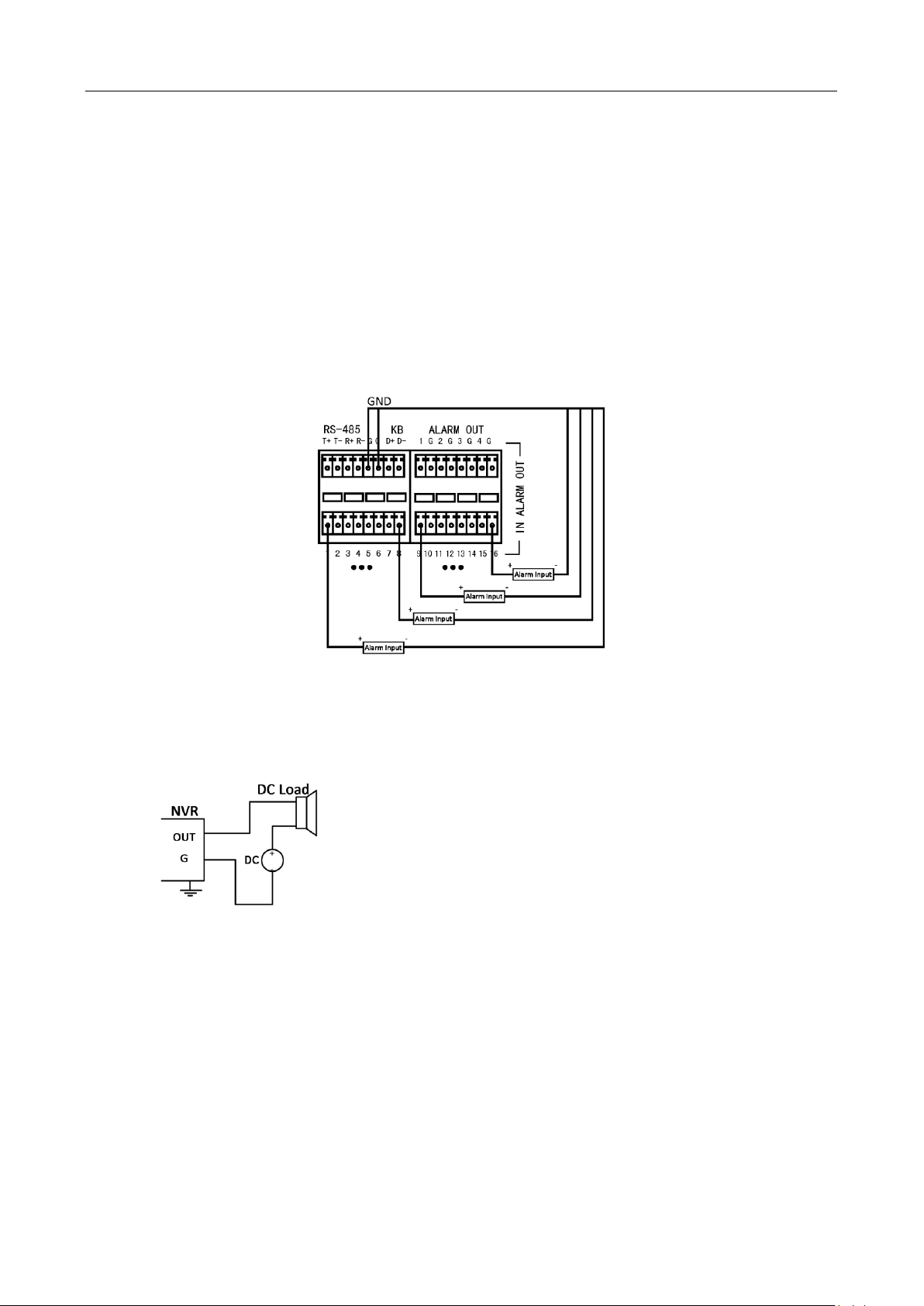

2.3.1 Alarm Input Wiring ....................................................................................................... 31
2.3.2 Alarm Output Wiring..................................................................................................... 31
2.3.3 Alarm Connection ......................................................................................................... 32
2.3.4 Controller Connection ................................................................................................... 32
Chapter 3 Menu Operation ....................................................................................................... 34
Chapter 4 Face Picture Comparison .......................................................................................... 44
1
Network Video Recorder Quick Start Guide
Chapter 5 Access by Web Browser ............................................................................................ 45
2
Network Video Recorder Quick Start Guide
Quick Start Guide
COPYRIGHT © 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be
“Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced,
changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
About this Manual
This Manual is applicable to Network Video Recorder (NVR). The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/). Please use this user manual under the guidance of professionals.
Trademarks Acknowledgement
and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.
Legal Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS
HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,
AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.
3
Network Video Recorder Quick Start Guide
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the
EMC Directive 2014/30/EU, the LVD Directive 2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information see: www.recyclethis.info
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation
for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see:
www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
4
Network Video Recorder Quick Start Guide
Series
Model
iDS-96000NXI-I16/24(B)
iDS-96064NXI-I16(B)
iDS-96128NXI-I16(B)
iDS-96128NXI-I24(B)
iDS-9600NXI-I8/8F(B)
iDS-9616NXI-I8/8F(B)
iDS-9632NXI-I8/8F(B)
iDS-9664NXI-I8/8F(B)
iDS-9600NXI-I8/16S(B)
iDS-9616NXI-I8/16S(B)
iDS-9632NXI-I8/16S(B)
iDS-9664NXI-I8/16S(B)
iDS-9600NXI-I16/8F(B)
iDS-9616NXI-I16/8F(B)
iDS-9632NXI-I16/8F(B)
iDS-9664NXI-I16/8F(B)
iDS-9600NXI-I16/16S(B)
iDS-9616NXI-I16/16S(B)
iDS-9632NXI-I16/16S(B)
iDS-9664NXI-I16/16S(B)
iDS-6700NXI-I/8F(B)
iDS-6708NXI-I/8F(B)
iDS-6716NXI-I/16S(B)
iDS-6716NXI-I/16S(B)
iDS-7700NXI-I4/16P/16S(B) iDS-7716NXI-I4/16P/16S(B)
iDS-7732NXI-I4/16P/16S(B)
iDS-7700NXI-I4/16S(B) iDS-7716NXI-I4/16S(B)
iDS-7732NXI-I4/16S(B)
iDS-9600NXI-I8/4F(B)
iDS-9608NXI-I8/4F(B)
iDS-9616NXI-I8/4F(B)
iDS-9632NXI-I8/4F(B)
Applicable Models
This manual is applicable to the models listed in the following table.
5
Network Video Recorder Quick Start Guide
Symbol
Description
Provides additional information to emphasize or supplement important points of the main text.
Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will result in death or serious injury.
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Safety Instructions
Proper configuration of all passwords and other security settings is the responsibility of the
installer and/or end-user.
In the use of the product, you must be in strict compliance with the electrical safety
regulations of the nation and region. Please refer to technical specifications for detailed information.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power
Source with 100~240 VAC or 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may cause
over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket. If smoke, odor or noise rise from the device, turn off the power at once and unplug the power
cable, and then please contact the service center.
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
Ensure unit is installed in a well-ventilated, dust-free environment. Unit is designed for indoor use only. Keep all liquids away from the device. Ensure environmental conditions meet factory specifications. Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of
dropping it may cause damage to the sensitive electronics within the unit.
6
Network Video Recorder Quick Start Guide
Use the device in conjunction with an UPS if possible. Power down the unit before connecting and disconnecting accessories and peripherals. A factory recommended HDD should be used for this device. Improper use or replacement of the battery may result in hazard of explosion. Replace with
the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
When installing the device into a cabinet over 2U height, it is suggested to use rack shelf to
bear the weight. If the cabinet height is over 4U, it is suggested to use slide rails or rack shelf to bear the weight.
7
Network Video Recorder Quick Start Guide
No.
Name
Function Description
1
Front Panel Lock
Locks or unlocks the panel by the key.
2
Power button
Turn on/off device.
Solid blue: device is on.
Solid red: device is off.
3
Mute button
Turn on/off alarm beep.
Solid blue: Alarm sound is off.
Unlit: Alarm sound is on.
4
HDD indicator
Solid red: at least one HDD is installed
Unlit: no HDD is detected.
Blinking red: HDD is reading/writing.
5
Tx/Rx
Flashing blue: network transmission is normal.
6
USB interfaces
USB 2.0 ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

Chapter 1 Panels Description

1.1 Front Panel

1.1.1 iDS-96000NXI-I16(B) Series

Figure 1-1 Front Panel
Table 1-1 Panel Description
8
Network Video Recorder Quick Start Guide
7
HDD sequence indicator
Shows the HDD sequence. 8
LCD
7-inch LCD for live-view image and menu operation.
No.
Name
Function Description
1
Front Panel Lock
Locks or unlocks the panel by the key.
2
Power button
Turn on/off device.
Solid blue: device is on.
Solid red: device is off.
3
LCD
7-inch LCD for live-view image and menu operation.
4
HDD sequence indicator
Shows the HDD sequence.
5
Power indicator
Flashing blue: network transmission is normal.
HDD indicator
Solid red: at least one HDD is installed
Unlit: no HDD is detected.
Blinking red: HDD is reading/writing.
Tx/Rx indicator
Flashing blue: network transmission is normal.

1.1.2 iDS-96000NXI-I24(B) Series

Figure 1-2 Front Panel
Table 1-2 Panel Description
9
Network Video Recorder Quick Start Guide
Ready indicator
Solid blue: Device in running normally.
Alarm indicator
Solid red: Relay alarm occurs.
6
USB interfaces
USB port for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
No.
Name
Function Description
1
POWER
Turns red when the power is connected but the system isn’t running; turns blue when the power is connected and the system is running.
2
Tx/Rx
Flickers blue when network connection is functioning properly.
3
READY
Turns blue when the device is functioning properly.
4
Front Panel Lock
Locks or unlocks the panel by the key.
5
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
6
POWER ON/OFF
Long press the button for more than 3 seconds to turn on/off the NVR.
7
Backup
Back up video files.

1.1.3 iDS-9600NXI-I8/8F(B) and iDS-9600NXI-I8/16S(B) Series

Figure 1-3 Front Panel
Table 1-3 Panel Description
10
Network Video Recorder Quick Start Guide
No.
Name
Description
1
Panel lock
Locks or unlocks the panel by the key.
2
Power switch
Powers on/off device. Solid blue indicates device is powered on. Solid red indicates device is shut down.
3
Status indicator
HDD
Solid red: at least one HDD is installed
Unlit: no HDD is detected.
Blinking red: HDD is reading/writing.
Tx/Rx
Blinking blue indicates network communication is normal.
4
Shortcut buttons
Exit
Returns to the previous menu.
Press it twice quickly to switch the main and auxiliary
port.
In live view mode, press it to enter PTZ control
interface.
Menu
Press it to pop up main menu.
Hold it for 5 seconds to turn on/off button sound.
During playback, press it to show/hide control panel.
5
Control buttons
ENTER
Confirms selection in any of the menu modes.
Checks the checkbox fields.

1.1.4 iDS-9600NXI-I16/8F(B) and iDS-9600NXI-I16/16S(B) Series

Figure 1-4 Front Panel
Table 1-4 Panel Description
11
Network Video Recorder Quick Start Guide
Switches on/off status.
Plays or pauses the video playing in playback mode.
Advances the video by a single frame in single-frame
playback mode.
Stops/starts auto switch in auto-switch mode.
DIRECTION
Navigates between different fields and items in
menus.
In the playback mode, use the Up and Down buttons to speed up and slow down recorded video. Use the Left and Right buttons to select the next and previous video files.
Cycles through channels in live view mode.
Controls the movement of the PTZ camera in PTZ control mode.
6
USB interfaces
Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
No.
Name
Function Description
1
HDD
Blinking white: HDD is reading/writing.
2
POWER
Turns white when the power is connected and the system is running.
3
Tx/Rx
Flickers white when network connection is functioning properly.
4
IR Receiver
Receiver for IR remote .

1.1.5 iDS-7700NXI-I4/(16P)/16S(B) Series

Figure 1-5 Front Panel
Table 1-5 Panel Description
12
Network Video Recorder Quick Start Guide
Item
Description
Turns red when device is powered up.
Turns red when data is being read from or written to HDD.
Flickers blue when network connection is functioning properly.
5
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

1.1.6 iDS-6700NXI-I/8F(B) and iDS-6700NXI-I/16S(B) Series

Figure 1-6 Front Panel
Table 1-6 Panel Description

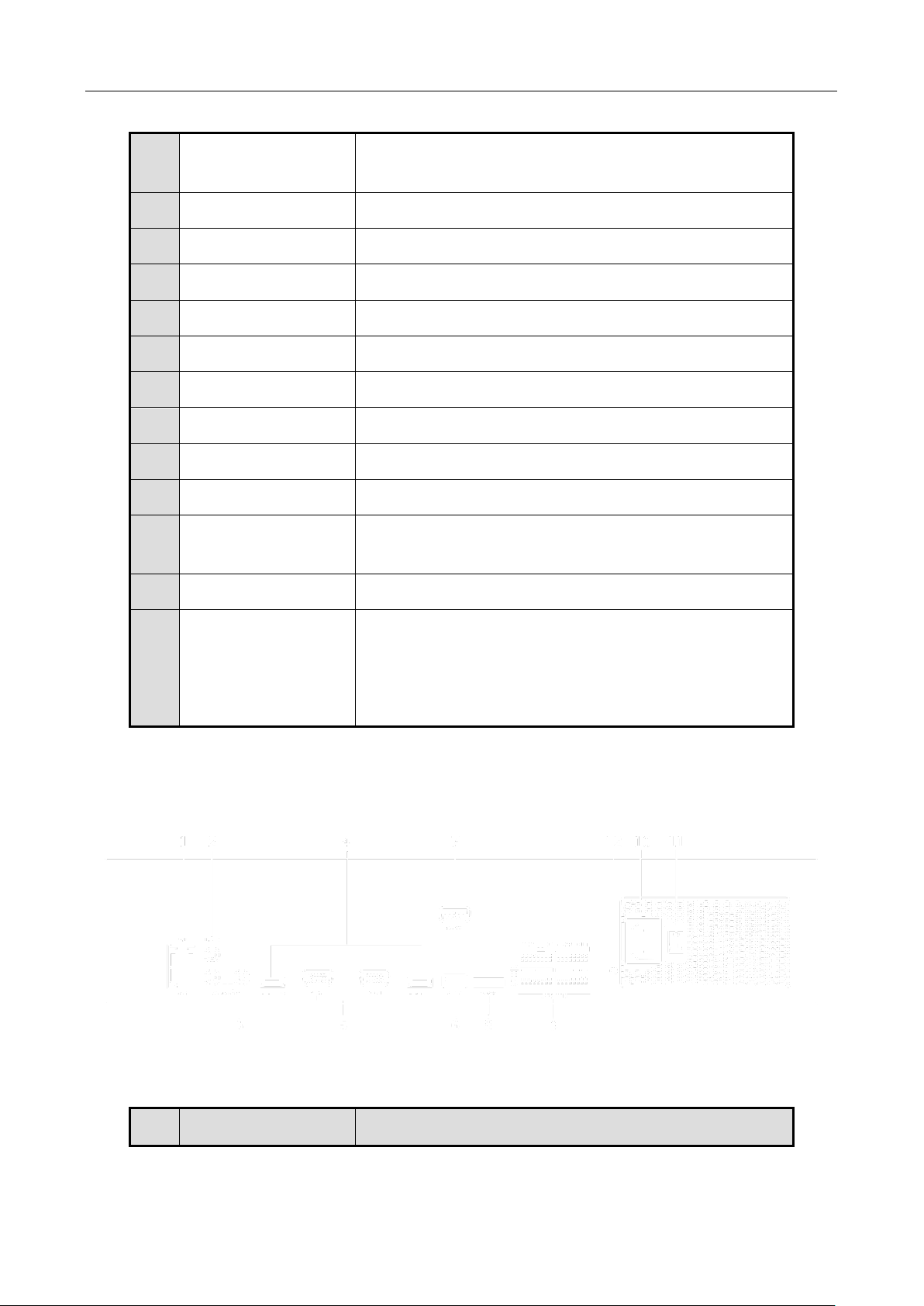

1.1.7 iDS-9600NXI-I8/4F(B)

Figure 1-7 Front Panel
13
Network Video Recorder Quick Start Guide
No.
Name
Function Description
1
POWER
Turns red when the power is connected but the system is not running; turns blue when the power is connected and the system is running.
ALARM
Solid red indicates alarm occurs.
Tx/Rx
Flickers blue when network connection is functioning properly.
HDD
Solid red: at least one HDD is installed
Unlit: no HDD is detected.
Blinking red: HDD is reading/writing.
READY
Turns blue when the device is functioning properly.
ARCHIVE
Reserved.
Channel Status Indicators
Blue indicates recording, red indicates network connection, and purple indicates recording and network connection.
2
Front panel lock
Locks or unlocks the panel by the key.
3
Power button
Long press the button for more than 3 seconds to turn on/off the NVR.
4
USB interfaces
Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).
5
Backup
Reserved.
Table 1-7 Panel Description
14
Loading...
+ 33 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
