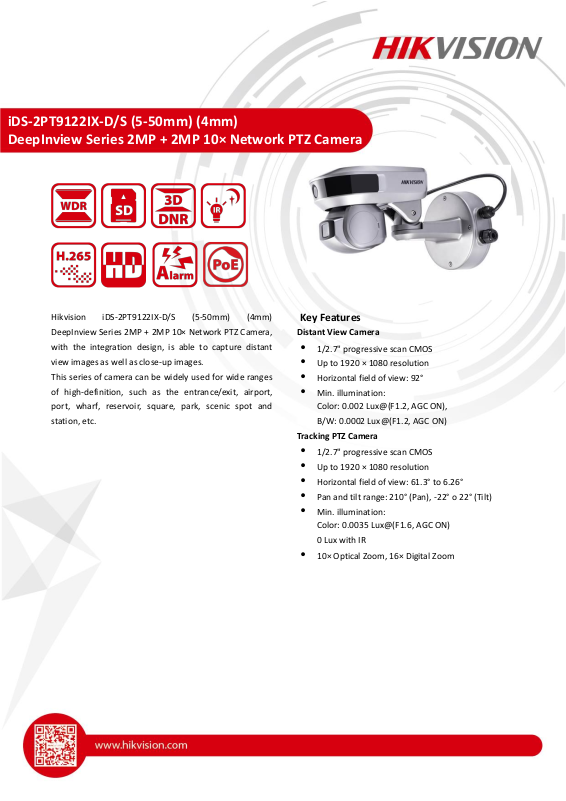

Hikvision iDS-2PT9122IX-D/S (5-50mm) (4mm)
DeepInview Series 2MP + 2MP 10× Network PTZ Camera,
with the integration design, is able to capture distant
view images as well as close-up images.
This series of camera can be widely used for wide ranges
of high-definition, such as the entrance/exit, airport,
port, wharf, reservoir, square, park, scenic spot and
station, etc.
Key Features
Distant View Camera
1/2.7" progressive scan CMOS
Up to 1920 × 1080 resolution
Horizontal field of view: 92°
Min. illumination:
Color: 0.002 Lux@(F1.2, AGC ON),
B/W: 0.0002 Lux@(F1.2, AGC ON)
Tracking PTZ Camera
1/2.7" progressive scan CMOS
Up to 1920 × 1080 resolution
Horizontal field of view: 61.3° to 6.26°
Pan and tilt range: 210° (Pan), -22° o 22° (Tilt)
Min. illumination:
Color: 0.0035 Lux@(F1.6, AGC ON)
0 Lux with IR
10× Optical Zoom, 16× Digital Zoom
iDS-2PT9122IX-D/S (5-50mm) (4mm)
DeepInview Series 2MP + 2MP 10× Network PTZ Camera
Specification
Camera Module
iDS-2PT9122IX-D/S (5-50mm) (4mm)
DeepInview Series 2MP + 2MP 10× Network PTZ Camera
One-touch Link
Support
Tracking Mode
Manual/Auto
Multiple Targets Tracking
Support
Calibration Mode
Auto/Manual
Target Switch Time
<1 s
Calibration
Manual/Auto
Smart Detection
Detects human automatically.
Tracking Time Settings
Support
Distant View Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.002 Lux@(F1.2, AGC ON), B/W: 0.0002 Lux@(F1.2, AGC ON)
Focal Length
4.0 mm
Aperture
F1.2
Horizontal FOV
92°
S/N Ratio
>52 dB
3D DNR
Support
Smart Image Enhancement
WDR, Defog, HLC, EIS, BLC, HLC
Smart Detection
Audio Exception Detection, Motion Detection, Video Tampering Detection
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG
Main Stream Resolution
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream Resolution
Third Stream Resolution
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Tracking PTZ Camera
Image Sensor
1/2.7" Progressive Scan CMOS
Min. Illumination
Color: 0.0035 Lux@(F1.6, AGC ON), 0 Lux with IR
S/N Ratio
>55 dB
3D DNR
Support
IR
IR distance: 100 m; IR brightness and angle are adjustable.
Smart Image Enhancement
WDR, Defog, HLC, EIS, Smart IR, BLC
Focal Length
5 mm to 50 mm, 10× optical zoom
Zoom Speed
Approx.2.4 s (Optical Wide-Tele)
Horizontal FOV
61.3° to 6.26° (Wide-Tele)
Elevation Angle
-15° to 90°
Min. Working Distance
10 mm to 1500 mm (Wide-Tele)
Aperture Range
F1.6 to F3.0
Pan and Tilt Range
Pan: 210°, Tilt: -22° to 22°
Pan and Tilt Speed
Pan Manual Speed: 0.1°/s to 200°/s (Configurable), Pan Preset Speed: 300°/s
Tilt Manual Speed: 0.1°/s to 120°/s (Configurable), Tilt Preset Speed: 120°/s
Preset Number
300
Patrol
8 patrols, up to 32 presets per patrol
Park Action
Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Scheduled Task
Preset/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
Scan/Dome Reboot/Dome Adjust/Aux Output
Power-off Memory
Support
Video Compression
H.265+/H.265/H.264+/H.264/MJPEG
Main Stream Resolution
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
50fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream Resolution
50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Third Stream Resolution
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Audio Compression
G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party
Management Platform
System Integration
Network Interface
1 RJ45 10 M/100 M Ethernet Interface/Hi-PoE
Alarm Input/ Output
1-ch alarm input and 1-ch alarm output, support alarm linkage: Memory Card
Recording/Aux Output/Notify Surveillance Center/Upload to FTP/Send Email
Audio Input/ Output
1-ch audio input and 1-ch audio output
Memory Card
Built-in memory card slot, support Micro SD/SDHC/SDXC (up to 128 GB)
General
Power Supply
12 VDC & Hi-PoE
Power Consumption
45 W Max. (IR 6 W Max.)
Working Temperature
Outdoor: -40°C to 70°C (-40°F to 158°F)
Working Humidity
≤ 90%
Protection Level
IP66 Standard, TVS 6000 V Lightning Protection, Surge Protection and Voltage Transient
Protection
Dimension
Φ195.1 mm × 280.8 mm (Φ7.68" × 11.06")
Weight
Approx. 2.5 kg (5.51 lb)
Available Model
iDS-2PT9122IX-D/S (5-50mm) (4mm)
Dimension
85.7
85.7
4-
Ø
10
195.1
424.7
174.8
Ø
203.5
252.2
Unit:mm
Accessories
DS-2664ZJ
Pendant Mounting Bracket
