Network Camera
User Manual
Network Camera User Manual
i
Legal Information
© 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instructions for using and managing the Product. Pictures, charts, images and
all other information hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to firmware updates or other
reasons. Please find the latest version of this Manual at the Hikvision website
(https://www.hikvision.com/).
Please use this Manual with the guidance and assistance of professionals trained in supporting the
Product.
Trademarks
and other Hikvision's trademarks and logos are the properties of
Hikvision in various jurisdictions.
Other trademarks and logos mentioned are the properties of their respective owners.
: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United
States and other countries.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND
“WITH ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR
A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT
WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT
DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,
VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE
TIMELY TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
Network Camera User Manual
ii
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN
RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
Network Camera User Manual
iii
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Danger
Indicates a hazardous situation which, if not avoided, will or could
result in death or serious injury.
Caution
Indicates a potentially hazardous situation which, if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Note
Provides additional information to emphasize or supplement
important points of the main text.
Network Camera User Manual
iv
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger
or property loss.
Laws and Regulations
● The device should be used in compliance with local laws, electrical safety regulations, and fire
prevention regulations.
Transportation
● Keep the device in original or similar packaging while transporting it.
Power Supply
● The input voltage should conform to IEC60950-1 standard: SELV (Safety Extra Low Voltage) and
the Limited Power Source. Refer to the appropriate documentation for detailed information.
● Make sure the plug is properly connected to the power socket.
● DO NOT connect multiple devices to one power adapter, to avoid over-heating or fire hazards
caused by overload.
System Security
● The installer and user are responsible for password and security configuration and its settings.
Battery
● Improper use or replacement of the battery may result in explosion hazard.
● Replace with the same or equivalent type only. Dispose of used batteries in conformance with
the local codes.
Maintenance
● If the product does not work properly, please contact your dealer or the nearest service center.
We shall not assume any responsibility for problems caused by unauthorized repair or
maintenance.
● A few device components (e.g., electrolytic capacitor) require regular replacement. The average
lifespan varies, so periodic checking is recommended. Contact your dealer for details.
Using Environment
● Make sure the running environment meets the requirement of the device. The operating
temperature shall be -30°C to 60°C (-22°F to 140°F), and the operating humidity shall be 95% or
less, no condensing.
● When any laser equipment is in use, make sure that the device lens is not exposed to the laser
beam, or it may burn out.
● Do not expose the device to high electromagnetic radiation or dusty environments.
● For indoor-only device, place it in a dry and well-ventilated environment.
● Do not aim the lens at the sun or any other bright light.
Network Camera User Manual
v
Emergency
● If smoke, odor, or noise arises from the device, immediately turn off the power, unplug the
power cable, and contact the service center.
Time Synchronization
● Set up camera time manually for the first time access if the local time is not synchronized with
that of the network. Visit the camera via Web browse/client software and go to time settings
interface.
Network Camera User Manual
vi
Contents
Chapter 1 System Requirement .................................................................................................. 1
Chapter 2 Device Activation and Accessing ................................................................................. 2
2.1 Activate the Device via SADP ................................................................................................ 2
2.2 Activate the Device via Browser ........................................................................................... 2
2.3 Login ....................................................................................................................................... 3
2.3.1 Plug-in Installation ..................................................................................................... 3
2.3.2 Admin Password Recovery ........................................................................................ 4
2.3.3 Illegal Login Lock......................................................................................................... 5
Chapter 3 Live View .................................................................................................................... 6
3.1 Live View Parameters ............................................................................................................ 6
3.1.1 Enable and Disable Live View .................................................................................... 6
3.1.2 Adjust Aspect Ratio .................................................................................................... 6
3.1.3 Live View Stream Type ............................................................................................... 6
3.1.4 Select the Third-Party Plug-in .................................................................................... 6
3.1.5 Window Division ........................................................................................................ 7
3.1.6 Light ............................................................................................................................ 7
3.1.7 Count Pixel .................................................................................................................. 7
3.1.8 Start Digital Zoom ...................................................................................................... 7
3.1.9 Auxiliary Focus ............................................................................................................ 7
3.1.10 Lens Initialization ..................................................................................................... 8
3.1.11 Quick Set Live View .................................................................................................. 8
3.1.12 Lens Parameters Adjustment................................................................................... 8
3.1.13 Conduct 3D Positioning ............................................................................................ 9
3.2 Set Transmission Parameters ............................................................................................... 9
3.3 Set Smooth Streaming ......................................................................................................... 10
Chapter 4 Video and Audio ....................................................................................................... 12
4.1 Video Settings ...................................................................................................................... 12
4.1.1 Stream Type .............................................................................................................. 12
4.1.2 Video Type ................................................................................................................ 13
Network Camera User Manual
vii
4.1.3 Resolution ................................................................................................................. 13
4.1.4 Bitrate Type and Max. Bitrate ................................................................................. 13
4.1.5 Video Quality ............................................................................................................ 13
4.1.6 Frame Rate ............................................................................................................... 13
4.1.7 Video Encoding ......................................................................................................... 14
4.1.8 Smoothing................................................................................................................. 15
4.2 ROI ........................................................................................................................................ 16
4.2.1 Set ROI ...................................................................................................................... 16
4.2.2 Set Face Tracking ROI ............................................................................................... 16
4.2.3 Set Target Tracking ROI ............................................................................................ 17
4.2.4 Set License Plate Tracking ROI ................................................................................. 17
4.3 Display Info. on Stream ....................................................................................................... 18
4.4 Audio Settings ...................................................................................................................... 18
4.4.1 Audio Encoding ......................................................................................................... 18
4.4.2 Audio Input ............................................................................................................... 18
4.4.3 Audio Output ............................................................................................................ 18
4.4.4 Environmental Noise Filter ...................................................................................... 19
4.5 Two-way Audio .................................................................................................................... 19
4.6 Display Settings ................................................................................................................... 19
4.6.1 Scene Mode .............................................................................................................. 19
4.6.2 Image Parameters Switch ........................................................................................ 23
4.6.3 Video Standard ......................................................................................................... 23
4.6.4 Local Video Output ................................................................................................... 23
4.7 OSD ...................................................................................................................................... 23
4.8 Set Privacy Mask .................................................................................................................. 24
4.9 Overlay Picture .................................................................................................................... 24
4.10 Set Target Cropping ........................................................................................................... 25
Chapter 5 Video Recording and Picture Capture ........................................................................ 26
5.1 Storage Settings ................................................................................................................... 26
5.1.1 Set Memory Card...................................................................................................... 26
5.1.2 Set FTP ...................................................................................................................... 27
Network Camera User Manual
viii
5.1.3 Set NAS ..................................................................................................................... 28
5.1.4 eMMC Protection ..................................................................................................... 29
5.1.5 Set Cloud Storage ..................................................................................................... 29
5.2 Video Recording .................................................................................................................. 30
5.2.1 Record Automatically ............................................................................................... 30
5.2.2 Record Manually ...................................................................................................... 31
5.2.3 Set Lite Storage ......................................................................................................... 31
5.2.4 Playback and Download Video ................................................................................ 32
5.3 Capture Configuration ......................................................................................................... 32
5.3.1 Capture Automatically ............................................................................................. 33
5.3.2 Capture Manually ..................................................................................................... 33
5.3.3 View and Download Picture .................................................................................... 33
Chapter 6 Event and Alarm ....................................................................................................... 35
6.1 Basic Event ........................................................................................................................... 35
6.1.1 Set Motion Detection ............................................................................................... 35
6.1.2 Set Video Tampering Alarm ..................................................................................... 37
6.1.3 Set PIR Alarm ............................................................................................................ 38
6.1.4 Set Exception Alarm ................................................................................................. 39
6.1.5 Set Alarm Input ........................................................................................................ 39
6.1.6 Set Video Quality Diagnosis ..................................................................................... 39
6.1.7 Set Vibration Detection ............................................................................................ 40
6.2 Smart Event ......................................................................................................................... 40
6.2.1 Detect Audio Exception ............................................................................................ 41
6.2.2 Set Defocus Detection .............................................................................................. 41
6.2.3 Detect Scene Change ................................................................................................ 42
6.2.4 Set Face Detection .................................................................................................... 42
6.2.5 Set Video Loss ........................................................................................................... 43
6.2.6 Set Intrusion Detection ............................................................................................ 43
6.2.7 Set Line Crossing Detection ..................................................................................... 44
6.2.8 Set Region Entrance Detection ................................................................................ 45
6.2.9 Set Region Exiting Detection .................................................................................... 46
Network Camera User Manual
ix
6.2.10 Set Unattended Baggage Detection ...................................................................... 47
6.2.11 Set Object Removal Detection ............................................................................... 48
6.2.12 Draw Area ............................................................................................................... 49
6.2.13 Set Size Filter .......................................................................................................... 49
Chapter 7 Network Settings ...................................................................................................... 51
7.1 TCP/IP .................................................................................................................................. 51
7.1.1 Multicast ................................................................................................................... 52
7.1.2 Multicast Discovery .................................................................................................. 52
7.2 SNMP ................................................................................................................................... 53
7.3 Set SRTP ............................................................................................................................... 53
7.4 Port Mapping ....................................................................................................................... 54
7.4.1 Set Auto Port Mapping............................................................................................. 54
7.4.2 Set Manual Port Mapping ........................................................................................ 54
7.4.3 Set Port Mapping on Router .................................................................................... 55
7.5 Port....................................................................................................................................... 56
7.6 Access to Device via Domain Name .................................................................................... 57
7.7 Access to Device via PPPoE Dial Up Connection ................................................................ 57
7.8 Wireless Dial ........................................................................................................................ 58
7.8.1 Set Wireless Dial ....................................................................................................... 58
7.8.2 Set White List ............................................................................................................ 59
7.9 Wi-Fi ..................................................................................................................................... 59
7.9.1 Connect Wi-Fi Manually ........................................................................................... 60
7.9.2 Connect Wi-Fi Automatically ................................................................................... 60
7.10 Set Network Service .......................................................................................................... 62
7.11 Set ONVIF ........................................................................................................................... 63
7.12 Set Alarm Server ................................................................................................................ 63
7.13 Access Camera via Hik-Connect ........................................................................................ 64
7.13.1 Enable Hik-Connect Service on Camera ................................................................ 65
7.13.2 Set Up Hik-Connect ................................................................................................ 66
7.13.3 Add Camera to Hik-Connect .................................................................................. 66
Network Camera User Manual
x
Chapter 8 Arming Schedule and Alarm Linkage ......................................................................... 68
8.1 Set Arming Schedule ........................................................................................................... 68
8.2 Linkage Method Settings..................................................................................................... 68
8.2.1 Trigger Alarm Output ............................................................................................... 68
8.2.2 FTP/NAS/Memory Card Uploading ......................................................................... 69
8.2.3 Send Email ................................................................................................................ 70
8.2.4 Notify Surveillance Center ....................................................................................... 71
8.2.5 Trigger Recording ..................................................................................................... 71
8.2.6 Flashing Light ............................................................................................................ 71
8.2.7 Audible Warning ....................................................................................................... 71
Chapter 9 System and Security ................................................................................................. 73
9.1 View Device Information .................................................................................................... 73
9.2 Search and Manage Log ...................................................................................................... 73
9.3 Simultaneous Login ............................................................................................................. 73
9.4 Import and Export Configuration File ................................................................................. 73
9.5 Export Diagnose Information .............................................................................................. 73
9.6 Reboot.................................................................................................................................. 74
9.7 Restore and Default ............................................................................................................ 74
9.8 Upgrade ............................................................................................................................... 74
9.9 View Open Source Software License .................................................................................. 75
9.10 Time and Date ................................................................................................................... 75
9.10.1 Synchronize Time Manually ................................................................................... 75
9.10.2 Set NTP Server ........................................................................................................ 75
9.10.3 Synchronize Time by Satellite ................................................................................ 76
9.10.4 Set DST .................................................................................................................... 76
9.11 Set RS-485 .......................................................................................................................... 76
9.12 Set RS-232 .......................................................................................................................... 77
9.13 External Device .................................................................................................................. 77
9.13.1 Supplement Light Settings ..................................................................................... 77
9.14 Security .............................................................................................................................. 78
9.14.1 Authentication........................................................................................................ 78
Network Camera User Manual
xi
9.14.2 Set IP Address Filter ............................................................................................... 79
9.14.3 Set HTTPS ................................................................................................................ 79
9.14.4 Set QoS.................................................................................................................... 80
9.14.5 Set IEEE 802.1X ....................................................................................................... 80
9.14.6 Control Timeout Settings ....................................................................................... 80
9.14.7 Search Security Audit Logs ..................................................................................... 81
9.14.8 Security Reinforcement ......................................................................................... 81
9.15 Certificate Management ................................................................................................... 81
9.15.1 Create Self-signed Certificate ................................................................................ 81
9.15.2 Create Certificate Request ..................................................................................... 82
9.15.3 Import Certificate ................................................................................................... 82
9.15.4 Install Server/Client Certificate ............................................................................. 82
9.15.5 Install CA Certificate ............................................................................................... 83
9.15.6 Enable Certificate Expiration Alarm ...................................................................... 83
9.16 User and Account .............................................................................................................. 84
9.16.1 Set User Account and Permission .......................................................................... 84
9.16.2 Simultaneous Login ................................................................................................ 85
9.16.3 Online Users ........................................................................................................... 85
Chapter 10 Allocate VCA Resource ............................................................................................ 86
10.1 Face Capture ...................................................................................................................... 86
10.1.1 Set Face Capture ..................................................................................................... 86
10.1.2 Overlay and Capture .............................................................................................. 87
10.1.3 Face Capture Algorithms Parameters .................................................................... 88
10.1.4 Set Shield Region .................................................................................................... 89
10.2 Road Traffic ........................................................................................................................ 90
10.2.1 Set Vehicle Detection ............................................................................................. 90
10.2.2 Set Mixed-Traffic Detection Rule ........................................................................... 91
10.2.3 Uploading Pictures Settings ................................................................................... 91
10.2.4 Camera Settings...................................................................................................... 92
10.2.5 Import or Export Blacklist & Whitelist .................................................................. 92
10.3 Multi-Target-Type Detection ............................................................................................ 92
Network Camera User Manual
xii
10.3.1 Set Multi-Target-Type Detection Rule ................................................................... 93
10.3.2 Overlay and Capture .............................................................................................. 93
10.3.3 Multi-Target-Type Detection Algorithm Parameters ............................................ 94
10.3.4 Set Shield Region .................................................................................................... 95
10.4 Face Counting .................................................................................................................... 95
10.4.1 Set Face Counting Detection Rule ......................................................................... 96
10.4.2 Overlay and Capture .............................................................................................. 96
10.4.3 Face Counting Algorithm Parameters ................................................................... 97
10.4.4 View Face Counting Result ..................................................................................... 98
10.5 Queue Management ......................................................................................................... 98
10.5.1 Set Regional People Queuing-Up ........................................................................... 99
10.5.2 Set Waiting Time Detection ................................................................................... 99
10.5.3 Queue Management Statistics ............................................................................ 100
10.6 Counting ........................................................................................................................... 101
10.6.1 Set Counting ......................................................................................................... 101
10.6.2 View Counting Statistics....................................................................................... 102
10.7 Hard Hat Detection .......................................................................................................... 103
10.7.1 Set Hard Hat Detection ........................................................................................ 103
10.8 Face Comparison and Modeling ..................................................................................... 104
10.8.1 Face Comparison .................................................................................................. 104
10.8.2 Face Modeling ...................................................................................................... 106
Chapter 11 Open Platform ...................................................................................................... 108
11.1 Set Open Platform ........................................................................................................... 108
Chapter 12 Set EPTZ ............................................................................................................... 110
Chapter 13 Smart Display ....................................................................................................... 111
A. Device Command ............................................................................................................... 112
B. Device Communication Matrix ........................................................................................... 113
Network Camera User Manual
1
Chapter 1 System Requirement
Your computer should meet the requirements for proper visiting and operating the product.
Operating System
Microsoft Windows XP SP1 and above version
CPU
2.0 GHz or higher
RAM
1G or higher
Display
1024×768 resolution or higher
Web Browser
Internet Explorer 8.0 and above version, Mozilla Firefox 30.0 to 51, and
Google Chrome 31 to 51
Network Camera User Manual
2
Chapter 2 Device Activation and Accessing
To protect the security and privacy of the user account and data, you should set a login password
to activate the device when access the device via network.
Note
Refer to the user manual of the software client for the detailed information about the client
software activation.
2.1 Activate the Device via SADP
Search and activate the online devices via SADP software.
Before You Start
Access www.hikvision.com to get SADP software to install.
Steps
1. Connect the device to network using the network cable.
2. Run SADP software to search the online devices.
3. Check Device Status from the device list, and select Inactive device.
4. Create and input the new password in the password field, and confirm the password.
Caution
We highly recommend you create a strong password of your own choosing (using a minimum of
8 characters, including upper case letters, lower case letters, numbers, and special characters)
in order to increase the security of your product. And we recommend you reset your password
regularly, especially in the high security system, resetting the password monthly or weekly can
better protect your product.
5. Click OK.
Device Status changes into Active.
6. Optional: Change the network parameters of the device in Modify Network Parameters.
2.2 Activate the Device via Browser
You can access and activate the device via the browser.
Steps
1. Connect the device to the PC using the network cables.
2. Change the IP address of the PC and device to the same segment.
Network Camera User Manual
3
Note
The default IP address of the device is 192.168.1.64. You can set the IP address of the PC from
192.168.1.2 to 192.168.1.253 (except 192.168.1.64). For example, you can set the IP address of
the PC to 192.168.1.100.
3. Input 192.168.1.64 in the browser.
4. Set device activation password.
Caution
We highly recommend you create a strong password of your own choosing (using a minimum of
8 characters, including at least three of the following categories: upper case letters, lower case
letters, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
resetting the password monthly or weekly can better protect your product.
5. Click OK.
6. Input the activation password to log in to the device.
7. Optional: Go to Configuration → Network → Basic → TCP/IP to change the IP address of the
device to the same segment of your network.
2.3 Login
Log in to the device via Web browser.
2.3.1 Plug-in Installation
Certain operation systems and web browser may restrict the display and operation of the camera
function. You should install plug-in or complete certain settings to ensure normal display and
operation. For detailed restricted function, refer to the actual device.
Operating System
Web Browser
Operation
Windows
● Internet Explorer 8+
● Google Chrome 57 and
earlier version
● Mozilla Firefox 52 and
earlier version
Follow pop-up prompts to
complete plug-in installation.
● Google Chrome 57+
● Mozilla Firefox 52+
Click to
download and install plug-in.
Network Camera User Manual
4
Operating System
Web Browser
Operation
Mac OS
● Google Chrome 57+
● Mozilla Firefox 52+
● Mac Safari 16+
Plug-in installation is not
required.
Go to Configuration →
Network → Advanced
Settings → Network Service
to enable WebSocket or
Websockets for normal view.
Display and operation of
certain functions are
restricted. For example,
Playback and Picture are not
available. For detailed
restricted function, refer to
the actual device.
Note
The camera only supports Windows and Mac OS system and do not support Linux system.
2.3.2 Admin Password Recovery
If you forget the admin password, you can reset the password by clicking Forget Password on the
login page after completing the account security settings.
You can reset the password by setting the security question or email.
Note
When you need to reset the password, make sure that the device and the PC are on the same
network segment.
Security Question
You can set the account security during the activation. Or you can go to Configuration → System
→ User Management, click Account Security Settings, select the security question and input your
answer.
You can click Forget Password and answer the security question to reset the admin password
when access the device via browser.
Email
You can set the account security during the activation. Or you can go to Configuration → System
→ User Management, click Account Security Settings, input your email address to receive the
verification code during the recovering operation process.
Network Camera User Manual
5
2.3.3 Illegal Login Lock
It helps to improve the security when accessing the device via Internet.
The admin user can set the login attempts with the wrong password. When your login attempts
with the wrong password reach the set times, the device is locked.
Go to Configuration → System → Security → Security Service, and enable Enable Illegal Login
Lock, and set the illegal login attempts.
Network Camera User Manual
6
Chapter 3 Live View
It introduces the live view parameters, function icons and transmission parameters settings.
3.1 Live View Parameters
The supported functions vary depending on the model.
3.1.1 Enable and Disable Live View
This function is used to quickly enable or disable live view of all channels.
● Click to start live view of all channels.
● Click to stop live view of all channels.
3.1.2 Adjust Aspect Ratio
Steps
1. Click Live View.
2. Click to select the aspect ratio.
● refers to 4:3 window size.
● refers to 16:9 window size.
● refers to original window size.
● refers to self-adaptive window size.
● refers to original ratio window size.
3.1.3 Live View Stream Type
Select the live view stream type according to your needs. For the detailed information about the
stream type selection, refer to Stream Type.
3.1.4 Select the Third-Party Plug-in
When the live view cannot display via certain browsers, you can change the plug-in for live view
according to the browser.
Steps
1. Click Live View.
2. Click to select the plug-in.
When you access the device via Internet Explorer, you can select Webcomponents or
QuickTime.When you access the device via the other browsers, you can select Webcomponents,
Network Camera User Manual
7
QuickTime, VLC or MJPEG.
3.1.5 Window Division
● refers to 1 × 1 window division.
● refers to 2 × 2 window division.
● refers to 3 × 3 window division.
● refers to 4 × 4 window division.
3.1.6 Light
Click to turn on or turn off the illuminator.
3.1.7 Count Pixel
It helps to get the height and width pixel of the selected region in the live view image.
Steps
1. Click to enable the function.
2. Drag the mouse on the image to select a desired rectangle area.
The width pixel and height pixel are displayed on the bottom of the live view image.
3.1.8 Start Digital Zoom
It helps to see a detailed information of any region in the image.
Steps
1. Click to enable the digital zoom.
2. In live view image, drag the mouse to select the desired region.
3. Click in the live view image to back to the original image.
3.1.9 Auxiliary Focus
It is used for motorized device. It can improve the image if the device cannot focus clearly.
For the device that supports ABF, adjust the lens angle, then focus and click ABF button on the
device. The device can focus clearly.
Click to focus automatically.
Note
● If the device cannot focus with auxiliary focus, you can use Lens Initialization, then use auxiliary
focus again to make the image clear.
● If auxiliary focus cannot help the device focus clearly, you can use manual focus.
Network Camera User Manual
8
3.1.10 Lens Initialization
Lens initialization is used on the device equipped with motorized lens. The function can reset lens
when long time zoom or focus results in blurred image. This function varies according to different
models.
Manual Lens Initialization
Click to operate lens initialization.
Auto Lens Initialization
Go to Configuration → System → Maintenance → Lens Correction to enable this function. You
can set the arming schedule, and the device will correct lens automatically during the
configured time periods.
3.1.11 Quick Set Live View
It offers a quick setup of PTZ, display settings, OSD, video/audio and VCA resource settings on live
view page.
Steps
1. Click to show quick setup page.
2. Set PTZ, display settings, OSD, video/audio and VCA resource parameters.
– For PTZ settings, see Lens Parameters Adjustment .
– For display settings, see Display Settings.
– For OSD settings, see OSD.
– For audio and video settings, see Video and Audio.
– For VCA settings, see Allocate VCA Resource.
Note
The function is only supported by certain models.
3.1.12 Lens Parameters Adjustment
It is used to adjust the lens focus, zoom and iris.
Zoom
● Click , and the lens zooms in.
● Click , and the lens zooms out.
Focus
● Click , then the lens focuses far and the distant object gets clear.
● Click , then the lens focuses near and the nearby object gets clear.
Network Camera User Manual
9
PTZ Speed
Slide to adjust the speed of the pan/tilt movement.
Iris
● When the image is too dark, click to enlarge the iris.
● When the image is too bright, click to stop down the iris.
3.1.13 Conduct 3D Positioning
3D positioning is to relocate the selected area to the image center.
Steps
1. Click to enable the function.
2. Select a target area in live image.
– Left click on a point on live image: the point is relocated to the center of the live image. With
no zooming in or out effect.
– Hold and drag the mouse to a lower right position to frame an area on the live: the framed
area is zoomed in and relocated to the center of the live image.
– Hold and drag the mouse to an upper left position to frame an area on the live: the framed
area is zoomed out and relocated to the center of the live image.
3. Click the button again to turn off the function.
3.2 Set Transmission Parameters
The live view image may be displayed abnormally according to the network conditions. In different
network environments, you can adjust the transmission parameters to solve the problem.
Steps
1. Go to Configuration → Local.
2. Set the transmission parameters as required.
Protocol
TCP
TCP ensures complete delivery of streaming data and better video quality, yet the real-time
transmission will be affected. It is suitable for the stable network environment.
UDP
UDP is suitable for the unstable network environment that does not demand high video
fluency.
MULTICAST
MULTICAST is suitable for the situation that there are multiple clients. You should set the
multicast address for them before selection.
Network Camera User Manual
10
Note
For detailed information about multicast, refer to Multicast.
HTTP
HTTP is suitable for the situation that the third-party needs to get the stream from the
device.
Play Performance
Shortest Delay
The device takes the real-time video image as the priority over the video fluency.
Balanced
The device ensures both the real-time video image and the fluency.
Fluent
The device takes the video fluency as the priority over teal-time. In poor network
environment, the device cannot ensures video fluency even the fluency is enabled.
Custom
You can set the frame rate manually. In poor network environment, you can reduce the
frame rate to get a fluent live view. But the rule information may cannot display.
3. Click OK.
3.3 Set Smooth Streaming
It is a function to tackle the latency and network congestion caused by unstable network
condition, and keep the live view stream on the web browser or the client software smooth.
Before You Start
Add the device to your client software and select NPQ protocol in client software before
configuring the smooth streaming function.
Be sure that the Bitrate Type is selected as Constant and the SVC is selected as OFF before
enabling the function. Go to Configuration → Video/Audio → Video to set the parameters.
Steps
1. Go to the settings page: Configuration → Network → Advanced Settings → Smooth Streaming.
2. Check Enable Smooth Streaming.
3. Select the mode for smooth streaming.
Auto
The resolution and bitrate are adjusted automatically and resolution
takes the priority. The upper limits of these two parameters will not
exceed the values you set on Video page. Go to Configuration →
Video/Audio → Video, set the Resolution and Max. Bitrate before
Network Camera User Manual
11
you enable smooth streaming function. In this mode, the frame rate
will be adjusted to the maximum value automatically.
Resolution Priority
The resolution stays the same as the set value on Video page, and the
bitrate will be adjusted automatically. Go to Configuration →
Video/Audio → Video, set the Max. Bitrate before you enable
smooth streaming function. In this mode, the framerate will be
adjusted to the maximum value automatically.
Error Correction
The resolution and bitrate stay the same as the set values on Video
page. The mode is used to correct the data error during transmission
to ensure the image quality. You can set the Error Correction
Proportion within range of 0-100.
When the proportion is 0, the data error will be corrected by data
retransmission. When the proportion is higher than 0, the error data
will be corrected via redundant data that is added to the stream and
data retransmission. The higher the value is, the more redundant
date will be generated, the more data error would be corrected, but
the larger bandwidth would be required. When the proportion is 100,
the redundant data will be as large as the original data, and the
bandwidth is twice required.
Note
Be sure the bandwidth is sufficient in the Error Correction mode.
4. Save the settings.
Network Camera User Manual
12
Chapter 4 Video and Audio
This part introduces the configuration of video and audio related parameters.
4.1 Video Settings
This part introduces the settings of video parameters, such as, stream type, video encoding, and
resolution.
Go to setting page: Configuration → Video/Audio → Video.
4.1.1 Stream Type
For device supports more than one stream, you can specify parameters for each stream type.
Main Stream
The stream stands for the best stream performance the device supports. It usually offers the
best resolution and frame rate the device can do. But high resolution and frame rate usually
means larger storage space and higher bandwidth requirements in transmission.
Sub Stream
The stream usually offers comparatively low resolution options, which consumes less bandwidth
and storage space.
Other Streams
Steams other than the main stream and sub stream may also be offered for customized usage.
Set Custom Video
You can set up additional video streams if required. For custom video streams, you can preview
them, but cannot record or play back them.
Steps
Note
● The function is only supported by certain camera models.
● After restoring the device (not restore to default settings), quantity of custom video streams
and their names are kept, but the related parameters are restored.
1. Click to add a stream.
2. Change the stream name as needed.
Network Camera User Manual
13
Note
Up to 32 letters and symbols (except &, <, >, ', or ") are allowed for the stream name.
3. Customize the stream parameters (resolution, frame rate, max. bitrate, video encoding).
4. Optional: Add stream description as needed.
5. Optional: If a custom stream is not needed, click to delete it.
6. Click Save.
4.1.2 Video Type
Select the content (video and audio) that should be contained in the stream.
Video
Only video content is contained in the stream.
Video & Audio
Video content and audio content are contained in the composite stream.
4.1.3 Resolution
Select video resolution according to actual needs. Higher resolution requires higher bandwidth
and storage.
4.1.4 Bitrate Type and Max. Bitrate
Constant Bitrate
It means that the stream is compressed and transmitted at a comparatively fixed bitrate. The
compression speed is fast, but mosaic may occur on the image.
Variable Bitrate
It means that the device automatically adjust the bitrate under the set Max. Bitrate. The
compression speed is slower than that of the constant bitrate. But it guarantees the image
quality of complex scenes.
4.1.5 Video Quality
When Bitrate Type is set as Variable, video quality is configurable. Select a video quality according
to actual needs. Note that higher video quality requires higher bandwidth.
4.1.6 Frame Rate
The frame rate is to describe the frequency at which the video stream is updated and it is
Network Camera User Manual
14
measured by frames per second (fps).
A higher frame rate is advantageous when there is movement in the video stream, as it maintains
image quality throughout. Note that higher frame rate requires higher bandwidth and larger
storage space.
4.1.7 Video Encoding
It stands for the compression standard the device adopts for video encoding.
Note
Available compression standards vary according to device models.
H.264
H.264, also known as MPEG-4 Part 10, Advanced Video Coding, is a compression standard.
Without compressing image quality, it increases compression ratio and reduces the size of video
file than MJPEG or MPEG-4 Part 2.
H.264+
H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, you
can estimate the HDD consumption by its maximum average bitrate. Compared to H.264, H.264+
reduces storage by up to 50% with the same maximum bitrate in most scenes.
When H.264+ is enabled, Max. Average Bitrate is configurable. The device gives a recommended
max. average bitrate by default. You can adjust the parameter to a higher value if the video quality
is less satisfactory. Max. average bitrate should not be higher than max. bitrate.
Note
When H.264+ is enabled, Video Quality, I Frame Interval, Profile and SVC are not configurable.
H.265
H.265, also known as High Efficiency Video Coding (HEVC) and MPEG-H Part 2, is a compression
standard. In comparison to H.264, it offers better video compression at the same resolution, frame
rate and image quality.
H.265+
H.265+ is an improved compression coding technology based on H.265. By enabling H.265+, you
can estimate the HDD consumption by its maximum average bitrate. Compared to H.265, H.265+
reduces storage by up to 50% with the same maximum bitrate in most scenes.
When H.265+ is enabled, Max. Average Bitrate is configurable. The device gives a recommended
max. average bitrate by default. You can adjust the parameter to a higher value if the video quality
Network Camera User Manual
15
is less satisfactory. Max. average bitrate should not be higher than max. bitrate.
Note
When H.265+ is enabled, Video Quality, I Frame Interval, Profile and SVC are not configurable.
I-Frame Interval
I-frame interval defines the number of frames between 2 I-frames.
In H.264 and H.265, an I-frame, or intra frame, is a self-contained frame that can be independently
decoded without any reference to other images. An I-frame consumes more bits than other
frames. Thus, video with more I-frames, in other words, smaller I-frame interval, generates more
steady and reliable data bits while requiring more storage space.
SVC
Scalable Video Coding (SVC) is the name for the Annex G extension of the H.264 or H.265 video
compression standard.
The objective of the SVC standardization has been to enable the encoding of a high-quality video
bitstream that contains one or more subset bitstreams that can themselves be decoded with a
complexity and reconstruction quality similar to that achieved using the existing H.264 or H.265
design with the same quantity of data as in the subset bitstream. The subset bitstream is derived
by dropping packets from the larger bitstream.
SVC enables forward compatibility for older hardware: the same bitstream can be consumed by
basic hardware which can only decode a low-resolution subset, while more advanced hardware
will be able decode high quality video stream.
MPEG4
MPEG4, referring to MPEG-4 Part 2, is a video compression format developed by Moving Picture
Experts Group (MPEG).
MJPEG
Motion JPEG (M-JPEG or MJPEG) is a video compression format in which intraframe coding
technology is used. Images in a MJPEG format is compressed as individual JPEG images.
Profile
This function means that under the same bitrate, the more complex the profile is, the higher the
quality of the image is, and the requirement for network bandwidth is also higher.
4.1.8 Smoothing
It refers to the smoothness of the stream. The higher value of the smoothing is, the better fluency
Network Camera User Manual
16
of the stream will be, though, the video quality may not be so satisfactory. The lower value of the
smoothing is, the higher quality of the stream will be, though it may appear not fluent.
4.2 ROI
ROI (Region of Interest) encoding helps to discriminate the ROI and background information in
video compression. The technology assigns more encoding resource to the region of interest, thus
to increase the quality of the ROI whereas the background information is less focused.
4.2.1 Set ROI
ROI (Region of Interest) encoding helps to assigns more encoding resource to the region of
interest, thus to increase the quality of the ROI whereas the background information is less
focused.
Before You Start
Please check the video coding type. ROI is supported when the video coding type is H.264 or
H.265.
Steps
1. Go to Configuration → Video/Audio → ROI.
2. Check Enable.
3. Select Stream Type.
4. Select Region No. in Fixed Region to draw ROI region.
1) Click Drawing.
2) Click and drag the mouse on the view screen to draw the fixed region.
3) Click Stop Drawing.
Note
Select the fixed region that needs to be adjusted and drag the mouse to adjust its position.
5. Input the Region Name and ROI Level.
6. Click Save.
Note
The higher the ROI level is, the clearer the image of the detected region is.
7. Optional: Select other region No. and repeat the above steps if you need to draw multiple fixed
regions.
4.2.2 Set Face Tracking ROI
When the face tracking function is enabled in ROI and the face appears in the live picture, the
Network Camera User Manual
17
image of the face is clearer than that of the surrounding area.
Steps
1. Go to the ROI setting page: Configuration → Video/Audio → ROI.
2. Check Enable Face Tracking.
3. Select ROI Level in Dynamic Region.
Note
ROI level means the image quality enhancing level. The larger the value is, the better the image
quality would be.
4. Click Save.
4.2.3 Set Target Tracking ROI
The moving target is clearer than other areas in live image or recordings after enabling the
function.
Before You Start
Go to Configuration → PTZ → Smart Tracking to complete the smart tracking settings.
Steps
1. Go to Configuration → Video/Audio → ROI.
2. Check Enable Target Tracking.
3. Set ROI Level for target tracking. The higher the value is, the clearer the target is.
4. Click Save.
4.2.4 Set License Plate Tracking ROI
When the license plate tracking ROI function is enabled and the license plate appears in the live
picture, the image of the license plate is clearer than that of the surrounding area.
Steps
1. Go to the ROI setting page: Configuration → Video/Audio → ROI.
2. Check Enable License Plate Tracking.
3. Select ROI Level in Dynamic Region.
Note
ROI level means the image quality enhancing level. The larger the value is, the better the image
quality would be.
4. Click Save.
Network Camera User Manual
18
4.3 Display Info. on Stream
The information of the objects (e.g. human, vehicle, etc.) is marked in the video stream. You can
set rules on the connected rear-end device or client software to detect the events including line
crossing, intrusion, etc.
Steps
1. Go to the setting page: Configuration → Video/Audio → Display Info. on Stream.
2. Check Enable Dual-VCA.
3. Click Save.
4.4 Audio Settings
It is a function to set audio parameters such as audio encoding, environment noise filtering.
Go to the audio settings page: Configuration → Video/Audio → Audio.
4.4.1 Audio Encoding
Select the audio encoding compression of the audio.
4.4.2 Audio Input
Note
● Connect the audio input device as required.
● The audio input display varies with the device models.
LineIn
Set Audio Input to LineIn when the device connects to the
audio input device with the high output power, such as MP3,
synthesizer or active pickup.
MicIn
Set Audio Input to MicIn when the device connects to the
audio input device with the low output power, such as
microphone or passive pickup.
4.4.3 Audio Output
Note
Connect the audio output device as required.
It is a switch of the device audio output. You can adjust the output volume as required. When it is
disabled, all the device audio cannot output. The audio output display varies with the device
Network Camera User Manual
19
modes.
4.4.4 Environmental Noise Filter
Set it as OFF or ON. When the function is enabled, the noise in the environment can be filtered to
some extent.
4.5 Two-way Audio
It is used to realize the two-way audio function between the monitoring center and the target in
the monitoring screen.
Before You Start
● Make sure the audio input device (pick-up or microphone) and audio output device (speaker)
connected to the device is working properly. Refer to specifications of audio input and output
devices for device connection.
● If the device has built-in microphone and speaker, two-way audio function can be enabled
directly.
Steps
1. Click Live View.
2. Click on the toolbar to enable two-way audio function of the camera.
3. Click and select , move the slider to adjust the volume.
4. Click , disable the two-way audio function.
4.6 Display Settings
It offers the parameter settings to adjust image features.
Go to Configuration → Image → Display Settings.
Click Default to restore settings.
4.6.1 Scene Mode
There are several sets of image parameters predefined for different installation environments.
Select a scene according to the actual installation environment to speed up the display settings.
Image Adjustment
By adjusting the Brightness, Saturation, Hue, Contrast and Sharpness, the image can be best
Network Camera User Manual
20
displayed.
Exposure Settings
Exposure is controlled by the combination of iris, shutter, and photo sensibility. You can adjust
image effect by setting exposure parameters.
In manual mode, you need to set Exposure Time, Gain and Slow Shutter.
Focus
It offers options to adjust the focus mode and the minimum focus distance.
Focus Mode
Auto
The device focuses automatically as the scene changes. If you cannot get a well-focused
image under auto mode, reduce light sources in the image and avoid flashing lights.
Semi-auto
The device focuses once after the PTZ and lens zooming. If the image is clear, the focus does
not change when the scene changes.
Manual
You can adjust the focus manually on the live view page.
Min. Focus Distance
When the distance between the scene and lens is shorter than the Min. Focus Distance, the lens
does not focus.
Day/Night Switch
Day/Night Switch function can provide color images in the day mode and black/white images in
the night mode. Switch mode is configurable.
Day
The image is always in color.
Night
The image is always black/white
Auto
The camera switches between the day mode and the night mode according to the illumination
automatically.
Scheduled-Switch
Set the Start Time and the End Time to define the duration for day mode.
Triggered by alarm input
Network Camera User Manual
21
Two trigger modes are available: Day and Night. For example, if the trigger mode is Night, the
image turns black and white when the device receives alarm input signal.
Note
Day/Night Switch function varies according to models.
Grey Scale
You can choose the range of the Grey Scale as [0-255] or [16-235].
Rotate
When enabled, the live view will rotate 90 ° counterclockwise. For example, 1280 × 720 is rotated
to 720 × 1280.
Enabling this function can change the effective range of monitoring in the vertical direction.
Lens Distortion Correction
For device equipped with motorized lens, image may appear distorted to some extent. Enable this
function to correct the distortion.
Note
● This function is only supported by certain device equipped with motorized lens.
● The edge of image will be lost if this function is enabled.
BLC
If you focus on an object against strong backlight, the object will be too dark to be seen clearly.
BLC (backlight compensation) compensates light to the object in the front to make it clear. If BLC
mode is set as Custom, you can draw a red rectangle on the live view image as the BLC area.
WDR
The WDR (Wide Dynamic Range) function helps the camera provide clear images in environment
with strong illumination differences.
When there are both very bright and very dark areas simultaneously in the field of view, you can
enable the WDR function and set the level. WDR automatically balances the brightness level of the
whole image and provides clear images with more details.
Note
When WDR is enabled, some other functions may be not supported. Refer to the actual interface
for details.
Network Camera User Manual
22
HLC
When the bright area of the image is over-exposed and the dark area is under-exposed, the HLC
(High Light Compression) function can be enabled to weaken the bright area and brighten the dark
area, so as to achieve the light balance of the overall picture.
White Balance
White balance is the white rendition function of the camera. It is used to adjust the color
temperature according to the environment.
DNR
Digital Noise Reduction is used to reduce the image noise and improve the image quality. Normal
and Expert modes are selectable.
Normal
Set the DNR level to control the noise reduction degree. The higher level means stronger
reduction degree.
Expert
Set the DNR level for both space DNR and time DNR to control the noise reduction degree. The
higher level means stronger reduction degree.
Defog
You can enable the defog function when the environment is foggy and the image is misty. It
enhances the subtle details so that the image appears clearer.
EIS
Increase the stability of video image by using jitter compensation technology.
Mirror
When the live view image is the reverse of the actual scene, this function helps to display the
image normally.
Select the mirror mode as needed.
Note
The video recording will be shortly interrupted when the function is enabled.
Network Camera User Manual
23
4.6.2 Image Parameters Switch
The device automatically switches image parameters in set time periods.
Go to image parameters switch setting page: Configuration → Image → Image Parameters
Switch, and set parameters as needed.
Set Scheduled-switch
Switch the image to the linked scene mode automatically in certain time periods.
Steps
1. Check Scheduled-switch.
2. Select and configure the corresponding time period and linked scene mode.
Note
For Linked Scene configuration, refer to Scene Mode.
3. Click Save.
4.6.3 Video Standard
Video standard is an ability of a video card or video display device that defines the amount of
colors that are shown and the resolution. The two most common video standard used are NTSC
and PAL. In NTSC, 30 frames are transmitted each second. Each frame is made up of 525 individual
scan lines. In PAL, 25 frames are transmitted each second. Each frame is made up of 625 individual
scan lines. Select video signal standard according to the video system in your country.
4.6.4 Local Video Output
If the device is equipped with video output interfaces, such as BNC, CVBS, HDMI, and SDI, you can
preview the live image directly by connecting the device to a monitor screen.
Select the output mode as ON/OFF to control the output.
4.7 OSD
You can customize OSD (On-screen Display) information such as device name, time/date, font,
color, and text overlay displayed on video stream.
Go to OSD setting page: Configuration → Image → OSD Settings. Set the corresponding
parameters, and click Save to take effect.
Character Set
Select character set for displayed information. If Korean is required to displayed on screen, select
EUC-KR. Otherwise, select GBK.
Network Camera User Manual
24
Displayed Information
Set camera name, date, week, and their related display format.
Text Overlay
Set customized overlay text on image.
OSD Parameters
Set OSD parameters, such as Display Mode, OSD Size, Font Color, and Alignment.
4.8 Set Privacy Mask
The function blocks certain areas in the live view to protect privacy. No matter how the device
moves, the blocked scene will never be seen.
Steps
1. Go to privacy mask setting page: Configuration → Image → Privacy Mask.
2. Check Enable Privacy Mask.
3. Click Draw Area. Drag the mouse in the live view to draw a closed area.
Drag the corners of
the area
Adjust the size of the area.
Drag the area
Adjust the position of the area.
Click Clear All
Clear all the areas you set.
4. Click Stop Drawing.
5. Click Save.
Note
Up to 4 areas are supported for setting.
4.9 Overlay Picture
Overlay a customized picture on live view.
Before You Start
The picture to overlay has to be in BMP format with 24-bit, and the maximum picture size is 128 ×
128 pixel.
Steps
1. Go to picture overlay setting page: Configuration → Image → Picture Overlay.
2. Click Browse to select a picture, and click Upload.
Network Camera User Manual
25
The picture with a red rectangle will appear in live view after successfully uploading.
3. Check Enable Picture Overlay.
4. Drag the picture to adjust its position.
5. Click Save.
4.10 Set Target Cropping
You can crop the image, transmit and save only the images of the target area to save transmission
bandwidth and storage.
Steps
1. Go to Configuration → Video/Audio → Target Cropping.
2. Check Enable Target Cropping and set Third Stream as the Stream Type.
Note
After enabling target cropping, the third stream resolution cannot be configured.
3. Select a Cropping Resolution.
A red frame appears in the live view.
4. Drag the frame to the target area.
5. Click Save.
Note
● Only certain models support target cropping and the function varies according to different
camera models.
● Some functions may be disabled after enabling target cropping.
Network Camera User Manual
26
Chapter 5 Video Recording and Picture Capture
This part introduces the operations of capturing video clips and snapshots, playback, and
downloading captured files.
5.1 Storage Settings
This part introduces the configuration of several common storage paths.
5.1.1 Set Memory Card
If you choose to store the files to memory card, make sure you insert and format the memory card
in advance.
Before You Start
Insert the memory card to the camera. For detailed installation, refer to Quick Start Guide of the
camera.
Steps
1. Go to storage management setting page: Configuration → Storage → Storage Management →
HDD Management.
2. Select the memory card, and click Format to start initializing the memory card.
The Status of memory card turns to Normal from Uninitialized, which means the memory card
can be used normally.
3. Optional: Define the Quota of the memory card. Input the quota percentage for different
contents according to your need.
4. Click Save.
Detect Memory Card Status
It helps to detect the memory card status of Hikvision memory card. You receive notifications
when your memory card is detected abnormal.
Before You Start
Memory card should be installed to the device.
Steps
1. Go to memory card detection setting page: Configuration → Storage → Storage Management
→ Memory Card Detection.
2. Click Status Detection to check the Remaining Lifespan and Health Status of your memory card.
Remaining Lifespan
It shows the percentage of the remaining lifespan. The lifespan of a memory card may be
Network Camera User Manual
27
influenced by factors such as its capacity and the bitrate. You need to change the memory
card if the remaining lifespan is not enough.
Health Status
It shows the condition of your memory card. There are three status descriptions, good, bad,
and damaged. You will receive a notification if the health status is anything other than good
when the Arming Schedule and Linkage Method are set.
Note
It is recommended that you change the memory card when the health status is not “good”.
3. Click R/W Lock to set the authority of reading and writing to the memory card.
1. Add a LockSelect the Lock Switch as ON.
2. Enter the password.
3. Click Save
Unlock
● If you use the memory card on the camera that locks it, unlocking will be done
automatically and no unlocking procedures are required on the part of users.
● If you use the memory card (with a lock) on a different camera, you can go to HDD
Management interface to unlock the memory card manually. Select the memory card, and
click the Unlock button shown next to the Format button. Then enter the correct password
to unlock it.
1. Remove the LockSelect the Lock Switch as OFF.
2. Enter the password in Password Settings.
3. Click Save.
Note
● Only admin user can set the R/W Lock.
● The memory card can only be read and write when it is unlocked.
● If the camera, which adds a lock to a memory card, is restored to the factory settings, you can
go to HDD Management interface to unlock the memory card.
4. Set Arming Schedule and Linkage Method. Refer to Set Arming Schedule and Linkage Method
Settings for details.
5. Click Save.
5.1.2 Set FTP
You can configure the FTP server to save images which are captured by events or a timed snapshot
task.
Before You Start
Get the FTP server address first.
Network Camera User Manual
28
Steps
1. Go to Configuration → Network → Advanced Settings → FTP.
2. Configure FTP settings.
FTP Protocol
FTP and SFTP are selectable. The files uploading is encrypted by using SFTP protocol.
Server Address and Port
The FTP server address and corresponding port.
User Name and Password
The FTP user should have the permission to upload pictures.
If the FTP server supports picture uploading by anonymous users, you can check Anonymous
to hide your device information during uploading.
Directory Structure
The saving path of snapshots in the FTP server.
Picture Filing Interval
For better picture management, you can set the picture filing interval from 1 day to 30 days.
Pictures captured in the same time interval will be saved in one folder named after the
beginning date and ending date of the time interval.
Picture Name
Set the naming rule for captured pictures. You can choose Default in the drop-down list to
use the default rule, that is, IP address_channel number_capture time_event type.jpg (e.g.,
10.11.37.189_01_20150917094425492_FACE_DETECTION.jpg). Or you can customize it by
adding a Custom Prefix to the default naming rule.
3. Check Upload Picture to enable uploading snapshots to the FTP server.
4. Check Enable Automatic Network Replenishment.
Note
Upload to FTP/Memory Card/NAS in Linkage Method and Enable Automatic Network
Replenishment should be both enabled simultaneously.
5. Click Test to verify the FTP server.
6. Click Save.
5.1.3 Set NAS
Take network server as network disk to store the record files, captured images, etc.
Before You Start
Get the IP address of the network disk first.
Network Camera User Manual
29
Steps
1. Go to NAS setting page: Configuration → Storage → Storage Management → Net HDD.
2. Click HDD No.. Enter the server address and file path for the disk.
Server Address
The IP address of the network disk.
File Path
The saving path of network disk files.
Mounting Type
Select file system protocol according to the operation system.
Enter user name and password of the net HDD to guarantee the security if SMB/CIFS is
selected.
3. Click Test to check whether the network disk is available.
4. Click Save.
5.1.4 eMMC Protection
If you enable eMMC protection, the lifespan of the eMMC is displayed.
5.1.5 Set Cloud Storage
It helps to upload the captured pictures and data to the cloud. The platform requests picture
directly from the cloud for picture and analysis. The function is only supported by certain models.
Steps
Caution
If cloud storage is enabled, the pictures are stored in the cloud storage server preferentially.
1. Go to Configuration → Storage → Storage Management → Cloud Storage.
2. Check Enable Cloud Storage.
3. Set basic parameters.
Protocol Version
The protocol version of the cloud storage server.
Server IP
The IP address of the cloud storage server. It supports IPv4 address.
Serve Port
The port of the cloud storage server. 6001 is the default port and you
are not recommended to edit it.
User Name and
Password
The user name and password of the cloud storage server.
Picture Storage Pool
The ID of the picture storage region in the cloud storage server. Make
Network Camera User Manual
30
ID
sure storage pool ID and the storage region ID are the same.
4. Click Test to test the configured settings.
5. Click Save.
5.2 Video Recording
This part introduces the operations of manual and scheduled recording, playback, and
downloading recorded files.
5.2.1 Record Automatically
This function can record video automatically during configured time periods.
Before You Start
Select Trigger Recording in event settings for each record type except Continuous. See Event and
Alarm for details.
Steps
1. Go to Configuration → Storage → Schedule Settings → Record Schedule.
2. Check Enable.
3. Select a record type.
Note
The record type is vary according to different models.
Continuous
The video will be recorded continuously according to the schedule.
Motion
When motion detection is enabled and trigger recording is selected as linkage method, object
movement is recorded.
Alarm
When alarm input is enabled and trigger recording is selected as linkage method, the video is
recorded after receiving alarm signal from external alarm input device.
Motion | Alarm
Video is recorded when motion is detected or alarm signal is received from the external alarm
input device.
Motion & Alarm
Video is recorded only when motion is detected and alarm signal is received from the
external alarm input device.
Network Camera User Manual
31
Event
The video is recorded when configured event is detected.
4. Set schedule for the selected record type. Refer to Set Arming Schedule for the setting
operation.
5. Click Advanced to set the advanced settings.
Overwrite
Enable Overwrite to overwrite the video records when the storage space is full. Otherwise
the camera cannot record new videos.
Pre-record
The time period you set to record before the scheduled time.
Post-record
The time period you set to stop recording after the scheduled time.
Stream Type
Select the stream type for recording.
Note
When you select the stream type with higher bitrate, the actual time of the pre-record and
post-record may be less than the set value.
Recording Expiration
The recordings are deleted when they exceed the expired time. The expired time is
configurable. Note that once the recordings are deleted, they can not be recovered.
6. Click Save.
5.2.2 Record Manually
Steps
1. Go to Configuration → Local.
2. Set the Record File Size and saving path to for recorded files.
3. Click Save.
4. Click to start recording. Click to stop recording.
5.2.3 Set Lite Storage
After the lite storage is enabled, the frame rate and bitrate of the video stream can be reduced to
lengthen the storage time of the memory card when there is no moving object in the monitoring
scenario.
Steps
1. Go to Configuration → Storage → Storage Management → Lite Storage.
Network Camera User Manual
32
2. Check Enable and set the level. The higher the level is, the larger the frame rate and bitrate
are, and the shorter the recommended storage time is.
3. Set the storage time. The device automatically calculates the bitrate and offers the
recommended storage time according to the memory card space and level. You are
recommended to set the storage time to the device recommended time.
Note
● If the lite storage is enabled, unformatted memory card will be formatted automatically.
● The displayed available space of the memory card is assigned by default according to
Percentage of Record in Storage → Storage Management → Quota. You can adjust it as
required.
● Only certain device models support the function.
5.2.4 Playback and Download Video
You can search, playback and download the videos stored in the local storage or network storage.
Steps
1. Click Playback.
2. Set search condition and click Search.
The matched video files showed on the timing bar.
3. Click to play the video files.
– Click to clip video files.
– Click to play video files in full screen. Press ESC to exit full screen.
Note
Go to Configuration → Local, click Save clips to to change the saving path of clipped video files.
4. Click on the playback interface to download files.
1) Set search condition and click Search.
2) Select the video files and then click Download.
Note
Go to Configuration → Local, click Save downloaded files to to change the saving path of
downloaded video files.
5.3 Capture Configuration
The device can capture the pictures manually or automatically and save them in configured saving
Network Camera User Manual
33
path. You can view and download the snapshots.
5.3.1 Capture Automatically
This function can capture pictures automatically during configured time periods.
Before You Start
If event-triggered capture is required, you should configure related linkage methods in event
settings. Refer to Event and Alarm for event settings.
Steps
1. Go to Configuration → Storage → Schedule Settings → Capture → Capture Parameters.
2. Set the capture type.
Timing
Capture a picture at the configured time interval.
Event-Triggered
Capture a picture when an event is triggered.
3. Set the Format, Resolution, Quality, Interval, and Capture Number.
4. Refer to Set Arming Schedule for configuring schedule time.
5. Click Save.
5.3.2 Capture Manually
Steps
1. Go to Configuration → Local.
2. Set the Image Format and saving path to for snapshots.
JPEG
The picture size of this format is comparatively small, which is better for network
transmission.
BMP
The picture is compressed with good quality.
3. Click Save.
4. Click near the live view or play back window to capture a picture manually.
5.3.3 View and Download Picture
You can search, view and download the pictures stored in the local storage or network storage.
Steps
1. Click Picture.
2. Set search condition and click Search.
Network Camera User Manual
34
The matched pictures showed in the file list.
3. Select the pictures then click Download to download them.
Note
Go to Configuration → Local, click Save snapshots when playback to change the saving path of
pictures.
Network Camera User Manual
35
Chapter 6 Event and Alarm
This part introduces the configuration of events. The device takes certain response to triggered
alarm.
6.1 Basic Event
6.1.1 Set Motion Detection
It helps to detect the moving objects in the detection region and trigger the linkage actions.
Steps
1. Go to Configuration → Event → Basic Event → Motion Detection.
2. Check Enable Motion Detection.
3. Optional: Highlight to display the moving object in the image in green.
1) Check Enable Dynamic Analysis for Motion.
2) Go to Configuration → Local.
3) Set Rules to Enable.
4. Select Configuration Mode, and set rule region and rule parameters.
– For the information about normal mode, see Normal Mode.
– For the information about expert mode, see Expert Mode.
5. Set the arming schedule and linkage methods. For the information about arming schedule
settings, see Set Arming Schedule. For the information about linkage methods, see Linkage
Method Settings.
6. Click Save.
Expert Mode
You can configure the motion detection parameters of day/night switch according to the actual
needs.
Steps
1. Select expert mode in Configuration.
2. Set parameters of expert mode.
Day/Night Switch
OFF: Day/night switch is disabled.
Day/Night Auto-Switch: The system switches day/night mode automatically according to
environment. It displays colored image at day and black and white image at night.
Day/Night Scheduled-Switch: The system switches day/night mode according to the schedule.
It switches to day mode during the set periods and switches to night mode during the other
periods.
Network Camera User Manual
36
Sensitivity
The higher the value of sensitivity is, the more sensitive the motion detection is. If the
sensitivity is set to 0, motion detection and dynamic analysis do not take effect.
Proportion
It refers to the proportion that a moving object occupies in the drawn area. When the size of
the object exceeds the set proportion, motion detection is triggered.
3. Select an Area and click Draw Area. Click and drag the mouse on the live video, then release the
mouse to finish drawing one area.
Figure 6-1 Set Rules
Stop Drawing
Finish drawing one area.
Clear All
Delete all the areas.
4. Optional: Repeat the above steps to set multiple areas.
Normal Mode
You can set motion detection parameters according to the device default parameters.
Steps
1. Select normal mode in Configuration.
2. Set the sensitivity of normal mode. The higher the value of sensitivity is, the more sensitive the
motion detection is. If the sensitivity is set to 0, motion detection and dynamic analysis do not
take effect.
3. Click Draw Area. Click and drag the mouse on the live video, then release the mouse to finfish
drawing one area.
Network Camera User Manual
37

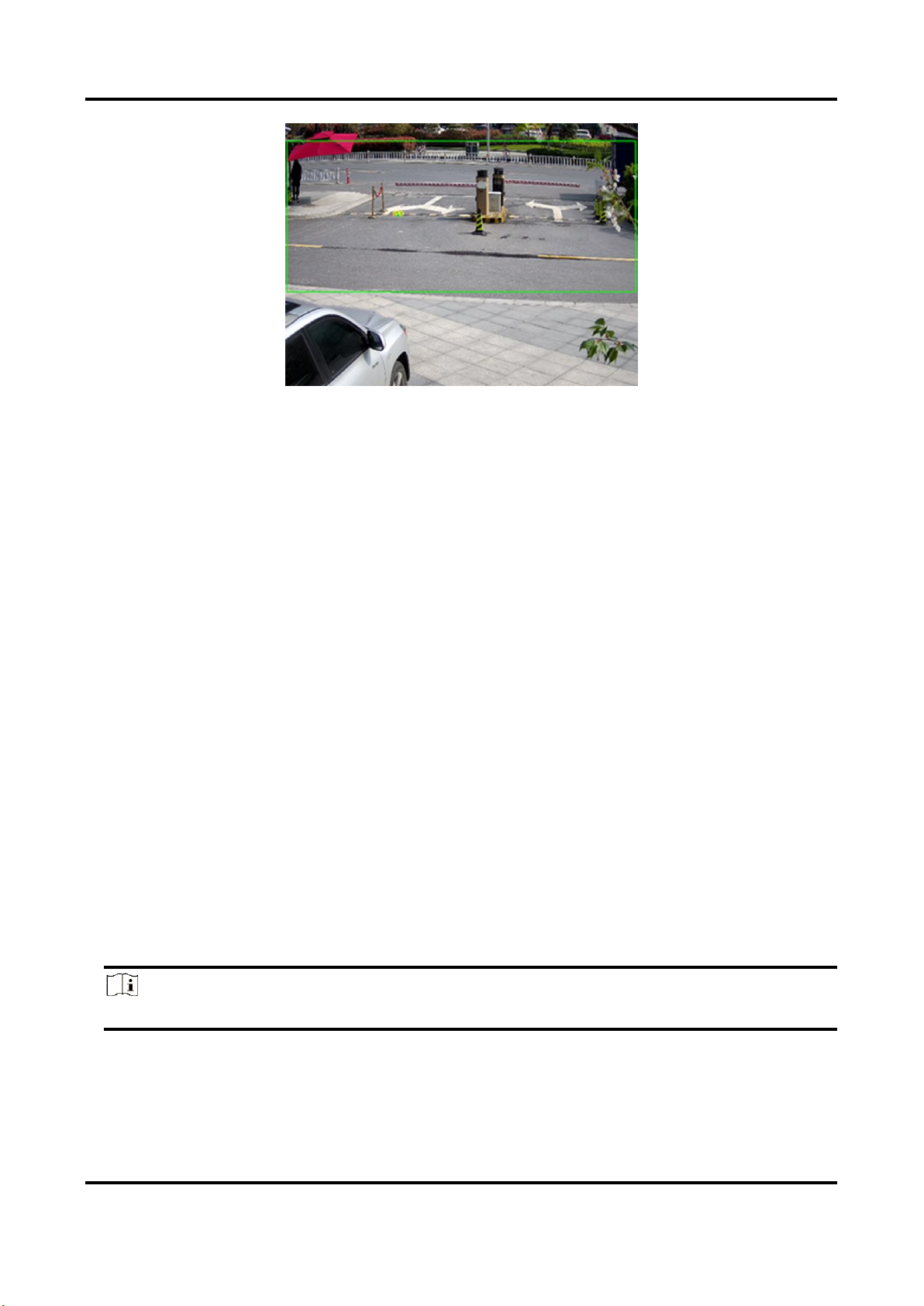

Figure 6-2 Set Rules
Stop Drawing
Stop drawing one area.
Clear All
Clear all the areas.
4. Optional: You can set the parameters of multiple areas by repeating the above steps.
6.1.2 Set Video Tampering Alarm
When the configured area is covered and cannot be monitored normally, the alarm is triggered
and the device takes certain alarm response actions.
Steps
1. Go to Configuration → Event → Basic Event → Video Tampering.
2. Check Enable.
3. Set the Sensitivity. The higher the value is, the easier to detect the area covering.
4. Click Draw Area and drag the mouse in the live view to draw the area.
Stop Drawing
Finish drawing.
Clear All
Delete all the drawn areas.
Network Camera User Manual
38
Figure 6-3 Set Video Tampering Area
5. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for
setting linkage method.
6. Click Save.
6.1.3 Set PIR Alarm
A PIR (Passive Infrared) alarm is triggered when an intruder moves within the detector's field of
view. The heat energy dissipated by a person, or any other warm blooded creature such as dogs,
cats, etc., can be detected.
Steps
Note
Only certain models support PIR alarm.
1. Go to Configuration → Advanced Configuration → Basic Event → PIR Alarm.
2. Check Enable PIR Alarm.
3. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for
setting linkage method.
4. Click Save.
Network Camera User Manual
39
6.1.4 Set Exception Alarm
Exception such as network disconnection can trigger the device to take corresponding action.
Steps
1. Go to Configuration → Event → Basic Event → Exception.
2. Select Exception Type.
HDD Full
The HDD storage is full.
HDD Error
Error occurs in HDD.
Network
Disconnected
The device is offline.
IP Address Conflicted
The IP address of current device is same as that of other device in the
network.
Illegal Login
Incorrect user name or password is entered.
3. Refer to Linkage Method Settings for setting linkage method.
4. Click Save.
6.1.5 Set Alarm Input
Alarm signal from the external device triggers the corresponding actions of the current device.
Before You Start
Make sure the external alarm device is connected. See Quick Start Guide for cables connection.
Steps
1. Go to Configuration → Event → Basic Event → Alarm Input.
2. Check Enable Alarm Input Handing.
3. Select Alarm Input NO. and Alarm Type from the dropdown list. Edit the Alarm Name.
4. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for
setting linkage method.
5. Click Copy to... to copy the settings to other alarm input channels.
6. Click Save.
6.1.6 Set Video Quality Diagnosis
When the video quality of the device is abnormal and the alarm linkage is set, the alarm will be
triggered automatically.
Steps
1. Go to Configuration → Event → Basic Event → Video Quality Diagnosis.
2. Select Diagnosis Type.
Network Camera User Manual
40
3. Set the corresponding parameters.
Alarm Detection Interval
The time interval to detect the exception.
Sensitivity
The higher the value is, the more easily the exception will be detected, and the higher
possibility of misinformation would be.
Alarm Delay Times
The device uploads the alarm when the alarm reaches the set number of times.
4. Check Enable, and the selected diagnosis type will be detected.
5. Set arming schedule. See Set Arming Schedule.
6. Set linkage method. See Linkage Method Settings.
7. Click Save.
Note
The function is only supported by certain models. The actual display varies with models.
6.1.7 Set Vibration Detection
It is used to detect whether the device is vibrating. The device reports an alarm and triggers
linkage actions if the function is enabled.
Steps
1. Go to Configuration → Event → Basic Event → Vibration Detection.
2. Check Enable.
3. Drag the slider to set the detection sensitivity. You can also enter number to set the sensitivity.
4. Set the arming schedule. See Set Arming Schedule.
5. Set the linkage method. See Linkage Method Settings.
6. Click Save.
Note
The function is only supported by certain models. The actual display varies with models.
6.2 Smart Event
Note
● For certain device models, you need to enable the smart event function on VCA Resource page
first to show the function configuration page.
● The function varies according to different models.
Network Camera User Manual
41
6.2.1 Detect Audio Exception
Audio exception detection function detects the abnormal sound in the surveillance scene, such as
the sudden increase/decrease of the sound intensity, and some certain actions can be taken as
response.
Steps
1. Go to Configuration → Event → Smart Event → Audio Exception Detection.
2. Select one or several audio exception detection types.
Audio Loss Detection
Detect sudden loss of audio track.
Sudden Increase of Sound Intensity Detection
Detect sudden increase of sound intensity. Sensitivity and Sound Intensity Threshold are
configurable.
Note
● The lower the sensitivity is, the more significant the change should be to trigger the
detection.
● The sound intensity threshold refers to the sound intensity reference for the detection. It is
recommended to set as the average sound intensity in the environment. The louder the
environment sound, the higher the value should be. You can adjust it according to the real
environment.
Sudden Decrease of Sound Intensity Detection
Detect sudden decrease of sound intensity. Sensitivity is configurable.
3. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for
setting linkage methods.
4. Click Save.
Note
The function varies according to different models.
6.2.2 Set Defocus Detection
The blurred image caused by lens defocus can be detected. If it occurs, the device can take linkage
actions.
Steps
1. Go to Configuration → Event → Smart Event → Defocus Detection.
2. Check Enable.
Network Camera User Manual
42
3. Set Sensitivity. The higher the value is, the more easily the defocus image can trigger the alarm.
You can adjust the value according to the actual environment.
4. For the linkage method settings, refer to Linkage Method Settings.
5. Click Save.
Note
The function is only supported by certain models. The actual display varies with models.
6.2.3 Detect Scene Change
Scene change detection function detects the change of surveillance scene. Some certain actions
can be taken when the alarm is triggered.
Steps
1. Go to Configuration → Event → Smart Event → Scene Change Detection.
2. Click Enable.
3. Set the Sensitivity. The higher the value is, the more easily the change of scene can be detected.
But the detection accuracy is reduced.
4. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for
setting linkage method.
5. Click Save.
Note
The function varies according to different models.
6.2.4 Set Face Detection
It helps to detect the face in the detection region. If a face is detected, the device triggers the
linkage actions.
Steps
1. Go to Configuration → Event → Smart Event → Face Detection.
2. Check Enable Face Detection.
3. Optional: Highlight to display the face in the image.
1) Check Enable Dynamic Analysis For Face Detection.
2) Go to Configuration → Local, set Rules to Enable.
4. Set Sensitivity. The lower the sensitivity is, the profile of the face or unclear face is more
difficult to detect.
5. Set the arming schedule and linkage methods. For the information about arming schedule
settings, see Set Arming Schedule. For the information about linkage methods, see Linkage
Method Settings.
6. Click Save.
Network Camera User Manual
43
6.2.5 Set Video Loss
This function can detect the video signal loss in time and trigger the linkage action.
Steps
1. Go to Configuration → Event → Basic Event → Video Loss.
2. Check Enable.
3. Refer to Set Arming Schedule for setting scheduled time. Refer to Linkage Method Settings for
setting linkage method.
4. Click Save.
6.2.6 Set Intrusion Detection
It is used to detect objects entering and loitering in a pre-defined virtual region. If it occurs, the
device can take linkage actions.
Steps
1. Go to Configuration → Event → Smart Event → Intrusion Detection.
2. Check Enable.
3. Select a Region. For the detection region settings, refer to Draw Area.
4. Set rules.
Sensitivity
Sensitivity stands for the percentage of the body part of an
acceptable target that enters the pre-defined region. Sensitivity = 100
- S1/ST × 100. S1 stands for the target body part that goes across the
pre-defined region. ST stands for the complete target body. The
higher the value of sensitivity is, the more easily the alarm can be
triggered.
Threshold
Threshold stands for the threshold for the time of the object loitering
in the region. If the time that one object stays exceeds the threshold,
the alarm is triggered. The larger the value of the threshold is, the
longer the alarm triggering time is.
Object
You can specify the object type to be detected and the device only
detects the selected type of object.
Network Camera User Manual
44

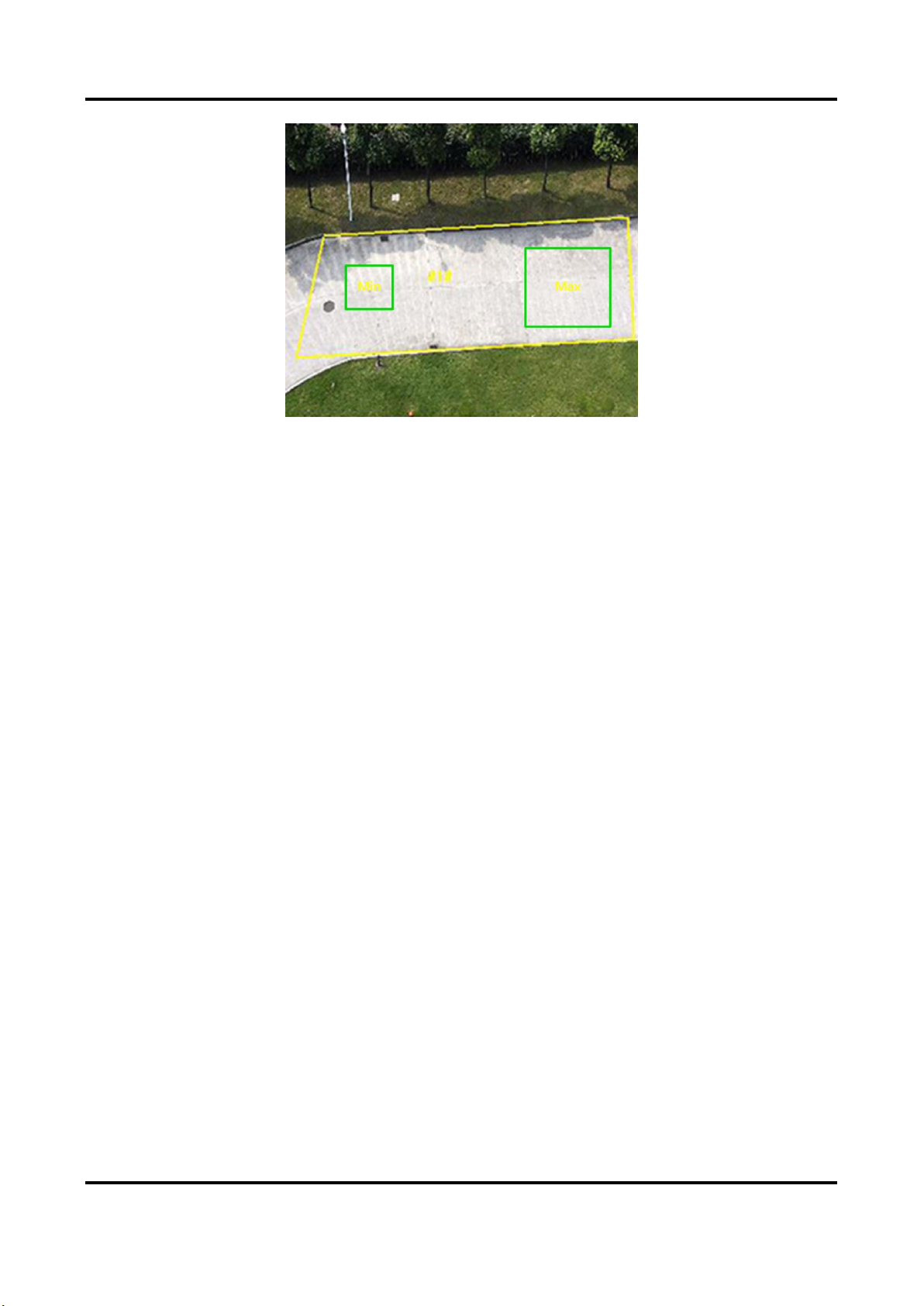

Figure 6-4 Set Rule
5. Optional: You can set the parameters of multiple areas by repeating the above steps.
6. For the arming schedule settings, refer to Set Arming Schedule. For the linkage method settings,
refer to Linkage Method Settings.
7. Click Save.
6.2.7 Set Line Crossing Detection
It is used to detect objects crossing a pre-defined virtual line. If it occurs, the device can take
linkage actions.
Steps
1. Go to Configuration → Event → Smart Event → Line Crossing Detection.
2. Check Enable.
3. Select one Line and set the size filter. For the size filter settings, refer to Set Size Filter.
4. Click Draw Area and a line with an arrow appears in the live video. Drag the line to the location
on the live video as desired.
5. Set rules.
Direction
It stands for the direction from which the object goes across the line.
A<->B: The object going across the line from both directions can be
detected and alarms are triggered.
A->B: Only the object crossing the configured line from the A side to
the B side can be detected.
B->A: Only the object crossing the configured line from the B side to
the A side can be detected.
Sensitivity
It stands for the percentage of the body part of an acceptable target
that goes across the pre-defined line. Sensitivity = 100 - S1/ST × 100.
S1 stands for the target body part that goes across the pre-defined
line. ST stands for the complete target body. The higher the value of
Network Camera User Manual
45
sensitivity is, the more easily the alarm can be triggered.
Object
You can specify the object type to be detected and the device only
detects the selected type of object.

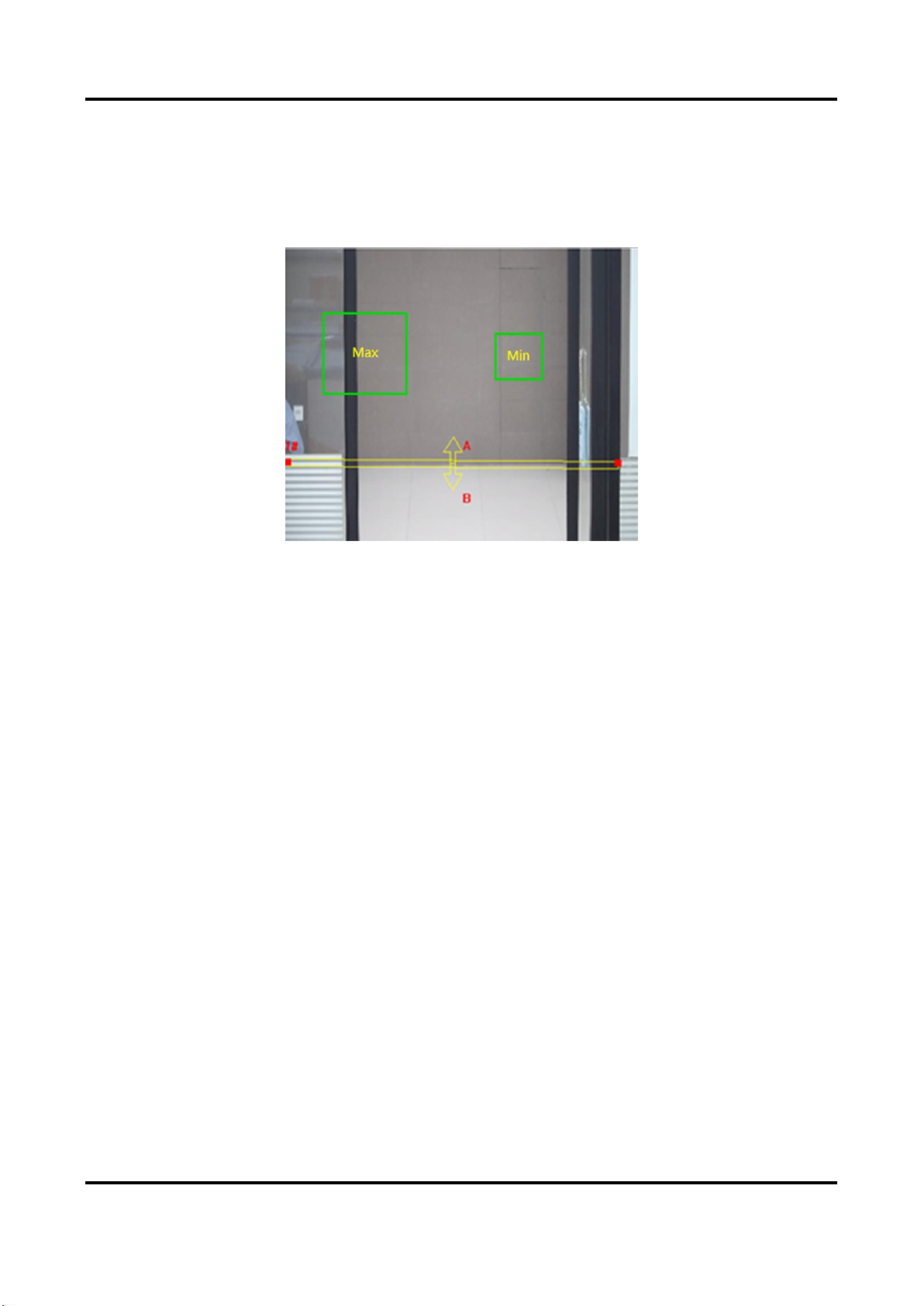

Figure 6-5 Set Rule
6. Optional: You can set the parameters of multiple areas by repeating the above steps.
7. For the arming schedule settings, refer to Set Arming Schedule. For the linkage method settings,
refer to Linkage Method Settings.
8. Click Save.
6.2.8 Set Region Entrance Detection
It is used to detect objects entering a pre-defined virtual region from the outside place. If it occurs,
the device can take linkage actions.
Steps
1. Go to Configuration → Event → Smart Event → Region Entrance Detection.
2. Check Enable.
3. Select one Region. For the region settings, refer to Draw Area.
4. Select the detection target. Human and vehicle are available. If the detection target is not
selected, all the detected targets will be reported, including the human and the vehicle.
Network Camera User Manual
46
Figure 6-6 Set Rule
5. Optional: You can set the parameters of multiple areas by repeating the above steps.
6. For the arming schedule settings, refer to Set Arming Schedule. For the linkage method settings,
refer to Linkage Method Settings.
7. Click Save.
6.2.9 Set Region Exiting Detection
It is used to detect objects exiting from a pre-defined virtual region. If it occurs, the device can
take linkage actions.
Steps
1. Go to Configuration → Event → Smart Event → Region Exiting Detection
2. Check Enable.
3. Select one Region. For the detection region settings, refer to Draw Area.
4. Select the detection target. Human and vehicle are available. If the detection target is not
selected, all the detected targets will be reported, including the human and the vehicle.
Network Camera User Manual
47

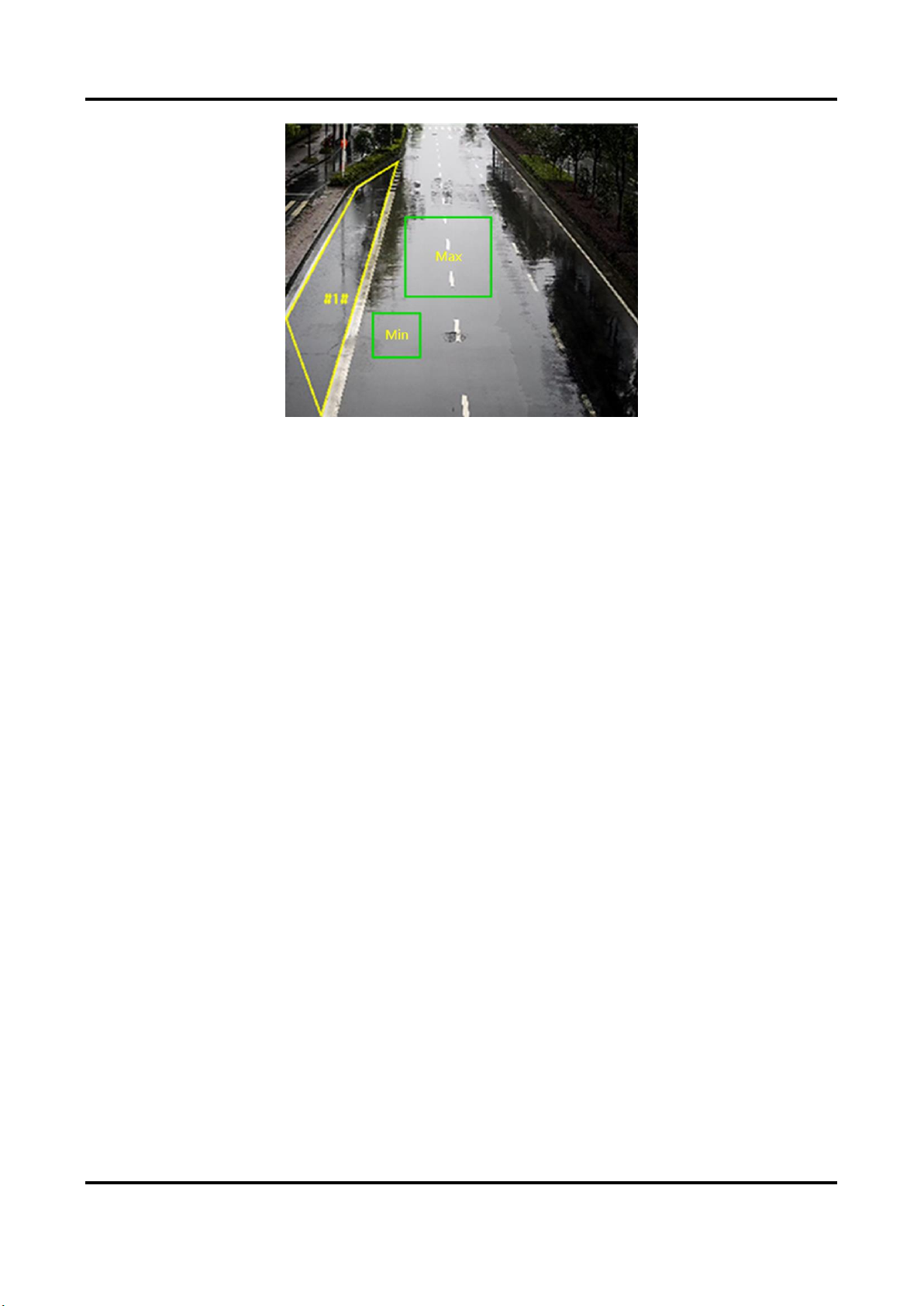

Figure 6-7 Set Rule
5. Optional: You can set the parameters of multiple areas by repeating the above steps.
6. For the arming schedule settings, refer to Set Arming Schedule. For the linkage method settings,
refer to Linkage Method Settings.
7. Click Save.
6.2.10 Set Unattended Baggage Detection
It is used to detect the objects left over in the pre-defined region. Linkage methods can be
triggered after the object is left and stays in the region for a set time period.
Steps
1. Go to Configuration → Event → Smart Event → Unattended Baggage Detection.
2. Check Enable.
3. Select one Region. For the detection region settings, refer to Draw Area.
4. Set rules.
Sensitivity
Sensitivity stands for the percentage of the body part of an
acceptable target that enters the pre-defined region. Sensitivity = 100
- S1/ST × 100. S1 stands for the target body part that goes across the
pre-defined region. ST stands for the complete target body. The
higher the value of sensitivity is, the more easily the alarm can be
triggered.
Threshold
It stands for the time of the objects left in the region. Alarm is
triggered after the object is left and stays in the region for the set
time period.
Network Camera User Manual
48
Figure 6-8 Set Rule
5. Optional: You can set the parameters of multiple areas by repeating the above steps.
6. For the arming schedule settings, refer to Set Arming Schedule. For the linkage method settings,
refer to Linkage Method Settings.
7. Click Save.
6.2.11 Set Object Removal Detection
It detects whether the objects are removed from the pre-defined detection region, such as the
exhibits on display. If it occurs, the device can take linkage actions and the staff can take measures
to reduce property loss.
Steps
1. Go to Configuration → Event → Smart Event → Object Removal Detection.
2. Check Enable.
3. Select a Region. For the region settings, see Draw Area.
4. Set the rule.
Sensitivity
Range [1-100]. It stands for the percentage of the body part of an
acceptable target that leaves the pre-defined region.
Sensitivity = 100 – S1/ST*100
S1 stands for the target body part that leaves the pre-defined region.
ST stands for the complete target body.
Example: If you set the value as 60, a target is possible to be counted
as a removed object only when 40 percent body part of the target
leaves the region.
Threshold
Range [5-100s], the threshold for the time of the objects removed
from the region. If you set the value as 10, alarm is triggered after the
object disappears from the region for 10s.
Network Camera User Manual
49

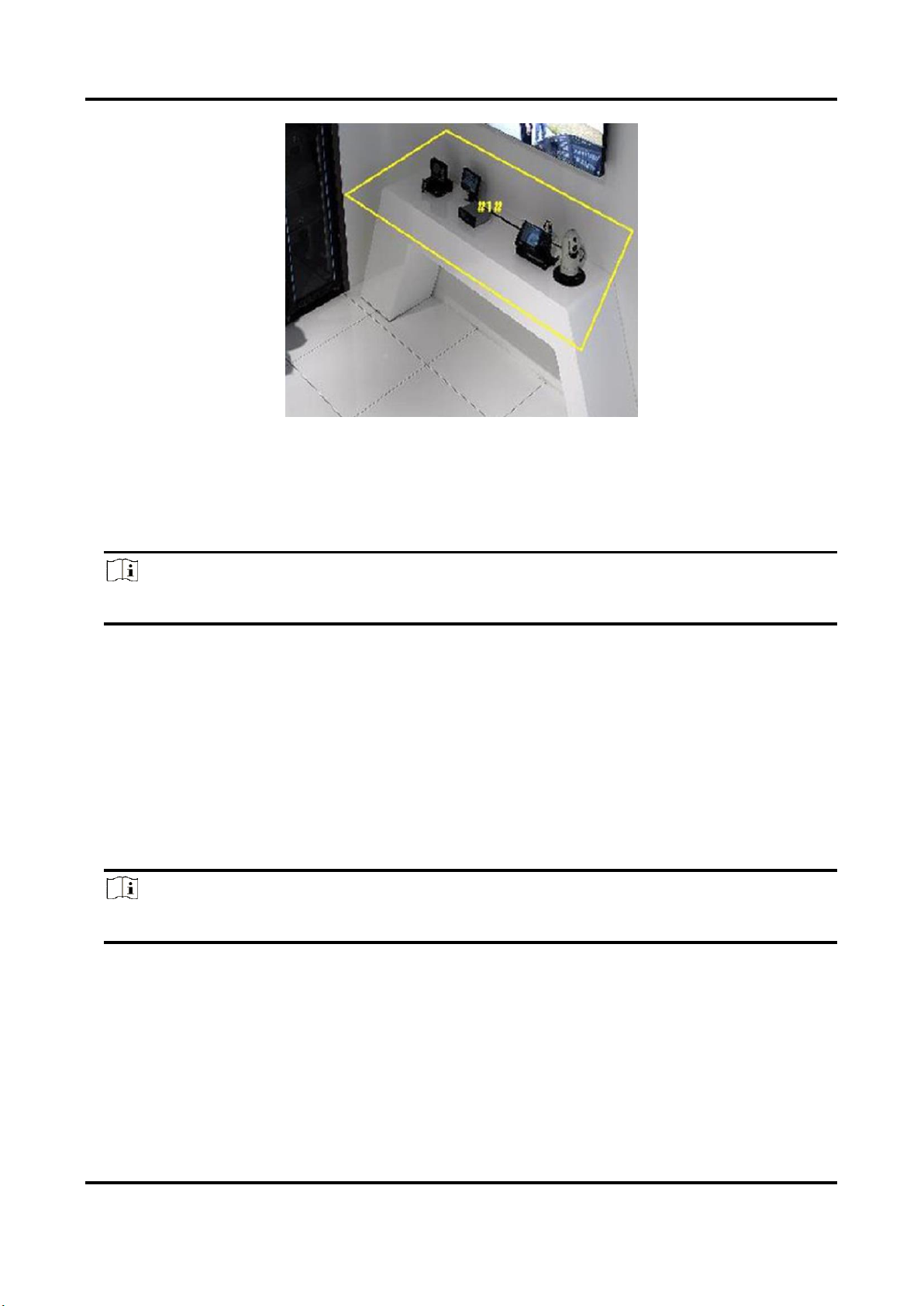

Figure 6-9 Set Rule
5. Optional: Repeat the above steps to set more regions.
6. For the arming schedule settings, see Set Arming Schedule. For the linkage method settings, see
Linkage Method Settings.
7. Click Save.
Note
The function is only supported by certain models. The actual display varies with the models.
6.2.12 Draw Area
This section introduces the configuration of area.
Steps
1. Click Draw Area.
2. Click on the live view to draw the boundaries of the detection region, and right click to complete
drawing.
3. Click Save.
Note
Click Clear All to clear all pre-defined areas.
6.2.13 Set Size Filter
This part introduces the setting of size filter. Only the target whose size is between the minimum
Network Camera User Manual
50
value and maximum value is detected and triggers alarm.
Steps
1. Click Max. Size, and drag the mouse in the live view to draw the maximum target size.
2. Click Min. Size, and drag the mouse in the live view to draw the minimum target size.
3. Click Save.
Network Camera User Manual
51
Chapter 7 Network Settings
7.1 TCP/IP
TCP/IP settings must be properly configured before you operate the device over network. IPv4 and
IPv6 are both supported. Both versions can be configured simultaneously without conflicting to
each other.
Go to Configuration → Basic Configuration → Network → TCP/IP for parameter settings.
NIC Type
Select a NIC (Network Interface Card) type according to your network condition.
IPv4
Two IPv4 modes are available.
DHCP
The device automatically gets the IPv4 parameters from the network if you check DHCP. The
device IP address is changed after enabling the function. You can use SADP to get the device
IP address.
Note
The network that the device is connected to should support DHCP (Dynamic Host
Configuration Protocol).
Manual
You can set the device IPv4 parameters manually. Input IPv4 Address, IPv4 Subnet Mask, and
IPv4 Default Gateway, and click Test to see if the IP address is available.
IPv6
Three IPv6 modes are available.
Route Advertisement
The IPv6 address is generated by combining the route advertisement and the device Mac
address.
Note
Route advertisement mode requires the support from the router that the device is connected
to.
DHCP
The IPv6 address is assigned by the server, router or gateway.
Manual
Network Camera User Manual
52
Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network administrator
for required information.
MTU
It stands for maximum transmission unit. It is the size of the largest protocol data unit that can
be communicated in a single network layer transaction.
The valid value range of MTU is 1280 to 1500.
DNS
It stands for domain name server. It is required if you need to visit the device with domain
name. And it is also required for some applications (e.g., sending email). Set Preferred DNS
Server and Alternate DNS server properly if needed.
7.1.1 Multicast
Multicast is a group communication where data transmission is addressed to a group of
destination devices simultaneously. After setting multicast, you can send the source data
efficiently to multiple receivers.
Go to Configuration → Network → Basic Settings → Multicast for the multicast settings.
IP Address
It stands for the address of multicast host.
Stream Type
The stream type of the multicast source.
Video Port
The video port of the selected stream.
Audio Port
The audio port of the selected stream.
FEC Port
The FEC port of the selected stream.
FEC Ratio
The ratio of forward error correction.
7.1.2 Multicast Discovery
Check the Enable Multicast Discovery, and then the online network camera can be automatically
detected by client software via private multicast protocol in the LAN.
Network Camera User Manual
53
7.2 SNMP
You can set the SNMP network management protocol to get the alarm event and exception
messages in network transmission.
Before You Start
Before setting the SNMP, you should download the SNMP software and manage to receive the
device information via SNMP port.
Steps
1. Go to the settings page: Configuration → Network → Advanced Settings → SNMP.
2. Check Enable SNMPv1, Enable SNMP v2c or Enable SNMPv3.
Note
The SNMP version you select should be the same as that of the SNMP software.
And you also need to use the different version according to the security level required. SNMP v1
is not secure and SNMP v2 requires password for access. And SNMP v3 provides encryption and
if you use the third version, HTTPS protocol must be enabled.
3. Configure the SNMP settings.
4. Click Save.
7.3 Set SRTP
The Secure Real-time Transport Protocol (SRTP) is a Real-time Transport Protocol (RTP) internet
protocol, intended to provide encryption, message authentication and integrity, and replay attack
protection to the RTP data in both unicast and multicast applications.
Steps
1. Go to Configuration → Network → Advanced Settings → SRTP.
2. Select Server Certificate.
3. Select Encrypted Algorithm.
4. Click Save.
Note
● Only certain device models support this function.
● If the function is abnormal, check if the selected certificate is abnormal in certificate
management.
Network Camera User Manual
54
7.4 Port Mapping
By setting port mapping, you can access devices through the specified port.
Before You Start
When the ports in the device are the same as those of other devices in the network, refer to Port
to modify the device ports.
Steps
1. Go to Configuration → Network → Basic Settings → NAT.
2. Select the port mapping mode.
Auto Port Mapping
Refer to Set Auto Port Mapping for detailed information.
Manual Port
Mapping
Refer to Set Manual Port Mapping for detailed information.
3. Click Save.
7.4.1 Set Auto Port Mapping
Steps
1. Check Enable UPnP™, and choose a friendly name for the camera, or you can use the default
name.
2. Select the port mapping mode to Auto.
3. Click Save.
Note
UPnP™ function on the router should be enabled at the same time.
7.4.2 Set Manual Port Mapping
Steps
1. Check Enable UPnP™, and choose a friendly name for the device, or you can use the default
name.
2. Select the port mapping mode to Manual, and set the external port to be the same as the
internal port.
3. Click Save.
What to do next
Go to the router port mapping settings interface and set the port number and IP address to be the
same as those on the device. For more information, refer to the router user manual.
Network Camera User Manual
55
7.4.3 Set Port Mapping on Router
The following settings are for a certain router. The settings vary depending on different models of
routers.
Steps
1. Select the WAN Connection Type.
2. Set the IP Address, Subnet Mask and other network parameters of the router.
3. Go to Forwarding → Virtual Severs, and input the Port Number and IP Address.
4. Click Save.
Example
When the cameras are connected to the same router, you can configure the ports of a camera as
80, 8000, and 554 with IP address 192.168.1.23, and the ports of another camera as 81, 8001, 555,
8201 with IP 192.168.1.24.
Figure 7-1 Port Mapping on Router
Note
The port of the network camera cannot conflict with other ports. For example, some web
management port of the router is 80. Change the camera port if it is the same as the management
port.
Network Camera User Manual
56
7.5 Port
The device port can be modified when the device cannot access the network due to port conflicts.
Caution
Do not modify the default port parameters at will, otherwise the device may be inaccessible.
Go to Configuration → Network → Basic Settings → Port for port settings.
HTTP Port
It refers to the port through which the browser accesses the device. For example, when the
HTTP Port is modified to 81, you need to enter http://192.168.1.64:81 in the browser for login.
HTTPS Port
It refers to the port through which the browser accesses the device with certificate. Certificate
verification is required to ensure the secure access.
RTSP Port
It refers to the port of real-time streaming protocol.
SRTP Port
It refers to the port of secure real-time transport protocol.
Server Port
It refers to the port through which the client adds the device.
Enhanced SDK Service Port
It refers to the port through which the client adds the device. Certificate verification is required
to ensure the secure access.
WebSocket Port
TCP-based full-duplex communication protocol port for plug-in free preview.
WebSockets Port
TCP-based full-duplex communication protocol port for plug-in free preview. Certificate
verification is required to ensure the secure access.
Note
● Enhanced SDK Service Port, WebSocket Port, and WebSockets Port are only supported by
certain models.
● For device models that support that function, go to Configuration → Network → Advanced
Settings → Network Service to enable it.
Network Camera User Manual
57
7.6 Access to Device via Domain Name
You can use the Dynamic DNS (DDNS) for network access. The dynamic IP address of the device
can be mapped to a domain name resolution server to realize the network access via domain
name.
Before You Start
Registration on the DDNS server is required before configuring the DDNS settings of the device.
Steps
1. Refer to TCP/IP to set DNS parameters.
2. Go to the DDNS settings page: Configuration → Network → Basic Settings → DDNS.
3. Check Enable DDNS and select DDNS type.
DynDNS
Dynamic DNS server is used for domain name resolution.
NO-IP
NO-IP server is used for domain name resolution.
4. Input the domain name information, and click Save.
5. Check the device ports and complete port mapping. Refer to Port to check the device port , and
refer to Port Mapping for port mapping settings.
6. Access the device.
By Browsers
Enter the domain name in the browser address bar to access the
device.
By Client Software
Add domain name to the client software. Refer to the client manual
for specific adding methods.
7.7 Access to Device via PPPoE Dial Up Connection
This device supports the PPPoE auto dial-up function. The device gets a public IP address by ADSL
dial-up after the device is connected to a modem. You need to configure the PPPoE parameters of
the device.
Steps
1. Go to Configuration → Network → Basic Settings → PPPoE.
2. Check Enable PPPoE.
3. Set the PPPoE parameters.
Dynamic IP
After successful dial-up, the dynamic IP address of the WAN is displayed.
User Name
User name for dial-up network access.
Network Camera User Manual
58
Password
Password for dial-up network access.
Confirm
Input your dial-up password again.
4. Click Save.
5. Access the device.
By Browsers
Enter the WAN dynamic IP address in the browser address bar to
access the device.
By Client Software
Add the WAN dynamic IP address to the client software. Refer to the
client manual for details.
Note
The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes
after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a
domain name from the DDNS provider (e.g. DynDns.com). Refer to Access to Device via Domain
Name for detail information.
7.8 Wireless Dial
Data of audio, video and image can be transferred via 3G/4G wireless network.
Note
The function is only supported by certain device models.
7.8.1 Set Wireless Dial
The built-in wireless module offers dial-up access to the Internet for the device.
Before You Start
Get a SIM card, and activate 3G/4G services. Insert the SIM card to the corresponding slot.
Steps
1. Go to Configuration → Network → Advanced Settings → Wireless Dial.
2. Check to enable the function.
3. Click Dial Parameters to configure and save the parameters.
4. Click Dial Plan. See Set Arming Schedule for detailed information.
5. Optional: Set White List. See Set White List for detailed information.
6. Click Dial Status.
Network Camera User Manual
59
Click Refresh
Refresh the dial status.
Click Disconnect
Disconnect the 3G/4G wireless network.
When the Dial Status turns to Connected, it means a successful dial.
7. Access the device via the IP Address of the computer in the network.
– Input the IP address in the browser to access the device.
– Add the device in client application. Select IP/Domain, and input IP address and other
parameters to access the device.
7.8.2 Set White List
Add the mobile phone number of administrator to the white list in order to receive alarm message
from the device.
Steps
1. Go to white list settings page: Configuration → Advanced Configuration → Wireless Dial →
White List.
2. Check Enable SMS Alarm.
3. Click in the white list.
1) Input the mobile phone number to receive alarm message.
2) Check Reboot via SMS.
3) Select the certain events, and the mobile phone can receive the alarm message when the
event happens.
4) Click Save.
5) Optional: Repeat the steps above to set multiple recipients.
Modify the white list parameters.
Delete the white list that already set.
Send Test SMS
Send a message to the mobile phone for test.
4. Click Save.
7.9 Wi-Fi
Connect the device to wireless network by setting Wi-Fi parameters.
Note
This function is only supported by certain device models.
Network Camera User Manual
60
7.9.1 Connect Wi-Fi Manually
Before You Start
Refer to the user manual of wireless router or AP to set SSID, key, and other parameters.
Steps
1. Go to TCP/IP settings page: Configuration → Network → Basic Configuration → TCP/IP.
2. Select Wlan to set the parameters. Refer to TCP/IP for detailed configuration.
Note
For stable use of Wi-Fi, it is not recommended to use DHCP.
3. Go to Wi-Fi settings page: Configuration → Network → Advanced Configuration → Wi-Fi.
4. Set and save the parameters.
1) Click Search.
2) Select a SSID, which should be the same as that of wireless router or AP.
The parameters of the network is automatically shown in Wi-Fi.
3) Select the Network Mode as Manage.
4) Input the key to connect the wireless network. The key should be that of the wireless
network connection you set on the router.
What to do next
Go to TCP/IP settings page: Configuration → Network → Basic Configuration → TCP/IP, and click
Wlan to check the IPv4 Address and log in the device. See Login for detailed information.
7.9.2 Connect Wi-Fi Automatically
The device can connect the Wi-Fi automatically via WPS or QSS protocols, which both support PBC
mode and PIN mode.
Use PBC
Set PBC to connect Wi-Fi automatically. PBC refers to the Push-Button-Configuration, in which the
user simply has to push a button, either an actual or virtual one (as the Connect button on the
configuration interface of the IE browser), on both the Access Point (and a registrar of the
network) and the new wireless client device.
Before You Start
The operation should be done within 120 seconds, otherwise the connection will fail.
Steps
1. Go to TCP/IP settings page: Configuration → Network → Basic Configuration → TCP/IP.
2. Select Wlan to set the parameters. Refer to TCP/IP for detailed configuration.
Network Camera User Manual
61
Note
For stable use of Wi-Fi, it is not recommended to use DHCP.
3. Go to Wi-Fi settings page: Configuration → Network → Advanced Configuration → Wi-Fi.
4. Set Wi-Fi parameters.
1) Check Enable WPS.
2) Select PBC connection.
3) Check on the Wi-Fi router to see if there is a WPS button. If yes push the button and you can
see the indicator near the button start flashing, which means the WPS function of the router
is enabled. For detailed operation, please see the user guide of the router.
4) Push the WPS button to enable the function on the camera. If there is not a WPS button on
the camera, you can also click the virtual button to enable the PBC function on the web
interface.
5) Click Connect.
5. Click Save.
6. Set PBC code for wireless router or AP.
– Press the WPS or QSS button on the wireless router or AP in 120 second to quickly complete
the connection.
– Refer to the user guide of the router or AP to set PBC code.
7. Go to TCP/IP setting page: Configuration → Network → Basic Configuration → TCP/IP, and click
Wlan to check the IPv4 Address and log in the device.
– Input the IP address in the browser to access the device.
– Add the device in client application. Select IP/Domain, and input IP address and other
parameters to access the device.
Use PIN on Device
The device can automatically connect the network by setting the device PIN code parameters in
wireless router or AP via WPS or QSS protocols.
Steps
1. Go to TCP/IP settings page: Configuration → Network → Basic Configuration → TCP/IP.
2. Select Wlan to set the parameters. Refer to TCP/IP for detailed configuration.
Note
For stable use of Wi-Fi, it is not recommended to use DHCP.
3. Go to Wi-Fi setting page: Configuration → Network → Advanced Configuration → Wi-Fi.
4. Check Enable WPS.
5. Click Generate to generate a device PIN code.
6. Refer to the user manual of wireless router or AP to input the code to the router or AP.
7. Go to TCP/IP settings page: Configuration → Network → Basic Configuration → TCP/IP, and
click Wlan to check the IPv4 Address and log in the device.
Network Camera User Manual
62
– Input the IP address in the browser to access the device.
– Add the device in client application. Select IP/Domain, and input IP address and other
parameters to access the device.
Use PIN on Router
The device can automatically connect the network by setting the PIN code of wireless router or AP
in device via WPS or QSS protocols.
Before You Start
Get the PIN code and SSID of the router or AP.
Steps
1. Go to TCP/IP settings page: Configuration → Network → Basic Configuration → TCP/IP.
2. Select Wlan to set the parameters. Refer to TCP/IP for detailed configuration.
Note
For stable use of Wi-Fi, it is not recommended to use DHCP.
3. Go to Wi-Fi settings page: Configuration → Network → Advanced Configuration → Wi-Fi.
4. Set Wi-Fi parameters.
1) Check Enable WPS.
2) Select Use router PIN code.
3) Enter the PIN code and SSID you get from the router side in the SSID and Router PIN code
field.
4) Click Connect.
5. Click Save.
6. Go to TCP/IP setting page: Configuration → Network → Basic Configuration → TCP/IP, and click
Wlan to check the IPv4 Address and log in the device.
– Input the IP address in the browser to access the device.
– Add the device in client application. Select IP/Domain, and input IP address and other
parameters to access the device.
7.10 Set Network Service
You can control the ON/OFF status of certain protocol as desired.
Steps
Note
This function varies according to different models.
1. Go to Configuration → Network → Advanced Settings → Network Service.
2. Set network service.
Network Camera User Manual
63
WebSocket & WebSockets
WebSocket or WebSockets protocol should be enabled if you use Google Chrome 57 and its
above version or Mozilla Firefox 52 and its above version to visit the device. Otherwise, live
view, image capture, and digital zoom function cannot be used.
If the device uses HTTP, enable WebSocket.
If the device uses HTTPS, enable WebSockets and select the server certificate.
SDK Service & Enhanced SDK Service
Check Enable SDK Service to add the device to the client software with SDK protocol.
Check Enable Enhanced SDK Service to add the device to the client software with SDK over
TLS protocol.
Note
● If you enable Enhanced SDK Service, you should select the server certificate.
● When set up connection between the device and the client software, it is recommended to
use Enhanced SDK Service and set the communication in Arming Mode to encrypt the data
transmission.
TLS (Transport Layer Security)
The device offers TLS1.1 and TLS1.2. Enable one or more protocol versions according to your
need.
3. Click Save.
7.11 Set ONVIF
If you need to access to the device through ONVIF protocol, you can configure the ONVIF user to
enhance the network security.
Steps
1. Go to Configuration → Network → Advanced Settings → Integration Protocol.
2. Check Enable ONVIF.
3. Click Add to configure the ONVIF user.
Delete
Delete the selected ONVIF user.
Modify
Modify the selected ONVIF user.
4. Click Save.
5. Optional: Repeat the steps above to add more ONVIF users.
7.12 Set Alarm Server
The device can send alarms to destination IP address or host name through HTTP, HTTPS, or ISUP
protocol. The destination IP address or host name should support HTTP, HTTP, or ISUP data
Network Camera User Manual
64
transmission.
Steps
1. Go to Configuration → Network → Advanced Settings → Alarm Server.
2. Enter Destination IP or Host Name, URL, and Port.
3. Select Protocol.
Note
HTTP, HTTPS, and ISUP are selectable. It is recommended to use HTTPS, as it encrypts the data
transmission during communication.
4. Click Test to check if the IP or host is available.
5. Click Save.
7.13 Access Camera via Hik-Connect
Hik-Connect is an application for mobile devices. Using the App, you can view live image, receive
alarm notification and so on.
Before You Start
Connect the camera to network with network cables.
Steps
1. Get and install Hik-Connect application by the following ways.
Visit https://appstore.hikvision.com to download the application according to your mobile phone
system.Visit the official site of our company. Then go to Support → Tools → Hikvision App
Store.Scan the QR code below to download the application.
Note
If errors like "Unknown app" occur during the installation, solve the problem in two ways.
Visit https://appstore.hikvision.com/static/help/index.html to refer to the troubleshooting.Visit
https://appstore.hikvision.com/, and click Installation Help at the upper right corner of the
interface to refer to the troubleshooting.
2. Start the application and register for a Hik-Connect user account.
3. Log in after registration.
Network Camera User Manual
65
4. In the app, tap "+" on the upper-right corner and then scan the QR code of the camera to add
the camera. You can find the QR code on the camera or on the cover of the Quick Start Guide of
the camera in the package.
5. Follow the prompts to set the network connection and add the camera to your Hik-Connect
account.
For detailed information, refer to the user manual of the Hik-Connect app.
7.13.1 Enable Hik-Connect Service on Camera
Hik-Connect service should be enabled on your camera before using the service.
You can enable the service through SADP software or Web browser.
Enable Hik-Connect Service via Web Browser
Follow the following steps to enable Hik-Connect Service via Web Browser.
Before You Start
You need to activate the camera before enabling the service.
Steps
1. Access the camera via web browser.
2. Enter platform access configuration interface. Configuration → Network → Advanced Settings
→ Platform Access
3. Select Hik-Connect as the Platform Access Mode.
4. Check Enable.
5. Click and read "Terms of Service" and "Privacy Policy" in pop-up window.
6. Create a verification code or change the old verification code for the camera.
Note
The verification code is required when you add the camera to Hik-Connect service.
7. Save the settings.
Enable Hik-Connect Service via SADP Software
This part introduce how to enable Hik-Connect service via SADP software of an activated camera.
Steps
1. Run SADP software.
2. Select a camera and enter Modify Network Parameters page.
3. Check Enable Hik-Connect.
4. Create a verification code or change the old verification code.
Network Camera User Manual
66
Note
The verification code is required when you add the camera to Hik-Connect service.
5. Click and read "Terms of Service" and "Privacy Policy".
6. Confirm the settings.
7.13.2 Set Up Hik-Connect
Steps
1. Get and install Hik-Connect application by the following ways.
Visit https://appstore.hikvision.com to download the application according to your mobile phone
system.Visit the official site of our company. Then go to Support → Tools → Hikvision App
Store.Scan the QR code below to download the application.
Note
If errors like "Unknown app" occur during the installation, solve the problem in two ways.
Visit https://appstore.hikvision.com/static/help/index.html to refer to the troubleshooting.Visit
https://appstore.hikvision.com/, and click Installation Help at the upper right corner of the
interface to refer to the troubleshooting.
2. Start the application and register for a Hik-Connect user account.
3. Log in after registration.
7.13.3 Add Camera to Hik-Connect
Steps
1. Connect your mobile device to a Wi-Fi.
2. Log into the Hik-Connect app.
3. In the home page, tap "+" on the upper-right corner to add a camera.
4. Scan the QR code on camera body or on the Quick Start Guide cover.
Network Camera User Manual
67
Note
If the QR code is missing or too blur to be recognized, you can also add the camera by inputting
the camera's serial number.
5. Input the verification code of your camera.
Note
● The required verification code is the code you create or change when you enable Hik-Connect
service on the camera.
● If you forget the verification code, you can check the current verification code on Platform
Access configuration page via web browser.
6. Tap Connect to a Network button in the popup interface.
7. Choose Wired Connection or Wireless Connection according to your camera function.
Wireless Connection
Input the Wi-Fi password that your mobile phone has connected to,
and tap Next to start the Wi-Fi connection process. (Locate the
camera within 3 meters from the router when setting up the Wi-Fi.)
Wired Connection
Connect the camera to the router with a network cable and tap
Connected in the result interface.
Note
The router should be the same one which your mobile phone has connected to.
8. Tap Add in the next interface to finish adding.
For detailed information, refer to the user manual of the Hik-Connect app.
Network Camera User Manual
68
Chapter 8 Arming Schedule and Alarm Linkage
Arming schedule is a customized time period in which the device performs certain tasks. Alarm
linkage is the response to the detected certain incident or target during the scheduled time.
8.1 Set Arming Schedule
Set the valid time of the device tasks.
Steps
1. Click Arming Schedule.
2. Drag the time bar to draw desired valid time.
Note
Up to 8 periods can be configured for one day.
3. Adjust the time period.
– Click on the selected time period, and enter the desired value. Click Save.
– Click on the selected time period. Drag the both ends to adjust the time period.
– Click on the selected time period, and drag it on the time bar.
4. Optional: Click Copy to... to copy the same settings to other days.
5. Click Save.
8.2 Linkage Method Settings
You can enable the linkage functions when an event or alarm occurs.
8.2.1 Trigger Alarm Output
If the device has been connected to an alarm output device, and the alarm output No. has been
configured, the device sends alarm information to the connected alarm output device when an
alarm is triggered.
Steps
1. Go to Configuration → Event → Basic Event → Alarm Output.
2. Set alarm output parameters.
Automatic Alarm
For the information about the configuration, see Automatic Alarm.
Manual Alarm
For the information about the configuration, see Manual Alarm.
3. Click Save.
Network Camera User Manual
69
Manual Alarm
You can trigger an alarm output manually.
Steps
1. Set the manual alarm parameters.
Alarm Output No.
Select the alarm output No. according to the alarm interface connected to the external alarm
device.
Alarm Name
Custom a name for the alarm output.
Delay
Select Manual.
2. Click Manual Alarm to enable manual alarm output.
3. Optional: Click Clear Alarm to disable manual alarm output.
Automatic Alarm
Set the automatic alarm parameters, then the device triggers an alarm output automatically in the
set arming schedule.
Steps
1. Set automatic alarm parameters.
Alarm Output No.
Select the alarm output No. according to the alarm interface connected to the external alarm
device.
Alarm Name
Custom a name for the alarm output.
Delay
It refers to the time duration that the alarm output remains after an alarm occurs.
2. Set the alarming schedule. For the information about the settings, see Set Arming Schedule.
3. Click Copy to… to copy the parameters to other alarm output channels.
4. Click Save.
8.2.2 FTP/NAS/Memory Card Uploading
If you have enabled and configured the FTP/NAS/memory card uploading, the device sends the
alarm information to the FTP server, network attached storage and memory card when an alarm is
triggered.
Refer to Set FTP to set the FTP server.
Refer to Set NAS for NAS configuration.
Network Camera User Manual
70
Refer to Set Memory Card for memory card storage configuration.
8.2.3 Send Email
Check Send Email, and the device sends an email to the designated addresses with alarm
information when an alarm event is detected.
For email settings, refer to Set Email.
Set Email
When the email is configured and Send Email is enabled as a linkage method, the device sends an
email notification to all designated receivers if an alarm event is detected.
Before You Start
Set the DNS server before using the Email function. Go to Configuration → Network → Basic
Settings → TCP/IP for DNS settings.
Steps
1. Go to email settings page: Configuration → Network → Advanced Settings → Email.
2. Set email parameters.
1) Input the sender's email information, including the Sender's Address, SMTP Server, and
SMTP Port.
2) Optional: If your email server requires authentication, check Authentication and input your
user name and password to log in to the server.
3) Set the E-mail Encryption.
● When you select SSL or TLS, and disable STARTTLS, emails are sent after encrypted by SSL
or TLS. The SMTP port should be set as 465.
● When you select SSL or TLS and Enable STARTTLS, emails are sent after encrypted by
STARTTLS, and the SMTP port should be set as 25.
Note
If you want to use STARTTLS, make sure that the protocol is supported by your email
server. If you check the Enable STARTTLS while the protocol is not supported by your email
sever, your email is sent with no encryption.
4) Optional: If you want to receive notification with alarm pictures, check Attached Image. The
notification email has 3 attached alarm pictures about the event with configurable image
capturing interval.
5) Input the receiver's information, including the receiver's name and address.
6) Click Test to see if the function is well configured.
3. Click Save.
Network Camera User Manual
71
8.2.4 Notify Surveillance Center
Check Notify Surveillance Center, the alarm information is uploaded to the surveillance center
when an alarm event is detected.
8.2.5 Trigger Recording
Check Trigger Recording, and the device records the video about the detected alarm event.
For recording settings, refer to Video Recording and Picture Capture
8.2.6 Flashing Light
After enabling Flashing Light and setting the Flashing Light Alarm Output, the light flashes when
an alarm event is detected.
Set Flashing Alarm Light Output
When events occur, the flashing light on the device can be triggered as an alarm.
Steps
1. Go to Configuration → Event → Basic Event → Flashing Alarm Light Output.
2. Set Flashing Duration, Flashing Frequency and Brightness.
Flashing Duration
The time that the flashing lasts when one alarm happens.
Flashing Frequency
The rate at which the light flashes. High frequency, medium frequency, low frequency, and
normally on are selectable.
Brightness
The brightness of the light.
3. Set the arming schedule. See Set Arming Schedule for details.
4. Click Save.
Note
Only certain device models support the function.
8.2.7 Audible Warning
After enabling Audible Warning and setting Audible Alarm Output, the built-in speaker of the
device or connected external speaker plays warning sounds when an alarm happens.
For audible alarm output settings, refer to Set Audible Alarm Output.
Network Camera User Manual
72
Note
The function is only supported by certain camera models.
Set Audible Alarm Output
When the device detects targets in the detection area, audible alarm can be triggered as a
warning.
Steps
1. Go to Configuration → Event → Basic Event → Audible Alarm Output.
2. Select Sound Type and set related parameters.
– Select Prompt and set the alarm times you need.
– Select Warning and its contents. Set the alarm times you need.
– Select Custom Audio. You can select a custom audio file from the drop-down list. If no file is
available, you can click Add to upload an audio file that meets the requirement. Up to three
audio files can be uploaded.
3. Optional: Click Test to play the selected audio file on the device.
4. Set arming schedule for audible alarm. See Set Arming Schedule for details.
5. Click Save.
Note
The function is only supported by certain device models.
Network Camera User Manual
73
Chapter 9 System and Security
It introduces system maintenance, system settings and security management, and explains how to
configure relevant parameters.
9.1 View Device Information
You can view device information, such as Device No., Model, Serial No. and Firmware Version.
Enter Configuration → System → System Settings → Basic Information to view the device
information.
9.2 Search and Manage Log
Log helps locate and troubleshoot problems.
Steps
1. Go to Configuration → System → Maintenance → Log.
2. Set search conditions Major Type, Minor Type, Start Time, and End Time.
3. Click Search.
The matched log files will be displayed on the log list.
4. Optional: Click Export to save the log files in your computer.
9.3 Simultaneous Login
The administrator can set the maximum number of users logging into the system through web
browser simultaneously.
Go to Configuration → System → User Management, click General and set Simultaneous Login.
9.4 Import and Export Configuration File
It helps speed up batch configuration on other devices with the same parameters.
Enter Configuration → System → Maintenance → Upgrade & Maintenance. Choose device
parameters that need to be imported or exported and follow the instructions on the interface to
import or export configuration file.
9.5 Export Diagnose Information
Diagnose information includes running log, system information, hardware information.
Go to Configuration → System → Maintenance → Upgrade & Maintenance, and click Diagnose
Network Camera User Manual
74
Information to export diagnose information of the device.
9.6 Reboot
You can reboot the device via browser.
Go to Configuration → System → Maintenance → Upgrade & Maintenance, and click Reboot.
9.7 Restore and Default
Restore and Default helps restore the device parameters to the default settings.
Steps
1. Go to Configuration → System → Maintenance → Upgrade & Maintenance.
2. Click Restore or Default according to your needs.
Restore
Reset device parameters, except user information, IP parameters and
video format to the default settings.
Default
Reset all the parameters to the factory default.
Note
Be careful when using this function. After resetting to the factory
default, all the parameters are reset to the default settings.
9.8 Upgrade
Before You Start
You need to obtain the correct upgrade package.
Caution
DO NOT disconnect power during the process, and the device reboots automatically after upgrade.
Steps
1. Go to Configuration → System → Maintenance → Upgrade & Maintenance.
2. Choose one method to upgrade.
Firmware
Locate the exact path of the upgrade file.
Firmware Directory
Locate the directory which the upgrade file belongs to.
Network Camera User Manual
75
3. Click Browse to select the upgrade file.
4. Click Upgrade.
9.9 View Open Source Software License
Go to Configuration → System → System Settings → About Device, and click View Licenses.
9.10 Time and Date
You can configure time and date of the device by configuring time zone, time synchronization and
Daylight Saving Time (DST).
9.10.1 Synchronize Time Manually
Steps
1. Go to Configuration → System → System Settings → Time Settings.
2. Select Time Zone.
3. Click Manual Time Sync..
4. Choose one time synchronization method.
– Select Set Time, and manually input or select date and time from the pop-up calendar.
Check Sync. with computer time to synchronize the time of the device with that of the local PC.
5. Click Save.
9.10.2 Set NTP Server
You can use NTP server when accurate and reliable time source is required.
Before You Start
Set up a NTP server or obtain NTP server information.
Steps
1. Go to Configuration → System → System Settings → Time Settings.
2. Select Time Zone.
3. Click NTP.
4. Set Server Address, NTP Port and Interval.
Note
Server Address is NTP server IP address.
5. Click Test to test server connection.
6. Click Save.
Network Camera User Manual
76
9.10.3 Synchronize Time by Satellite
Note
This function varies depending on different devices.
Steps
1. Enter Configuration → System → System Settings → Time Settings.
2. Select Satellite Time Sync..
3. Set Interval.
4. Click Save.
9.10.4 Set DST
If the region where the device is located adopts Daylight Saving Time (DST), you can set this
function.
Steps
1. Go to Configuration → System → System Settings → DST.
2. Check Enable DST.
3. Select Start Time, End Time and DST Bias.
4. Click Save.
9.11 Set RS-485
RS-485 is used to connect the device to external device. You can use RS-485 to transmit the data
between the device and the computer or terminal when the communication distance is too long.
Before You Start
Connect the device and computer or termial with RS-485 cable.
Steps
1. Go to Configuration → System → System Settings → RS-485.
2. Set the RS-485 parameters.
Note
You should keep the parameters of the device and the computer or terminal all the same.
3. Click Save.
Network Camera User Manual
77
9.12 Set RS-232
RS-232 can be used to debug device or access peripheral device. RS-232 can realize
communication between the device and computer or terminal when the communication distance
is short.
Before You Start
Connect the device to computer or terminal with RS-232 cable.
Steps
1. Go to Configuration → System → System Settings → RS-232.
2. Set RS-232 parameters to match the device with computer or terminal.
3. Click Save.
9.13 External Device
For the device supporting external devices, including the supplement light, wiper on the housing
and the LED light, you can control them via the Web browser when it is used with the housing.
External devices vary with models.
Brightness
Adjust Low Beam Brightness and High Beam Brightness according to the actual scene.
Timing
The LED light will be turned on by the schedule you set. You should set Start Time and End
Time.
Auto
The LED light will be turned on according to the environment illumination.
9.13.1 Supplement Light Settings
You can set supplement light and refer to the actual device for relevant parameters.
Smart Supplement Light
Smart supplement light avoids over exposure when the supplement light is on.
Supplement Light Mode
When the device supports supplement light, you can select supplement light mode.
IR Mode
IR light is enabled.
White Light Mode
White light is enabled.
Mix Mode
Network Camera User Manual
78
Both IR light and white light are enabled.
Off
Supplement light is disabled.
Brightness Adjustment Mode
Auto
The brightness adjusts according to the actual environment automatically.
Manual
You can drag the slider or set value to adjust the brightness.
9.14 Security
You can improve system security by setting security parameters.
9.14.1 Authentication
You can improve network access security by setting RTSP and WEB authentication.
Go to Configuration → System → Security → Authentication to choose authentication protocol
and method according to your needs.
RTSP Authentication
Digest and digest/basic are supported, which means authentication information is needed when
RTSP request is sent to the device. If you select digest/basic, it means the device supports
digest or basic authentication. If you select digest, the device only supports digest
authentication.
RTSP Digest Algorithm
MD5, SHA256 and MD5/SHA256 encrypted algorithm in RTSP authentication. If you enable the
digest algorithm except for MD5, the third-party platform might not be able to log in to the
device or enable live view because of compatibility. The encrypted algorithm with high strength
is recommended.
WEB Authentication
Digest and digest/basic are supported, which means authentication information is needed when
WEB request is sent to the device. If you select digest/basic, it means the device supports digest
or basic authentication. If you select digest, the device only supports digest authentication.
WEB Digest Algorithm
MD5, SHA256 and MD5/SHA256 encrypted algorithm in WEB authentication. If you enable the
digest algorithm except for MD5, the third-party platform might not be able to log in to the
device or enable live view because of compatibility. The encrypted algorithm with high strength
is recommended.
Network Camera User Manual
79
Note
Refer to the specific content of protocol to view authentication requirements.
9.14.2 Set IP Address Filter
IP address filter is a tool for access control. You can enable the IP address filter to allow or forbid
the visits from the certain IP addresses.
IP address refers to IPv4.
Steps
1. Go to Configuration → System → Security → IP Address Filter.
2. Check Enable IP Address Filter.
3. Select the type of IP address filter.
Forbidden
IP addresses in the list cannot access the device.
Allowed
Only IP addresses in the list can access the device.
4. Edit the IP address filter list.
Add
Add a new IP address or IP address range to the list.
Modify
Modify the selected IP address or IP address range in the list.
Delete
Delete the selected IP address or IP address range in the list.
5. Click Save.
9.14.3 Set HTTPS
HTTPS is a network protocol that enables encrypted transmission and identity authentication,
which improves the security of remote access.
Steps
1. Go to Configuration → Network → Advanced Settings → HTTPS.
2. Check Enable to access the camera via HTTP or HTTPS protocol.
3. Check Enable HTTPS Browsing to access the camera only via HTTPS protocol.
4. Select the Server Certificate.
5. Click Save.
Note
If the function is abnormal, check if the selected certificate is abnormal in Certificate
Management.
Network Camera User Manual
80
9.14.4 Set QoS
QoS (Quality of Service) can help improve the network delay and network congestion by setting
the priority of data sending.
Note
QoS needs support from network device such as router and switch.
Steps
1. Go to Configuration → Network → Advanced Configuration → QoS.
2. Set Video/Audio DSCP, Alarm DSCP and Management DSCP.
Note
Network can identify the priority of data transmission. The bigger the DSCP value is, the higher
the priority is. You need to set the same value in router while configuration.
3. Click Save.
9.14.5 Set IEEE 802.1X
IEEE 802.1x is a port-based network access control. It enhances the security level of the
LAN/WLAN. When devices connect to the network with IEEE 802.1x standard, the authentication is
needed.
Go to Configuration → Network → Advanced Settings → 802.1X, and enable the function.
Set Protocol and EAPOL Version according to router information.
Protocol
EAP-LEAP, EAP-TLS, and EAP-MD5 are selectable
EAP-LEAP and EAP-MD5
If you use EAP-LEAP or EAP-MD5, the authentication server must be configured. Register a
user name and password for 802.1X in the server in advance. Input the user name and
password for authentication.
EAP-TLS
If you use EAP-TLS, input Identify, Private Key Password, and upload CA Certificate, User
Certificate and Private Key.
EAPOL Version
The EAPOL version must be identical with that of the router or the switch.
9.14.6 Control Timeout Settings
If this function is enabled, you will be logged out when you make no operation (not including
Network Camera User Manual
81
viewing live image) to the device via web browser within the set timeout period.
Go to Configuration → System → Security → Advanced Security to complete settings.
9.14.7 Search Security Audit Logs
You can search and analyze the security log files of the device so as to find out the illegal intrusion
and troubleshoot the security events.
Steps
Note
This function is only supported by certain camera models.
1. Go to Configuration → System → Maintenance → Security Audit Log.
2. Select log types, Start Time, and End Time.
3. Click Search.
The log files that match the search conditions will be displayed on the Log List.
4. Optional: Click Export to save the log files to your computer.
9.14.8 Security Reinforcement
Security reinforce is a solution to enhance network security. With the function enabled, risky
functions, protocols, ports of the device are disabled and more secured alternative functions,
protocols and ports are enabled.
Go to Configuration → System → Security → Advanced Security. Check Security Reinforcement,
and click Save.
9.15 Certificate Management
It helps to manage the server/client certificates and CA certificate, and to send an alarm if the
certificates are close to expiry date, or are expired/abnormal.
9.15.1 Create Self-signed Certificate
Steps
1. Click Create Self-signed Certificate.
2. Follow the prompt to enter Certificate ID, Country, Hostname/IP, Validity and other
parameters.
Note
The certificate ID should be digits or letters and be no more than 64 characters.
Network Camera User Manual
82
3. Click OK.
4. Optional: Click Export to export the certificate, or click Delete to delete the certificate to
recreate a certificate, or click Certificate Properties to view the certificate details.
9.15.2 Create Certificate Request
Before You Start
Select a self-signed certificate.
Steps
1. Click Create Certificate Request.
2. Enter the related information.
3. Click OK.
9.15.3 Import Certificate
Steps
1. Click Import.
2. Click Create Certificate Request.
3. Enter the Certificate ID.
4. Click Browser to select the desired server/client certificate.
5. Select the desired import method and enter the required information.
6. Click OK.
7. Optional: Click Export to export the certificate, or click Delete to delete the certificate to
recreate a certificate, or click Certificate Properties to view the certificate details.
Note
● Up to 16 certificates are allowed.
● If certain functions are using the certificate, it cannot be deleted.
● You can view the functions that are using the certificate in the functions column.
● You cannot create a certificate that has the same ID with that of the existing certificate and
import a certificate that has the same content with that of the existing certificate.
9.15.4 Install Server/Client Certificate
Steps
1. Go to Configuration → System → Security → Certificate Management.
2. Click Create Self-signed Certificate, Create Certificate Request and Import to install
server/client certificate.
Create self-signed
Refer to Create Self-signed Certificate
Network Camera User Manual
83
certificate
Create certificate
request
Refer to Create Certificate Request
Import Certificate
Refer to Import Certificate
9.15.5 Install CA Certificate
Steps
1. Click Import.
2. Enter the Certificate ID.
3. Click Browser to select the desired server/client certificate.
4. Select the desired import method and enter the required information.
5. Click OK.
Note
Up to 16 certificates are allowed.
9.15.6 Enable Certificate Expiration Alarm
Steps
1. Check Enable Certificate Expiration Alarm. If enabled, you will receive an email or the camera
links to the surveillance center that the certificate will expire soon, or is expired or abnormal.
2. Set the Remind Me Before Expiration (day), Alarm Frequency (day) and Detection Time (hour).
Note
● If you set the reminding day before expiration to 1, then the camera will remind you the day
before the expiration day. 1 to 30 days are available. Seven days is the default reminding
days.
● If you set the reminding day before expiration to 1, and the detection time to 10:00, and the
certificate will expire in 9:00 the next day, the camera will remind you in 10:00 the first day.
3. Click Save.
Network Camera User Manual
84
9.16 User and Account
9.16.1 Set User Account and Permission
The administrator can add, modify, or delete other accounts, and grant different permission to
different user levels.
Caution
To increase security of using the device on the network, please change the password of your
account regularly. Changing the password every 3 months is recommended. If the device is used in
high-risk environment, it is recommended that the password should be changed every month or
week.
Steps
1. Go to Configuration → System → User Management → User Management.
2. Click Add. Enter User Name, select Level, and enter Password. Assign remote permission to
users based on needs.
Administrator
The administrator has the authority to all operations and can add users and operators and
assign permission.
User
Users can be assigned permission of viewing live video, setting PTZ parameters, and changing
their own passwords, but no permission for other operations.
Operator
Operators can be assigned all permission except for operations on the administrator and
creating accounts.
Modify
Select a user and click Modify to change the password and
permission.
Delete
Select a user and click Delete.
Note
The administrator can add up to 31 user accounts.
3. Click OK.
Network Camera User Manual
85
9.16.2 Simultaneous Login
The administrator can set the maximum number of users logging into the system through web
browser simultaneously.
Go to Configuration → System → User Management, click General and set Simultaneous Login.
9.16.3 Online Users
The information of users logging into the device is shown.
Go to Configuration → System → User Management → Online Users to view the list of online
users.
Network Camera User Manual
86
Chapter 10 Allocate VCA Resource
VCA resource offers you options to enable certain VCA functions according to actual needs. It
helps allocate more resources to the desired functions.
Steps
1. Go to Configuration → System → System Settings → VCA Resource.
2. Select desired VCA function.
3. Save the settings.
Note
Some VCA functions are mutually exclusive. When certain function or functions are selected and
saved, others will not be hidden.
10.1 Face Capture
The device can capture the face that appears in the configured area, and the face information will
be uploaded with the captured picture as well.
Note
● For device that supports face capture, you need to enable the function in VCA Resource. Refer
to Allocate VCA Resource for details.
● Face capture is only supported by certain models.
10.1.1 Set Face Capture
The face that appears in the configured area can be captured.
Before You Start
To enable the function, go to VCA Resource and select Face Capture.
Steps
1. Go to Configuration → Face Capture.
2. For shield region settings, refer to Set Shield Region.
3. Select Rule and check Rule.
4. Click to draw the detection area. It is recommended that the drawn area occupies 1/2 to
2/3 of the live view image.
5. Click and draw a rectangle based on the pupil distance of the face on the live view.
Network Camera User Manual
87
Figure 10-1 Set face capture
The device will detect whether there is a human face in the area by the set minimum pupil
distance.
6. For the arming schedule settings, refer to Set Arming Schedule. For the linkage method settings,
refer to Linkage Method Settings.
7. Click Save.
8. For overlay and capture settings, refer to Overlay and Capture. For advanced parameters
settings, refer to Face Capture Algorithms Parameters.
Result
You can view and download captured face images in Picture. Refer to View and Download Picture
for details.
10.1.2 Overlay and Capture
Choose to configure capture parameters and the information you want to display on stream and
picture.
Display VCA info. on Stream
Display smart information on stream, including the target and rules information.
Display Target info. on Alarm Picture
Overlay the alarm picture with target information.
Target Picture Settings
Custom, Head Shot, Half-Body Shot and Full-Body Shot are selectable.
Note
If you select Custom, you can customize width, head height and body height as required.
You can check Fixed Value to set the picture height.
Background Picture Settings
Comparing to target picture, background picture is the scene image offers extra environmental
