Hikvision DSCD883FE Specsheet

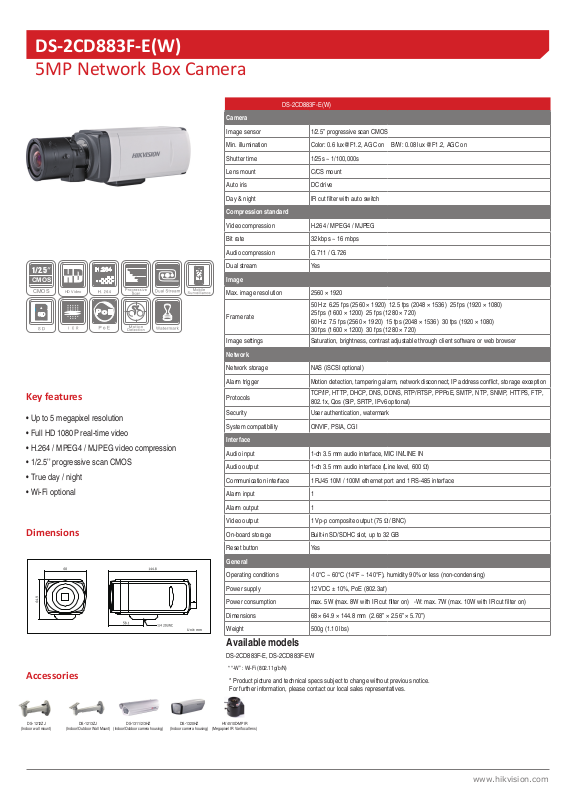

DS-2CD883F-E(W)

5MP Network Box Camera

1/2.5”

CMOS

CMOS

Key features

• Up to 5 megapixel resolution

• Full HD 1080P real-time video

• H.264 / MPEG4 / MJPEG video compression

• 1/2.5’’ progressive scan CMOS

• True day / night

• Wi-Fi optional

Dimensions

Accessories

HD Video

Unit: mm

DS-2CD883F-E(W)

Camera

Image sensor 1/2.5” progressive scan CMOS

Min. illumination Color: 0.6 lux@F1.2, AGC on B/W: 0.08 lux @F1.2, AGC on

Shutter time 1/25s ~ 1/100,000s

Lens mount C/CS mount

Auto iris DC drive

Day & night IR cut lter with auto switch

Compression standard

Video compression H.264 / MPEG4 / MJPEG

Bit rate 32 kbps ~ 16 mbps

Audio compression G.711 / G.726

Dual stream Yes


Max. image resolution 2560 × 1920

50 Hz: 6.25 fps (2560 × 1920) 12.5 fps (2048 × 1536) 25 fps (1920 × 1080)

Frame rate

Image settings Saturation, brightness, contrast adjustable through client software or web browser

Network

Network storage NAS (iSCSI optional)

Alarm trigger Motion detection, tampering alarm, network disconnect, IP address conict, storage exception

Protocols

Security User authentication, watermark

System compatibility ONVIF, PSIA, CGI

Interface

Audio input 1-ch 3.5 mm audio interface, MIC IN/LINE IN

Audio output 1-ch 3.5 mm audio interface (Line level, 600 Ω)

Communication interface 1 RJ45 10M / 100M ethernet port and 1 RS-485 interface

Alarm input 1

Alarm output 1

Video output 1 Vp-p composite output (75 Ω / BNC)

On-board storage Built-in SD/SDHC slot, up to 32 GB

Reset button Yes

General

Operating conditions -10°C ~ 60°C (14°F ~ 140°F), humidity 90% or less (non-condensing)

Power supply 12 VDC ± 10%, PoE (802.3af)

Power consumption max. 5W (max. 8W with IR cut lter on) -W: max. 7W (max. 10W with IR cut lter on)

Dimensions 68 × 64.9 × 144.8 mm (2.68” × 2.56” × 5.70”)

Weight 500g (1.10 lbs)

25 fps (1600 × 1200) 25 fps (1280 × 720)
60 Hz: 7.5 fps (2560 × 1920) 15 fps (2048 × 1536) 30 fps (1920 × 1080)
30 fps (1600 × 1200) 30 fps (1280 × 720)

TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,

802.1x, Qos (SIP, SRTP, IPv6 optional)

Available models

DS-2CD883F-E, DS-2CD883F-EW

* “-W” : Wi-Fi (802.11g/b/N)

* Product picture and technical specs subject to change without previous notice.
For further information, please contact our local sales representatives.

DS-1212ZJ

(Indoor wall mount)

DS-1213ZJ

(Indoor/Outdoor Wall Mount)

DS-1311/2/3HZ

(Indoor/Outdoor camera housing)

DS-1320HZ

(Indoor camera housing)

HV4510D-MPIR

(Megapixel IR Varifocal lens)
