DS-2DF1-574D
Key feature
System function:
1/3" SONY high performance sensor, up to 1280x960 resolution
±0.1° Preset Accuracy
CGI(Common Gateway Interface) 、 PSIA(Physical Security Interoperability Alliance), to ensure greater
interoperability between different platforms and compatibility
3D intelligent positioning function
Power-off memory function: restore PTZ & Lens status after reboot
IP66 standard (outdoor dome)
3D DNR
Fiber optical interface optional
Scheduled PTZ movement
Camera function:
Auto iris, auto focus, auto white balance, backlight compensation and auto day & night switch
PTZ function:
360° endless pan range and -5°-90° tilt range
540°/s Pan Preset Speed and 400°/s Tilt Preset Speed
0.1°-300°/s Manual Pan Speed and 0.1°-240°/s Manual Tilt Speed
256 presets programmable, preset image freezing capability
8 patrols, up to 32 presets per patrol
4 patterns, with the recording time not less than 10 min per pattern
Park action: auto callup of PTZ movement, after a defined time of inactivity
7 alarm inputs and 2 alarm outputs
Network function:
H.264/MJPEG video compression and the latest DaVinci processing chip and platform
Built-in Web server
SD/SDHC card local storage
Dual stream
Multiple network protocols supported: TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,RTSP,PPPoE,SMTP,NTP(FTP,SNMP
optional )
Hikvision Technical Manual
©2006 – 2012 by HIKVISION. All rights reserved.
4
1 audio input and 1 audio output
Application Scenarios
It can be widely applied to places requiring wide-area monitoring and high-definition display, such as rivers, forests,
highways, railways, airports, ports, sentries, squares, parks, scenic sites, streets, stations, large venues, outside of
residential areas, etc
Specification
Model
Parameter
DS-2DF1-574D(Outdoor)
DS-2DF1-5704D(Indoor)
DS-2DF1-5734D(In-ceiling)
1.3 Megapixel 5 Inch Network High Speed Dome
Camera
Image Sensor
1/3’’ Progressive Scan CMOS
Effective Pixel
1300K pixels
Min.Illuminati
on
Color: 0.05Lux@( F1.4, AGC ON)
B/W: 0.005Lux@( F1.4, AGC ON)
White Balance
Auto / Manual / One Touch WB / ATW
AGC
Auto / Manual
S / N Ratio
≥ 50dB
DNR
off/normal/expert
BLC
On / Off
Shutter Time
50HZ: 1/25-1/100,000s
60HZ: 1/30-1/100,000s
Day & Night
IR Cut Filter
Digital Zoom
一
Privacy Mask
24 privacy masks programmable
Focus Model
Auto / Semiautomatic / Manual
Lens
Focal Length
4.3-86.0mm, 20x
Zoom Speed
Approx.5s(Optical Wide-Tele)
Angle of View
54.1-3.2 degree (Wide-Tele)
Min. Working
Distance
10-1,500mm(Wide-Tele)
Aperture
Range
F1.4- F2.6
Pan and
Tilt
Pan Range
360°endless
Pan Speed
Pan Manual Speed: 0.1° -300°/s,
Pan Preset Speed: 540°/s
Tilt Range
-5°-90°(Auto Flip)
Tilt Speed
Tilt Manual Speed: 0.1°-240°/s,
Tilt Preset Speed: 400°/s
Hikvision Technical Manual
©2006 – 2012 by HIKVISION. All rights reserved.
5
Proportional
Zoom
Rotation speed can be adjusted automatically according to zoom multiples
Number of
Preset
256
Patrol
8 patrols, up to 32 presets per patrol
Pattern
4 patterns, with the recording time not less than 10 min per pattern
Power-off
Memory
Support
Park Action
Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position
Display
On / Off
Freeze Frame
Support
Alarm
Alarm Input
7
Alarm Output
2 relay outputs, alarm response actions configurable
Alarm Actions
Preset, Patrol, Pattern, SD/SDHC card recording, Relay output, Notification on Client
Input/
Output
Monitor
Output
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
Audio Input
Audio input (Line input), 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output
Line level, impendance: 600Ω
Networ
k
Ethernet
10Base-T / 100Base-TX, RJ45 connector
Max.Image
Resolution
1280×960
Frame Rate
50HZ:25fps(1280×960P), 25fps (1280×720P)
60HZ:30fps(1280×960P), 30fps (1280×720P)
Compression
H.264
Audio
Compression
G.711 / 16kbps
Audio Mode
Off / Audio input / Audio output
Protocols
TCP/IP,HTTP,DHCP,DNS,RTP/RTCP,RTSP,PPPoE,SMTP,NTP(FTP,SNMP optional )
No. of
Simultaneous
Users
Up to 6 users
Dual Streams
Support
Mini SD
Memory Card
Manual REC / Alarm REC.
Built-in SD/SDHC Slot, up to 32GB
User/Host
Level
3 Levels: Administrator, Camera control, Live view only
Security
Measures
User authentication (ID and PW),
Host authentication (MAC address)
Client
Camera
Pan /Tilt, Zoom, Focus, Click centering, Drag zoom, Iris, Preset position call and program, Auto mode.
Hikvision Technical Manual
©2006 – 2012 by HIKVISION. All rights reserved.
6
GUI
Control
Camera Name
Up to 18 characters
Date & Time
Display
Time: Week: Date, 6 formats on the Client
Reading
Patrol
Message
Display and reading of preset message contained in each patrol via client software
Fiber
Optical
Interfac
e
(availab
le for
fiber
dome
only)
Data Mode
10Base-T / 100Base-TX
Physical
Interface
FC(SC optional)
Fiber
Wavelength
TX1310/RX1550nm
Fiber Type
Single Fiber/Singlemode
Transmission
Distance
20Km, 40Km / 60Km/ 80Km optional
General
Menu
Language
English
RS-485
Protocols(opti
onal)
HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply
24VAC (12V DC optional)
Power
Consumption
Outdoor dome:Max.45 W(Max.25 W with heater on)
Indoor/In-ceiling dome:Max.20 W
Working
Temperature
/ Humidity
-30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome )
90% or less
Protection
Level
IP66 standard (outdoor dome)
TVS 3,000V lightning protection, surge protection and voltage transient protection
Mounting
Various mounting modes optional
Dimension
Φ220×299.2mm (Φ8.66”×11.78”)(Outdoor)
Φ183.4×247mm(Φ7.22”×9.72”) (Indoor)
Φ245×240mm(Φ9.65”×9.45”) (In-ceiling)
Weight
(approx.)
5Kg (11.02Ibs)
Mount Option
Long-arm wall mount: DS-1614ZJ; Indoor short-arm wall mount: DS-1615ZJ
Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ
Hikvision Technical Manual
©2006 – 2012 by HIKVISION. All rights reserved.
7

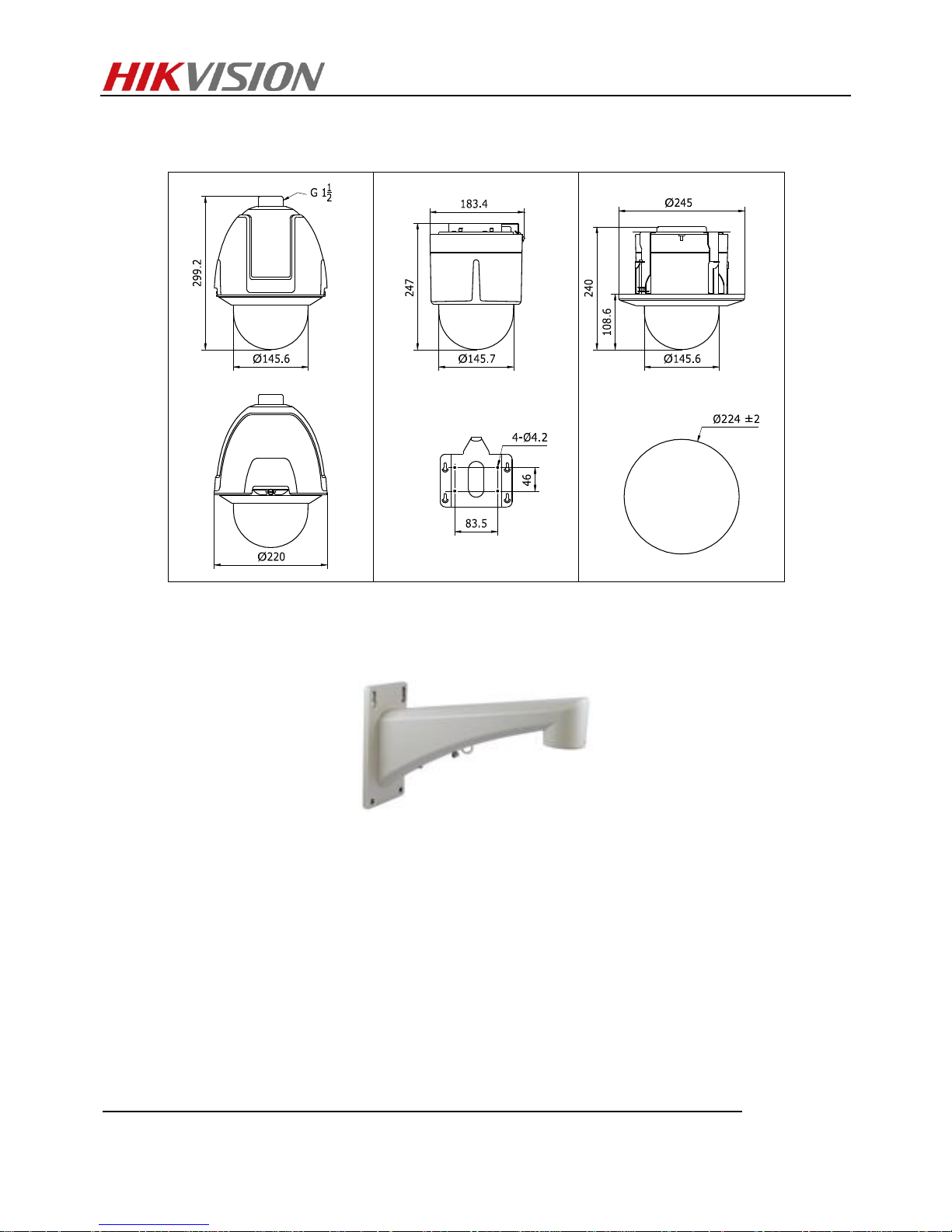

Dimension
Outdoor Indoor
In-ceiling
Bore Size
Unit: mm
Accessories
DS-1614ZJ Long-arm Wall Mount Bracket
