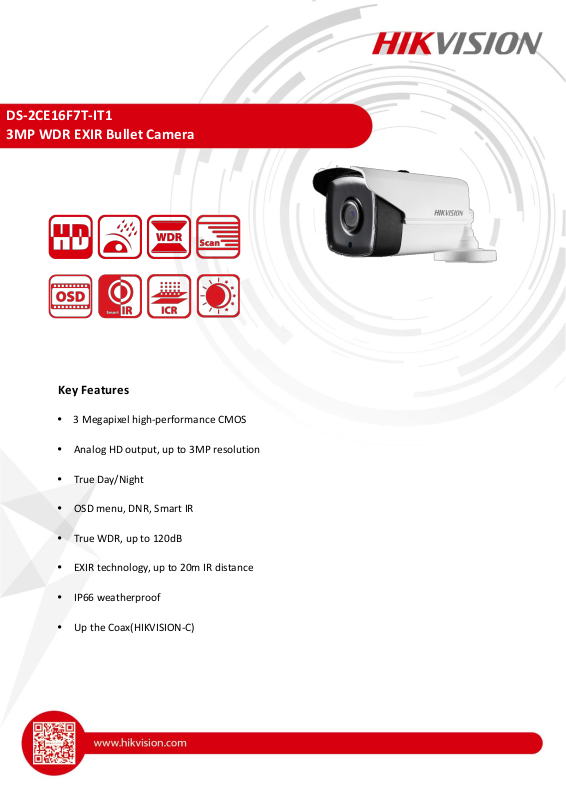

DS-2CE16F7T-IT1
3MP WDR EXIR Bullet Camera

 3 Megapixel high-performance CMOS

 Analog HD output, up to 3MP resolution

 True Day/Night

 OSD menu, DNR, Smart IR

 True WDR, up to 120dB

 EXIR technology, up to 20m IR distance

 IP66 weatherproof

 Up the Coax(HIKVISION-C)

Key Features

Specifications

Camera

Image Sensor

3MP CMOS Image Sensor

Effective Pixels

2052(H)*1536(V)

Min. illumination

0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR

Shutter Time

1/25(1/30)s to 1/50,000s

Lens

2.8mm, 3.6mm, 6mm optional

Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)

Lens Mount

M12

Day & Night

ICR

Angle Adjustment

Pan: 0° - 360°; Tilt:0° - 90°; Rotate: 0° - 360°

Synchronization

Internal Synchronization

WDR

120dB

Video Frame Rate

1920×1536@18fps

HD Video Output

1 Analog HD output

S/N Ratio

＞62dB

Menu

AGC

Support

D/N Mode

Color/BW/SMART

White Balance

ATW/ MWB

BLC

Support

Functions

Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR

General

Operating Conditions

-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)

Power Supply

12 VDC±15%

Power Consumption

Max. 5W

Protection Level

IP66

IR Range

Up to 20m

Communication

Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions

86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)

Weight

Approx. 680g (1.5lb)
