Hikvision DS-2CE16F1T-IT User Manual

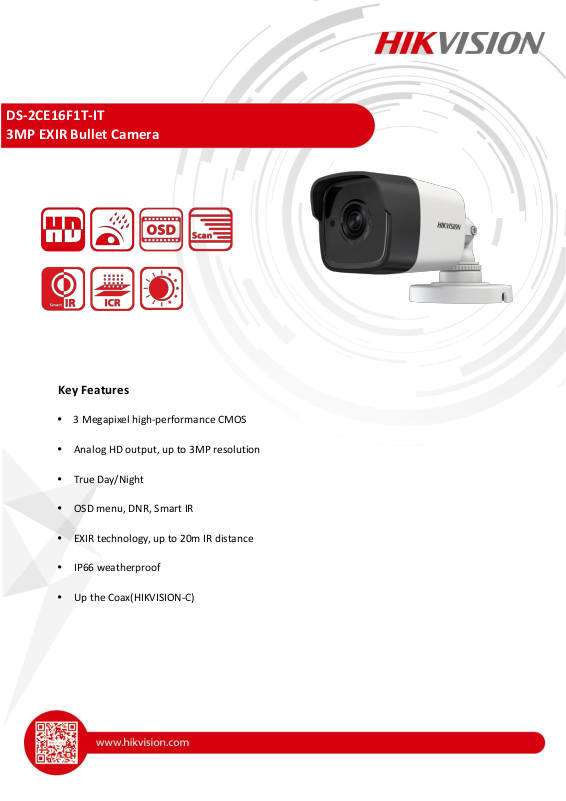

DS-2CE16F1T-IT
3MP EXIR Bullet Camera
Key Features
3 Megapixel high-performance CMOS
Analog HD output, up to 3MP resolution
True Day/Night
OSD menu, DNR, Smart IR
EXIR technology, up to 20m IR distance
IP66 weatherproof
Up the Coax(HIKVISION-C)
|
Specifications |
|
|
|
|
Camera |
|
|
|
|
|
Image Sensor |
3MP CMOS Image Sensor |
|
|
|
|
Effective Pixels |
2052(H)*1536(V) |
|
|
|
|
Min. illumination |
0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR |
|
|
|
|
Shutter Time |
1/25(1/30)s to 1/50,000s |
|
|
|
|
|
2.8mm, 3.6mm, 6mm optional |
|
Lens |
|
|
Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm) |
||
|
||
|
|
|
Lens Mount |
M12 |
|
|
|
|
Day & Night |
ICR |
|
|
|
|
Angle Adjustment |
Pan: 0°- 360°; Tilt:0°- 90°; Rotate: 0°- 360° |
|
|
|
|
Synchronization |
Internal Synchronization |
|
|
|
|
Video Frame Rate |
1920×1536@18fps |
|
|
|
|
HD Video Output |
1 Analog HD output |
|
|
|
|
S/N Ratio |
62dB |
|
|
|
|
Menu |
|
|
|
|
|
AGC |
Support |
|
|
|
|
D/N Mode |
Color/BW/SMART |
|
|
|
|
White Balance |
ATW/ MWB |
|
|
|
|
BLC |
Support |
|
|
|
|
Functions |
Digital noise reduction, Mirror, SMART IR |
|
General |
|
|
|
|
|
Operating Conditions |
-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing) |
|
|
|
|
Power Supply |
12 VDC±15% |
|
|
|
|
Power Consumption |
Max. 5W |
|
|
|
|
Protection Level |
IP66 |
|
|
|
|
IR Range |
Up to 20m |
|
|
|
|
Communication |
Up the coax, Protocol: HIKVISION-C (TVI output) |
|
|
|
|
Dimensions |
58.5mm×55.5mm×153.6mm (2.30”×2.19”×6.05”) |
|
|
|
|
Weight |
Approx. 370g (0.82lb) |
|
|
|
