Hikvision DS-2CD783F-EIZ User Manual

Network Camera

Installation Manual

V5.0

Hangzhou Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

UD.6L0201A1008A01

Installation Manual of Network Camera

Type

Model

Box camera I

DS-2CD883F-E(W), DS-2CD855(F)-E, DS-2CD854F(WD)-E(W), DS-2CD853F-E(W), DS-2CD864F(WD)-E(W), DS-2CD863PF(NF)-E(W), DS-2CD893PFWD(NFWD)-E(W), DS-2CD833F-E(W), DS-2CD893PF(NF)-E(W)

Dome camera I

DS-2CD733F-E(I)(Z), DS-2CD793PF(NF)-E(I)(Z), DS-2CD793PFWD(NFWD)-E(I)(Z), DS-2CD763PF(NF)-E(I)(Z), DS-2CD764FWD-E(I)(Z), DS-2CD764F-E(I)(Z), DS-2CD753F-E(I)(Z), DS-2CD754F-E(I)(Z), DS-2CD754FWD-E(I)(Z)(B), DS-2CD783F-E(I)(Z), DS-2CD755F-E(I)(Z)

Dome camera II

DS-2CD7233F-E(I)Z(H)(S), DS-2CD7253F-E(I)Z(H)(S), DS-CD7254F-E(I)Z(H)(S), DS-CD7254FWD- E(I)Z(H)(S), DS-2CD7255F- E(I)Z(H)(S), DS-2CD7283F-E(I)Z(H)(S), DS-2CD7293PFWD(NFWD)- E(I)Z(H)(S), DS-2CD7263NF(PF)- E(I)Z(H)(S), DS-2CD 7264FWD- E(I)Z(H)(S), DS-2CD7293PF(NF)- E(I)Z(H)(S)

Dome camera III

DS-2CD2312-I5, DS-2CD2332-I5

Dome camera IV

DS-2CD2112-(I), DS-2CD2132-(I)

Dome Camera V

DS-2CD7353F-E(I)(S), DS-2CD7393(PF)(NF)(WD)-E(I)(S)

Dome Camera VI

DS-2CD2712F-I(S); DS-2CD2732F-I(S)

Bullet Camera I

DS-2CD8253F- E(I)(Z)(S), DS-2CD8233F-E(I)(Z)(S), DS-2CD8264FWD-E(I)(Z)(S), DS-2CD8264F-E(I)(Z)(S), DS-2CD8254F- E(I)(Z)(S), DS-2CD8254FWD- E(I)(Z)(S), DS-2CD8283F- E(I)(Z)(S), DS-2CD8255F- E(I)(Z)(S), DS-2CD4212F-IS, DS-2CD4212F-IZS, DS-2CD4212F-I, DS-2CD4212F, DS-2CD4224-IZS, DS-2CD4224F-I

Bullet Camera II

DS-2CD864-EI(3)(5), DS-2CD855-EI(3)(5)

Bullet Camera III

DS-2CD2012-I, DS-2CD2032-I

Bullet Camera IV

DS-2CD2212-I(3)(5), DS-2CD2232-I(3)(5),

Bullet Camera V

DS-2CD2612F-I(S), DS-2CD2632F-I(S)

Cube Camera I

DS-2CD8133F-E(I)(W), DS-2CD8153F-E(I)(W)

Cube Camera II

DS-2CD8464F-E(I)(W), DS-2CD8433F-E(I)(W)

Mini Dome Camera

DS-2CD7164-E,DS-2CD7153-E, DS-2CD7133-E

Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. There is variety of structures of network cameras in our company. Installing instructions of all these cameras are listed in this manual. Find the model of your camera in the following list. Then according to the structure Type on the left of your camera Model, you can find corresponding chapter for instructions of your camera.

Installation Manual of Network Camera

This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security

or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY

OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

Installation Manual of Network Camera

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material damage.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.

Warnings:

 Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard.

And source with DC 12V or AC 24V (depending on models) according to the IEC60950-1 and

Limited Power Source standard.

 If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.)

 To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture.  This installation should be made by a qualified service person and should conform to all the local

codes.

 Please install blackouts equipment into the power supply circuit for convenient supply

interruption.

 Please make sure that the ceiling can support more than 50(N) Newton gravities if the camera is

fixed to the ceiling.

 If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for

problems caused by unauthorized repair or maintenance.)

Installation Manual of Network Camera

Notice:

 Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit

of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put

on the lens cap to protect the sensor from dirt.

 Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong

light can cause fatal damage to the camera.

 The sensor may be burned out by a laser beam, so when any laser equipment is being used,

make sure that the surface of the sensor not be exposed to the laser beam.

 Do not place the camera in extremely hot, cold temperatures (the operating temperature

should be between -10°C ~ 60°C ), dusty or damp environment, and do not expose it to high

electromagnetic radiation.

 To avoid heat accumulation, good ventilation is required for a proper operating environment.  Keep out of water and any liquid.  While shipping, the camera should be packed in its original packing.

 Improper use or replacement of the battery may result in hazard of explosion. Please use the

manufacturer recommended battery type.

Installation Manual of Network Camera

Table of Contents

CHAPTER 1 INTRODUCTION .................................................................................................................................... 1

1.1 APPLICATIONS .......................................................................................................................................................... 1

1.2 PREPARATIONS .......................................................................................................................................................... 1

CHAPTER 2 BOX CAMERA INSTALLATION ................................................................................................................. 2

2.1 APPEARANCE DESCRIPTION ......................................................................................................................................... 2

2.1.1 Box Camera I .................................................................................................................................................... 2

2.2 INSTALLATION ........................................................................................................................................................... 4

2.2.2 Lens Installation ............................................................................................................................................... 4

2.2.3 Wiring .............................................................................................................................................................. 4

2.2.4 Mounting ......................................................................................................................................................... 5

CHAPTER 3 DOME CAMERA INSTALLATION ............................................................................................................. 8

3.1 DOME CAMERA I ...................................................................................................................................................... 8

3.1.1 Appearance Description ................................................................................................................................... 8

3.1.2 Installation ....................................................................................................................................................... 9

3.2 DOME CAMERA II ................................................................................................................................................... 14

3.2.3 Appearance Description ................................................................................................................................. 14

3.2.4 Installation ..................................................................................................................................................... 15

3.3 DOME CAMERA III .................................................................................................................................................. 29

3.3.1 Overview ........................................................................................................................................................ 29

3.3.2 Installation ..................................................................................................................................................... 31

3.4 DOME CAMERA IV .................................................................................................................................................. 34

3.4.3 Overview ........................................................................................................................................................ 35

3.4.4 Installation ..................................................................................................................................................... 35

3.5 DOME CAMERA V ................................................................................................................................................... 38

3.5.5 Overview ........................................................................................................................................................ 38

3.5.6 Installation ..................................................................................................................................................... 39

3.6 DOME CAMERA VI .................................................................................................................................................. 42

3.6.7 Overview ........................................................................................................................................................ 42

3.6.8 Installation ..................................................................................................................................................... 43

IMAGE AND FOCUS ADJUSTING ............................................................................................................................................... 54

CHAPTER 4 BULLET CAMERA INSTALLATION ........................................................................................................... 57

4.1 BULLET CAMERA I ................................................................................................................................................... 57

4.1.1 Appearance Description ................................................................................................................................. 57

4.1.2 Installation ..................................................................................................................................................... 58

4.2 BULLET CAMERA II .................................................................................................................................................. 60

4.2.1 Appearance Description ................................................................................................................................. 60

4.2.2 Installation ..................................................................................................................................................... 61

4.3 BULLET CAMERA III ................................................................................................................................................. 63

4.3.3 Appearance Description ................................................................................................................................. 63

Installation Manual of Network Camera

4.3.4 Installation ..................................................................................................................................................... 63

4.4 BULLET CAMERA IV ................................................................................................................................................. 65

4.4.5 Appearance .................................................................................................................................................... 65

4.4.6 Installation ..................................................................................................................................................... 65

4.5 BULLET CAMERA V .................................................................................................................................................. 67

4.5.1 Appearance .................................................................................................................................................... 67

4.5.2 Installation ..................................................................................................................................................... 68

CHAPTER 5 CUBE CAMERA INSTALLATION .............................................................................................................. 75

5.1 CUBE CAMERA I ...................................................................................................................................................... 76

5.1.1 Appearance Description ................................................................................................................................. 76

5.1.2 Installation ..................................................................................................................................................... 77

5.2 CUBE CAMERA II ..................................................................................................................................................... 79

5.2.3 Appearance Description ................................................................................................................................. 79

5.2.4 Installation ..................................................................................................................................................... 80

CHAPTER 6 MINI DOME CAMERA INSTALLATION ................................................................................................... 84

6.1 APPEARANCE DESCRIPTION ....................................................................................................................................... 84

6.2 INSTALLATION ......................................................................................................................................................... 85

Installation Manual of Network Camera

Chapter 1 Introduction

The network camera is a kind of embedded digital surveillance product that combines the features of both traditional analog camera and net DVS (Digital V ideo Server). With a built-in video server, the network camera is capable of providing real-time video stream compression, processing, video analysis and transmission simultaneously. Applying the latest processing chip and hardware platform, the network camera can be widely applied to various surveillance and image processing systems with high reliability and stability.

1.1 Applications

This camera can be adopted for network video surveillance systems, e.g.:

 Network surveillance for over-the-counter activities in the banks, ATMs, supermarkets and

factories.

 Remote surveillance systems for nursing homes, kindergartens and schools.  Artificial Intelligent access control systems .  Artificial Intelligent office building/residential compounds management systems.  Unguarded power station and telecommunication base station surveillance systems.  Pipelining and warehousing monitoring systems.  Surveillance systems for airports, railway stations, bus stops, etc.

1.2 Preparations

Before you start:

 Verify the package contents are correct by checking the items against the packing list.  Read the following contents carefully before installation.  Make sure that all the related equipment is power-off during installation.  Check whether the power supply is matched with your AC outlet to avoid damage.  Do not place the camera in extremely hot or damp environment. To avoid heat

accumulation, good ventilation of the operating environment is required.

 If the product does not function properly, please contact your dealer or the nearest service

center. Do not disassemble the camera for repair or maintenance by yourself.

Installation Manual of Network Camera

No.

Description

Lens mount

Back focus ring

SD card slot

Auto-iris interface

10M/100M self-adaptive Ethernet interface

VIDEO OUT: Video output interface

AUDIO OUT: Audio output interface

POWER: Power LED indicator

Power supply interface

MIC IN: Audio input interface

D+, D-: RS-485 interface

IN, G: Alarm input interface

1A, 1B: Alarm output interface

Ground

RESET: Reset button

Chapter 2 Box Camera Installation

2.1 Appearance Description

2.1.1 Box Camera I

Camera description:

Figure 2-1 Overview

Table 2-1 Description

Installation Manual of Network Camera

DC-driven

Damp-

Damp+

Drive+

Drive-

Notes:

 To reset the default parameters to the camera, you need to press and hold the RESET

button and power on the camera. After the power on of the camera, you must still press and hold the Reset button for about 20 seconds.

 The type of auto-iris interface is shown in Figure 2-2, and the definition of each pin is

shown below:

Figure 2-2 Auto-iris Interface

Table 2-2 Pins

Damp+, Damp-, Drive+ and Drive- pins are used when the auto-iris is driven by DC.

Camera wiring Diagram:

Installation Manual of Network Camera

Figure 2-3 Wiring Diagram

2.2 Installation

Box camera I, II, III can be installed to wall or ceiling. Ceiling mounting is taken as an example in this section; if you adopt wall mounting, you can also take the below procedure as a reference.

2.2.2 Lens Installation

Steps:

1. Remove the back cover from the lens mount.

2. Screw your lens (not provided) clockwise onto the lens mount of the camera.

Note: Please prevent dust from entering between the lens mount and the lens.

Figure 2-4 Install the Lens

3. Plug the cable of the lens to the 4-pin auto-iris interface on the side of the camera.

2.2.3 Wiring

You can take the connection diagram of Figure 2-3 as a reference for connecting peripheral devices:

 Connecting the power supply

The cameras operate using a DC 12V power supply. You can simply plug the DC 12V wire to the supplied connector.

 Connecting a video output device

The camera with no HDMI interface provides a BNC connector of video output for debugging.

 Connecting audio input/output devices

You can connect an audio input device, such as a pickup, and an audio output device such as a speaker to the camera.

 Connecting alarms

It provides an alarm input and an output. You can connect alarm input and output devices with relay controlled circuits to the camera.

 Connecting a remote control device

RS-485 ports (D+, D-) are used for connecting to remote control devices, such as DVRs and

Installation Manual of Network Camera

keyboards.

 Grounding

The ground screw can be connected for grounding.

2.2.4 Mounting

Before you start:

These box cameras can be installed to wall or ceiling. Wall mounting is taken as an example in this section; if you adopt ceiling mounting, you can also take below procedure as a reference.

Steps:

1. Attach the wall mount (not provided) to the wall and tighten the screws to fix it.

Notes:

 The wall mount should be longer than 1/2 of the camera length.  For cement ceiling mounting, you need to use the expansion screw to fix the bracket. The

mounting hole of the expansion pipe on the wall should align with the mounting hole on the bracket.

 For wooden ceiling mounting, you can just use the self-tapping screw to fix the bracket.  The ceiling must be strong enough to withstand more than 3 times the weight of the camera

and the bracket.

Figure 2-5 Install the Wall Mount

2. Secure the camera to the wall mount with set screws.

3. Route the cables for the camera. Refer to the Section 2.2.3 Wiring for detailed information.

Figure 2-6 Route Cables

Installation Manual of Network Camera

Figure 2-7 Mount the Camera

Note: This camera is designed for indoor and outdoor use. To use the camera outdoors, it must be

installed in an approved outdoor housing as shown in Figure 2-8.

Figure 2-8 Wall Mounting with the Housing

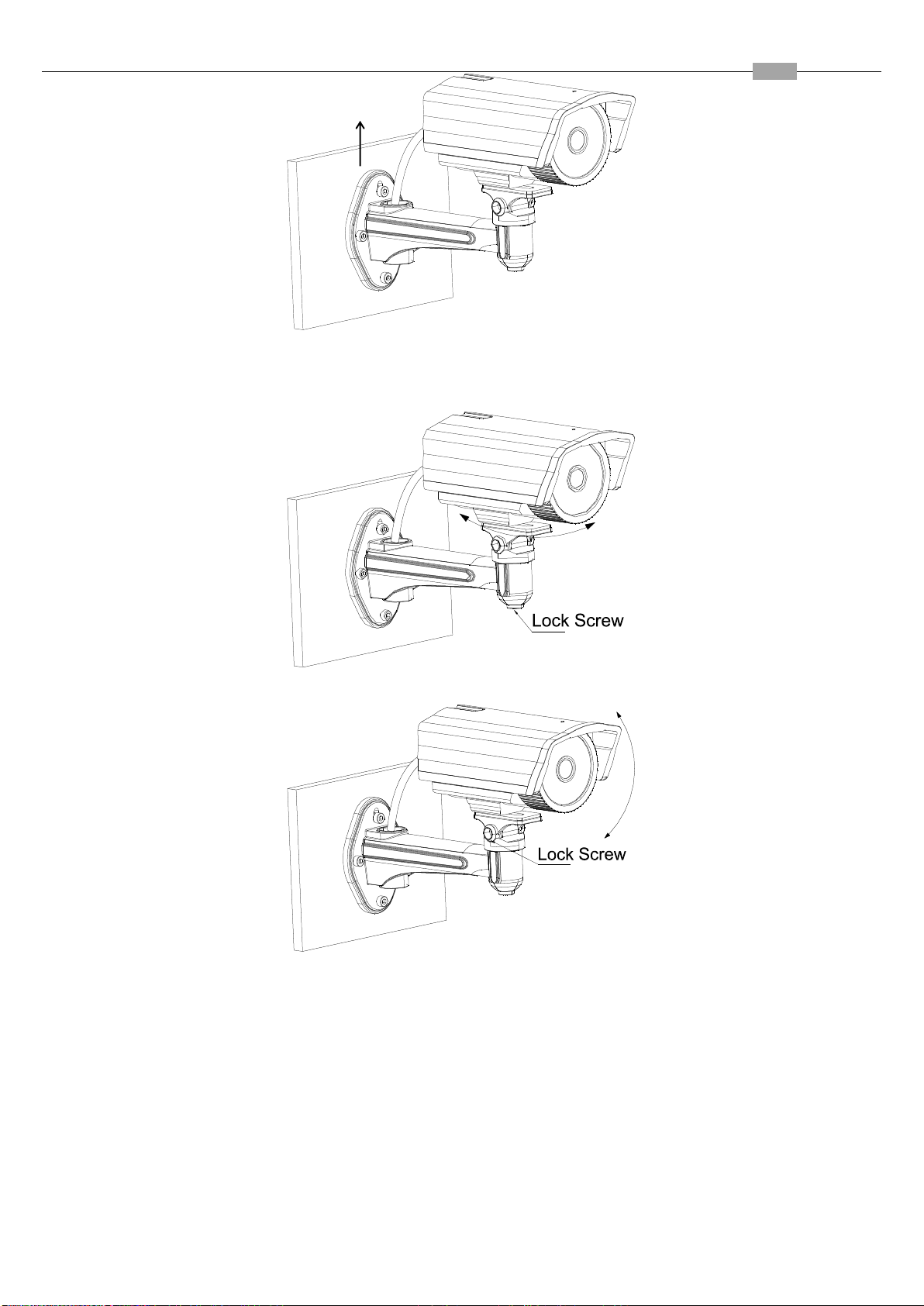

4. Loosen the panning lock screw, you can adjust the panning angle of the camera up to 360°

(Figure 2-9); Loosen the tilting lock screw, you can adjust the tilting angle of the camera up to 90° (Figure 2-10).

Figure 2-9 Panning

Installation Manual of Network Camera

Figure 2-10 Tilting

Installation Manual of Network Camera

No.

Description

10M/100M self-adaptive Ethernet interface

INITIAL SET: Reset button

AUDIO OUT: Audio output interface

MIC IN: Audio input interface

D+, D-: RS-485 interface

1A, 1B, 2A, 2B: Alarm output interface

IN1, GND, IN2, GND: Alarm input interface

Power supply interface

Chapter 3 Dome Camera Installation

3.1 Dome Camera I

3.1.1 Appearance Description

Camera description:

Figure 3-1 Overview

Table 3-1 Description

Note: To reset the default parameters to the camera, you need to press and hold the RESET button

and power on the camera. After the power on of the camera, you must still press and hold the Reset button for about 20 seconds

Camera wiring Diagram:

Installation Manual of Network Camera

3.1.2 Installation

Figure 3-2 Wiring Diagram

Ceiling mounting:

Note: If required, you can use a plier to remove the clip (one or two) on the side of the back box and

then route cables through the opening to secure the cables on the ceiling.

Figure 3-3 Remove the Clip

Steps:

1. Use the screws to fix the mounting base to the ceiling; rotate the back box counterclockwise to

secure it to the mounting base; use the lock screw to secure the dome camera.

Installation Manual of Network Camera

Figure 3-4 Mount the Camera

2. Loosen the set screws with the hex key (supplied) to remove the lower dome.

Figure 3-5 Remove the Lower Dome

3. Connect the RCA analog video output with a monitor to view the image of the camera. Loosen

the lens set screw and pan, tilt or rotate the lens to get a desired surveillance angle. Adjust the lens focus to obtain a perfect image. Fasten the lens set screw.

Figure 3-6 Adjust the image

Installation Manual of Network Camera

4. Reinstall the lower dome and tighten the screws.

Figure 3-7 Reinstall the Lower Dome

In-ceiling mounting:

Steps:

1. Secure the mounting base to the in-ceiling mounting base with screws.

Figure 3-8 Secure the Mounting Base

2. Push the dome camera to the in-ceiling mounting base, rotate the dome camera for 10 degrees

counterclockwise and then fasten the lock screws to fix the camera.

Installation Manual of Network Camera

Figure 3-9 Fix the Camera

3. Cut a 176~180 mm diameter hole in the ceiling and push the dome camera with in-ceiling

mounting base to the hole.

Note: The thickness of the ceiling should be less than 30 mm.

Figure 3-10 Mount the Camera

4. It is strongly recommended that you use a safety rope to secure the in-ceiling mounting base to

the roof.

Installation Manual of Network Camera

Figure 3-11 Safety rope

5. Fasten the lock screws to secure the dome camera.

Figure 3-12 Secure the Camera

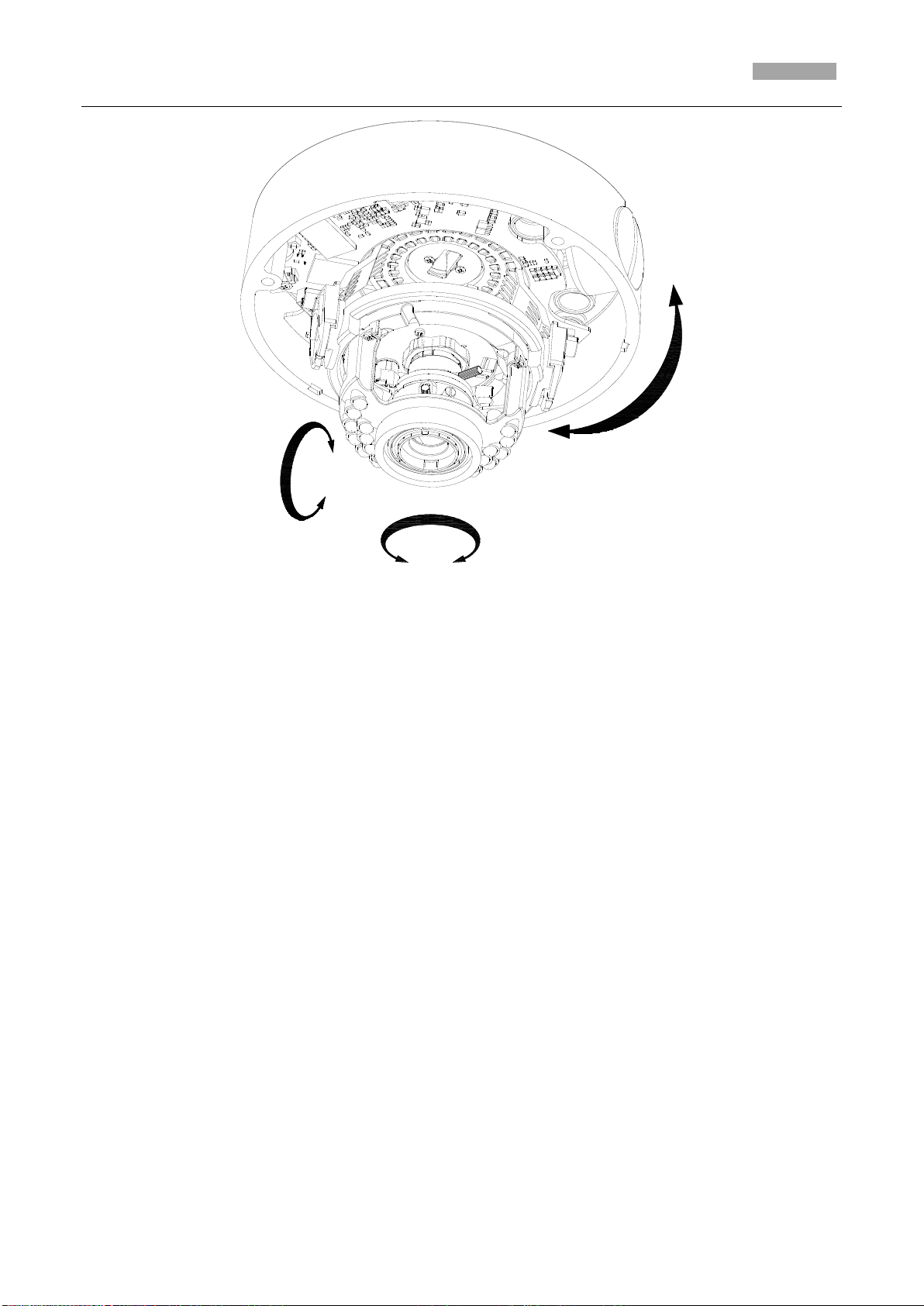

6. Remove the lower dome and connect the RCA analog video output with a monitor to view the

image of the camera. Loosen the lens set screw and pan, tilt or rotate the lens to get a desired surveillance angle. Adjust the lens focus to obtain a perfect image. Fasten the lens set screw.

Figure 3-13 Adjust the Image

7. Install the trim plate with screws to finish the installation.

Installation Manual of Network Camera

Figure 3-14 Reinstall the Lower Dome

3.2 Dome Camera II

3.2.3 Appearance Description

Camera description:

Installation Manual of Network Camera

No.

Description

Video output interface

LINK: Indicator is solid yellow when network is connected.

ACT: Indicator flashes blue when network connection is functioning properly.

PWR: Indicator is solid red when the device is powered on.

Micro SD slot

RESET: Reset button

10M/100M self-adaptive Ethernet interface

Power supply interface

Extended interface

Figure 3-15 Overview

Table 3-2 Description

Notes:

 The extended interface can be connected to alarm input/output interface, audio input/output

interface, RS-485 interface, etc.

 To reset the default parameters to the camera, you need to press and hold the RESET button

and power on the camera. After the power on of the camera, you must still press and hold the Reset button for about 20 seconds

Camera wiring Diagram:

Figure 3-16 Wiring Diagram

3.2.4 Installation

Ceiling mounting:

Steps:

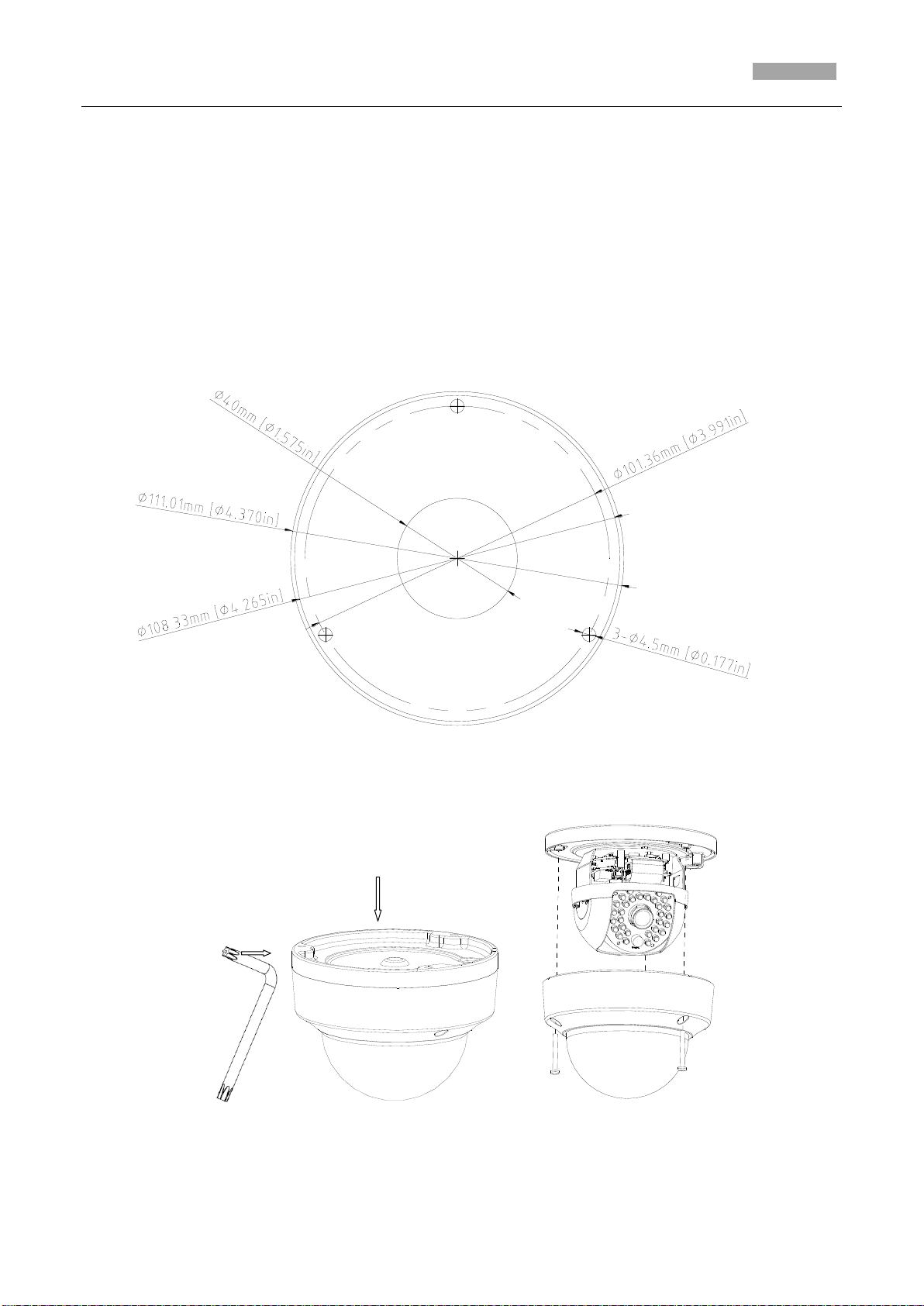

1. Drill the screw holes on the ceiling with the supplied drilling template. If you need to route the

cables from the bottom of the camera, cut a cable hole in the ceiling.

Installation Manual of Network Camera

Figure 3-17 Drill Template

2. Secure the back box to the ceiling with screws.

Figure 3-18 Mount the Back Box

3. Loosen the set screws with the hex key (supplied) to remove the lower dome; remove the dome

liner.

Installation Manual of Network Camera

Figure 3-19 Remove the Lower Dome

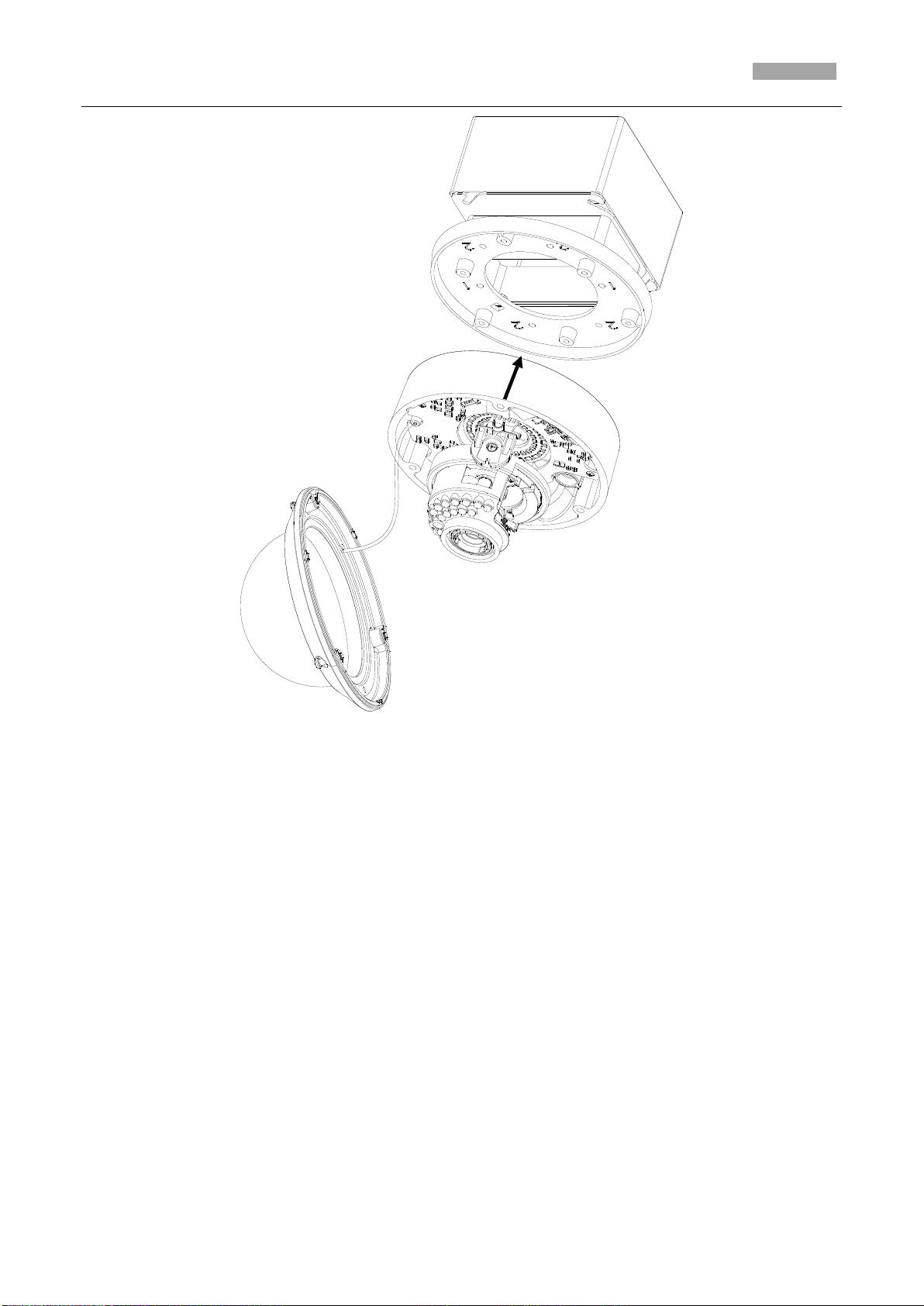

4. Install the dome module to the back box and pull the cables through the cable outlet on the

bottom of the back box.

Figure 3-20 Mount the Camera

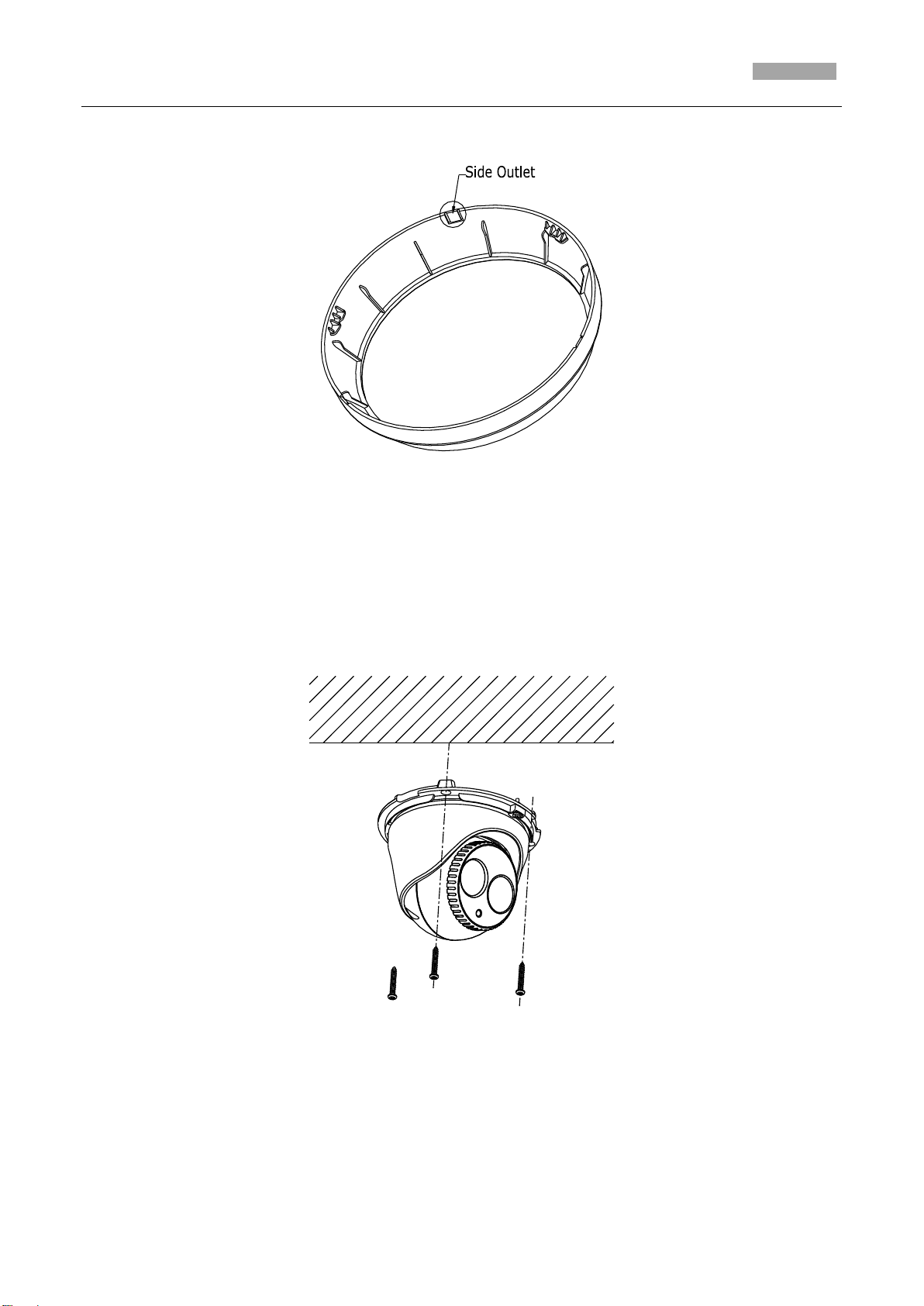

Note: If you need to pull the cable through the cable outlet from the side of the camera, please

remove the cover and use water-proof joints and water-proof pipe to route the cables.

Installation Manual of Network Camera

Figure 3-21 Route Cable through Side Outlet

5. After connecting the network cable and power cable, view the image of the camera over the

network. Loosen the lock screws; adjust the panning position and tilting position and rotate the lens to get the desired surveillance angle; fasten the lock screws.

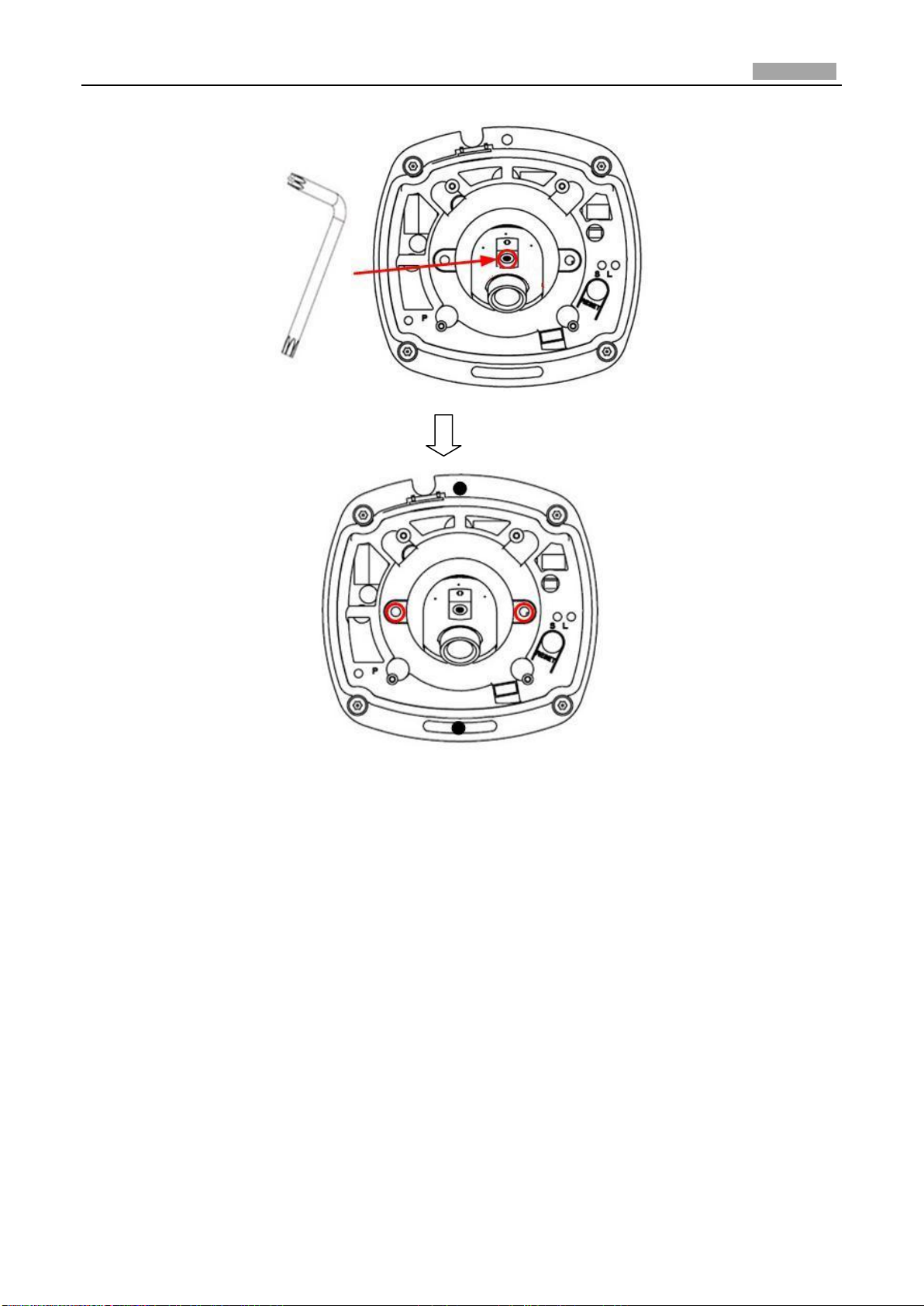

Figure 3-22 Adjust Image

6. Reinstall the dome liner and lower dome to finish the installation.

Installation Manual of Network Camera

Figure 3-23 Reinstall the Lower Dome

In-ceiling mounting:

Steps:

1. Drill the screw holes on the ceiling with the supplied drilling template.

Figure 3-24 Drill Screw Holes

2. Cut the mounting holes on the ceiling with the supplied drilling template.

Installation Manual of Network Camera

Figure 3-25 Cut Mounting Hole

3. Loosen the set screws with the hex key (supplied) to remove the lower dome; remove the dome

liner.

Figure 3-26 Remove the Lower Dome

4. Rotate the toggle to remove it from the toggle bolt; insert the bolt into the toggle bolt hole on

the dome module and use the screw driver to rotate the bolt slightly but not tightly; Reinstall the toggle and push the dome module to the mounting hole on the ceiling with toggle bolts aligned with the screw holes on the ceiling.

Installation Manual of Network Camera

Figure 3-27 Mount the Camera

5. Fasten the toggle bolt and the toggle will automatically secure the dome module to the ceiling.

Figure 3-28 Fasten the Bolts

6. After connecting the network cable and power cable, view the image of the camera over the

network. Loosen the lock screws; adjust the panning position and tilting position and rotate the lens to get the desired surveillance angle; fasten the lock screws.

Installation Manual of Network Camera

Figure 3-29 Adjust Image

7. Reinstall the dome liner and lower dome to finish the installation.

+ 66 hidden pages
