Hikvision DS-2CD6W32FWD-IVS Specsheet
DS-2CD6W32FWD-IVS
3 MP Ultra-Wide Panoramic Network Camera
1/3" Progressive Scan CMOS
3 MP Image Sensor
2048 × 1536 Resolution, Real-Time
Streaming
True WDR, up to 120 dB
True Day/Night
Line Crossing and Intrusion Detection
ROI Encoding
Up to 50 ft. (15 m) IR Range
Built-in Microphone and Speaker
Audio/Alarm IO/RS-485
IK10
12 VDC/PoE (802.3af)
The Hikvision DS-2CD6W32FWD-IVS is
designed to provide complete area
coverage by eliminating blind spots below
and to the side of the camera. The 3 MP
progressive scan CMOS sensor, included 45°
wall mount, and 2 mm panoramic lens
provide 135° horizontal and 98° vertical
fields of view.
With a 50 ft. (15 m) IR range, true day/night
switching, built in microphone and speaker,
and IK10 certification, the
DS-2CD6W32FWD-IVS is perfect for low risk
detention areas, public areas, or anywhere
a complete surveillance solution that
provides exceptional coverage is required.
Additional features include line cross,
intrusion, and motion detection, as well as
region of interest encoding and recording.
Available Models: DS-2CD6W32FWD-IVS
(includes convertible wall/ceiling mount)
Specifications
DS-
2CD6W32FWD
-
IVS
Camera
Image Sensor
1/3"
progressive scan CMOS
Minimum Illumination
0.1 lux @ ƒ/1.2, AGC on
, 0 lux with
IR
Shutter Speed
1/25s to 1/100,000s
Lens 2 mm, ƒ/2.4; horizontal view: 135°, vertical view: 98°
Day/Night
True Day/Night Infrared Cut Filter Removal (ICR)
low-light capabilities
Compression Standard
Video Compression
H.264 Baseline Profile/Main Profile/High Profile
Video Bit Rate
32 Kbps to 16 Mbps
Audio Compression
G.711/G.726/MP2L2
Audio Bit Rate
64 Kbps (G.
711)/16 Kbps (G.726)/32 Kbps to
128 Kbps (MP2L2)
Maximum
Resolution
2048 × 1536
Main Stream
50 Hz: 2048 × 1536 @ 25 fps; 60 Hz: 2048 × 1536 @
30 fps
Sub-Stream
50 Hz: 704 × 576 @ 25 fps; 60 Hz: 704 × 480 @
30 fps
Digital Noise Reduction
3D DNR
Image Setting
Saturation, brightness, contrast, hue, sharpness,
AGC, white balance
Wide Dynamic Range
120 dB
Day/Night Switch
Auto/
s
chedule/
a
larm trigger
Region of Interest (
ROI)
Up to four fixed areas of optimized encoding in each
stream
Network
Network Storage
NAS (supports NFS,
SMB/CIFS)/64
GB
microSD/SDHC/SDXC
card
Line crossing detection, intrusion detection,
motion detection, dynamic analysis, tampering
alarm, network
disconnect, IP address conflict,
storage exception
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, CGI
DNS, DDNS, RTP, RTSP, RTCP ONVIF, ISAPI
(PROFILE S
, PROFILE G), PSIA,
GB
28181
Reset, flickerless, heartbeat, password
protection, video cover, watermark, IP address
filtering, anonymous
access
Interface
Communication
1 RJ-45 10M/100M/1000M Ethernet interface;
1 RS-485 interface
1 3.5 mm interface, mic in/line in; 1 built
-
in mic,
24 dB/1 3.5 mm interface; 1 built
-
in speaker,
supports
echo
cancellation
Alarm Input/Output
1/1
On-Board Storage
Built-in microSD/SDHC/SDXC slot, up to 64 GB
General
Operating Conditions
-22° F to 140° F
(-30° C to 60° C
);
humidity 95%
or less (non
-
condensing)
Power
12 VDC ±10%/PoE (802.3af)
, m
aximum 12 W
IR Range
49 ft (15 m)
Certifications
UL, IEC, FCC
Impact Protection
IEC60068
-2-
75Eh, 20J; EN50102, up to IK10
w
/wall mount: 8.5" x 5.28" x 6.45"
(215.8 mm × 134.2 mm × 163.9
mm)
w/ceiling
mount: 5.49" x 5.28" x 6.45"
(139.4 mm × 134.2 mm × 163.9
mm)
Weight (w/bracket)
4.41 lbs (2000 g)
Alarm Trigger
Protocols
Security
Audio Input/Output

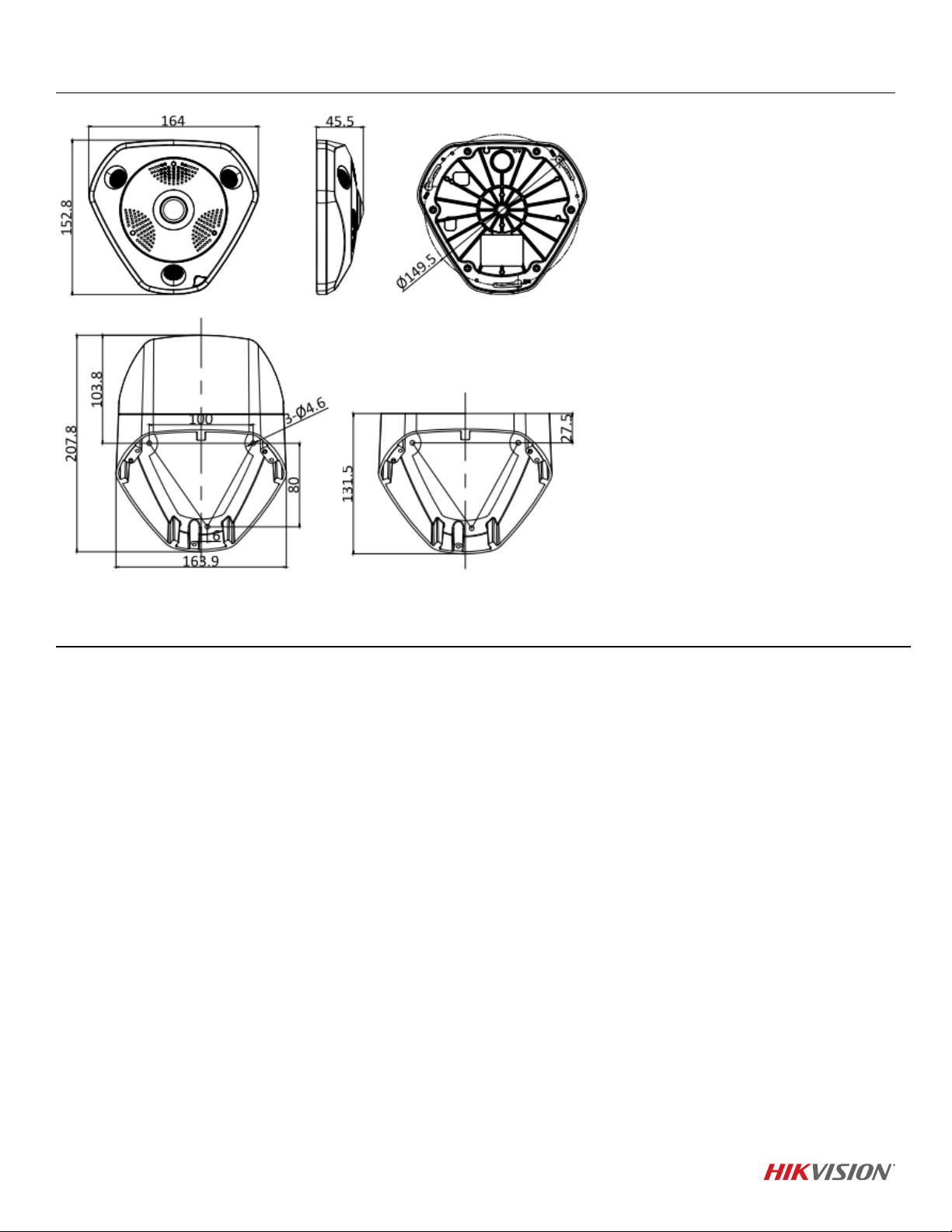

Dimensions
© 2016−2019 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice.
Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com 121619NA
