DS-2CD6924G0-IHS(/NFC)
180° Stitched 8 MP PanoVu Camera
180° splicing image to present all scenes that covered by
the camera
Built-in heater, ultra-low temperature start up to -40℃
Water and dust resistant (IP67) and vandal proof(IK10)
Smart human density counting and public behavior
analysis to increase public area safety
DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.
DORI
Detect
Observe
Recognize
Identify
Distance(2.8 mm)
32 m
12.5 m
6.5 m
3 m
Distance(6 mm)
63.2 m
25.1 m
12.6 m
6.3 m
Specification
Camera
Image Sensor
1/1.8" Progressive Scan CMOS
Min. Illumination
Color: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR
Shutter Speed
1/25 s to 1/100,000 s
Day &Night
IR cut filter. Blue glass module to reduce ghost phenomenon.
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 90°
WDR
Digital WDR
Lens
Aperture
F1.4
Focus
Manual, semi-auto
FOV
2.8 mm: horizontal FOV 180°, vertical FOV 90°
6 mm: horizontal FOV 180°, vertical FOV 25°
Lens Mount
M16
Lens Type
Fixed lens, 2.8 mm/6 mm, four lenses
Illuminator
IR Range
Four IR LEDs, up to 20 m
Wavelength
850 nm
Video
Max. Resolution
2.8 mm
Panorama+ePTZ mode: panorama channel: 1920 × 1080; ePTZ channel: 1920 × 1080
Panorama mode: 3840 × 2160
Original mode: 1920 × 1080
6 mm
Panorama+ePTZ mode: panorama channel: 2400 × 400; ePTZ channel: 1920 × 1080
Panorama mode: 6480 × 1080
Original mode: 1920 × 1080
Main Stream
2.8 mm
Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (1920 × 1080, 1280 × 720),
60Hz: 30fps (1920 × 1080, 1280 × 720); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280
×
720), 60Hz: 30fps (1920 × 1080, 1280 × 720)
Panorama mode: 50Hz: 25fps (3840 × 2160, 2560 × 1440, 1920× 1080), 60Hz: 30fps
(3840 × 2160, 2560 × 1440, 1920× 1080)
Original mode: 50Hz: 25fps (1920× 1080), 60Hz: 30fps (1920× 1080)
6 mm
Panorama+ePTZ mode: panorama channel: 50Hz: 25fps (2400 × 400), 60Hz: 30fps
(2400 × 400); ePTZ channel: 50Hz: 25fps (1920 × 1080, 1280 × 720), 60Hz: 30fps (1920
×
1080, 1280 × 720)
Panorama mode: 50Hz: 25fps (6480 × 1080, 4800 × 800, 3600 × 600), 60Hz: 30fps
(6480 × 1080, 4800 × 800, 3600 × 600)
Original mode: 50Hz: 25fps (1920 × 1080), 60Hz: 30fps (1920 × 1080)
Sub Stream
2.8 mm
Panorama mode: 50Hz: 25fps (1280 × 720, 640 × 360), 60Hz: 30fps (1280 × 720, 640
×
360)
6 mm
Panorama mode: 50Hz: 25fps (2400 × 400, 1920 × 320, 1440 × 240), 60Hz: 30fps
(2400 × 400, 1920 × 320, 1440 × 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type
Baseline Profile/ Main Profile/ High Profile
H.265 Type
Main Profile
Video Bit Rate
32 Kbps to 65 Mbps
SVC
H.264 and H.265 encoding
H.264+
Main stream support
H.265+
Main stream support
Audio
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Smart Feature-Set
Basic Event
Motion detection (only panorama and original modes support), video tampering
alarm, exception (network disconnected, IP address conflict, illegal login, HDD full,
HDD error)
People Density
Yes (only panorama mode supports)
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, trigger capture
Image Enhancement
BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
Image Setting
Rotate mode (only the original mode supports), saturation, brightness, contrast,
sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping
Yes (only panorama mode supports)
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Network
Network Storage
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
API
ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP
over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1
Simultaneous Live View
Up to 20 channels
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Client
iVMS-4200
Web Browser
IE8+
Interface
Communication Interface
1 RJ45 10M/100M/1000M Ethernet port;
1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Audio
1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output
impedance: 100 Ω, interface type: non-equilibrium
Alarm
2 inputs, 2 outputs (max. 24 VDC, 1 A)
On-board Storage
Built-in microSD/SDHC/SDXC slot, up to 256GB
General
Firmware Version
V5.5.84
Web Client Language
English
General Function
Anti-flicker, heartbeat, mirror (only original mode supports), privacy masks (only
original mode supports), password protection, watermark, IP address filter, pixel
counter
Reset
Reset via reset button on camera body, web browser and client software
Startup and Operating
Conditions
-40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
Storage Conditions
-40 °C to +60 °C (-40 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC, three-core terminal block, PoE (802.3at)
Power Consumption and
Current
12 VDC, 1.6 A, max. 24 W, PoE (802.3at, 42.5 V to 57 V), 0.5 to 0.4 A
Material
Aluminum alloy
Dimensions
Camera: 189.5 × 207.63 × 206.62 mm (7.46" × 8.17" × 8.13")
With Package: 340 × 261 × 293 mm (13.4" × 10.3" × 11.5")
Weight
Camera: approx. 3 kg (6.6 lb.)
With package: approx. 5 kg (11 lb.)
Heater
Yes
Approval
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4);
RCM (AS/NZS CISPR 32:2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015);
Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252 (Part 1): 2010+A1:2013+A2:2015);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
Chemistry
CE-ROHS (2011/65/EU);
REACH (Regulation (EC) No 1907/2006);
WEEE (2012/19/EU);
Protection
Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
Fiber Optical
Interface Type
/NFC: FC interface
Optical Type
/NFC: Single mode, single fiber
Input/output Wavelength
/NFC: Tx1310nm/1.25G, Rx1550nm/1.25G
Transmission Distance
/NFC: Up to 20 km
Available Model
DS-2CD6924G0-IHS (2.8 mm), DS-2CD6924G0-IHS/NFC (2.8 mm), DS-2CD6924G0-IHS (6 mm), DS-2CD6924G0-IHS/NFC (6 mm)

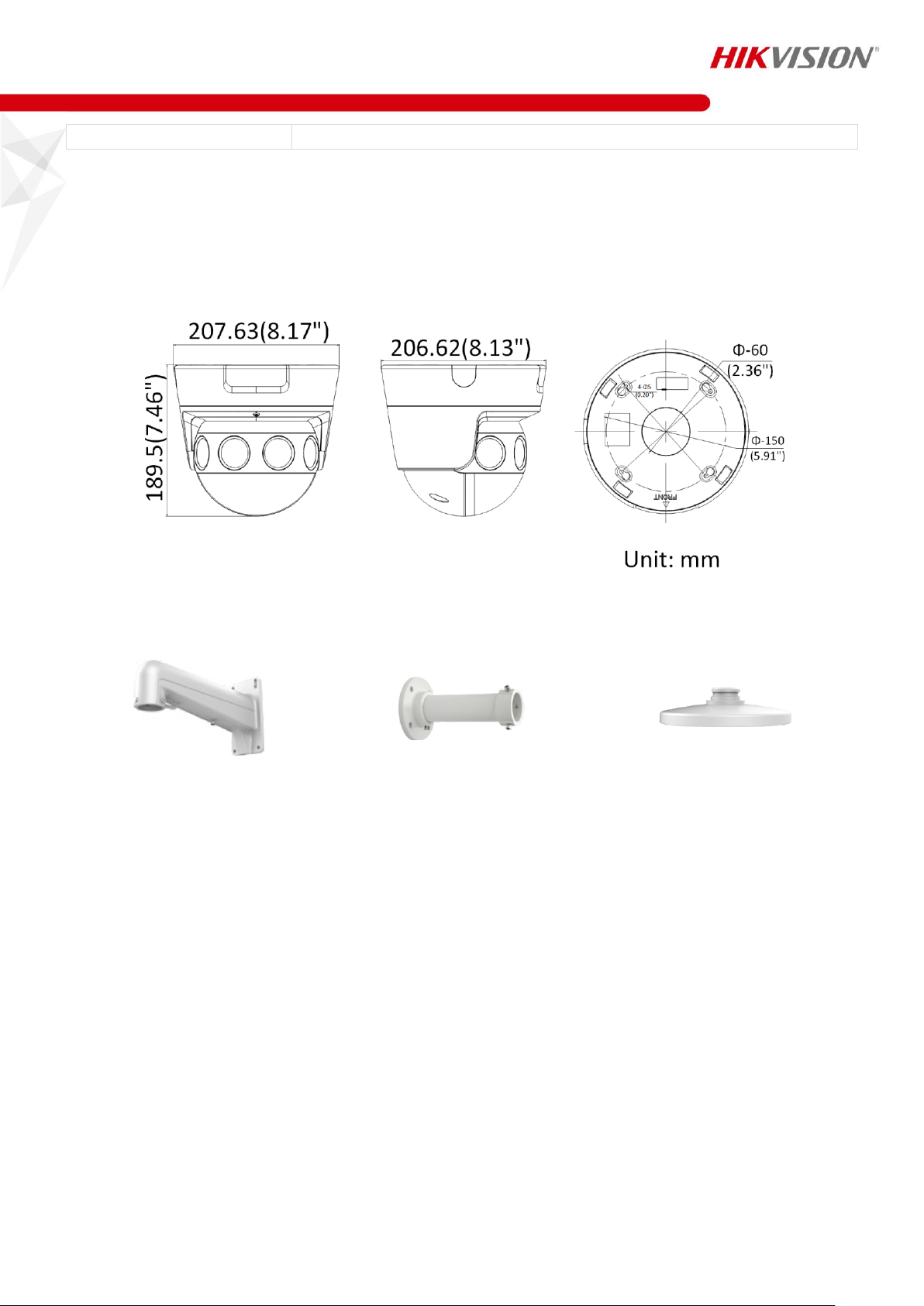

Dimension
Accessory
DS-1602ZJ
Wall Mount
DS-1661ZJ
Pendant Mount
Cap (Included)
05058420200430
