Hikvision DS-2CD63C5G0E-IVS User Manual

Download

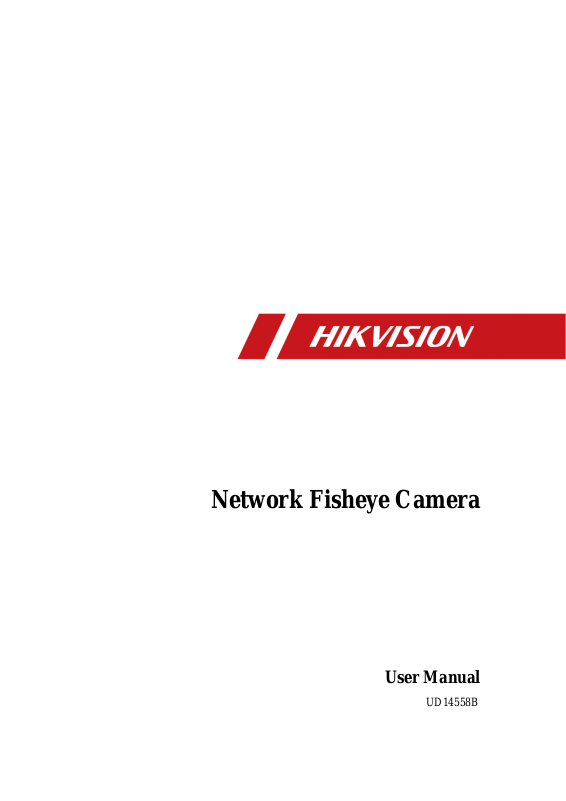

Network Fisheye Camera

User Manual

UD14558B

User Manual of Network Fisheye Camera

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries

(hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be

“the Manual”) cannot be reproduced, changed, translated, or distributed, partially or

wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Fisheye Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/). Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of

Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND

FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY,

User Manual of Network Fisheye Camera

FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

User Manual of Network Fisheye Camera

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected. —Consult the dealer or an experienced radio/TV technician for help

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive

2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:

www.recyclethis.info.

User Manual of Network Fisheye Camera

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may

include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’: Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings Follow these safeguards to prevent serious injury or death.

Cautions Follow these precautions to prevent potential injury or material damage.

Warnings:

 Please adopt the power adapter which can meet the safety extra low voltage

(SELV) standard. And source with 12 VDC or 24 VAC (depending on models) according to the IEC60950-1 and Limited Power Source standard.

 To reduce the risk of fire or electrical shock, do not expose this product to rain or

moisture.

 This installation should be made by a qualified service person and should conform

User Manual of Network Fisheye Camera

to all the local codes.

 Please install blackouts equipment into the power supply circuit for convenient

supply interruption.

 Please make sure that the ceiling can support more than 50(N) Newton gravities if

the camera is fixed to the ceiling.

 If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cautions:

 Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean

cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.

 Do not aim the camera lens at the strong light such as sun or incandescent lamp.

The strong light can cause fatal damage to the camera.

 The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor not be exposed to the laser beam.

 Do not place the camera in extremely hot, cold temperatures (the operating

temperature should be between -30°C ~ 60°C, or -40°C ~ 60°C if the camera model has an “H” in its suffix), dusty or damp environment, and do not expose it to high electromagnetic radiation.

 To avoid heat accumulation, good ventilation is required for a proper operating

environment.

 Keep the camera away from water and any liquid.  While shipping, the camera should be packed in its original packing.

User Manual of Network Fisheye Camera

 Improper use or replacement of the battery may result in hazard of explosion.

Please use the manufacturer recommended battery type.

Notes:

For the camera supports IR, you are required to pay attention to the following precautions to prevent IR reflection:  Dust or grease on the dome cover will cause IR reflection. Please do not remove

the dome cover film until the installation is finished. If there is dust or grease on the dome cover, clean the dome cover with clean soft cloth and isopropyl alcohol.

 Make certain the installation location does not have reflective surfaces of objects

too close to the camera. The IR light from the camera may reflect back into the lens causing reflection.

 The foam ring around the lens must be seated flush against the inner surface of

the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera body so that the foam ring and the dome cover are attached seamlessly.

User Manual of Network Fisheye Camera

Table of Contents

Chapter 1 System Requirement ................................................................................ 1

Chapter 2 Network Connection ................................................................................ 2

2.1 Setting the Network Camera over the LAN ........................................................ 2

2.1.1 Wiring over the LAN ......................................................................................................... 2

2.1.2 Activating the Camera ...................................................................................................... 3

2.2 Setting the Network Camera over the WAN ...................................................... 9

2.2.1 Static IP Connection .......................................................................................................... 9

2.2.2 Dynamic IP Connection ................................................................................................... 10

Chapter 3 Access to the Network Camera ............................................................. 13

3.1 Accessing by Web Browsers ............................................................................ 13

3.2 Accessing by Client Software .......................................................................... 14

Chapter 4 Live View ................................................................................................ 16

4.1 Live View Page ............................................................................................... 16

4.2 Starting Live View .......................................................................................... 20

4.3 Recording and Capturing Pictures Manually .................................................... 22

4.4 Operating PTZ Control .................................................................................... 22

4.4.1 PTZ Control Panel ............................................................................................................ 23

4.4.2 Setting/Calling/Deleting a Preset ................................................................................... 25

4.4.3 Setting/Calling/Deleting a Patrol .................................................................................... 26

Chapter 5 Network Camera Configuration ........................................................... 28

5.1 Configuring Local Parameters ......................................................................... 28

5.2 Configure System Settings .............................................................................. 30

5.2.1 Configuring Basic Information ........................................................................................ 30

5.2.2 Configuring Time Settings ............................................................................................... 30

5.2.3 Configuring RS232 Settings ............................................................................................. 32

5.2.4 Configuring RS485 Settings ............................................................................................. 33

5.2.5 Configuring DST Settings ................................................................................................. 34

5.2.6 Configuring Metadata Settings ....................................................................................... 35

5.2.7 Open Source Software License ....................................................................................... 36

5.3 Maintenance ................................................................................................. 36

5.3.1 Upgrade & Maintenance ................................................................................................. 36

5.3.2 Log .................................................................................................................................. 37

5.4 Security Settings ............................................................................................ 38

5.4.1 Authentication ................................................................................................................ 39

5.4.2 IP Address Filter .............................................................................................................. 39

5.4.3 Security Service............................................................................................................... 41

User Manual of Network Fisheye Camera

5.5 User Management ......................................................................................... 42

5.5.1 User Management .......................................................................................................... 42

5.5.2 Online Users .................................................................................................................... 44

Chapter 6 Network Settings .................................................................................... 45

6.1 Configuring Basic Settings .............................................................................. 45

6.1.1 Configuring TCP/IP Settings ............................................................................................ 45

6.1.2 Configuring DDNS Settings .............................................................................................. 47

6.1.3 Configuring PPPoE Settings ............................................................................................. 49

6.1.4 Configuring Port Settings ................................................................................................ 50

6.1.5 Configure NAT (Network Address Translation) Settings .................................................. 51

6.2 Configure Advanced Settings .......................................................................... 52

6.2.1 Configuring SNMP Settings ............................................................................................. 52

6.2.2 Configuring FTP Settings ................................................................................................. 55

6.2.3 Configuring Email Settings .............................................................................................. 57

6.2.4 Platform Access ............................................................................................................... 59

6.2.5 HTTPS Settings ................................................................................................................ 60

6.2.6 Configuring QoS Settings ................................................................................................ 63

6.2.7 Configuring 802.1X Settings ............................................................................................ 64

6.2.8 Integration Protocol ........................................................................................................ 65

6.2.9 Configuring HTTP Listening ............................................................................................. 66

Chapter 7 Video/Audio Settings ............................................................................. 67

7.1 Configuring Video Settings ............................................................................. 67

7.2 Configuring Audio Settings ............................................................................. 70

7.3 Configuring ROI Encoding ............................................................................... 71

7.4 Display Info. on Stream .................................................................................. 73

Chapter 8 Configuring Image Parameters ............................................................ 74

8.1 Configuring Display Settings ........................................................................... 74

8.2 Configuring OSD Settings ................................................................................ 78

8.3 Configuring Privacy Mask ............................................................................... 79

8.4 Picture Overlay .............................................................................................. 80

Chapter 9 Configuring Event Settings ................................................................... 82

9.1 Configuring Motion Detection ........................................................................ 82

9.2 Configuring Video Tampering Alarm ............................................................... 88

9.3 Configuring Alarm Input ................................................................................. 89

9.4 Configuring Alarm Output .............................................................................. 90

9.5 Handling Exception ........................................................................................ 92

User Manual of Network Fisheye Camera

9.6 Configuring Audio Exception Detection ........................................................... 92

9.7 Configuring Intrusion Detection ...................................................................... 94

9.8 Configuring Line Crossing Detection ................................................................ 96

9.9 Configuring Region Entrance Detection ........................................................... 98

9.10 Configuring Region Exiting Detection ............................................................ 100

9.11 Configuring Unattended Baggage Detection .................................................. 102

9.12 Configuring Object Removal Detection ......................................................... 104

Chapter 10 Storage Settings .................................................................................... 107

10.1 Configuring Recording Schedule ................................................................... 107

10.2 Configuring Capture Setting .......................................................................... 111

10.3 Configuring Net HDD .................................................................................... 112

Chapter 11 People Counting ................................................................................... 115

11.1 Rule Settings ................................................................................................ 115

11.1.1 Rule ............................................................................................................................... 115

11.1.2 Arming Schedule ........................................................................................................... 116

11.1.3 Linkage Method ............................................................................................................ 116

11.2 Data Uploading Setting ................................................................................. 117

11.3 Advanced Settings ........................................................................................ 117

Chapter 12 Heat Map .............................................................................................. 119

Chapter 13 Intersection Analysis ............................................................................ 121

Chapter 14 Playback ................................................................................................ 122

Chapter 15 Picture ................................................................................................... 125

Chapter 16 Application ........................................................................................... 126

16.1 People Counting Statistics ............................................................................ 126

16.2 Heat Map Statistics ...................................................................................... 127

16.3 Intersection Analysis Statistics ...................................................................... 129

Appendix ............................................................................................................... 130

Appendix 1 SADP Software Introduction ............................................................... 130

Appendix 2 Port Mapping ...................................................................................... 132

User Manual of Network Fisheye Camera

Chapter 1 System Requirement

Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above

version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version

User Manual of Network Fisheye Camera

Chapter 2 Network Connection

Note:

 You shall acknowledge that the use of the product with Internet access might be

under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

 To ensure the network security of the network camera, we recommend you to

have the network camera assessed and maintained termly. You can contact us if you need such service.

Before you start:

 If you want to set the network camera via a LAN (Local Area Network), please

refer to Section 2.1 Setting the Network Camera over the LAN.

 If you want to set the network camera via a WAN (Wide Area Network), please

refer to Section 2.2 Setting the Network Camera over the WAN.

2.1 Setting the Network Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the SADP or iVMS-4200 software to search and change the IP of the network camera.

Note: For the detailed introduction of SADP, please refer to Appendix 1.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network camera and a computer:

Purpose:

 To test the network camera, you can directly connect the network camera to the

computer with a network cable as shown in Figure 2-1.

User Manual of Network Fisheye Camera

 Refer to the Figure 2-2 to set network camera over the LAN via a switch or a

router.

Figure 2-1 Connecting Directly

Figure 2-2 Connecting via a Switch or a Router

2.1.2 Activating the Camera

You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported.

 Activation via Web Browser

Steps:

1. Power on the camera, and connect the camera to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to enter the activation interface.

Notes:

 The default IP address of the camera is 192.168.1.64.  The computer and the camera should belong to the same subnet.

For the camera enables the DHCP by default, you need to use the SADP software to search the IP address.

User Manual of Network Fisheye Camera

Figure 2-3 Activation via Web Browser

3. Create a password and input the password into the password field.

A password with user name in it is not allowed.

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4. Confirm the password.

5. Click OK to save the password and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the camera, and resetting the password. Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera. Steps:

1. Run the SADP software to search the online devices.

2. Check the device status from the device list, and select the inactive device.

User Manual of Network Fisheye Camera

Select inactive device.

Input and confirm password.

Figure 2-4 SADP Interface

Note:

The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details.

3. Create a password and input the password in the password field, and confirm the

password.

Note:

You can enable the Hik-Connect service for the device during activation.

4. Click Activate to start activation. You can check whether the activation is completed on the popup window. If activation

failed, please make sure that the password meets the requirement and try again.

User Manual of Network Fisheye Camera

5. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

Figure 2-5 Modify the IP Address

6. Input the admin password and click Modify to activate your IP address

modification.

The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in

the figure below.

User Manual of Network Fisheye Camera

Figure 2-6 Control Panel

2. Click the Device Management icon to enter the Device Management interface, as

shown in the figure below.

Figure 2-7 Device Management Interface

User Manual of Network Fisheye Camera

3. Check the device status from the device list, and select an inactive device.

4. Click the Activate button to pop up the Activation interface.

5. Create a password and input the password in the password field, and confirm the

password.

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. We recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Figure 2-8 Activation Interface (Client Software)

6. Click OK button to start activation.

7. Click the Modify Netinfo button to pop up the Network Parameter Modification

interface, as shown in the figure below.

User Manual of Network Fisheye Camera

Figure 2-9 Modifying the Network Parameters

8. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

9. Input the password to activate your IP address modification.

2.2 Setting the Network Camera over the WAN

Purpose:

This section explains how to connect the network camera to the WAN with a static IP or a dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network camera via a router or connect it to the WAN directly.

 Connecting the network camera via a router

Steps:

1. Connect the network camera to the router.

User Manual of Network Fisheye Camera

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2

for detailed IP address configuration of the network camera.

3. Save the static IP in the router.

4. Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary

according to the different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5. Visit the network camera through a web browser or the client software over the

internet.

Figure 2-10 Accessing the Camera through Router with Static IP

 Connecting the network camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 2.1.2 for detailed IP address configuration of the network camera.

Figure 2-11 Accessing the Camera with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router.

 Connecting the network camera via a router

Steps:

User Manual of Network Fisheye Camera

1. Connect the network camera to the router.

2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer

to Section 2.1.2 for detailed IP address configuration of the network camera.

3. In the router, set the PPPoE user name, password and confirm the password.

4. Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the camera via the applied domain name.

 Connecting the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera. Refer to Section 5.3.3 Configuring PPPoE Settings for detailed configuration.

Figure 2-12 Accessing the Camera with Dynamic IP

Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address

always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow the steps below for normal domain name resolution and private domain name resolution to solve the problem.  Normal Domain Name Resolution

User Manual of Network Fisheye Camera

Figure 2-13 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

2. Configure the DDNS settings in the DDNS Settings interface of the network

camera. Refer to Section 5.3.4 Configuring DDNS Settings for detailed configuration.

3. Visit the camera via the applied domain name.

User Manual of Network Fisheye Camera

Chapter 3 Access to the Network

Camera

3.1 Accessing by Web Browsers

Note:

For certain camera models, HTTPS is enabled by default and the camera creates an unsigned certificate automatically. When you access to the camera the first time, the web browser prompts a notification about the certificate issue. To cancel the notification, install a signed-certificate to the camera. For detailed operation, see 6.2.5 HTTPS Settings.

Steps:

1. Open the web browser.

2. In the browser address bar, input the IP address of the network camera, and press

the Enter key to enter the login interface.

Note:

The default IP address is 192.168.1.64. You are recommended to change the IP address to the same subnet with your computer.

3. Input the user name and password and click Login.

The admin user should configure the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).

Figure 3-1 Login Interface

User Manual of Network Fisheye Camera

4. Click Login.

5. (Optional) Install the plug-in before viewing the live video and operating the

camera. Follow the installation prompts to install the plug-in.

Note: For camera that supports plug-in free live view, if you are using Google Chrome 45 and its above version or Mozilla Firefox 52 and its above version, plug-in installation is not required. But Picture and Playback functions are hidden. To use mentioned function via web browser, change to their lower version, or change to Internet Explorer 8.0 and above version.

3.2 Accessing by Client Software

The product CD contains the iVMS-4200 client software. You can view the live video and manage the camera with the software. Follow the installation prompts to install the software. The control panel interface of iVMS-4200 client software is shown as bellow.

Figure 3-2 iVMS-4200 Client Software

User Manual of Network Fisheye Camera

Figure 3-3 iVMS-4200 Main View

Note: For detailed information about the software, please refer to the user manual of

the iVMS-4200 Client Software.

User Manual of Network Fisheye Camera

Chapter 4 Live View

4.1 Live View Page

Purpose:

The live view page allows you to view the real-time video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

Note:

You can also visit the fisheye camera to get the live view in different live view modes via iVMS-4200 client software. Please refer to the User Manual of iVMS-4200 Client Software for detailed instructions.

Introduction:

The Live View Page is mainly composed of three parts, the display control area on the left, the live view screen in the middle and a PTZ panel which can be shown or hidden on the right.

Descriptions of the live view page:

Live View

Window

Display

Control

Preset/Patrol

Setting

Tool Bar

Menu Bar

PTZ

Control

Figure 4-1 Live View Page (Software Decoding)

User Manual of Network Fisheye Camera

Live View

Window

Display

Control

Preset/Patrol

Setting

Tool Bar

Menu Bar

PTZ

Control

Figure 4-2 Live View Page (Hardware Decoding)

Menu Bar: Click the tab to enter Live View, Playback, Picture, Application and Configuration page respectively.

Display Control:

The display control area allows you to select decoding mode, mount type and display mode of live view. Software decoding and hardware decoding are selectable for decoding mode. On the software tab, mount type and display mode are configurable. While on the hardware tab, besides the mount type and display mode, stream type of each camera channel is also configurable.

 Decoding Mode

Software decoding means the obtained live view video is decoded by using the CPU of your PC that is running the web browser. The live view performance depends on the decoding ability of your PC. Hardware decoding means the obtained live view video is decoded by the camera itself.

 Mount Type

Select ceiling mounting, wall mounting and table mounting according to the actual mount type you adopted for your camera.

User Manual of Network Fisheye Camera

Table 4-1 Description of Mount Types

Mount Type Icon

Description

Ceiling mounting.

Wall mounting.

Table mounting.

 Display Mode

You can select a display mode for the layout of the live view window. The description of each display mode is shown in the following table.  Fisheye View: In the Fisheye View mode, the whole wide-angle view of the

fisheye camera is displayed. This view mode is called Fisheye View because

it approximates the vision of a fish’s convex eye. The lens produces

curvilinear images of a large area, while distorting the perspective and angles of objects in the image.

 Panorama View: In the Panorama View mode, the round fisheye image is

transformed to rectangular image by some calibration methods.

 PTZ View: The PTZ View is the close-up view of some defined area in the

Fisheye View or Panorama View.

Note: Each PTZ View is marked on the Fisheye View and Panorama View with a

specifically colored region under software decoding mode, and with a specific navigation box under hardware decoding mode.

Table 4-2 Description of Display Modes

Mode

Description

Mode

Description

Fisheye view.

180 degrees panorama view.

360 degrees panorama view.

Live view with a 360 degrees panorama view and a PTZ view.

Live view with a 360 degrees panorama view and 3 PTZ views.

Live view with a 360 degrees panorama view and 6 PTZ views.

Live view with a 360 degrees panorama view and 8 PTZ views.

Live view with 2 PTZ views.

User Manual of Network Fisheye Camera

Mode

Description

Mode

Description

Live view with into 4 PTZ views.

Live view with 1 fisheye view and 3 PTZ views.

Live view with 1 fisheye view and 8 PTZ views.

Panorama view.

Live view with a panorama view and 3 PTZ views.

Live view with a fisheye view, a panorama view and 3 PTZ views.

Live view with a hemisphere view

Live view with a AR hemisphere view

Live view with a cylinder view

Live view with a 4 PTZ fusion view

Note:

 Available display modes vary according to decoding modes and camera

models.

 When you change display mode on hardware tab, a reboot is required to for

the display mode switch to take effect.

 When you display hardware-decoded live view under the display mode of

360 panorama view or 4 PTZ, you cannot switch the decoding mode directly from hardware to software. Switch to the other display mode first.

Stream Type Setting (Hardware Decoding Only):

Steam type switch for camera channels is only supported when the live view video is

decoded by hardware. You can set stream type as main stream or sub stream . The default stream type for every channel is main stream.

Table 4-3 Selectable Stream Types for Camera Channels

Display Mode

Channel No.

Selectable Stream Type

Camera 01

Main stream/Sub stream

Camera 01/02/03/04

Main Stream

Camera 01

Main stream/Sub stream

Camera 02/03/04

Main Stream

Camera 01/02/03/04/05

Main stream

User Manual of Network Fisheye Camera

Note: Selectable stream types may be different between camera channels under

different display modes. Detailed information is shown in the following table.

Live View Window: Display the live video on the display window of live view. Toolbar:

Start/Stop the live view, enable/disable the two-way audio, adjust the audio volume, capture pictures, record the video files, etc.

Note: Icons on tool bar are different under different decoding mode. Refer to Table

4-4 for detailed description. PTZ Control:

Realize the pan/tilt/zoom function of PTZ view via the navigation box, and set the PTZ moving speed.

Preset/Patrol Settings:

Set and call the preset/patrol for the camera.

4.2 Starting Live View

Starting live view under decoding modes of software and hardware is a bit different.

Software Decoding Mode:

You can click the icon / on the toolbar to start/stop all live view of the camera. Hardware Decoding Mode:

Under hardware decoding mode, live video will be automatically displayed when you click Live View on menu bar, click Hardware in display control area, change mount type or display mode.

User Manual of Network Fisheye Camera

Figure 4-3 Live View Interface (Software Decoding)

Figure 4-4 Live View Interface (Hardware Decoding)

Table 4-4 Descriptions of Live View Icons

Icon

Description

Start all live view.

Stop all live view.

Set aspect ratio as 4:3.

Icon

Description

Set aspect ratio as 16:9.

Window size for original video stream.

Self-adaptive window size.

Window division, 1x1.

Window division, 2x2.

Window division, 3x3.

Manually start/stop recording.

User Manual of Network Fisheye Camera

Audio on and adjust the volume.

Mute.

Start/stop two-way audio.

Start/stop digital zoom).

Manually capture a picture.

Full screen.

Show/hide the PTZ panel.

Notes: Toolbar icons on the live view page vary according to decoding modes and

camera models. Digital Zoom:

1) Click to start the function.

2) Click the mouse on the live view image and drag it to a lower right position.

The area in the red rectangle will be zoomed in after you release the mouse.

3) Click the mouse on the zoomed-in image, drag it to a higher left position and

release the mouse to zoom out.

4) Click to stop the function.

4.3 Recording and Capturing Pictures Manually

In the live view interface, click on the toolbar to capture the live pictures or click

to record the live video. The saving paths of the captured pictures and record

files can be set on the Configuration > Local Configuration page. To configure remote scheduled recording, please refer to Section 6.1

Note: The captured image will be saved as JPEG file or BMP file in your computer.

4.4 Operating PTZ Control

Purpose:

A PTZ View is a close-up view of some defined area on the panoramic and fisheye view, and it supports digital PTZ control. When PTZ View is selected for live view, you can use the PTZ control panel on the

User Manual of Network Fisheye Camera

right of the window to realize pan/tilt/zoom control of the PTZ View.

PTZ View

Navigation

Box

Figure 4-5 PTZ Control

Note: If Fisheye View or Panorama View is selected for live view together with the

PTZ View, when you click on a random PTZ view, a navigation box indicating the location of the PTZ view will be shown on the fisheye or panorama view. See Figure 4-5.

4.4.1 PTZ Control Panel

On the live view page, you can click to show the PTZ control panel, and click to hide it.

User Manual of Network Fisheye Camera

Figure 4-6 PTZ Control Panel

Table 4-5 Descriptions of PTZ Control Panel

Icon

Description

Direction buttons

Start/stop auto scan

Zoom out/Zoom in

Focus -/Focus +

Iris -/Iris +

Adjust speed of pan/tilt movements

Enable/disable light

Auxiliary Focus

Enable/disable wiper

Lens initialization

Start manual tracking

Start 3D zoom

Click to set presets

Click to set patrol

Steps:

1. Click to select a PTZ View on the display window, and then the navigation box

appears on the Fisheye View and Panorama View.

2. Click the direction arrows on the PTZ control panel. The navigation box will

move in the corresponding pan/tilt direction.

3. Adjust zoom, focus and iris level of the PTZ view image.

4. Click-and-drag the slider on the speed bar to adjust the moving speed of PTZ

View when auto scan is enabled.

User Manual of Network Fisheye Camera

5. (Optional) you can click on other buttons to realize corresponding functions.

4.4.2 Setting/Calling/Deleting a Preset

 Setting a Preset:

Purpose:

A preset for the fisheye camera is a predefined PTZ View which contains information of pan, tilt, focus and other parameters.

Steps:

1. Click to select a PTZ View on the display window.

2. Click the direction/zoom buttons on the PTZ Control panel to adjust the PTZ

View as desired.

3. Select a preset number from the preset list.

4. Click the icon to save the current PTZ View as the preset.

The preset name turns from grey to black.

Figure 4-7 Setting a Preset

Note: Up to 256 presets are supported.

 Calling a Preset:

Purpose:

User Manual of Network Fisheye Camera

The PTZ View of the fisheye camera can directly and quickly move to the area of interest, which is defined as a preset.

Before you start:

Set the preset. The icons ( , and ) will appear on the preset list.

Steps:

1. Click to select a PTZ View on the display window.

2. Select the preset number from the list.

3. Click the icon to call the selected preset.

The selected PTZ View will move to the pre-defined preset scene.

 Deleting a Preset

Steps:

1. Select the preset number from the list.

2. Click the icon to delete the selected preset.

The preset name turns from black to grey.

4.4.3 Setting/Calling/Deleting a Patrol

Purpose:

A patrol is a scanning track specified by a group of defined presets, with the duration time at each preset separately programmable.

Before you start:

At least 2 presets are required to set a patrol.

 Setting a Patrol

Steps:

1. Click the icon to enter the patrol configuration interface.

User Manual of Network Fisheye Camera

Figure 4-8 Patrol Configuration (1)

2. Select a path No. from the drop-down list, and click the icon to configure

patrol path.

3. Click to add a preset into the path, and click to delete a preset.

4. Set the preset number, speed and lingering time at each preset. You can adjust the

order of presets by using and .

Figure 4-9 Patrol Configuration (2)

5. Click OK to save patrol path.

Note: Up to 32 patrol paths can be set, and each path supporting 16 key points at

most.

 Calling a Patrol

Steps:

1. Click to select a PTZ View on the display window.

2. Select the patrol path number from the drop-down list.

3. Click the icon to start the selected patrol and to stop it.

 Deleting a Patrol

1. Select the patrol path number from the drop-down list.

2. Click the icon to delete the patrol path.

User Manual of Network Fisheye Camera

Chapter 5 Network Camera

Configuration

5.1 Configuring Local Parameters

Purpose:

The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and capture using the web browser and thus the saving paths of them are on the PC running the browser.

Steps:

1. Enter the Local Configuration interface: Configuration > Local.

2. Configure the following settings:

 Live View Parameters: Set the protocol type and live view performance.

 Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected.

UDP: Provides real-time audio and video streams. HTTP: Allows the same quality as of TCP without setting specific ports for

streaming under some network environments. MULTICAST: It’s recommended to select multicast type when using the Multicast function. For detailed information about Multicast, refer to Section

7.1.1 Configuring TCP/IP Settings.

 Play Performance: Set the live view performance to Shortest Delay, Balanced,

Fluent or Custom. For Custom, you can set the frame rate for live view.

 Rules: It refers to the rules on your local browser, select enable or disable to

display or not display the colored marks when the motion detection, face detection, or intrusion detection is triggered. E.g., enabled as the rules are, and the face detection is enabled as well, when a face is detected, it will be marked with a green rectangle on the live view.

User Manual of Network Fisheye Camera

 Display POS Information: Enable the function, feature information of the

detected target is dynamically displayed near the target in the live image. The feature information of different functions are different. For example, ID and waiting time for Queue Management, height for People Counting, etc.

Note:

Display POS Information is only available for certain camera models.

 Image Format: Choose the image format for picture capture.

Figure 5-1 Live View Parameters

 Record File Settings: Set the saving path of the recorded video files. Valid for the

record files you recorded with the web browser.

 Record File Size: Select the packed size of the manually recorded and

downloaded video files to 256M, 512M or 1G. After the selection, the maximum record file size is the value you selected.

 Save record files to: Set the saving path for the manually recorded video files.  Save downloaded files to: Set the saving path for the downloaded video files

in playback mode.

 Picture and Clip Settings: Set the saving paths of the captured pictures and

clipped video files. Valid for the pictures you capture with the web browser.  Save snapshots in live view to: Set the saving path of the manually captured

pictures in live view mode.

 Save snapshots when playback to: Set the saving path of the captured

pictures in playback mode.

 Save clips to: Set the saving path of the clipped video files in playback mode.

Note: You can click Browse to change the directory for saving the clips and pictures,

and click Open to open the set folder of clips and picture saving.

User Manual of Network Fisheye Camera

3. Click Save to save the settings.

5.2 Configure System Settings

Purpose:

Follow the instructions below to configure the system settings, include System Settings, Maintenance, Security, and User Management, etc.

5.2.1 Configuring Basic Information

Enter the Device Information interface: Configuration > System > System Settings > Basic Information.

In the Basic Information interface, you can edit the Device Name and Device No. Other information of the network camera, such as Model, Serial No., Firmware Version, Encoding Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed. The information cannot be changed in this menu. It is the reference for maintenance or modification in future.

5.2.2 Configuring Time Settings

Purpose:

You can follow the instructions in this section to configure the time synchronization and DST settings.

Steps:

1. Enter the Time Settings interface, Configuration > System> System Settings >

Time Settings.

User Manual of Network Fisheye Camera

Figure 5-2 Time Settings

2. Select the Time Zone of your location from the drop-down menu.

3. Configure the NTP settings. (1) Click to enable the NTP function. (2) Configure the following settings:

Server Address: IP address of NTP server. NTP Port: Port of NTP server.

Interval: The time interval between the two synchronizing actions with NTP

server.

(3) (Optional) You can click the Test button to test the time synchronization

function via NTP server.

Figure 5-3 Time Sync by NTP Server

User Manual of Network Fisheye Camera

Note: If the camera is connected to a public network, you should use a NTP server

that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the camera is set in a customized network, NTP software can be used to establish a NTP server for time synchronization.

 Configure the manual time synchronization.

(1) Check the Manual Time Sync. item to enable the manual time

synchronization function.

(2) Click the icon to select the date, time from the pop-up calendar. (3) (Optional) You can check Sync. with computer time item to synchronize the

time of the device with that of the local PC.

Figure 5-4 Time Sync Manually

 Click Save to save the settings.

5.2.3 Configuring RS232 Settings

The RS232 port can be used in two ways:  Consolo: Connect a computer to the camera through the serial port. Device

parameters can be configured by using software such as HyperTerminal. The serial port parameters must be the same as the serial port parameters of the camera.

 Transparent Channel: Connect a serial device directly to the camera. The serial

device will be controlled remotely by the computer through the network.

Steps:

User Manual of Network Fisheye Camera

1. Enter RS232 Port Setting interface: Configuration > System > System

Settings > RS232.

2. Configure the Baud Rate, Data Bit, Stop Bit, Parity, Flow Control, and Usage.

Figure 5-5 RS232 Settings

Note: If you want to connect the camera by the RS232 port, the parameters of the

RS232 should be exactly the same with the parameters you configured here.

3. Click Save to save the settings.

5.2.4 Configuring RS485 Settings

Purpose:

The RS485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters should be done before you control the PTZ unit.

Steps:

1. Enter RS-485 Port Setting interface: Configuration > System > System

Settings > RS485.

User Manual of Network Fisheye Camera

Figure 5-6 RS-485 Settings

2. Set the RS485 parameters and click Save to save the settings.

By default, the Baud Rate is set as 9600 bps, the Data Bit is 8, the stop bit is 1 and the Parity and Flow Control is None.

Note: The Baud Rate, PTZ Protocol and PTZ Address parameters should be exactly

the same as the PTZ camera parameters.

5.2.5 Configuring DST Settings

Purpose:

Daylight Saving Time (DST) is a way of making better use of the natural daylight by setting your clock forward one hour during the summer months, and back again in the fall. Configure the DST according to your actual demand.

Steps:

1. Enter the DST configuration interface.

Configuration > System > System Settings > DST

User Manual of Network Fisheye Camera

Figure 5-7 DST Settings

2. Select the start time and the end time.

3. Select the DST Bias.

4. Click Save to activate the settings.

5.2.6 Configuring Metadata Settings

Purpose:

Metadata is the raw data the camera collects before algorithm processing. Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, queue management and face capture are supported. If enabled, the metadata of the corresponding event are available for users to explore the possibility of various data usage.

Steps:

1. Enter Metadata settings interface:

Configuration > System > System Settings > metadata Settings

2. Check the checkbox of the corresponding function to enable the metadata

function.

 The metadata of the smart event includes the target ID, target coordinate and time

information.

 The metadata of queue management includes the rule information, region ID,

target ID, target coordinate and time information. The camera detects the whole image by default. If the region is configured in the queue management settings, the camera detects the configured region.

 The metadata of face capture includes the rule information, target ID, target

coordinate, face grading and time information. The camera detects the whole

User Manual of Network Fisheye Camera

image by default. If the region is configured in the face capture settings, the camera detects the configured region.

5.2.7 Open Source Software License

Information about the open source software that applies to the IP camera can be checked if required. Go to Configuration > System Settings > About.

5.3 Maintenance

5.3.1 Upgrade & Maintenance

Purpose:

The upgrade & maintenance interface allows you to process the operations, including reboot, partly restore, restore to default, export/import the configuration files, and upgrade the device. Enter the Maintenance interface: Configuration > System > Maintenance > Upgrade & Maintenance.

 Reboot: Restart the device.  Restore: Reset all the parameters, except the IP parameters and user information,

to the default settings.

 Default: Restore all the parameters to the factory default.

Notes:

• After restoring the default settings, the IP address is also restored to the

default IP address, please be careful for this action.

• For camera that supports Wi-Fi, wireless dial, or wlan function, Restore

action does not restore the related settings of mentioned functions to default.

 Information Export

Device Parameters: click to export the current configuration file of the camera.

This operation requires admin password to proceed. For the exported file, you also have to create an encryption password. The

User Manual of Network Fisheye Camera

encryption password is required when you import the file to other cameras. Diagnose Information: click to download log and system information.

 Import Config. File

Configuration file is used for the batch configuration of the cameras.

Steps:

1. Click Browse to select the saved configuration file.

2. Click Import and input the encryption password that you set during

exporting.

Note: You need to reboot the camera after importing configuration file.

 Upgrade: Upgrade the device to a certain version.

Steps:

1. Select firmware or firmware directory to locate the upgrade file.

Firmware: Locate the exact path of the upgrade file. Firmware Directory: Only the directory the upgrade file belongs to is required.

2. Click Browse to select the local upgrade file and then click Upgrade to start

remote upgrade.

Note: The upgrading process will take 1 to 10 minutes. Please don't disconnect

power of the camera during the process, and the camera reboots automatically after upgrade.

5.3.2 Log

Purpose:

The operation, alarm, exception and information of the camera can be stored in log files. You can also export the log files on your demand.

Before you start:

Please configure network storage for the camera or insert a SD card in the camera.

Steps:

1. Enter log searching interface: Configuration > System > Maintenance > Log.

User Manual of Network Fisheye Camera

Figure 5-8 Log Searching Interface

2. Set the log search conditions to specify the search, including the Major Type,

Minor Type, Start Time and End Time.

3. Click Search to search log files. The matched log files will be displayed on the

log list interface.

Figure 5-9 Log Searching

4. To export the log files, click Export to save the log files.

5.4 Security Settings

Configure the parameters, including Authentication, IP Address Filter, and Security Service from security interface.

User Manual of Network Fisheye Camera

5.4.1 Authentication

Purpose:

You can specifically secure the stream data of live view.

Steps:

1. Enter the Authentication interface: Configuration > System > Security > Authentication.

Figure 5-10 Authentication

2. Set up authentication method for RTSP authentication and WEB authentication.

Caution:

Digest is the recommended authentication method for better data security. You must be aware of the risk if you adopt basic as the authentication method.

3. Click Save to save the settings.

5.4.2 IP Address Filter

Purpose:

This function makes it possible for access control.

Steps:

1. Enter the IP Address Filter interface: Configuration > System > Security > IP

Address Filter

User Manual of Network Fisheye Camera

Figure 5-11 IP Address Filter Interface

2. Check the checkbox of Enable IP Address Filter.

3. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed

are selectable.

4. Set the IP Address Filter list.

 Add an IP Address

Steps:

(1) Click the Add to add an IP. (2) Input the IP Adreess.

Figure 5-12 Add an IP

(3) Click the OK to finish adding.

 Modify an IP Address

Steps:

(1) Left-click an IP address from filter list and click Modify. (2) Modify the IP address in the text filed.

User Manual of Network Fisheye Camera

Figure 5-13 Modify an IP

(3) Click the OK to finish modifying.

 Delete an IP Address or IP Addresses.

Select the IP address(es) and click Delete.

5. Click Save to save the settings.

5.4.3 Security Service

To enable the remote login, and improve the data communication security, the camera provides the security service for better user experience.

Steps:

1. Enter the security service configuration interface: Configuration > System >

Security > Security Service.

Figure 5-14 Security Service

2. Check the checkbox of Enable Illegal Login Lock.

Illegal Login Lock: it is used to limit the user login attempts. Login attempt from the IP address is rejected if admin user performs 7 failed user name/password attempts (5 times for the operator/user).

Note: If the IP address is rejected, you can try to login the device after 30 minutes.

User Manual of Network Fisheye Camera

5.5 User Management

5.5.1 User Management

 As Administrator

The admin user can add, delete or modify user accounts, and grant them different permissions. We highly recommend you manage the user accounts and permissions properly. Enter the User Management interface: Configuration > System > User

Management

Note:

Admin password if required for adding and modifying a user account.

Figure 5-15 User Management Interface

 Adding a User

The admin user has all permissions by default and can create/modify/delete other accounts. The admin user cannot be deleted and you can only change the admin password.

Steps:

1. Click Add to add a user.

2. Input the Admin Password, User Name, select Level and input Password.

Notes:

● Up to 31 user accounts can be created.

● Users of different levels own different default permissions. Operator and

user are selectable.

User Manual of Network Fisheye Camera

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

3. You can check or uncheck the permissions for the new user.

4. Click OK to finish the user addition.

 Modifying a User

Steps:

1. Left-click to select the user from the list and click Modify.

2. Modify the User Name, Level and Password.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

3. You can check or uncheck the permissions.

4. Click OK to finish the user modification.

 Deleting a User

Steps:

1. Click to select the user you want to delete and click Delete.

2. Click OK on the pop-up dialogue box to confirm the deletion.

 Setting Simultaneous Login

Steps:

1. Click General.

User Manual of Network Fisheye Camera

2. Slide the slide bar to set the simultaneous login. If the number of the illegal

 As Operator or User

Operator or user can modify password. Old password is required for this action.

5.5.2 Online Users

Purpose:

You can see the current users who are visiting the device through this interface. User information, such as user name, level, IP address, and operation time, is displayed in the User List. Click Refresh to refresh the list.

Figure 5-16 View the Online Users

User Manual of Network Fisheye Camera

Chapter 6 Network Settings

Purpose:

Follow the instructions in this chapter to configure the basic settings and advanced settings.

6.1 Configuring Basic Settings

Purpose:

You can configure the parameters, including TCP/IP, DDNS, PPPoE, Port, and NAT, etc., by following the instructions in this section.

6.1.1 Configuring TCP/IP Settings

Purpose:

TCP/IP settings must be properly configured before you operate the camera over network. The camera supports both the IPv4 and IPv6. Both versions can be configured simultaneously without conflicting to each other, and at least one IP version should be configured.

Steps:

1. Enter TCP/IP Settings interface: Configuration > Network > Basic Settings > TCP/IP

User Manual of Network Fisheye Camera

Figure 6-1 TCP/IP Settings

2. Configure the basic network settings, including the NIC Type, IPv4 or IPv6

Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings and Multicast Address.

3. (Optional) Check the checkbox of Enable Multicast Discovery, and then the

online network camera can be automatically detected by client software via private multicast protocol in the LAN.

4. Configure the DNS server. Input the preferred DNS server, and alternate DNS

server.

5. Click Save to save the above settings.

Notes:

 The valid value range of MTU is 1280 to 1500.  The Multicast sends a stream to the multicast group address and allows multiple

clients to acquire the stream at the same time by requesting a copy from the

User Manual of Network Fisheye Camera

multicast group address. Before utilizing this function, you have to enable the Multicast function of your router.

 A reboot is required for the settings to take effect.

6.1.2 Configuring DDNS Settings

Purpose:

If your camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registration on the DDNS server is required before configuring the DDNS settings of the camera.

Steps:

1. Enter the DDNS Settings interface: Configuration > Network > Basic Settings > DDNS.

2. Check the Enable DDNS checkbox to enable this feature.

3. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.

 DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, enter the domain name obtained from the DynDNS

website.

(3) Enter the User Name and Password registered on the DynDNS website. (4) Click Save to save the settings.

User Manual of Network Fisheye Camera

Figure 6-2 DynDNS Settings

 NO-IP:

Steps:

(1) Choose the DDNS Type as NO-IP.

Figure 6-3 NO-IP DNS Settings

(2) Enter the Server Address as www.noip.com (3) Enter the Domain name you registered. (4) Enter the User Name and Password. (5) Click Save and then you can view the camera with the domain name.

Note: Reboot the device to make the settings take effect.

User Manual of Network Fisheye Camera

6.1.3 Configuring PPPoE Settings

Steps:

1. Enter the PPPoE Settings interface: Configuration > Network > Basic

Settings > PPPoE

Figure 6-4 PPPoE Settings

2. Check the Enable PPPoE checkbox to enable this feature.

3. Enter User Name, Password, and Confirm password for PPPoE access.

Note: The User Name and Password should be assigned by your ISP.

 For your privacy and to better protect your system against security risks, we

strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4. Click Save to save and exit the interface.

Note: A reboot is required for the settings to take effect.

User Manual of Network Fisheye Camera

6.1.4 Configuring Port Settings

Purpose:

You can set the port No. of the camera, e.g., HTTP port, RTSP port and HTTPS port.

Steps:

1. Enter the Port Settings interface, Configuration > Network > Basic Settings > Port

Figure 6-5 Port Settings

2. Set the ports of the camera. HTTP Port: The default port number is 80, and it can be changed to any port No. which is not occupied. RTSP Port: The default port number is 554 and it can be changed to any port No. ranges from 1 to 65535. HTTPS Port: The default port number is 443, and it can be changed to any port No. which is not occupied. Server Port: The default server port number is 8000, and it can be changed to any port No. ranges from 2000 to 65535.

Note:

When you use client software to visit the camera and you have changed the server port number, you have to input the correct server port number in login interface to access to the camera. WebSocket Port: The default port number is 7681. It can be changed to any port

User Manual of Network Fisheye Camera

No. ranges from 1 to 65535. WebSockets Port: The default server port number is 7682. It can be changed to any port No. ranges from 1 to 65535.

Note:

WebSocket and WebSockets protocol are used for plug-in free live view.

3. Click Save to save the settings.

Note: A reboot is required for the settings to take effect.

6.1.5 Configure NAT (Network Address Translation) Settings

Purpose:

NAT interface allows you to configure the UPnP™ parameters.

Universal Plug and Play (UPnP™) is a networking architecture that provides

compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the home and corporate environments. With the function enabled, you don’t need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Figure 6-6 UPnP Settings

Steps:

1. Enter the NAT settings interface. Configuration > Network > Basic Settings > NAT.

2. Check the checkbox to enable the UPnP™ function.

User Manual of Network Fisheye Camera

Note:

Only when the UPnP™ function is enabled, ports of the camera are active.

3. Choose a friendly name for the camera, or you can use the default name.

4. Select the port mapping mode. Manual and Auto are selectable.

Note:

If you select Auto, you should enable UPnP™ function on the router. If you select Manual, you can customize the value of the external port and complete port mapping settings on router manually.

5. Click Save to save the settings.

6.2 Configure Advanced Settings

Purpose:

You can configure the parameters, including SNMP, FTP, Email, HTTPS, QoS,

802.1x, etc., by following the instructions in this section.

6.2.1 Configuring SNMP Settings

Purpose:

You can set the SNMP function to get camera status, parameters and alarm related information, and manage the camera remotely when it is connected to the network.

Before you start:

Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages to the surveillance center.

Note: The SNMP version you select should be the same as that of the SNMP software.

And you also need to use the different version according to the security level you required. SNMP v1 provides no security and SNMP v2 requires password for access. And SNMP v3 provides encryption and if you use the third version, HTTPS protocol must be enabled.

User Manual of Network Fisheye Camera

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

Steps:

1. Enter the SNMP Settings interface: Configuration > Network > Advanced Settings > SNMP.

User Manual of Network Fisheye Camera

Figure 6-7 SNMP Settings

2. Check the checkbox of Enable SNMPv1, Enable SNMP v2c, Enable SNMPv3 to enable the feature correspondingly.

3. Configure the SNMP settings.

Note: The settings of the SNMP software should be the same as the settings you

User Manual of Network Fisheye Camera

configure here.

4. Click Save to save and finish the settings.

Notes:

• A reboot is required for the settings to take effect.

• To lower the risk of information leakage, you are suggested to enable SNMP v3

instead of SNMP v1 or v2.

6.2.2 Configuring FTP Settings

Purpose:

You can configure the FTP server related information to enable the uploading of the captured pictures to the FTP server. The captured pictures can be triggered by events or a timing snapshot task.

Steps:

1. Enter the FTP Settings interface: Configuration > Network > Advanced Settings > FTP

Figure 6-8 FTP Settings

2. Input the server address and port.

3. Configure the FTP settings; and the user name and password are required for the server login.

User Manual of Network Fisheye Camera

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4. Set the directory structure and picture filing interval. Directory: In the Directory Structure field, you can select the root directory, parent directory and child directory. When the parent directory is selected, you have the option to use the Device Name, Device Number or Device IP for the name of the directory; and when the Child Directory is selected, you can use the Camera Name or Camera No. as the name of the directory. Picture Filing Interval: For better picture management, you can set the picture filing interval from 1 day to 30 days. Pictures captured in the same time interval will be saved in one folder named after the beginning date and ending date of the time interval.

Picture Name: Set the naming rule for captured picture files. You can choose Default in the drop-down list to use the default rule, that is,

IP address_channel number_capture time_event type.jpg

(e.g., 10.11.37.189_01_20150917094425492_FACE_DETECTION.jpg).

Or you can customize it by adding a Custom Prefix to the default naming rule.

5. Check the Upload Picture checkbox to enable the function.

Upload Picture: To enable uploading the captured picture to the FTP server. Anonymous Access to the FTP Server (in which case the user name and

password won’t be required.): Check the Anonymous checkbox to enable the anonymous access to the FTP server.

User Manual of Network Fisheye Camera

Note: The anonymous access function must be supported by the FTP server.

6. Click Save to save the settings.

6.2.3 Configuring Email Settings

Purpose:

The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.

Before you start:

Please configure the DNS Server settings under Configuration > Network > Basic Settings > TCP/IP before using the Email function.

Steps:

1. Enter the TCP/IP Settings (Configuration > Network > Basic Settings > TCP/IP) to set the IPv4 Address, IPv4 Subnet Mask, IPv4 Default Gateway and

the Preferred DNS Server.

Note: Please refer to Section 7.1.1 Configuring TCP/IP Settings for detailed

information.

2. Enter the Email Settings interface: Configuration > Network >Advanced Settings > Email.

3. Configure the following settings: Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: IP address or host name (e.g., smtp.263xmail.com) of the SMTP Server. SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25 (not secured). And the SSL SMTP port is 465. Email Encryption: None, SSL, and TLS are selectable. When you select SSL or TLS and disable STARTTLS, e-mails will be sent after encrypted by SSL or TLS. The SMTP port should be set as 465 for this encryption method. When you select

User Manual of Network Fisheye Camera

SSL or TLS and enable STARTTLS, emails will be sent after encrypted by STARTTLS, and the SMTP port should be set as 25.

Note: If you want to use STARTTLS, make sure that the protocol is supported by

your e-mail server. If you check the Enable STARTTLS checkbox when the protocol is not supported by your e-mail sever, your e-mail will not be encrypted. Attached Image: Check the checkbox of Attached Image if you want to send emails with attached alarm images. Interval: The interval refers to the time between two actions of sending attached pictures. Authentication (optional): If your email server requires authentication, check this checkbox to use authentication to log in to this server and input the login user name and password.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

The Receiver table: Select the receiver to which the email is sent. Up to 3 receivers can be configured. Receiver: The name of the user to be notified. Receiver’s Address: The email address of user to be notified.

User Manual of Network Fisheye Camera

Figure 6-9 Email Settings

4. Click Save to save the settings.

6.2.4 Platform Access

Purpose:

Platform access provides you an option to manage the devices via platform.

Steps:

1. Enter the Platform Access settings interface: Configuration > Network > Advanced Settings > Platform Access

2. Check the checkbox of Enable to enable the platform access function of the device.

3. Select the Platform Access Mode.

Note: Hik-Connect is an application for mobile devices. With the App, you can

view live image of the camera, receive alarm notification and so on.

User Manual of Network Fisheye Camera

If you select Platform Access Mode as Hik-Connect,

1) Click and read "Terms of Service" and "Privacy Policy" in pop-up window.

2) Create a verification code or change the verification code for the camera.

Note:

• The verification code is required when you add the camera to Hik-Connect

app.

• For more information about the Hik-Connect app, refer to Hik-Connect

Mobile Client User Manual.

3) You can use the default server address. Or you can check the Custom checkbox on the right and input a desired server address.

6.2.5 HTTPS Settings

Purpose:

HTTPS provides authentication of the web site and its associated web server, which protects against Man-in-the-middle attacks.

Note:

 For the camera that supports plug-in free live view, when you use HTTPS to visit

the camera, you should enable Websockets for live view. Go to Configuration > Network > Advanced Settings > Network Service.

 If HTTPS is enabled by default, the camera creates an unsigned certificate

automatically. When you visit the camera via HTTPS, the web browser will send a notification about the certificate issue. Install a signed-certificate to the camera to cancel the notification.

Steps:

1. Enter the HTTPS settings interface. Configuration > Network > Advanced Settings > HTTPS.

2. Check Enable to access the camera via HTTP or HTTPS protocol.

3. Check Enable HTTPS Browsing to access the camera only via HTTPS protocol.

User Manual of Network Fisheye Camera

Figure 6-10 HTTPS Configuration Interface

4. Create the self-signed certificate or authorized certificate.

Figure 6-11 Create Self-signed Certificate

 Create the self-signed certificate

(1) Select Create Self-signed Certificate as the Installation Method. (2) Click Create button to enter the creation interface. (3) Enter the country, host name/IP, validity and other information. (4) Click OK to save the settings.

Note: If you already had a certificate installed, the Create Self-signed

Certificate is grayed out.

 Create the request and import the authorized certificate

(1) Select Create the certificate request first and continue the installation as

the Installation Method.

(2) Click Create button to create the certificate request. Fill in the required

information in the popup window.

(3) Click Download to download the certificate request and submit it to the

trusted certificate authority for signature.

(4) After receiving the signed valid certificate, you can import the certificate in

two ways:

User Manual of Network Fisheye Camera

a) Select Signed certificate is available, Start the installation directly.

Click Browse and Install to import the certificate to the device.

Figure 6-12 Import the Certificate (1)

b) Select Create the certificate request first and continue the

installation. Click Browse and Install to import the certificate to the

device.

Figure 6-13 Import the Certificate (2)

5. There will be the certificate information after your successfully creating and installing the certificate.

Figure 6-14 Installed Certificate

6. Export and save the certificate for verification when adding the device to client software.

User Manual of Network Fisheye Camera

Note:

The exported certificate should be saved in the certificate folder of your client software before adding the device to your PC client.

7. Click the Save button to save the settings.

6.2.6 Configuring QoS Settings

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending.

Steps:

1. Enter the QoS Settings interface: Configuration > Network > Advanced Settings > QoS

Figure 6-15 QoS Settings

2. Configure the QoS settings, including Video/Audio DSCP, Event/Alarm DSCP and Management DSCP. The valid value range of the DSCP is 0 to 63. The bigger the DSCP value is, the higher the priority is.

Note: DSCP refers to the Differentiated Service Code Point; and the DSCP value

is used in the IP header to indicate the priority of the data.

3. Click Save to save the settings.

Note: A reboot is required for the settings to take effect.

User Manual of Network Fisheye Camera

6.2.7 Configuring 802.1X Settings

Purpose:

The IEEE 802.1X standard is supported by the network cameras, and when the feature is enabled, the camera data is secured and user authentication is needed when connecting the camera to the network protected by the IEEE 802.1X.

Before you start:

The authentication server must be configured. Please apply and register a user name and password for 802.1X in the server.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

Steps:

1. Enter the 802.1X Settings interface, Configuration > Network > Advanced Settings > 802.1X

Figure 6-16 802.1X Settings

User Manual of Network Fisheye Camera

2. Check the Enable IEEE 802.1X checkbox to enable the feature.

3. Configure the 802.1X settings, including Protocol, EAPOL version, User Name, Password and Confirm.

Note: The EAPOL version must be identical with that of the router or the switch.

4. Enter the user name and password to access the server.

5. Click Save to finish the settings.

Note: A reboot is required for the settings to take effect.

6.2.8 Integration Protocol

Purpose:

If you need to access to the camera through the third party platform, you can enable CGI function. And if you need to access to the device through ONVIF protocol, you can configure ONVIF user in this interface. Refer to ONVIF standard for detailed configuration rules.

 CGI

Check the Enable Hikvision_CGI checkbox and then select the authentication from the drop-down list.

Note: Digest is the recommended authentication method.

 ONVIF

Steps:

1. Check the Enable ONVIF checkbox to enable the function.

2. Add ONVIF users. Up to 32 users are allowed.

Set the user name and password, and confirm the password. You can set the user as media user, operator, and administrator.

Note: ONVIF user account is different from the camera user account. You

have set ONVIF user account independently.

3. Save the settings.

Note: User settings of ONVIF are cleared when you restore the camera.

User Manual of Network Fisheye Camera

6.2.9 Configuring HTTP Listening

Purpose:

The camera can send alarm information to the destination IP or host name via HTTP protocol. If the network is disconnected, the data can be uploaded to the destination IP or host name after the network connection is normal.

Before you start:

The destination IP or host name should support the HTTP protocol to receive the alarm information.

Steps:

1. Enter the HTTP Listening interface, Configuration > Network > Advanced Settings > Listening.

Figure 6-17 HTTP Listening

2. Enter the desired destination IP or host name, URL and port.

3. You can click Test to test whether the entered IP address or host name are valid.

4. Or you can click Default to reset the destination IP or host name.

User Manual of Network Fisheye Camera

Chapter 7 Video/Audio Settings

Purpose:

Follow the instructions below to configure the video setting, audio settings, ROI, Display info. on Stream, etc.

7.1 Configuring Video Settings

For certain camera models, you can configure parameters for available video streams, for example, the main stream, the sub-stream, etc.

Steps:

1. Enter the Video Settings interface, Configuration > Video/Audio > Video

Figure 7-1 Video Settings

2. Select the Stream Type. Supported stream types are listed in the drop-down list.

Notes:

• For some models, the Third Stream is not enabled by default. Go to System >

User Manual of Network Fisheye Camera

Maintenance > System Service> Software to enable the function is required.

• The main stream is usually for recording and live view with good bandwidth,

and the sub-stream can be used for live view when the bandwidth is limited.

3. You can customize the following parameters for the selected stream type.

Video Type: Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio. Resolution: Select the resolution of the video output. Bitrate Type: Select the bitrate type to constant or variable. Video Quality: When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

Set the frame rate. The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout. Max. Bitrate: Set the max. bitrate from 32 to 16384 Kbps. The higher value corresponds to the higher video quality, but the better bandwidth is required.

Note: The maximum limit of the max. bitrate value varies according to different

camera platforms. For certain cameras, the maximum limit is 8192 Kbps or 12288 Kbps. Video Encoding: The camera supports multiple video encodings types, such as H.264, H.265, MJPEG, and MPEG4. Supported encoding type for different stream types may differ. H.265 is a new encoding technology. Compared with H.264, it reduces the transmission bitrate under the same resolution, frame rate and image quality.

User Manual of Network Fisheye Camera

Note: Selectable video encoding types may vary according to different camera

modes.

H.264+ and H.265+:

• H.264+: If you set the main stream as the stream type, and H.264 as the video

encoding, you can see H.264+ available. H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, users can estimate the HDD consumption by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes.

• H.265+: If you set the main stream as the stream type, and H.265 as the video

encoding, you can see H.265+ available. H.265+ is an improved compression coding technology based on H.265. By enabling H.265+, users can estimate the HDD consumption by its maximum average bitrate. Compared to H.265, H.265+ reduces storage by up to 50% with the same maximum bitrate in most

scenes. You need to reboot the camera if you want to turn on or turn off the H.264+/H.265+. If you switch from H.264+ to H.265+ directly, and vice versa, a reboot is not required by the system.

Notes:

• Upgrade your video player to the latest version if live view or playback does

not work properly due to compatibility.

• With H.264+/H.265+ enabled, the parameters such as profile, I frame interval,

video quality, and SVC are greyed out.

• With H.264+/H.265+ enabled, some functions are not supported. For those

functions, corresponding interfaces will be hidden.

• H.264+/H.265+ can spontaneously adjust the bitrate distribution according the

requirements of the actual scene in order to realize the set maximum average bitrate in the long term. The camera needs at least 24 hours to adapt to a fixed monitoring scene.

User Manual of Network Fisheye Camera

Max. Average Bitrate:

When you set a maximum bitrate, its corresponding recommended maximum average bitrate will be shown in the Max. Average Bitrate box. You can also set the maximum average bitrate manually from 32 Kbps to the value of the set maximum bitrate.

Profile:

When you select H.264 or H.265 as video encoding, you can set the profile. Selectable profiles vary according to camera models.

I Frame Interval:

Set I Frame Interval from 1 to 400.

SVC:

Scalable Video Coding is an extension of the H.264/AVC and H.265 standard. Select OFF/ON to disable/enable the SVC function. Select Auto and the device will automatically extract frames from the original video when the network bandwidth is insufficient.

Smoothing:

It refers to the smoothness of the stream. The higher value of the smoothing is, the better fluency of the stream will be, though, the video quality may not be so satisfactory. The lower value of the smoothing is, the higher quality of the stream will be, though it may appear not fluent.

4. Click Save to save the settings.

Note:

The video parameters vary according to different camera models. Refer to the actual display page for camera functions.

7.2 Configuring Audio Settings

Steps:

1. Enter the Audio Settings interface: Configuration > Video/Audio > Audio.

User Manual of Network Fisheye Camera

Figure 7-2 Audio Settings

2. Configure the following settings.

Note: Audio settings vary according to different camera models.

Audio Encoding: G.722.1, G.711 ulaw, G.711alaw, G.726, MP2L2, PCM and MP3 are selectable. For MP2L2, the Sampling Rate and Audio Stream Bitrate are configurable. For PCM, the Sampling Rate can be set. Audio Input: MicIn and LineIn are selectable for the connected microphone and pickup respectively.

Input Volume: 0-100 adjustable. Environmental Noise Filter: Set it as OFF or ON. When the function is enabled,

the noise in the environment can be filtered to some extent.

3. Click Save to save the settings.

7.3 Configuring ROI Encoding

Purpose:

ROI (Region of Interest) encoding helps to discriminate the ROI and background information in video compression, which means, the technology assigns more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.

Note: ROI function varies according to different camera models.

User Manual of Network Fisheye Camera

Figure 7-3 Region of Interest Settings

Steps:

1. Enter the ROI settings interface: Configuration > Video/Audio > ROI.

2. Select the Stream Type for ROI encoding.

3. Check the checkbox of Enable under Fixed Region item.

4. Set Fixed Region for ROI. (1) Select the Region No. from the drop-down list. (2) Check the Enable checkbox to enable ROI function for the chosen region. (3) Click Drawing. Click and drag the mouse on the view screen to draw a red

rectangle as the ROI region. You can click Clear to cancel former drawing. Click Stop Drawing when you finish.

User Manual of Network Fisheye Camera

(4) Select the ROI level. (5) Enter a region name for the chosen region. (6) Click Save the save the settings of ROI settings for chosen fixed region. (7) Repeat steps (1) to (6) to setup other fixed regions.

7.4 Display Info. on Stream

Check the checkbox of Enable Dual-VCA, and the information of the objects (e.g. human, vehicle, etc.) will be marked in the video stream. Then, you can set rules on the connected rear-end device to detect the events including line crossing, intrusion, etc.

Figure 7-4 Display Info. on Stream

User Manual of Network Fisheye Camera

Chapter 8 Configuring Image

Parameters

8.1 Configuring Display Settings

Purpose:

You can set the image quality of the camera, including brightness, contrast, saturation, sharpness, etc.

Steps:

1. Enter the Display Settings interface:

Configuration > Image> Display Settings

2. Set the image parameters of the camera.

Note: In order to guarantee the image quality in the different illumination, it

provides two sets of parameters for user to configure.

Day/Night Auto-switch

Figure 8-1 Display Settings of Day/night Auto-switch

 Image Adjustment

Brightness describes bright of the image, which ranges from 1 to 100, and

the default value is 50.

User Manual of Network Fisheye Camera

Contrast describes the contrast of the image, which ranges from 1 to 100, and the default value is 50. Saturation describes the colorfulness of the image color, which ranges from 1 to 100, and the default value is 50. Sharpness describes the edge contrast of the image, which ranges from 1 to 100, and the default value is 50.

 Exposure Settings

Iris Mode: If the camera is equipped with the fixed lens, only Manual is

selectable, and the iris mode is not configurable. If Auto is selected, you can set the auto iris level from 0 to 100. Exposure Time: It refers to the electronic shutter time, which ranges from 1/3 to 1/100,000s. Adjust it according to the actual luminance condition. Gain: Gain of the image can also be manually configured from 0 to 100. The bigger the value is, the brighter would the image be, and the noise would also be amplified to a larger extent.

 Day/Night Switch

Select the day/night switch mode, and configure the smart supplement light settings from this option.

Day: the camera stays at day mode. Night: the camera stays at night mode. Auto: the camera switches between the day mode and the night mode

according to the illumination automatically. The sensitivity ranges from 0 to 7, the higher the value is, the easier the mode switches. The filtering time refers to the time interval between the day/night switch. You can set it from 5s to 120s. Schedule: The camera switches between the day mode and the night mode according to the configured time period. Triggered by Alarm Input: The camera switches to the day mode or the night mode after the alarm is triggered.

User Manual of Network Fisheye Camera

Smart Supplement Light: Smart Supplement Light function gives user an option to adjust the power of the IR LED, thus avoiding image over-exposure. When the light is turned on, and Auto and Manual are selectable for IR mode. Select AUTO, and the IR LED changes according to the actual luminance. E.g., if the current scene is bright enough, then the IR LED adjusts itself to lower power; and if the scene is not bright enough, the IR LED adjusts itself to higher power. Select Manual, and you can adjust the IR LED by adjusting the distance. The higher the value is, the higher the power of the light would be, and it can reach objects farther away.

 Backlight Settings

BLC: If you focus on an object against strong backlight, the object will be

too dark to be seen clearly. BLC compensates light to the object in the front to make it clear. OFF, Up, Down, Left, Right and Center are selectable. WDR: Wide Dynamic Range can be used when there is a high contrast of the bright area and the dark area of the scene. The wide dynamic level can be adjusted from 0 to 100.

 White Balance

White balance is the white rendition function of the camera used to adjust the color temperature according to the environment.

 Image Enhancement

Digital Noise Reduction: DNR reduces the noise in the video stream. OFF,

Normal Mode and Expert Mode are selectable. Under normal mode, set the DNR level from 0 to 100, and the default value is 50. Under expert mode, you can set Space DNR Level and Time DNR Level separately. Gray Scale: You can choose the range of the grey scale as [0 to 255] or [16 to 235].

 Video Adjustment

User Manual of Network Fisheye Camera

Video Standard: 50 Hz and 60 Hz are selectable. Choose according to the different video standards. Normally, 50 Hz is for PAL standard and 60 Hz for NTSC standard.

Note: The display parameters vary according to the different camera model.

Please refer to the actual interface for details.

Day/Night Scheduled Switch

Day/Night scheduled-switch configuration interface enables you to set the camera parameters for day and night separately, guaranteeing the image quality in different illumination.

Figure 8-2 Day/Night Scheduled-Switch Setting

Steps:

1) Click the calendar icon to select the start time and the end time of the switch.

2) Click Common tab to configure the common parameters applicable to the

day mode and night mode.

Note: For the detailed information of each parameter, please refer to the

description in Day/Night Auto-Switch.

3) Click Day tab to configure the parameters applicable for day mode.

4) Click Night tab to configure the parameters applicable for night mode.

Note: The settings saved automatically if any parameter is changed.

User Manual of Network Fisheye Camera

8.2 Configuring OSD Settings

Purpose:

OSD (On-screen Display) refers to the camera name, time/date format, display mode, and OSD size displayed on the live view.

Steps:

1. Enter the OSD Settings interface: Configuration > Image > OSD Settings

Figure 8-3 OSD Settings

2. Select a camera channel to configure.

3. Check the corresponding checkbox to select the display of camera name, date or

week if required.

4. Edit the camera name in the text field of Camera Name.

5. Select from the drop-down list to set the time format, date format, display mode

and the OSD font size.

6. Set overlaid text if needed.

1) Check the checkbox on the left to enable the on-screen display.

2) Input the desired information in the textbox.

Notes:

User Manual of Network Fisheye Camera

• Up to 8 texts are configurable.

• Text overlay is only supported when the live view stream is decoded by

hardware and display mode is Fisheye View.

7. Adjust the position and alignment of text frames.

Left align, right align and custom are selectable. If you select custom, you can use the mouse to click and drag text frames in the live view window to adjust their positions.

Note: The alignment adjustment is only applicable to Text Overlay items.

8. (Optional) Click Copy to to copy the parameters of set camera channels to other

channels.

9. Click Save to save the settings.

8.3 Configuring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded.

Note: Privacy Mask function may not be supported by certain display modes, refer to

the actual interface for detailed information.

Steps:

1. Enter the Privacy Mask Settings interface:

Configuration > Image > Privacy Mask

User Manual of Network Fisheye Camera

Figure 8-4 Privacy Mask Settings

2. Select a camera channel to configure.

3. Check the checkbox of Enable Privacy Mask to enable this function.

4. Click the Draw Area button to start drawing.

5. Click-and-drag the mouse in the live video window to draw the mask area.

6. Click Stop Drawing to finish drawing.

7. You can click Clear All to clear all the configured privacy masks.

8. Click Save to save the settings.

Note: Up to 4 privacy masks are configurable.

8.4 Picture Overlay

Purpose:

Picture overlay enables you to overlay a picture on the image. This function enables a certain enterprise or users to overlay their logo on the image.

Steps:

1. Enter the Picture Overlay Settings interface, Configuration > Image > Picture

User Manual of Network Fisheye Camera

Overlay.

Figure 8-5 Picture Overlay

2. Click Browse to select a picture.

3. Click Upload to upload it.

4. Check Enable Picture Overlay checkbox to enable the function.

5. Drag the red rectangle to adjust the position.

6. Click Save to save settings.

Note: The picture must be in RGB24 bmp format and the maximum picture size is

128*128.

User Manual of Network Fisheye Camera

Chapter 9 Configuring Event

Settings

This section explains how to configure the network camera to respond to alarm events, including motion detection, video tampering, alarm input, alarm output, exception, exception detection, intrusion detection, and line crossing detection, etc. These events can trigger the linkage methods, such as Notify Surveillance Center, Send Email, Trigger Alarm Output, etc.

Note: Check the checkbox of Notify Surveillance Center if you want to push the

alarm information to the surveillance client such as the mobile phone, computer, etc., as soon as the alarm is triggered.

9.1 Configuring Motion Detection

Purpose:

Motion detection detects the moving objects in the configured surveillance area, and a series of actions can be taken when the alarm is triggered. In order to detect the moving objects accurately and reduce the false alarm rate, normal configuration and expert configuration are selectable for different motion detection environment.

Note: Motion Detection is not supported when the decoding mode is hardware

decoding and the display mode is 4PTZ.

 Normal Configuration

Normal configuration adopts the same set of motion detection parameters in the daytime and at night.

Tasks 1: Set the Motion Detection Area Steps:

1. Enter the Motion Detection Settings interface.

Configuration > Event > Basic Event > Motion Detection

User Manual of Network Fisheye Camera

Figure 9-1 Motion Detection Settings

2. Check the checkbox of Enable Motion Detection.

3. (Optional) Check the checkbox of Enable Dynamic Analysis for Motion if

you want to mark the detected objects with green rectangles on the live view window.

Note: You can go to Configuration > Local Configuration > Live View

Parameters, and then select Disable for Rules if you don’t want the detected

objected displayed with the rectangles.

4. Click Draw Area. Click and drag the mouse on the live video to draw a

motion detection area. Click Stop Drawing to finish drawing one area.

5. (Optional) Click Clear All to clear all of the areas.

User Manual of Network Fisheye Camera

6. (Optional) Move the slider to set the sensitivity of the detection.

Task 2: Set the Arming Schedule for Motion Detection Steps:

1. Click Arming Schedule to edit the arming schedule.

Figure 9-2 Arming Schedule Setting

2. Click on the time bar and drag the mouse to select the time period.

Note: Click on the selected time period, you can adjust the time period to the

desired time by either moving the time bar or input the exact time period.

3. (Optional) Click Delete to delete the current arming schedule, or click Save to

save the settings.

4. Move the mouse to end of each day, a green copy icon appears. You can click

the icon to copy the current time schedule to other days.

5. Click Save to save the settings.

Note: The time of each period can’t be overlapped. Up to 8 periods can be

configured for each day.

Task 3: Set the Linkage Method for Motion Detection

Click Linkage Method and check the checkbox to select the linkage method. audible warning, notify surveillance center, send email, upload to FTP/Memory Card/NAS, trigger channel, trigger alarm output, and smart tracking are selectable. You can specify the linkage method when an event occurs.

User Manual of Network Fisheye Camera

Figure 9-3 Linkage Method Settings

 Audible Warning

Trigger the audible warning locally. And it only supported by the device that has the audio output.

 Notify Surveillance Center: Send an exception or alarm signal to remote

management software when an event occurs.

 Send Email: Send an email with alarm information to a user or users when

an event occurs.

Note: To send the Email when an event occurs, please refer to Section 5.3.8

to complete Email setup in advance.

 Upload to FTP/Memory Card/NAS: Capture the image when an alarm is

triggered and upload the picture to the configured FTP server, memory card and NAS.

Notes:

• Set the FTP address and the remote FTP server first. Refer to Section

5.3.7 Configuring FTP Settings for detailed information.

• The captured image can also be uploaded to the available memory card

or network disk (NAS). Go to Configuration > Storage > Storage Management to set the memory card and NAS.

• Go to Configuration > Storage > Schedule Settings > Capture >

Capture Parameters page, enable the event-triggered snapshot, and set

the capture interval and capture number.

User Manual of Network Fisheye Camera

 Smart Tracking: It can make the speed dome to track target manually by

clicking the target on the live view of fisheye camera.

Note: In order to make smart tracking take effect, you need to have a speed

dome which has auto tracking function installed near your fisheye camera, and you have to configure relevant settings on 4200 Client Software. Refer to the user manual of 4200 Client Software for detailed information.

 Trigger Channel: The video will be recorded when the motion is detected.

You have to set the recording schedule first.

 Trigger Alarm Output: Trigger one or more external alarm outputs when an

event occurs.

Note: Go to Advanced Configuration > Basic Event > Alarm Output page,

set the arming schedule of the alarm output.

 Expert Mode

Figure 9-4 Motion Detection Settings-Expert Mode

If Expert is selected as the configuration mode, different sets of parameters are adopted for motion detection at day and night.

 Day/Night Switch OFF

Steps:

(1) Draw the detection area as in the normal configuration mode. The

User Manual of Network Fisheye Camera

supported area number varies according to different camera models.

(2) Select OFF for Switch Day and Night Settings. (3) Select the area by clicking the area No.. (4) Slide the cursor to adjust the sensitivity and proportion of object in the

area for the selected area.

Sensitivity: The greater the value is, the easier the alarm will be triggered. Percentage: When the size of the moving object exceeds the set

percentage of the predefined area, the alarm will be triggered. The smaller the percentage is, the easier the alarm will be triggered.

(5) Set the arming schedule and linkage method as in the normal

configuration mode.

(6) Click Save to save the settings.

 Day/Night Auto-Switch

Steps:

(1) Draw the detection area as in the normal configuration mode. The

supported area varies according to the different camera models.

(2) Select Auto-Switch for Switch Day and Night Settings. (3) Select the area by clicking the area No.. (4) Slide the cursor to adjust the sensitivity and proportion of object in the

area for the selected area in the daytime.

(5) Slide the cursor to adjust the sensitivity and proportion of object in the

area for the selected area at night.

(6) Set the arming schedule and linkage method as in the normal

configuration mode.

(7) Click Save to save the settings.

 Day/Night Scheduled-Switch

Steps:

(1) Draw the detection area as in the normal configuration mode. The

supported area number varies according to different camera models.

User Manual of Network Fisheye Camera

(2) Select Scheduled-Switch for Switch Day and Night Settings. (3) Select the start time and end time for the switching timing. (4) Select the area by clicking the area No.. (5) Slide the cursor to adjust the sensitivity and proportion of object in the

area for the selected area in the daytime.

(6) Slide the cursor to adjust the sensitivity and proportion of object in the

area for the selected area at night.

(7) Set the arming schedule and linkage method as in the normal

configuration mode.

(8) Click Save to save the settings.

9.2 Configuring Video Tampering Alarm

Purpose:

You can configure the camera to trigger the alarm when the lens is covered and take alarm response action.

Note: Video Tampering Detection is not supported when the decoding mode is

hardware decoding and the display mode is 180 Panorama View or 4PTZ.

Steps:

1. Enter the Tamper-proof Settings interface:

Configuration > Event > Basic Event > Video Tampering

2. Check the checkbox of Enable Video Tampering to enable video tampering detection function.

User Manual of Network Fisheye Camera

Figure 9-5 Video Tampering Detection Settings

3. Draw the detection area as in the normal configuration mode.

4. Move the slider to set the sensitivity.

5. Click Arming Schedule to set arming schedule as that in Task 2 Set the Arming Schedule for Motion Detection in Section 5.6.1.

6. Click Linkage Method to set linkage method as that in Task 3 Set the Linkage Method for Motion Detection in Section 5.6.1.

7. Click Save to save the settings.

9.3 Configuring Alarm Input

Steps:

1. Enter the Alarm Input Settings interface:

Configuration > Events > Basic Event > Alarm Input

User Manual of Network Fisheye Camera

Figure 9-6 Alarm Input Settings

2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed). Edit the alarm name (optional).

3. Check the checkbox of Enable Alarm Input Handling to enable the function.

4. Set the arming schedule. Refer to Task 2: Set Arming Schedule for Motion Detection in Section 5.6.1.

5. Set the linkage method. Refer to Task 3: Set Linkage Method for Motion

Detection in Section 5.6.1.

6. (Optional) You can copy your settings to other alarm inputs.

7. Click Save to save the settings.

Note: Alarm input settings vary according to the camera model.

9.4 Configuring Alarm Output

Steps:
