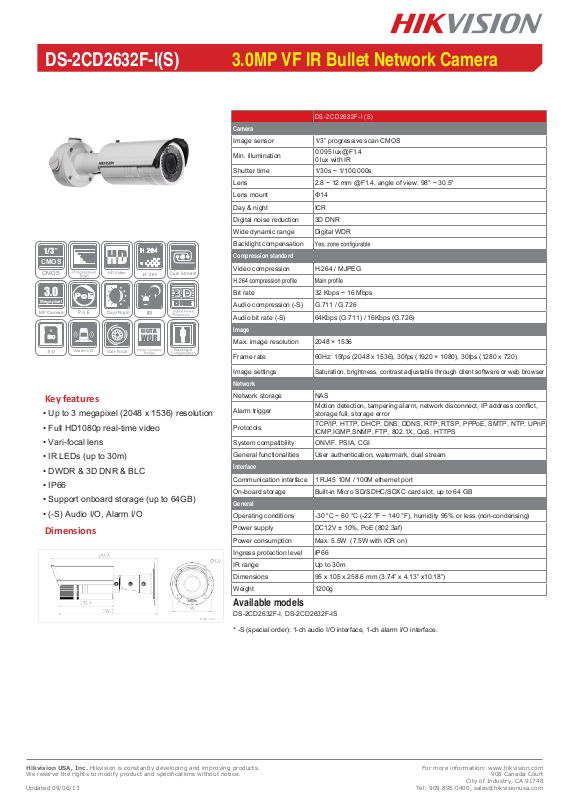

DS-2CD2632F-I(S) 3.0MP VF IR Bullet Network Camera
DS-2CD2632F-I (S)
Camera
Image sensor 1/3” progressive scan CMOS
0.095 lux@F1.4
0 lux with IR
Φ14
1/3”
CMOS
CMOS
HD Video
Min. illumination
Shutter time 1/30s ~ 1/100,000s
Lens 2.8 ~ 12 mm @F1.4, angle of view: 98° ~ 30.5°
Lens mount
Day & night ICR
Digital noise reduction 3D DNR
Wide dynamic range Digital WDR
Backlight compensation
Compression standard
Video compression H.264 / MJPEG
3.0
Megapixel
MP Camera
Alarm I/O
Vari-Focal
DIGITAL
WDR
3D
IR
Key features
• Up to 3 megapixel (2048 x 1536) resolution
• Full HD1080p real-time video
• Vari-focal lens
• IR LEDs (up to 30m)
• DWDR & 3D DNR & BLC
• IP66
• Support onboard storage (up to 64GB)
• (-S) Audio I/O, Alarm I/O
Dimensions
Bit rate 32 Kbps ~ 16 Mbps
Audio compression (-S) G.711 / G.726
Audio bit rate (-S) 64Kbps (G.711) / 16Kbps (G.726)
Max. image resolution 2048 × 1536
Frame rate 60Hz: 15fps (2048 x 1536), 30fps (1920 × 1080), 30fps (1280 x 720)
Image settings
Network
Network storage NAS
Alarm trigger
Protocols
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark, dual stream
Interface
Communication interface 1 RJ45 10M / 100M ethernet port
On-board storage Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
General
Operating conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F), humidity 95% or less (non-condensing)
Power supply DC12V ± 10%, PoE (802.3af)
Power consumption Max. 5.5W (7.5W with ICR on)
Ingress protection level IP66
IR range Up to 30m
Dimensions 95 x 105 x 258.6 mm (3.74” x 4.13” x10.18”)
Weight 1200g
Saturation, brightness, contrast adjustable through client software or web browser
Motion detection, tampering alarm, network disconnect, IP address conflict,
storage full, storage error
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP,
ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS
Available models
DS-2CD2632F-I, DS-2CD2632F-IS
* -S (special order): 1-ch audio I/O interface, 1-ch alarm I/O interface.
Accessories
Hikvision USA, Inc. Hikvision is constantly developing and improving products.
We reserve the rights to modify product and specifications without notice.
Updated 09/06/13
