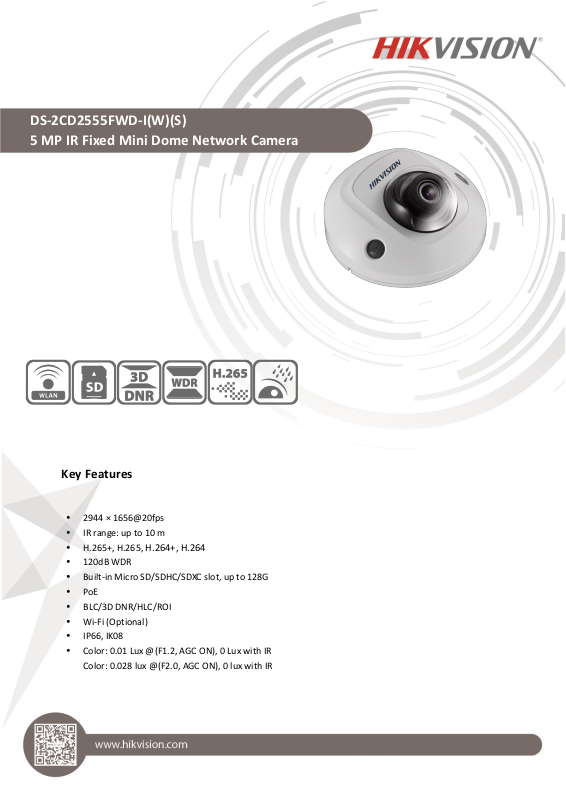

DS-2CD2555FWD-I(W)(S)
5 MP IR Fixed Mini Dome Network Camera
2944 × 1656@20fps
IR range: up to 10 m
H.265+, H.265, H.264+, H.264
120dB WDR
Built-in Micro SD/SDHC/SDXC slot, up to 128G
PoE
BLC/3D DNR/HLC/ROI
Wi-Fi (Optional)
IP66, IK08
Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Key Features
Specifications
Camera
Image Sensor
1/2.9" Progressive Scan CMOS
Min. Illumination
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Slow Shutter
Yes
Day & Night
IR Cut Filter
Digital Noise Reduction
3D DNR
WDR
120dB
3-Axis Adjustment
Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length
2.8, 4, 6 mm
Aperture
F2.0
FOV
2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113°
4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92°
6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71°
Lens Mount
M12
IR
IR Range
Up to 10 m
Wavelength
850nm
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main stream supports
H.265 Type
Main Profile
H.265+
Main stream supports
Video Bit Rate
32 Kbps to 16 Mbps
Audio Compression
G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Exception Detection
Scene change detection
Face Detection
Yes
Region of Interest
Support 1 fixed region for main stream and sub-stream separately
Max. Resolution
2944 × 1656
Main Stream
50Hz: 20fps (2944 × 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Setting
Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web
browser
Image Enhancement
BLC/3D DNR/HLC
Day/Night Switch
Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage
Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error,
illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP,
SNMP, IGMP, QoS, Ipv6
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version
V5.5.52
API
ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client
iVMS-4200, Hik-Connect, iVMS-5200
Web Browser
IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Audio (-S model)
2 Inputs: Line in or Mic in (built-in microphone), 1 Output: Line out, mono sound
Alarm (-S model)
1 input, 1 output (max. 12 VDC, 30 mA)
Communication Interface
1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage
Built-in Micro SD/SDHC/SDXC slot, up to 128G
SVC
Support H.264 and H.265 encoding
Reset Button
Yes
Wi-Fi
Wireless Standards
IEEE 802.11b/g/n
Frequency Range
2.412 GHz to 2.4835 GHz
Channel Bandwidth
20M/40M
Protocols
802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
Security
WPA, WPA2
Transfer Rates
11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range
50 m
Audio
Environment Noise Filtering
Yes
Audio Sampling Rate
8kHz/16kHz/32kHz/44.1kHZ/48kHz
General
Operating Conditions
-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, PoE (802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.625A, max. 7.5W
PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W
Protection Level
IK08, IP66
TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material
Front cover: plastic , Bottom base: metal
Dimensions
Φ110 mm × 56.4 mm (Φ4.33" × 2.22")
Weight
Camera: Approx. 400 g (0.88 lb.)
Available Models:
DS-2CD2555FWD-I, DS-2CD2555FWD-IS, DS-2CD2555FWD-IW, DS-2CD2555FWD-IWS
56.
37mm
(2.22")
Φ
96
mm
(
3
.
78
")
Φ
110
mm
(
4
.
33
")
DS-1280ZJ-DM22
Junction Box
Accessories
Dimensions
05055220180619
