Hikvision DS-2CD2442FWD-IW-4mm Quick Start Guide

Network Cube Camera

Quick Start Guide

Network Cube Camera·Quick Start Guide

Quick Start Guide

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”).

This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of

Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to 24xx Network Camera.

The Manual includes instructions for using and managing the

product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without

notice, due to firmware updates or other reasons. Please find the latest version in the company website

(http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the

properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Network Cube Camera·Quick Start Guide

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS,

AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR

INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF

THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL

NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET

SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY

TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS

PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

Network Cube Camera·Quick Start Guide

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.

This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body.

Network Cube Camera·Quick Start Guide

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied

accessories too are marked with "CE" and comply

standards listed under the EMC Directive 2014/30/EU, the RoHS

Directive 2011/65/EU, RE Directive 2014/53/EU.

upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:

www.recyclethis.info

which may include lettering to indicate cadmium (Cd), lead (Pb), or

mercury (Hg). For proper recycling, return the battery to your

therefore with the applicable harmonized European

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper

recycling, return this product to your local supplier

2006/66/EC (battery directive): This product

contains a battery that cannot be disposed of as unsorted municipal waste in the European Union.

See the product documentation for specific battery information. The battery is marked with this symbol,

Network Cube Camera·Quick Start Guide

supplier or to a designated collection point. For more information see:www.recyclethis.info

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.

This device complies with Industry Canada licence-exempt RSS

standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radioexempts de licence. L'exploitation est

autorisée aux deux conditions suivantes :

(1) l'appareil ne doit pas produire de brouillage, et

(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Under Industry Canada regulations, this radio transmitter may only

operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain

should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent

émetteur radio peut fonctionner avec une antenne d'un type et d'un

Network Cube Camera·Quick Start Guide

Warnings Follow these

safeguards to prevent serious injury or death.

Cautions Follow these precautions to prevent potential injury or material damage.

gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le

type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

This equipment should be installed and operated with a minimum

distance 20cm between the radiator and your body.

Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et votre corps.

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may occur if any of the warnings

are neglected.

Cautions: Injury or equipment damage may occur if any of the

cautions are neglected.

Network Cube Camera·Quick Start Guide

Warnings

● Proper configuration of all passwords and other security

settings is the responsibility of the installer and/or end-user.

● In the use of the product, you must be in strict compliance with

the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information.

● Input voltage should meet both the SELV (Safety Extra Low

Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Please refer to technical specifications for detailed information.

● Do not connect several devices to one power adapter as

adapter overload may cause over-heating or a fire hazard.

● Please make sure that the plug is firmly connected to the power

socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.

● If smoke, odor or noise rise from the device, turn off the power

at once and unplug the power cable, and then please contact the service center.

Cautions

● Make sure the power supply voltage is correct before using the

camera.

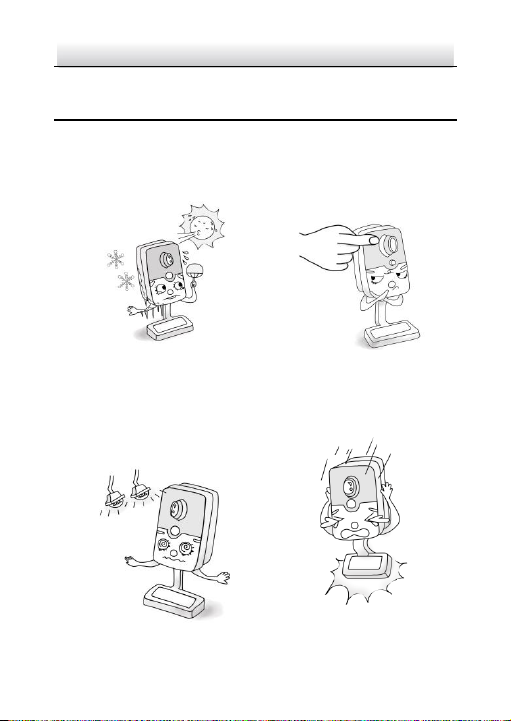

● Do not drop the camera or subject it to physical shock.

Network Cube Camera·Quick Start Guide

● Do not touch sensor modules with fingers. If cleaning is

necessary, use clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period,

please replace the lens cap to protect the sensor from dirt.

● Do not aim the camera at the sun or extra bright places.

Blooming or smearing may occur otherwise (which is not a malfunction), and affect the endurance of sensor at the same

time.

● The sensor may be burned out by a laser beam, so when any

laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.

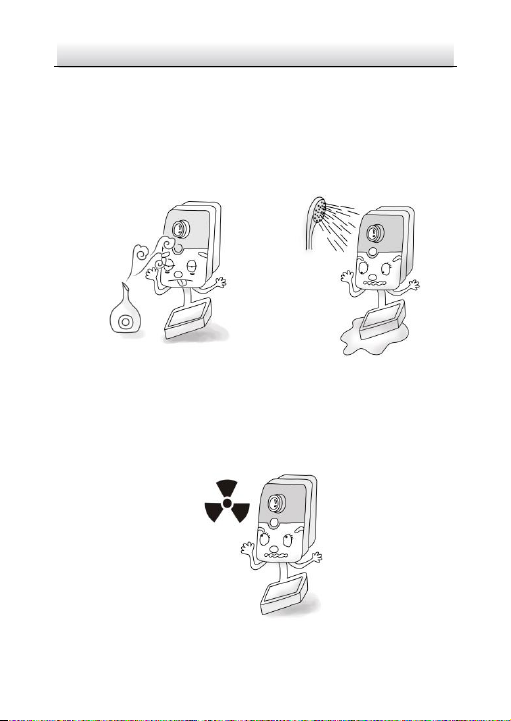

● Do not place the camera in extremely hot, cold (the operating

temperature shall be -10°C to +40°C (14°F to 104°F)), dusty or damp locations, and do not expose it to high electromagnetic radiation.

● To avoid heat accumulation, good ventilation is required for

operating environment.

● Keep the camera away from liquid while in use.

● While in delivery, the camera shall be packed in its original

packing, or packing of the same texture.

● Regular part replacement: a few parts (e.g. electrolytic

capacitor) of the equipment shall be replaced regularly

according to their average enduring time. The average time varies because of differences between operating environment and using history, so regular checking is recommended for all

the users. Please contact with your dealer for more details.

Network Cube Camera·Quick Start Guide

● Improper use or replacement of the battery may result in

hazard of explosion. Replace with the same or equivalent type only. Dispose of used batteries according to the instructions

provided by the battery manufacturer.

● If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to disassemble the camera yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or maintenance.) 0505031071023

Network Cube Camera·Quick Start Guide

Table of Contents

1 Appearance Description ............................................................... 11

1.1 Type I, II ......................................................................... 11

1.2 Type III .......................................................................... 14

2 Notice ........................................................................................... 18

3 Installation .................................................................................... 20

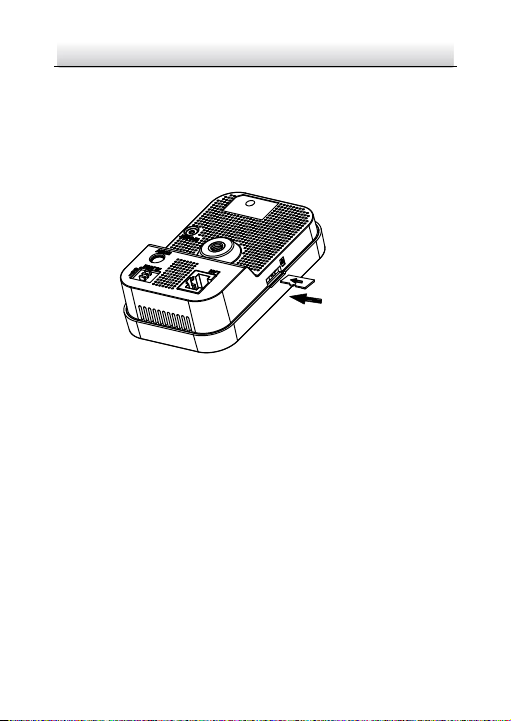

3.1 Memory Card Installation .............................................. 20

3.1.1 Type I, II .............................................................. 21

3.1.2 Type III ................................................................ 21

3.2 Type I, II Camera Mounting ........................................... 22

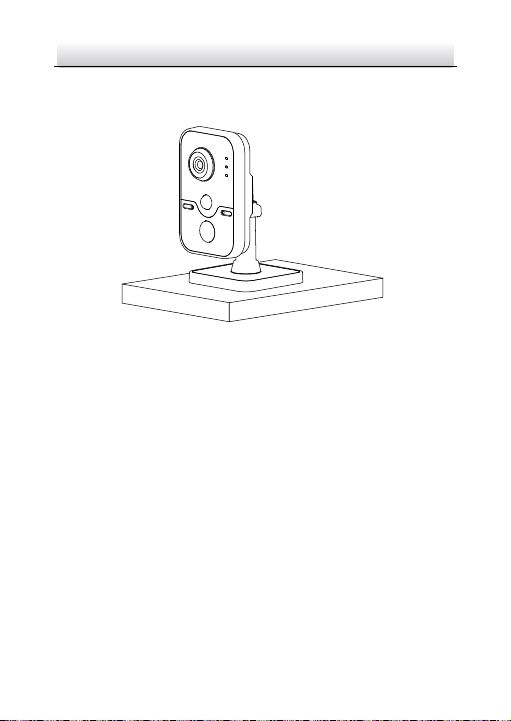

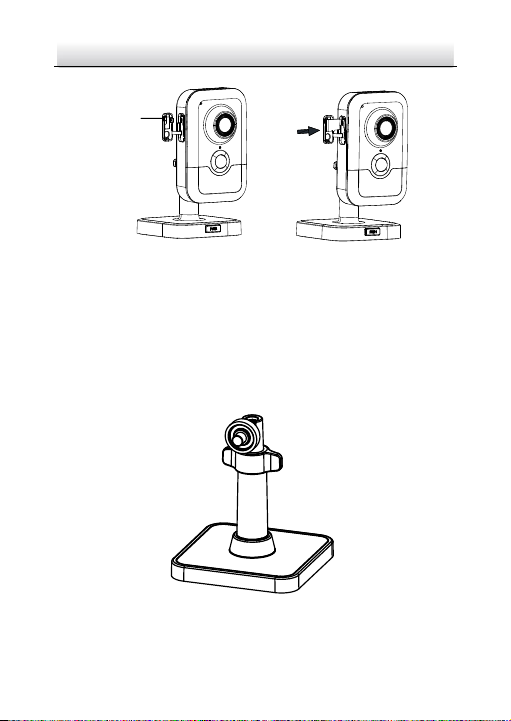

3.2.1 Stand Mounting .................................................. 22

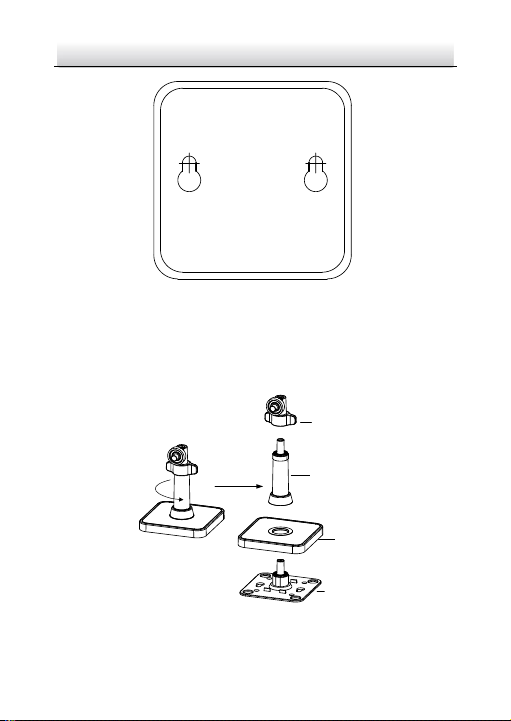

3.2.2 Ceiling Mounting ................................................ 23

3.3 Type III Camera Mounting ............................................. 26

4 Setting the Network Camera over the LAN .................................. 29

Wiring ........................................................................... 29 4.1

Activating the Camera ................................................... 30 4.2

Activation via Web Browser ................................ 30 4.2.1

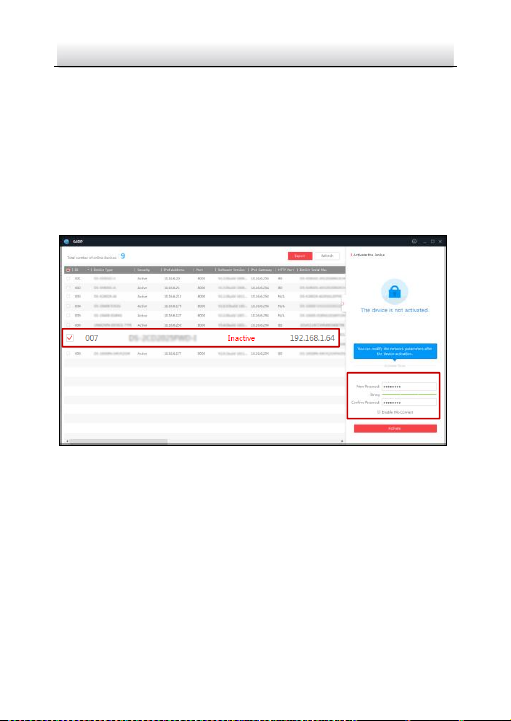

Activation via SADP Software ............................. 31 4.2.2

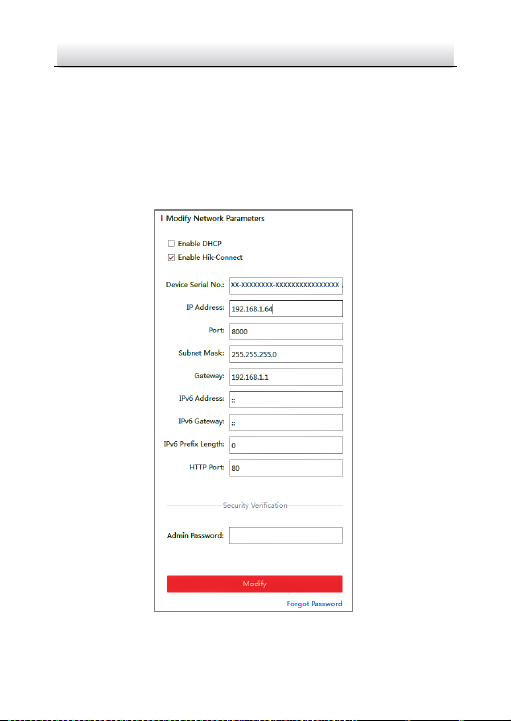

Modifying the IP Address .............................................. 33 4.3

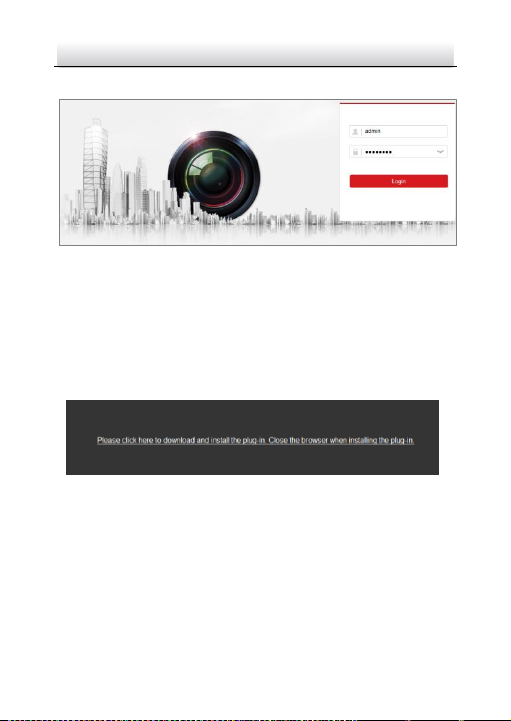

5 Accessing via Web Browser .......................................................... 36

6 Operating via Hik-Connect App .................................................... 38

6.1 Enable Hik-Connect Service on Camera ......................... 38

Enable Hik-Connect Service via SADP Software .. 38 6.1.1

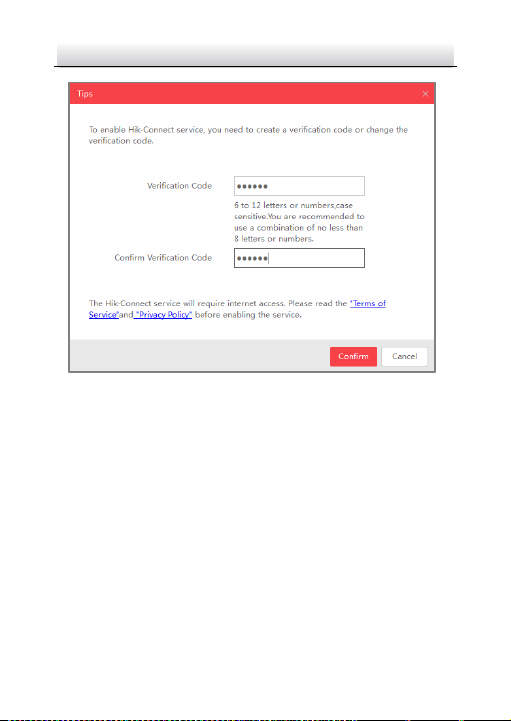

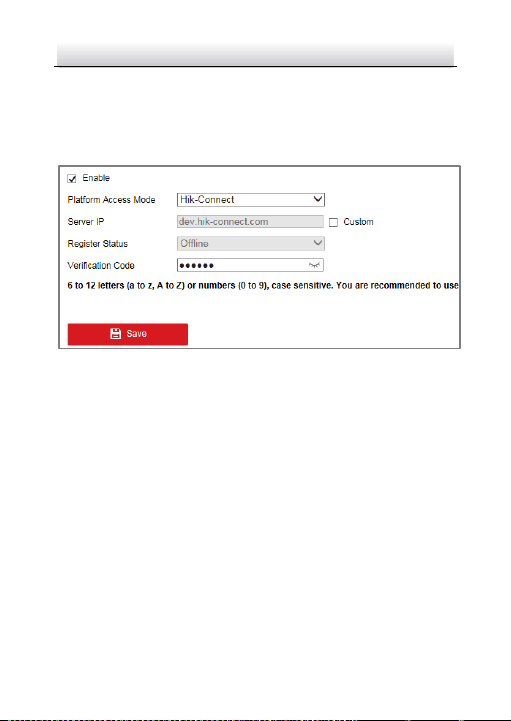

Enable Hik-Connect Service via Web Browser .... 39 6.1.2

6.2 Hik-Connect Setup ........................................................ 41

6.3 Adding Camera to Hik-Connect ..................................... 41

6.4 Initializing the Memory Card ......................................... 43

Network Cube Camera·Quick Start Guide

1 Appearance Description

There are three types of appearances for 24 series camera. Please

refer to the figure below. And one appearance will be taken as an example in the chapter below.

1.1 Type I, II

Type I Appearance Figure 1-1

Type II Appearance Figure 1-2

Network Cube Camera·Quick Start Guide

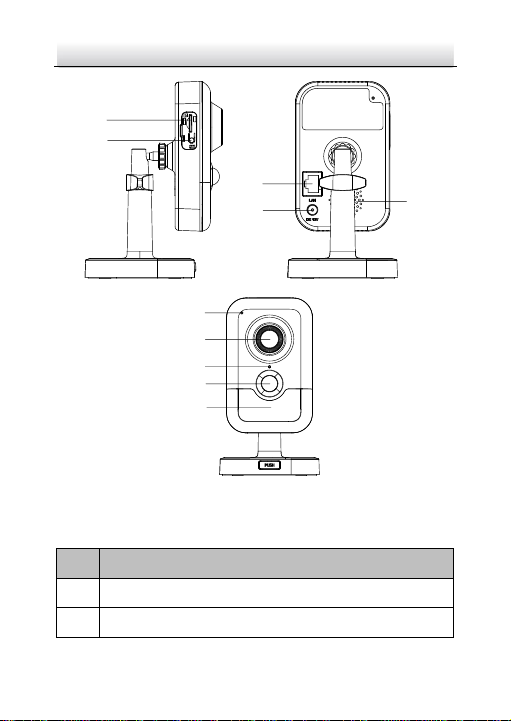

Overview Figure 1-3

Network Cube Camera·Quick Start Guide

No.

Description

Lens

Microphone

IR LED

Indicator

Alarm: Solid red when the camera is armed; Solid blue when the camera is

unarmed

Status: Solid blue when the camera is added to the Hik-Connect

Link: Flashing amber when network is connected; Unlit when network is disconnected

PIR(Passive Infrared) sensor

Light Sensing

Memory Card Slot

3-axis Bracket

10M/100M self-adaptive Ethernet interface & PoE

WPS (Wi-Fi Protected Setup)/Reset Button

I: Alarm Input Interface

G: Grounding

Description Table 1-1
