Camera
User Manual
720P SDI Camera
UD.6L0201D1327A01
720P SDI Camera·User Manual
1
1
Thank you for purchasing our product. If there are any questions, or
requests, please do not hesitate to contact the dealer.
This manual applies to the model as follows:
Type
Model
Dome Camera
DS-2CC52C1S-VPIR
Type I Turret Camera
DS-2CC52C2S-IRM
Type II Turret Camera
DS-2CC52C2S-IT3P
Type I Bullet Camera
DS-2CC12C2S-IR
Type II Bullet Camera
DS-2CC12C2S-IT5
Type III Bullet Camera
DS-2CC12C2S-IT3
This manual may contain several technical incorrect places or printing
errors, and the content is subject to change without notice. The
updates will be added to the new version of this manual. We will
readily improve or update the products or procedures described in
the manual.
DISCLAIMER STATEMENT
Underwriters Laboratories Inc. (“UL”) has not tested the
performance or reliability of the security or signaling aspects of this
product. UL has only tested for fire, shock or casualty hazards as
outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification
does not cover the performance or reliability of the security or
signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE
720P SDI Camera·User Manual
2
2
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING
RELATED FUNCTIONS OF THIS PRODUCT.
0100001031213
720P SDI Camera·User Manual
3
3
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the users will be required to correct the interference at their
own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the Low Voltage Directive 2006/95/EC, the
EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent
720P SDI Camera·User Manual
4
4
2012/19/EU (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or dispose of it at
designated collection points. For more information, see:
www.recyclethis.info.
2006/66/EC (battery directive): This product contains
a battery that cannot be disposed of as unsorted
municipal waste in the European Union. See the
product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more information,
see: www.recyclethis.info.
720P SDI Camera·User Manual
5
5
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
Warnings
In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region.
Please refer to technical specifications for detailed information.
Input voltage should meet both the SELV (Safety Extra Low Voltage)
and the Limited Power Source with AC 24V or DC 12V according to
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
720P SDI Camera·User Manual
6
6
the IEC60950-1 standard. Please refer to technical specifications
for detailed information.
Do not connect several devices to one power adapter as adapter
overload may cause over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power
socket.
When the product is mounted on wall or ceiling, the device shall
be firmly fixed.
If smoke, odor or noise rise from the device, turn off the power at
once and unplug the power cable, and then please contact the
service center.
If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Cautions
Make sure the power supply voltage is correct before using the
camera.
Do not drop the camera or subject it to physical shock.
Do not touch senor modules with fingers. If cleaning is necessary,
use clean cloth with a bit of ethanol and wipe it gently. If the
camera will not be used for an extended period, please replace
the lens cap to protect the sensor from dirt.
720P SDI Camera·User Manual
7
7
Do not aim the camera at the sun or extra bright places. Blooming
or smearing may occur otherwise (which is not a malfunction),
and affect the endurance of sensor at the same time.
The sensor may be burned out by a laser beam, so when any laser
equipment is in using, make sure that the surface of sensor will
not be exposed to the laser beam.
Do not place the camera in extremely hot, cold (the operating
temperature shall be(-10℃~+60℃), dusty or damp locations, and
do not expose it to high electromagnetic radiation.
To avoid heat accumulation, good ventilation is required for
operating environment.
Keep the camera away from liquid while in use.
While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
Improper use or replacement of the battery may result in hazard
of explosion. Replace with the same or equivalent type only.
Dispose of used batteries according to the instructions provided
by the battery manufacturer.
720P SDI Camera·User Manual
8
8
Table of Contents
1 Introduction .................................................................................. 10
1.1 Product Features ........................................................... 10
1.2 Overview ....................................................................... 11
1.2.1 Overview of Dome Camera................................. 11
1.2.2 Overview of Turret Camera ................................ 12
Overview of Bullet Camera ................................. 14 1.2.3
2 Installation .................................................................................... 17
2.1 Installation of the Dome Camera ................................... 18
2.2 Installation of Turret Camera ......................................... 22
2.2.1 Type I Turret Camera Installation ........................ 22
2.2.2 Type II Turret Camera Installation ....................... 25
2.3 Installation of Bullet Camera ......................................... 28
1.1.2 Type I Bullet Camera Installation ........................ 28
1.1.3 Type II Bullet Camera Installatio ......................... 30
3 Menu Description ......................................................................... 33
3.1 EXPOSURE ..................................................................... 34
3.1.1 SHUTTER ............................................................ 34
3.1.2 AGC .................................................................... 34
3.1.3 BRIGHTNESS ....................................................... 35
3.2 White Balance (WB) ...................................................... 35
3.2.1 INDOOR .............................................................. 35
OUTDOOR .......................................................... 36 3.2.2
AUTO .................................................................. 36 3.2.3
USER ................................................................... 36 3.2.4
3.3 Day & Night ................................................................... 36
3.3.1 AUTO .................................................................. 37
COLOR ................................................................ 37 3.3.2
720P SDI Camera·User Manual
9
9
B/W .................................................................... 37 3.3.3
SMART ................................................................ 38 3.3.4
3.4 IMAGE SETUP ................................................................ 38
3.4.1 BRIGHTNESS ....................................................... 39
3.4.2 CONTRAST .......................................................... 39
3.4.3 COLOR GAIN ....................................................... 39
SHARPNESS ........................................................ 40 3.4.4
NR ...................................................................... 40 3.4.5
MIRROR .............................................................. 40 3.4.6
LANGUAGE ......................................................... 40 3.4.7
FRAME RATE ....................................................... 40 3.4.8
3.5 FUNC.SETUP .................................................................. 41
3.6 RESET ............................................................................ 41
3.7 SAVE & EXIT .................................................................. 41
720P SDI Camera·User Manual
10
10
1 Introduction
1.1 Product Features
This series of camera adopts high-sensitive sensor and advanced
circuit board design technology. It features high resolution, low
distortion, and low noise features, etc., which make it extremely
suitable for surveillance system and image process system.
The main features of 720P SDI cameras are as follows:
1.3 Mega pixel high-performance CMOS sensor;
Clear and detailed image of up to 720P resolution;
Low illumination: 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR;
IR cut filter with auto switch;
Auto white balance, auto gain control, backlight compensation,
and auto electronic shutter control for different surveillance
environment;
Advanced Engineering Design, High Reliability;
Ingress Protection: IP66.
720P SDI Camera·User Manual
11
11
1.2 Overview
1.2.1 Overview of Dome Camera
Overview of SDI Dome Camera Figure 1-1
Description of Dome Camera Table 1-1
No.
Description
No.
Description
1
Mounting Base
5
IR LED
2
Menu Button
6
Lens
3
Black Liner
7
Power Cable
4
Bubble
8
Video Output
720P SDI Camera·User Manual
12
12
1.2.2 Overview of Turret Camera
Overview of Type I Turret Camera
Overview of Type I Turret Camera Figure 1-2
Description of Type I Turret Camera Table 1-2
No.
Description
No.
Description
1
Enclosure
4
Power Cable
2
Mounting Base
5
Video Output Cable
3
Dome Drive
720P SDI Camera·User Manual
13
13
Overview of Type II Turret Camera
Overview of Type II Turret Camera Figure 1-3
Description of Type II Turret Camera Table 1-3
No.
Description
No.
Description
1
Trim Ring
4
Dome Drive
2
Enclosure
5
Video Output Cable
3
Mounting Base
6
Power Cable
720P SDI Camera·User Manual
14
14
1.2.3 Overview of Bullet Camera
Overview of Type I Bullet Camera
Overview of Type I Bullet Camera Figure 1-4
Description
Table 1-4
No.
Description
No.
Description
1
Mounting Base
5
Lens
2
Adjustable Nut
6
Video Output Cable
3
Sun Shield
7
Power Cable
4
IR LED
720P SDI Camera·User Manual
15
15
Overview of Type II Bullet Camera
Overview of Type II Bullet Camera Figure 1-5
Description Table 1-5
No.
Description
No.
Description
1
Sun Shield
5
Power Cable
2
Lens
6
Video Output Cable
3
IR LED
7
Mounting Base
4
Adjustable Screw
720P SDI Camera·User Manual
16
16
Overview of Type III Bullet Camera
Overview of Type III Bullet Camera Figure 1-6
Description Table 1-6
No.
Description
No.
Description
1
Sun Shield
5
Power Cable
2
Lens
6
Video Output Cable
3
IR LED
7
Mounting Base
4
Adjustable Screw
720P SDI Camera·User Manual
17
17
2 Installation
Before you start:
Please make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off during the
installation.
Check the specification of the products for the installation
environment.
Check whether the power supply is matched with your AC outlet
to avoid damage.
Please make sure the wall is strong enough to withstand three
times the weight of the camera and the mounting.
If the wall is the cement wall, you need to insert expansion screws
before you install the camera. If the wall is the wooden wall, you
can use self-tapping screw to secure the camera.
If the product does not function properly, please contact your
dealer or the nearest service center. Do not disassemble the
camera for repair or maintenance by yourself.
For the camera that supports IR, you are required to pay attention to
the following precautions to prevent IR reflection:
Dust or grease on the dome cover will cause IR reflection.
Please do not remove the dome cover film until the
installation is finished. If there is dust or grease on the dome
720P SDI Camera·User Manual
18
18
cover, clean the dome cover with clean soft cloth and
isopropyl alcohol.
Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back
into the lens causing reflection.
The foam ring around the lens must be seated flush against
the inner surface of the bubble to isolate the lens from the IR
LEDS. Fasten the dome cover to camera body so that the
foam ring and the dome cover are attached seamlessly.
2.1 Installation of the Dome Camera
Steps:
1. Drill the screw holes on the ceiling according to the drill
template.

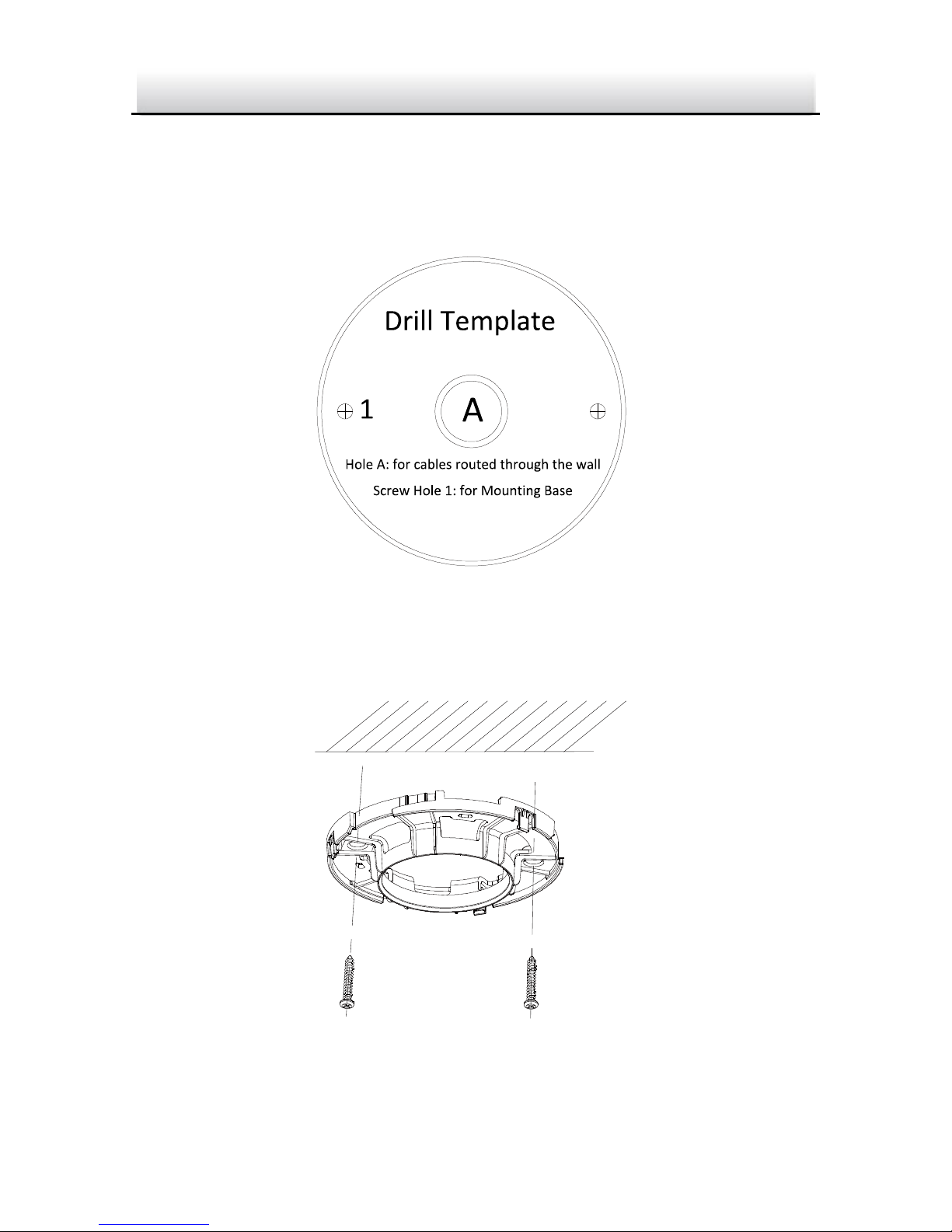

Drill Template of Dome Camera Figure 2-1
720P SDI Camera·User Manual
19
19
2. Loosen the set screws with a hex key (supplied) to remove the
bubble.
Remove the Bubble Figure 2-2
3. Fix the mounting base on the ceiling with screws.
Fix the Mounting Base Figure 2-3
720P SDI Camera·User Manual
20
20
4. Adjust the Lens to the required surveillance angle.
1). Adjust the pan direction [0°~180°].
2). Adjust the tilt direction [0°~75°] .
3). Rotate the camera [0~360°] to adjust the lens
4). Tighten the tilt lock screw to complete the installation.
Angle Adjustment Figure 2-4
As the lens has already been factory adjusted to the best imaging
effect, you just need to adjust the panning position and tilting
position to get the desired surveillance angle.
5. Reinstall the bubble and tighten the screws to complete the
installation.
720P SDI Camera·User Manual
21
21
Bubble Reinstallation Figure 2-5
Complete the Installation Figure 2-6
720P SDI Camera·User Manual
22
22
Remove the protection film softly before using the camera In case of
the scrape on the bubble during the project.
2.2 Installation of Turret Camera
2.2.1 Type I Turret Camera Installation
Steps:
1. Drill the screws holes on the ceiling according to the supplied
drill template.

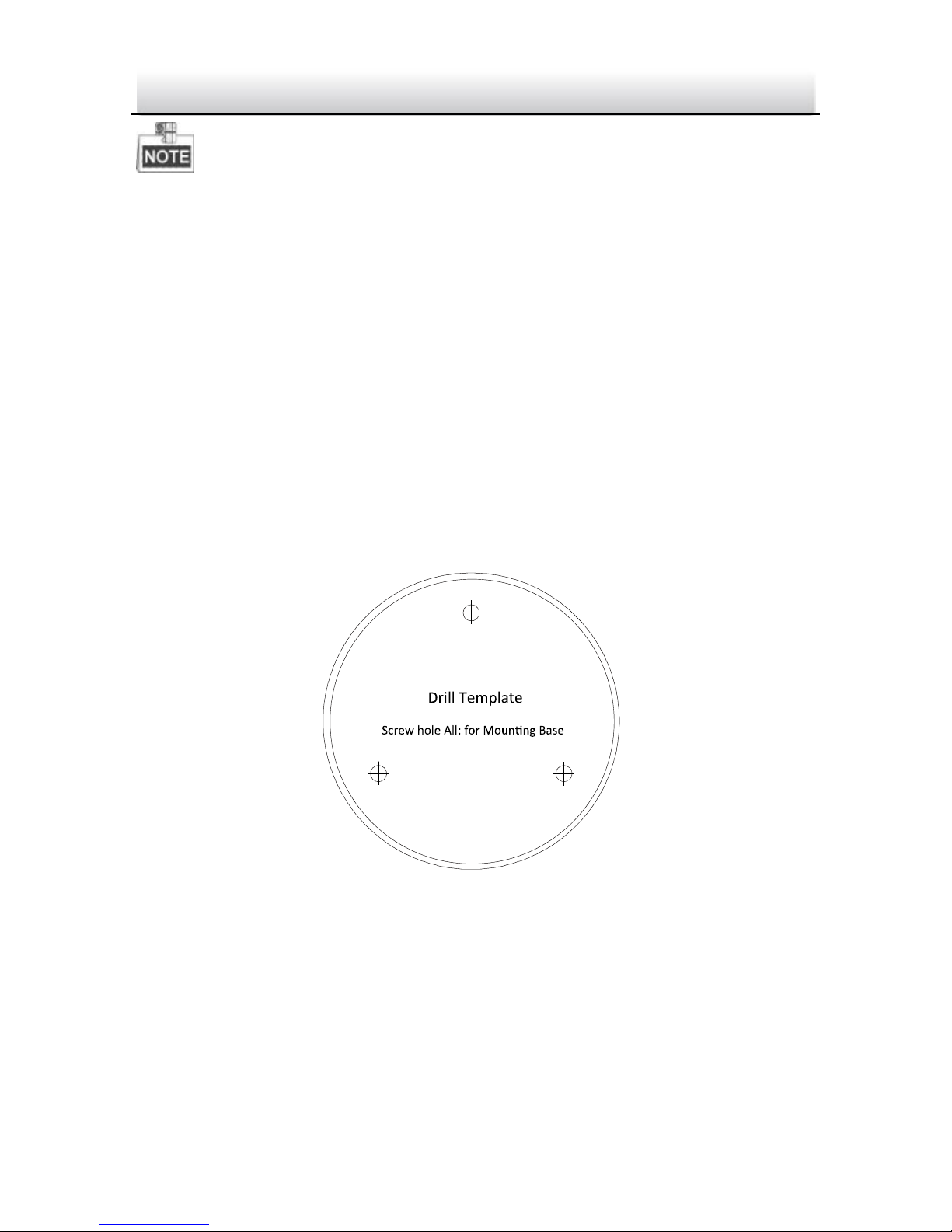

Drill Template of Type I Turret Camera Figure 2-7
720P SDI Camera·User Manual
23
23
2. Route the cables through cable hole of the mounting base.
3. Fix the mounting base to the ceiling with the supplied screws.
4. Connect the corresponding power cable and video cable.
5. Fix the camera to the mounting base.
Secure the Camera Figure 2-8
6. Fix the enclosure to camera.
720P SDI Camera·User Manual
24
24
Install the Camera and the Enclosure Figure 2-9
7. Adjust the camera according to the figure below to get an
optimum angle.
Lens Adjustment Figure 2-10
720P SDI Camera·User Manual
25
25
2.2.2 Type II Turret Camera Installation
1. Drill the screw holes and the cable hole according to the drill
template.
Drill Template of Type II Turret Camera Figure 2-11
2. Fix the mounting base to the ceiling with the supplied screws.
Fix the Mounting Base Figure 2-12
720P SDI Camera·User Manual
26
26
3. Route the cables to the cable hole and connect the
corresponding power cable and video cable.
4. Fix the camera to the mounting base.
5. Fix the enclosure to camera.
Fix the Camera Figure 2-13
6. Attach the trim ring to the camera and rotate it clockwise to
secure the camera.
720P SDI Camera·User Manual
27
27
Attach the Trim Ring Figure 2-14

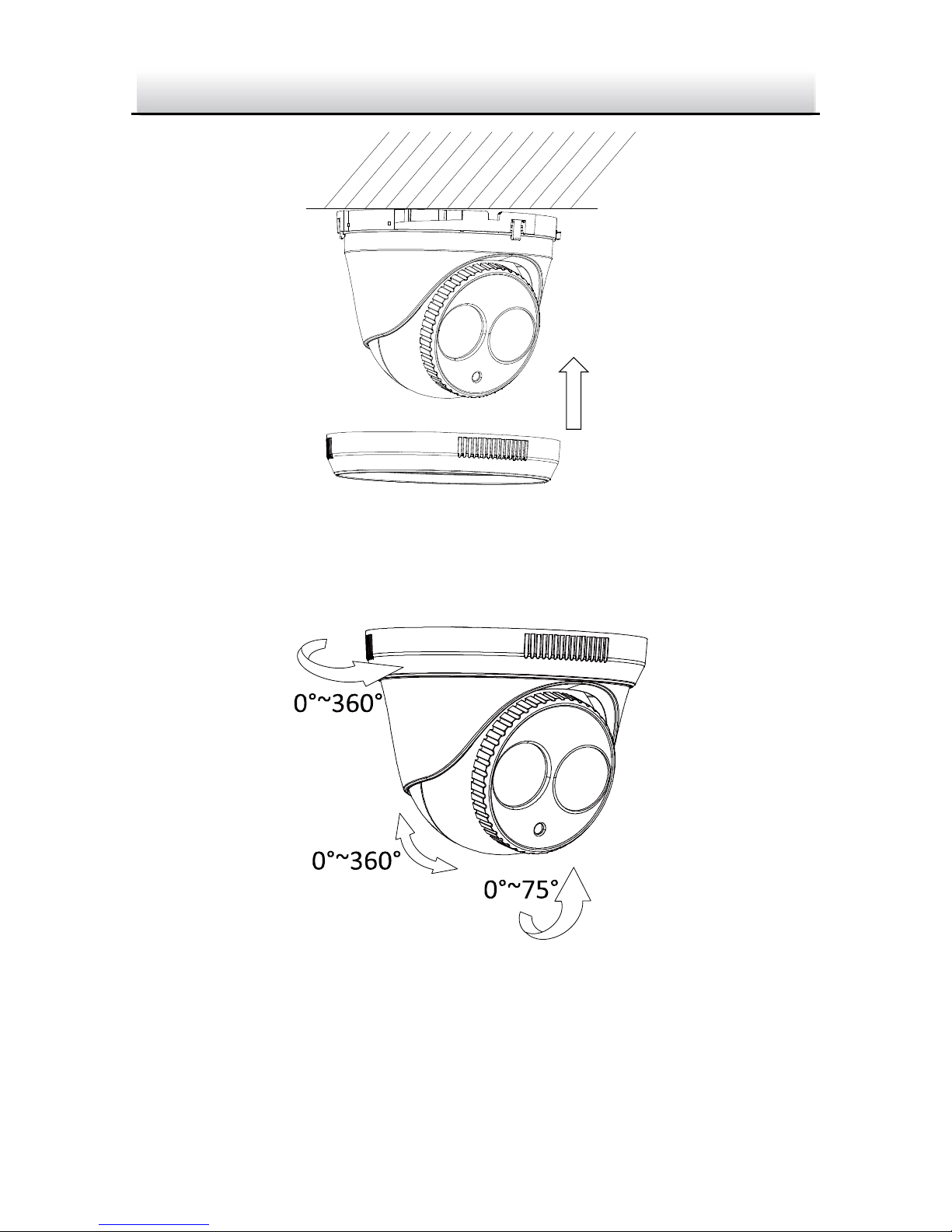

7. Adjust the surveillance angle according to the figure below.
Lens Adjustment Figure 2-15
8. Rotate the trim ring to get it fixed with the camera to complete
the installation.
720P SDI Camera·User Manual
28
28
Complete the Installation Figure 2-16
2.3 Installation of Bullet Camera
1.1.2 Type I Bullet Camera Installation
Both wall mounting and ceiling mounting are suitable for type I
HD-SDI IR bullet camera. Ceiling mounting will be taken as an
example in this section. You can take steps of ceiling mounting as a
reference if wall mounting is adopted.
Steps:
1. Drill the screw holes in the ceiling according to the drill template.
720P SDI Camera·User Manual
29
29
Drill Template Figure 2-17
2. Route the corresponding cables.
3. Secure the camera to the ceiling with the supplied PA4 Screws.
Secure the Camera to the Ceiling Figure 2-18
720P SDI Camera·User Manual
30
30
4. Connect the corresponding power/ Video Output cables.
5. Adjust the Lens.
1). Loosen the adjustable nut.
2). Adjust the pan direction [0°~360°].
3). Adjust the tilt direction [0°~90°].
4). Rotate the camera [0~360°] to adjust the lens to the
surveillance angle.
5). Tighten the adjustable nut to complete the installation.
3-axis Adjustment Figure 2-19
1.1.3 Type II Bullet Camera Installation
As type II and type III bullet Cameras are in the same
structure, their installation steps are the same.
Both wall mounting and ceiling mounting are suitable for
type II and type III bullet camera. Wall mounting will be taken
720P SDI Camera·User Manual
31
31
as an example in this section. And you can take steps of wall
mounting as a reference if ceiling mounting is adopted.
Steps:
1. Drill the screw holes on the wall according to the drill template.

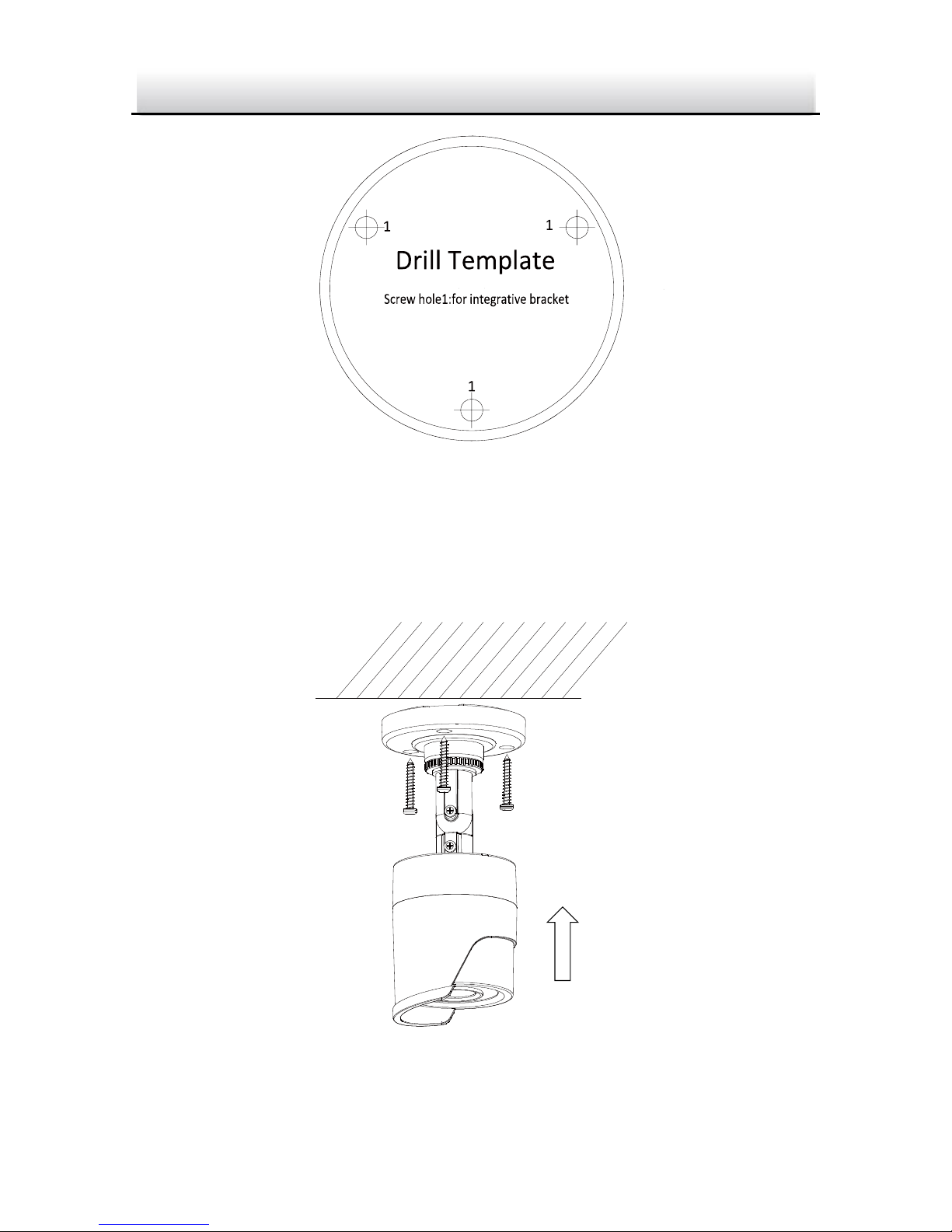

Drill Template Figure 2-20
2. Route the corresponding cables.
3. Fix the camera to the wall with supplied screws.
Secure the Camera to the Wall Figure 2-21
4. Connect the corresponding power/ Video Output cables.
720P SDI Camera·User Manual
32
32
5. Adjust the Lens.
1). Loosen screw 1 to adjust the pan direction [0°~360°].
Tighten the screw after completing the adjustment.
2). Loosen screw 2 to adjust the tilt direction [0°~100°]. Tighten
the screw after completing the adjustment.
3). Loosen screw 3 and rotate the camera [0°~360°] to adjust
the lens to the surveillance angle. Tighten the screw after
completing the adjustment.
3-axis Adjustment Figure 2-22
720P SDI Camera·User Manual
33
33
3 Menu Description
Setup
EXPOSURE
WHITE
BALANCE
DAY
&NIGHT
SETUP
FUNC.SETUP
RESET
SAVE
&EXIT
AGC
BRIGHTNESS
OUTDOOR
AUTO
COLOR
B/W
CONTRAST
SHARPNESS
COLOR
GAIN
NR
MIRROR
FLICKER
OSD COLOR
OSD BG
SMART
INDOOR
USER
AUTO
BRIGHTNESS
SHUTTER
LANGUAGE
FRAME
RATE
Main Menu Overview Figure 3-1
Only DS-2CC52C1S-VPIR supports OSD Menu operation.
This type of camera adopts a joystick to select the menu and
confirm a selection.
Move the joystick up/down to select the menu item.
Move the joystick left/right to adjust the value of the selected
item.
Press the joystick to confirm a selection. The Menu button
mentioned in the chapter below refers to the joystick.
720P SDI Camera·User Manual
34
34
3.1 EXPOSURE
EXPOSURE
SHUTTER
AGC LOW
BRIGHTNESS
RETURN
Exposure Figure 3-2
The EXPOSURE menu describes the brightness-related parameters.
You can adjust the image brightness by the SHUTTER, AGC, and
BRIGHTNESS in different light conditions.
3.1.1 SHUTTER
SHUTTER denotes the speed of the shutter.
AUTO, 1/100, 1/120, 1/250, 1/500, 1/1k, 1/2k, 1/4k, 1/10k, and
1/100k are selectable.
3.1.2 AGC
AGC is a form of amplification where the camera will automatically
boost the image received in much lower light conditions than
standard in order to optimize the brightness of image in poor light
scene. You can set the AGC level as HIGH, MIDDLE, LOW, and OFF.
720P SDI Camera·User Manual
35
35
The noise will be amplified if the AGC is on.
3.1.3 BRIGHTNESS
BRIGHTNESS refers to the brightness of the image. You can adjust
the brightness with moving the joystick left and right to darken or
brighten the image. A value bar is designed to show the changes of
the value. The higher the value is, the brighter the image is.
3.2 White Balance (WB)
White balance is the white rendition function of the camera to
adjust the color temperature according to the environment. It can
remove the unrealistic color casts of the image.
INDOOR, OUTDOOR, AUTO, and USER are selectable for WB mode.
WHITE BALANCE
MODE AUTO
R GAIN
B GAIN
RETURN
White Balance Figure 3-3
3.2.1 INDOOR
INDOOR mode is applicable to the indoor environment whose color
temperature change is relatively slight.
720P SDI Camera·User Manual
36
36
3.2.2 OUTDOOR
OUTDOOR mode is applicable to the outdoor environment whose
color temperature is relatively obvious.
3.2.3 AUTO
AUTO mode refers to the white balance is being adjusted
automatically in real-time according to the color temperature of the
scene illumination.
3.2.4 USER
If USER mode is selected, you can adjust the R GAIN/B GAIN with the
value bar to set the shades of red/blue color of the image.
WHITE BALANCE
MODE USER
R GAIN
B GAIN
RETURN
User Figure 3-4
3.3 Day & Night
AUTO, COLOR, B/W, and SMART are selectable for DAY &NIGHT
switches.
720P SDI Camera·User Manual
37
37
D>N LEVEL: the D>N LEVEL refers to the degree of light intensity
decrease. The day mode switches to the night mode when the
light condition reaches to the level you set.
N>D LEVEL: the N>D LEVEL refers to the degree of light intensity
increase. The night mode switches to the day mode when the light
condition reaches to the level you set.
DAY&NIGHT
MODE COLOR
D N LEVEL
N D LEVEL
LED
RETURN
Day & Night Figure 3-5
3.3.1 AUTO
The image switches from color to B/W or from B/W to color
automatically according to the light condition. And you can select to
turn on or turn off the IR LED according to different illumination.
3.3.2 COLOR
The image is colored in day mode all the time.
3.3.3 B/W
The image is black and white all the time, and the IR LED turns on in
the low-light conditions.
720P SDI Camera·User Manual
38
38
3.3.4 SMART
You can adjust the D>N LEVEL and N>D LEVEL by moving the joystick
left and right. You can also select to turn on/turn off the IR LED by
selecting the LED as ON/OFF to satisfy the requirements of different
circumstances.
DAY&NIGHT
MODE SMART
D N LEVEL
N D LEVEL
LED ON
RETURN
Smart Mode of Day & Night Figure 3-6
3.4 IMAGE SETUP
Move the cursor to VIDEO SETTING. Press the menu button to enter
the VIDEO SETTING menu. BRIGHTNESS, CONTRAST, COLOR GAIN,
SHARPNESS, NR, MIRROR, LANGUAGE and FRAME RATE are
adjustable.
720P SDI Camera·User Manual
39
39
IMAGE SETUP
BRIGHTNESS
CONTRAST
COLOR GAIN
SHARPNESS
NR
MIRROR
LANGUAGE
FRAME RATE
RETURN
Video Setup Figure 3-7
3.4.1 BRIGHTNESS
BRIGHTNESS refers to the brightness of the image. You can adjust
the brightness with moving the joystick left and right to darken or
brighten the image. The higher the value is, the brighter the image
is.
3.4.2 CONTRAST
This feature enhances the difference in color and light between parts
of an image. You can adjust the CONTRAST value by moving the
joystick left and right.
3.4.3 COLOR GAIN
Adjust this feature to change the saturation of the color. You can
adjust the color gain by moving the joystick left and right
720P SDI Camera·User Manual
40
40
3.4.4 SHARPNESS
SHARPNESS determines the amount of detail that an imaging system
can reproduce. You can adjust the image SHARPNESS by moving the
joystick left and right.
3.4.5 NR
The NR function is used to reduce the noise in the video signal.
You can set the NR level as High, Middle, and LOW. Select OFF to
disable the NR function.
3.4.6 MIRROR
NONE, H, V, and HV are selectable for mirror.
NONE: The mirror function is disabled.
H: The image flips 180 degree horizontally.
V: The image flips 180 degree vertically.
HV: The image flips 180 degrees both horizontally and vertically.
3.4.7 LANGUAGE
Chinese and English are selectable for this series of camera.
3.4.8 FRAME RATE
You can set the FRAME RATE as 25 FPS and 30 FPS in this function.
720P SDI Camera·User Manual
41
41
3.5 FUNC.SETUP
In the FUNC.SETUP menu, you can set the FLICKER frequency, OSD
COLOR, and OSD BG for your camera.
SYSTEM SETUP
FLICKER
OSD COLOR WHITE
OSD BG ON
RETURN
System Setup Figure 3-8
FLICKER
50HZ and 60HZ are selectable for the FLICKER frequency.
OSD COLOR
You can select white, red, yellow or green as the OSD color.
OSD BG
You can set the OSD BG as ON or OFF to enable/disable the OSD
background color.
3.6 RESET
Reset all the settings to the default.
3.7 SAVE & EXIT
Move the cursor to SAVE & EXIT and press YES to exit the menu.
720P SDI Camera·User Manual
42
42
Loading...
