User Manual
HD-SDI Camera
UD.6L0201D1325A01
Camera
HD-SDI Camera·User Manual
1
1
Thank you for purchasing our product. If there are any questions, or requests,
please do not hesitate to contact the dealer.
This manual applies to DS-2CC51D5S-AVPIR3, DS-2CC52D5S-IRM,
DS-2CC52D5S-IT3, and DS-2CC52D5S-VPIR.
This manual may contain several technical incorrect places or printing errors, and
the content is subject to change without notice. The updates will be added to the
new version of this manual. We will readily improve or update the products or
procedures described in the manual.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the performance or
reliability of the security or signaling aspects of this product. UL has only tested
for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety,
UL60950-1. UL Certification does not cover the performance or reliability of the
security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED
FUNCTIONS OF THIS PRODUCT.
0100001040108
HD-SDI Camera·User Manual
2
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to comply with the
limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference
to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too
are marked with "CE" and comply therefore with the
Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC, the RoHS
Directive 2011/65/EU.
applicable harmonized European standards listed under the
2012/19/EU (WEEE directive): Products marked with this
symbol cannot be disposed of as unsorted municipal waste in
the European Union. For proper recycling, return this product
to your local supplier upon the purchase of equivalent new
HD-SDI Camera·User Manual
3
3
Warnings Follow these
safeguards to prevent serious
injury or death.
Cautions Follow these precautions
to prevent potential injury or
material damage.
equipment, or dispose of it at designated collection points. For more information
see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as unsorted municipal
waste in the European Union. See the product
documentation for specific battery information. The battery
is marked with this symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more
information see: www.recyclethis.info.
Safety Instruction
These instructions are intended to ensure that user can use the product correctly
to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings are
neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are
neglected.
HD-SDI Camera·User Manual
4
4
Warnings
In the use of the product, you must be in strict compliance with the electrical
safety regulations of the nation and region.
Please refer to technical specifications for detailed information.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the
Limited Power Source with AC 24V or DC 12V according to the IEC60950-1
standard. Please refer to technical specifications for detailed information.
Do not connect several devices to one power adapter as adapter overload may
cause over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power socket.
When the product is mounted on wall or ceiling, the device shall be firmly
fixed.
If smoke, odor or noise rise from the device, turn off the power at once and
unplug the power cable, and then please contact the service center.
If the product does not work properly, please contact your dealer or the
nearest service center. Never attempt to disassemble the camera yourself.
(We shall not assume any responsibility for problems caused by unauthorized
repair or maintenance.)
Cautions
Make sure the power supply voltage is correct before using the camera.
Do not drop the camera or subject it to physical shock.
HD-SDI Camera·User Manual
5
5
Do not touch senor modules with fingers. If cleaning is necessary, use clean
cloth with a bit of ethanol and wipe it gently. If the camera will not be used for
an extended period, please replace the lens cap to protect the sensor from
dirt.
Do not aim the camera at the sun or extra bright places. Blooming or smearing
may occur otherwise (which is not a malfunction), and affect the endurance of
sensor at the same time.
The sensor may be burned out by a laser beam, so when any laser equipment
is in using, make sure that the surface of sensor will not be exposed to the
laser beam.
Do not place the camera in extremely hot, cold (the operating temperature
shall be-30℃~+60℃), dusty or damp locations, and do not expose it to high
electromagnetic radiation.
To avoid heat accumulation, good ventilation is required for operating
environment.
Keep the camera away from liquid while in use.
While in delivery, the camera shall be packed in its original packing, or packing
of the same texture.
Improper use or replacement of the battery may result in hazard of explosion.
Replace with the same or equivalent type only. Dispose of used batteries
according to the instructions provided by the battery manufacturer.
HD-SDI Camera·User Manual
6
6
Table of Contents
1 Introduction ...................................................................................................... 8
1.1 Product Features .............................................................................. 8
1.2 Overview .......................................................................................... 9
1.2.1 Overview of Dome Camera .................................................... 9
1.2.2 Overview of Turret Camera .................................................. 11
2 Installation ...................................................................................................... 14
2.1 Installation of HD-SDI Dome Camera .............................................. 14
2.1.1 Type I Dome Camera Installation.......................................... 14
2.1.2 Type II Dome Camera Installation......................................... 20
2.2 Installation of HD-SDI Turret Camera .............................................. 23
2.2.3 Type I Turret Camera Installation ......................................... 23
2.2.4 Type II Turret Camera Installation ........................................ 24
3 Menu Description ........................................................................................... 28
3.1 SCENE ............................................................................................. 29
3.2 LENS ............................................................................................... 29
3.3 EXPOSURE ...................................................................................... 30
3.3.1 Shutter ................................................................................ 30
3.3.2 AGC ..................................................................................... 31
3.3.3 SENS-UP............................................................................... 31
3.3.4 Brightness ............................................................................ 31
3.3.5 D-WDR ................................................................................. 32
3.3.6 Defog ................................................................ ................... 32
3.4 Backlight ........................................................................................ 33
3.5 White Balance (WB) ....................................................................... 37
3.6 Day & Night .................................................................................... 38
3.7 NR .................................................................................................. 39
3.8 SPECIAL .......................................................................................... 41
HD-SDI Camera·User Manual
7
7
3.8.1 Camera Title ........................................................................ 41
3.8.2 D-effect................................................................................ 43
3.8.3 Motion ................................................................................ 45
3.8.4 Privacy ................................................................................. 47
3.8.5 Language ............................................................................. 48
3.8.6 Defect .................................................................................. 49
3.8.7 Version ................................................................................ 51
3.9 ADJUST ........................................................................................... 51
3.9.1 Sharpness ............................................................................ 52
3.9.2 Monitor ............................................................................... 52
3.9.3 LSC ....................................................................................... 53
3.9.4 Video. Out ........................................................................... 53
3.10 RESET ........................................................................................... 54
3.11 EXIT .............................................................................................. 54
HD-SDI Camera·User Manual
8
8
1 Introduction
1.1 Product Features
This series of camera adopts high-sensitive sensor and advanced circuit board
design technology. It features high resolution, low distortion, and low noise
features, etc., which make it extremely suitable for surveillance system and
image process system.
The main features of HD-SDI cameras are as follows:
2 Megapixel high-performance CMOS sensor
Clear and detailed image of up to 1080p resolution
Low illumination: 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR
IR cut filter auto switch
Auto white balance, auto gain control, and backlight compensation for
different surveillance environment
Support Digital Wide Dynamic Range (D-WDR) for backlighting surveillance
OSD menu, parameters are configurable
Ingress protection level reaches IP66
HD-SDI Camera·User Manual
9
9
1.2 Overview
1.2.1 Overview of Dome Camera
Figure 1-1 Overview of Type I Dome Camera
HD-SDI Camera·User Manual
10
10
No.
Description
No.
Description
1
Bubble
6
Power Cable
2
IR LED 7 Lens
3
Auxiliary Video Output
8
Adapter Plate
4
OK Button
9
Black Liner
5
SDI Cable
Table 1-1 Description of Type I Dome Camera
Figure 1-2 Overview of Type II Dome Camera
HD-SDI Camera·User Manual
11
11
No.
Description
No.
Description
1
Mounting Base
5
IR LED
2
Menu Button
6
Lens
3
Black Liner
7
Power Cable
4
Bubble
8
Video Output
No.
Description
No.
Description
1
Enclosure
4
CVBS Cable
Description of Type II Dome Camera Table 1-2
1.2.2 Overview of Turret Camera
Figure 1-3 Overview of Type I Turret Camera
Table 1-3 Description of Type I Turret Camera
HD-SDI Camera·User Manual
12
12
No.
Description
No.
Description
2
Mounting Base
5
Power Cable
3
Dome Drive
6
SDI Cable
No.
Description
No.
Description
1
Mounting Base
5
Power Cable
Figure 1-4 Overview of Type II Turret Camera
Table 1-4 Description of Type II Turret Camera
HD-SDI Camera·User Manual
13
13
No.
Description
No.
Description
2
Enclosure
6
CVBS Cable
3
Trim Ring
7
SDI Cable
4
Dome Drive
HD-SDI Camera·User Manual
14
14
2 Installation
Before you start:
Please make sure that the device in the package is in good condition and all
the assembly parts are included.
Make sure that all the related equipment is power-off during the installation.
Check the specification of the products for the installation environment.
Check whether the power supply is matched with your required power
voltage to avoid damage.
If the product does not function properly, please contact your dealer or the
nearest service center. Do not disassemble the camera for repair or
maintenance by yourself.
Please make sure the wall is strong enough to withstand three times the
weight of the camera.
2.1 Installation of HD-SDI Dome Camera
2.1.1 Type I Dome Camera Installation
Steps:
1. Drill the screw holes on the ceiling according to the drill template.
HD-SDI Camera·User Manual
15
15
Figure 2-1 Drill Template
2. Loosen the set screws on the bubble with a hex key (supplied) to open the
bubble.
3. Remove the black liner.
Figure 2-2 Remove the Black Liner
4. Connect the corresponding power/video cables.
5. Fix the mounting base to the ceiling with the supplied screws.
HD-SDI Camera·User Manual
16
16
Figure 2-3 Fix the Mounting Base
If required, you can route cables through the side opening of the mounting base.
Figure 2-4 Side Opening
6. Adjust the surveillance angle.
1). View the camera image via the monitor.
HD-SDI Camera·User Manual
17
17
2). Loosen the lock screw besides the lens
3). Rotate the pan table to adjust the pan angle of the camera [0°~3 55°].
4). Push the dome drive backward or forward to adjust the tilt angle
[0~75°].
5). Rotate the lens to adjust the azimuth angle [0 ~355°]. Tighten the lock
screw.
Figure 2-5 3-axis Adjustment
7. Adjust the focus and zoom.
1). Adjust the Zoom Lever (T~W) to select a proper angle of view.
2). Adjust the Focus Level (F~N) to obtain a perfect image on the monitor.
HD-SDI Camera·User Manual
18
18
Figure 2-6 Adjust the Focus and the Zoom
Move the joystick leftward three times continuously, you can see the result of
the zoom and focus adjustment.
8. Install the black liner back.
HD-SDI Camera·User Manual
19
19
Figure 2-7 Install the Black Liner
9. Align the bubble to the mounting base and tighten the screws to fix it.
Figure 2-8 Bubble Reinstallation
HD-SDI Camera·User Manual
20
20
2.1.2 Type II Dome Camera Installation
Steps:
10. Drill the screw holes on the ceiling according to the drill template.
Drill Template of Dome Camera Figure 2-9
11. Loosen the set screws with a hex key (supplied) to remove the bubble.
Remove the Bubble Figure 2-10
HD-SDI Camera·User Manual
21
21

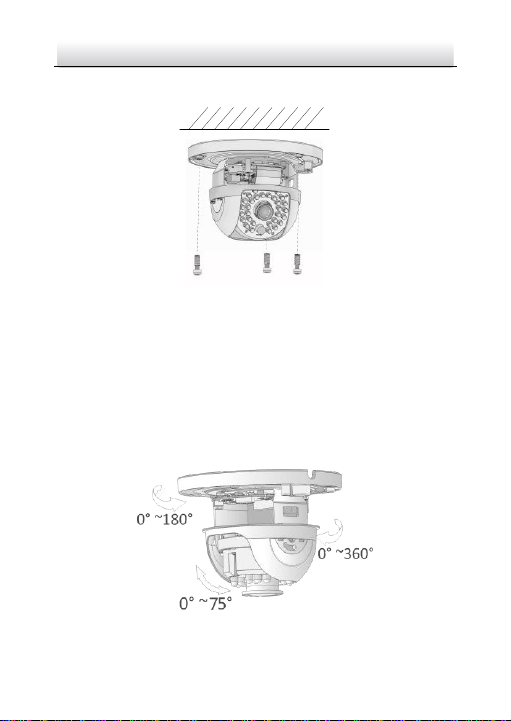

12. Fix the mounting base on the ceiling with screws.
Fix the Mounting Base Figure 2-11
13. Adjust the Lens to the required surveillance angle.
6). Adjust the pan direction [0°~180°].
7). Adjust the tilt direction [0°~75°] .
8). Rotate the camera [0~360°] to adjust the lens
9). Tighten the tilt lock screw to complete the installation.
Angle Adjustment Figure 2-12
HD-SDI Camera·User Manual
22
22
14. Reinstall the bubble and tighten the screws to complete the installation.
Bubble Reinstallation Figure 2-13
Complete the Installation Figure 2-14
Remove the protection film softly before using the camera In case of the scrape
on the bubble during the project.
HD-SDI Camera·User Manual
23
23
2.2 Installation of HD-SDI Turret Camera
2.2.3 Type I Turret Camera Installation
Steps:
1. Drill the screws holes and the cable hole on the ceiling according to the
supplied drill template.
Figure 2-15 Drill Template of Type IV Camera
2. Fix the mounting base to the ceiling with the supplied screws.
Figure 2-16 Install the Mounting Base
3. Route the cables to the cable hole and connect the corresponding power
cable and video cable.
4. Secure the camera to the mounting base.
5. Fix the enclosure to camera.
HD-SDI Camera·User Manual
24
24
Figure 2-17 Install the Camera and the Enclosure
6. Adjust the camera according to the figure below to get an optimum angle.
Figure 2-18 Lens Adjustment
2.2.4 Type II Turret Camera Installation
1. Drill the screw holes and the cable hole according to the drill template.
HD-SDI Camera·User Manual
25
25
Figure 2-19 Drill Template of Type II Camera
2. Fix the mounting base to the ceiling with the supplied screws.
Figure 2-20 Fix the Mounting Base
3. Route the cables to the cable hole and connect the corresponding power
cable and video cable.
4. Fix the camera to the mounting base.
5. Fit the enclosure to camera.
HD-SDI Camera·User Manual
26
26
Figure 2-21 Fix the Camera
6. Adjust the surveillance angle according to the figure below.
Figure 2-22 Lens Adjustment
7. Attach the trim ring to the camera and rotate it clockwise to secure the
camera.
HD-SDI Camera·User Manual
27
27
Figure 2-23 Attach the Trim Ring
8. Rotate the trim ring to get it fixed with the camera to complete the
installation.
Figure 2-24 Complete the Installation
HD-SDI Camera·User Manual
28
28
Setup
SCENE
LENS
RESET
DC
EXPOSURE
WB
DAY&NIGHT
BACKLIGHT
NR
SPECIAL
ADJUST
INDOOR
OUTDOOR
INDOOR1
LOW-
LIGHT
MANUAL
SHUTTER
AGC
SENS-UP
BRIGHTNE
SS
D-WDR
DEFOG
BLC
HSBLC
ATW
AWC-SET
INDOOR
OUTDOOR
MANUAL
COLOR
B/W
EXT
2D NR
3D NR
CAM
TITLE
D-EFFECT
MOTION
PRIVACY
LAUGUAGE
DEFECT
VERSION
SHARPNESS
MONITOR
LSC
VIDEO.
OUT
EXIT

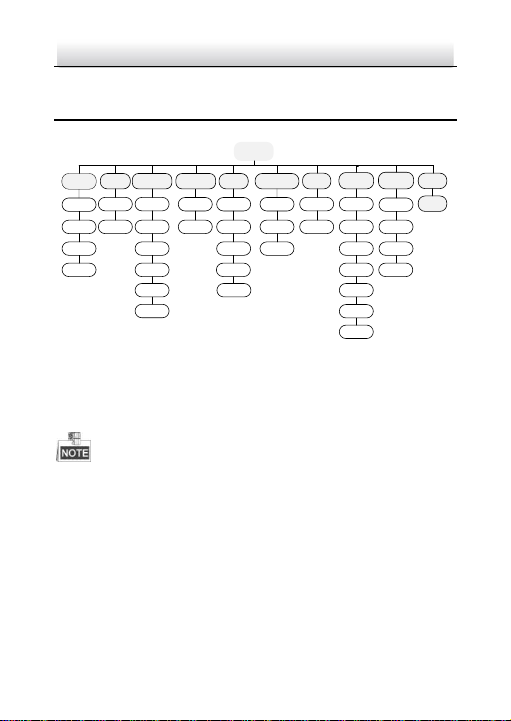

3 Menu Description
Figure 3-1 Main Menu Overview
DS-2CC51D5S-AVPIR3 and DS-2CC52D5S-VPIR adopts a joystick to select
the menu and confirm a selection.
Move the joystick up/down to select the menu item.
Move the joystick left/right to adjust the value of the selected item.
Press the joystick to confirm a selection. The OK button mentioned in the
chapter below refers to the joystick.
DS-2CC52D5S-IR and DS-2CC52D5S-IT3 are required to equip with a coaxial
camera controller to select the menu and adjust the camera parameters.
HD-SDI Camera·User Manual
29
29
DC LENS MODE
1. MODE INDOOR
2. RETURN RET
3.1 SCENE
Scene option allows user to select the different environment, indoor, outdoor,
indoor 1, and low-light are selectable.
3.2 LENS
DC and manual are selectable for lens.
If the camera is equipped with a fixed focal, which is not configurable, you should
go to manual for lens type.
If the camera is equipped with an auto iris, you should go to DC for lens type.
And indoor and outdoor are selectable for different environment.
Figure 3-2 DC
HD-SDI Camera·User Manual
30
30
EXPOSURE
1. SHUTTER AUTO
2. AGC OFF
3. SENS-UP ---
4. BRIGHTNESS ---|------ 40
5. ACCE OFF
6. DEFOG OFF
7. BACKLIGHT OFF
8. RETURN RET
3.3 EXPOSURE
Figure 3-3 Exposure
Exposure describes the brightness-related parameters. You can adjust the image
brightness by the SHUTTER, AGC, SENS-UP, BRIGHTNESS, ACCE, BACKLIGHT, etc.
in different light conditions.
3.3.1 Shutter
Shutter denotes the speed of the shutter.
AUTO,1/25, 1/50, FLK, 1/200, 1/400, 1/1k, 1/2k, 1/5k, 1/10k, 1/50k, x2, x4, x6, x8,
x10, x15, x20,x25, and x30 are selectable.
If you select shutter as AUTO or 1/25, the SENS-UP is adjustable (OFF/AUTO), and
the SENS-UP is disabled if any other shutter speed is selected.
HD-SDI Camera·User Manual
31
31
3.3.2 AGC
It’s a form of amplification where the camera will automatically boost the image
received in much lower light conditions than standard in order to optimize the
clarity of image in poor light scene. You can set the AGC value from 0 to 15. The
AGC is disabled if the value is set to 0.
The noise will be amplified if the AGC is on.
3.3.3 SENS-UP
If you select shutter as AUTO or 1/25, the SENS-UP is adjustable (OFF/AUTO), and
the SENS-UP is disabled if any other shutter speed is selected.
SENS-UP increases the exposure on a signal frame, which makes a camera more
sensitive to light so it can produce images even in low lux conditions. You can set
the SENS-UP to OFF or AUTO according to different light conditions.
OFF: SENS-UP function is disabled.
AUTO: The SENS-UP function will atomically adjust itself to x2, x4, x6, x8, x10,
x15, x20, x25, and x30 according to the different light conditions.
3.3.4 Brightness
Brightness refers to the brightness of the image. You can set the brightness value
from 1 to 100 to darken or brighten the image. The higher the value is, the
brighter the image is.
HD-SDI Camera·User Manual
32
32
DEFOG
1. POS/SIZE
2. GRADATION LOW
3. DEFAULT
4. RETURN RET
3.3.5 D-WDR
The digital wide dynamic range (D-WDR) function helps the camera provide clear
images even under back light circumstances. When there are both very bright
and very dark areas simultaneously in the field of view, D-WDR balances the
brightness level of the whole image and provide clear images with details.
Set the D-WDR to ON to improve the image quality under the backlight
environment.
Set the D-WDR to OFF to disable the function.
3.3.6 Defog
DEFOG is used in special environment such as the foggy or rainy weather or in
high illumination, in which the dynamic range is lower than that in the ordinary
environment and the image always appear hazy. Enable the defog function can
enhance the subtle details so that the image appears clearer.
Set the defog to ON to enable the function. Position, size, and the defog
gradation are configurable.
Figure 3-4 Defog
HD-SDI Camera·User Manual
33
33
Steps:
1. Move the cursor to POS/SIZE, and press OK to enter the position and size
configuration interface.
2. Move the joystick up/down/right/left to define the position of the defog area.
3. Press OK again to switch the position configuration to the size configuration.
4. Move the joystick up/down/right/left to define the size of the defog area.
5. Press OK and select RET to return to the defog menu or select AGAIN to
re-define the position and size.
6. (Optional) Move the cursor to DEFAULT and press OK to restore the defog
settings to the default.
Low, middle and high are selectable for the defog gradation.
Enabling the defog function will increase the contrast of the image. It is
recommended that the defog function is set to OFF during the normal
environment.
3.4 Backlight
Backlight is applicable for the backlight or the high luminance environment; you
can set the Backlight to OFF, BLC, and HSBLC.
Backlight Compensation (BLC)
If there’s a strong backlight, the object in front of the backlight will appear
silhouetted or dark. BLC bases on the back area to enhance the brightness of the
whole image, which makes it possible to see the area before the strong backlight
clearly, but the backlight area will be over-exposed.
HD-SDI Camera·User Manual
34
34
BLC
1. GAIN MIDDLE
2. AREA
3. DEFAULT
4. RETURN RET
Figure 3-5 BLC
The gain of BLC can be set to High, Middle, and Low, the higher the gain is, and
the clearer the image is. Follow the steps below to set a BLC area.
Steps:
1. Move the cursor AREA, and press OK to enter the area edit interface.
2. Move the joystick up/down/left/right to define the BLC position.
3. Press OK to enter the area size edit interface.
4. Move the joystick up/down/left/right to define the BLC size.
5. Press OK to confirm the selection, and select RET to go back the BLC menu, or
select AGAIN to re-define the BLC area.
6. (Optional) Move the cursor to DEFAULT and p ress OK to restore the BLC
settings to the default.
HD-SDI Camera·User Manual
35
35
↑
← POSITION→
↓
HSBLC
1. SELECT AREA 1
2. DISPLAY ON
3. LEVEL ---|------ 40
4. MODE ALL DAY
5. BLACK MASK ON
6. DEFAULT
7. RETURN RET
Figure 3-6 Define a BLC Area
HSBLC
Figure 3-7 HSBLC
HSBLC masks strong light sources that usually flare across a scene. This makes it
possible to see the detail of the image that would normally be hidden.
Steps:
1. Set the cursor right/left to select HSBLC and press OK to enter the edit
interface.
HD-SDI Camera·User Manual
36
36
2. Move the cursor to SELECT and select the area by setting the joystick to
left/right. Four areas are selectable.
3. Set the DISPLAY to ON /OFF to enable/disable the HSBLC area.
4. Press OK to enter the position/size edit interface.
5. Move the joystick up/down/left/right to define the position of the HSBLC area.
6. Press OK to switch to the size edit interface.
7. Move the joystick up/down/left/right to define the size of the HSBLC area.
8. Press OK to confirm the configuration and select RET to return to the HSBLC
menu, or select AGAIN to re-define the HSBLC area.
LEVEL
It is adjustable from 0 to 100. If the brightness is higher than the level you set,
the HSBLC will take effect.
MODE
ALL DAY refers to the HSBLC works all day; Night refers to the HSBLC only works
in night.
BLACK MASK
ON and OFF are selectable. Only when the Black Mask is set to ON, the HSBLC
takes effect. If you the set black mask to OFF, the HSBLC function is disabled.
DEFAULT
Selecting DEFAULT will restore all the HSBLC settings to the default.
HD-SDI Camera·User Manual
37
37
MANUAL WB
BLUE ---|------ 51
RED ---|------ 50
RETURN RET
3.5 White Balance (WB)
White balance is the white rendition function of the camera to adjust the color
temperature according to the environment. It can remove the unrealistic color
casts in the image.
INDOOR, OUTDOOR, MANUAL, ATW (Auto-tracking White Balance), AWC→SET
are selectable.
INDOOR
Indoor mode is applicable to the indoor environment whose color temperature
change is relatively slight.
OUTDOOR
OUTDOOR mode is applicable to the outdoor environment whose color
temperature is relatively obvious.
MANUAL
Manual mode allows you to adjust the white balance by customizing the Blue
and Red value, which range from 1 to 100.
Figure 3-8 Manual White Balance
ATW
HD-SDI Camera·User Manual
38
38
ATW mode refers to the white balance is continuously being adjusted in real-time
according to the color temperature of the scene illumination.
AWC→SET
Similar with ATW, the white balance is continuously being adjusted in real-time
according the scene if AWC→SET is selected, however, if the scene changed, you
have to go to AWC→SET to get another proper white balance for the new scene.
The white balance is not adjustable if B/W mode is selected.
3.6 Day & Night
Color, B/W, and EXT are selectable for DAY and NIGHT switches.
COLOR
The image is colored in day mode all the time.
B/W
The image is black and white all the time, and the IR LED turns on in the low-light
conditions.
EXT
The image switches from color to B/W or from B/W to color automatically
according to the light condition. And you can select to turn on or turn off the IR
LED according to different illumination.
HD-SDI Camera·User Manual
39
39
2D&3D NR
1. 2DNR OFF
2. 3DNR ON
3. RETURN RET
3.7 NR
NR (Noise Reduction) is used to reduce the noise in the video stream.
Move the cursor to NR, and press OK to enter the NR submenu.
Figure 3-9 NR
2D NR
2D NR reduces the noise in a single frame to get a gentle image. You can set it ON
or OFF by setting the joystick to left/right.
3D NR
Compared to traditional general 2D NR technology, 3D NR processes the noise
reduction between two frames instead of in one frame. It can decrease the noise
effect, especially when capturing moving images in low light conditions and
delivering more accurate and sharp image quality.
HD-SDI Camera·User Manual
40
40
3D NR
1. SMART NR ON
2. LEVEL -------|--8 0
3. START. AGC -|--------10
4. END. AGC -|--------10
5. RETURN RET
3D SMART NR
1. SENSITIVITY -------|-- 80
2. RETURN RET
Figure 3-10 3D NR
Smart NR usually takes effect in cooperation with 3D NR. You can set it to ON to
improve the image fluency. And set it to OFF to disable the SMART NR. The 3D
smart NR sensitivity ranges from 0 to 100.
Figure 3-11 Smart NR
The 3D NR level ranges from 0 to 100.
You can set a threshold to enable AGC from Start. AGC. And set a threshold to
disable AGC from End.AGC.
HD-SDI Camera·User Manual
41
41
SPECIAL
1. CAM TITLE ON
2. D-DFFECT
3. MOTION OFF
4. PRIVACY OFF
5. LANGUAGE ENG
6. DEFECT
7. VERSION 130722
8. RETURN RET
3.8 SPECIAL
In the SPECIAL sub-menu, you can set the camera name, the digital effect of the
image, the motion detection, privacy task, language, dead pixel correction, and
check the version of the camera.
Figure 3-12 Special
3.8.1 Camera Title
You can name your camera by configuring the CAM TITLE. Move the cursor to
CAM TITLE, set it to ON, and press OK to enter the edit interface. Up to 15
characters can be selected.
ON: Display the camera title.
OFF: Do not display the camera title.
HD-SDI Camera·User Manual
42
42
CAM TITLE
0 1 2 3 4 5 6 7 8 9
A B C D E F G H I J K
L M N O P Q R S T U V
W X Y Z ▶ → ←↑↓( )
¯ - _ ■ / = & : ~ , .
← → CLR POS END
C A M E R A 0 1 _ _ _
Figure 3-13 CAM Title
Steps:
1. Move the cursor to ←or →, and press OK to decide the character position on
the dotted line.
2. Move the cursor to select the needed characters, numbers, and symbols.
3. Press OK to confirm. The selected character will be displayed on the dotted
line below.
4. Move the cursor to POS to edit the camera title position on the screen.
1). Move the cursor to POS.
2). Press OK to enter the CAM TITLE position setting interface.
3). Move the joystick up/down/left/right to change the position of camera
title.
4). Press OK to exit the CAM TITLE position setting interface, and return to
the CAM TITLE menu.
5. (Optional) Move the cursor to CLR to clear all the selected characters.
HD-SDI Camera·User Manual
43
43
D-EFFECT
1. FREEZE OFF
2. MIRROR OFF
3. D-ZOOM OFF
4. SMART D-ZOOM OFF
5. NEG. IMAGE OFF
6. DIS ---
7. RETURN RET
6. Move the cursor to END and press OK to save the settings and return to the
previous menu.
3.8.2 D-effect
Figure 3-14 D-effect
FREEZE
You can set the freeze function as ON or OFF. When you set it as on, the image is
frozen as still. The live view will stay on the moment you set the freeze ON.
The mirror function will be disabled if the FREEZE is ON.
MIRROR
OFF, MIRROR, V-FLIP, and ROTATE are selectable for mirror.
OFF: The mirror function is disabled.
MIRROR: The image flips 180 degree horizontally.
V-FLIP: The image flips 180 degree vertically.
ROTATE: The image flips 180 degrees both horizontally and vertically.
HD-SDI Camera·User Manual
44
44
D-ZOOM
1. D-ZOOM x 2.0
2. PAN & TILT
3. DEFAULT
4. RETURN RET
SMART D-ZOOM
1. SELECT AREA1
2. DISPLAY ON
3. SENSITIVITY ---|----31
4. D-ZOOM x 2.0
5.TIME --|-------3
6.DEFAULT
7.RETURN RET
D-ZOOM
You can set the D-ZOOM as ON to zoom in the image. When digital zoom is
processed, the image will be enlarged without gaining the actual pixel.
Figure 3-15 D-Zoom
The min. magnification is x2, and the max. magnification is x62.
You can define the zoom area by configuring the position from PAN & TILT, and
restore the D-Zoom settings to the default.
SMART D-ZOOM
The smart D-Zoom enlarges the motion object detected in the pre-defined area.
The D-Zoom area, the sensitivity, and the time are configurable from the smart
D-Zoom edit interface.
Figure 3-16 Smart D-Zoom
HD-SDI Camera·User Manual
45
45
D-Zoom and Smart D-Zoom cannot take effect simultaneously.
2 areas are selectable. Move the joystick up/down to select the area.
Set the display ON/OFF to display/not display the smart D-Zoom area. And if the
display is set to ON, press OK to enter the position edit interface and define the
smart D-Zoom area.
The sensitivity ranges from 0 to 60. The higher the sensitivity, the easier the
smart D-ZOOM is triggered.
The min. magnification is x 2.0, and the max. magnification is x62.0.
The time refers to the duration of the magnification, you can set it from 0 to 15.
Move the cursor to DEFAULT and press OK to restore the smart D-Zoom settings
to the default.
NEG.IMAGE
You can set the NEG IMAGE as ON or OFF, and if you set it as on, the bright area
and the dark area of the image are reversed.
3.8.3 Motion
In the user-defined motion detection surveillance area, the moving object can be
detected and the alarm will be triggered.
HD-SDI Camera·User Manual
46
46
MOTION
1. SELECT AREA 1
2. DISPLAY ON
3. SENSITIVITY ----|---- 30
4. MOTION VIEW ON
5. DEFAULT
6. RETURN RET
Figure 3-17 Motion Detection
Set a Motion Detection Area:
Steps:
1. Move the cursor to SELECT and select a motion area. Four areas are selectable.
2. Move the cursor to DISPLAY, set it ON and press OK to enter the motion
detection edit interface.
3. Move the joystick up/down/left/right to define the position of the selected
motion area.
4. Press OK to enter the area size configuration interface after the position is
defined.
5. Move the joystick up/down/left/right to define the size of the selected area.
6. Press OK to confirm the size configuration and select RET to return to the
motion menu, and select AGAIN to try again.
7. (Optional)Move the cursor to DEFAULT and press OK to restore the motion
settings to the default.
SENSITIVITY
HD-SDI Camera·User Manual
47
47
PRIVACY
1. SELECT AREA 1
2. DISPLAY MOSAIC
3. COLOR 10
4. TRANS. 1
5. DEFAULT
6. RETURN RET
It refers to the sensitivity of the motion detection, which ranges from 0 to 60.
And the higher sensitivity causes the better response of the detection.
MOTION VIEW
Motion view enables a better visual judgment when the motion is detected. Set
the motion view ON, once motion occurred; you can see the transparent red
mosaic flickering to show the exact location where the motion occurs. Or you can
set it OFF to disable the motion view.
3.8.4 Privacy
The privacy mask allows you to cover certain areas which you don’t want to be
viewed or recorded. Up to 8 privacy areas are configurable.
Figure 3-18 Privacy Mask
Set a Privacy Mask:
Steps:
1. Move the cursor to SELECT and select a privacy mask area. Eight areas are
selectable.
HD-SDI Camera·User Manual
48
48
2. Move the cursor to DISPLAY, and press OK to enter the privacy mask edit
interface.
INV., mosaic, color and off are selectable for display.
INV.: The privacy mask area converts the bright area and the dark area in the
image.
Mosaic: The privacy mask area displayed with the flickering mosaic.
Color: The privacy mask area is displayed with selectable colors. 16 colors are
selectable.
The Color and TRANS [0-3] only works when the display is set to color.
3. Move the joystick up/down/left/right to define the position of the selected
privacy mask area.
4. Press OK to enter the area size configuration interface after the position is
defined. Define the size by configuring the top left, top right, bottom left, and
bottom right of the selected area.
5. Press OK to confirm the configuration and select RET to return to the privacy
mask menu, or select AGAIN to try again.
6. (Optional)Move the cursor to DEFAULT and press OK to restore the privacy
mask settings to the default.
3.8.5 Language
This series of camera supports multiple languages. English, Japanese, CHN1,
CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese,
Dutch, Turkish, Hebrew, and Arabic are selectable.
HD-SDI Camera·User Manual
49
49
DEFECT
1. LIVE DPC AUTO
2. STATIC DPC ON
3. BLACK DPC
4. RETURN RET
3.8.6 Defect
Defective pixels are pixels in a CCD or CMOS image sensor in digital cameras, in
which the defective pixels fail to sense light levels correctly. This series of camera
supports defective pixel correction. Move the cursor to DEFECT and press OK to
enter the defective pixel correction interface.
Figure 3-19 Defective Pixel Correction
LIVE DPC
Live DPC detects and corrects the dynamic or the real-time defective pixels occur
during the using. ON, OFF and AUTO is selectable. The correction level [0-255] is
configurable if the live DPC is set to ON; set it OFF to disable the live defective
pixel correction; and set it AUTO to detect and repair the defective pixels
automatically.
STATIC DPC
Static DPC detects and corrects the static or the fixed defective pixels occur
during the using. ON and OFF are selectable.
HD-SDI Camera·User Manual
50
50
STATIC DPC
1.START
2.LEVEL ---|------15
3.SENS-UP x 20
4.RETURN RET
Figure 3-20 Static DPC
Steps:
1. Set the static DPC as ON, and press OK to enter the static DPC edit interface.
2. Move the cursor to START, and press OK to start correcting the defective pixels.
3. Press OK when you see the message of CLOSE THE IRIS THEN PRESS ENTER
KEY showing up on the screen.
The level of the STATIC DPC ranges from 0 to 60.
Some of the defective pixels may appear undistinguished for the system to detect.
You can adjust the sens-up to X2, X4, X6, X8, X10, X15, X20, X25 or X30 to
brighten the defective pixel for the system to find it.
Black DPC
Black DPC is the pixel on CCD or CMOS sensor that appear completely black,
since no light is being emitted at all. Move the cursor to black DPC and press OK
to enter the black DPC configuration interface.
HD-SDI Camera·User Manual
51
51
BLACK DPC
1.START
2.LEVEL -----|------85
3.DIFF.TH ---|--------29
4.RETUEN RET
Figure 3-21 Black DPC
Steps:
1. Move the cursor to START, and press OK to confirm.
2. Press OK to start black DPC correction.
The DPC detection and correction levels are adjustable [0-255], and the DIFF.TH
refers to the threshold value the device judges a pixel to a black pixel.
3.8.7 Version
Move the cursor to version and press OK to check the software version of the
device.
3.9 ADJUST
In the Adjust sub-menu, you can configure the settings, including the sharpness,
the image quality on monitor, the OSD settings, the Lens Shadow Compensation,
and the Video output standard, etc. Move the cursor to ADJUST and press OK to
enter the adjust configuration interface.
HD-SDI Camera·User Manual
52
52
ADJUST
1. SHARPNESS --------|15
2. MONITOR LCD
3. LSC OFF
4. VIDEO. OUT PAL
5. RETURN RET
CRT
1. BLACK LEVEL ----|----+0
2. BLUE GAIN ----|----50
3. RED GAIN ----|----60
4.RETURN RET
Figure 3-22 Adjust
3.9.1 Sharpness
Sharpness determines the amount of detail an imaging system can reproduce.
And you can adjust the sharpness from 0 to 15. The higher the value is, the
clearer and sharper the image appears.
3.9.2 Monitor
Monitor CRT, and Monitor LCD are selectable.
The cathode ray tube (CRT) is a fluorescent screen used to view images. You can
user-define the black level [-30~+30], the blue gain [0~100], and the red gain
[0~100].
Figure 3-23 Monitor CRT
HD-SDI Camera·User Manual
53
53
LCD
1. GAMMA AUTO
2. BLUE GAIN ----|----50
3. RED GAIN ----|----50
4.RETURN RET
If liquid-crystal display (LCD) is selected. You can user-define the gamma, blue
gain [0~100], and red gain [0~100].
Gamma is the name of a nonlinear operation used to code and decode
luminance or tristimulus values in video or still image system.
USER +Y, USER, AUTO, 1.00, 0.95, 0.90, 0.85, 0.80, 0.75, 0.70, 0.65, 0.60, 0.55,
0.50, and 0.45 are selectable.
Figure 3-24 Monitor LCD
3.9.3 LSC
Lens Shading Correction (LSC) corrects the phenomenon where the image gets
darkened or blurred on the periphery.
Set it ON, move the cursor to SCAN and press OK to correct the lens shading.
Set it OFF to disable the LSC.
3.9.4 Video. Out
Phase Alternating Lines (PAL) is a color encoding system for analog television
used in broadcast television systems in most countries broadcasting at 576i.
National Television System Committee (NTSC) is the analog television system that
is used in most of North America, parts of South America Myanmar, South Korea,
etc.
HD-SDI Camera·User Manual
54
54
Move the joystick left/right to select the required video output standard.
3.10 RESET
Reset all the settings to the default.
3.11 EXIT
Move the cursor to EXIT and press OK to exit the menu.
HD-SDI Camera·User Manual
55
55
Loading...
