HIKVISION DS-2CC5102N, DS-2CC5112N, DS-2CC5132N, DS-2CC5172N, DS-2CC5182N User Manual

...

Day/ Night Dome Camera

User Manual

V 1.0.1

Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

User Manual of Dome Camera

Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer. This manual applies toDS-2CC5102P(N), DS-2CC5112P(N), DS-2CC5132P(N), DS-2CC5172P(N),

DS-2CC5182P(N), DS-2CC5192P(N),DS-2CC51A2P(N) dome Camera.

This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security

or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the performance or reliability of the security or signaling aspects of this product. UL MAKES NO REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.”

User Manual of Dome Camera

Regulatory Information

FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:

www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

User Manual of Dome Camera

Safety Warnings and Cautions

Please pay attention to the following warnings and cautions:

Hazardous Voltage may be present: Special measures and precautions must be

taken when using this device. Some potentials (voltages) on the device may present a hazard to the user. This device should only be used by Employees from our company with knowledge and training in working with these types of devices that contain live circuits.

Power Supply Hazardous Voltage: AC mains voltages are present within the power supply assembly. This device must be connected to a UL approved, completely enclosed power supply, of the proper rated voltage and current. No user serviceable parts inside the power supply.

System Grounding (Earthing): To avoid shock, ensure that all AC wiring is not exposed and that the earth grounding is maintained. Ensure that any equipment to which this device will be attached is also connected to properly wired grounded receptacles and are approved medical devices.

Power Connect and Disconnect: The AC power supply cord is the main disconnect device to mains (AC power).The socket outlet shall be installed near the equipment and shall be readily accessible. Installation and Maintenance: Do not connect/disconnect any cables to or

perform installation/maintenance on this device during an electrical storm.

User Manual of Dome Camera

Power Cord Requirements: The connector that plugs into the wall outlet must be a grounding-type male plug designed for use in your region. It must have certification marks showing certification by an agency in your region. The connector that plugs into the AC receptacle on the power supply must be an IEC 320, sheet C13, female connector. See the following website for more information

http://kropla.com/electric2.htm.

Lithium Battery: This device contains a Lithium Battery. There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used

batteries according to the vendor’s instructions and in accordance with local

environmental regulations. Perchlorate Material: Special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate. This notice is required by California Code of

Regulations, Title 22, Division 4.5, Chapter 33: Best Management Practices for Perchlorate Materials. This device includes a battery which contains perchlorate material.

Taiwan battery recycling:

Please recycle batteries.

Thermal and Mechanical Injury: Some components such as heat sinks, power regulators, and processors may be hot; care should be taken to avoid contact with these components.

Electro Magnetic Interference: This equipment has not been tested for

compliance with emissions limits of FCC and similar international regulations. This device is not, and may not be, offered for sale or lease, or sold, or leased until authorization from the United States FCC or its equivalent in other countries has been obtained. Use of this equipment in a residential location is prohibited. This equipment generates, uses and can radiate radio frequency energy which may result in harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment on and off, the user is required to take measures to eliminate the interference or discontinue the use of this equipment.

Lead Content:

Please recycle this device in a responsible manner. Refer to local environmental regulations for proper recycling; do not dispose of device in unsorted municipal waste.

User Manual of Dome Camera

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into “Warnings” and “Cautions”

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cautions: Injury or equipment damage may occur if any of the cautions are neglected.

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these

precautions to prevent potential injury or material damage.

Warnings

1. In the use of the product, you must be in strict compliance with the electrical safety regulations

of the nation and region.

2. Input voltage should meet both the SELV(Safety Extra Low Voltage) and the Limited Power

Source with AC 24V or DC 12V according to the IEC60950-1 standard. Please refer to technical

specifications for detailed information.

3. Do not connect several devices to one power adapter as adapter overload may cause

over-heating or a fire hazard.

4. Please make sure that the plug is firmly connected to the power socket.

5. When the product is mounted on wall or ceiling, the device shall be firmly fixed.

6. If smoke, odor or noise rise from the device, turn off the power at once and unplug the power

cable, and then please contact the service center.

7. If the product does not work properly, please contact your dealer or the nearest service center.

Never attempt to disassemble the camera yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

User Manual of Dome Camera

Cautions

1. Make sure the power supply voltage is correct before using the camera.

2. Do not drop the camera or subject it to physical shock.

3. Do not touch CCD (Charge Coupled Device) modules with fingers. If cleaning is necessary, use

clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an

extended period, please replace the lens cap to protect the CCD from dirt.

4. Do not aim the camera at the sun or extra bright places. Blooming or smearing may occur

otherwise (which is not a malfunction), and affect the endurance of CCD at the same time.

5. The CCD may be burned out by a laser beam, so when any laser equipment is in using, make

sure that the surface of CCD will not be exposed to the laser beam.

6. Do not place the camera in extremely hot, cold(the operating temperature shall be-10℃

~+60℃ ), dusty or damp locations, and do not expose it to high electromagnetic radiation.

7. To avoid heat accumulation, good ventilation is required for operating environment.

8. Keep the camera away from liquid while in use.

9. While in delivery, the camera shall be packed in its original packing, or packing of the same

texture.

10. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be

replaced regularly according to their average enduring time. The average time varies because of

differences between operating environment and using history, so regular checking is

recommended for all the users. Please contact with your dealer for more details.

11. Improper use or replacement of the battery may result in hazard of explosion. Replace with the

same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.

User Manual of Dome Camera

Table of Contents

Chapter 1 Introduction ........................................................................................................................... 8

1.1 Features ........................................................................................................................................ 8

1.2 Functions ...................................................................................................................................... 8

1.3 Description of Dome Camera ....................................................................................................... 9

Chapter 2 Installation ........................................................................................................................... 10

2.1 Dome Camera Mounting ............................................................................................................ 10

2.2 Dome Electrical Box Adapter Installation ................................................................................... 12

Appendix .............................................................................................................................................. 14

DS-2CC5102P(N) ............................................................................................................................... 14

Specifications ................................................................................................................................ 14

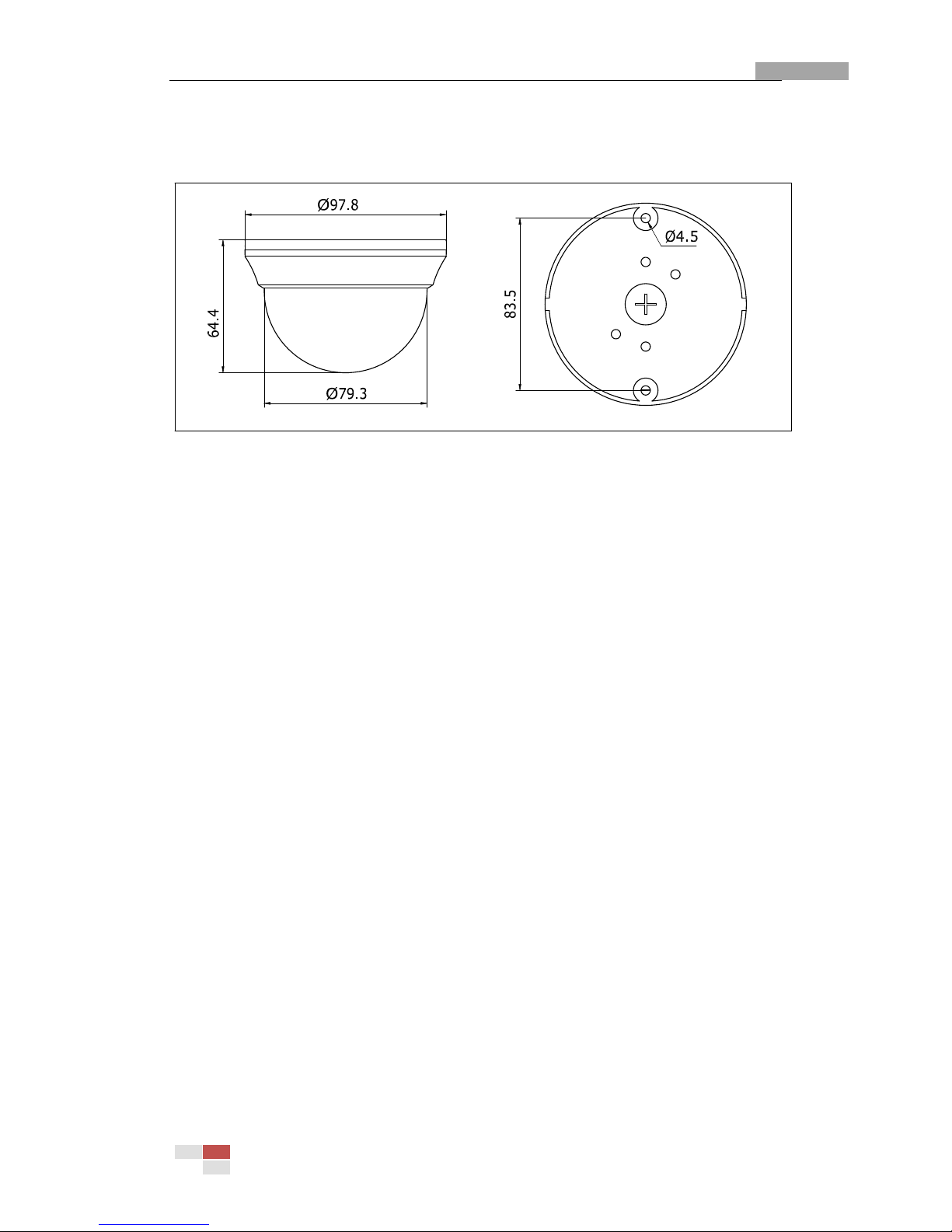

Dimensions .................................................................................................................................... 15

DS-2CC5112P(N) ............................................................................................................................... 16

Specification .................................................................................................................................. 16

Dimensions .................................................................................................................................... 17

DS-2CC5132P(N) ............................................................................................................................... 18

Specification .................................................................................................................................. 18

Dimensions .................................................................................................................................... 19

DS-2CC5172P(N) ............................................................................................................................... 20

Specifications ................................................................................................................................ 20

Dimensions .................................................................................................................................... 21

DS-2CC5182P(N) ............................................................................................................................... 22

Specifications ................................................................................................................................ 22

Dimensions .................................................................................................................................... 23

DS-2CC5192P(N) ............................................................................................................................... 24

Specifications ................................................................................................................................ 24

Dimensions .................................................................................................................................... 25

DS-2CC51A2P(N) ............................................................................................................................... 26

Specifications ................................................................................................................................ 26

Dimensions .................................................................................................................................... 27

User Manual of Dome Camera

Chapter 1 Introduction

1.1 Features

This series of the camera adopt high performance sensor and advanced print circuit

board design technology with high resolution, low distortion and low noise, etc. The

key features as following:

• High performance image sensor, high resolution, capable of providing clear images.

• Low illumination, DAY/NIGHT auto switch.

• Backlight compensation

• Auto white balance

• Auto electronic shutter control, adaptive to different environments.

• Auto gain control, with brightness adaptive.

•3-Axis adjustment.

• Advanced technique design, with high reliability.

1.2 Functions

DAY/NIGHT ATUO Switch: The camera provides two operation modes: color, and

B&W. You can increase sensitivity in low light conditions by switching to B&W mode.

Color mode is preferred in normal lighting conditions.

AGC: AGC allows users to adjust the gain of amplifier, enabling the camera to output

the standard video signal in different lighting conditions. As scene lighting decreases,

the system will automatically adjust, adding a mixture of AGC and slow shutter

according to the AGC limit setting. In low illumination, AGC will increase camera’s

sensitivity, and output bright and clear video.

S/N ratio: It refers to the ratio between signal voltage and noise voltage. While the

ratio is larger, the effect of noise is less, and the image is more spotless.

White Balance: This feature automatically processes the viewed image to retain color
