User Manual
HD-SDI IR Bullet Camera
UD.6L0201D1196A01
Camera
HD-SDI IR Bullet Camera·User Manual
1
1
Thank you for purchasing our product. If there are any questions, or
requests, please do not hesitate to contact the dealer.
This manual applies to DS-2CC12D5S-IT3, DS-2CC12D5S-IT5, and
DS-2CC12D5S-IR.
This manual may contain several technical incorrect places or
printing errors, and the content is subject to change without notice.
The updates will be added to the new version of this manual. We will
readily improve or update the products or procedures described in
the manual.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the
performance or reliability of the security or signaling aspects of this
product. UL has only tested for fire, shock or casualty hazards as
outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification
does not cover the performance or reliability of the security or
signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING
RELATED FUNCTIONS OF THIS PRODUCT.
100001030826
HD-SDI IR Bullet Camera·User Manual
2
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the users will be required to correct the interference at their
own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the Low Voltage Directive 2006/95/EC, the
EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.
HD-SDI IR Bullet Camera·User Manual
3
3
2012/19/EU (WEEE directive): Products marked
with this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
or dispose of it at designated collection points. For more information,
please see: www.recyclethis.info.
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your
supplier or to a designated collection point. For more information,
please see: www.recyclethis.info.
upon the purchase of equivalent new equipment,
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
Safety Instruction
These instructions are intended to ensure that user can use the
product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment damage may occur if any of the
cautions are neglected.
HD-SDI IR Bullet Camera·User Manual
4
4
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.
Warnings
In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region.
Please refer to technical specifications for detailed information.
Input voltage should meet both the SELV (Safety Extra Low Voltage)
and the Limited Power Source with AC 24V or DC 12V according to
the IEC60950-1 standard. Please refer to technical specifications
for detailed information.
Do not connect several devices to one power adapter as adapter
overload may cause over-heating or a fire hazard.
Please make sure that the plug is firmly connected to the power
socket.
When the product is mounted on wall or ceiling, the device shall
be firmly fixed.
HD-SDI IR Bullet Camera·User Manual
5
5
If smoke, odor or noise rise from the device, turn off the power at
once and unplug the power cable, and then please contact the
service center.
If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Cautions
Make sure the power supply voltage is correct before using the
camera.
Do not drop the camera or subject it to physical shock.
Do not touch senor modules with fingers. If cleaning is necessary,
use clean cloth with a bit of ethanol and wipe it gently. If the
camera will not be used for an extended period, please replace
the lens cap to protect the sensor from dirt.
Do not aim the camera at the sun or extra bright places. Blooming
or smearing may occur otherwise (which is not a malfunction),
and affect the endurance of sensor at the same time.
The sensor may be burned out by a laser beam, so when any laser
equipment is in using, make sure that the surface of sensor will
not be exposed to the laser beam.
Do not place the camera in extremely hot, cold (the operating
temperature shall be-10℃~+60℃), dusty or damp locations, and
do not expose it to high electromagnetic radiation.
HD-SDI IR Bullet Camera·User Manual
6
6
To avoid heat accumulation, good ventilation is required for
operating environment.
Keep the camera away from liquid while in use.
While in delivery, the camera shall be packed in its original
packing, or packing of the same texture.
Improper use or replacement of the battery may result in hazard
of explosion. Replace with the same or equivalent type only.
Dispose of used batteries according to the instructions provided
by the battery manufacturer.
HD-SDI IR Bullet Camera·User Manual
7
7
Table of Contents
1 Introduction .................................................................................... 9
1.1 Product Features ............................................................. 9
1.2 Overview ....................................................................... 10
1.2.1 Overview of Type I HD-SDI Bullet Camera ........... 10
1.2.2 Overview of Type II HD-SDI Bullet Camera .......... 11
1.2.3 Overview of the Type III HD-SDI Bullet Camera... 12
2 Installation .................................................................................... 13
2.1 Installation of Type I & II HD-SDI IR Bullet Camera ........ 13
2.2 Installation of Type III HD-SDI IR Bullet Camera ............. 16
3 Menu Description ......................................................................... 19
3.1 SCENE............................................................................ 19
3.2 LENS .............................................................................. 20
3.3 EXPOSURE ..................................................................... 20
3.3.1 Shutter ............................................................... 20
3.3.2 AGC .................................................................... 21
3.3.3 SENS-UP ............................................................. 22
3.3.4 Brightness .......................................................... 22
3.3.5 D-WDR ............................................................... 22
3.3.6 Defog .................................................................. 23
3.4 Backlight ....................................................................... 24
3.5 White Balance (WB) ...................................................... 28
3.6 Day & Night ................................................................... 29
3.7 NR ................................................................................. 30
3.8 SPECIAL ......................................................................... 32
3.8.1 Camera Title ....................................................... 32
3.8.2 D-effect .............................................................. 34
3.8.3 Motion ............................................................... 37
HD-SDI IR Bullet Camera·User Manual
8
8
3.8.4 Privacy ................................................................ 38
3.8.5 Language ............................................................ 40
3.8.6 Defect ................................................................. 40
3.8.7 Version ............................................................... 43
3.9 ADJUST .......................................................................... 43
3.9.1 Sharpness ........................................................... 44
3.9.2 Monitor .............................................................. 44
3.9.3 LSC ..................................................................... 45
3.9.4 Video. Out .......................................................... 45
3.10 RESET .......................................................................... 46
3.11 EXIT ............................................................................. 46
HD-SDI IR Bullet Camera·User Manual
9
9
1 Introduction
1.1 Product Features
This series of camera adopts high-sensitive sensor and advanced
circuit board design technology. It features high resolution, low
distortion, and low noise features, etc., which make it extremely
suitable for surveillance system and image process system.
The main features of HD-SDI IR Bullet cameras are as follows:
2 Megapixel high-performance CMOS sensor;
Clear and detailed image of up to 1080p resolution;
Support SDI and CVBS output which is used for convenient image
debugging;
Low illumination: 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR ;
IR cut filter auto switch;
Auto white balance, auto gain control, and backlight
compensation for different surveillance environment;
Support Digital Wide Dynamic Range (D-WDR) for backlighting
surveillance;
OSD menu, parameters are configurable;
Ingress protection level reaches IP66.
HD-SDI IR Bullet Camera·User Manual
10
10
No.
Description
No.
Description
1
Sun Shield
5
Power Cable
2
Lens
6
HD-SDI Cable
3
IR LED
7
CVBS Cable
4
Adjustable Screw
1.2 Overview
1.2.1 Overview of Type I HD-SDI Bullet Camera
Figure 1-1 Overview of Type I HD-SDI IR Bullet Camera
Table 1-1 Description
HD-SDI IR Bullet Camera·User Manual
11
11
No.
Description
No.
Description
1
Sun Shield
5
Power Cable
2
Lens
6
HD-SDI Cable
3
IR LED
7
CVBS Cable
4
Adjustable Screw
1.2.2 Overview of Type II HD-SDI Bullet Camera
Figure 1-2 Overview of Type II HD-SDI IR Bullet Camera
Table 1-2 Description
HD-SDI IR Bullet Camera·User Manual
12
12
No.
Description
No.
Description
1
Mounting Base
5
IR LED
2
Adjustable Nut
6
HD-SDI Cable
3
Sun Shield
7
Power Cable
4
Lens
8
CVBS Cable
1.2.3 Overview of the Type III HD-SDI Bullet Camera
Figure 1-3 Overview of Type III HD-SDI IR Bullet Camera
Table 1-3 Description
HD-SDI IR Bullet Camera·User Manual
13
13
2 Installation
Before you start:
Please make sure that the device in the package is in good
condition and all the assembly parts are included.
Make sure that all the related equipment is power-off during the
installation.
Check the specification of the products for the installation
environment.
Check whether the power supply is matched with your required
power voltage to avoid damage.
If the product does not function properly, please contact your
dealer or the nearest service center. Do not disassemble the
camera for repair or maintenance by yourself.
Please make sure the wall is strong enough to withstand three
times the weight of the camera.
If the wall is the cement wall, you need to insert expansion screws
before you install the camera. If the wall is the wooden wall, you
can use self-tapping screw to secure the camera.
2.1 Installation of Type I & II HD-SDI IR Bullet Camera
As Type I and Type II HD-SDI IR Bullet Cameras are in the
same structure, their installation steps are the same.
HD-SDI IR Bullet Camera·User Manual
14
14
Both wall mounting and ceiling mounting are suitable for
type I and type II HD-SDI IR bullet camera. Wall mounting will
be taken as an example in the section. And you can take steps
of wall mounting as a reference if ceiling mounting is
adopted.
Steps:
1. Drill the screw holes on the wall according to the drill template.
Figure 2-1 Drill Template
2. Route the corresponding cables.
3. Fix the camera to the wall with supplied screws.
HD-SDI IR Bullet Camera·User Manual
15
15
Figure 2-2 Secure the Camera to the Wall
4. Connect the corresponding power/HD-SDI/CVBS cables.
5. Adjust the Lens.
1). Loosen screw 1 to adjust the pan direction [0°~360°].
Tighten the screw after completing the adjustment.
2). Loosen screw 2 to adjust the tilt direction [0°~100°]. Tighten
the screw after completing the adjustment.
3). Loosen screw 3 and rotate the camera [0°~360°] to adjust
the lens to the surveillance angle. Tighten the screw after
completing the adjustment
HD-SDI IR Bullet Camera·User Manual
16
16
Figure 2-3 3-axis Adjustment
2.2 Installation of Type III HD-SDI IR Bullet Camera
Both wall mounting and ceiling mounting are suitable for type III
HD-SDI IR bullet camera. Ceiling mounting will be taken as an
example in the section. And you can take steps of ceiling mounting
as a reference if wall mounting is adopted.
Steps:
1. Drill the screw holes in the ceiling according to the drill template.
HD-SDI IR Bullet Camera·User Manual
17
17

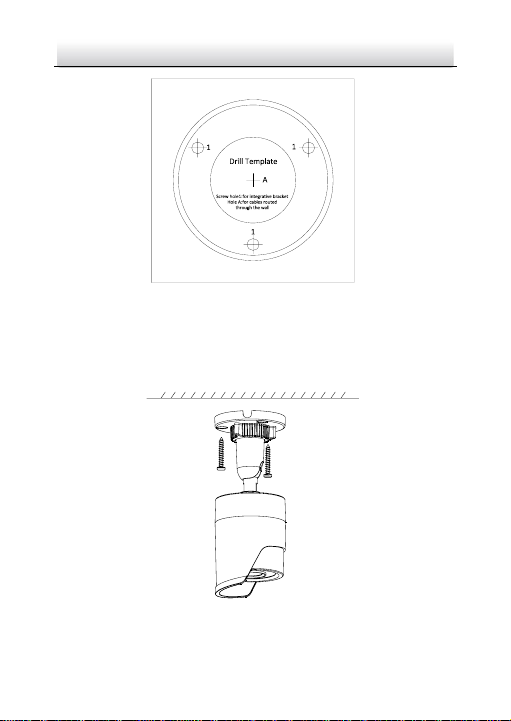

Figure 2-4 Drill Template
2. Route the corresponding cables.
3. Secure the camera to the ceiling with the supplied PA4 Screws.
Figure 2-5 Secure the Camera to the Ceiling
HD-SDI IR Bullet Camera·User Manual
18
18
4. Connect the corresponding power/HD-SDI/CVBS cables.
5. Adjust the Lens.
1). Loosen the adjustable nut.
2). Adjust the pan direction [0°~360°].
3). Adjust the tilt direction [0°~90°].
4). Rotate the camera [0~360°] to adjust the lens to the
surveillance angle.
5). Tighten the adjustable nut to complete the installation.
Figure 2-6 3-axis Adjustment
HD-SDI IR Bullet Camera·User Manual
19
19
Setup
SCENE
LENS
RESET
EXPOSURE
WB
DAY&NIGHT
BACKLIGHT
NR
SPECIAL
ADJUST
INDOOR
OUTDOOR
INDOOR1
LOW-
LIGHT
MANUAL
SHUTTER
AGC
SENS-UP
BRIGHTNE
SS
D-WDR
DEFOG
BLC
HSBLC
ATW
AWC-SET
INDOOR
OUTDOOR
MANUAL
COLOR
B/W
EXT
2D NR
3D NR
CAM
TITLE
D-EFFECT
MOTION
PRIVACY
LAUGUAGE
DEFECT
VERSION
SHARPNESS
MONITOR
LSC
VIDEO.
OUT
EXIT
3 Menu Description
Figure 3-1 Main Menu Overview
A coaxial camera controller (purchase separately) is required to
select the menu and adjust the camera parameters.
3.1 SCENE
Scene option allows user to select different working environments.
Options of indoor, outdoor, indoor 1 and low-light are selectable.
HD-SDI IR Bullet Camera·User Manual
20
20
EXPOSURE
1. SHUTTER AUTO
2. AGC OFF
3. SENS-UP ---
4. BRIGHTNESS ---|------ 40
5. DEFOG OFF
6. BACKLIGHT OFF
7. RETURN RET
3.2 LENS
The camera is equipped with a fixed lens, which is not configurable.
3.3 EXPOSURE
Figure 3-2 Exposure
Exposure describes the brightness-related parameters. You can
adjust the image brightness by the SHUTTER, AGC, SENS-UP,
BRIGHTNESS, ACCE, BACKLIGHT, etc. in different light conditions.
3.3.1 Shutter
Shutter denotes the speed of the shutter.
AUTO,1/25, 1/50, FLK, 1/200, 1/400, 1/1k, 1/2k, 1/5k, 1/10k, 1/50k,
x2, x4, x6, x8, x10, and x15 are selectable.
HD-SDI IR Bullet Camera·User Manual
21
21
If you select shutter as AUTO or 1/25, the SENS-UP is adjustable
(OFF/AUTO), and the SENS-UP is disabled if any other shutter speed
is selected.
3.3.2 AGC
It’s a form of amplification where the camera will automatically
boost the image received in much lower light conditions than
standard in order to optimize the clarity of image in poor light scene.
You can set the AGC value from 0 to 15. The AGC is disabled if the
value is set to 0.
The noise will be amplified if the AGC is on.
HD-SDI IR Bullet Camera·User Manual
22
22
3.3.3 SENS-UP
If you select shutter as AUTO or 1/25, the SENS-UP is adjustable
(OFF/AUTO), and the SENS-UP is disabled if any other shutter speed
is selected.
SENS-UP increases the exposure on a signal frame, which makes a
camera more sensitive to light so it can produce images even in low
lux conditions. You can set the SENS-UP to OFF or AUTO according to
different light conditions.
OFF: SENS-UP function is disabled.
AUTO: The SENS-UP function will atomically adjust itself to x2, x4, x6,
x8, x10, x15, x20, x25, and x30 according to the different light
conditions.
3.3.4 Brightness
Brightness refers to the brightness of the image. You can set the
brightness value from 1 to 100 to darken or brighten the image. The
higher the value is, the brighter the image is.
3.3.5 D-WDR
The digital wide dynamic range (D-WDR) function helps the camera
provide clear images even under back light circumstances. When
there are both very bright and very dark areas simultaneously in the
field of view, D-WDR balances the brightness level of the whole
image and provide clear images with details.
HD-SDI IR Bullet Camera·User Manual
23
23
DEFOG
1. POS/SIZE
2. GRADATION LOW
3. DEFAULT
4. RETURN RET
Set the D-WDR to ON to improve the image quality under the
backlight environment.
Set the D-WDR to OFF to disable the function.
3.3.6 Defog
DEFOG is used in special environment such as the foggy or rainy
weather or in high illumination, in which the dynamic range is lower
than that in the ordinary environment and the image always appear
hazy. Enable the defog function can enhance the subtle details so
that the image appears clearer.
Set the defog function as ON to enable the function. Position, size,
and the defog gradation are configurable.
Figure 3-3 Defog
HD-SDI IR Bullet Camera·User Manual
24
24
Steps:
1. Move the cursor to POS/SIZE, and press OK to enter the position
and size configuration interface.
2. Move the joystick up/down/right/left to define the position of the
defog area.
3. Press OK again to switch the position configuration to the size
configuration.
4. Move the joystick up/down/right/left to define the size of the
defog area.
5. Press OK and select RET to return to the defog menu or select
AGAIN to re-define the position and size.
6. (Optional) Move the cursor to DEFAULT and press OK to restore
the defog settings to the default.
Low, middle and high are selectable for the defog gradation.
Enabling the defog function will increase the contrast of the image. It
is recommended that the defog function is set to OFF during the
normal environment.
3.4 Backlight
Backlight is applicable for the backlight or the high luminance
environment; you can set the Backlight to OFF, BLC, and HSBLC.
HD-SDI IR Bullet Camera·User Manual
25
25
BLC
1. GAIN MIDDLE
2. AREA
3. DEFAULT
4. RETURN RET
Backlight Compensation (BLC)
If there’s a strong backlight, the object in front of the backlight will
appear silhouetted or dark. BLC bases on the back area to enhance
the brightness of the whole image, which makes it possible to see
the area before the strong backlight clearly, but the backlight area
will be over-exposed.
Figure 3-4 BLC
The gain of BLC can be set to High, Middle, and Low, the higher the
gain is, and the clearer the image is. Follow the steps below to set a
BLC area.
Steps:
1. Move the cursor AREA, and press OK to enter the area edit
interface.
2. Move the joystick up/down/left/right to define the BLC position.
3. Press OK to enter the area size edit interface.
4. Move the joystick up/down/left/right to define the BLC size.
5. Press OK to confirm the selection, and select RET to go back the
BLC menu, or select AGAIN to re-define the BLC area.
HD-SDI IR Bullet Camera·User Manual
26
26
↑
← POSITION→
↓
HSBLC
1. SELECT AREA 1
2. DISPLAY ON
3. LEVEL ---|------ 40
4. MODE ALL DAY
5. BLACK MASK ON
6. DEFAULT
7. RETURN RET
6. (Optional) Move the cursor to DEFAULT and press OK to restore
the BLC settings to the default.
Figure 3-5 Define a BLC Area
HSBLC
Figure 3-6 HSBLC
HSBLC masks strong light sources that usually flare across a scene.
This makes it possible to see the detail of the image that would
normally be hidden.
HD-SDI IR Bullet Camera·User Manual
27
27
Steps:
1. Set the cursor right/left to select HSBLC and press OK to enter the
edit interface.
2. Move the cursor to SELECT and select the area by setting the
joystick to left/right. Four areas are selectable.
3. Set the DISPLAY to ON /OFF to enable/disable the HSBLC area.
4. Press OK to enter the position/size edit interface.
5. Move the joystick up/down/left/right to define the position of the
HSBLC area.
6. Press OK to switch to the size edit interface.
7. Move the joystick up/down/left/right to define the size of the
HSBLC area.
8. Press OK to confirm the configuration and select RET to return to
the HSBLC menu, or select AGAIN to re-define the HSBLC area.
LEVEL
It is adjustable from 0 to 100. If the brightness is higher than the
level you set, the HSBLC will take effect.
MODE
ALL DAY refers to the HSBLC works all day; Night refers to the HSBLC
only works in night.
BLACK MASK
ON and OFF are selectable. Only when the Black Mask is set as ON,
the HSBLC takes effect. If you the set black mask as OFF, the HSBLC
function is disabled.
HD-SDI IR Bullet Camera·User Manual
28
28
DEFAULT
Selecting DEFAULT will restore all the HSBLC settings to the default
value.
3.5 White Balance (WB)
White balance is the white rendition function of the camera to
adjust the color temperature according to the environment. It can
remove the unrealistic color casts in the image.
INDOOR, OUTDOOR, MANUAL, ATW (Auto-tracking White Balance),
AWC→SET are selectable.
INDOOR
Indoor mode is applicable to the indoor environment whose color
temperature change is relatively slight.
OUTDOOR
OUTDOOR mode is applicable to the outdoor environment whose
color temperature is relatively obvious.
MANUAL
Manual mode allows you to adjust the white balance by customizing
the Blue and Red value, which range from 1 to 100.
HD-SDI IR Bullet Camera·User Manual
29
29
MANUAL WB
BLUE ---|------ 51
RED ---|------ 50
RETURN RET
Figure 3-7 Manual White Balance
ATW
ATW mode refers to the white balance is continuously being
adjusted in real-time according to the color temperature of the
scene illumination.
AWC→SET
Similar with ATW, the white balance is continuously being adjusted in
real-time according the scene if AWC→SET is selected, however, if
the scene changed, you have to go to AWC→SET to get another
proper white balance for the new scene.
The white balance is not adjustable if B/W mode is selected.
3.6 Day & Night
Color, B/W, and EXT are selectable for DAY and NIGHT switches.
COLOR
The image is colored in day mode all the time.
HD-SDI IR Bullet Camera·User Manual
30
30
2D&3D NR
1. 2DNR OFF
2. 3DNR ON
3. RETURN RET
B/W
The image is black and white all the time, and the IR LED turns on in
the low-light conditions.
EXT
The image switches from color to B/W or from B/W to color
automatically according to the light condition. And you can select to
turn on or turn off the IR LED according to different illumination.
3.7 NR
NR (Noise Reduction) is used to reduce the noise in the video
stream.
Move the cursor to NR, and press OK to enter the NR submenu.
Figure 3-8 NR
2D NR
2D NR reduces the noise in a single frame to get a gentle image. You
can set it ON or OFF by setting the joystick to left/right.
3D NR
HD-SDI IR Bullet Camera·User Manual
31
31
3D NR
1. SMART NR ON
2. LEVEL -------|--8 0
3. START. AGC -|--------10
4. END. AGC -|--------10
5. RETURN RET
3D SMART NR
1. SENSITIVITY -------|-- 80
2. RETURN RET
Compared to traditional general 2D NR technology, 3D NR processes
the noise reduction between two frames instead of in one frame. It
can decrease the noise effect, especially when capturing moving
images in low light conditions and delivering more accurate and
sharp image quality.
Figure 3-9 3D NR
Smart NR usually takes effect in cooperation with 3D NR. You can set
it to ON to improve the image fluency. And set it to OFF to disable
the SMART NR. The 3D smart NR sensitivity ranges from 0 to 100.
Figure 3-10 Smart NR
HD-SDI IR Bullet Camera·User Manual
32
32
SPECIAL
1. CAM TITLE ON
2. D-DFFECT
3. MOTION OFF
4. PRIVACY OFF
5. LANGUAGE ENG
6. DEFECT
7. VERSION 130722
8. RETURN RET
The 3D NR level ranges from 0 to 100.
You can set a threshold to enable AGC from Start. AGC, and set a
threshold to disable AGC from End.AGC.
3.8 SPECIAL
In the SPECIAL sub-menu, you can set the camera name, the digital
effect of the image, the motion detection, privacy task, language,
dead pixel correction, and check the version of the camera.
Figure 3-11 Special
3.8.1 Camera Title
You can name your camera by configuring the CAM TITLE. Move the
cursor to CAM TITLE, set it to ON, and press OK to enter the edit
interface. Up to 15 characters can be selected.
ON: Display the camera title.
OFF: Do not display the camera title.
HD-SDI IR Bullet Camera·User Manual
33
33
CAM TITLE
0 1 2 3 4 5 6 7 8 9
A B C D E F G H I J K
L M N O P Q R S T U V
W X Y Z ▶ → ←↑↓( )
¯ - _ ■ / = & : ~ , .
← → CLR POS END
C A M E R A 0 1 _ _ _
Figure 3-12 CAM Title
Steps:
1. Move the cursor to ←or →, and press OK to decide the character
position on the dotted line.
2. Move the cursor to select the needed characters, numbers, and
symbols.
3. Press OK to confirm. The selected character will be displayed on
the dotted line below.
4. Move the cursor to POS to edit the camera title position on the
screen.
1). Move the cursor to POS.
2). Press OK to enter the CAM TITLE position setting interface.
3). Move the joystick up/down/left/right to change the position of
camera title.
4). Press OK to exit the CAM TITLE position setting interface, and
return to the CAM TITLE menu.
HD-SDI IR Bullet Camera·User Manual
34
34
D-EFFECT
1. FREEZE OFF
2. MIRROR OFF
3. D-ZOOM OFF
4. SMART D-ZOOM OFF
5. NEG. IMAGE OFF
6. DIS ---
7. RETURN RET
5. (Optional) Move the cursor to CLR to clear all the selected
characters.
6. Move the cursor to END and press OK to save the settings and
return to the previous menu.
3.8.2 D-effect
Figure 3-13 D-effect
FREEZE
You can set the freeze function as ON or OFF. When you set it as on,
the image is frozen as still. The live view will stay on the moment you
set the freeze ON.
The mirror function will be disabled if the FREEZE is ON.
MIRROR
OFF, MIRROR, V-FLIP, and ROTATE are selectable for mirror.
OFF: The mirror function is disabled.
MIRROR: The image flips 180 degree horizontally.
HD-SDI IR Bullet Camera·User Manual
35
35
D-ZOOM
1. D-ZOOM x 2.0
2. PAN & TILT
3. DEFAULT
4. RETURN RET
V-FLIP: The image flips 180 degree vertically.
ROTATE: The image flips 180 degrees both horizontally and vertically.
D-ZOOM
You can set the D-ZOOM as ON to zoom in the image. When digital
zoom is processed, the image will be enlarged without gaining the
actual pixel.
Figure 3-14 D-Zoom
The minimum magnification is x2, and the maximum magnification is
x62.
You can define the zoom area by configuring the position from PAN
& TILT, and restore the D-Zoom settings to the default.
SMART D-ZOOM
The smart D-Zoom enlarges the motion object detected in the
pre-defined area. The D-Zoom area, the sensitivity, and the time are
configurable from the smart D-Zoom edit interface.
HD-SDI IR Bullet Camera·User Manual
36
36
SMART D-ZOOM
1. SELECT AREA1
2. DISPLAY ON
3. SENSITIVITY ---|----31
4. D-ZOOM x 2.0
5.TIME --|-------3
6.DEFAULT
7.RETURN RET
Figure 3-15 Smart D-Zoom
D-Zoom and Smart D-Zoom cannot take effect simultaneously.
2 areas are selectable. Move the joystick up/down to select the area.
Set the display ON/OFF to display/not display the smart D-Zoom area.
And if the display is set to ON, press OK to enter the position edit
interface and define the smart D-Zoom area.
The sensitivity ranges from 0 to 60. The higher the sensitivity, the
easier the smart D-ZOOM is triggered.
The minimum magnification is x 2.0, and the maximum
magnification is x62.0.
The time refers to the duration of the magnification, and you can set
it from 0 to 15.
Move the cursor to DEFAULT and press OK to restore the smart
D-Zoom settings to the default.
HD-SDI IR Bullet Camera·User Manual
37
37
MOTION
1. SELECT AREA 1
2. DISPLAY ON
3. SENSITIVITY ----|---- 30
4. MOTION VIEW ON
5. DEFAULT
6. RETURN RET
NEG.IMAGE
You can set the NEG IMAGE as ON or OFF, and if you set it as on, the
bright area and the dark area of the image are reversed.
3.8.3 Motion
In the user-defined motion detection surveillance area, the moving
object can be detected and the alarm will be triggered.
Figure 3-16 Motion Detection
Set a Motion Detection Area:
Steps:
1. Move the cursor to SELECT and select a motion area. Four areas
are selectable.
2. Move the cursor to DISPLAY, set it ON and press OK to enter the
motion detection edit interface.
3. Move the joystick up/down/left/right to define the position of the
selected motion area.
HD-SDI IR Bullet Camera·User Manual
38
38
4. Press OK to enter the area size configuration interface after the
position is defined.
5. Move the joystick up/down/left/right to define the size of the
selected area.
6. Press OK to confirm the size configuration and select RET to return
to the motion menu, and select AGAIN to try again.
7. (Optional)Move the cursor to DEFAULT and press OK to restore the
motion settings to the default.
SENSITIVITY
It refers to the sensitivity of the motion detection, which ranges from
0 to 60. And the higher sensitivity causes the better response of the
detection.
MOTION VIEW
Motion view enables a better visual judgment when the motion is
detected. Set the motion view ON, once motion occurred; you can
see the transparent red mosaic flickering to show the exact location
where the motion occurs. Or you can set it OFF to disable the motion
view.
3.8.4 Privacy
The privacy mask allows you to cover certain areas which you don’t
want to be viewed or recorded. Up to 8 privacy areas are
configurable.
HD-SDI IR Bullet Camera·User Manual
39
39
PRIVACY
1. SELECT AREA 1
2. DISPLAY MOSAIC
3. COLOR 10
4. TRANS. 1
5. DEFAULT
6. RETURN RET
Figure 3-17 Privacy Mask
Set a Privacy Mask:
Steps:
1. Move the cursor to SELECT and select a privacy mask area. Eight
areas are selectable.
2. Move the cursor to DISPLAY, and press OK to enter the privacy
mask edit interface.
INV., mosaic, color and off are selectable for display.
INV.: The privacy mask area converts the bright area and the dark
area in the image.
Mosaic: The privacy mask area displayed with the flickering mosaic.
Color: The privacy mask area is displayed with selectable colors. 16
colors are selectable.
HD-SDI IR Bullet Camera·User Manual
40
40
The Color and TRANS [0-3] only works when the display is set to
color.
3. Move the joystick up/down/left/right to define the position of the
selected privacy mask area.
4. Press OK to enter the area size configuration interface after the
position is defined. Define the size by configuring the top left, top
right, bottom left, and bottom right of the selected area.
5. Press OK to confirm the configuration and select RET to return to
the privacy mask menu, or select AGAIN to try again.
6. (Optional)Move the cursor to DEFAULT and press OK to restore the
privacy mask settings to the default.
3.8.5 Language
This series of camera supports multiple languages. English, Japanese,
CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish,
Russian, Portuguese, Dutch, Turkish, Hebrew, and Arabic are
selectable.
3.8.6 Defect
Defective pixels are pixels in a CCD or CMOS image sensor in digital
cameras, in which the defective pixels fail to sense light levels
correctly. This series of camera supports defective pixel correction.
Move the cursor to DEFECT and press OK to enter the defective pixel
correction interface.
HD-SDI IR Bullet Camera·User Manual
41
41
DEFECT
1. LIVE DPC AUTO
2. STATIC DPC ON
3. BLACK DPC
4. RETURN RET
STATIC DPC
1.START
2.LEVEL ---|------15
3.SENS-UP x 20
4.RETURN RET
Figure 3-18 Defective Pixel Correction
LIVE DPC
Live DPC detects and corrects the dynamic or the real-time defective
pixels occur during the using. ON, OFF and AUTO is selectable. The
correction level [0-255] is configurable if the live DPC is set to ON;
set it OFF to disable the live defective pixel correction; and set it
AUTO to detect and repair the defective pixels automatically.
STATIC DPC
Static DPC detects and corrects the static or the fixed defective pixels
occur during the using. ON and OFF are selectable.
Figure 3-19 Static DPC
HD-SDI IR Bullet Camera·User Manual
42
42
BLACK DPC
1.START
2.LEVEL -----|------85
3.DIFF.TH ---|--------29
4.RETUEN RET
Steps:
1. Set the static DPC as ON, and press OK to enter the static DPC edit
interface.
2. Move the cursor to START, and press OK to start correcting the
defective pixels.
3. Press OK when you see the message of CLOSE THE IRIS THEN
PRESS ENTER KEY showing up on the screen.
The level of the STATIC DPC ranges from 0 to 60.
Some of the defective pixels may appear undistinguished for the
system to detect. You can adjust the SENS-UP to X2, X4, X6, X8, X10,
X15, X20, X25 or X30 to brighten the defective pixel for the system to
find it.
Black DPC
Black DPC is the pixel on CCD or CMOS sensor that appear
completely black, since no light is being emitted at all. Move the
cursor to black DPC and press OK to enter the black DPC
configuration interface.
Figure 3-20 Black DPC
HD-SDI IR Bullet Camera·User Manual
43
43
ADJUST
1. SHARPNESS --------|15
2. MONITOR LCD
3. LSC OFF
4. VIDEO. OUT PAL
5. RETURN RET
Steps:
1. Move the cursor to START, and press OK to confirm.
2. Press OK to start black DPC correction.
The DPC detection and correction levels are adjustable [0-255], and
the DIFF.TH refers to the threshold value the device judges a pixel to
a black pixel.
3.8.7 Version
Move the cursor to version and press OK to check the software
version of the device.
3.9 ADJUST
In the Adjust sub-menu, you can configure the settings, including the
sharpness, the image quality on monitor, the OSD settings, the Lens
Shadow Compensation, and the Video output standard, etc. Move
the cursor to ADJUST and press OK to enter the adjust configuration
interface.
Figure 3-21 Adjust
HD-SDI IR Bullet Camera·User Manual
44
44
CRT
1. BLACK LEVEL ----|----+0
2. BLUE GAIN ----|----50
3. RED GAIN ----|----60
4.RETURN RET
3.9.1 Sharpness
Sharpness determines the amount of detail an imaging system can
reproduce. And you can adjust the sharpness from 0 to 15. The
higher the value is, the clearer and sharper the image appears.
3.9.2 Monitor
Monitor CRT, and Monitor LCD are selectable.
The cathode ray tube (CRT) is a fluorescent screen used to view
images. You can user-define the black level [-30~+30], the blue gain
[0~100], and the red gain [0~100].
Figure 3-22 Monitor CRT
If liquid-crystal display (LCD) is selected. You can user-define the
gamma, blue gain [0~100], and red gain [0~100].
Gamma is the name of a nonlinear operation used to code and
decode luminance or tristimulus values in video or still image
system.
USER +Y, USER, AUTO, 1.00, 0.95, 0.90, 0.85, 0.80, 0.75, 0.70, 0.65,
0.60, 0.55, 0.50, and 0.45 are selectable.
HD-SDI IR Bullet Camera·User Manual
45
45
LCD
1. GAMMA AUTO
2. BLUE GAIN ----|----50
3. RED GAIN ----|----50
4.RETURN RET
Figure 3-23 Monitor LCD
3.9.3 LSC
Lens Shading Correction (LSC) corrects the phenomenon where the
image gets darkened or blurred on the periphery.
Set it ON, move the cursor to SCAN and press OK to correct the lens
shading.
Set it OFF to disable the LSC.
3.9.4 Video. Out
Phase Alternating Lines (PAL) is a color encoding system for analog
television used in broadcast television systems in most countries
broadcasting at 576i.
National Television System Committee (NTSC) is the analog television
system that is used in most of North America, parts of South America
Myanmar, South Korea, etc.
Move the joystick left/right to select the required video output
standard.
HD-SDI IR Bullet Camera·User Manual
46
46
3.10 RESET
Reset all the settings to the default.
3.11 EXIT
Move the cursor to EXIT and press OK to exit the menu.
