Hikvision Technical Manual
alarm shop
Analog Camera
Technical Manual
©2006 – 2012 by HIKVISION. All rights reserved.
1
Hikvision Technical Manual
alarm shop
Notices
The information in this documentation is subject to change without notice and does not represent any
commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data
that may appear in this documentation. The product(s) described in this documentation are furnished
subject to a license and may only be used in accordance with the terms and conditions of such license.
Copyright © 2006-2012 by HIKVISION. All rights reserved.
This documentation is issued in strict confidence and is to be used only for the purposes for
which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or
be used for any other purpose without prior written consent of HIKVISION and then only on the
condition that this notice is included in any such reproduction. No information as to the contents or
subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,
shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party
being an individual, firm, or company or any employee thereof without the prior written consent of
HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use
this product. HIKVISION reserves the right to make changes to its products as circumstances may
warrant, without notice.
This documentation is provided “as-is,” without warranty of any kind.
Please send any comments regarding the documentation to:
overseabusiness@hikvision.com
Find out more about HIKVISION at www.hikvision.com
©2006 – 2012 by HIKVISION. All rights reserved.
2
Hikvision Technical Manual

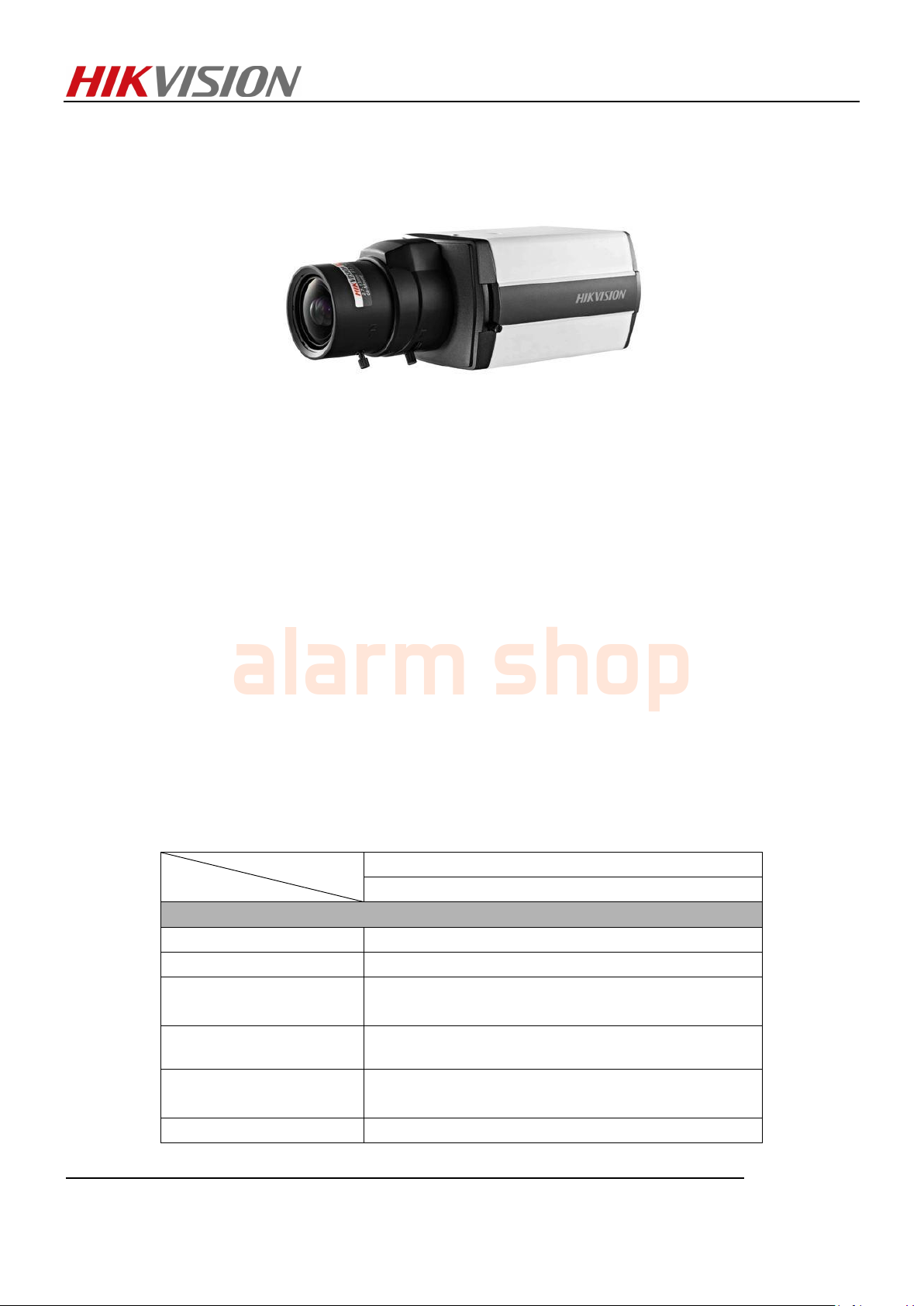

Model
Parameter
DS-2CC11A1P(N)
700 TVL CCD Box Camera
Camera
Image Sensor
1/3” SONY CCD
Signal System
PAL/NTSC
Effective Pixels
PAL: 976 (H) × 582 (V)
NTSC: 976 (H) × 494 (V)
Min. Illumination
0.001 Lux @ (F1.2, AGC ON)
Shutter speed
PAL: 1/50 s to 1/10,000 s
NTSC: 1/60 s to 1/10,000 s
Lens Mount
C/CS mount
alarm shop
DS-2CC11A1P(N)
Key Features
Compact design
SONY CCD
Digital Noise Reduction (DNR)
Digital Wide Dynamic Range
Day/Night with auto switch
Min. illumination: 0.001 Lux @ F1.2
OSD menu
Eclipse
Auto iris with DC drive
Auto white balance, auto gain control, electronic shutter control and backlight compensation
Internal Synchronization
Convenient back focus adjustment
Specification
©2006 – 2012 by HIKVISION. All rights reserved.
3
Hikvision Technical Manual
Auto Iris
DC drive
Day & Night
Electronic
Horizontal Resolution
700TVL
Synchronization
Internal synchronization
Video Output
1Vp-p composite output (75 Ω/BNC)
S/N Ratio
More than 62 dB
Menu
Camera ID
On/Off (52 letters, position adjustable)
D/N Mode
Auto /Day /Night
White Balance
ATW/PUSH/USER1/USER2/ANTI CR/MANUAL/PUSH LOCK
Private Mask
On/Off, maximum 8 zones
Motion Detection
On/Off
Back Light
BLC/HLC/Off
Language
Chinese/ English/ Japanese/ German/ French/ Russian/
Portuguese/ Spanish
Function
ATR, HLC, DNR, Sharpness, Brightness, Contrast, Hue,
Gain, Mirror, Defect Pixel Correction
General
Working
Temperature/Humidity
-10 °C - 60 °C (14 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply
12 V DC ± 10%
Power Consumption
Max. 2 W
Dimensions
68.8 x 56 x 111 mm (2.71” × 2.20” × 4.37”)
Weight
400 g (0.88 lbs)
alarm shop
Order Models
DS-2CC11A1P
DS-2CC11A1N
©2006 – 2012 by HIKVISION. All rights reserved.
4

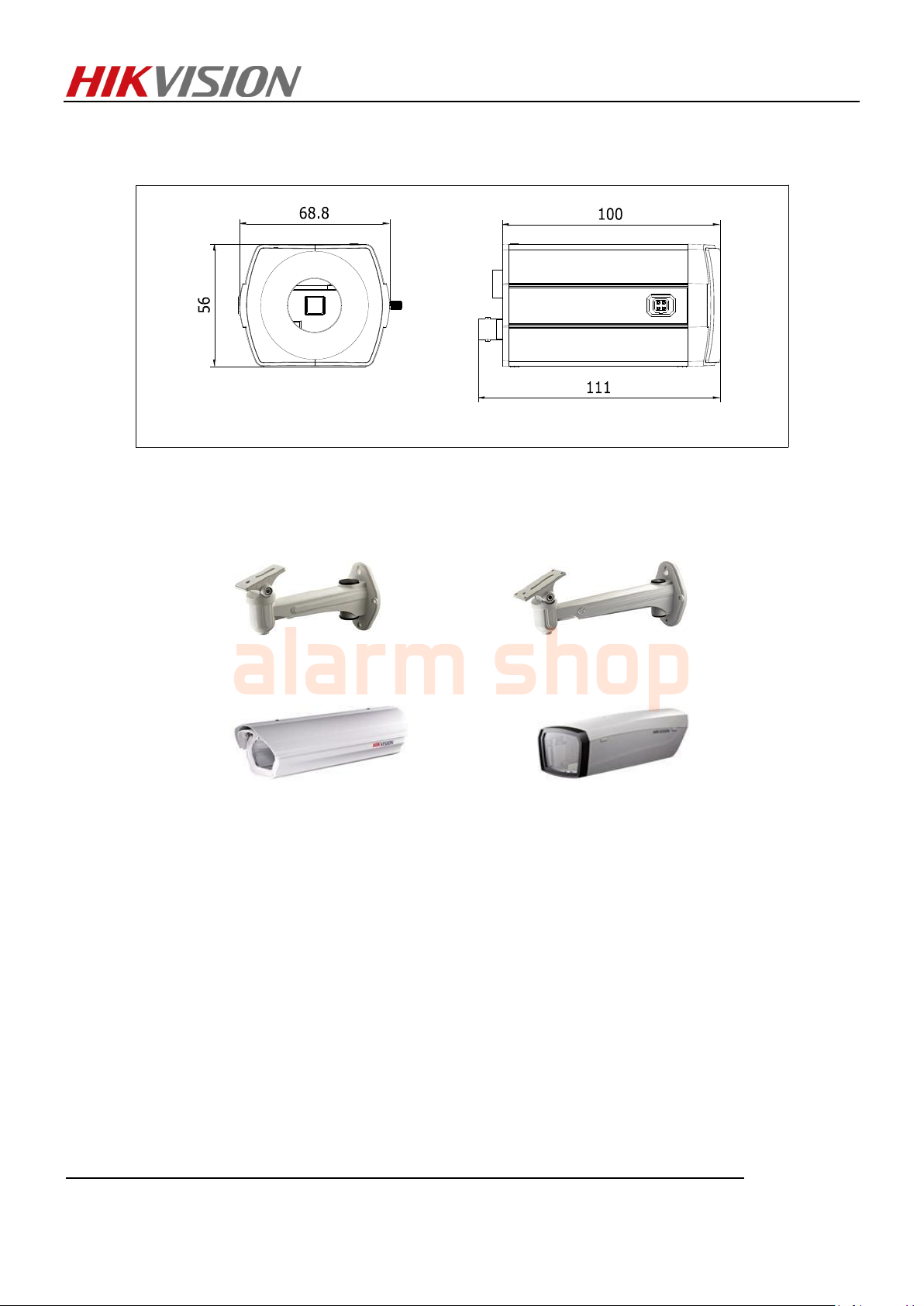

Dimensions
Unit: mm
alarm shop
Accessories
Hikvision Technical Manual
Indoor wall mount Indoor/outdoor wall mount
DS-1212ZJ DS-1213ZJ
Indoor/outdoor camera housing Indoor camera housing
DS-1311HZ (DS-1312HZ, DS-1313HZ) DS-1320HZ
©2006 – 2012 by HIKVISION. All rights reserved.
5
