HIKVISION DS-2CC1172P, DS-2CC1172N, DS-2CC1172P-A, DS-2CC1172N-A Technical Manual

Hikvision Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
1
Technical Manual
Hikvision Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
2
Notices
The information in this documentation is subject to change without notice and does not represent any
commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data
that may appear in this documentation. The product(s) described in this documentation are furnished
subject to a license and may only be used in accordance with the terms and conditions of such license.
Copyright © 2006-2011 by HIKVISION. All rights reserved.
This documentation is issued in strict confidence and is to be used only for the purposes for
which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or
be used for any other purpose without prior written consent of HIKVISION and then only on the
condition that this notice is included in any such reproduction. No information as to the contents or
subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,
shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party
being an individual, firm, or company or any employee thereof without the prior written consent of
HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use
this product. HIKVISION reserves the right to make changes to its products as circumstances may
warrant, without notice.
This documentation is provided “as-is,” without warranty of any kind.
Please send any comments regarding the documentation to:
overseabusiness@hikvision.com
Find out more about HIKVISION at www.hikvision.com
Hikvision Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
3
Hikvision Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
4

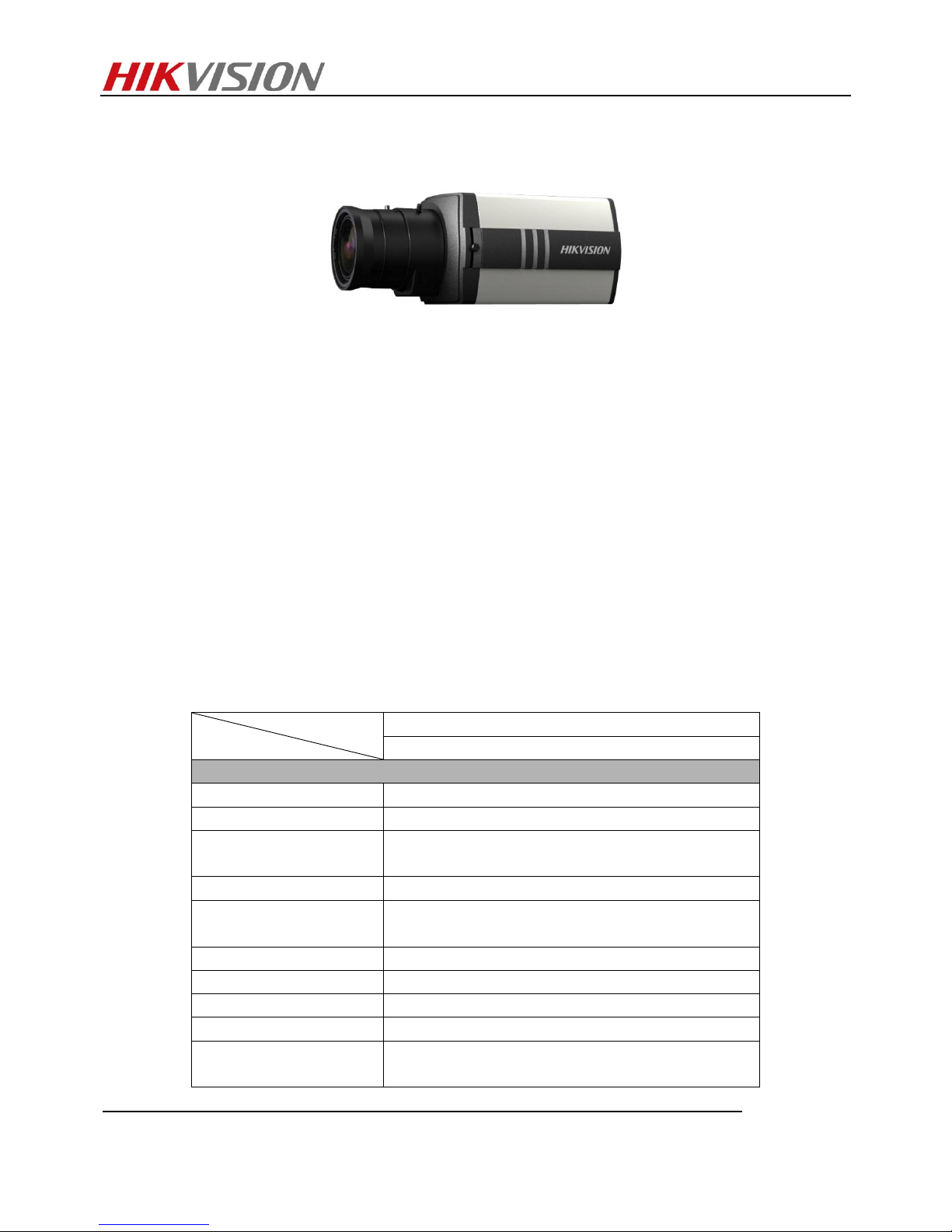

DS-2CC1172P(N)(-A) (Released)
Key Features
Compact design
SONY Super HAD CCD II
Flickerless mode
Digital Wide Dynamic Range
Day/Night with auto switch
Digital Noise Reduction (DNR)
Auto iris with DC/video drive Auto white balance, auto gain control, electronic shutter control and backlight compensation Internal or Power Synchronization Convenient back focus adjustment
Specification
Model
Parameter
DS-2CC1172P(N)(-A)
540 TVL CCD Box Camera
Camera
Image Sensor
1/3” SONY Super HAD CCD II
Signal System
PAL/NTSC
Effective Pixels
PAL: 752 (H) × 582 (V)
NTSC: 768 (H) × 494 (V)
Min. Illumination
0.1 Lux @ (F1.2, AGC ON)
Shutter Time
PAL: 1/50 s to 1/100,000 s
NTSC: 1/60 s to 1/100,000 s
Lens Mount
C/CS mount
Auto Iris
DC/Video drive
Day & Night
Electronic
Horizontal Resolution
540 TVL
Synchronization
Internal synchronization
(-A series support Internal/Power synchronization)
Hikvision Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
5
Video Output
1Vp-p composite output (75 Ω/BNC)
S/N Ratio
More than 52 dB
General
Operating Conditions
-10 °C - 60 °C (14 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply
12 V DC ± 10%
(-A series support 24 V AC ± 10%, 12 V DC ± 10%)
Power Consumption
Max. 2 W
(-A series support Max. 3 W)
Dimension
69 x 56 x 113.3 mm (2.72” × 2.20” × 4.46”)
Weight
400 g (0.88 lbs)
Order Models
DS-2CC1172P DS-2CC1172N DS-2CC1172P-A DS-2CC1172N-A
Dimension
Unit: mm
Hikvision Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.
6

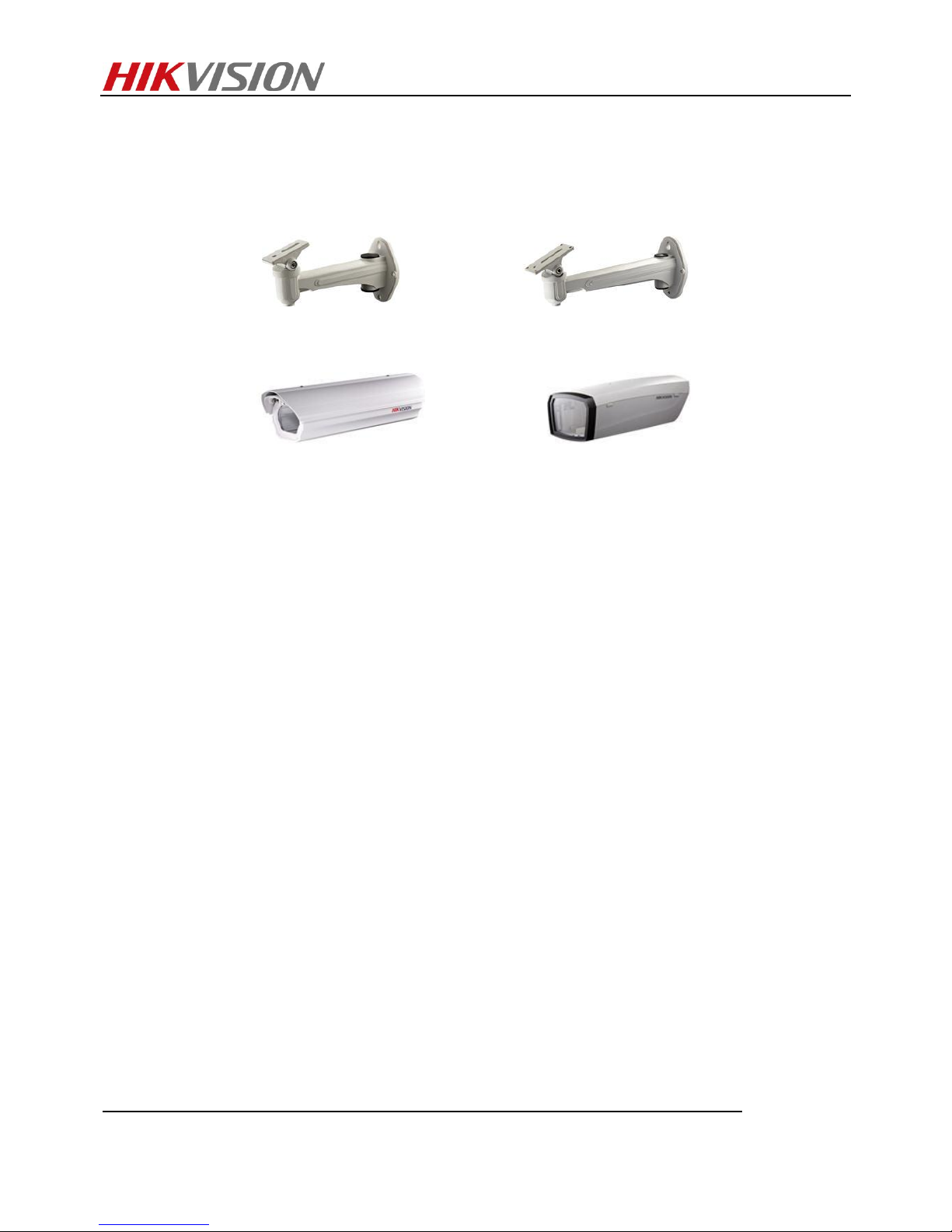

Accessories
Indoor wall mount Indoor/outdoor wall mount
DS-1212ZJ DS-1213ZJ
Indoor/outdoor camera housing Indoor camera housing
DS-1311HZ (DS-1312HZ, DS-1313HZ)
