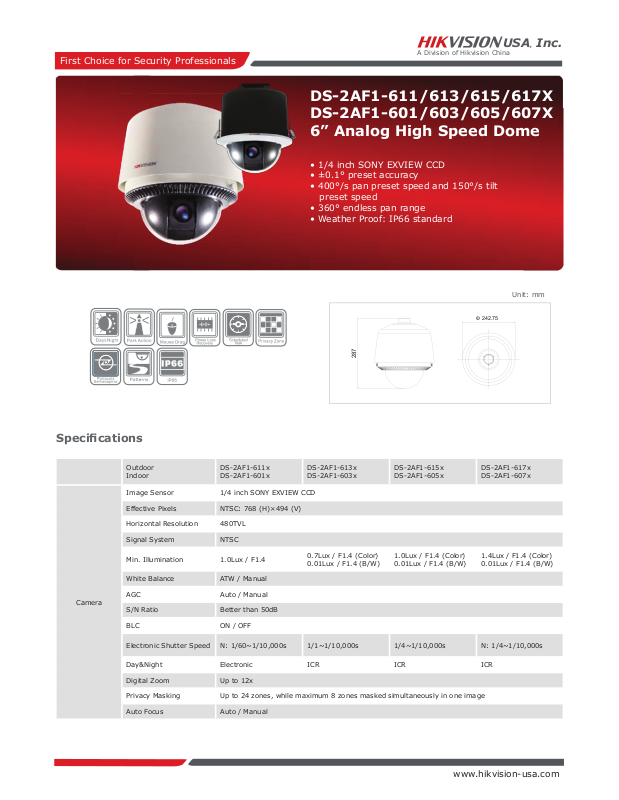

Hikvision DS-2AF1-611X, DS-2AF1-613X Specsheet

First Choice for Security Professionals

A Division of Hikvision China

USA, Inc.

DS-2AF1-611/613/615/617X
DS-2AF1-601/603/605/607X
6” Analog High Speed Dome

• 1/4 inch SONY EXVIEW CCD

• ±0.1° preset accuracy

• 400°/s pan preset speed and 150°/s tilt
preset speed

• 360° endless pan range

• Weather Proof: IP66 standard

Unit: mm

Φ

242.75

Specifi cations

Outdoor
Indoor

Image Sensor 1/4 inch SONY EXVIEW CCD

Effective Pixels NTSC: 768 (H)×494 (V)

Horizontal Resolution 480TVL

Signal System NTSC

Min. Illumination 1.0Lux / F1.4

White Balance ATW / Manual

Camera

S/N Ratio Better than 50dB

Electronic Shutter Speed N: 1/60~1/10,000s 1/1~1/10,000s 1/4~1/10,000s N: 1/4~1/10,000s

DS-2AF1-611x
DS-2AF1-601x

FFO / NOCLB

287

DS-2AF1-613x
DS-2AF1-603x

0.7Lux / F1.4 (Color)

0.01Lux / F1.4 (B/W)

launaM / otuACGA

DS-2AF1-615x
DS-2AF1-605x

1.0Lux / F1.4 (Color)

0.01Lux / F1.4 (B/W)

DS-2AF1-617x
DS-2AF1-607x

1.4Lux / F1.4 (Color)

0.01Lux / F1.4 (B/W)

Digital Zoom Up to 12x

Privacy Masking Up to 24 zones, while maximum 8 zones masked simultaneously in one image

Auto Focus Auto / Manual

www.hikvision-usa.com

RCIRCIRCIcinortcelE thgiN&yaD

First Choice for Security Professionals

A Division of Hikvision China

USA, Inc.

DS-2AF1-611x
DS-2AF1-601x

Zoom Ratio 4.1-73.8mm, 18x 4.1-73.8mm, 18x 3.5-91mm, 26x 3.4-122.4mm, 36x

Zoom Speed Approx. 2.1sec (Optical WIDE-TELE ) Approx. 4.0sec (Optical WIDE-TELE )

Lens

Pan & Tilt

Alarm

Input / Output Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC

General

Field of View

Min. Working Distance

Aperture Range F1.4-F3.0 F1.4-F3.0 F1.4-F3.8 F1.6-F4.5

Pan Range 360° endless

Pan Speed Manual: approx. 0.3°/s-300°/s, Preset: up to approx. 400°/s

Tilt Range 0°~90° (Auto  ip)

Tilt Speed Manual: approx. 0.5°~90°/s, Preset: up to approx. 150°/s

Proportional Pan/Tilt
Control

Preset Positions 250

Tour Mode OFF / Preset / Patrol / Pattern / Auto Scan / Random Scan / Frame Scan

Freeze Frame - Freeze Frame during Preset

Scheduled Task Scheduled Task: programmable Preset / Patrol / Auto Scan / Pattern / Random Scan / Frame Scan.

Password Protection Preventing unauthorized person modifying the parameter

Auto Flip YES

Parameter Restore Go to the speed dome last status after reboot

Park Action

PTZ Position Display ON / OFF

Alarm Input 7 channels input, priority is con gurable

Alarm Output 2 channels relay output, alarm linkage is con gurable

Alarm Actions Preset 1 ~ 200, Patrol 1 ~ 8 , PATTERN 1 ~ 4, Terminal output

Menu Language English, Chinese

RS-485 Protocols HIKVISION, PELCO-P, PELCO-D (addible), self-adaptive

Power Supply 24VAC (12VDC option)

Power Consumption 30W max (Heater ON)

Working Temperature/
Humidity

Water and Dust
Resistance

Dimensions 6 inch, Φ243(mm)×287(mm)

Weight (approx.) 5kg

48° to 2.8°
(WIDE-TELE )

200mm (WIDE),
1000mm (TELE)

YES

Start to Call Preset / Patrol / Pattern / Auto Scan / Random Scan / Frame Scan, after a De ned
Time of Inactivity

-30°C ~ 60°C (outdoor) / -10°C ~ 50°C (indoor),
90% or less (without condensation)

IP66 standard compatible (Just for outdoor dome), TVS 3000V limited lightning protection

DS-2AF1-613x
DS-2AF1-603x

48° to 2.8°
(WIDE-TELE )

290mm (WIDE),
800mm (TELE)

DS-2AF1-615x
DS-2AF1-605x

42° to 1.6°
(WIDE-TELE )

320mm (WIDE),
1500mm (TELE)

DS-2AF1-617x
DS-2AF1-607x

57.8° to 1.7°
(WIDE-TELE )

320mm (WIDE),
1500mm (TELE)
