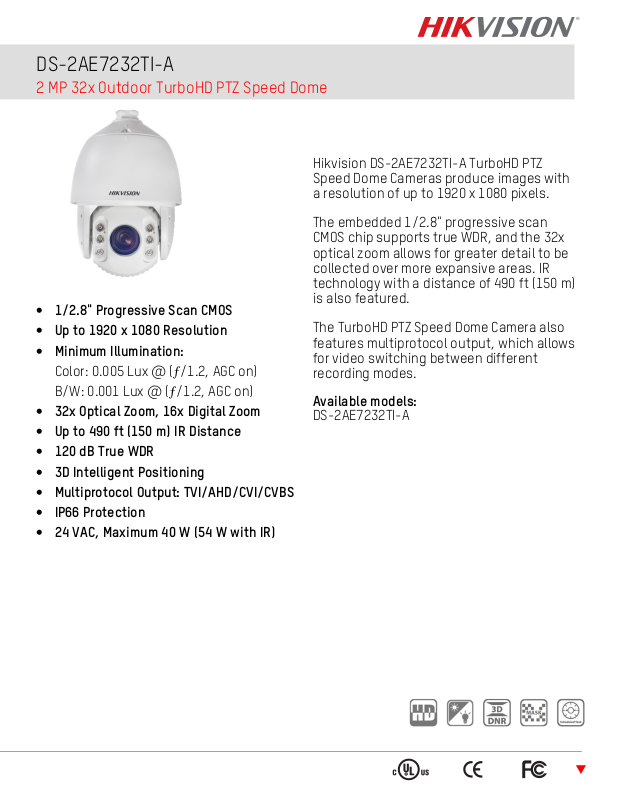

Hikvision DS-2AE7232TI-A Specsheet

DS-2AE7232TI-A

2 MP 32x Outdoor TurboHD PTZ Speed Dome

• 1/2.8" Progressive Scan CMOS

• Up to 1920 x 1080 Resolution

• Minimum Illumination:

Color: 0.005 Lux @ (ƒ/1.2, AGC on)

Hikvision DS-2AE7232TI-A TurboHD PTZ
Speed Dome Cameras produce images with
a resolution of up to 1920 x 1080 pixels.

The embedded 1/2.8" progressive scan
CMOS chip supports true WDR, and the 32x
optical zoom allows for greater detail to be
collected over more expansive areas. IR
technology with a distance of 490 ft (150 m)
is also featured.

The TurboHD PTZ Speed Dome Camera also
features multiprotocol output, which allows
for video switching between different
recording modes.

B/W: 0.001 Lux @ (ƒ/1.2, AGC on)

• 32x Optical Zoom, 16x Digital Zoom

• Up to 490 ft (150 m) IR Distance

• 120 dB True WDR

• 3D Intelligent Positioning

• Multiprotocol Output: TVI/AHD/CVI/CVBS

• IP66 Protection

• 24 VAC, Maximum 40 W (54 W with IR)

Available models:

DS-2AE7232TI-A



Specifications

DS-2AE7232TI

-A

Camera

Module

Image Sensor

1/2.8" progressive scan CMOS

Maximum Image Resolution

1920 x 1080

Frame Rate

30 fps @ (1920 × 1080)

Minimum Illumination

Color: 0.005 lux @ (

ƒ

/1.2, AGC on)

,

B/W: 0.001 lux @ (

ƒ

/1.2, AGC on)

White Balance

Auto/manual/

hauto

(half auto)

/

ATW (Auto Tracking White)

/indoor/outdoor

AGC Auto/manual

DNR 3D DNR

WDR ≥

120 dB

Shutter Speed

1/1 s to 1/10,000 s

Day/Night

IR cut filter

Digital Zoom

16x

Privacy Mask

8 programmable privacy masks

BLC (Backlight Compensation)

Yes

HLC (highlight Compensation)

Yes

EIS (Electric Image Stabilization)

Yes

Regional Focus

Yes

Lens

Focus Mode

Auto/semi

-

auto/manual

Focal Length

4.8 mm to 1

53 mm,

32x optical

Aperture Range

ƒ/1.2 to ƒ/4.4

Field of View

Horizontal field of view: 5

4.2

° to

1.97

° (wide to tele)

Minimum Working Distance

10 mm to 1500 mm (wide to tele)

Zoom Speed

Approximately

3.5 s (optical, wide to tele)

PTZ

Pan Range

360° endless

Pan Speed

Configurable, from 0.1°/s to

16

0°/s, preset speed:

16

0°/s

Tilt Range

From

-15

° to 90° (auto

-

flip)

Tilt Speed

Configurable, from 0.1°/s to 1

2

0°/s, preset speed: 1

2

0°/s

Proportional Zoom

Rotation speed can be adjusted automatically according to zoom multiples

Presets

256

Patrol

10

patrols, up to 32 presets for each patrol

Pattern

5 patterns, with a total recording time no less than 10 minutes

Power

-

Off Memory

Yes

Park Action

Preset/patrol/pattern/pan scan/tilt scan/panorama scan/day mode/night mode/none

PTZ Position Display

On/off

Preset Freezing

Yes

Scheduled Task

Preset/patrol/pattern/pan scan/tilt scan/panorama scan/day mode/night mode/zero calibration/none

IR

IR

Distance

490 ft (150 m)

IR Intensity

Automatically adjusted depending on zoom ratio

Input/Output

Video Output

Switchable TVI/AHD/CVI/CVBS video output (NTSC, BNC)

RS-485 Interface

Half-duplex mode, self

-

adaptive Hikvision, Pelco

-

P, Pelco

-

D protocols

UTC Function

UTC protocol (HIKVISION

-

C protocol)

General

Power

24 VAC, maximum

40 W (54 W with IR)

Working Temperature

-22° to 149° F

(-

30° to 65° C)

Working Humidity

90% or less

non-condensing

Protection Level

IP66 standard, TVS 4000 V lightning

protection, surge protection

, and voltage transient protection

Dimension

Φ8.66

" × 13.91

" (Φ22

0 mm ×

3

53.4 mm)

Weight

9.92 lbs (

4.5 kg)
