Hikvision DS-2AE5123TI-A Specsheet



DS-2AE5123TI-A

TurboHD 1MP 23X HD-TVI IR PTZ Dome Camera

• 1/3" HD Progressive Scan CMOS

• 1280 x 720

• 23x Optical Zoom

• Up to 490 ft (150 m) IR Distance

• DWDR

• 3D Intelligent Positioning

• Supports TurboHD and CVBS Output

• IP66 Protection

• 24 VAC Power Supply, 30 W

The Hikvision DS-2AE5123TI-A IR PTZ Outdoor
Dome provides high definition analog output at
up to 720p. In TurboHD cameras, the analog
signal can be sent over existing coaxial cable,
which eliminates the need to run new cables for
high definition video

This camera is equipped with a lens that
supports 23x optical zoom. It also includes
features such as Digital WDR (Wide Dynamic
Range), which ensures that images are optimal,
no matter the lighting conditions.

Available Model:
DS-2AE5123TI-A

Specifications

DS-2AE5123TI-A

Camera

Image Sensor

1/3" progressive scan CMOS

Minimum Illumination

Color: 0.05 Lux @ (F1.4,AGC ON); B/W: 0.005 Lux @ (F1.4,AGC ON)

Maximum Image Resolution

1280 x 720

Focal Length

4 to 92.0 mm, 23x

Digital Zoom

Not supported

Zoom Speed

Approximately 3s (optical wide to tele)

Angle of View

49° to 2.2° (wide to tele)

Minimum Working Distance

10 to 10,000 mm (wide to tele)

Aperture Range

F1.4 to F3.5

Focus Mode

Auto / semi-automatic / manual

DWDR

92 dB

S / N Ratio

≥ 50 dB

Shutter Time

1-1/10,000s

AGC

Auto / manual

White Balance

Auto / manual / ATW / indoor / outdoor

Day & Night

IR Cut Filter

4 mm to 120 mm, 30x

Privacy Mask

8 privacy masks programmable; a maximum of 4 zones can be masked simultaneously on the same
video screen

Enhancement

3D DNR

Pan and Tillt

Range

Pan: 360° endless; tilt: -15° to 90° (auto flip)

Pan manual speed: 0.1° to 400° / s, pan preset speed: 400° / s;
Tilt manual speed: 0.1° to 120° / s, tilt preset speed: 200° / .

Number of Presets

256

Patrols

8 patrols, up to 32 presets per patrol

Park Actions

Preset / patrol / pattern / pan scan / tilt scan / panorama scan

Scheduled Tasks

Preset / patrol / pattern / pan scan / tilt scan / panorama scan

RS-485 Communication

Diagnosis

Infrared

IR Range

Up to 490 ft (150 m) IR range

IR Intensity

Automatically adjusted, depending on the zoom ratio

Input / Output

TurboHD Output

1 TurboHD 720p output, 1.0V[p-p] / 75 Ω, NTSC (or PAL) composite, BNC

CVBS Output

1.0V[p-p] / 75 Ω, NTSC (or PAL) composite, BNC

Alarm Input

2

Alarm Output

1

RS-485 Interface

Half-duplex mode, self-adaptive HIKVISION, Pelco-P, Pelco-D protocol

UTC function

HIKVISION_C

General

Menu Language

English

Power

24 VAC, maximum 30 W

Working Temperature /

Humidity

Protection Levels

IP66; TVS 4,000 V lightning protection, surge protection, and voltage transient protection

Mounting

Various mounting modes optional

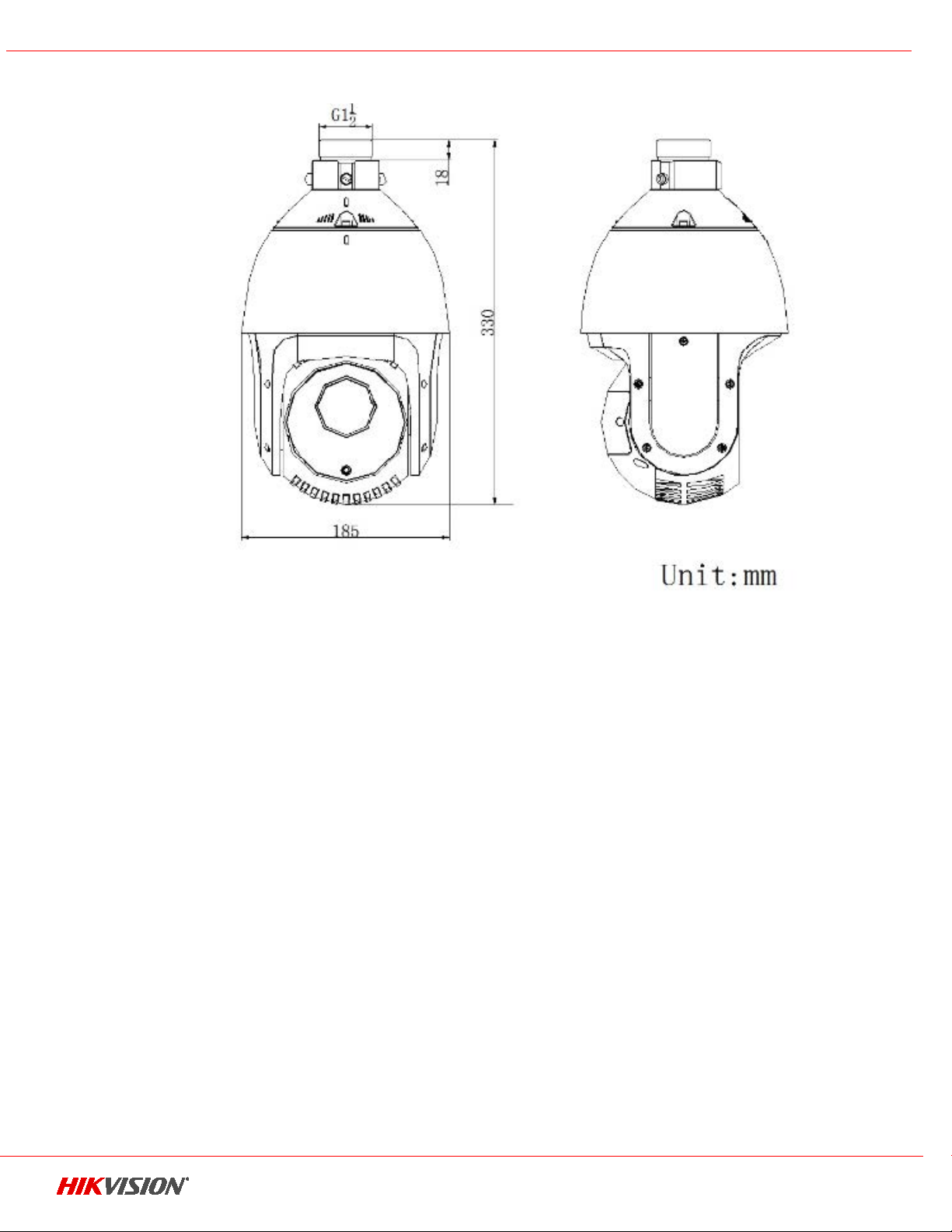

Dimensions

Φ7.28" × 12.99") (φ185 mm × 330 mm)

Weight

8.81 lbs (4 kg)

WMP-L

CMP

PMP

JBPW-L

PMPL

JBPW-L

CMPL

JBPW-L

CPM-S

Mount

CPM-L

Mount

CPMPE

Pipe

RPM

Speed

Accessories

Long Wall

Mount

Large Corner Mount

for WMP-S/L

Supported

-22° F to 149° F (-30° C to 65° C); 90% or less

Pole Mount

for WMP-S/L

Power Box Mount

w/Wall Bracket

Large Pole

Mount for

Large Corner

Mount for

Short Ceiling

Pendant

Long Ceiling

Pendant

Ceiling Pendant

Mount Extension

Roof Parapet

Mount
