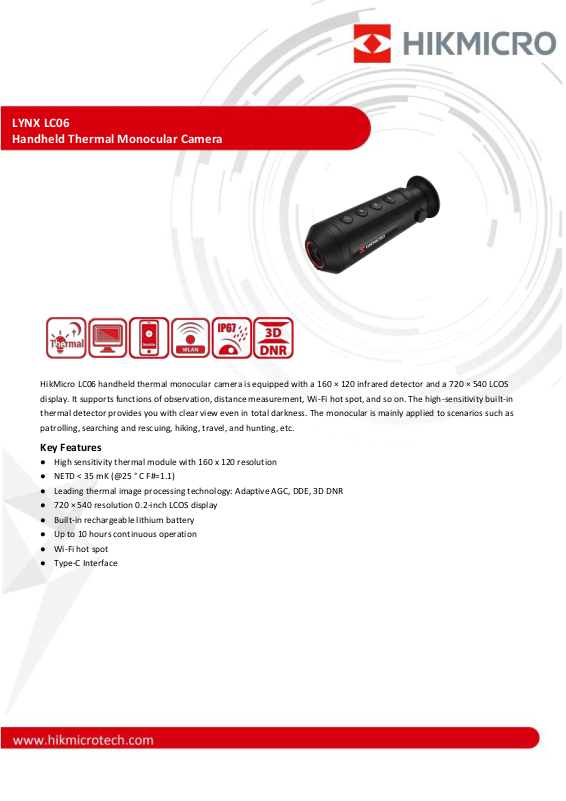

LYNX LC06
Handheld Thermal Monocular Camera
HikMicro LC06 handheld thermal monocular camera is equipped with a 160 × 120 infrared detector and a 720 × 540 LCOS
display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in
thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as
patrolling, searching and rescuing, hiking, travel, and hunting, etc.
Key Features
● High sensitivity thermal module with 160 x 120 resolution
● NETD < 35 mK (@25 ° C F#=1.1)
● Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
● 720 × 540 resolution 0.2-inch LCOS display
● Built-in rechargeable lithium battery
● Up to 10 hours continuous operation
● Wi-Fi hot spot
● Type-C Interface
Page 2
Specification
Specification
Thermal Module
Image Sensor
VOx Uncooled Focal Plane Arrays
Resolution
160 × 120
Frame Frequency
50 Hz
Pixel Interval
17 μm
Response Waveband
8 μm to 14 μm
NETD
Less than 35 mK (@25°C),F#=1.1
Focal Length
6.2 mm
IFOV
2.74 mrad
Field of View
24.7° × 18.7° (H × V)
Aperture
F1.1
Image Display
Monitor
0.2 inch, LCOS, 720 × 540
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode
Auto, Manual, External Correction
Digital Zoom
1 ×, 2 ×, 4 ×
Smart Function
Hot Track
Yes
Detection Range
219 m
System
Storage
Built-in memory module (8 GB)
Record Video
Yes
Capture Snapshot
Yes
Wi-Fi
Yes
Standby Mode
Yes
Power Supply
Battery Type
Rechargeable Lithium Battery
Battery Operating Time
10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C)
7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)
Battery Capacity Display
Yes
General
Power
5 VDC/2 A, 1.5 W, Type-C Interface
Work Temperature/Humidity
From -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less
Protection Level
IP67
Dimension
158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
Weight
250 g (0.55 lb)
Page 3
Available Model
HM-TS01-06XF/W-LC06
Dimension
Accessory
Quick Start Guide
(×1)
Non-dust Cloth (×1)
USB Cable (x1)
Protective Bag (×1)
Wrist Strap (x1)
