DDS238-2 ZN/S TYPE
SINGLE PHASE ENERGY METER
5(65)A
USER MANUAL
Page 2
SUMMARY
TECHNICAL SPECATION
STANDARD IEC 61053-21(IEC61036) DL/T645-2007
NOMINAL VOLTAGE 120/220/230/240V(0.8UN-1.15Un)
BASIC CURRENT(Ib2) 5A
MAXIMUM CURRENT 65A
MINIMUM CURRENT 0.02A
FREQUENCY 50Hz or 60Hz
CONSUMPTION <2W/10VA
ACCURACY CLASS 1
DISPLAY 5+1 DIGITS
INTERFACE OPEN COLLECTOR OUTPUT(SO)
18~27V 27mA
IMPULSES IMPULSE LENGTH≥30ms
(as per DIN43684)
Page 3
SERVICE TEMPERATURE LIMIT:25℃+70℃
L.E.D1 COLOUR
NORMAL OPERATION
PINK FLASHING RATE PROPORTIONAL TO LOAD
(1600imp/kwh)
INSTALLATION
MOUNTING DIN RAIL 35mm
PROTECTION IP20(TERMINAL COVERS INCLUDED)
DISPLAY:
RS485 COMMUNICATION BAUD RATE:4800bps PROTOCOL:MODBUS OR
DL/T645-2007
NOTE:
★
Standard function,☆special orde function(It will reset
energy to zero,after you pull the button last 10s,if you have
order reset function)
INFORMATION LCD DISPLAY
01 METEP Number ID 001 ★
02 REAL VOLTAGE V U 000.0 ★
03 REAL CURRENT A R 00.00 ★
04 REAL POWER kw P 00.00 ★
05 POWER FACTOR COSФ PF 0.00 ★
06 REAL FREQUENCY Hz F 00.00 ★
07 TOTAL ENERGY kwh T00 00000.0 ★
08 POSITIVE kwh T00-00000 ☆
09 REVERSE kwh T00-00000 ☆
10 RESET RUNNING TIME
000000
★
Page 4
BACK UP
63A type MCB maximum
WARRANTY
Warranty is 24 month
It is void if seai is removed/damaged.

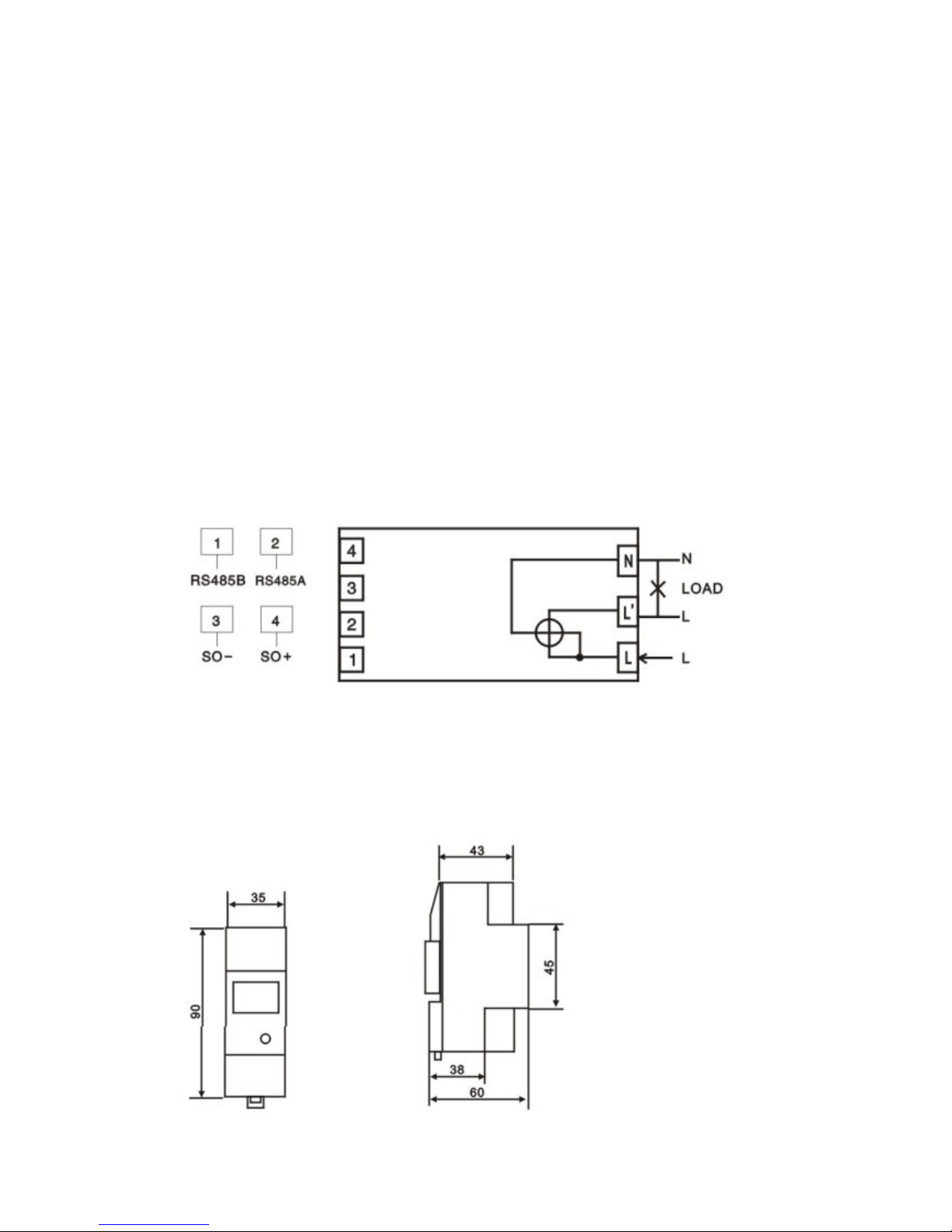

WIRING DIAGRAM
DIMENSION
