Progressive Scan

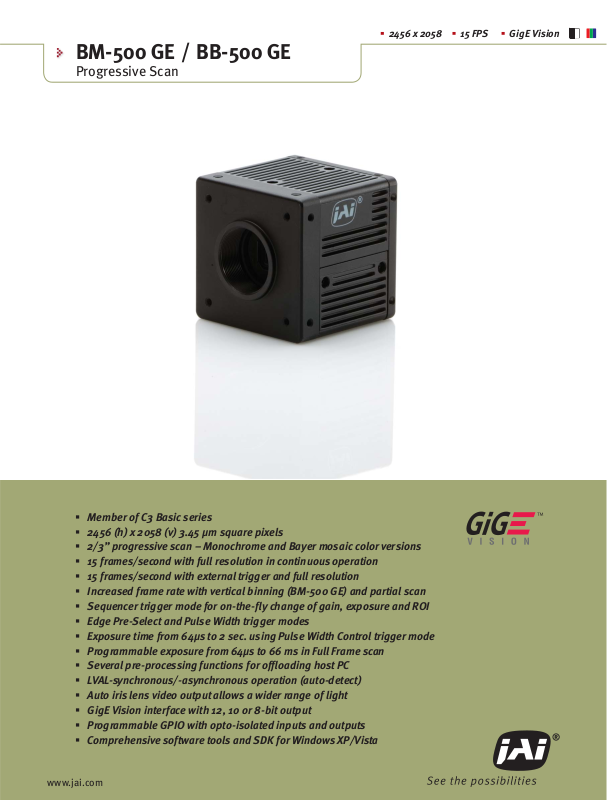

BM-500 GE / BB-500 GE

BM-500 GE / BB-500 GE

Progressive Scan

2456 x 2058 15 FPS GigE Vision

Member of C3 Basic series 
2456 (h) x 2058 (v) 3.45 μm square pixels 
2/3” progressive scan – Monochrome and Bayer mosaic color versions 
15 frames/second with full resolution in continuous operation 
15 frames/second with external trigger and full resolution 
Increased frame rate with vertical binning (BM-500 GE) and partial scan 
Sequencer trigger mode for on-the-fl y change of gain, exposure and ROI 
Edge Pre-Select and Pulse Width trigger modes 
Exposure time from 64μs to 2 sec. using Pulse Width Control trigger mode 
Programmable exposure from 64μs to 66 ms in Full Frame scan 
Several pre-processing functions for offl oading host PC 
LVAL-synchronous/-asynchronous operation (auto-detect) 
Auto iris lens video output allows a wider range of light 
GigE Vision interface with 12, 10 or 8-bit output 
Programmable GPIO with opto-isolated inputs and outputs 
Comprehensive software tools and SDK for Windows XP/Vista 

www.jai.com

Specifi cations for BM-500 GE / BB-500 GE

Specifi cations BM-500 GE / BB-500 GE

Sensor 2/3” progressive scan CCD
Pixel Clock 60 MHz
Frame rate full frame 15 frames/second
Active area 8.45 (h) x 7.07 (v)
Cell size 3.45 (h) x 3.45 (v)
Active pixels 2456 (h) x 2058 (v)
Color (BB-500 GE) Raw Bayer output, host based interpolation
Read-out modes

1/2 partial scan
1/4 partial scan

1/8 partial scan
2/3 partial scan
Vertical binning

Region-of-interest (ROI)

Full

2456 (h) x 2058 (v) 15 fps
2456 (h) x 1028 (v) 24 fps

2456 (h) x 514 (v) 34 fps
2456 (h) x 258 (v) 43 fps

2456 (h) x 1372 (v) 20 fps

2456 (h) x 1039 (v) 22 fps*

User definable. Memory read-out

*Note: BM-500 GE only

Sensitivity (BM-500 GE) 0.34 Lux (On sensor, max. gain, shutter off,

50% video)

Sensitivity (BB-500 GE) 1.0 Lux (On sensor, max. gain, shutter off,

50% video)
S/N ratio >50 dB (0 dB gain)
Video output GigE Vision, 8-bit, 10-bit or 12-bit
Auto-iris lens video output 0.7 Vp-p, enabled by internal switch

Gain Manual/Automatic

Range -3 to 12 dB

Synchronization Internal X-tal, External hardware trigger

via GPIO

Software trigger via GigE Vision

GPIO Module

Input/output switch

Clock generator (one)

Pulse generators (four)

Configurable 16-in / 12-out switch

12-bit counter based on Pixel clock

20-bit counter programmable for length,

start point, stop point, repeat

Trigger modes Pre-Select, Pulse Width,

Frame Delay and Sequence

Electronic shutter

Programmable exposure (PE)

Pre-set shutter

Exposure Time (Abs)

Pulse Width

1/15 and 1/30 to 1/10,000 in 10 steps
2L(64μs) to 2072 L (66.44ms) in 1L steps
μsec – user definable. Same range as PE

64μs to 2 sec.

Pre-processing functions Output transfer functions

(Gamma, multiple-point knee),

Bayer white balance, L/R channel balancing,

Blemish compensation

Control interface Register based. GigE Vision / GenICam

compliant

Functions controlled via
GigE Vision interface

Shutter, Gain, Black Level, Trigger mode,

Read-out mode, GPIO setup, ROI (GenICam

mandatory functions)

GigE Vision streaming
control

Packet size (1428 to 4040 bytes)

Delayed (Frame) read-out, inter-packet delay

Indicators on rear panel Power/Hardware trigger,

GigE Link, GigE activity
Operating Temperature -5°C to +45°C
Humidity (operation) 20 - 90% non-condensing
Storage temp./humidity -25°C to +60°C / 20 to 90%
Vibration 10G (20Hz to 200 Hz XYZ)
Shock 70G
Regulations CE (EN 61000-6-2, EN-61000-6-3),

FCC part 15 class B, RoHS/WEEE

Power 12V DC +/-10%. 5.5W
Lens mount C-mount

Dimensions (H x W x L) 55 x 55 x 55
Weight 200 g

Connector pin-out

DC In / GPIO

Dimensions

Front view

HIROSE HR10A-10R-12PB-01

Connector Pin-out
Pin 1 GND
2 +12 V DC input
3 Opt IN 2 (-) / GND *
4 Opt IN 2 (+)/Iris Video out *
5 Opt IN 1 ( - )
6 Opt IN 1 ( + )
7 Opt Out 1 ( - )
8 Opt Out 1 ( + )
9 Opt Out 2 ( - )
10 Opt Out 2 ( + )
11 + 12 V DC input
12 GND

*) Pins 3 and 4 can be confi gured by
internal switch selection

Side view

Bottom view

GigE Vision interface

Accepts RJ-45 with thumbscrews

Depth 5

Rear view

POWER/TRIG

Pin 1 TRD+(0)
2 TRD–(0)
3 TRD+(1)
4 TRD+(2)

5 TRD–(2)
6 TRD–(1)
7 TRD+(3)
8 TRD–(3)

Spectral Response BM-500 GE

1.0

0.9

0.8

0.7

0.6

0.5

0.4

Relative Response

0.3

0.2

0.1

0

400

600 700 800 900

500

Wave Length (nm)

1000

GPIO

Spectral Response BB-500 GE

1.0

B

0.8

0.6

0.4

Relative Response

0.2

0

400

500

450

Ordering Information

BM-500 GE 2/3” Monochrome Progressive Scan Camera
BB-500 GE 2/3” Bayer Mosaic Color Progressive Scan Camera

DCIN/ TRI G

LINK ACT.

G

550

Wave Length (nm)

GigE

R

IR Filter

650

600

700

Company and product names mentioned in this datasheet are trademarks or registered trademarks of their respective owners.

JAI A·S cannot be held responsible for any technical or typographical errors and reserves the right to make changes to products and documentation without prior notification.

Europe, Middle East & Africa

Phone [phone]
Fax [phone]

Asia Pacifi c

Phone [phone]
Fax [phone]

Visit our web site on www.jai.com

Americas

Phone (Toll-Free) 1 800 445 5444
Phone [phone]

Datasheet_BM-500GE_BB-500GE-0608-Print-1000
