DataSeal-125 Installation
DataSeal Installation

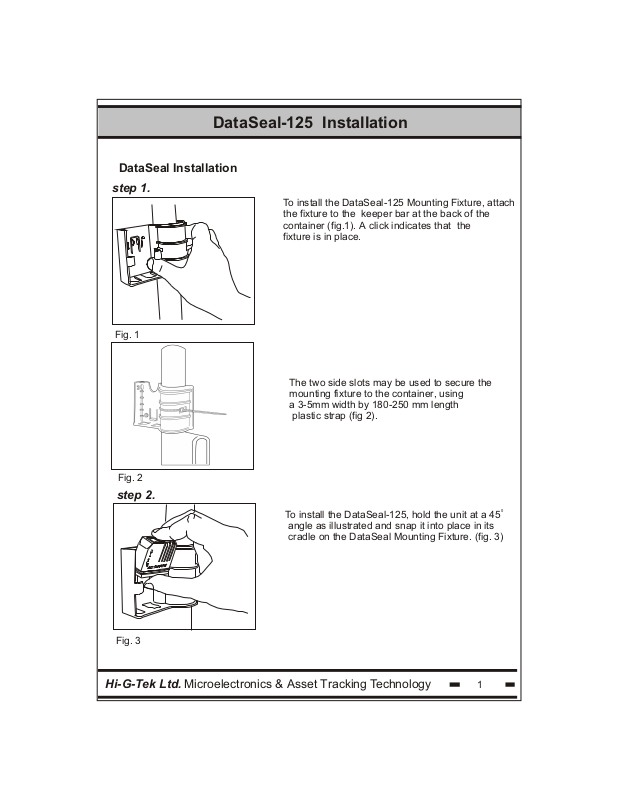

step 1.
Fig. 1
To install the DataSeal-125 Mounting Fixture, attach
the fixture to the keeper bar at the back of the
container (fig.1). A
fixture is in place.
The two side slots may be used to secure the
mounting fixture to the container, using
a 3-5mm width by 180-250 mm length
plastic strap (fig 2).
click indicates that
the
Fig. 2
step 2.
To install the DataSeal-125, hold the unit at a 45
angle as illustrated and snap it into place in its
cradle on the DataSeal Mounting Fixture. (fig. 3)
Fig. 3
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
0
1
step 3.
Fig. 4
DataSeal-125 Installation
To connect the DataSeal Wire, simply attach
one end of the seal wire conectors to either of
the sockets at the base of the DataSeal (fig 4).
Loop the wire through the container locking ring
and the keeper bar, then insert the end into
the other socket (fig. 5).
Fig. 5
Alternatively, you may loop the wire through both
keeper bars then insert the end into the
other socket (fig. 6).
Fig. 6
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
2
DataSeal-125 Installation
FCC ID: OB6-IGSA125
This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by
Hi-G-Tek Ltd. could void the user's authority to operate the equipment.
