Chapter 6
RS 485/232
Communication
Protocol
6
RS 485/232 Communication Protocol
6.1. RS- 485/232 Communication Protocol:
General Description
Communication between the Local Site Controller LSC and the
STAR READER is based on the master/slave approach. The LSC
is the MASTER unit, the READERS are the SLAVE units.
The LSC and the READERS communicate via a RS-485 multi
drop or RS-232 connection. Each READER has its own address,
enabling the LSC to approach each reader individually.
6.2. Physical Layer
6.2.1. Down-link
Down-link is the link from the LSC to the READERS. The link is
RS-485 or RS-232 half duplex. Data rate can be one of the
following: 2400, 4800, 9600, 19200, 38400 BPS. The default rate
is set at 9600 BPS.
6.2.2. Up-link
Up-link is the link from the READERS to the LSC. The link is
RS-485 or RS-232 half duplex. Data rate can be one of the
following: 2400, 4800, 9600, 19200, 38400 BPS. The default rate
is set at 9600 BPS.
6.3. Protocol Flow.
Communication is initiated by a command sent by the LSC to the
READER. The READER executes the command and responds
accordingly. In a long command session, the session is concluded
when the LSC acknowledges the READER within T = 50 msec.
ACK
If the READERS are in sleep mode, the LSC must ensure they are
awakened prior to the initialization of the session. In this case, the
LSC should wait T = 50 msec before sending the main command.
w
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
116
6
RS 485/232 Communication Protocol
There are 2 types of commands: SHORT COMMANDS and LONG
COMMANDS.
Short Commands: These are commands that are relevant to
internal tasks at the reader level.
Long Commands: These commands involve sessions with seals.
The READER will respond to commands generated by the LSC
within T seconds.
For short commands, response time should be: T = 50 msec.
RLSC
RLSC
For long commands, the LSC should return to retrieve the results
after T with the appropriate GET RESULTS command.
T is a derivative of the type of command executed to the seals.
session
session
Acknowledge can be positive or negative.
If the LSC detects a problem, Acknowledge will be negative.
The READERS are designed to work in cycles. Following an
internal or external trigger, a READER SESSION is generated.
This is a full communication cycle going back and forth between
a READER and the tags located in the READER's receiving zone.
The LSC operates differently The READERs are scanned on a
different time line, using the same frequency as that of the
READER's cycles or greater.
This protocol supports RS-485 and RS-232 communication
fashions. When working with the LSC using RS-232 communication
opposite only one device, address fields should be set to 0xFFFF.
When using RS-485 communication in broadcast situations, the
address field should be set to 0x0000.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
117
6
Short Commands Mode:
Long Commands Mode:
RS 485/232 Communication Protocol
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
118
6
STX #B R# CMND data CRC ETX
1 2 2 2 n 2 1
# of bytes
#B
RS 485/232 Communication Protocol
6.4. String Formats.
6.4.1. LSC to READERS messages.
Commands & Acknowledge strings:
CRC
Where:
STX This is the marker for the beginning of the
messages. STX = 02 hex.
#B String length, the string contains the R#,CMND,
the DATA field, and the CRC.
R# This session's READER address .
CMND This session's command code .
DATA The data field contains the data required to execute
the command
CRC This is the cyclic redundancy check for DATA and
fields #B, R#, CMND.
ETX This is the marker for the end of the messages.
ETX = 03 hex.
6.4.1.1. CRC Calculation.
CRC calculations are based on the following CCITT polynomial:
The result is 2 bytes.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
X + X + X + 1
16 12 5
119
6
6.4.1.2. CMND Field Structure.
The command field is divided into several sections:
Where:
DIR Denotes string direction. In case of a command
from the LSC to the reader, it is equal to 0.
PK Denotes whether the command transmitted is
composed of packets or not. PK = 0 is for non-packet
commands. PK = 1 is for packet commands.
ERR this flag indicates an error.
ERR = 0 no error.
ERR = 1 Error. The first byte in the data field is the
error code.
CT Is the scenario command type. It describes the
CC
RS 485/232 Communication Protocol
command type, and whether it is in short or long form
00000 designates SHORT commands that stream
from the LCR to the Reader for MCU purposes.
00011 is for LONG commands.
This is the command code .
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
120
6
6.4.2. Reader to LSC Message
Response & Acknowledge strings:
RS 485/232 Communication Protocol
STX
#B
R#
MSGT
MC
R_status
DATA
CRC
ETX
This is the marker for the beginning of the messages.
STX=02 hex.
String length, the string contains the R#, MSGT, MC,
R_status, the DATA field and the CRC.
This is the address of the READER for the current
session.
This is the message type response for the current
session. The MSGT corresponds to a specific
command (see paragraph 6.4.2.1)
This is the message code (see paragraph 5.2)
This is the status field of the reader. The field contains
bytes A&B (see paragraph 6.4.2.2)
The data field contains the relevant response data.
This is the cyclic redundancy check for fields #B,
MSGT, R_status and DATA.
This is the marker for the end of the messages.
ETX=03 hex.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
121
6
6.4.2.1. MSGT Field Structure.
The Message Type field is divided into several sections:
Where:
RS 485/232 Communication Protocol
DIR
PK
ERR
MT
MC
Is the string direction.Response will be 1.
Denotes whether the transmitted message is
composed of packets. A response of 1 indicates
that the message is composed of packets. If the
response is 0, the message was transmitted without
packets. (If PK=0 there must be 1 reserved data byte).
This flag indicates an error.
ERR = 0 no error.
ERR = 1 Error. The first byte in the data field stores
the error code.
This code reflects the nature of the response. A
regular response to a command has the same value
as the CC (See paragraph 6.4.1.2).
This field holds the same value as the Command
Code of the related commands. This field makes it
possible to link the response to the appropriate
command.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
122
6
Byte A Byte B Byte C Byte D
7 6 5 4 3 2 1 0
LCK 485 PCR PER VCCERR VBERR PMC EDC
RS 485/232 Communication Protocol
6.4.2.2. R_Status Field Structure
The READER's STATUS field is 4 bytes.
Byte A represents the status of the main motherboard MCU.
The other bytes represent the RF modems' status.
In a general Reader response the R-Status reply contains
bytes A&B only.
In a GET Status command, the reply contains all the R-Status
bytes.
Byte A:
Where:
LCK
If the response shows 0, the READER's parameters
are locked.
If the response is 1, the READER's parameters
are unlocked.
If the response is 0, the READER is using RS-232
mode for communication.
485
If the response shows 1, the READER is using
RS-485 mode for communication.
PCR
If the response shows 0, the parameters in the MCU's
2
E ROM are OK.
If the reponse is 1, parameters were corrupted and
successfully restored.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
123
6
7 6 5 4 3 2 1 0
Ch1 Ch2 Ch3 Ch4 Ch1err Ch2err Ch3err Ch4err
RS 485/232 Communication Protocol
PER
VCCERR
VBERR
PMC
EDC
Byte B:
Where:
If the response is 0, the parameters in the
MCU's E ROM are OK.
2
If the answer is 1, parameters are corrupted.
If response is 0, internal power is OK.
If response is 1, internal power is faulty.
If response shows 0, internal battery is OK.
If response is1, internal battery is faulty.
If response is 0, program memory in the MCU is OK.
If response is 1, program memory is corrupted.
This flag indicates that a delayed command was
triggered and is in process.
Ch1
if 0 channel1 is not in use.
If 1 channel1 is in use.
Ch2
Iif 0 channel2 is not in use.
If 1 channel2 is in use.
Ch3
If 0 channel3 is not in use.
If 1 channel3 is in use.
Ch4
If 0 channel4 is not in use.
If 1 channel4 is in use.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
124
6
RS 485/232 Communication Protocol
Ch1err
Ch2err
Ch3err
Ch4err
Bytes C&D:
If 0, channel is OK
If 1, channel is defective, details are in byte C. If
byte C flags are OK, there is a communication
failure with this channel.I
If 0, channe2 is OK.
If 1, channe2 is defective, details are in byte C.
If byte C flags are OK, there is a communication
failure with this channel.
If 0, channe3 is OK.
If 1, channe3 is defective, details are in byte D. If
byte D flags are OK, there is a communication
failure with this channel.
If 0, channe4 is OK.
If 1, channe4 is defective, details are in byte D.
If byte D flags are OK, there is a communication
failure with this channel.
VCCERR
If 0, power is OK.
If 1, power is not faulty
PMC
EMC
EME
If 0, program memory in the module is OK.
If 1, program memory is corrupted.
If 0, E ROM is OK.
If 1, E ROM was corrupted and then restored.
If 0, E ROM is OK.
If 1, E ROM was corrupted.
2
2
2
2
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
125
6
6.4.2.3. Reader Messages Packed Data Format
Where:
RS 485/232 Communication Protocol
PK
P#
Ch
Maximum total message length is 128 bytes.
Maximum Data* length is 115 bytes.
6.4.2.3.1. Packed Data from the LSC.
When the packets originate with the LSC, each packet will be
transmitted after an appropriate response from the READER.
The LSC may retransmit the last packet upon receipt of a
response indicating that the last packet was not received
satisfactorily.
6.4.2.3.2. Packed Data from the READER.
When the packets originate with the READER, each packet will be
transmitted after an appropriate acknowledgement from the LSC.
The READER may retransmit the last packet upon receipt of an
acknowledgment indicating that the packet was not received
satisfactorily
The first byte is the total number of packets in
the string.
The second byte is the packet serial number.
The third byte is the channel number from which
the message is received.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
126
6

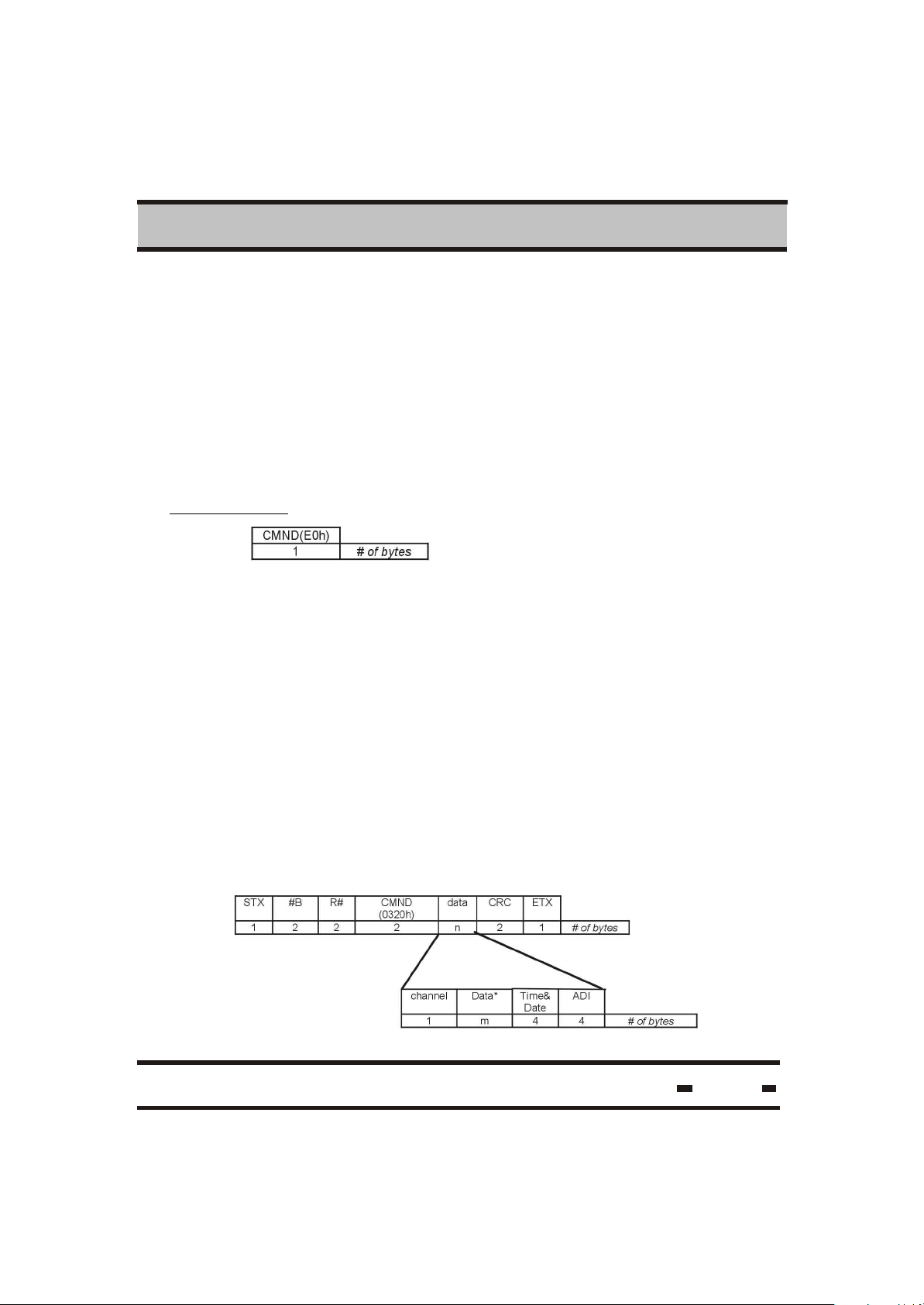

# Commands
Set
Command
Code
Comments
1
Wakeup E0 h This command wakens REA DERS it hat were in sl eep
mode.
2
Execute RF
cmnd
20 h This comm and generates an appropriat e command from
the READE R to the tags .
3
Get Results 15 h In a tag-reader sess ion, thi s com mand allows t he LSC to
retrieve the results received by the REA DER from the tags.
.
4
Get Status 16 h In case of a sel f-contained c ommand, t he READER will
return to it s current s tatus .
5
Get Burs t
Mess age
1C h This comm and should be us ed to retrieve the alert
mess ages retrieved from the seal s when using t he alert
burst mode. These are not available through the regular Get
Results .
6
Reset
Reader
14 h This comm and resets theREADER.
7
Write
Parameters
06 h This comm and modifies the PARAM ETERS of a READER.
After is suing a LOCK c ommand, not all the paramet ers are
accessible.
8
Read
Parameters
07 h This comm and is to read the PARAM ETERS of a READE R.
9
BIT 09 h Exec utes a built in t est
10
Sleep 08 h This comm and puts t he READER int o the sleep mode of
operation to enabl e power conservation.
11
Unsync Ack 0A h Reserved for the unsynchroniz ed response, see table 5. 2
12
Get Reader’s
baud rate
FF h This comm and allows t he LSC to obtain t he reader’s baud
rate.
13
Set Reader
baud rate
FE h This comm and allows t he LSC to s et the REA DER’s baud
rate.
14
Set Reader’s
Address
12 h This comm and sets the READE R’s address for RS-485
usage
15
Ack nowledge
OK
92 h This is an ac knowledgement of a mes sage com ing from a
READER.
16
Ack nowledge
Failed
94 h This is an ac knowledgement of an improper mess age
coming from a RE ADER.
17
Save
Command
0F h This comm and saves one of the above commands for lat er
execut ion. It is used to synchroniz e readers.
18
Exec ute
Saved
command
17 h This comm and executes the c ommand saved in the
READER. When is used in a broadcas t fashion, all the
READERS execut e the command sim ultaneousl y.
19
Read
Channel
Definitions
11 h This comm and allows the reading of channel definitions ..
20
Write
Channel
Definitions
10 h This comm and allows the writing of channel defini tions.
RS 485/232 Communication Protocol
6.5. LSC and Reader Messages.
6.5.1. LSC Commands and Acknowledge Table:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
127
6
#
Message Message
Code
Commen ts
1
Wak eup
response
- No response for W AKE UP st ring
2
Exec ute RF
cmnd res ponse
20 h
3
Get Results
response
15 h
4
Get Status
response
16 h
5
Get Burs t
Mess age
response
1C h
6
Reset Reader
response
14 h
7
Write
Parameters
response
06 h
8
Read
Parameters
response
07 h
9
BIT response 09 h
10
Sleep response 08 h
11
Unsynch
Mess age
0A h When a REA DER is i n unsync h mode, the RE ADER
may s end an unsync h mess age. This oc curs after
receiving an alert mes sage from a seal .
12
Get Reader’s
baud rate
response
FF h
13
Set Reader
baud rate
response
FE h
14
Set Reader’s
Address
response
12 h
15
Save
Command
response
0F h This comm and saves one of the above commands for
later exec ution. It is us ed to sy nchroniz e readers.
16
Exec ute Saved
command
response
_ This is a broadc ast c ommand. There is noresponse t o
this command.
17
Read Channel
Definitions
response
11 h This command allows t he reading of channel
definitions .
18
Writ e Channel
Definitions
response
10 h This command allows t he writing of channel definitions ..
RS 485/232 Communication Protocol
6.5.2. Message Table:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
128
6
# Parameter
Name
Parameter
Code
Parameter
Syntax
Read/Write
Access *
Default
value
[unit]
Unit Parameter
length
1
Version of
MCU_firmwar
e
01 h MVER R 2 Byte
2
Version of
S1_firmware
80 h SVER1 R 2 Byte
3
Version of
S2_firmware
40 h SVER2 R 2 Byte
4
RSSI ch1 87 h RSSI1 R 1 Byte
5
RSSI ch2 47 h RSSI2 R 1 Byte
6
Reader ID 02 h RID R / 1 00000000 4 Byte
7
ADI ch1 81 h ADI1 R/W 00000000 4 Byte
8
ADI ch2 41 h ADI2 R/W 00000000 4 Byte
9
OrgID* 04 h OrgID R / 2 0000 2 Byte
10
Department
ch1
82 h DEP1 R/W 1 Byte
11
Department
ch2
42 h DEP2 R/W 1 Byte
12
Thw ch1 85 h Thw1 R/W 997 3.072ms 2 Byte
13
Thw ch2 45 h Thw2 R/W 997 3.072ms 2 Byte
14
Reader
Address
03 h RADD R/W 0000 2 Byte
15
Transmitter
Power ch1
88 h TRPOR1 R/W 65 1 Byte
16
Transmitter
Power ch2
48 h TRPOR2 R/W 65 1 Byte
17
System ch1 83 h SYS1 R/W ** 1 Byte
18
System ch2 43 h SYS2 R/W ** 1 Byte
19
Mode ch1 84 h MODE1 R/W 00 1 Byte
20
Mode ch2 44 h MODE2 R/W 00 1 Byte
21
Hard wakeup
ch1
86 h T
HP1
R/W 3256 3.072ms 2 Byte
22
Hard wakeup
ch2
46 h T
HP1
R/W 3256 3.072ms 2 Byte
RS 485/232 Communication Protocol
6.5.3. Parameters Table:
The following table relates to the Read and Write Parameters
Commands:
* /1 or /2 defines the LOCK level.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
129
6
Parameters Format:
6.5.3.1. Reader Master Firmware Version MVER,
MVER is the version of the master firmware. This is a read only
parameter.
Bits assignment:
6.5.3.2. Reader Slave1 Firmware Version SVER1.
SVER1 is the version of the first slave's firmware.
This is a read only parameter.
Bits assignment:
RS 485/232 Communication Protocol
6.5.3.3. Reader Slave1 Firmware Version SVER2,
SVER2 is the version of the second slave's firmware.
This is a read only parameter.
Bits assignment:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
130
6
7 0
1 byte
7 0
1 byte
7 0 7 0 7 0 7 0
High byte Mid byte Mid byte Low byte
RS 485/232 Communication Protocol
6.5.3.4. Reader's receives signal strength RSSI1,
RSSI1 is the amplitude of the received signal from the READER
at the first channel. This value indicates the link's properties to
the READER and the system.
Bits assignment:
Reader's receives signal strength RSSI2,
RSSI2 is the amplitude of the received signal from the READER
at the second channel. This value indicates the link's properties
to the READER and the system.
Bits assignment:
6.5.3.5. Reader ID RID,
This is a Reader's ID.
Bits assignment:
Reader and Seal IDs format are identical. For additional information,
see paragraph 5.3.2.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
131
6
7 0 7 0 7 0 7 0
High byte mid byte mid byte
Low byte
7 0 7 0
High byte
Low byte
7 0
High byte
RS 485/232 Communication Protocol
6.5.3.6. Group Access Identifier ADI.
The identifier allows the READER to access groups that conform
to this value.
Bits assignment:
6.5.3.7. Organization identifier OrgID*,
This is the end user's identifier. This parameter is used to
segregate between companies.
Bits assignment:
* See paragraph 5.3.3.
6.5.3.8. Department DEP
This is the customer's department identifier. This parameter is
used to segregate between departments within a company.
Bits assignment:
* See paragraph 5.3.3.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
132
6
7 0 7 0
High byte
Low byte
7 0 7 0
High byte
Low byte
7 6 5 4 3 2 1 0
CRNC UNSYNC ABMSG N.A N.A N.A N.A N.A
RS 485/232 Communication Protocol
6.5.3.9. Reader IH length Thw
This is the Reader's IH string length. The values may be modified
for a specific application.
Bits assignment:
6.5.3.10. Reader Address RADD.
This is the Reader's address on the RS-485 link. For RS-232, the
value is 0xFFFF
Bits assignment:
6.5.3.11. Mode MODE.
The MODE parameter determines the operating mode of the
Reader. Each bit indicates another feature.
CRNC
Carrier Sense: In some applications, carrier sense
must be used before bursting into the air.
The Reader uses this flag to decide whether it is
required or not.
CRNC=0 This response determines the regular
mode (no carrier sense).
CRNC=1 This response determines that the Reader
can sense the carrier. The Reader will execute the
RF command only after determining that the air is
free.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
133
6
Errors Error Code
Unrecognized Command 01 h
MCU Error 02 h
HF Modem Error 03 h
Result is not ready 05 h
HF Modem is not responding 06 h
MCU I/O Error 07 h
HF Modem BIT Error 08 h
Parameter is locked 09 h
Illegal Parameter Code 0A h
RS 485/232 Communication Protocol
UNSYNC
In the unsynchronized commands such as
Unsynchronized Alert, the Reader's receiver
must be ON at all times, waiting for incoming
messages from the seals. The mode will be
set according to the flag's value:
UNSYNC=0 Synchronized mode only.
UNSYNC=1 Unsynchronized mode in use,
receiver should be set to ON.
ABMSG Burst Messages. This flag indicates whether the
alert messages will be sent following Alert GET
Results, or whether the Reader will burst
independently with Alert Messages.
BRMSG=0 determines the independent messages
burst mode.
BRMSG=1 indicates the Alert GET Results mode.
6.5.4. Error Codes
See paragraph 6.4.2
* Error codes appear in the data field
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
134
6
6.5.5. Detailed Commands.
6.5.5.1. Wakeup
6.5.5.1.1. Command Transmission
To wake a READER in sleep mode, a very short string must
be sent by the LSC. This will be detected by the hardware and
will awaken the READER. As this is a hardware-oriented command,
the format is different then all the other commands.
LSC > Reader
6.5.5.1.2. Wakeup Response
A WAKEUP string transmission wakens the READER. The READER
does not respond to such a string. After the command is issued the
READER is ready to receive regular commands.
RS 485/232 Communication Protocol
6.5.5.2. Execute RF Command.
6.5.5.2.1. Command Transmission
This command enables communication sessions with the seals.
The LSC inserts the relevant information in the data field allowing
the reader to easily compile the final command string.
LSC > Reader
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
135
6
Channel Code
Cha nnel 1 01 h
Cha nnel 2 02 h
STX #B R# MSGT(XX20h) R_status channel CRC ETX
1 2 2 2 2 1 2 1 # of bytes
STX #B R# MSGT(XX20h) R_status Err code CRC ETX
1 2 2 2 2 1 2 1 # of bytes
RS 485/232 Communication Protocol
Where the channel field is one of the following:
Time&Date are the current Time and Date of the LSC.
ADI This parameter allows the User to subgroup seals.
If the response indicates 0,the Reader uses its internal
value for ADI. If not, this is the value which will be
transmitted to the seals.
NOTE: In the Data Field, #B includes the Time & Data and ADI fields.
6.5.5.2.2. Execute RF Command ACK.
This command involves a RF session with either the tags or seals.
For that reason, the READER carries a Long Command. The
READER responds with an ACK if the command was successfully
received.
Reader > LSC
In case of an ACK with an error response:
The final results of this command will be ready later. The LSC
should use the GET RESULTS command to retrieve the results.
For detailed error codes see para 5.4.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
136
6
6.5.5.2.3. Verify.
The Verify command is carried through the high frequency modem.

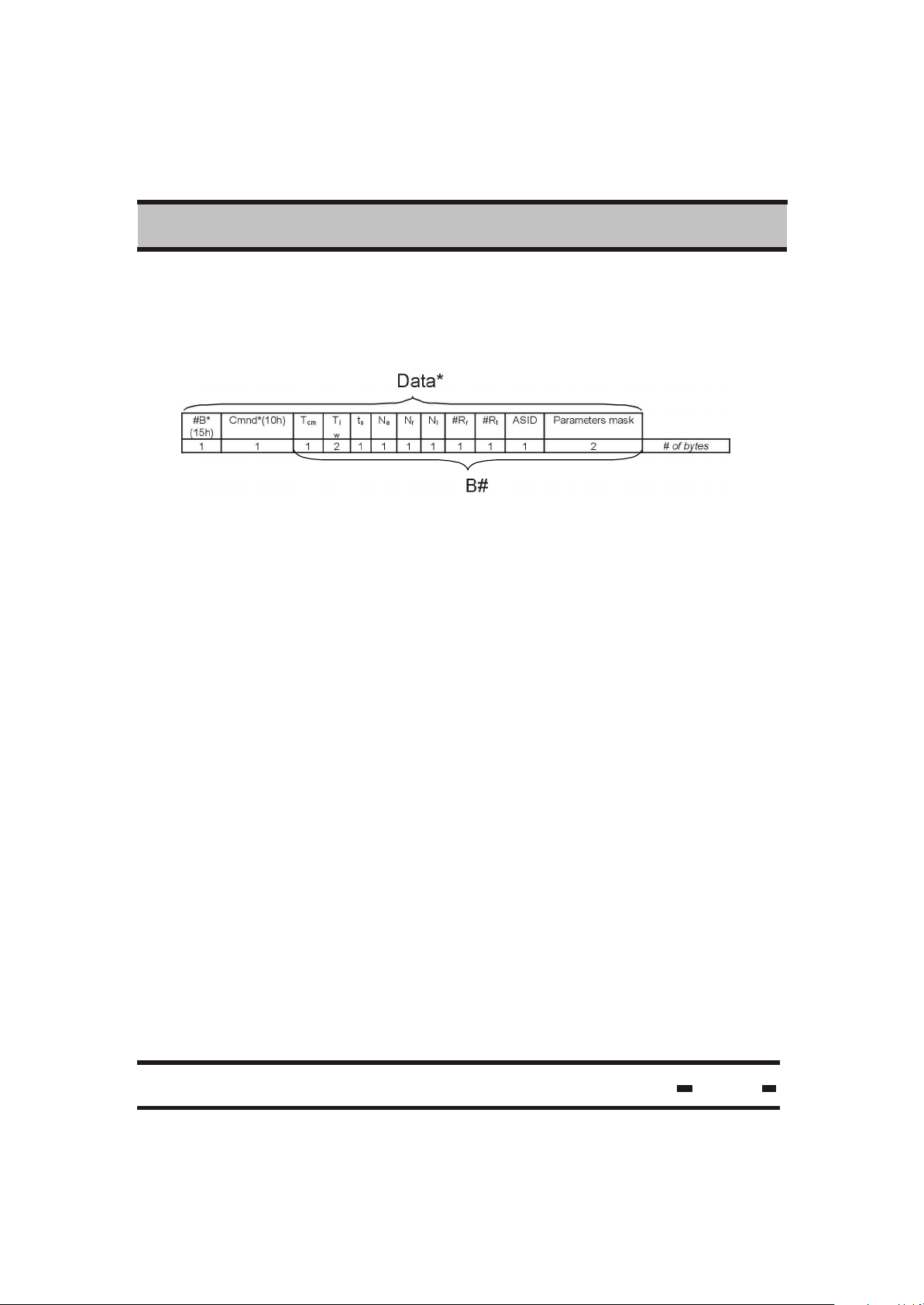

The data field in the Execute RF Command will be:
RS 485/232 Communication Protocol
Where:
#B
Cnmd*
Tcm
Tiw
Ts
Na
Nr
Nt
#Rr
#Rt
ASID
Parameters
Mask
is the number of bytes in the string from the Cmnd*
field up to the ADI field.
is the opcode of the RF command.
The duration of the calibration message window.
Resolution is in units of 1024 msec.
The duration of the READER interlace window.
Resolution is in units of 1024 msec.
The duration of a slot for receiving responses from
a tag or a seal. Resolution is in units of 1024 msec.
The number of slots in the Fixed Assignment
Receiving Window.
The number of slots in the Random Access
Receiving Window.
The number of slots in the Alert Receiving Window.
The number of random retransmissions from a tag
in the Random Access Receiving Window.
The number of random retransmissions from a tag
in the Alert Receiving Window.
Is a random unique ID that is assigned to a specific
assignment. For details see Assign commands.
Is the parameters bit mask to which the tags and
seal respond.
This is the interrogation cycle for reading short messages from tags
and seals. Tw wakes the tags in random phase.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
137
6

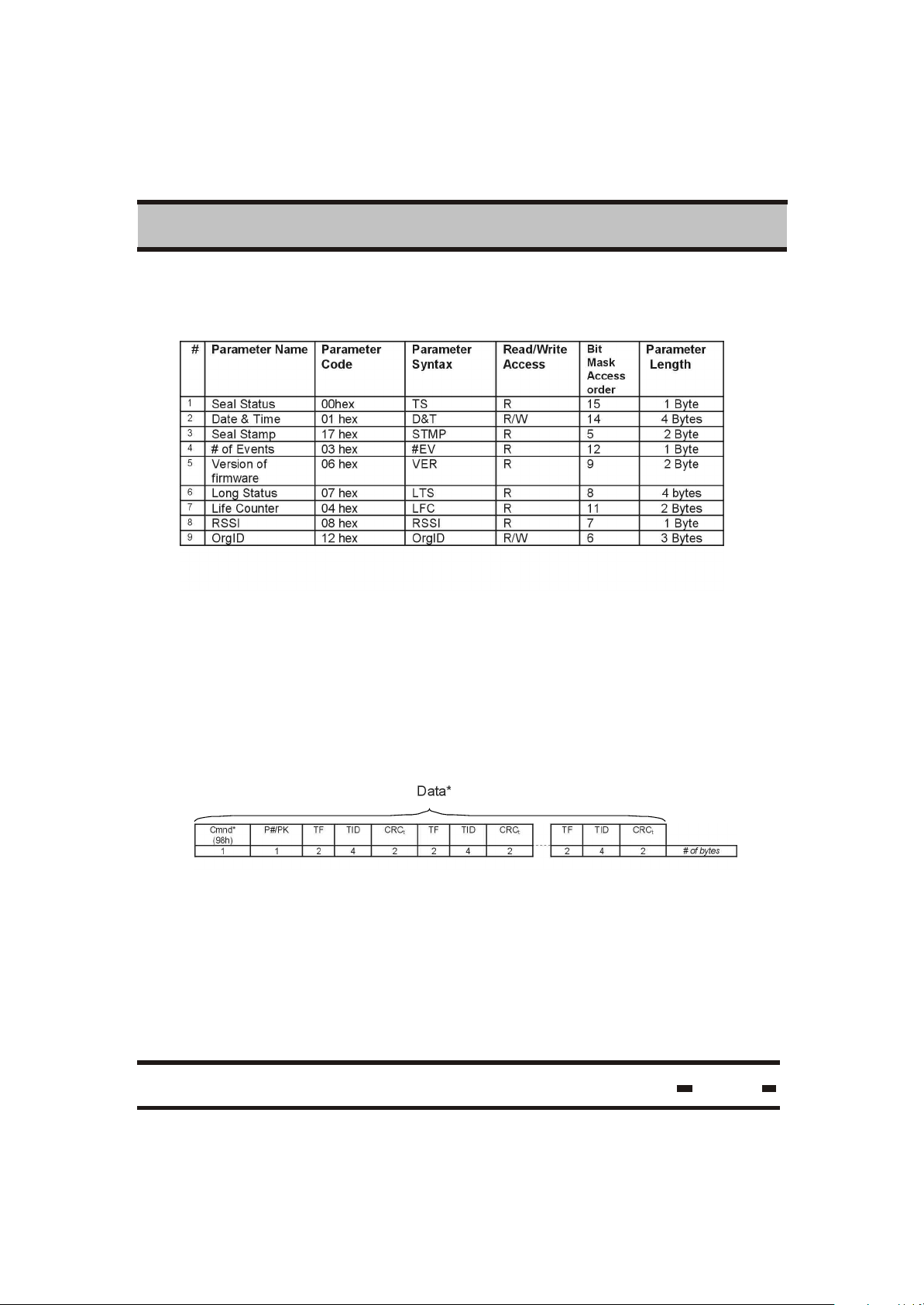

Bit Mask should comply with the following table:
6.5.5.2.4. Tamper
The Tamper command is intended solely for interrogation of
tampered Seals. This command is identical to the Verify command
except for the opcode which is 11h.
In accordance to this, only Seals that have detected tamper status
will respond. The aim of this command is to provide high priority to
tampered Seals in a crowded Seal environment.
RS 485/232 Communication Protocol
6.5.5.2.5. Set
Set command is a command used when it is necessary to approach
a large number of tags or seals. If the string becomes too large it
will be split into packets.
Each packet includes information for up to 8 tags or seals. This is
a very critical command, as it uses internal CRC for each tag data.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
138
6
RS 485/232 Communication Protocol
Where:
P#
The high 4 bits of the first byte are the packet
serial number.
PK
The low 4 bits of the first byte are the total number
of packets in the BMM string.
CRC
CRC
p
t
Is the CRC of the packet.
Is the CRC of the tag or seal TF & TID
6.5.5.2.6. Suspended set
The Suspended Set command is the command used when it is
necessary to prepare a large number of Seals. The command
functions in the same way as the SET command, the only
difference being that the SET command is executed immediately,
while the Seal executes the Suspended SET command
automatically only after the Seal wire has been plugged into the
Seal.
The opcode for this command is 99h. The response is identical to
that of the SET response, but with 19h as the message type.
6.5.5.2.7. Soft set
This command has the same structure as the SET command.
The difference between the two is at the seal level. The seal
marks this command as an event, but doesn't reset the events
memory. The opcode for this command is 9Ah. The response is
identical to that of the SET response, but with 1Ah as the message
type.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
139
6

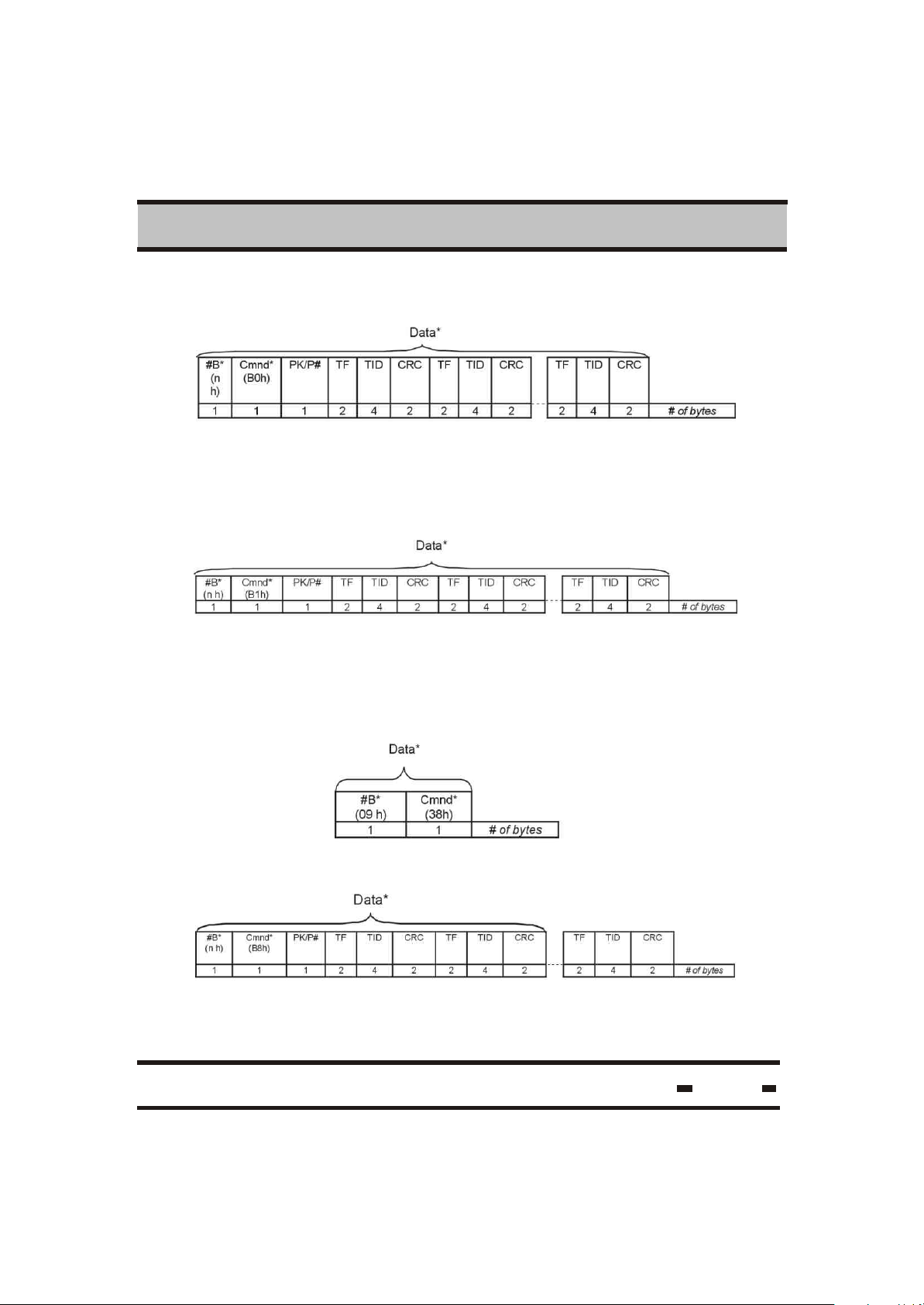

6.5.5.2.8. Deep Sleep
6.5.5.2.9. Hard Wakeup
Hard Wakeup is the command used to wake the seal from deep
sleep mode.
6.5.5.2.10. Start Alert Burst Mode
RS 485/232 Communication Protocol
Starting all seals.
Starting specific tags.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
140
6
#B*
(09 h)
Cmnd*
(39h)
1 1
# of bytes
#B*
(n h)
Cmnd*
(B9h)
PK/P# TF TID CRC TF TID CRC TF TID CRC
1 1 1 2 4 2 2 4 2 2 4 2
# of bytes
#B*
(n h)
Cmnd*
(BBh)
PK/P# TF TID CRC TF TID CRC TF TID CRC
1 1 1 2 4 2 2 4 2 2 4 2
# of bytes
#B*
(nh)
Cmnd*
(63h)
BA-Base A ddres s BL-Block Length
1 1 2 2
# of bytes
RS 485/232 Communication Protocol
6.5.5.2.11. Stop Alert Burst Mode
Stopping all tags.
Data*
Stopping specific tags
Data*
Seal #1 Seal #2
Seal #j
6.5.5.2.12. Acknowledge Alert Burst Mode
Seal #1 Seal #2
Data*
Seal #j
6.5.5.2.13. Read Data
Data*
Where:
BA This is the base address in the block of data's
memory.
BL This is the data block length.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
141
6
#B*
(n h)
Cmnd*
(68h)
TF TID PK/P# BA
Base ad dres s
Data
1 1 2 4 1 2 m
# of bytes
#B*
(nh)
Cmnd*
(AAh)
PK/P# TF TID CRCt TF8 TID8 CRC8
1 1 1 2 4 2 2 4 2
# of bytes
#B*
(17 h)
Cmnd*
(6Bh)
TF TID Bit mask Bit value
1 1 2 4 4 4
# of bytes
RS 485/232 Communication Protocol
6.5.5.2.14. Write Data
Data*
PK/P# = 11h. At present the packets are fixed.
6.5.5.2.15. Reset Data
Data*
Seal #1 Seal #8
Up to 8 seals can be reset in one cycle
6.5.5.2.16. Set/Reset Status.
Data*
Only some of the flags can be set and reset.
Bit mask marks the status bits to be reset.
A value of 0 means “don't modify”.
A value of 1 is to “reset value to zero”.
Each bit corresponds to the appropriate bit in the LTS.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
142
6
6.5.5.2.17. Write Parameters
6.5.5.2.18. Read Parameters
RS 485/232 Communication Protocol
TF&TID=00 is for a broadcast command.
PK/P# = 11h. At present the packets are fixed.
6.5.5.2.19. Addressed Verify
The following parameters are not applicable to this command:
Na, Nt, Rt.
6.5.5.2.20. Read Events
Where:
EV#
#EV
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
is the sequential number of the first Event.
is the number of events to be read from the memory.
143
6
STX #B R# CMND(0015h) Channel CRC ETX
1 2 2 2 1 2 1 # of bytes
STX #B R# MSGT(xx20h ) R_status DATA CRC ETX
1 2 2 2 2 n 2
1 # of bytes
channel PK P# Data*
1 1 1 m
# of bytes
RS 485/232 Communication Protocol
6.5.5.3. Get Results
6.5.5.3.1. Command Transmission
This command is used to retrieve the results after an RF
communication session.
LSC > Reader
Channel indicates the source channel for the results. The value is
according to the table in paragraph 5.5.2.1.
6.5.5.3.2. Get Results Command General Response
The following string is the general response
Reader > LSC
Where:
MSGT The high byte of MSGT is according the scenario in
use. The low byte is 20 h.
DATA In case the result is not ready, the value of this field
is 05 hex error code see paragraph 5.4. If the results
are ready, the following applies:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
144
6
Data*1 Data*2 - - - - - - - - - - - - - - Data*PK-1 Data*PK
Seal
record
Seal
record
Seal
record
Seal
record
Seal
record
Seal record
#B Data** #B Data** #B Data** #B Data** #B Data** #B Data**
1 r r r r r r
Data**
TF TID Message Type Data Result
2 4 1 # of bytes
Data*1
Seal record
#B=0
1
RS 485/232 Communication Protocol
PK
P#
Data*
Seals Records:
Where:
#B
Data**
Total number of packets.
Packet number sequence number.
This string contains the seal records. The field
should first be concentrated from all packets
before being analyzed.
is the number of bytes for a seal record (including
the #B field)
is the data received after executing the RF command
led by TF, TID and Message Type.
Where:
TF&TID
Message Type
is the ID of the seal.TF&TID
is the transmitted Cmnd*.
In case of a problem the Message Type's MSB will be set to “1”.
If no seal is detected:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
145
6
STX #B R# MSGT(xx15h) R_status error CRC ETX
1 2 2 2 2 1 2 1 # of bytes
Data**
TF TID Message
Type
Data results according to the bit
mask
2 4 1 # of
bytes
Data*1
Seal record
#B=0
1
RS 485/232 Communication Protocol
For the case of an unfinished RF session the complete response is:
Reader > LSC
6.5.5.3.3. Get Results Command Response for Verify Command.
The response data field is a string of data received from all the seals.
Each seal record is marked with the seal's TF&ID. The internal data
field is according to the Parameters mask transmitted with the
Verify command.
Reader > LSC
Where:
TF&TID
Message Type
is the ID of the seal.
is 10 h.
If no seal detected:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
146
6
Data**
TF TID Message Type Seal Long
Status
Seal Stamp
2 4 1 4 2 # of bytes
Data*1
Seal record
#B=0
1
Data**
TF TID Message Type Short Status PK/P# Data
2 4 1 1 1 n # of bytes
RS 485/232 Communication Protocol
6.5.5.3.4. Get Results Command Response for Tamper Command.
Results are the same as for the Verify command.
6.5.5.3.5. Get Results Command Response for SET Command.
Reader > LSC
If no seal detected:
6.5.5.3.6. Get Results Command Response for Suspended SET
Command.
Results are the same as for the SET command.
6.5.5.3.7. Get Results Command Response for Soft SET Command.
Results are the same as for the SET command.
6.5.5.3.8. Get Results Command Response for Read Data Command.
Reader > LSC
PK/P# = 11h. At present the packets are fixed.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
147
6
Data**
TF TID Message Type Short seal status
2 4 1 1 # of bytes
Data**
TF TID Message Type Short seal status
2 4 1 1 # of bytes
Data*1
Seal record
#B=0
1
Data**
TF TID Message Type Short seal status
2 4 1 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.3.9. Get Results Command Response for Write Data
Command.
Reader > LSC
6.5.5.3.10. Get Results Command Response for Deep Sleep.
Reader > LSC
If no seal detected:
6.5.5.3.11. Get Results Command Response for Hard Wakeup
Command.
Reader > LSC
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
148
6
Data**
TF TID Message Type Short seal status
2 4 1 1 # of bytes
Data**
TF TID Message Type Short seal status
2 4 1 1 # of bytes
Data**
Seal record
00 h
1
Data**
TF TID Message Type Short seal status
2 4 1 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.3.12. Get Results Command Response for Reset Data
Command.
Reader > LSC
6.5.5.3.13. Get Results Command Response for Start Alert
Burst Mode Command.
Reader > LSC
6.5.5.3.14. Get Results Command Response for Stop Alert
Burst Mode Command.
Reader > LSC
For a group approach:
For a specific seal response:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
149
6
Data**
Seal record
00 h
1
Data**
TF TID Message Type Short seal status
2 4 1 1 # of bytes
Data**
TF TID Message Type Short seal status
2 4 1 1 # of bytes
Data**
TF TID Message
Type
Short
seal
status
PK/P# Par
Code
Par
Value
Par
Code
Par
Value
2 4 1 1 1 1 1 # of
bytes
RS 485/232 Communication Protocol
6.5.5.3.15. Get Results Command Response for Set/Reset Status
Command.
Reader > LSC
For a group approach:
For a specific seal response:

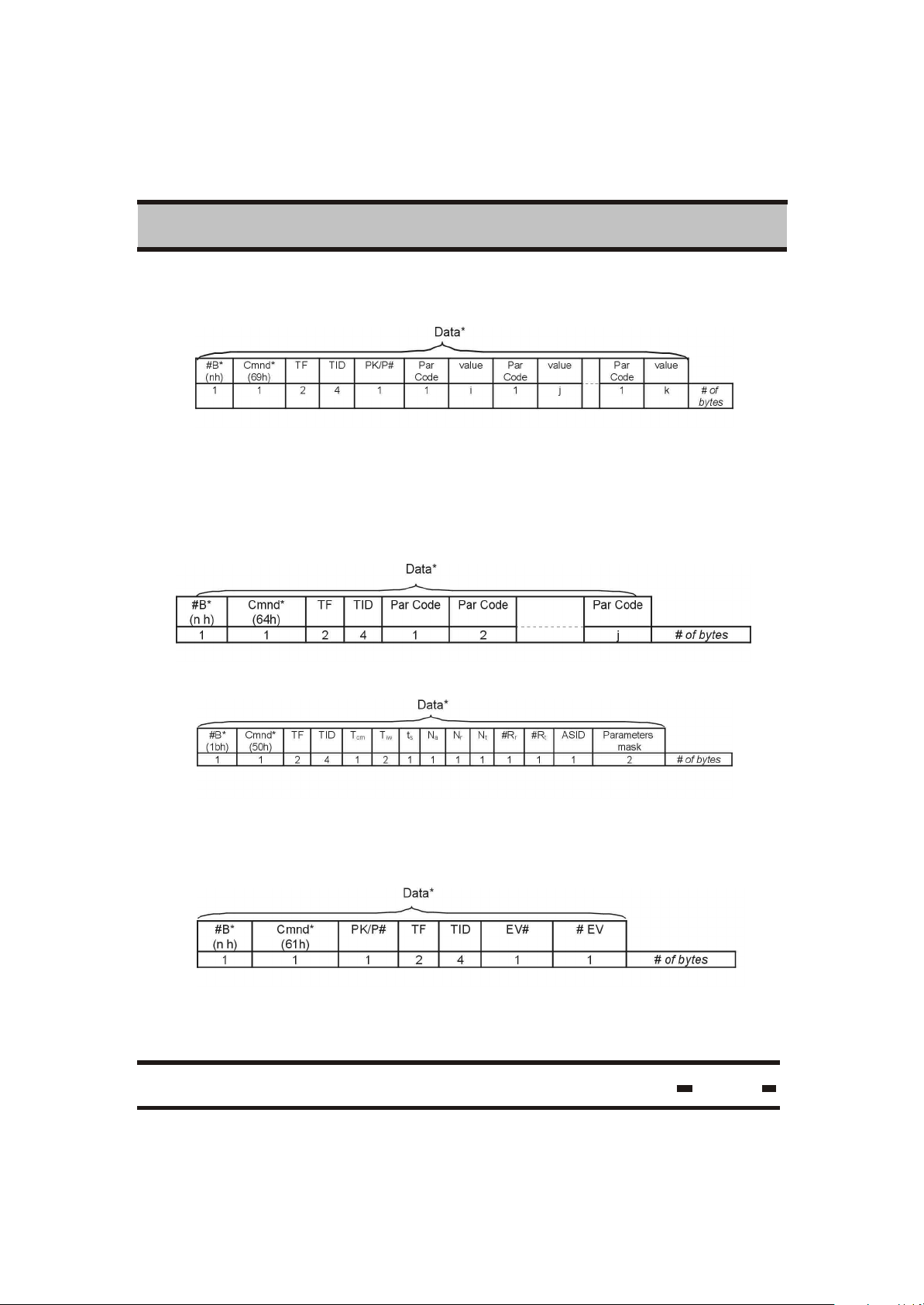

6.5.5.3.16. Get Results Command Response for Write
Parameters Command.
Reader > LSC
6.5.5.3.17. Get Results Command Response for Read
Parameters Command.
Reader > LSC
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
150
6
Data**
TF TID Message
Type
Data results according to the bit
mask
2 4 1 # of
bytes
Data*1
Seal record
#B=0
1
Data**
TF TID Message
Type
Events records
2 4 1 # of
bytes
PK/P# EV# Event
Record
EV# Event
Record
EV# Event Record
1 1 8 or 16 1 8 or 16 1 8 or 16
PK/P# EV# Event
Record
EV# Event
Record
EV# Event Record
1 1 8 or 16 1 8 or 16 1 8 or 16
RS 485/232 Communication Protocol
6.5.5.3.18. Get Results Command Response for Addressed Verify
Command.
Reader > LSC
Where:
If no seal detected:
6.5.5.3.19. Get Results Command Response for Read Events
Command.
Events Records:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
151
6
FSsm #B TF TID MT(33) EV# Event Code D&T STMP CRC EM
1 2 4 1 1 1 4 2 1
# of bytes
FSsm #B TF TID MT(33) EV# Event Code RID ** CHKSUM EM
1 2 4 1 1 1 4 2 1
# of bytes
Data*1
Seal record
#B=0
1
FSsm #B TF TID MT(33) EV# Event
Code
D&T STMP CRC EM
1 2 4 1 1 1 4 2 1
# of bytes
RS 485/232 Communication Protocol
If no seal detected:
8 bytes EVENT message format
Where Event Code is one of the following:
Event
Wire Tampered
Low Battery
Wire Open
Wire Closed
RTC Stopped
DB Corrupted
16 bytes EVENT message format
Where:
Event Code*
**
Event
SET
SOFT SET
READ
TIME Changed
is with the value 0x80
is with one of the following values:
Event Code MSB LSB
0x01
0x07
0x0A
0x0B
Event Code
0x02
0x03
0x04
0x05
0x08
0x09
Delta
0
0
0
0
0
0
0
Data block is a group of events. Events should not be split. If the
event is too long, it should be moved to the next block.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
152
6
STX #B R# CMND(0016h) CRC ETX
1 2 2 2 2 1 # of bytes
STX #B R# MSGT(xx16h) R_status CRC ETX
1 2 2 2 4 2 1 # of bytes
STX #B R# CMND(0 01 Ch) Channel CRC ETX
1 2 2 2 1 2 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.4. Get Status.
6.5.5.4.1. Command Transmission
This command is to retrieve the READER status.
Reader > LSC
6.5.5.4.2. Get Status Command Response
The following string is the general response.
Reader > LSC
6.5.5.5. Get Burst Message
6.5.5.5.1. Command Transmission
This command is used to retrieve the alert messages transmitted
asynchronously by seals that are in alert burst mode.
Reader > LSC
Channel indicates the source channel for the results. The value is
according to the table in paragraph 5.5.2.1.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
153
6
STX #B R# MSGT(xx1Ch) R_status DA TA CRC ETX
1 2 2 2 2 n 2 1 # of
bytes
channel PK P# Data*
1 1 1 m # of bytes
Data*1 Data*2 - - - - - - - - - - - - - - Data*PK-1 Data*PK
Seal
record
Seal
record
Seal
record
Seal
record
Seal
record
Seal record
#B Data** #B Data** #B Data** #B Data** #B Data** #B Data**
1 r r r r R r
RS 485/232 Communication Protocol
6.5.5.5.2. Get Burst Message Command General Response.
The following string is the general response.
Reader > LSC
Where:
MSGT
high byte of MSGT is according the scenario in use.
The low byte is 1C h.
DATA
If the result is not ready, the value of this field is 05
hex error code see Paragraph 5.4. If the result is
ready the following applies:
PK
P#
Data*
Total number of packets.
Packet number sequence number.
This string ccontains the seal records. The field
should first be concentrated from all packets before
analyzing.
Seals Records:
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
154
6
Data**
TF TID Message Type Data Results
2 4 1 # of bytes
Data*1
Seal record
#B=0
1
STX #B R# CMND(0014h) CRC ETX
1 2 2 2 2 1 # of bytes
RS 485/232 Communication Protocol
Where:
#B
DATA**
If no seal detected:
is the number of bytes for a seal record (including
the #B fiels).
is the data received after executing the RF command
led by TF, TID and Message Type
6.5.5.6. Reset Reader.
6.5.5.6.1. Command Transmission
This command performs a general reset to all readers at one time.
In this command, the LSC does not prompt.
LSC > Reader
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
155
6
STX #B R# MSGT(xx14h) R_status CRC ETX
1 2 2 2 2 2 1 # of bytes
STX #B R# CMND(0006h) Data CRC ETX
1 2 2 2 n 2 1
# of bytes
PAR1code value PAR2 code value PARm code value
1 i 1 k 1 l
# of bytes
STX #B R# MSGT(xx06h) R_status CRC ETX
1 2 2 2 2 2 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.6.2. Reset Reader Command Response
The following string is the response.
Reader > LSC
6.5.5.7. Write Parameters
6.5.5.7.1. Command Transmission
This command enables modification of the parameter's value in
the reader. Not all the parameters are available for modification.
Please see Table 5.3 .
LSC > Reader
6.5.5.7.2. Write Parameters Command Response
The following string is the response.
Reader > LSC
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
156
6
STX #B R# CMND(0007
h)
Data CRC ETX
1 2 2 2 n 2 1
# of bytes
PAR1code PAR2 code PARm code
1 1 1
# of bytes
STX #B R# MSGT(xx07h) R_status Data CRC ETX
1 2 2 2 2 n 2
1 # of bytes
value value value
i k l
# of bytes
RS 485/232 Communication Protocol
6.5.5.8. Read Parameters.
6.5.5.8.1. Command Transmission
This command enables the reading of the parameter's value from
the reader.
LSC > Reader
6.5.5.8.2. Read Parameters Command Response
The following string is the response.
Reader > LSC
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
157
6
STX #B R# CMND(0009h) CRC ETX
1 2 2 2 2 1 # of bytes
STX #B R# MSGT(xx09 h) R_status CRC ETX
1 2 2 2 4 2
1 # of bytes
STX #B R# CMND(0008h) CRC ETX
1 2 2 2 2 1 # of bytes
STX #B R# MSGT(xx08h) R_status CRC ETX
1 2 2 2 2 2 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.9. BIT
6.5.5.9.1. Command Transmission.
This command generates a set of built-in test procedures.
LSC > Reader
6.5.5.9.2. BIT Command Response.
The following string is the response.
Reader > LSC
6.5.5.10. Sleep.
6.5.5.10.1. Command Transmission
This command places the Reader in sleep mode of operation to
save energy. The Wakeup command wakes the Reader from this
mode.
LSC > Reader
6.5.5.10.2. Sleep Command Response.
The following string is the response:
Reader > LSC
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
158
6
STX #B R# MSGT( 800Ah) R_status Data CRC ETX
1 2 2 2 2 n 2
1 # of bytes
Channel #B TF TID Command code Short status ORG_ID
1 1 2 4 1 1 3
# of bytes
STX #B R# CMND(000Ah) CRC ETX
1 2 2 2 2 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.11. Unsynchronized Reader Message.
6.5.5.11.1. Message Transmission
When in unsynchronized mode of operation the Reader may burst
with a message. The following string will be received for each seal.
Reader > LSC
ORG_ID is an option in the response. It depends on the seal's
configuration.
6.5.5.11.2. Message Command Ack.
The following string is the response:
LSC > Reader
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
159
6
STX #B R# (0000) CMND (00f f h) R_ID CRC ETX
1 2 2 2 4 2 1 # of bytes
STX #B R# MSGT(80ff h) R_ID baudrate CRC ETX
1 2 2 2 4 4 2 1 # of bytes
STX #B R# (0000) CMND (00fe h) R_ID baudrate CRC ETX
1 2 2 2 4 4 2 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.12. Get Reader's Baud Rate.
6.5.5.12.1. Command Transmision
This command places the Reader in a sleep mode of operation
to save energy. The Reader will wakeup from this mode by
receiving a Wakeup command.
LSC > Reader
6.5.5.12.2. Get Reader's Baudrate Response.
The following string is the response:
Reader > LSC
Baudrate: 2400, 4800, 9600, 19200, 38400
6.5.5.13 Set Reader's Baud Rate.
The baud rate is interpreted as a decimal number translated
into a 32 bit binary number or vise-versa.
6.5.5.13.1. Command Transmission
This command puts the Reader in a sleep mode of operation to
save energy. The Wakeup command wakes the Reader from this
mode. The baudrate is updated after the completion of this
command and receipt of the response.
LSC > Reader
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
160
6
STX #B R# MSGT(80feh) R_ ID baudrate CRC ETX
1 2 2 2 4 4 2 1 # of bytes
STX #B R#(0000) CMND(0012h) R_ID New add CRC ETX
1 2 2 2 4 2 2 1 # of bytes
STX #B R# MSGT(xx12h) R_status CRC ETX
1 2 2 2 2 2 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.13.2. Set Reader's Baud Rate Response.
The following string is the response:
Reader > LSC
6.5.5.14. Set Reader's Address
6.5.5.14.1. Command Transmission
This command sets the Reader's address for RS-485 communication
purposes.
LSC > Reader
* To modify an old address, the above command can be used with
a specific Reader by specifying R# with the old address.
6.5.5.14.2. Set Reader's Address Response.
If the above command is a broadcast, there will be no response.
The following string is the response for a command transmission to
a specific Reader.
Reader > LSC
The R# is with the new address.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
161
6
STX #B R# CMND(0092h) CRC ETX
1 2 2 2 2 1 # of bytes
STX #B R# CMND (0094h) CRC ETX
1 2 2 2 2 1 # of bytes
STX #B R# CMND(000Fh) data CRC ETX
1 2 2 2 2 1
# of bytes
phase CMND* Data*
1 2
# of bytes
RS 485/232 Communication Protocol
6.5.5.15 Acknowledge OK.
LSC > Reader
This string is a one-way string that acknowledges a positive message
received from the READER.
LSC > Reader
6.5.5.16. Acknowledge Failed.
LSC > Reader
This string is a one-way string that acknowledges a message
indicating a problem coming from the READER.
LSC > Reader
6.5.5.17. Save Command
6.5.5.17.1. Command Transmission
This command sends a command to the Reader for later execution
by using the “Execute Saved Command”.
LSC > Reader
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
162
6
STX #B R# MSGT(XX0Fh) R_status CRC ETX
1 2 2 2 2 2 1 # of bytes
STX #B R# CMND(00017h) data CRC ETX
1 2 2 2 4*k 2 1
# of bytes
Reader I D [1] Reader I D [2] Reader I D [k]
4 4
. . . . . . . . . .
4
# of bytes
RS 485/232 Communication Protocol
Where:
Phase is the duration from the end of the “Execute Saved
Command” and the time required to execute the
saved command. The phase is in units of 1.024 msec.
CMND* is the command code of the saved command for
delayed execution.
Data* is the relevant data field for the CMND*
If data=0 this command will clear the saved command.
6.5.5.17.2. Save Command Response.
The following string is the response:
Reader > LSC
6.5.5.18. Execute Saved Command
6.5.5.18.1. Command Transmission
This command executes the saved command.
This is a broadcast command sent to all readers.
There will be no response from any reader to this command.
LSC > Reader
The data field details the readers by their IDs.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
163
6
STX #B R# CMND(0011h) channel CRC ETX
1 2 2 2 1 2 1 # of bytes
STX #B R# MSGT(XX11h) file CRC ETX
1 2 2 2 82 2 1 # of bytes
Name Size
[bytes]
1 Part number 16
2 Serial number 16
3 Hardware Version 4
4 Production date 10
5 Production Batch number 4
5 Description 32
6 Reserved 45
RS 485/232 Communication Protocol
6.5.5.18.2. Execute Saved Command Response
There is no response for this command.
6.5.5.19. Read Channel Definitions Command
6.5.5.19.1. Command Transmission
This command allows the reading of the definitions for a device.
LSC > Reader
Where:
Channel
is the channel number that the device is connected to.
Channel can be 0 to indicate the MCU, or 1,2 etc for
the other channels.
6.5.5.19.2. Read Channel Definitions Response.
The following string is the response:
Reader > LSC
Where:
File is the data file that defines the device.
File structure is:
The format is ASCII
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
164
6
STX #B R# CMND(0010h) data CRC ETX
1 2 2 2 2 1
# of bytes
channel file
1 82
# of bytes
STX #B R# MSGT(XX10h) R_status CRC ETX
1 2 2 2 2 2 1 # of bytes
RS 485/232 Communication Protocol
6.5.5.20. Write Channel Definitions Command
6.5.5.20.1. Command Transmission
This command enables the writing of definitions of a device.
LSC > Reader
Where:
Channel is the channel number that the device is connected to.
Channel can be 0 to indicate the MCU, or 1,2 etc
for the other channels.
File is the data file that defines the device.
6.5.5.20.2. Write Channel Definition Response
The following string is the response:
Reader > LSC
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
165
6
RS 485/232 Communication Protocol
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
166
Loading...
