Hi G Tek IGMA125 Users Manual
Micro Reader

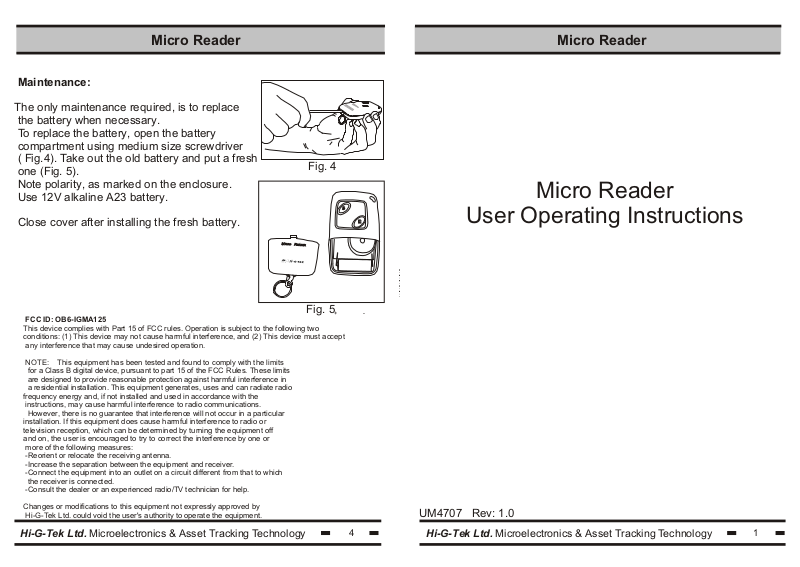

Maintenance:
The only maintenance required, is to replace
the battery when necessary.
To replace the battery, open the battery
compartment using medium size screwdriver
( Fig.4). Take out the old battery and put a fresh
one (Fig. 5).
Note polarity, as marked on the enclosure.
Use 12V alkaline A23 battery.
Micro Reader
Fig. 4
Micro Reader
Close cover after installing the fresh battery.
M
M
ICR
O
O
ICR
RR
E
A
A
D
D
E
E
R
RE
Fig. 5
FCC ID: OB6-IGMA125
This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
User Operating Instructions
+
-
Changes or modifications to this equipment not expressly approved by
Hi-G-Tek Ltd. could void the user's authority to operate the equipment.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
UM4707 Rev: 1.0
4
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
1
Micro Reader
Micro Reader
The Micro Reader communicates with the DataSeal or the DataSeal-125
over the low frequency channel using 125KHz as the carrier.
The Micro Reader is used for executing one or two functions, depending
on the model:
Micro Reader with READ only - Model: IG-MA-125
This device is used for checking the seal status.
Approach the DataSeal as shown in Fig.2
to a distance of 3-8cm and press the R button.
(Item 1 in Fig.1)
In the event that the seal status is OK the LED
(item 2 in Fig.1) will turn Green, and a
corresponding “click” will sound.
21
Fig. 1
In the event that seal status is TAMPERED,
the LED will turn Red and a corresponding
“beep” will sound.
D
D
a
a
t
t
a
a
S
S
ea
ea
l
l
Micro Reader with SET option - Model: IG-MA-125S
All instructions for checking the seal status are
the same in both models. This model can also
perform a “Soft Set”: setting the seal (OK status)
without erasing the events logged in seal’s
memory.
To perform a “Soft Set”, approach the seal as
shown in Fig.2, and press the S button (item 1
in Fig.3). In the event of successful “Soft Set”,
the LED will turn Green and a corresponding
“click” will sound.
In the event that the “Soft Set” command failed,
the Micro Reader will pause for two seconds, and
then the LED will flash Red three times with
corresponding three fast “clicks”.
1
Fig. 3
In the event that the communication between
the Micro Reader and the DataSeal failed,
the Micro Reader will pause for two seconds
and the LED will flash Red three times with
corresponding three fast “clicks”.
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
Fig. 2
2
Hi-G-Tek Ltd. Microelectronics & Asset Tracking Technology
3
