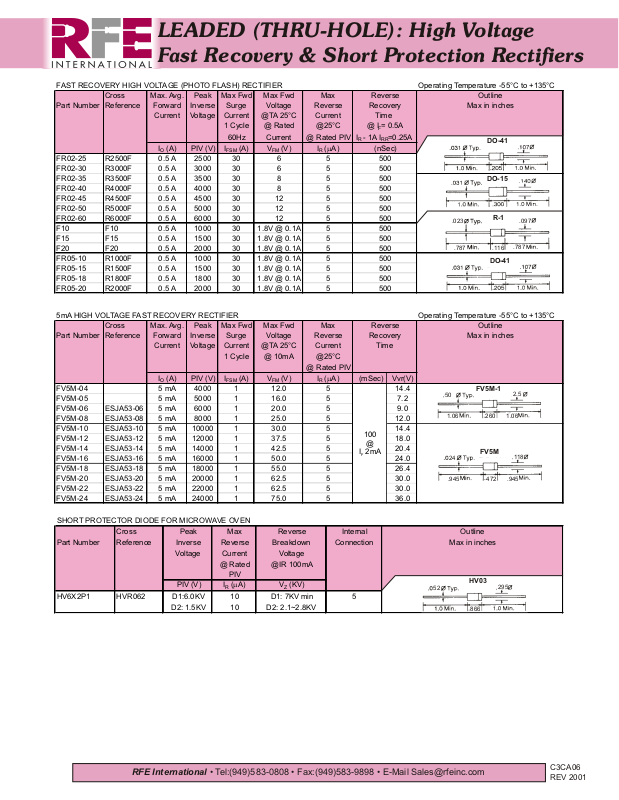

High Voltage HV03 Schematic

LEADED (THRU-HOLE): High Voltage
Fast Recovery & Short Protection Rectifiers

FAST RECOVERY HIGH VOLTAGE (PHOTO FLASH) RECTIFIER Operating Temperature -55°C to +135°C

Cross Max. Avg. Peak Max Fwd Max Fwd Max Reverse Outline

Part Number Reference Forward Inverse Surge Voltage Reverse Recovery Max in inches

Current Voltage Current @TA 25°C Current Time

1 Cycle @ Rated @25°C @ IF= 0.5A

IO (A) PIV (V) I

60Hz Current @ Rated PIV IR - 1A IRR=0.25A

(A) VFM (V) IR (mA) (nSec)

FSM

DO-41

FR02-25 R2500F 0.5 A 2500 30 6 5 500
FR02-30 R3000F 0.5 A 3000 30 6 5 500
FR02-35 R3500F 0.5 A 3500 30 8 5 500

DO-15

FR02-40 R4000F 0.5 A 4000 30 8 5 500
FR02-45 R4500F 0.5 A 4500 30 12 5 500
FR02-50 R5000F 0.5 A 5000 30 12 5 500
FR02-60 R6000F 0.5 A 6000 30 12 5 500
F10 F10 0.5 A 1000 30 1.8V @ 0.1A 5 500

.023

R-1

.097

F15 F15 0.5 A 1500 30 1.8V @ 0.1A 5 500
F20 F20 0.5 A 2000 30 1.8V @ 0.1A 5 500
FR05-10 R1000F 0.5 A 1000 30 1.8V @ 0.1A 5 500

.787

.116

DO-41

.787

FR05-15 R1500F 0.5 A 1500 30 1.8V @ 0.1A 5 500
FR05-18 R1800F 0.5 A 1800 30 1.8V @ 0.1A 5 500
FR05-20 R2000F 0.5 A 2000 30 1.8V @ 0.1A 5 500

5mA HIGH VOLTAGE FAST RECOVERY RECTIFIER Operating Temperature -55°C to +135°C

Cross Max. Avg. Peak Max Fwd Max Fwd Max Reverse Outline

Part Number Reference Forward Inverse Surge Voltage Reverse Recovery Max in inches

Current Voltage Current @TA 25°C Current Time

1 Cycle @ 10mA @25°C

@ Rated PIV

IO (A) PIV (V) I
FV5M-04 5 mA 4000 1 12.0 5 14.4
FV5M-05 5 mA 5000 1 16.0 5 7.2
FV5M-06 ESJA53-06 5 mA 6000 1 20.0 5 9.0
FV5M-08 ESJA53-08 5 mA 8000 1 25.0 5 12.0
FV5M-10 ESJA53-10 5 mA 10000 1 30.0 5 14.4
FV5M-12 ESJA53-12 5 mA 12000 1 37.5 5 18.0
FV5M-14 ESJA53-14 5 mA 14000 1 42.5 5 20.4
FV5M-16 ESJA53-16 5 mA 16000 1 50.0 5 24.0

(A) VFM (V) IR (mA) (mSec)

FSM

100

@

I 2mA

F

Vvr(V)

50

FV5M-1

24

FV5M

2.5

2601.06 1.06

118

FV5M-18 ESJA53-18 5 mA 18000 1 55.0 5 26.4
FV5M-20 ESJA53-20 5 mA 20000 1 62.5 5 30.0

472.945 .945

FV5M-22 ESJA53-22 5 mA 22000 1 62.5 5 30.0
FV5M-24 ESJA53-24 5 mA 24000 1 75.0 5 36.0

SHORT PROTECTOR DIODE FOR MICROWAVE OVEN

Cross Peak Max Reverse Internal Outline

Part Number Reference Inverse Reverse Breakdown Connection Max in inches

Voltage Current Voltage

@ Rated @IR 100mA

PIV (V) IR (mA) VZ (KV)

PIV

52

HV03

HV6X2P1 HVR062 D1:6.0KV 10 D1: 7KV min 5

D2: 1.5KV 10 D2: 2.1~2.8KV

866
