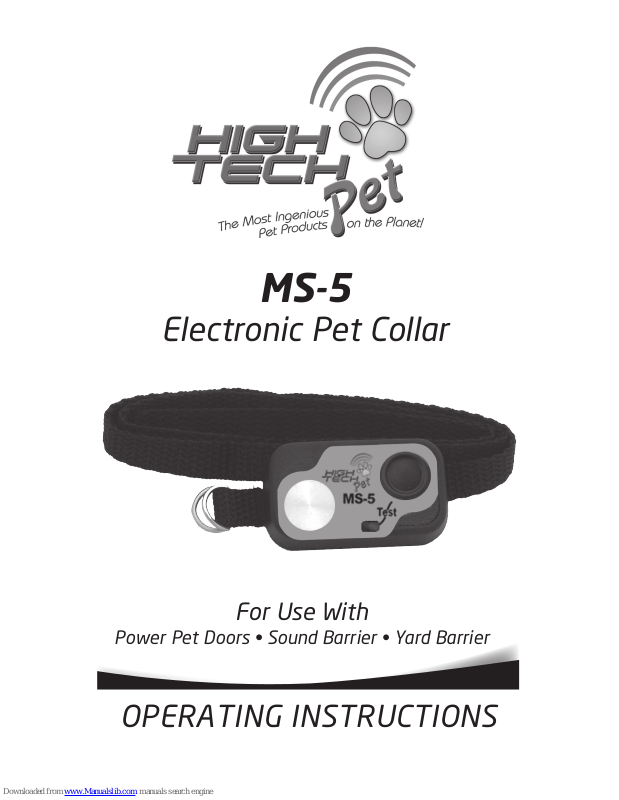

MS-5
Electronic Pet Collar
OPERATING INSTRUCTIONS
For Use With
Power Pet Doors • Sound Barrier • Yard Barrier
___________________________________________________________________________________
2 www.hightechpet.com High Tech Pet Products, Inc.
Please Read All Instructions Carefully
1. Activating Your MS-5 Electronic Pet Collar
NOTE: the B3V1A Battery (pictured right) is the ONLY
battery that is compatible with the MS-5 collar. Do
not attempt to use any other battery in the MS-5 collar.
NOTE: Some collars are shipped with a battery pre-installed.
If the battery is not already pre-installed in the collar, install the
battery by following the instructions on next page.
2. Fitting the MS-5 Electronic Collar on Your Dog
• Place the collar on your pet
with the electronics at the
throat as shown.
• When properly tted, the receiver
collar should not move on the
dog, but also should not be overly
tight. You should be able to t
your ngers between the strap
and your pet’s neck.
Note: The collar needs to be positioned on the bottom of your
pet’s neck, facing down, in order to trigger the door and barriers
correctly.
Replacement B3V1A batteries are available at www.HighTechPet.Com
___________________________________________________________________________________________
High Tech Pet Products, Inc. www.hightechpet.com 3
INSTALLING/ REPLACING THE MS-5 BATTERY
1. Unscrew the bottom cover.
4. Remove and replace B3V1A battery
2. Pry bottom off at the
location shown here, using
a small at-blade screwdriver or metal nail le.
3. Remove bottom, note battery orientation
5. With new battery installed, close case.
Squeeze until bottom ush with top, by
squeezing top and bottom together
6. Insert and tighten screw.
Rev. II – 1/29/2013 ms-5-pet-collar-manual
High Tech Pet Products, Inc.
2476 Palma Drive, Suite A
Ventura, CA 93003
www.hightechpet.com
MAINTAINING THE WATERPROOF SEAL
The waterproof seal will last for years if you keep the gasket
clean when replacing the battery. Here are some suggestions for
e xtending the life of your collar.
• Clean the bottom edge of the collar before opening the case to
replace a battery. Also thoroughly dry the collar before opening
it. A blow dryer can be used.
• After opening the case, clean any visible dirt off the inside lip of
the case and the gasket on the bottom cover. Finally blow off any
remaining lint or bers. Then insert the battery and close it up.
• Keep the inside of the collar dry. Each time you open it look for
water or moisture inside. If detected, remove the battery and
use a blow dryer on the circuit board.
