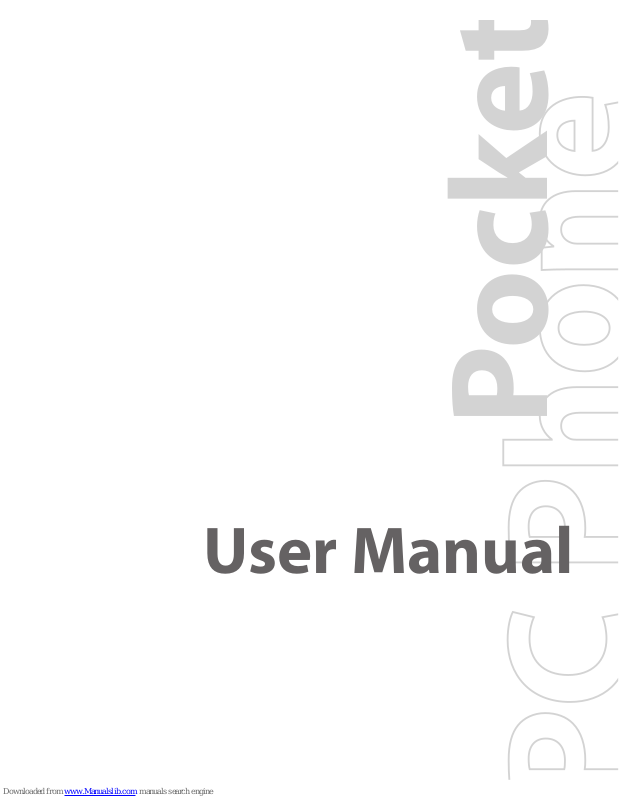

High Tech Computer Pocket PC Phone User Manual

Pocket
User Manual
2
Please Read Before Proceeding
THE BATTERY IS NOT CHARGED WHEN YOU TAKE IT OUT OF THE BOX.
DO NOT REMOVE THE BATTERY PACK WHEN THE DEVICE IS CHARGING.
YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER WITH THE DEVICE’S OUTER CASING.
PRIVACY RESTRICTIONS
Some countries require full disclosure of recorded telephone conversations, and stipulate that you must inform the person with whom you are speaking that the conversation is being recorded. Always obey the relevant laws and regulations of your country when using the recording feature of your Pocket PC Phone.
INTELLECTUAL PROPERTY RIGHT INFORMATION
Copyright © 2006 High Tech Computer Corp. All Rights Reserved.
, , and ExtUSB are trademarks and/or service marks of
High Tech Computer Corp.
Microsoft, MS-DOS, Windows, Windows NT, Windows Server, Windows Mobile, ActiveSync, Excel, Internet Explorer, MSN, Hotmail, Outlook, PowerPoint, Word, and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Bluetooth and the Bluetooth logo are trademarks owned by Bluetooth SIG, Inc.
Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc.
SD is a trademark of SD Card Association.
Java, J2ME and all other Java-based marks are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries.
Copyright © 2006, Adobe Systems Incorporated.
Copyright © 2006, Macromedia Netherlands, B.V.
3
Macromedia, Flash, Macromedia Flash, Macromedia Flash Lite and Reader are trademarks and/or registered trademarks of Macromedia Netherlands, B.V. or Adobe Systems Incorporated.
Copyright © 2006, JATAAYU SOFTWARE (P) LTD. All Rights Reserved.
Copyright © 2006, Dilithium Networks, Inc. All Rights Reserved.
Copyright © 2006, Tao Group Limited. All Rights Reserved.
ArcSoft MMS Composer™ Copyright © 2003-2006, ArcSoft, Inc. and its licensors. All Rights Reserved. ArcSoft and the ArcSoft logo are registered trademarks of ArcSoft, Inc. in the United States and/or other countries.
Sprite Backup is a trademark or service mark of Sprite Software.
All other company, product and service names mentioned herein are trademarks, registered trademarks or service marks of their respective owners.
HTC shall not be liable for technical or editorial errors or omissions contained herein, nor for incidental or consequential damages resulting from furnishing this material. The information is provided “as is” without warranty of any kind and is subject to change without notice. HTC also reserves the right to revise the content of this document at any time without prior notice.
No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or storing in a retrieval system, or translated into any language in any form without prior written permission of HTC.
4
Important Health Information and Safety Precautions
When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages.
Retain and follow all product safety and operating instructions. Observe all warnings in the operating instructions on the product.
To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions.
ELECTRICAL SAFETY
This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product.
SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION
CAUTION: Connecting to an improperly grounded equipment can result in
an electric shock to your device.
This product is equipped with a USB cable for connecting the product to a desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting the product to the computer. The power supply cord of a desktop or notebook computer has an equipment­grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances.
SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT
Use the correct external power source
A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorised service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. This product should be operated only with the following designated power supply unit(s).
5
AC Adapter
1. Delta, Model ADP-5FH X
2. Phihong, Models PSAA05X-050
Handle battery packs carefully
This product contains a Li-ion Polymer battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60
˚C (140˚F).
WARNING: Danger of explosion if battery is incorrectly replaced.
To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60° C (140° F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product.
NOTE: This product should be operated only with the following designated Battery
Pack(s).
1. Dynapack, Model TRIN160
2. SK Mobile Energy, Model TRIN160
SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT
Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind a glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle.
PREVENTION OF HEARING LOSS
CAUTION: Permanent hearing loss may occur if earphones or
headphones are used at high volume for prolonged periods of time.
6
NOTE:
For France, Headphones, Earphones (listed below) for this device have been tested to comply with the Sound Pressure Level requirement laid down in the applicable NF EN 50332-1:2000 and/or NF EN 50332-2:2003 standards as required
by French Article L. 5232-1
.
1. Earphone, manufactured by Cotron, Models CHM-60STV07002.
SAFETY IN AIRCRAFTS
Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when on board an aircraft, remember to turn off the phone by switching to Flight Mode.
ENVIRONMENT RESTRICTIONS
Do not use this product in petrol stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fuelling areas, fuel storehouses, below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
EXPLOSIVE ATMOSPHERES
When in any area with a potentially explosive atmosphere or where flammable materials exist, the product should be turned off and the user should obey all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Users are advised not to use the equipment at refueling points such as service or petrol stations, and are reminded of the need to observe restrictions on the use of radio equipment in fuel depots, chemical plants, or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, clearly marked. These include fueling areas, below deck on boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders
.
ROAD SAFETY
Vehicle drivers in motion are not permitted to use telephony services with handheld devices, except in the case of emergency. In some countries, using hands-free devices as an alternative is allowed.
7
SAFETY PRECAUTIONS FOR RF EXPOSURE
Avoid using your device near metal structures (for example, the steel
frame of a building).
Avoid using your device near strong electromagnetic sources, such as
microwave ovens, sound speakers, TV and radio.
Use only original manufacturer-approved accessories, or accessories
that do not contain any metal.
Use of non-original manufacturer-approved accessories may violate
your local RF exposure guidelines and should be avoided.
INTERFERENCE WITH MEDICAL EQUIPMENT FUNCTIONS
This product may cause medical equipment to malfunction. The use of this device is forbidden in most hospitals and medical clinics.
If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.
Turn the phone OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your service provider, or call the customer service line to discuss alternatives.
NONIONISING RADIATION
This product should be operated in the suggested normal condition only to ensure the radiative performance and safety of the interference. As with other mobile radio transmitting equipment, users are advised that for satisfactory operation of the equipment and for the safety of personnel, it is recommended that no part of the human body be allowed to come too close to the antenna during operation of the equipment.
8
GENERAL PRECAUTIONS
Heed service markings
Except as explained elsewhere in the Operating or Service documentation, do not service any product yourself. Service needed on components inside these compartments should be done by an authorised service technician or provider.
Damage requiring service
Unplug the product from the electrical outlet and refer servicing to an authorised service technician or provider under the following conditions:
Liquid has been spilled or an object has fallen into the product.
The product has been exposed to rain or water.
The product has been dropped or damaged.
There are noticeable signs of overheating.
The product does not operate normally when you follow the
operating instructions.
Avoid hot areas
The product should be placed away from heat sources such as radiators, heat registers, stoves, or other products (including, but limited to, amplifiers) that produce heat.
Avoid wet areas
Never use the product in a wet location.
Avoid using your device after a dramatic change in temperature
When you move your device between environments with very different temperature and/or humidity ranges, condensation may form on or within the device. To avoid damaging the device, allow sufficient time for the moisture to evaporate before using the device.
NOTE: When taking the device from low-temperature conditions into a warmer
environment or from high-temperature conditions into a cooler environment, allow the device to acclimate to room temperature before turning on the power.
Avoid pushing objects into product
Never push objects of any kind into cabinet slots or other openings in the product. Slots and openings are provided for ventilation. These openings must not be blocked or covered.
9
Mounting Accessories
Do not use the product on an unstable table, cart, stand, tripod, or bracket. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
Avoid unstable mounting
Do not place the product with an unstable base.
Use product with approved equipment
This product should be used only with personal computers and options identified as suitable for use with your equipment.
Adjust the volume
Turn down the volume before using headphones or other audio devices.
Cleaning
Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning, but NEVER use water to clean the LCD screen.
10
Contents
Chapter 1 Getting Started 15
1.1
Getting to Know Your Device and Its Accessories ........... 16
1.2 About the SIM Card and Battery ..................................... 21
1.3 Starting Up ........................................................................
23
1.4 The Today Screen ..............................................................
25
1.5 Using the Programmes .................................................... 28
1.6 Device Settings ................................................................. 31
Chapter 2 Entering and Searching Information 35
2.1 Entering Information ....................................................... 36
2.2 Using the On-screen Keyboard .......................................
37
2.3 Using Letter Recognizer ...................................................
37
2.4 Using Block Recognizer ...................................................
38
2.5 Using Transcriber ..............................................................
38
2
.6 Using Notes to Draw, Write and Record Voice Notes ............. 40
2.7 Searching Information ..................................................... 40
Chapter 3 Using Phone Features 41
3.1 Using the Phone ............................................................... 42
3.2 Making a Call .................................................................... 44
3.3 Receiving a Call ................................................................. 47
11
3.4 Smart Dialing .................................................................... 47
3.5 In-call Options ..................................................................
50
3.6 Additional Dialing Information .......................................
51
3.7 Setting Up Bluetooth SIM Access for Car Kit Phones ..... 52
Chapter 4 Synchronising Information 53
4.1 About Synchronisation .................................................... 54
4.2 Using Microsoft Windows Mobile® Device Centre .......... 55
4.3 Installing and Using Microsoft ActiveSync
® . . . . . . . . . . . . . . . . . . . .
58
4.4 Synchronising with Your Computer ................................ 59
4.5 Synchronising with Exchange Server ............................. 61
4.6 Synchronising via Infrared and Bluetooth ..................... 63
4.7 Synchronising Music and Video ...................................... 64
Chapter 5 Managing Your Pocket PC Phone 65
5.1 Personalising Your Pocket PC Phone .............................. 66
5.2 Adding and Removing Programmes ...............................
73
5.3 Managing Memory ...........................................................
75
5.4 Copying and Managing Files ........................................... 76
5.5 Backing Up Data ............................................................... 78
5.6 Protecting Your Pocket PC Phone ...................................
81
5.7 Resetting Your Pocket PC Phone .....................................
83
12
Chapter 6 Getting Connected 85
6.1 Connecting to the Internet .............................................. 86
6.2 Internet Explorer Mobile ................................................. 89
6.3 Using Comm Manager ......................................................
92
6.4 Using Bluetooth ................................................................
93
6.5 Using Wi-Fi ......................................................................
102
6.6 Using Internet Sharing ...................................................
106
6.7 Using Spb GPRS Monitor ............................................... 107
6.8 Using Terminal Services Client ......................................
112
Chapter 7 Exchanging Messages and
Using Outlook 115
7.1 E-mail and Text Messages .............................................. 116
7.2 MMS Messages ...............................................................
126
7.3 Pocket MSN ..................................................................... 131
7.4 Calendar .......................................................................... 132
7.5 Contacts .......................................................................... 134
7.6 Tasks ................................................................................ 138
7.7 Notes ............................................................................... 140
7.8 Voice Recorder ................................................................ 143
Chapter 8 Experiencing Multimedia 145
8.1 Using Camera .................................................................. 146
8.2 Using Pictures & Videos ................................................. 159
13
8.3 Using Windows Media Player Mobile ............................ 164
8.4 Using Audio Manager .................................................... 170
Chapter 9 Using Other Applications 177
9.1 Word Mobile ................................................................... 178
9.2 Excel Mobile .................................................................... 179
9.3 Viewing Slide Shows with PowerPoint Mobile ............. 180
9.4 Using Adobe Reader LE .................................................. 181
9.5 Using MIDlet Manager ................................................... 183
9.6 Using ZIP ......................................................................... 186
9.7 Using Voice Speed Dial .................................................. 188
Appendix 191
A.1 Regulatory Notices ......................................................... 192
A.2 PC Requirement to Run ActiveSync 4.x ........................ 197
A.3 Specifications .................................................................
198
Index 201
14
Chapter 1
Getting Started
1.1
Getting to Know Your Device and
Its Accessories
1.2 About the SIM Card and Battery
1.3 Starting Up
1.4 The Today Screen
1.5 Using the Programmes
1.6 Device Settings
16 Getting Started
1.1
Getting to Know Your Device and Its Accessories
1
7 8 9
11
4
14 15 16 17 18
5
2
3
6
10
12
13
Getting Started 17
No. Item Function
1 POWER Press and hold this button to turn on the device. When the
device is turned on, press to turn off the display temporarily. This switches your device to Sleep mode, and you can still receive calls and messages. Press and hold (for about 5 seconds) to turn off the power completely. All functions including the phone will be unavailable for use.
2 SDTM Card Slot Insert a storage card (SD/MMC/SDIO card) for storing data.
3 Infrared Port It lets you exchange file(s) or data with other devices wirelessly.
4
VOICE COMMAND
Press to start Voice Speed Dial; press and hold to record a voice note
.
5 Volume Slider • Slide up or down to adjust the speaker volume.
• During a call, slide up or down to adjust the earpiece volume.
6 Notification
LED 1
This bi-colour LED shows Green and Amber lights for GSM/GPRS standby, message, and network status as well as for notification and battery charging status.
7 MESSAGING Press this button to quick start your Messaging.
8 Earpiece Listen to a phone call from here.
9 INTERNET
EXPLORER
Press this button to quick launch Internet Explorer Mobile.
10 Notification
LED 2
This LED shows a blinking Blue light for Bluetooth system notification of powered-up and ready to transmit Bluetooth signal, or a blinking Green light for Wi-Fi status. When both Bluetooth and Wi-Fi are enabled, their lights blink alternately.
11 Touch Screen Tap the screen with the stylus to write, draw, or make a selection.
12 TALK Press this button to answer an incoming call or dial a number.
13 START Press this button to open the Start menu.
14 Left SOFT
KEY
Press to execute the command shown in the label above the button.
15 NAVIGATION
Control/ENTER
Press this multi-directional control up, down, left, or right to move through menus and programme instructions; carry out the selection by pressing the centre button.
16 Right SOFT
KEY
Press to execute the command shown in the label above the button.
17 OK Press this button to confirm your data entries, or to exit the
programme in use.
18 END Press this button to end a call or to return to the Today screen.
18 Getting Started
19
22
25
26
28 29
23
21
20
24
27
Getting Started 19
No. Item Function
19 Back Cover This covers the battery and SIM card compartment. To remove,
slide the latch that is located at the bottom of your device.
20 Back Cover
Latch
Press this latch to release the back cover.
21 Self-Portrait
Mirror
Turn the back side of your device to face yourself so that your image reflects on the mirror when taking self-portrait shots.
22 Car Antenna
Connector
Connect your phone to the car antenna while in a car to have better reception quality. Simply peel off the rubber cap and connect the antenna jack. Replace the rubber cap if unused.
23 Camera This is a 2.0 megapixel CMOS colour camera. Use the camera to
take still photos and record video clips.
24 Stylus Use the stylus to write, draw, or select items on the touch screen.
25 Speaker Listen to the audio media from here.
26 CAMERA Press this button to launch the Camera; press again to take a photo
or video clip, depending on the specified capture mode.
27 Microphone Speak into the microphone when receiving or making a phone call
or voice recording.
28 Sync Connector/
Earphone Jack
Use this connector to synchronise data by connecting the provided USB Sync cable or to recharge the battery via the provided AC adapter. You can also connect the provided USB stereo headset for hands-free conversation or for listening to audio media.
29 RESET With the stylus, press the RESET button to soft-reset your device.
20 Getting Started
Accessories
2
1
3
4
No. Accessory Function
1 AC adapter Recharges the battery.
2 USB Sync cable Connects your device to a PC and synchronises data.
3 Stereo headset Provides a volume control slider and a Send/End
button. Press the Send/End button to pick up a call or put a call on hold; press and hold the button to end the call.
4 Pouch Acts as a protective carrying case for your device.
Getting Started 21
1.2 About the SIM Card and Battery
Always turn off your device before installing/replacing the battery and SIM card. Follow the instructions in the Quick Start Guide to install a SIM (Subscriber Identity Module) card provided by your local network service provider and to install the battery.
The SIM card contains your phone number, service details, and phonebook/ message memory. Your device supports both 1.8V and 3V SIM cards. Some legacy SIM cards will not function with your device. You should consult with your service provider for a replacement SIM card. There may be fees for this service.
Your device contains a rechargeable Li-ion polymer battery. This device is designed to use only manufacturer-specified original batteries and accessories. Battery performance depends on many factors, including your wireless service provider’s network configuration, signal strength, the temperature of the environment in which you operate your device, the features and/or settings you select and use, items attached to connecting ports, and your voice, data, and other programme usage patterns.
Battery life estimates (approximations):
Standby time: Up to 200 - 250 hours for GSM.
Talk time: Up to 4 - 5 hours for GSM.
Media playback time: Up to 8 hours for WMV;
Up to
12 hours for WMA.
Warning! To reduce risk of fire or burns:
Do not attempt to open, disassemble, or service the battery pack.
Do not crush, puncture, short external contacts, or dispose of in fire
or water.
Do not expose to temperatures above 60oC (140oF).
Replace only with the battery pack designated for this product.
Recycle or dispose of used battery as stipulated by local regulation.
22 Getting Started
To check the battery power
Do one of the following:
Tap the battery level icon ( ) on the Today screen.
Alternatively, tap Start > Settings > System tab > Power.
Battery power information
Charge the battery
New batteries are shipped partially charged. Before you start using your device, it is recommended that you install and charge the battery. Some batteries perform best after several full charge/discharge cycles. You can charge the battery in two ways:
Charging the device’s battery by using the power adapter.
Connecting your device to a PC via the provided USB Sync cable.
Warning! Do not remove the battery from the device while you are charging it
using the AC or car adapter.
As a safety precaution, the battery stops charging when it overheats.
Low battery
When the low-battery warning appears, do the following:
Immediately save your current data.
Synchronise with your PC or connect the power adapter to charge the
battery.
Turn off your device.
Getting Started 23
1.3 Starting Up
Turn your device on and off
To turn on your device, press and hold the POWER button. When you turn on your device for the first time, a Quick Start Wizard will guide you through the calibration process and the setup of regional settings, date and time, password, Outlook e-mail, and POP3/IMAP4 e-mail accounts. For more information about touch screen calibration, see “Calibrate the device”. For information about setting up Outlook e-mail and POP3/IMAP4 e-mail accounts, see Chapter 7.
To turn off your device, press and hold the POWER button for a few seconds. A message will then be displayed, prompting you whether or not to turn off the device completely.
Switch your device to Sleep mode
Quickly pressing the POWER button turns off the display temporarily and switches your device to Sleep mode. Sleep mode suspends your device to a low power state while the display is off in order to save battery power.
Your device also automatically goes into Sleep mode when you leave the device idle after a certain amount of time.
To specify the timeout period before your device goes into Sleep mode
1. Tap Start > Settings > System tab > Power > Advanced tab.
2. Under On battery power, make sure the Turn off device if not used
for check box is selected.
3. Select the battery timeout period, then tap OK.
You will still be able to receive messages and calls while your device is in Sleep mode. Pressing the POWER button again or new incoming calls/ messages will wake up your device.
24 Getting Started
Calibrate the device
Calibrating the device screen involves tapping the centre of a cross with the stylus as the cross moves around the screen. This process ensures that when you tap the screen with your stylus, the tapped item is activated.
If your device does not accurately respond to screen taps, follow these steps to re-calibrate it:
1. Tap Start > Settings > System tab > Screen.
2. On the General tab, tap Align Screen, then follow the on-screen
instructions to complete the calibration.
Manage screen settings
The device’s display has two orientation modes: Portrait and Landscape. Portrait mode allows you to get a better view or a better operation of certain programmes, while Landscape mode may be optimal for viewing lengthy files.
To change the orientation, tap Start > Settings > System tab >
Screen, and select the orientation you want.
To smooth the edges of screen fonts for many programmes, on the
ClearType tab, select the Enable ClearType check box.
To increase the readability or to see more content on the screen, on
the Text Size tab, adjust the text size by moving the slider.
Getting Started 25
1.4 The Today Screen
The Today screen displays important information, such as upcoming appointments and status indicators. You can tap a section on the screen to open the associated programme.
To access the Today screen, tap Start > Today.
To customise the Today screen display, including the background
image, tap Start
> Settings > Personal tab > Today.
1
6
15
7
8
9
2 3 4 5
16
11
10
12 13 14
1 Tap to open the Start menu.
2 Tap to view connectivity status.
3 Indicates the radio signal strength. Tap to
configure the phone settings.
4 Tap to adjust device/ringer volume.
5 Displays the current time. Tap to check the
current date and upcoming appointments. Tap and hold to change the clock mode to Analog or Digital.
6 Displays the current date. Tap to set up date,
time, alarm, and more.
7 Tap to set owner information.
8 Your day at a glance with reminders. Tap to open
the related programme: messages, tasks, and appointments.
9
Tap to lock the device. The icon changes to . Tap Unlock on the Today screen to unlock again.
10 Tap to sign in at Pocket MSN.
11 Indicates the battery status. Tap to open the
Power Settings screen.
12 Tap to toggle the screen between portrait and
landscape orientation.
13 Tap to open Comm Manager.
14 Tap to open the Backlight Settings screen.
15 Tap to open Calendar.
16 Tap to open Contacts.
26 Getting Started
Indicators
The following are some of the status icons that you may see on the device.
Icon Description
New e-mail or text messages; SMS notification of voice mail.
New multimedia (MMS) message.
New MSN message.
There are more notifications. Tap the icon to view all.
Voice call in progress.
Call on hold.
Calls are forwarded.
Missed call.
Dialing while no SIM card is inserted.
Speakerphone on.
Maximum signal strength.
No signal.
Phone is turned off.
No phone service.
Searching for phone service.
GPRS available.
GPRS connecting.
GPRS in use.
Roaming.
Connection is active.
Connection is not active.
Synchronisation in progress.
ActiveSync notification.
Synchronisation error.
Getting Started 27
Icon Description
Wi-Fi function enabled, but device not connected to a wireless network yet.
Wireless network(s) detected.
Connecting to wireless network (arrows moving); connected to wireless network.
Synchronising via Wi-Fi.
Battery is fully charged.
Battery power is very low.
Battery charging.
Sound on.
Sound off.
Vibration mode.
Alarm.
No SIM card inserted.
Device is locked.
Device is unlocked.
Bluetooth headset detected.
GPRS Monitor currently active.
Sprite Backup notification.
Serial USB connection active.
Note The USB to PC ( ) icon appears on the Today Screen when your device
is connected to your computer and you enable a serial USB connection between them. For more information about USB to PC, see “Device Settings” later in this chapter.
28 Getting Started
The Start menu
The Start menu, located at the top left corner of the Today screen, displays a list of programmes. You can start a programme by scrolling through the programmes list and then pressing ENTER, or by tapping a programme with the stylus.
1 Tap to switch to the Today screen.
2 Tap to start a programme. The items
displayed in the Start menu can be customised by tapping Start >
Settings > Personal
tab > Menus.
3 Tap to start a recently-used
programme.
4 Tap to view and select more
programmes that are installed on your device.
5 Tap to change device settings.
6 Tap to see a Help topic for the current
screen.
1
2
5
4
6
3
Getting Started 29
1.5 Using the Programmes
The following are some of the programmes that are already installed on your device.
Icon Description
ActiveSync Synchronises information between your device and a PC or
the Exchange Server.
Adobe Reader LE Enables you to view PDF (Portable Document Format) files on your device.
Audio Manager Allows you to easily browse for music files by organising music files into categories such as artists, album, etc. It has an integrated Music Player that lets you play back music files.
Bluetooth Explorer Searches for other Bluetooth devices that have file sharing enabled and allows you to access their Bluetooth shared folder.
Calculator Lets you perform basic arithmetic and calculations, such as addition, subtraction, multiplication, and division.
Calendar Allows you to keep track of your appointments and create meeting requests.
Camera Snaps photos or shoots video clips with accompanying audio.
Contacts Allows you to keep track of your friends and colleagues.
Download Agent Provides information about the download status and
the downloaded content from the Internet.
Excel Mobile Creates new workbooks or lets you view and edit Excel workbooks.
File Explorer Enables you to organise and manage files on your device.
Games Lets you play two pre-installed games: Bubble Breaker and Solitaire
.
30 Getting Started
Icon Description
Help Enables you to see Help topics for the current screen or
programme.
Internet Sharing Allows you to connect your notebook computer to the Internet using your device's data connection.
Internet Explorer Mobile Allows you to browse Web and WAP sites as well as download new programmes and files from the Internet.
Messaging Allows you to send and receive e-mail, MMS, and text messages.
MIDlet Manager Enables you to download and install Java applications, such as games and tools, on your device.
MP3Trimmer Allows you to edit a song by shortening its duration and making the file size smaller in order to use it as a device ring tone.
Notes Allows you to create handwritten or typed notes, drawings, and recordings.
Phone Lets you make and receive calls, switch between calls, and set up conference calling.
Pictures & Videos Lets you view, organise, and sort picture and video files on your device or a storage card. Captured photos are stored in the My Pictures folder, and video clips are saved in the My Videos folder of your device.
Pocket MSN
Lets you send and receive instant messages with your MSN
Messenger contacts, as well as access your Hotmail account, if you have one.
PowerPoint Mobile Lets you view PowerPoint slides and presentations.
SAPSettings Enables Bluetooth Remote SIM access on your device. This
allows you to use a car kit phone that supports the SIM Access Profile (SAP) to access the SIM card on your device via Bluetooth and make or receive phone calls. You can also download SIM contacts from your device onto the car kit phone.
Getting Started 31
Icon Description
Search Enables you to search contacts, data, and other information on
your device.
SIM Manager Allows you to manage the contacts that are stored on your SIM card. You can also use this programme to copy SIM contents to Contacts on your device.
Spb GPRS Monitor Can be installed to your device from the disc. It measures the amount of data transfers that you have made via the GPRS or GSM network connection, and calculates network usage costs.
Sprite Backup Provides you with a quick and easy way to make backups of your data.
STK (SIM Tool Kit) Service Allows you to access information and other services offered by your wireless service provider.
Tasks Allows you to keep track of your tasks.
Terminal Services Client Allows you to log on a PC running Terminal
Services or Remote Desktop, and use all of the programmes available on that PC from your mobile device.
Voice Recorder Allows you to record your voice, play it back, then send it via e-mail, MMS or beaming. You can also set the recorded voice as your device’s ring tone.
Voice Speed Dial Allows you to record voice tags so that you can dial a phone number or launch programmes simply by speaking a word.
Windows Media Player Mobile Lets you play back audio and video files.
Word Mobile Lets you create, view, and edit Word documents.
ZIP Enables you to save memory and free up storage space on your
device by compressing files in the conventional ZIP format.
32 Getting Started
1.6 Device Settings
You can adjust the device settings to suit the way you work. To see all available settings, tap Start > Settings
, then tap the Personal, System, and
Connections tabs located at the bottom of the screen.
Personal tab
Icon Description
Buttons Assigns a programme or function to a hardware button.
Input Sets options for each of the input methods.
Lock Sets a password for your device.
Menus Sets what programmes will appear in the Start menu.
MSN Options Allows you to customise settings for the applications
included in Pocket MSN such as MSN Hotmail and MSN Messenger.
Owner Information Allows you to enter your personal information on your device.
Phone Allows you to customise phone settings such as ring tone, set a PIN number for your SIM card, and more.
Sounds & Notifications Enables sounds for events, notifications, and more, and allows you to set the type of notification for different events.
Today Allows you to customise the appearance and the information to be displayed on the Today screen.
Voice Speed Dial Allows you to create voice tags for voice dialing contacts and SIM contacts as well as for launching programmes.
Getting Started 33
System tab
Icon Description
About Allows you to specify a name for your device. Also shows the
Windows Mobile version and copyright information.
Backlight Sets the backlight timeout and brightness.
Certificates Shows information about certificates that are installed on
your device.
Clear Storage Removes all your data and files from the memory and resets your device to factory default settings.
Clock & Alarms Switches the device clock to the date and time of your locale or to a visiting time zone when you're traveling. Alarms can also be set at specified days and times of a week.
Device Information Shows information about the firmware version, hardware, identity, and the duration of calls made on your device.
Error Reporting Enables or disables the device's error reporting function. When this function is enabled and a programme error occurs, technical data about the state of the programme and your computer will be logged in a text file and delivered to Microsoft's technical support if you choose to send it.
Key Lock Locks the buttons on your device except for the POWER button when the device is in Sleep mode. This ensures you will not switch the device on by accident and consume unnecessary power.
Memory Shows the device memory allocation status and memory card information. Also allows you to stop currently running programmes.
Microphone AGC Adjusts the volume of your voice automatically when you are recording.
Power Shows the current battery level. Also allows you to set the timeout for turning off the display (switching device to Sleep mode) to conserve battery power.
Regional Settings Sets the regional configuration to use, including the format for displaying numbers, currency, date, and time on your device.
34 Getting Started
Icon Description
Remove Programs Lets you remove programmes that you installed on
your device.
Screen Allows you to change the screen orientation, re-calibrate the screen, and change the screen text size.
Task Manager Allows you to configure the Exit button ( ) to end programmes and free up the memory that's occupied by them.
Connections tab
Icon Description
Beam Enables your device to receive incoming infrared and Bluetooth
beams.
Bluetooth Turns Bluetooth on, sets your device to visible mode, and allows you to scan for other Bluetooth devices.
Comm Manager Allows you to manage the device’s connection (including Wi-Fi, Bluetooth, and ActiveSync), disconnect data services (such as GPRS), turn the phone on or off, switch to ringer/vibration mode, and enable or disable the Direct Push function.
Connections Sets up one or more types of modem connections for your device, such as phone dial-up, GPRS, Bluetooth, and more, so that your device can connect to the Internet or a private local network.
CSD Line Type Sets the line type to use when making a circuit switch data (CSD) connection. Normally, you do not need to change the setting unless you encounter a problem on establishing a connection.
GPRS Setting Sets the GPRS authentication method. Consult your wireless service provider first before changing this setting.
USB to PC Sets the USB connection between your device and PC, and helps with problems connecting ActiveSync.
Wi-Fi Allows your device to scan for available wireless networks.
Wireless LAN Shows information about the active wireless network, and
allows you to customise Wi-Fi settings.
Chapter 2
Entering and Searching
Information
2.1 Entering Information
2.2 Using the On-screen Keyboard
2.3 Using Letter Recognizer
2.4 Using Block Recognizer
2.5 Using Transcriber
2
.6 Using Notes to Draw, Write and
Record Voice Notes
2.7 Searching Information
36 Entering and Searching Information
2.1 Entering Information
When you start a programme or select a field that requires text or numbers, the Input Panel icon becomes available on the menu bar.
Tap the Input Selector arrow (that appears next to the Input Panel icon) to open a menu where you can select a text input method and customise input options. After selecting a text input method, the corresponding Input Panel is then displayed and you can use it to enter text. To toggle between showing and hiding the Input Panel, simply tap the Input Panel icon.
Input Panel (Keyboard)
Input Selector arrow
Input Panel icon
Icon Input method
On-screen keyboard
Letter Recognizer or Block Recognizer
Transcriber
Note Some text input methods may not be available in certain language versions
of the device.
Entering and Searching Information 37
2.2 Using the On-screen Keyboard
The on-screen Keyboard is available when text entry is possible. You can enter text by tapping keys on the keyboard that are displayed on the screen.
To enter text using the on-screen Keyboard
1. In a programme, tap the Input Selector arrow, and tap Keyboard.
2. Enter text by tapping keys on the on-screen Keyboard.
To enlarge the on-screen Keyboard
1. Tap the Input Selector arrow, then tap Options.
2. In the Input method list, select Keyboard.
3. Tap Large keys.
2.3 Using Letter Recognizer
With Letter Recognizer, you can write individual letters, numbers, and punctuation, which are then converted into typed text.
To use Letter Recognizer
1. From a programme, tap the Input Selector arrow, and tap Letter
Recognizer.
2. Write characters, numbers, and symbols in the designated writing
area.
Enter capital letters by writing in the ABC (left) area of the box.
Enter lower case letters by writing in the abc (middle) area of the
box.
Enter numbers by writing in the 123 (right) area of the box.
Enter punctuation and symbols by tapping in either area of the
box and then writing the desired character.
Note Letter Recognizer is available when text entry is possible.
Tip
For help with writing characters, tap the question mark near the writing area.
38 Entering and Searching Information
2.4 Using Block Recognizer
With Block Recognizer, you use a single stroke to write letters, numbers, symbols, and punctuation, which are then converted into typed text.
To use Block Recognizer
1. From a programme, tap the Input Selector arrow, and tap Block
Recognizer.
2. Write characters, numbers, and symbols in the designated writing
area.
Enter letters by writing in the abc (left) area of the box.
Enter numbers by writing in the 123 (right) area of the box.
Enter symbols and punctuation by tapping in either area of the
box and then writing the desired character.
Note Block Recognizer is available when text entry is possible.
Tip
For help with writing characters with Block Recognizer, tap the question
mark near the writing area.
2.5 Using Transcriber
Transcriber is a handwriting recognition programme that allows you
to write in cursive, print, or a combination of both. Transcriber works transparently in the background of programmes, recognising words with its integrated dictionary. When Transcriber is turned on, it interprets stylus movement anywhere on the screen as handwriting input. For more information about using Transcriber, see Help on your device.
To start Transcriber
1. Start a programme that accepts user input, such as Word Mobile.
2. Tap the Input Selector arrow, and tap Transcriber. The Transcriber
introductory screen appears.
Entering and Searching Information 39
To write using Transcriber
1. In a programme, position the cursor where you want text to appear.
2. Use the stylus to write anywhere on the screen. The handwriting will
be converted to text shortly after you lift the stylus from the screen.
To enter punctuation and symbols
Transcriber comes with an on-screen keyboard that provides an easy way to add punctuation or a special symbol to existing text.
From a programme, tap on the Transcriber toolbar.
The keyboard remains visible until you tap the button again.
Tips To reposition the keyboard, tap and hold the title bar, then drag to the
desired location.
When no text is selected, you can also open the keyboard by doing the
gesture. For more information about using Transcriber gestures, see Help on your device.
To edit text
1. In a programme, draw a line across the text you want to edit.
2. After you lift the stylus from the screen, the line will disappear and the
selected text will be highlighted.
3. Do either of the following:
Rewrite the text.
Use gestures to capitalise letters, insert a space, and so on. For
information about using Transcriber gestures, see Help on your device.
40 Entering and Searching Information
2
.6 Using Notes to Draw, Write and Record Voice Notes
Using Notes, you can draw directly on the screen, or write on the screen and save notes in your own handwriting. You can also create a stand-alone recording (voice note) or you can add a recording to a note.
For more information on what you can do with Notes, please see “Notes” in Chapter 7.
2.7 Searching Information
You can search for files and other items stored in My Documents folder or on an installed storage card of your device. You can search by file name or by words located in the item. For example, you can search in e-mail messages, notes, appointments, contacts, and tasks, as well as in online Help.
To search for a file or an item
1. Tap Start > Programs > Search.
2. In the Search for field, you can:
Enter the file name, word, or other information you want to search
for.
Tap the down arrow icon ( ), and from the list, select one item
that you have looked for before.
3. In the Type field, you can tap the down arrow icon ( ) and select a
data type from the list to help narrow your search.
4. Tap Search. The system then starts searching the matched files in the
My Documents folder and subfolders.
5. In the Results list, tap the item you want to open.
Note The storage card symbol is displayed next to the names of files saved on
a storage card.
Chapter 3
Using Phone Features
3.1 Using the Phone
3.2 Making a Call
3.3 Receiving a Call
3.4 Smart Dialing
3.5 In-call Options
3.6 Additional Dialing Information
3.7 Setting Up Bluetooth SIM Access for Car Kit Phones
42 Using Phone Features
3.1 Using the Phone
Like a standard mobile phone, you can use your device to make, receive, and keep track of calls and send SMS/MMS messages. You can also dial directly from Contacts, and easily copy phonebook entries from your SIM card to Contacts on your device.
The Phone screen
From the Phone screen, you can access Call History, Speed Dial, and Phone settings. To open the Phone screen, do one of the following:
Tap Start > Phone.
Press the TALK button (
).
TALK button
Enter your PIN
Most SIM cards are preset with a PIN (personal identification number) that is provided by your wireless service provider.
1. Enter the preset PIN assigned by your wireless service provider.
2. Tap Enter.
Note If your PIN is entered incorrectly three times, the SIM card will be blocked. If
this happens, you can unblock it with the PUK (PIN Unblocking Key) obtained from your wireless service provider.
Using Phone Features 43
Turn the phone function on and off
In many countries, you are required by law to turn off your phone while on board an aircraft.
To turn off the phone function
Tap the Comm Manager icon ( ) on the Today screen, then do one of the following:
On the Comm Manager screen, tap the Phone button to turn off the
phone function. The
icon indicates the phone function is
turned off.
To resume call function, turn on the phone function by t
apping the Phone button again on the Comm Manager screen. The icon indicates the phone function is turned on.
On the Comm Manager screen, tap the Flight Mode button to
turn on flight mode. This disables all wireless radios on your device, including the phone function, Bluetooth and Wi-Fi. The
icon
indicates that flight mode is turned on.
To resume call function, t
ap the Flight Mode button again on the Comm Manager screen. This restores the previous states of the phone function and Bluetooth. The
icon indicates the flight mode is
turned off.
Adjust the device volume
1. Tap the Speaker icon ( ).
2. Under Volume, do the following:
Adjust the phone volume (
) or
device volume (
) by moving the
slider to the desired volume level.
Tap On, Vibrate, or Off to change both
the system and ringer volume settings.
Volume adjustment
44 Using Phone Features
Notes To adjust the conversation phone volume, you must do it during a call.
Adjusting the volume at another time will affect the ring, notification, and MP3 sound levels.
• When you activate Vibrate mode, sound will automatically be muted and
your device will vibrate when an incoming call is received. The Vibrate icon (
) will appear in the title bar to indicate that Vibrate mode is
activated.
3.2 Making a Call
With your device, you can make a call from Phone, Contacts, Speed Dial, Call History
, and SIM Manager.
Make a call from Phone
1. Tap Start > Phone or press the TALK button (
).
2. On the Phone screen, tap the desired phone number, then tap Talk.
Talk button
Tip If you tap a wrong number, tap the Back arrow (
) to erase each subsequent digit of a number. To erase the entire number, tap and hold the Back arrow.
Using Phone Features 45
Make a call from Contacts
Tap Contacts on the Today screen or tap Start > Contacts, then do one of the following:
Press NAVIGATION up or down to select a contact, and press TALK.
Tap the desired contact in the contacts list, and tap the phone
number that you want to call.
Tap and hold the desired contact, and on the shortcut menu, tap Call
Work, Call Home, or Call Mobile.
To choose one of the numbers of a contact to dial
By default, the mobile phone number (m) of a contact is dialed when you make a call from Contacts. However, you can specify that a different phone number is dialed instead.
1. Tap Contacts on the Today screen or tap Start > Contacts.
2. Press NAVIGATION up or down to select the contact.
3. Press NAVIGATION left or right. The letters representing the number
will change as you scroll through them.
Make a call from Call History
1. On the Phone screen, tap Call History.
2. You can either scroll through all calls in Call History, or tap Menu >
Filter and select from a category of call types.
3. Scroll to the desired contact or phone number, and tap Call.
Make a call from Speed Dial
Use Speed Dial to call frequently-used numbers with a single tap. For example, if you assign a contact to the location 2 in Speed Dial, you can
simply tap and hold on the Phone screen to dial the contact’s number. Before you can create a Speed Dial entry, the number must already exist in Contacts.
46 Using Phone Features
To create a Speed Dial entry
1. On the Phone screen, tap Speed Dial.
2. Tap Menu > New.
3. Tap a contact. Select the phone number that you want to add to
Speed Dial.
4. In the Location box, select an available location for the new Speed
Dial entry.
Note Location 1 is generally reserved for your voice mail, and Speed Dial will
designate the next available location by default. If you want to place a phone number in a position that is already occupied, the new number will replace the number that is already there.
Tips
To create a Speed Dial entry from Contacts, tap and hold the contact
name, tap Add to Speed Dial, then select the phone number for which to create a Speed Dial and an available location for the new Speed Dial entry.
• To delete a Speed Dial entry, in the Speed Dial list, tap and hold the
desired entry, and tap Delete
.
Make a call from SIM Manager
SIM Manager allows you to view the contents of your SIM card, transfer SIM
phonebook entries to Contacts on your device, and make a call from your SIM card.
To call a SIM contact
1. Tap Start > Programs > SIM Manager. Wait for your SIM card
contents to load.
2. Tap and hold the name or phone number of the person you want to
call, and tap Call.
Using Phone Features 47
3.3 Receiving a Call
When you receive a phone call, a message will appear, giving you the option to either answer or ignore the incoming call.
To answer or reject an incoming call
To answer the call, tap Answer, or press TALK on the device.
To reject the call, tap Ignore, or press END on the device.
To end a call
Once an incoming or outgoing call is in progress, you can tap End or press END on the device to hang up.
3.4 Smart Dialing
Smart Dialing is a programme that makes it easy for you to dial a phone
number. When you start entering numbers or characters, Smart Dialing will automatically search and sort the contact entries on the SIM card, in Contacts, and the phone numbers in Call History (including incoming, outgoing, and missed calls). You can then select the desired number or contact from the filtered list to dial.
Start Smart Dialing
Open the Phone screen, then tap the keys on the Phone keypad that correspond to the phone number or contact you want to call.
When you start entering a number or letter, the Smart Dialing panel will appear automatically on the Phone screen. You can change the panel size according to
your needs by tapping the arrow icon
.
Smart Dialing panel
48 Using Phone Features
Tips on using Smart Dialing
Smart Dialing starts looking for numbers or contacts that match the sequence you have entered. Below are some tips on how to use Smart Dialing to quickly find a desired phone number or contact.
To find a phone number
Simply enter the first one or two digits to find a phone number in Call
History.
Enter the first three digits or more if you want to find a phone number
from the saved contacts on your device and SIM card.
To find a contact name
You can just enter the first letter of a contact’s first name or surname. Smart Dialing will search for the letter starting from the first character of a contact name as well as from the character that appears after a space, dash, or underscore in a contact name. For example, if you tap number “2” which is associated with [a, b, c] on the Phone keypad, contact names such as the following will be considered matches: “Ben Miller”, “George Adams”, “John­Carter”, “Carter, Ellen”, “Dixon, Allan”, “Thomas_Clark”, “JaneCampbell”.
If the matching list is long and you want to narrow down the search further, enter another letter. Using the same example above, if you continue to tap “3” which is associated with [d, e, f], the matching list will be narrowed down to the following names: “
Ben Miller”, “George Adams”, “Carter, Ellen”,
Dixon, Allan”.
Make a call or send a text message using Smart Dialing
1. Begin entering the first few numbers or characters.
2. In the Smart Dialing panel, browse the list by tapping the arrows
( / ) or pressing NAVIGATION up or down to select the desired contact or phone number. When a contact is selected, it expands to also show the corresponding phone number.
3. The highlighted item will move one line when you press NAVIGATION
up or down; the highlighted item will scroll one page when you tap the arrows.
Using Phone Features 49
4. Do one of the following:
When the correct contact is selected, tap Talk or press the TALK
button (
) to make a voice call.
To send a text message to the selected contact, tap and hold the
contact, and tap Send Text Message
.
To call a different phone number associated with the selected
contact, tap and hold the selected contact, and tap the phone number you want to call.
Tap and hold the contact to pop up the shortcut menu.
Tip
To view or edit information associated with the selected contact, tap the contact’s name on the shortcut menu (applies only to entries stored in Contacts on your device).
Set up Smart Dialing
1. On the Phone screen, tap Menu > Smart Dialing Options.
2. On the Options tab, select the Enable Smart Dialing check box.
Select the Automatically expand selected contact check box to
enable a contact’s name and phone number to be displayed when the contact is selected in the matching list.
Select the Enable drag-scroll check box to scroll in the matched
list by dragging.
50 Using Phone Features
Select the Enable double-click for dialing check box to make a
voice call by double-tapping the item in the matched list.
In Scroll unit, you can set the amount of scrolling when tapping
the arrows (
/ ).
3.5 In-call Options
To put a call on hold
Your device notifies you when you have another incoming call, and gives you the choice of rejecting or accepting the call. If you are already on a call and accept the new call, you can choose to switch between the two callers, or set up a conference call between all three parties.
1. Tap Answer to take the second call, and put the first one on hold.
2. To end the second call and return to the first call, tap End or press
END on the device.
To switch between two calls
Tap Swap.
To set up a conference call
1. Either put a call on hold, and dial a second number; or, accept a
second incoming call when you already have one in progress.
2. Tap Conference.
Note Not all service providers support conference calling. Contact your service
provider for details.
To turn on and off the Speakerphone
The built-in Speakerphone on your device allows you to talk hands-free or lets other people listen to the conversation.
During a call, tap Speaker On, or press and hold TALK until the
speakerphone turns on. The speakerphone icon (
) appears in the
title bar.
To turn off the speakerphone, tap Speaker Off, or press and hold
TALK again until the speakerphone turns off.
Using Phone Features 51
Warning! To avoid damage to your hearing, do not hold your device against your ear
when the Speakerphone is turned on.
To mute a call
You can turn off the microphone during a call, so that you can hear the caller but the caller cannot hear you.
During a call, tap Mute.
When the microphone is turned off, the mute icon (
) appears on
the screen. Tap Unmute to turn on the microphone again.
3.6 Additional Dialing Information
Make an emergency call
Enter the international emergency number for your locale, and tap
Talk.
Tip Additional emergency numbers may be included in your SIM card. Contact
your service provider for details.
Make an international call
1. Tap and hold on the Phone keypad until the + sign appears. The
+ replaces the international prefix of the country that you are calling.
2. Enter the full phone number you want to dial, and tap Talk. The full
phone number includes country code, area code (without the leading zero, if any) and phone number.
52 Using Phone Features
3.7 Setting Up Bluetooth SIM Access for Car Kit Phones
Car kit phones that support the SIM Access Profile (SAP) can connect to your device and access its SIM card via Bluetooth. Once a SAP connection has been established, you can download SIM contacts from your device to the car kit phone. You can also use the car kit phone to answer and make calls using your device’s SIM card.
Notes To enable downloading contacts onto the car kit, ensure that all contacts
on the device are stored in the SIM card and not in the device memory. Configure the car kit to download contacts only from the SIM card.
• Contact your wireless service provider to find out which car kit phone
models are compatible with your device.
1. On your device, make sure that Bluetooth is turned on and set to
visible mode. For information about turning on Bluetooth and enabling visible mode, see “Bluetooth modes” in Chapter 6.
2. Tap Start > Programs > SAPSettings.
3. On the BT Remote SIM Access screen, select the Remote SIM Access
check box then tap
Done.
4. Connect the car kit phone to your device via Bluetooth. To learn how
to connect, consult your car kit phone’s manual.
5. If this is the first time you are pairing the car kit phone with your
device, enter the car kit’s passcode on your device.
6. A pop-up message should appear on your device saying that a
connection has been established between your device and car kit phone. Tap
OK.
7. On the BT Remote SIM Access screen, tap Done.
Note You will not be able to make/receive calls, send/receive messages or perform
related activities on your device when the SIM Access Profile connection is active. You’ll be able to do all these from the car kit phone during this time. After the connection is disconnected, you will be able to use your device as before.
Chapter 4
Synchronising Information
4.1 About Synchronisation
4.2 Using Microsoft Windows Mobile®
Device Centre
4.3 Installing and Using Microsoft ActiveSync
®
4.4 Synchronising with Your Computer
4.5 Synchronising with Exchange Server
4.6 Synchronising via Infrared and Bluetooth
4.7 Synchronising Music and Video
54 Synchronising Information
4.1 About Synchronisation
You can take information from your computer wherever you go by synchronising them to your device. The following types of information can be synchronised between your computer and your device:
Microsoft Outlook® information, which include Outlook e-mail,
contacts, calendar, tasks, and notes
Media, such as pictures, music and video
Favourites,
which are the bookmarked links to your favourite web sites
Files, such as documents and other files
Before you can synchronise, you need to install first the synchronisation software to your computer. For more information, see “Using Microsoft Windows Mobile Device Centre” if you are using Windows Vista™, or see “Installing and Using ActiveSync” if you are using Windows XP
®
.
Ways to synchronise
After you have installed the synchronisation software to your computer, connect and synchronise your device with your computer by using one of the following methods:
Connect and synchronise using the supplied USB sync cable.
Upon connecting the sync cable to your device and your computer, the synchronisation process starts automatically.
Connect and synchronise using Bluetooth.
You must first set up a Bluetooth partnership between your device and your computer before you can synchronise information through Bluetooth. For more information about setting up a Bluetooth partnership, see Chapter 6. For information about synchronising through Bluetooth, see “Synchronising via Infrared and Bluetooth” later in this chapter.
Try to synchronise frequently in order to keep information up-to-date in both your device and your computer.
Note You can also synchronise Outlook e-mail, contacts, calendar, and tasks on
your device with the Exchange Server at your work. For more information about setting up your device to synchronise with the Exchange Server, see “Synchronising with Exchange Server” later in this chapter.
Synchronising Information 55
4.2
Using Microsoft Windows Mobile® Device Centre
Microsoft Windows Mobile® Device Centre is the replacement for Microsoft® ActiveSync
®
on Windows Vista™.
Set up synchronisation
When you connect your device to your PC and start Windows Mobile Device Centre for the first time, you are asked to create a Windows Mobile partnership with your device. Follow the steps below to create a partnership.
1. Connect your device to your PC. Windows Mobile Device Centre
configures itself and then opens.
2. On the licence agreement screen, click Accept.
3. On the Windows Mobile Device Centre’s Home screen, click Set up
your device
.
Note Choose Connect without setting up your device if you only want to
transfer media files, check for updates, and explore your device but not sync Outlook information.
56 Synchronising Information
4. Select the information types that you want to synchronise then click
Next
.
5. Enter a device name and click Set Up.
When you finish the setup wizard, Windows Mobile Device Centre synchronises your device automatically. Notice that Outlook e-mails and other information will appear on your device after synchronisation.
Synchronising Information 57
Use Windows Mobile Device Centre
To start using Windows Mobile Device Centre, click Start > All Programs > Windows Mobile Device Centre
.
Importing photos and other media from your device to your PC is fast and easy. When you click Import pictures/video from your device
on the Home screen, a wizard guides you to tag and transfer photos from your device to the Photo Gallery on your Windows Vista PC.
Click Add media to your device to synchronise music and video files using Windows Media™ Player. For more information, see “Using Windows Media Player Mobile” in Chapter 8.
You can also open and view documents stored on your device directly from Windows Mobile Device Centre.
Note See Windows Mobile Device Centre Help for more information.
58 Synchronising Information
4.3 Installing and Using Microsoft ActiveSync
®
Follow the steps below to install and set up ActiveSync 4.x on Windows XP or other compatible Windows systems.
Note For a list of compatible Windows systems, please go to http://www.microsoft.
com/windowsmobile/activesync/activesync45.mspx
.
Install ActiveSync
1. Insert the Getting Started Disc into the disc drive on your PC.
2. ActiveSync is available in English and several other languages. Select
the desired language then click Next
.
3. Click Setup and Installation.
4. Select the ActiveSync check box and click Install.
5. Read the licence terms and click Accept.
6. When installation is complete, click Done.
7. On the Getting Started with Windows Mobile screen, click Close.
Set up synchronisation
Follow the steps below to set up a synchronisation partnership.
1. Connect your device to your PC. The Synchronisation Setup Wizard
automatically starts and guides you to create a synchronisation partnership. Click Next to proceed.
2. To synchronise your device with your PC, clear the Synchronise
directly with a server running Microsoft Exchange
check box then
click Next.
3. Select the information types that you want to synchronise then click
Next
.
4. Select or clear the Allow wireless data connections (such as MMS
or Internet Calling) on your device while it is connected to your computer check box according to your preference.
5. Click Finish.
When you finish the wizard, ActiveSync synchronises your device automatically. Notice that Outlook e-mails and other information will appear on your device after synchronisation.
Synchronising Information 59
4.4 Synchronising with Your Computer
Connect your device to the PC using the USB cable, infrared, or Bluetooth connection. Windows Mobile Device Centre or ActiveSync then opens and lets you synchronise.
Tip If you are synchronising directly with Exchange Server, you can use
this connection to the PC to "pass through" to the network, or you can synchronise without connecting to the PC over a cellular network. For more information on synchronising with the Exchange Server, see “Synchronising with Exchange Server” later in this chapter.
Start and stop synchronisation
You can manually synchronise either from your device or PC.
From your device
1. Tap Start > Programs > ActiveSync.
2. Tap Sync.
To end synchronisation before it completes, tap Stop
.
From Windows Mobile Device Centre
1. Tap Start > Windows Mobile Device Centre.
2. Tap at the lower left of the Windows Mobile Device Centre.
To end synchronisation before it completes, tap .
From ActiveSync on your PC
When you connect your device to your PC, ActiveSync automatically opens on your PC and synchronises.
To manually start synchronisation, tap .
To end synchronisation before it completes, tap .
Change which information is synchronised
You can change the information types and the amount of information to synchronise for each type either from your device or your PC. Follow the steps below to change synchronisation settings from your device.
Note Before changing synchronisation settings on your device, disconnect it from
your PC.
60 Synchronising Information
1. In ActiveSync on your device, tap Menu > Options.
2. Select the check box for any items you want to synchronise. If you
cannot select a check box, you might have to clear the check box for the same information type elsewhere in the list.
3. To change synchronisation settings for an information type, for
instance,
E-mail, select it and tap Settings. You can then set the download size limit, specify the time period of information to download, and more.
Note Some information types such as Favourites, Files and Media cannot be
selected in ActiveSync Options on your device. You can only select or clear these items from your PC’s Windows Mobile Device Centre or ActiveSync.
Synchronise with more than one computer
If you have set up a synchronisation partnership between your device and the PC, synchronisation keeps Outlook information up-to-date on both your device and PC.
A PC can have sync partnerships with many different Windows Mobile powered devices, but a device can have sync partnerships with at most two PCs only. To ensure that your device will synchronise properly with both PCs, set up the second PC using the same synchronisation settings you used on the first PC.
Notes • Outlook e-mail can be synchronised with only one computer.
To stop synchronising with one PC completely, tap Menu > Options, tap the computer name, then tap Delete.
Sync connection problem
The desktop Microsoft ActiveSync 4.x and later versions utilise a network type of connection with Windows Mobile powered devices, since this allows faster data transfer than a serial USB connection. When the PC is connected to the Internet or a local network, in some cases, the PC may disconnect
the
connection with your device in favour of the Internet or network connection
.
If this happens, tap Start > Settings > Connections
tab > USB to PC, then clear the Enable advanced network functionality check box. This makes your PC utilise a serial USB connection with your device.
The USB to PC
( ) icon appears on the Today Screen when serial USB
connection is used.
Synchronising Information 61
4.5 Synchronising with Exchange Server
You can set up synchronisation with Exchange Server on your device, if it is available to you through your company or wireless service provider. However, you should first gather information, such as Exchange Server name, domain name, your user name, and password, and then carry on with the steps. (For information about how to check the Exchange server name and domain on your PC, see “Installing and Using Microsoft ActiveSync.”)
Note Before changing synchronisation settings on your device, disconnect it from
your PC.
To synchronise directly with Exchange Server
1. Do one of the following:
Tap Start > Messaging, then tap Menu > Tools > New Account.
On the E-mail Setup screen, select Outlook E-mail in the Your e-mail provider list, then tap Next.
In ActiveSync on your device, tap
Menu > Configure Server. If
you have not yet set up synchronisation with Exchange Server, this appears as Add Server Source.
2. In Server address, enter the name of the server running Exchange
Server, and tap Next
.
3. Enter your user name, password, and domain, and tap Next.
To change the rules for resolving synchronisation conflicts, tap
Advanced
.
4. Select the check boxes for the types of information items that you
want to synchronise with Exchange Server.
5. To change available synchronisation settings, select the type of
information, and tap Settings.
6. Tap Finish.
Schedule synchronisation with Exchange Server
You can schedule information to be synchronised automatically between your device and the Exchange Server, or schedule synchronisation at regular time intervals. Choose between these two methods, depending on your e-mail volume and which method you think is more cost-effective.
62 Synchronising Information
To receive e-mails and synchronise other information instantly
Direct Push technology (push e-mail feature) enables you to receive new
e-mails on your device as soon as they arrive in your Inbox on the Exchange Server. With this feature, items such as contacts, calendar and tasks are also immediately updated onto your device when these items have been changed or new entries have been added on the Exchange Server. To make Direct Push work, you need to have a GPRS connection on your device.
The Direct Push feature works for your device only if it is connected to a private network (corporate network) that is using Microsoft Exchange Server Service Pack 2 (SP2) with Exchange ActiveSync. You need to perform a full synchronisation between your device and the Exchange Server first before Direct Push can be enabled.
• Using ActiveSync to enable Direct Push
1. In ActiveSync on your device, tap Menu > Schedule.
2. Select As items arrive in the Peak times and Off-peak times boxes.
• Using Comm Manager to enable Direct Push
1. On the Today screen, tap the Comm Manager icon ( ).
2. On the Comm Manager screen, tap the Microsoft Direct Push
button. The button
will turn to , which indicates that
you will receive e-mails as they arrive.
When the button is in the state, you need to manually
retrieve your e-mails.
Synchronising Information 63
Note When both the GPRS and Wi-Fi connections are turned on at the same time,
the Direct Push feature will always opt for GPRS, for which you could be charged per your network operator’s service plan.
To schedule synchronisation at regular time intervals
You can set how often to synchronise during Peak times (which usually refer to your working hours) when e-mail volume is high, as well as Off-
peak times when e-mail volume is low.
1. In ActiveSync on your device, tap Menu > Schedule.
2. Select a shorter time interval in the Peak times box for you to be able
to receive e-mails more frequently.
3. Select a longer interval in the Off-peak times box.
Tip To set the days and hours that make up your peak and off-peak times, tap
Adjust peak times to fit your schedule
.
4.6 Synchronising via Infrared and Bluetooth
You can connect your device to the PC to synchronise using wireless technologies such as infrared (IR) and Bluetooth.
To synchronise with a computer via infrared
1. Follow the instructions in Windows Mobile Device Centre Help or
ActiveSync Help on the computer for setting up your computer to receive infrared beams.
2. Line up the infrared (IR) ports of your device and your computer so
that they are unobstructed and within close range.
3. On your device, tap Start > Programs > ActiveSync.
4. Tap Menu > Connect via IR.
To synchronise with a computer via Bluetooth
1. Follow the instructions in Windows Mobile Device Centre Help
or ActiveSync Help on the computer for setting up a Bluetooth connection on your computer.
2. On your device, tap Start > Programs > ActiveSync.
64 Synchronising Information
3. Tap Menu > Connect via Bluetooth. Make sure the Bluetooth
function of both your device and the computer are turned on and set to visible mode.
4. If this is the first time you have connected to this computer via
Bluetooth, you must first complete the Bluetooth wizard on your device and set up a Bluetooth partnership between your device and the computer. For more information about creating a Bluetooth partnership, see “Bluetooth partnerships” in Chapter 6.
Notes • To preserve battery power, turn off Bluetooth when not in use.
To connect and synchronise your device with a computer via Bluetooth,
your computer must have built-in Bluetooth or installed with a Bluetooth adapter or dongle
.
4.7 Synchronising Music and Video
If you want to carry your music or other digital media along with you while you travel, set up Microsoft Windows Media Player on your computer to synchronise music and video with your device.
Other than selecting the Media information type to be synchronised, all media synchronisation settings must be set in Windows Media Player. Before media can be synchronised, you must do the following:
Install Windows Media Player Version 11 on the PC. (Windows Media
Player 11 works only in Windows XP or later versions).
Connect your device to the PC with a USB cable. If your device is
currently connected using Bluetooth or infrared, you must end that connection before media can be synchronised.
Set up a sync partnership between your device and your PC’s
Windows Media Player.
For more information about Windows Media Player on your device, see “Using Windows Media Player Mobile” in Chapter 8.
Chapter 5
Managing Your Pocket PC Phone
5.1 Personalising Your Pocket PC Phone
5.2 Adding and Removing Programmes
5.3 Managing Memory
5.4 Copying and Managing Files
5.5 Backing Up Data
5.6 Protecting Your Pocket PC Phone
5.7 Resetting Your Pocket PC Phone
66 Managing Your Pocket PC Phone
5.1 Personalising Your Pocket PC Phone
Customise the Today screen
The Today screen shows your upcoming appointments, active tasks, and information about incoming messages. You can customise the Today screen on your device.
To customise the Today screen
1. Tap Start > Settings > Personal tab > Today.
2. On the Appearance tab, select the desired theme for the background
of the Today screen.
3. On the Items tab, select the items you want to appear on the Today
screen.
Tip To change the order of items displayed on the Today screen, tap the item,
and tap Move Up or Move Down.
To add a custom background image
You can use one of your own pictures as the background image on the Today screen. Be aware that pictures can affect the readability of text on the Today screen.
1. Tap Start > Settings > Personal tab > Today.
2. Select the Use this picture as the background check box, and tap
Browse to view a list of your picture files.
3. Tap the file name of the picture you want to use.
4. Tap OK.
To set options for displaying appointments on the Today screen
If you have a large number of appointments, you may want to specify the kind of appointments that are displayed on the Today screen.
1. Tap Start > Settings > Personal tab > Today.
2. Tap the Items tab.
3. Select Calendar and tap Options.
Managing Your Pocket PC Phone 67
4. Do any of the following:
Select Next appointment to show only the next appointment
in your schedule, or Upcoming appointments to show multiple appointments.
Clear the Display all day events check box if you do not want to
display all-day events.
To set options for displaying tasks on the Today screen
If you have a large number of tasks, you may want to specify the kind of tasks that are displayed on the Today screen.
1. Tap Start > Settings > Personal tab > Today.
2. Tap the Items tab.
3. Select Tasks and tap Options.
4. Do any of the following:
Under Display number of, select the type of tasks you want to
appear on the Today screen.
In the Category list, select whether to display only tasks assigned
to a specific category or to display all tasks.
Customise the Start menu
You can choose which items appear in the Start menu.
1. Tap Start > Settings > Personal tab > Menus.
2. Select the check boxes of the items you want to appear in the Start
menu. You can select up to seven items.
Tip You can also create folders and shortcuts to appear on the Start menu. In
ActiveSync on your PC, click Explore. In the Mobile Device window, double­click My Windows Mobile-Based Device > Windows > Start Menu, then create the folders and shortcuts that you want. You will see the added items after you synchronise.
68 Managing Your Pocket PC Phone
Why is the device name important?
The device name is used to identify the device in the following situations:
Synchronising with a PC
Connecting to a network
Restoring information from a backup
Note If you synchronise multiple devices with the same PC, each device must have
a unique name.
To change the device name
1. Tap Start > Settings > System tab > About.
2. Tap the Device ID tab.
3. Enter a name.
Note The device name must begin with a letter, consist of letters from A to
Z, numbers from 0 to 9, and cannot contain spaces. Use the underscore
character to separate words.
Set Date / Time / Regional Options
You can set up the correct date, time, and regional settings according to your use.
To set the time and date
1. Tap Start > Settings > System tab > Clock & Alarms > Time tab.
2. Select the correct time zone and change the date or time.
Note During synchronisation, the time on your device is updated with the time on
your PC.
To set an alarm
1. Tap Start > Settings > System tab > Clock & Alarms > Alarms tab.
2. Tap <Description> and enter a name for the alarm.
3. Tap the day of the week for the alarm. You can select multiple days by
tapping each desired day.
4. Tap the time to open a clock and set the time for the alarm.
Managing Your Pocket PC Phone 69
5. Tap the alarm icon ( ) to specify the type of alarm you want. You
can choose a flashing light, a single sound, a repeating sound, or vibration.
6. If you choose to play a sound, tap the list next to the Play sound
check box and tap the sound you want.
To set the time and date for a different location
If you visit or communicate with someone in a particular time zone often, you can select it as your visiting time zone.
1. Tap Start > Settings > System tab > Clock & Alarms > Time tab.
2. Tap Visiting.
3. Select the correct time zone and change the time or date.
To change regional settings
The style in which numbers, currency, dates, and times are displayed is specified in regional settings.
1. Tap Start > Settings > System tab > Regional Settings.
2. On the Region tab, select your region from the list.
Note This does not change the Operating System language of your device.
3. The region you select determines which options will be available on
the other tabs.
4. To customise settings further, tap the appropriate tabs and select the
desired options.
Personal and system settings
To reassign programmes or shortcuts to programme buttons
Your device may come with programmes already assigned to hardware buttons. You can customise these buttons to open the programmes you use most, or to perform certain shortcuts such as changing the screen orientation, opening the Today screen, or opening Input Panel.
1. Tap Start > Settings > Personal tab > Buttons.
2. A list of buttons and their current assignments are displayed on the
Program Buttons tab.
70 Managing Your Pocket PC Phone
3. Tap the button you want to reassign. To help you identify the buttons,
there are numbers and icons representing the original function of the button.
4. In the Assign a program box, tap the programme or shortcut you
want to assign.
5. Tap OK.
To increase or decrease the size of text on the screen
1. Tap Start > Settings > System tab > Screen > Text Size tab.
2. Move the slider to increase or decrease the text size.
To choose how to be notified about events or actions
1. Tap Start > Settings > Personal tab > Sounds & Notifications.
2. On the Sounds tab, choose how you want to be notified by selecting
the appropriate check boxes.
3. On the Notifications tab, in Event, tap an event name and choose
how you want to be notified by selecting the appropriate check boxes. You can choose from several options, such as a special sound, a message, or a flashing light.
Tip Turning off sounds and the flashing light helps conserve battery power.
To find the operating system version number
Tap Start > Settings > System tab > About.
The version of the operating system on your device is shown near the top of the About screen.
To get detailed device information
Tap Start > Settings > System tab > About.
The
Version tab displays important device information, including the type
of processor and the amount of memory that is installed.
Managing Your Pocket PC Phone 71
To make the battery last longer
Tap the battery icon ( ) on the Today screen. On the Advanced
tab of the Power settings screen, you can specify when your device turns off the display to conserve battery power. For optimum conservation, specify 3 minutes or less.
Use the AC adapter to plug your device into external power whenever
possible, especially when using an SD card or when using a modem or other peripherals.
Adjust the backlight settings.
To adjust the brightness of the backlight
1. Tap the battery icon ( ) on the Today screen.
2. On the Power settings screen, tap Menu > Backlight.
3. On the Brightness tab, move the slider right to increase the
brightness, or left to decrease the brightness.
To set the backlight to dim after a time delay
1. Tap the battery icon ( ) on the Today screen.
2. On the Power settings screen, tap Menu > Backlight.
3. Tap the Battery power tab, or the External power tab.
4. Select the Turn off backlight if device is not used for check box, and
specify the time delay.
To configure the button using Task Manager
You can configure the button to shut down running programmes and free up the memory space that’s occupied by them.
1. Tap Start > Settings > System tab > Task Manager.
2. On the Button tab, select the Enable the “X” button to end running
programs check box.
3. Choose the action for shutting down programmes (by tapping the
button, tapping and holding the button, or both).
4. Tap OK.
Note When the Enable the “X” button to end running programs check box is
not selected, tapping the “X” button will only close a programme screen. The programme is not ended and continues to run in the background.
72 Managing Your Pocket PC Phone
Phone settings
You can customise phone settings, such as the ring type and ring tone to be used for incoming calls, and the keypad tone to be used when entering phone numbers. Open the Phone programme to customise these settings.
To change the ring tone
1. On the Phone screen, tap Menu > Options > Phone tab.
2. In the Ring tone list, tap the sound you want to use.
Tip To use custom *.wav, *.mid, *.mp3, or *.wma files as ring tones, use
ActiveSync on your PC to copy the files to the /Windows/Rings folder on your device. Next, select the sound from the Ring tone list. For more information about copying files to your device, see ActiveSync Help on your PC.
To change the ring type
You can change the way that you are notified of incoming calls. For example, you can choose to be notified by a ring, a vibration, or a combination of both.
1. On the Phone screen, tap Menu > Options > Phone tab.
2. In the Ring type list, tap the desired option.
To change the keypad tone
You can change the tone you hear when entering a phone number on the keypad. If set to Long tones, the tone is heard continuously for as long as the number on the keypad is pressed. Use this setting if you are having trouble accomplishing tasks that rely on tones from your phone such as accessing messages from an answering machine. If set to Short tones, the tone is heard only for one or two seconds. If set to Off, no tone will be heard.
1. From the Phone keypad, tap Menu > Options > Phone tab.
2. In the Keypad list, tap the option you want.
Phone services
Phone services, such as Call Waiting, enable you to choose how to handle all incoming calls on your device.
To choose the services
1. Tap Start > Settings > Personal tab > Phone > Services tab.
2. Select the service you want to use, then tap Get Settings.
Managing Your Pocket PC Phone 73
Networks
You can view available mobile phone networks, determine the order in which your device accesses another network if the current one is unavailable, and specify whether you want to change networks manually or automatically. For more information about network settings, see Help on your device.
To change phone network settings
1. Tap Start > Settings > Personal tab > Phone > Network tab.
2. By default, your device displays the current network as offered
by your service provider. You can customise to set your preferred network.
To set preferred networks
1. Tap Start > Settings > Personal tab > Phone > Network tab. By
default, the Network
selection field is set to Automatic. However, you can set it to Manual to choose your own network at any point of time.
2. Tap Set Networks.
3. Select the networks on the Phone: Preferred networks screen and
sort them according to your preference.
4. Tap OK.
5.2 Adding and Removing Programmes
Before you purchase additional programmes for your device, you should note the model name of your device, the version of Windows Mobile software running on it, and the type of processor. This information will help you select a programme that is compatible with your device. For more information, see “To get detailed device information” and “To find the operating system version number” in this chapter.
Programmes available for purchase usually include a Setup programme (commonly named "setup.exe") that you must first run on your PC. You can then use ActiveSync to add programmes to your device, or add a programme directly from the Internet.
74 Managing Your Pocket PC Phone
To add programmes
1. Download the programme to your PC (or insert the CD or disc that
contains the programme into your PC). You may see a single *.exe file, a *.zip file, a Setup.exe file, or several versions of files for different device types and processors. Be sure to select a programme designed for your device and processor type.
2. Read any installation instructions or documentation that comes
with the programme. Many programmes provide special installation instructions.
3. Connect your device to the PC.
4. Double-click the *.exe file.
If the executable file is an installation wizard, follow the
instructions on the screen. The wizard will automatically install the programme to your device.
If an installation wizard does not start, you will see an error message stating that the programme is valid but that it is designed for a different type of computer. You will need to copy this programme directly to your device. If you cannot find any installation instructions for the programme, use ActiveSync to copy the programme file to the Program Files folder on your device
.
To remove programmes
You can only remove programmes that you installed. Programmes that come with your device cannot be removed.
1. Tap Start > Settings > System tab > Remove Programs.
2. In the Programs in storage memory list, select the programme you
want to remove, and tap
Remove.
3. Tap Yes. If another confirmation message appears, tap Yes again.
Managing Your Pocket PC Phone 75
5.3 Managing Memory
You may need to stop a programme if it becomes unstable or the programme memory is low.
To see how much memory is available
Tap Start > Settings > System tab > Memory.
On the Main tab, the amount of memory allocated to file and data
storage versus programme storage is displayed, as well as the amount of memory in use versus the available memory.
To see available storage card memory
You can see how much memory is available on a storage card that is inserted in your device.
1. Tap Start > Settings > System tab > Memory.
2. Tap the Storage Card tab.
To free up programme memory
Try the following to free memory on your device:
Close programmes you are not currently using.
Move e-mail attachments to a storage card.
Move files to a storage card. Tap Start > Programs > File Explorer.
Tap and hold the file, and tap Cut. Browse to the storage card folder and tap Menu > Edit > Paste.
Delete unnecessary files. Tap Start > Programs > File Explorer. Tap
and hold the file, and tap Delete
.
Delete large files. To find your largest files, tap Start > Programs >
Search. In the Type list, tap Larger than 64 KB, and tap Search.
In Internet Explorer Mobile, delete temporary Internet files and clear history information. For more information, see “Internet Explorer Mobile” in Chapter 6.
Remove programmes you no longer use.
Reset your device.
76 Managing Your Pocket PC Phone
To close a programme
Tapping the button in a programme may just close the programme screen. In this case, the programme continues to run in the background. You can end running programmes manually by following these steps:
1. Tap Start > Settings > System tab > Memory > Running Programs
tab.
2. In the Running Programs List, tap the programme you want to close,
and tap Stop.
Tips • In most programmes, you can also use the on-screen keyboard shortcut
Ctl+q to shut down the programme.
You can configure the button to directly shut down running programmes. For more information, see “To configure the button using Task Manager
".
5.4 Copying and Managing Files
You can copy files between your device and PC using Windows Mobile Device Centre or ActiveSync, or copy files to a storage card that is inserted on your device. You can also efficiently manage your files and folders using File Explorer.
Copy files using Windows Mobile Device Centre or ActiveSync
Using Windows Mobile Device Centre or ActiveSync, you can copy files from your PC to your device and vice versa.
To copy a file between your device and the PC
1. Connect your device to the PC.
2. Click File Management > Browse in Windows Mobile Device Centre
or click Explore in ActiveSync on your PC. This opens the Mobile Device folder for your device.
3. Browse your device for files that you want to copy to your PC.
4. To copy a file from your device to your PC:
a. In the Mobile Device folder, go to the file that you want to copy.
b. Right-click the file, then click Copy
.
c. Locate the destination folder on your PC. Right-click the folder,
then click Paste.
Managing Your Pocket PC Phone 77
5. To copy a file from your PC to your device:
a. On your PC, navigate to the folder that contains the file you want
to copy.
b.
Right-click the file, then click Copy.
c. Right-click the destination folder under Mobile Device, then click
Paste
.
Copying a file results in separate versions of a file on your device and PC. Because the files are not synchronised, changes made to one file will not affect the other. If you want file changes to be automatically updated on your device and PC, you can synchronise files between your device and PC. For more information about synchronising with a computer, see Chapter 4.
Use File Explorer
File Explorer lets you browse the contents of folders on your device. The
root folder on the device is named My Device. My Device is similar to My Computer on the PC and contains the My Documents, Program Files, Temp, Storage Card, and Windows folders, among others.
To use File Explorer
1. Tap Start > Programs > File Explorer.
2. Tap a folder or file to open it.
3. To return to an upper level folder, tap the Down arrow ( ) and select
the folder.
4. To delete, rename, or copy a file quickly, tap and hold the file then
choose the desired operation from the shortcut menu. To select multiple files, tap and drag over the desired files.
Store files to a storage card
To copy files to a storage card
1. Make sure the storage card is properly inserted into your device.
2. Tap Start > Programs > File Explorer and navigate to the
appropriate folder.
3. Tap and hold the file you want to copy, and tap Copy.
4. Tap the Down arrow ( ) then tap Storage Card from the list.
5. Tap Menu > Edit > Paste.
78 Managing Your Pocket PC Phone
To automatically save files on a storage card
In the Word Mobile, Excel Mobile, and Notes programmes, you may find it helpful to save all new documents, notes, and workbooks directly on a storage card.
1. From the programme file list, tap Menu > Options.
2. With a storage card inserted in your device, in the Save to box, select
the appropriate storage card to automatically save new files on the storage card.
3. Tap OK.
Note In the file or note list, a storage card symbol ( ) is displayed next to the
names of files saved on a storage card.
5.5 Backing Up Data
Use Sprite Backup to back up data, which includes settings, files, contacts, and all other information, to a storage card or to a designated folder on your device.
This section describes the basics on how to install Sprite Backup and use it to back up and restore data on your device. For more information about this programme, see Help on your device:
To install Sprite Backup
1. Make sure your device is connected to your computer via a USB cable.
2. Install Sprite Backup on your device from the PC using the CD or disc.
Follow the on-screen instructions on your computer to complete the installation.
3. After the installation is completed, the Setup Wizard on your
computer will set up Sprite Backup on your device. Follow the on-screen instructions to complete the setup.
To open Sprite Backup
On your device, tap Start > Programs > Sprite Backup.
Sprite Backup can operate in two different modes: Basic mode and Advanced mode. The first time you run Sprite Backup, it will be in Basic Mode. To switch
between the modes, tap Options then select the desired mode
.
Managing Your Pocket PC Phone 79
Basic mode Advanced mode
Basic mode
Basic mode is the default mode, and allows you to easily back up your entire Pocket PC with the tap of a button.
Note To change backup options or location, you will need to do it in Advanced
mode.
To back up data in Basic mode
1. On the Basic mode screen, tap Backup Now.
2. Specify a password (between 6 to 15 characters in length) for the
backup file. Enter this password twice, then tap OK.
3. Follow the on-screen instructions to complete the backup.
To restore data in Basic mode
1. On the Basic mode screen, tap Restore Now.
2. Enter the password for the backup file, then tap OK.
3. Follow the on-screen instructions to complete the restoration process.
Advanced mode
Advanced mode is designed for users with more advanced backup requirements. It provides a tree view of the data on your device from which you can select what items you want to back up or restore.
80 Managing Your Pocket PC Phone
To back up data in Advanced mode
1. Tap Options > Switch to Advanced Mode.
2. The Backup tab of the Advanced mode screen shows a tree view of
the data and files on your device. Tap the ‘+’ symbol at the left of an item to view its sub-items. Use the check boxes to select or exclude items for backup.
3. Tap Backup and follow the on-screen instructions to complete the
backup.
To restore data in Advanced mode
1. On the Advanced mode screen, tap the Restore tab.
2. If there is a most recent backup file, this file will be displayed with its
contents. Otherwise, if you want to use an older backup file, tap then select the desired file.
If the backup file is password protected, the password must be
entered before the backup file can be displayed in the tree view.
3. In the tree view, select the check boxes of items you want to be
restored.
4. Tap the Restore button and follow the on-screen instructions to
restore.
Note In both the Basic and Advanced modes, Sprite Backup soft resets your device
first before it begins the backup or restoration process. It soft resets again after the operation is completed.
Backup options
To change the backup location and file name
1. On the Advanced mode screen, tap the Backup tab.
2. Tap then enter the backup file name and choose whether to save
the file to the Storage Card
or the My Documents folder on your
device.
3. Tap OK.
To disable automatic file naming
1. Tap Options > Backup Options > General Backup Options.
2. Clear the Name Backup Files Automatically check box, then tap OK.
Managing Your Pocket PC Phone 81
3. Before you perform a backup, tap then specify a backup file name.
To schedule automatic backups
1. Tap Options > Scheduled Backup, then tap Change Scheduling.
2. Select the Enable Scheduled Backup check box, and set the
frequency of backups to perform, date and time, and other options.
3. Tap OK.
To enable remote backups to the computer via ActiveSync
1. Tap Options > Networking.
2. Select the Enable Remote Backup check box.
3. Select Via ActiveSync, then tap OK.
4. Tap then in the Location list, select PC and tap OK.
5.6 Protecting Your Pocket PC Phone
There are two kinds of protection that you can set for your device:
You can protect your SIM card from unauthorised use by assigning
a PIN (personal identification number). Your first PIN will be given to you by your wireless service provider; you can change the PIN later.
Additionally, you can prevent unauthorised access to any part of the
device by using password protection. You can help keep your data more secure by requiring a password every time the device is turned on. You create your own password when you begin using your device.
To protect your SIM card with a PIN
1. On the Phone screen, tap Menu > Options > Phone tab.
2. Select the Require PIN when phone is used check box.
3. To change the PIN at any time, tap Change PIN.
Tip Emergency calls can be placed at any time, without requiring a PIN.
82 Managing Your Pocket PC Phone
To protect your device with a password
1. Tap Start > Settings > Personal tab > Lock.
2. Select the Prompt if device unused for check box, and in the box to
the right, select how long your device must be idle before a password is required. In the Password type box, select the type of password you would like to use. Enter the password and, if necessary, confirm the password.
If your device is configured to connect to a network, use an
alphanumeric password for increased security for your device.
3. On the Hint tab, enter a phrase that will help you remember your
password, but does not allow others to guess your password. The hint will be displayed after the wrong password is entered four times.
4. Tap OK. The next time the device is turned on, you will be prompted
to enter your password.
Notes • Each time a wrong password is entered, the device response time gets
longer until the device appears to be not responding.
If you forget your password, you must follow the instructions in this user manual to clear the memory before you can access your device.
To change your password
1. Tap Start > Settings > Personal tab > Lock. You will be prompted to
enter your current password.
2. In the Password box, enter your new password.
3. On the Hint tab, enter a phrase that will help you remember your new
password, but does not allow others to guess your password. The hint will be displayed after the wrong password is entered four times.
4. Tap OK.
To display owner information on the ‘my info’ screen
Having your contact information displayed on the ‘my info’ screen on startup allows for easy identification of the device in case it is lost.
1. Tap Start > Settings > Personal tab > Owner Information.
2. On the Options tab, select the Identification information check box.
Managing Your Pocket PC Phone 83
3. If you want additional text displayed, tap the Notes tab and enter the
text (for instance: Reward if found).
4. On the Options tab, select the Notes check box.
5. Tap OK.
Tip To display owner information on the Today screen, tap Start > Settings >
Personal
tab > Today. On the Items tab, select the Owner Info check box.
5.7 Resetting Your Pocket PC Phone
Occasionally, you may need to reset your device. A normal (or soft) reset of your device clears all active programme memory and shuts down all active programmes. This can be useful when your device is running slower than normal, or a programme is not performing properly. A soft reset is also necessary after the installation of some programmes. If a soft reset is performed when programmes are running, unsaved work will be lost.
You can also perform a hard reset (also known as a full reset). A hard reset should be performed only if a normal reset does not solve a system problem. After a hard reset, the device is restored to its default settings - the way it was when you first purchased it and turned it on. Any programmes you installed, data you entered, and settings you customised on your device will be lost. Only Windows Mobile software and other pre-installed programmes will remain.
To perform a soft reset
Use the stylus to press the RESET
button found at the bottom of your device. Your device restarts and displays the Today screen.
RESET button
84 Managing Your Pocket PC Phone
To perform a hard reset
1. Press and hold the left SOFT KEY and the right SOFT KEY, and at the
same time, use the stylus to press the RESET button at the bottom of your device.
2. Release the stylus, but continue pressing the two SOFT KEYs until you
see the following message on the screen:
Press SEND to restore factory default, press END to quit.
3. Release the two SOFT KEYs, and then press the button on your
device.
Warning! Your device will be set back to factory default settings. Please ensure any
additional installed programmes and/or user data have been backed up before a hard reset is performed.
6.1 Connecting to the Internet
6.2 Internet Explorer Mobile
6.3 Using Comm Manager
6.4 Using Bluetooth
6.5 Using Wi-Fi
6.6 Using Internet Sharing
6.7 Using Spb GPRS Monitor
6.8 Using Terminal Services Client
Chapter 6
Getting Connected
86 Getting Connected
6.1 Connecting to the Internet
Your device is equipped with powerful networking functions that enable you to connect to the Internet through Wi-Fi, GPRS (General Packet Radio Service) or the mobile phone network.
Connecting your device to the Internet through a private or free wireless network is your best choice since this will not incur any cost. Take note, however, that using Wi-Fi on your device will drain battery power faster. For more information about setting up a Wi-Fi connection, see “Using Wi-Fi” later in this chapter.
In times when you are not within the coverage of a wireless network, you can either use GPRS or phone dial-up to connect your device to the Internet or your corporate network. Your device has two groups of connection settings: My ISP (Internet Service Provider) and My Work Network. The My ISP settings are used to connect to the Internet, while My Work Network settings can be used to connect to any private, corporate network.
To set up a GPRS connection to the Internet
GPRS is a non-voice value-added service that allows information to be sent and received across a mobile telephone network. You can use GPRS to connect to the Internet or to send and receive MMS on your device. You will be billed per KB (Kilobyte) by your wireless service provider when you are sending or receiving information via GPRS.
If GPRS settings are not preset on your device, obtain the Access point name from your wireless service provider. Also, check with your wireless service provider if a user name and password are required.
1. Tap Start > Settings > Connections tab > Connections.
2. Under My ISP, tap Add a new modem connection.
3. On the Make New Connection screen, enter a name for the
connection.
4. In the Select a modem list, select Cellular Line (GPRS), then tap
Next.
Getting Connected 87
5. Enter the Access point name, then tap Next.
6. Enter the user name and password, only if required.
7. Tap Finish.
Notes • To view help information for any screen, tap the help icon ( ).
• To modify your connection settings, tap Manage existing connections
on the Connections screen, and complete the connection wizard.
88 Getting Connected
To set up a dial-up connection to your ISP
When you use your device to dial up to your ISP and connect to the Internet, you will be billed by the number of minutes that you use.
To establish a dial-up connection on your device, you need the same settings that you normally use when you dial up from your computer. This includes the ISP server phone number, your user name and password.
1. Tap Start > Settings > Connections tab > Connections.
2. Under My ISP, tap Add a new modem connection.
3. On the Make New Connection screen, enter a name for the
connection.
4. In the Select a modem list, select Cellular Line, then tap Next.
5. Enter the ISP server phone number, then tap Next.
6. Enter your user name, password, and any other information required
by your ISP.
7. Tap Finish.
To set up a connection to a private network
1. Obtain the following information from your network administrator:
Server phone number
User name
Password
Domain (and other required settings, such as IP address)
2. Tap Start > Settings > Connections tab > Connections.
3. In My Work Network, follow the instructions for each type of
connection.
4. Complete the connection wizard, then tap Finish.
To start a connection
After setting up a connection such as GPRS or ISP dial-up on your device, you can now connect your device to the Internet. The connection is started automatically when you begin using a programme that requires an Internet connection. For example, when you start Internet Explorer Mobile to browse the Internet, your device connects automatically.
Getting Connected 89
If you have set up multiple types of connections on your device, you can manually start a connection.
1. Tap Start > Settings > Connections tab > Connections.
2. Tap Manage existing connections.
3. Tap and hold the name of the desired connection, then tap Connect.
To disconnect the GPRS connection
Do one of the following:
Tap the Comm Manager icon ( ) on the Today screen, then tap the
Data Connection button (
).
Press and hold END (
) on your device for at least three seconds.
6.2 Internet Explorer Mobile
Internet Explorer is a full-featured Internet browser, optimised for use on your device.
To start Internet Explorer
Tap Start > Internet Explorer.
To set a Home page
1. In the address bar on top of the Internet Explorer screen, enter the
desired Web page address. Tap to open the Web page.
2. Tap Menu > Tools > Options > General tab.
3. Do one of the following:
To use the displayed page as the Home page, tap Use Current.
To use the default Home page, tap Use Default.
Tip To go to your Home page, tap Menu > Home.
To transfer favourites from your PC
You can transfer the favourites you have stored on your PC to your device by synchronising the Internet Explorer favourites on your PC with your device.
90 Getting Connected
1. In Windows Mobile Device Centre or ActiveSync on your PC, on the
Tools menu, click Options, and select Favorites
.
2. In Internet Explorer on your PC, click Favorites > Add to Favorites
and save or move favourite links to the Mobile Favorites subfolder in the Favourites list.
3. Connect your device to your PC. If synchronisation does not start
automatically, click Sync.
To add a favourite
1. In Internet Explorer Mobile, go to the page you want to add.
2. Tap and hold the page, and tap Add to Favorites.
3. Confirm or change the name, and select a folder for storing the
favourite.
4. Tap Add.
To delete a favourite or folder
1. In Internet Explorer Mobile, tap Menu > Favorites > Add/Delete tab.
2. Select the item you want to delete, and tap Delete.
To change the size of text on Web pages
In Internet Explorer Mobile, tap Menu > Zoom, and tap the size you
want.
To change how Web pages fill the screen
1. In Internet Explorer Mobile, tap Menu > View.
2. Tap one of the following:
One Column. Arranges the content into one column that is as
wide as the screen. This means that you will rarely have to scroll horizontally.
Default. Maintains a layout similar to what you see on a desktop
computer, but it makes items smaller and arranges the content so that you can see most of it without having to scroll horizontally.
Desktop. Keeps the same layout and size as on a desktop
computer, which will require both horizontal and vertical scrolling.
Getting Connected 91
To clear the History list
1. In Internet Explorer Mobile, tap Menu > Tools > Options > Memory
tab.
2. Tap Clear History.
To save a picture from a Web page
1. In Internet Explorer Mobile, tap and hold the picture, and tap Save
Image.
2. Do one of the following:
To save the picture in My Pictures on your device, tap Yes.
To save the picture in another location, such as a storage card, tap
Save As.
To delete temporary Internet files
Your device temporarily stores Web pages that you frequently visit or have visited recently to speed up the display of these Web pages when you access them. You may want to delete these files to free storage space.
1. In Internet Explorer Mobile, tap Menu > Tools > Options > Memory
tab.
2. Tap Delete Files. All pages stored on your device, including offline
favourites content, will be deleted.
To set up Internet security settings
Cookies are small files containing information about your identity and preferences so that a page can tailor information to your needs. The page sends the file, and it is stored on your device.
1. In Internet Explorer Mobile, tap Menu > Tools > Options > Security
tab.
2. To prevent Internet Explorer Mobile from accepting any cookies, clear
the Allow cookies check box.
3. Select the check boxes for the other security options you want, and
tap OK.
92 Getting Connected
6.3 Using Comm Manager
Comm Manager acts like a central switcher that lets you enable or disable phone features as well as manage your data connections easily.
To open Comm Manager
Tap the Comm Manager icon ( ) on the Today screen; or
Tap Start > Settings > Connections tab > Comm Manager.
Simply tap the corresponding button to enable or disable a feature.
1
2
3
5
6
7
4 8
1 Tap to toggle between turning on or off Flight
mode.
2 Tap to toggle between turning on or off
Bluetooth. Tap Settings > Bluetooth to configure Bluetooth on your device. See "Using Bluetooth" for details.
3 Tap to toggle between automatically
receiving (as items arrive) or manually retrieving Outlook e-mails. For more information, see "Schedule synchronisation with Exchange Server" in Chapter 4.
4 Tap to toggle between turning on the
phone's ringer or setting the phone to vibration/mute mode.
5 Tap to toggle between enabling or disabling
the phone. Tap Settings > Phone to set the ring tone and other phone settings. For more information about customising phone settings, see Chapter 5.
6 Tap to toggle between turning on or off Wi-Fi.
Tap Settings > Wireless LAN to configure Wi-Fi on your device. See "Using Wi-Fi" for details.
7 Tap to disconnect active data services (e.g.
GPRS). You cannot reconnect data services in Comm Manager.
8 Tap to open ActiveSync so you can
synchronise the device and computer. For more information about the configuration settings for ActiveSync, see Chapter 4.
Getting Connected 93
6.4 Using Bluetooth
Bluetooth is a short-range wireless communications technology. Devices with Bluetooth capabilities can exchange information within a distance of about 10 metres without requiring a physical connection. You can even beam information to a device in a different room, as long as it is within the Bluetooth signal coverage range.
Bluetooth can be used in the following ways:
Beam information, such as files, appointments, tasks, and contact
cards, between devices that have Bluetooth capabilities.
Synchronise information between your device and computer via
Bluetooth.
Use a Bluetooth-enabled headset (or other Bluetooth-enabled hands-
free device such as a car kit) with your device for hands-free phone conversations.
Use a Bluetooth service. Once you connect to another device or
computer using Bluetooth, you can locate and use any of the services available on that device.
Create a connection between your device and another Bluetooth-
enabled phone to use that phone as a modem.
Note Normally, you will need another phone as a modem only if your Pocket PC
device has no integrated phone capability.
Bluetooth modes
Bluetooth on your device operates in three different modes:
On. Bluetooth is turned on. Your device can detect other Bluetooth-
enabled devices, but not vice versa.
Off. Bluetooth is turned off. In this mode, you can neither send
nor receive information using Bluetooth. You might want to turn Bluetooth off at times in order to conserve battery power, or in situations where using a wireless device is prohibited, such as on board an aircraft and in hospitals.
Visible. Bluetooth is turned on, and all other Bluetooth-enabled
devices can detect your device.
94 Getting Connected
Note By default, Bluetooth is turned off. If you turn it on, then turn off your device,
Bluetooth also turns off. When you turn on your device again, Bluetooth automatically turns on.
To turn Bluetooth on and make your device visible
1. On your device, tap Start > Settings > Connections tab > Bluetooth.
2. Select the Turn on Bluetooth and Make this device visible to other
devices check boxes.
3. Tap OK.
Bluetooth partnerships
A Bluetooth partnership is a relationship that you create between your device and another Bluetooth-enabled device in order to exchange information in a secure manner. Creating a partnership between two devices involves entering the same Bluetooth passcode on both devices.
Creating a partnership between two devices is a one-time process. Once a partnership is created, the devices can recognise the partnership and exchange information without entering a passcode again. Make sure that on the two devices, Bluetooth is turned on and in visible mode.
To create a Bluetooth partnership
1. On your device, tap Start > Settings > Connections tab >
Bluetooth
.
2. On the Devices tab, tap Add new device. Your device searches for
other Bluetooth devices and displays them in the box.
3. Tap the desired device name in the box.
4. Tap Next.
5. Specify a passcode to establish a secure connection. The passcode
can be 1 up to 16 characters.
6. Tap Next.
7. Wait for the paired device to accept the partnership. The receiving
party needs to enter the same passcode that you specified.
8. The name of the paired device is then displayed. You may edit and
enter a new name for that device.
9. Select the check boxes of services that you want to use from the
paired device.
10. Tap Finish.
Getting Connected 95
To accept a Bluetooth partnership
1. Ensure that Bluetooth is turned on and in visible mode.
2. Tap Yes when prompted to establish a partnership with the other
device.
3. Enter a passcode (the same passcode that is entered on the device
requesting the partnership) to establish a secure connection. The passcode must be between 1 and 16 characters.
4. Tap Next.
5. Tap Finish. You can now exchange information with the paired
device.
To rename a Bluetooth partnership
1. Tap Start > Settings > Connections tab > Bluetooth.
2. Tap and hold the partnership on the Devices tab.
3. On the shortcut menu, tap Edit.
4. Enter a new name for the partnership.
5. Tap Save.
To delete a Bluetooth partnership
1. Tap Start > Settings > Connections tab > Bluetooth.
2. Tap and hold the partnership on the Devices tab.
3. Tap Delete.
Connect a Bluetooth hands-free or stereo headset
For hands-free phone conversations, you can use a Bluetooth hands-free headset such as a car kit with your device.
Your device also supports A2DP (Advanced Audio Distribution Profile) which is for stereo audio over Bluetooth. This means that you can use a Bluetooth stereo headset with your device for hands-free phone conversations as well as for listening to stereo music. Make sure that your stereo headset also supports A2DP.
Just like when connecting to any Bluetooth device, you also need to enter a passcode when connecting to a Bluetooth hands-free or stereo headset. The passcode is fixed and cannot be changed on a Bluetooth headset. Before you connect it to your device, check for the proper passcode in the manufacturer’s documentation.
96 Getting Connected
To connect a Bluetooth hands-free or stereo headset
1. Make sure that both your device and the Bluetooth headset are
turned on and within close range, and that the headset is visible. Refer to the manufacturer’s documentation to find out how to set the headset in visible mode.
2. Tap Start > Settings > Connections tab.
3. Tap Bluetooth > Devices tab > Add new device. Your device
searches for other Bluetooth-enabled devices and displays them in the list.
4. Tap the name of the Bluetooth headset, then tap Next.
5. Enter the passcode of the Bluetooth headset, then tap Next.
6. Make sure the Hands Free check box is selected.
If you have a Bluetooth stereo headset, also make sure the Wireless
Stereo check box is selected.
7. Tap Finish.
Note If the Bluetooth stereo headset becomes disconnected, turn the headset on
and repeat steps 1 to 3 above. Tap and hold the name of the Bluetooth stereo headset and tap Set as Wireless Stereo.
Getting Connected 97
Beam information using Bluetooth
You can beam information, such as contacts, calendar items, and tasks, as well as files from your device to your computer or to another Bluetooth­enabled device.
Note If your computer does not have built-in Bluetooth capability, you need to
connect and use a Bluetooth adapter or dongle on your computer.
To beam information from your device to a computer
1. Turn on Bluetooth on your device, and make your device visible. For
information about this, see “To turn Bluetooth on and make your device visible”.
2. You also need to set Bluetooth on your computer to visible mode. Do
one of the following:
If your computer has Windows XP SP2 and your computer’s built-
in or external Bluetooth adapter is supported by Windows XP SP2, open Bluetooth Devices from the Control Panel. Click the Options tab, then select the Turn discovery on
and the Allow
Bluetooth devices to connect to this computer options.
If the Bluetooth adapter on your computer was installed using
a third-party provided driver, open the Bluetooth software that came with the Bluetooth adapter. This software varies by manufacturer, but in most cases, you will find a Bluetooth Configuration utility which you can open from the Control Panel. After Bluetooth Configuration opens, click the Accessibility tab, then select Let other Bluetooth devices to discover this computer. Refer to the Bluetooth adapter’s documentation for more information.
3. Create a Bluetooth partnership between the two devices.
For information about creating a partnership, see “Bluetooth partnerships”.
After a partnership has been created successfully, your computer is
ready to receive Bluetooth beams.
4. On your device, tap and hold an item to beam. The item can be an
appointment in your calendar, a task, a contact card, or a file.
98 Getting Connected
5. To beam a contact, tap Menu > Send Contact > Beam.
To beam other types of information, tap Menu > Beam
[type of
item].
6. Tap the device name to which you want to send the beam.
7. If you beamed an Outlook item and it is not automatically added to
Outlook, select File > Import and Export in Outlook to import it.
To beam information to a Bluetooth-enabled device such as another Pocket PC, follow steps 3 to 6 in the above procedure.
Note If the computer or device you want to beam to does not appear in your
device's Bluetooth list, make sure that its Bluetooth is turned on and set to visible mode.
To receive a Bluetooth beam
Your device will not detect and notify you of incoming Bluetooth beams unless you set it up to do this.
1. Tap Start > Settings > Connections tab > Beam.
2. Select the Receive all incoming beams check box.
3. Make sure your device is turned on, visible, and within close range of
the device that is beaming the information.
4. When prompted to receive an incoming beam, tap Yes to receive the
beamed information.
Tip Selecting the Receive all incoming beams check box also allows the device
to detect and receive infrared beams.
Bluetooth Explorer and Bluetooth file sharing
Bluetooth Explorer searches for other Bluetooth devices that have file
sharing enabled and lets you access their Bluetooth shared folder. You can copy files from and to their shared folder, and create subfolders in it. When you enable Bluetooth file sharing on your device, other Bluetooth­enabled devices will also be able to access your Bluetooth shared folder.
To enable Bluetooth Explorer and Bluetooth file sharing on your device
1. Tap Start > Settings > Connections tab > Bluetooth > FTP tab.
2. Select the Enable Bluetooth Explorer check box. This makes the
\Bluetooth device folder visible in the File Explorer.
Getting Connected 99
3. Select the Enable File Sharing check box.
You can use the default Bluetooth shared folder, or tap Browse to use
another folder as your shared folder.
To use Bluetooth Explorer
1. Bluetooth Explorer is integrated with the File Explorer programme.
You can open it by tapping Start > Programs > Bluetooth Explorer or by tapping Down arrow ( ) on the upper left of File Explorer then tapping Bluetooth.
2. Bluetooth Explorer then scans for other Bluetooth devices that have
file sharing enabled. From the list, tap to select a Bluetooth device you want to connect to. You may need to enter a passcode in order for you to connect to the selected device.
3. If there are files contained in the Bluetooth shared folder on the other
device, you will be able to see them on the Bluetooth Explorer screen.
Select one or more files, then tap Menu > Edit and choose to cut or
copy the files.
4. Tap Up twice.
5. Navigate to the folder where you want to paste the files on your
device, then tap Menu > Edit > Paste
.
100 Getting Connected
Use the device as a Bluetooth modem
You can connect your device to a notebook or desktop computer through Bluetooth and use the device as a modem for the computer.
Note If your computer does not have built-in Bluetooth capability, you need to
connect and use a Bluetooth adapter or dongle on your computer.
For the computer to use the Internet connection of your device, activate Internet Sharing on your device, then set up a Bluetooth Personal Area Network (PAN) between the computer and your device.
1. On your device, turn on Bluetooth and set it to visible mode.
2. Initiate a Bluetooth partnership from your device by following the
steps in “To create a Bluetooth partnership.“
Alternatively, you can initiate a Bluetooth partnership from the
computer by following these steps (based on Windows XP SP2):
a. In the Control Panel or System Tray, double-click the Bluetooth
Devices icon.
b. In the Bluetooth Devices window, click Add.
c. The Add Bluetooth Device Wizard opens. Select the My device is
set up and ready to be found check box, then click Next
.
d. The wizard then detects your device and displays its name in the
dialog box. Select the device name, then click Next
.
e. Select Let me choose my own passkey, then enter a passcode
(1 up to 16 digits) that will serve as an identification number for establishing a secure connection between your device and the computer. Click Next
.
f. A confirmation message then appears on your device. Tap Yes to
accept the connection, enter the same passcode, then tap Next.
g. On the computer, click Finish to exit the wizard.
h. On your device’s Partnership Settings screen, you can change the
display name for the computer, then tap Finish
.
3. Now, open the Internet Sharing programme on your device. Tap Start
> Programs > Internet Sharing
.
4. Select Bluetooth PAN as the PC Connection.
Loading...
