SC42DU-3 • SC42HU-3 • SC21H-3
Ultra HD
SECURE KVM
COMBINER SWITCHES
Interact with multiple computers presented on the same display at the same time
using a single set of audio, keyboard, video and mouse peripherals.
The KVM Combiner switch offered by HSL provides
increased productivity in challenging multi-computer
environments where users are required to view and
interact with several computers at the same time.
KVM COMBINER HIGHLIGHTS
• EAL4+ Certication, designed to meet NIAP requirements
HSL KVM Combiner switches are designed to meet with NIAP
requirements and are EAL4+ certified as secure peripheral
sharing switch devices.
• Safely share peripherals across dierent security domains
Safely share peripherals between computers that belong to
dierent security classication levels while keeping the highest
possible data separation security.
• Prevent information leaks
Obstacle threats derived from sharing and switching of
vulnerable, untrusted or unauthorized peripheral devices.
Block peripheral exploits, information leaks, eavesdropping,
signal transmission, computer malware, hardware and rmware
tampering by enforcing multilayered security mechanisms.
• View and control multiple computers simultaneously
Present and work with up to 6 computers at the same time.
Cascade combiners to view and control up to 36 (6x6) computers
on a single or dual displays.
• Filter USB Peripherals
Block unauthorized USB devices while allowing secure switching
of smart card and biometric authentication devices between
computers. Whitelist and blacklist specic USB devices based on
VID/PID characteristics.
Move mouse
PC #4
PC #3
Single
Keyboard & Mouse
to switch PCs
PC #2
PC #1
KVM COMBINER
KVM COMBINER
Speakers
SECURE
SECURE
Multiple Sources
EAL4+
Certied
Optimize user experience while maintaining the highest
isolation between computers and peripherals.
Obviate the need for purchasing and installing
dedicated, per-computer peripheral sets.
SECURITY FEATURES
• USB Security
- Block unauthorized USB devices.
- USB authentication devices are authorize by default.
- Whitelist and blacklist specic USB devices based on VID/PID
characteristics.
• Video Security
- Computer video input interfaces are isolated through the use of
dierent electronic components, power and ground domains.
- The display is isolated by a dedicated, read- only, EDID emulation
for each computer.
- Access to the monitor’s Extended Display Identification Data
(EDID) is blocked.
- Access to the Monitor Control Command Set (MCCS commands)
is blocked.
• Keyboard & Mouse Security
- The keyboard and mouse are isolated by a dedicated, USB
device emulation for each computer.
- One-way, peripheral-to-computer data ow is enforced through
unidirectional optical data diodes.
- Communication from computer-to-keyboard/mouse is blocked.
- Non HID (Human Interface Device) data transaction is blocked.
• Audio Security
- Enforce computer-to-speaker, one-way ow of sound through
unidirectional optical data diodes.
- Prevent eavesdropping and line-in re-tasking by blocking
speaker-to-computer communication.
• Hardware Anti-Tampering
- Any attempt to open the product enclosure will activate an antitamper system making the product inoperable.
- Blinking LEDs provide a clear indication of a tampering event.
- Special holographic tampering evident labels on the product’s
enclosure provide a clear visual indication if the product has
been opened or compromised.
• Firmware Anti-Tampering
- There is no access to the product’s rmware or memory through
any port.
- Firmware is permanently stored on a non-reprogrammable
Read Only Memory (ROM) to prevent any modication.
- Firmware integrity is verified through a self-test procedure
during power-up. Upon detection of a critical failure the device
disables normal operation and provides the user with a clear
visual indication of failure.

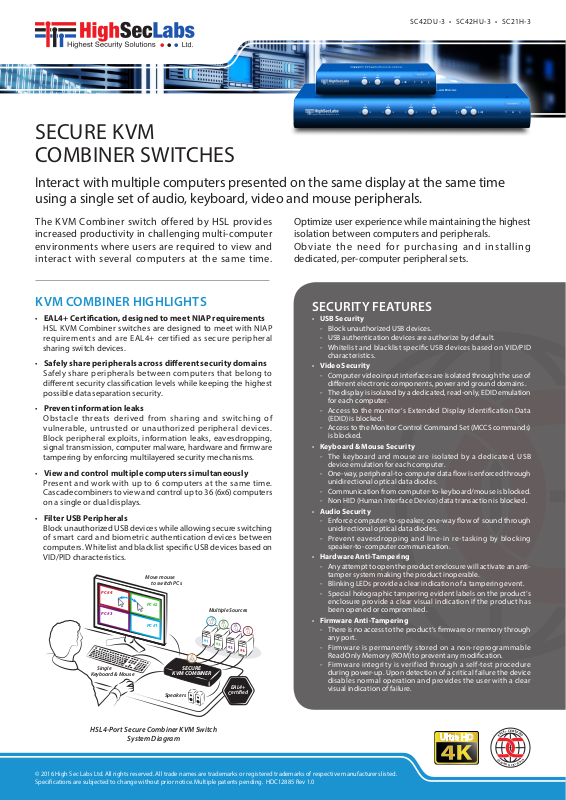

HSL4-Por t Secure Combiner KVM Switch
System Diagram
© 2016 High Sec Labs Ltd. All rights reserved. All trade names are trademarks or registered trademarks of respective manufacturers listed.
Specications are subjected to change without prior notice. Multiple patents pending. HDC12885 Rev 1.0
E
R
C
T
I
+
F
4
I
E
L
D
A
E
C
A
O
I
M
R
E
M
T
I
O
R
N
C

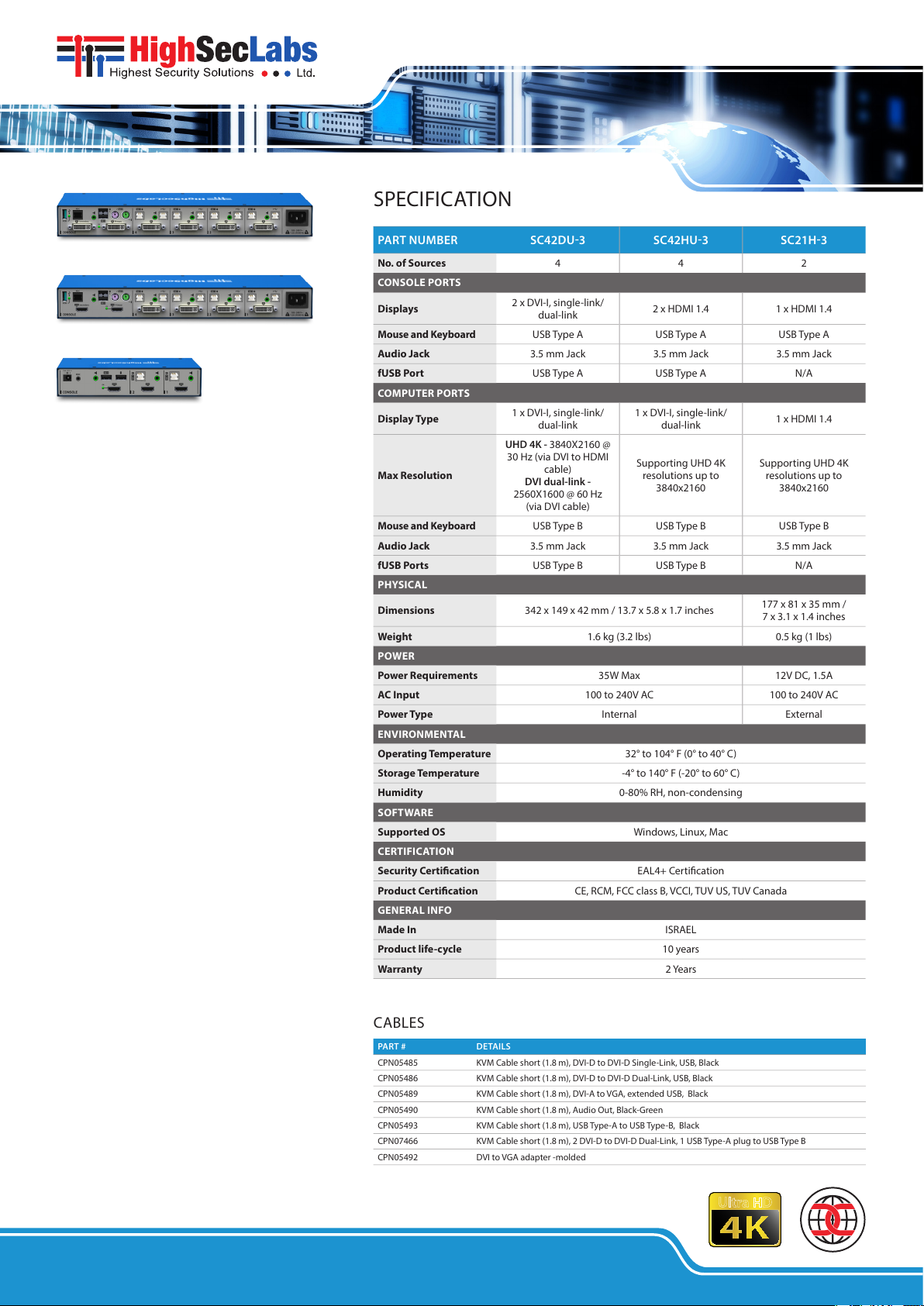

SPECIFICATION
PART NUMBER SC42DU3 SC42HU3 SC21H3
No. of Sources 4 4 2
CONSOLE PORTS
Displays
2 x DVI-I, single-link/
dual-link
2 x HDMI 1.4 1 x HDMI 1.4
Mouse and Keyboard
USB Type A USB Type A USB Type A
Audio Jack 3.5 mm Jack 3.5 mm Jack 3.5 mm Jack
fUSB Port USB Type A USB Type A N/A
COMPUTER PORTS
Display Type
1 x DVI-I, single-link/
dual-link
1 x DVI-I, single-link/
dual-link
1 x HDMI 1.4
Max Resolution
UHD 4K - 3840X2160 @
30 Hz (via DVI to HDMI
cable)
DVI dual-link -
2560X1600 @ 60 Hz
(via DVI cable)
Supporting UHD 4K
resolutions up to
3840x2160
Supporting UHD 4K
resolutions up to
3840x2160
Mouse and Keyboard
USB Type B USB Type B USB Type B
Audio Jack 3.5 mm Jack 3.5 mm Jack 3.5 mm Jack
fUSB Ports USB Type B USB Type B N/A
PHYSICAL
Dimensions 342 x 149 x 42 mm / 13.7 x 5.8 x 1.7 inches
177 x 81 x 35 mm /
7 x 3.1 x 1.4 inches
Weight 1.6 kg (3.2 lbs) 0.5 kg (1 lbs)
POWER
Power Requirements 35W Max 12V DC, 1.5A
AC Input 100 to 240V AC 100 to 240V AC
Power Type Internal External
ENVIRONMENTAL
Operating Temperature 32° to 104° F (0° to 40° C)
Storage Temperature -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
SOFTWARE
Supported OS Windows, Linux, Mac
CERTIFICATION
Security Certication EAL4+ Certication
Product Certication CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
GENERAL INFO
Made In ISRAEL
Product life-cycle 10 years
Warranty 2 Years
SC42DU-3
Ultra HD
CABLES
PAR T # DETAILS
CPN05485 KVM Cable short (1.8 m), DVI-D to DVI-D Single-Link, USB, Black
CPN05486 KVM Cable short (1.8 m), DVI-D to DVI-D Dual-Link, USB, Black
CPN05489 KVM Cable short (1.8 m), DVI-A to VGA, extended USB, Black
CPN05490 KVM Cable short (1.8 m), Audio Out, Black-Green
CPN05493 KVM Cable short (1.8 m), USB Type-A to USB Type-B, Black
CPN07466 KVM Cable short (1.8 m), 2 DVI-D to DVI-D Dual-Link, 1 USB Type-A plug to USB Type B
CPN05492 DVI to VGA adapter -molded
SC42HU-3
SC 21H-3
OPERATIONAL HIGHLIGHTS
• Freeze USB
Assign the USB port to a specic computer
while switching the keyboard, video, mouse
and audio between other computers. Useful
for various scenarios, for instance, when a
USB smart card reader must remain mapped
to a certain computer.
• Freeze Audio
Assign the audio port to a specic computer
while switching the keyboard, video, mouse
and USB between other computers. Useful
for scenarios where a user has to listen to
audio originating from one computer while
working on another computer.
• Smoothly switch between computers
(Virtual Display Technology)
Automatically switch control from one
computer to another by dragging the mouse
cursor over the computer’s display border.
Peripherals switch to the next computer
without having to press any buttons once
the mouse is passing the display border.
• View applications in Ultra High
Denition (UHD) 4K video quality
Never compromise on video quality. Run
graphic-intensive, ultrahigh definition
applications on all single and dual monitor
KVM models.
• Avoid typing mistakes
Since two-way communication is blocked
by the KVM security, keyboard lock LEDs
do not function. Help users avoid typing
mistakes by visually indicating the status of
keyboard locks (CAPS-LOCK | NUM LOCK |
SCROLL LOCK) on the product’s front facing
panel.
• Native touch screen support
Interact with all the computers that are
connected to the KVM Combiner using
touch screen gestures. No need to install
any driver or software.
• Flexible screen layout
Resize source scaling and aspect ratio to
create Tile, Scale and Custom display layouts
that t user needs.
