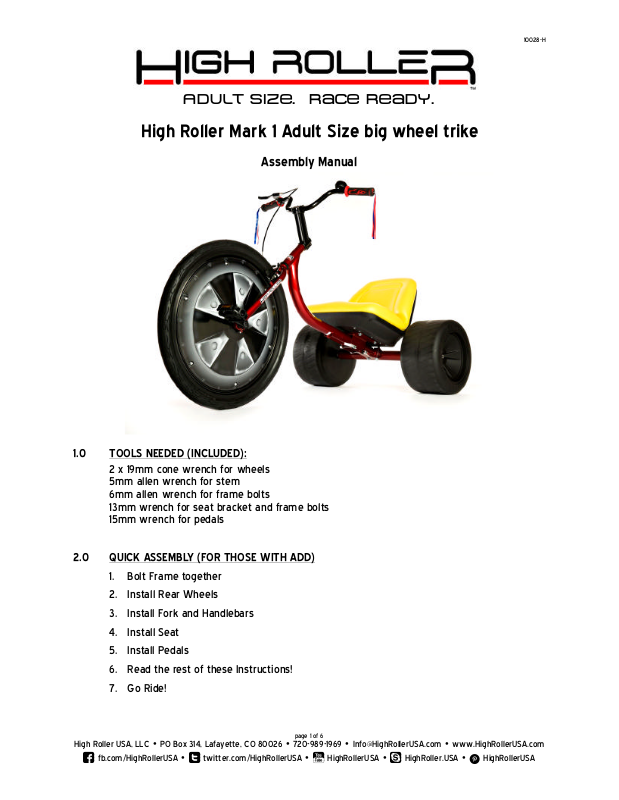

High Roller Mark 1 Adult Size big wheel trike
Assembly Manual
10028-H
1.0 TOOLS NEEDED (INCLUDED):
2 x 19mm cone wrench for wheels
5mm allen wrench for stem
6mm allen wrench for frame bolts
13mm wrench for seat bracket and frame bolts
15mm wrench for pedals
2.0 QUICK ASSEMBLY (FOR THOSE WITH ADD)
1. Bolt Frame together
2. Install Rear Wheels
3. Install Fork and Handlebars
4. Install Seat
5. Install Pedals
6. Read the rest of these Instructions!
7. Go Ride!
High Roller USA, LLC • PO Box 314, Lafayette, CO 80026 • 720-989-1969 • [email protected] • www.HighRollerUSA.com
f fb.com/HighRollerUSA • t twitter.com/HighRollerUSA • Y HighRollerUSA • S HighRoller.USA •
page 1 of 6
HighRollerUSA
&
Page 2
Adult Size. Race Ready.
Flat Washer
Split Washer
Nut
Flat Washer
High Strength
8mm Bolt
Flat Washer
Flat Washer
Lock Nut
3.0 DETAILED ASSEMBLY
1. On a padded surface (like the box the High Roller came in) to protect the paint, bolt
together the Main Frame and Rear Frame with the Bolts, Washers and Nuts.
10028-H

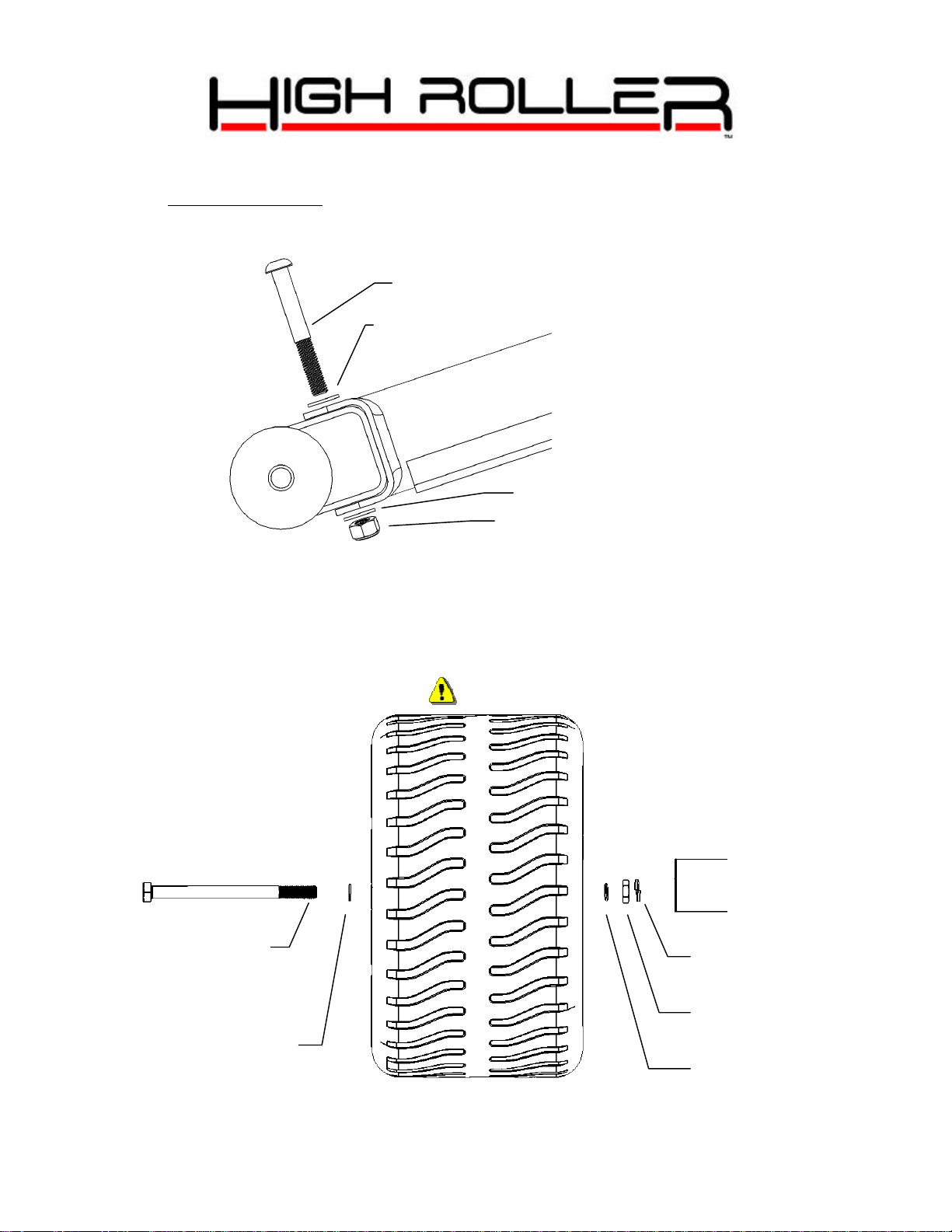

2. To install the Rear Wheels:
a. Tighten the Axle Bolt into the Wheel with the two Washers and Nut.
Hand Tight is good, no need to kill it.
b. With the Split Washer, spin the Axle Bolt into the Rear Frame.
c. Turning BOTH the Bolt and Nut, tighten the axle into the Frame.
Here, real tight is real good. Check & tighten bolts during first 20 miles of riding.
Axle Bolt (10.9)
High Roller USA, LLC • PO Box 314, Lafayette, CO 80026 • 720-989-1969 • [email protected] • www.HighRollerUSA.com
f fb.com/HighRollerUSA • t twitter.com/HighRollerUSA • Y HighRollerUSA • S HighRoller.USA •
page 2 of 6
HighRollerUSA
&
Page 3
10028-H
Adult Size. Race Ready.

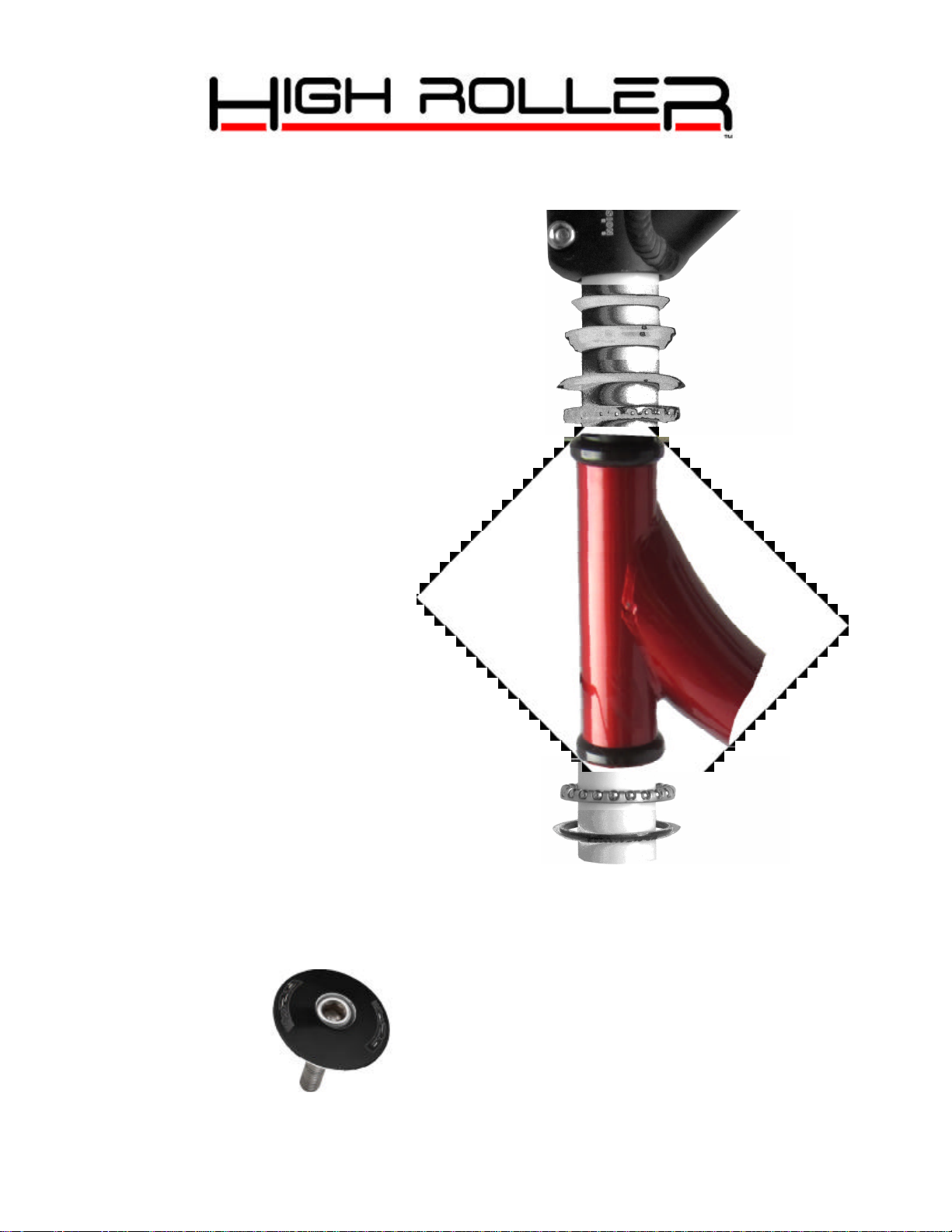

3. To install the Fork and Handlebars, arrange the Headset Bearings and install in this order
(top to bottom):
a. Stem
b. Plastic Split Ring
c. Race
d. Dust Seal (text up)
e. Bearing (balls point down, cage points up)
f. Frame
g. Bearing (balls point up, cage points down)
h. Dust Seal (text down)
i. Fork
4. Slide the Stem onto the Fork and snug down the Cap hand tight. DO NOT OVERTIGHTEN.
This just adjusts the headset bearings.
Bearings are adjusted properly when:
a. Wheel can turn freely left and right,
b. Bearings don’t “knock” when you hold the
brake and rock forward and back.
High Roller USA, LLC • PO Box 314, Lafayette, CO 80026 • 720-989-1969 • [email protected] • www.HighRollerUSA.com
f fb.com/HighRollerUSA • t twitter.com/HighRollerUSA • Y HighRollerUSA • S HighRoller.USA •
page 3 of 6
HighRollerUSA
&
Page 4
Adult Size. Race Ready.

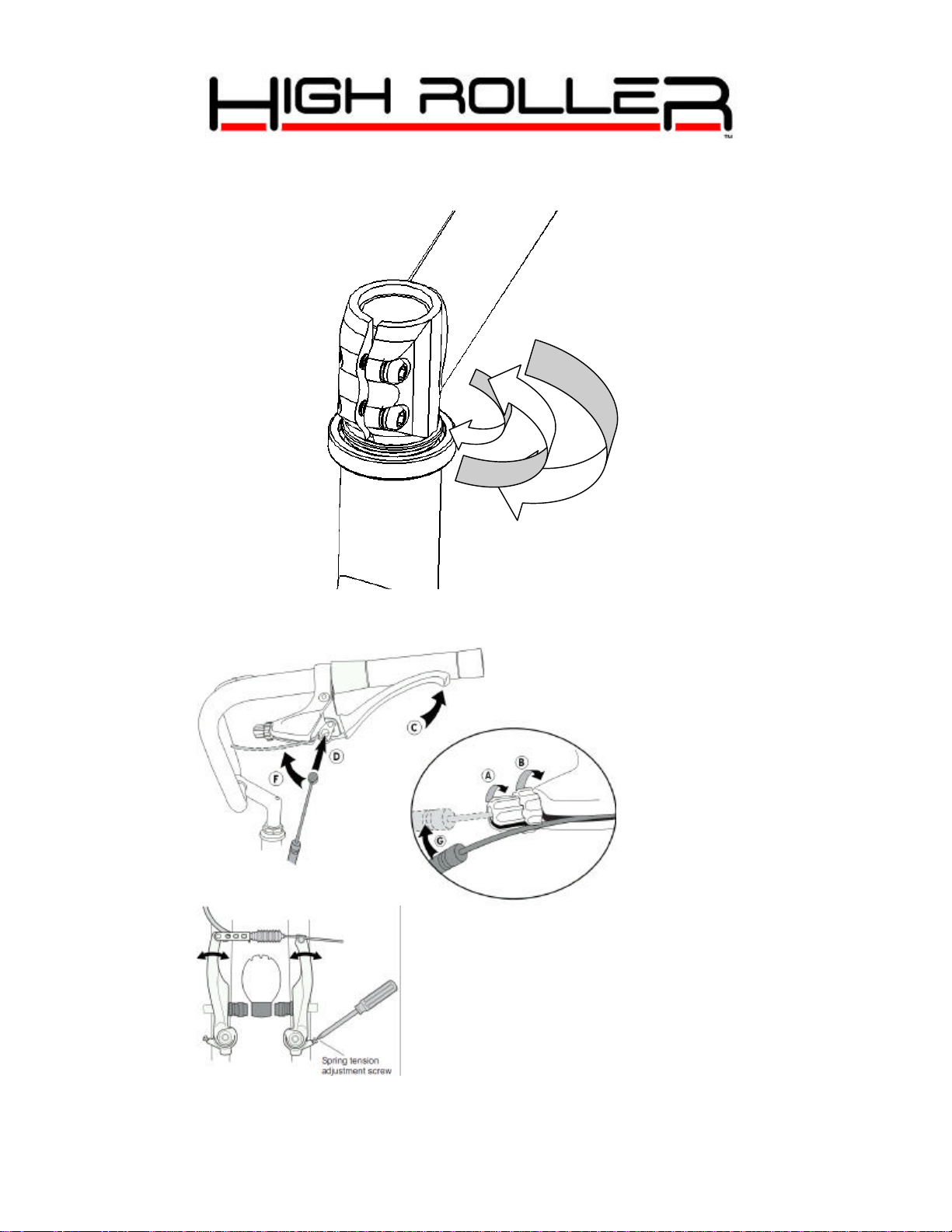

5. Alternating each bolt, slowly tighten the Stem to the Fork.
10028-H
6. To install the Brake Cable, line up the slots in the Adjusting Barrel (A, B) with the lever.
Squeeze the lever to expose the anchor (D), insert the cable end (F), & seat Cable (G).
Center the brake arms with the adjusting screws.
High Roller USA, LLC • PO Box 314, Lafayette, CO 80026 • 720-989-1969 • [email protected] • www.HighRollerUSA.com
f fb.com/HighRollerUSA • t twitter.com/HighRollerUSA • Y HighRollerUSA • S HighRoller.USA •
page 4 of 6
HighRollerUSA
&
Page 5
Adult Size. Race Ready.
Flat Washer
Split Washer
5/16” Bolt

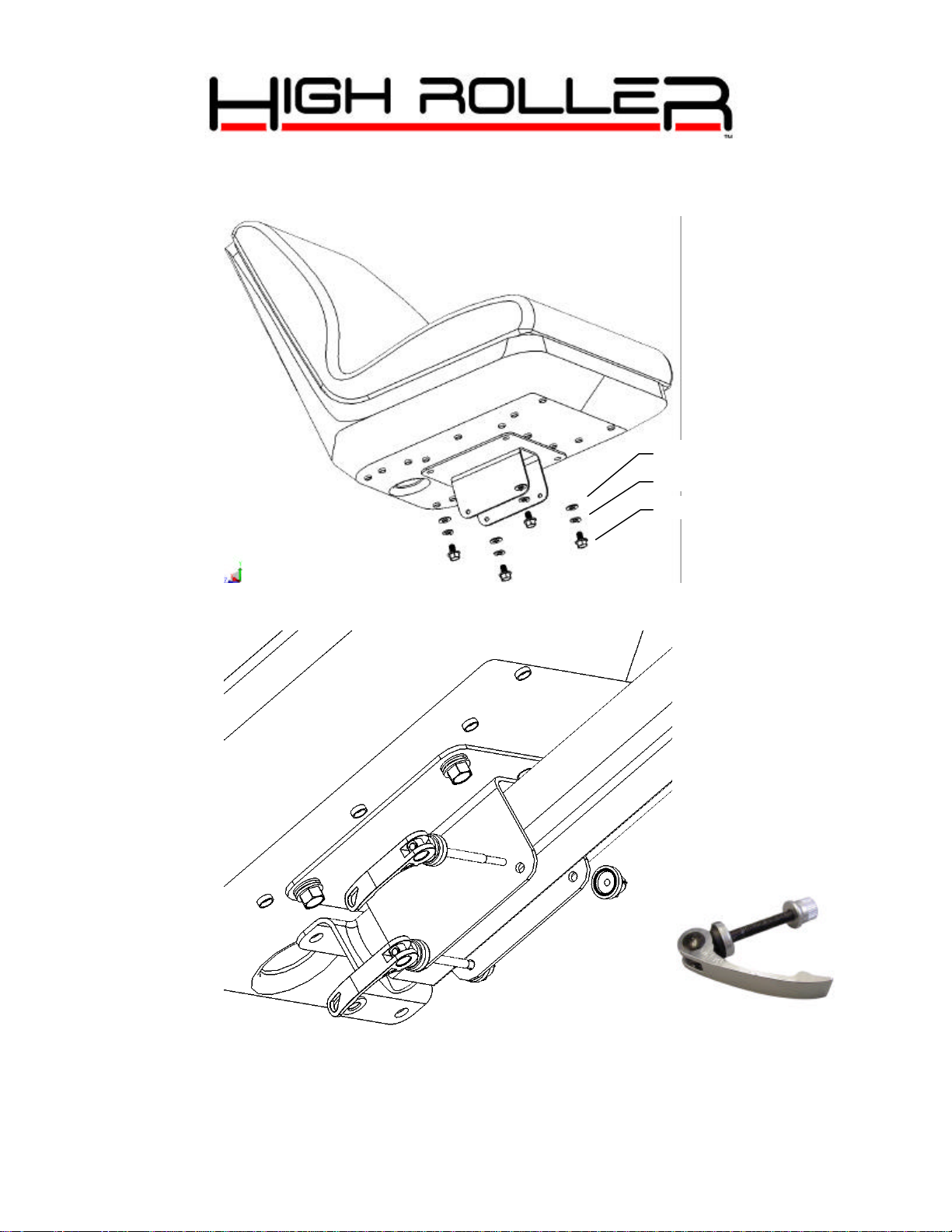

7. Install the Seat by:
a. Mounting the Seat Bracket to the bottom of the Seat with the Bolts and Washers.
10028-H
b. Slide the Seat onto the Frame and install the Quick Release Levers.
c. The Levers are NOT wing nuts, they are cams. With the Lever pointed straight out
from the frame, tighten by hand then fold the lever over and check for tightness.
Adjust as necessary.
High Roller USA, LLC • PO Box 314, Lafayette, CO 80026 • 720-989-1969 • [email protected] • www.HighRollerUSA.com
f fb.com/HighRollerUSA • t twitter.com/HighRollerUSA • Y HighRollerUSA • S HighRoller.USA •
page 5 of 6
HighRollerUSA
&
Page 6
10028-H
L R Front
Adult Size. Race Ready.

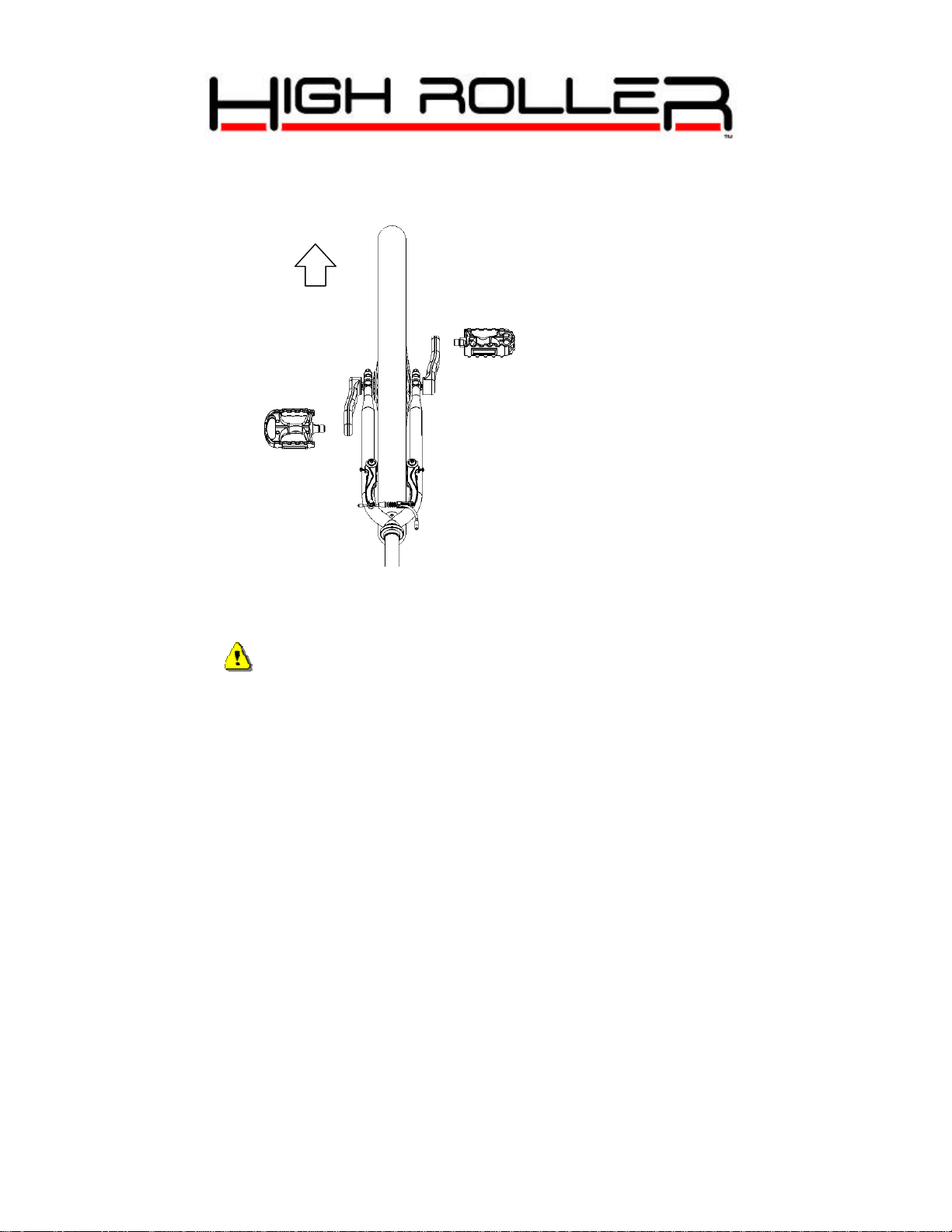

8. Install the RIGHT hand and LEFT hand pedals with the supplied wrench. Arrows on the
pedals will tell you which way to turn (spin forward).
9. Go Ride!
10. Tips:
a. Check & tighten REAR AXLE bolts during first 20 miles of riding.
b. ALWAYS wear a helmet (your head is at bumper level).
c. LEAN INTO the turns!
d. Check the REAR AXLE bolts regularly and tighten if necessary.
e. No brake for the best Power Slides.
f. Check your local regulations to see if your High Roller is street legal or just for paths.
Should you need any assistance, please feel free to contact us at:
High Roller USA
[email protected]
http://www.HighRollerUSA.com
720-989-1969
