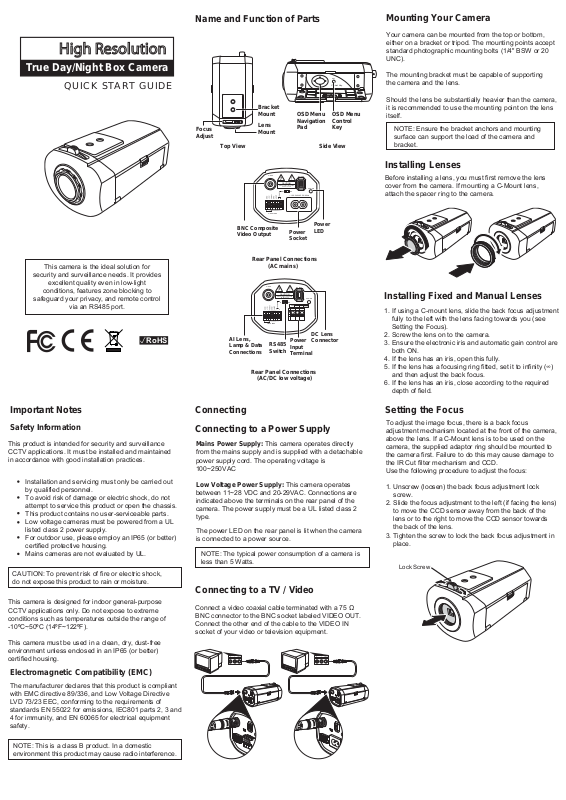

High Resolution

True Day/Night Box Camera

QUICK START GUIDE

Name and Function of Parts

Focus Adjust

Bracket Mount

Lens Mount

Top View Side View

VIDEO

VIDEO LENS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

- +- +

OSD Menu Navigation Pad

DC LENS

NOR.t

Ƃ 100 - 240VAC 50/60Hz

POWER

SET

Control Key

OSD Menu Control Key

Mounting Your Camera

Your camera can be mounted from the top or bottom, either on a bracket or tripod. The mounting points accept standard photographic mounting bolts (1/4" BSW or 20 UNC).

The mounting bracket must be capable of supporting the camera and the lens.

Should the lens be substantially heavier than the camera, it is recommended to use the mounting point on the lens itself.

NOTE: Ensure the bracket anchors and mounting surface can support the load of the camera and bracket.

Installing Lenses

Before installing a lens, you must first remove the lens cover from the camera. If mounting a C-Mount lens, attach the spacer ring to the camera.

This camera is the ideal solution for

security and surveillance needs. It provides

excellent quality even in low-light

conditions, features zone blocking to

safeguard your privacy, and remote control

via an RS485 port.

Important Notes

RoHS

BNC Composite Video Output

AI Lens, Lamp & Data Connections

Connecting

Power Socket

Rear Panel Connections (AC mains)

VIDEO

VIDEO LENS

RS485 Switch

Rear Panel Connections (AC/DC low voltage)

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

- +- +

DC LENS

NOR.t

GND

Power Input Terminal

POWER

DC 12V AC 21V

DC Lens Connector

Power LED

Installing Fixed and Manual Lenses

1. If using a C-mount lens, slide the back focus adjustment fully to the left with the lens facing towards you (see Setting the Focus).

2. Screw the lens on to the camera.

3. Ensure the electronic iris and automatic gain control are

both ON.

4. If the lens has an iris, open this fully.

5. If the lens has a focusing ring fitted, set it to infinity (∞) and then adjust the back focus.

6. If the lens has an iris, close according to the required depth of field.

Setting the Focus

Safety Information

This product is intended for security and surveillance CCTV applications. It must be installed and maintained in accordance with good installation practices.

Installation and servicing must only be carried out by qualified personnel. To avoid risk of damage or electric shock, do not attempt to service this product or open the chassis. This product contains no user-serviceable parts. Low voltage cameras must be powered from a UL listed class 2 power supply. For outdoor use, please employ an IP65 (or better) certified protective housing. Mains cameras are not evaluated by UL.

CAUTION: To prevent risk of fire or electric shock, do not expose this product to rain or moisture.

This camera is designed for indoor general-purpose CCTV applications only. Do not expose to extreme conditions such as temperatures outside the range of

-10ºC~50ºC (14ºF~122ºF).

This camera must be used in a clean, dry, dust-free environment unless enclosed in an IP65 (or better) certified housing.

Connecting to a Power Supply

Mains Power Supply: This camera operates directly

from the mains supply and is supplied with a detachable power supply cord. The operating voltage is 100~250VAC

Low Voltage Power Supply: This camera operates

between 11~28 VDC and 20-29VAC. Connections are indicated above the terminals on the rear panel of the camera. The power supply must be a UL listed class 2 type.

The power LED on the rear panel is lit when the camera is connected to a power source.

NOTE: The typical power consumption of a camera is less than 5 Watts.

Connecting to a TV / Video

Connect a video coaxial cable terminated with a 75 Ω BNC connector to the BNC socket labeled VIDEO OUT. Connect the other end of the cable to the VIDEO IN socket of your video or television equipment.

VIDEO

To adjust the image focus, there is a back focus adjustment mechanism located at the front of the camera, above the lens. If a C-Mount lens is to be used on the camera, the supplied adaptor ring should be mounted to the camera first. Failure to do this may cause damage to the IR Cut filter mechanism and CCD. Use the following procedure to adjust the focus:

1. Unscrew (loosen) the back focus adjustment lock screw.

2. Slide the focus adjustment to the left (if facing the lens) to move the CCD sensor away from the back of the lens or to the right to move the CCD sensor towards the back of the lens.

3. Tighten the screw to lock the back focus adjustment in

place.

Lock Screw

Electromagnetic Compatibility (EMC)

The manufacturer declares that this product is compliant with EMC directive 89/336, and Low Voltage Directive LVD 73/23 EEC, conforming to the requirements of standards EN 55022 for emissions, IEC801 parts 2, 3 and 4 for immunity, and EN 60065 for electrical equipment safety.

NOTE: This is a class B product. In a domestic environment this product may cause radio interference.

Installing a Direct (DC) Drive Lens

Pin Number

DC Drive

Pin 1

Damp-

Pin 2

Damp +

Pin 3

Drive

Menu Navigation

Specifications

1. If using a C-mount lens, fit the C-mount adaptor ring and slide the back focus adjsutment fully to the left with the lens facing towards you (see Setting the Focus).

2. Fit the lens to the camera and connect it to the DC lens socket, as defined by the pin assignments in Figure 1.

CAUTION: The maximum load for this type of lens must not exceed 25mA.

3. Access the menu and select LENS > BF. (See LENS BF Function)

4. If a focus ring is fitted on the lens, set it to infinity (∞) and then adjust the back focus.

5. Exit the BF menu to return to normal operation.

Installing a Video Drive Lens

1. If using a C-mount lens, fit the C-mount adaptor ring and slide the back focus adjsutment fully to the left with the lens facing towards you (see Setting the Focus).

2. Fit the lens to the camera and connect it to the Video Lens connector, as defined by the pin assignments in Figure 2.

CAUTION: The maximum load for this type of lens must not exceed 50mA.

3. Access the menu and select LENS > BF. (See LENS BF Function)

4. If a focus ring is fitted on the lens, set it to infinity (∞) and then adjust the back focus.

5. Exit the BF menu to return to normal operation.

Setting Video Drive Lens Level

1. Access the menu and select: DAY MODE > SETTING > AGC.

2. Note the current value. Then set to ”1” and exit the menu.

3. Adjust the lens level potentiometer for the correct exposure. (This can be achieved manually, or by using an oscilloscope or level meter to set the output of the camera to 1V peak-peak).

4. Return the AGC to the previously noted setting.

DC LENS

4 3

1 2

Pin 4 Drive +

Figure 1

Camera OSD Menu

AUTO

NIGHT

DAY/NIGHT

DAY MODE

NIGHT MODE

LENS

BLC

WHITE BALANCE

SYNC

MIRROR

TITLE

PRIVACY ZONE

RS485

DAY

SETTING

BF LEVEL

OFF

ZONE 1

ZONE 2

ZONE 3

ATW

ATW-EX

MWB

WB PUSH

INTERNAL LINE LOCK

OFF ON

ZONE 1 ZONE 2

SETTING

ZONE 4

ZONE 5

ZONE 6

ZONE 3 ZONE 4

Open the panel on the side of the camera to access the Navigation Control Pad and Set Key.

Press and hold the SET Key on the side of the camera to access the main menu Use the Up/Down buttons on the Contol Key to select the desired menu option. If a sub menu is available, this is

General

Image Size

Pixel Element

Scanning Frequency

Operation/Storage Temperature

Relative Humidity

Output Terminal

Power Source

Power Consumption

Power Indicator

IRIS Connector

Lens Mount

Back Focus Adjust

Mounting Hole

External Dimension

AC Supply

DC Supply

Video Drive

DC Drive

NTSC PAL

1/3 Format Interline CCD Sensor

768(H) x 494(V) 752(H) x 582(V)

NTSC 2:1 Interlace PAL 2:1 Interlace

H:15750Hz V:59.94Hz H:15625Hz V:50.0Hz

-10°C~50°C / -20°C~60°C

<90% Non-Condensing

BNC 75Ω unbalanced

20~29VAC

11~28VDC

4.5W Max

3Ø Green LED on Rear Panel

3pin Push Lock Terminal Block on Rear

4pin Connector on Rear

CS Mount, Change C Mount by Adaptor

CS Mount 12mm +/- 1.0mm, Adjust by screw

1/4” Top and Bottom

73mm(W) x 63mm(H) x 122mm (L)

indicated by Pressing the SET key will open the sub-menu. Values are changed using the Left/Right buttons. Remember to select SAVE before exiting the menu or else changes will not be implemented when the camera is next powered up.

LENS - BF Function

This function provides the installer with a simplified method of adjustment of optical back focus. When used with an auto iris lens, this function will automatically fully open the IRIS of the lens and swtich the camera to AES (auto electronics shutter) mode whilst the BF option is selected. In the case of a manual lens, this function will automatically switch to AES. Move the cursor to LENS with the Control Key, select BF and press SET key. Whilst in BF mode “ Press SET for return” is displayed on the monitor. Adjust the optical back focus for optimum focus then press SET key to return to the top menu. ( Please refer to section “Setting the Focus” ).

RS485

- +- +

VIDEO LENS

D/N LEVEL BURST

DELAY TIME

BURST

SHUTTER SPEED BRIGHT

APERTURE

AGC

CHROMA GAMMA CORR

LEVEL

R GAIN LEVEL B GAIN LEVEL

WB PUSH

V-PHASE

TEXT POSITION FLASH

SET ZONE

ADDRESS BAUD RATE

Figure 2

HIGH STANDARD LOW

AUTO/ON

05 Sec

10 Sec 20 Sec

30 Sec

60 Sec

1/50 (1/60)

1/120(1/100)FLK

1/250

1/500

1/1K

1/2K

1/4K

1/10K

1/100K

AES

LEVEL 1-15

LEVEL 1-9

1-9

COLOR ROLLING

00-FFh

LOCK/PUSH ON

OFF/ON

0-999

9600 bps

19200 bps

Functional Specification

Exposure Control

AES

MES

Auto IRIS Control

Video IRIS Output

DC IRIS Output

White Balance

Auto White Balance Range

Manual White Balance Range

Day & Night

IR Lamp Trigger

AGC Boost

Color Killer

SYNC System

Line Lock

Video Specification

Resolution

Minimum Illumination

Video Output

S/N Ratio

AGC Max Gain

AGC Default Gain

White Clip

Pedestal Level

SYNC Level

Burst Level

Aperture

Mirror

Gamma Compensation

Gamma Crosses Point

Gamma Block Level

Bright Level

Chroma Level

Function Control or Adjustment

Exposure Control

Color Killer

BLC

Auto White Balance

AGC Gain Control

SYNC System

V-Phase

Remote Control

Address

Phase Adjust Range

Frequency Range

Normal Mode

TDN Mode

Day Mode

Night Mode

Close IRIS

NTSC PAL

Auto Detection for AES (Fixed Iris), DC Iris or

Video Iris Lenses.

Auto Luminance Control

1/60 (1/50) ~ 1/100000 sec Max.

8 Step: 1/60(1/50), 1/120(1/100), 1/500,

1/1000, 1/2000, 1/5000, 1/10000

Video Drive / DC Drive Separate Output

600mV Vpp (100IRE Video Output)

1.2V at 85Ω Impendance

Auto White Balance/ Push White / Manual

White Balance

Standard Range: 2700K ~ 9700K

Extended Range: 2500K ~ 15000K

1 Preset; R gain and B gain Adjustable

Optical Low Pass Filter Removable (Auto

Detect) <Fuzzy 30 IRE ~80 IRE>

External Relay Contact input for IR switching

Enhanced AGC Gain to Max. 30dB

Fuzzy / ON / OFF

INT / Line Lock

0°C~270°C

60Hz +/- 1Hz 50Hz +/- 1Hz

NTSC PAL

540 TV Line

570 TV Line

0.6Lux @ F=1.2 (50IRE Video Output)

0.1Lux @ F=1.2 (40IRE)

1.0Vpp 75Ω BNC unbalance

95 IRE

50dB

40 IRE

38dB

30dB

24dB

120 IRE Max

7.5 +/- 2.5 IRE

40 +/- 2 IRE

15 Step, Level adjustable 0 IRE~15 IRE

(r=0.45 @ 100 IRE output)

ON / OFF

9 Step

55 IRE ~ 65 IRE

10 IRE ~ 15 IRE

15 Step

9 Step

NTSC PAL

Auto Detect

Fuzzy ON / OFF

6 Areas with adjustable levels

2700K~9700K / 2500K~15000K

18dB~30dB Linear Adjustment

INT / LL Switchable

0°~270°

* RS-485, Two way communications

000~999

* RS-485

For further information on the remote RS485 control contact your local representative
