High Power Astro Series User Manual

USER MANUALUSER MANUAL

Drive your Power and Exceed your Expectation

Astro Series provides extraordinary

accurate Patented Digital Control for a

precision voltage regulator plus the

“Eagle-Eye LED Power Meter”

700W

750W/650W

PLATINUM

DigitalDigital

D-VRM

eagle-eye

Power Meter

Converter

Intelligent

Fan Control

FEATURES

80 Plus Platinum Certified

With 90-92.8% (APG-750/ APG-650 offer 89-91%)extreme high efficiency at 20-100% of load to reduce the loss of electricity and save your money on facility bill.

Patented D- VRM technology, Digital Control for a Precision Voltage Regulator

Patent digital + VRM(D-VRM) is an innovative and industry leading technology. D-VRM is made to minimize voltage fluctuation down to 0.5% (over industry standard 3-5%). The technology of digital control for a precision voltage regulator is greatly beyond the limits of analog designs. D-VRM design features the intelligently adjusting voltage with minimal power loss through the module of voltage monitoring and digitally adjusting voltage. D-VRM design empowers users with superior flexibility and perfect precision to ensure the extreme system stability and better power efficiency.

Eagle Eye – The patented Real Time LED Power Meter

Tri color LED indicator shows the real time power consumption. Simply get the power supply status at a glance.

Silent Design

Embedded 13.5cm dual ball bearing golf-surfaced fan. The patented golf-surfaced fan increases airflow and reduce overall noise level.

Advanced DC to DC Converter

Unparalleled DC to DC converters for 3.3V & 5V outputs to reach high efficiency

Intelligent Fan Control

Equipped with" Intelligent Fan Control” design, which offers three types of operation modes, fanless mode, silent mode, and cooling mode. The Astro adjusts fan operation mode automatically according to the system loading as well as the ambient temperature level. When Astro is operating under 25% (+/- 5%) of the max output, the fanless mode is activated for the absolute silent experience.

Off- Delay Fan (Fan Stays On After System Off)

3It allows PSU fan to continue running after system shut down for few seconds approximately, it helps to exhaust residual air at the end of the heating/cooling cycle for extending component life.

TRUE

Wattage

Rating

Digital

D-VRM

eagle-eye

Power Meter

Single +12V Output Rail

Offers maximum compatibility for the +12V demand.

100% Japanese- made Capacitors

Longer lifespan than electrolytic capacitors.

Reliable Japanese- made Solid-state Capacitors

Enhance your system durability and stability even under extreme conditions.

Easily Detachable and Flexible Flat Modular Cables

Use only the cables you need. Reduce clutter from unused connectors and enhance the air flow inside your system.

TABLE OF CONTENTS

2012.V4.1

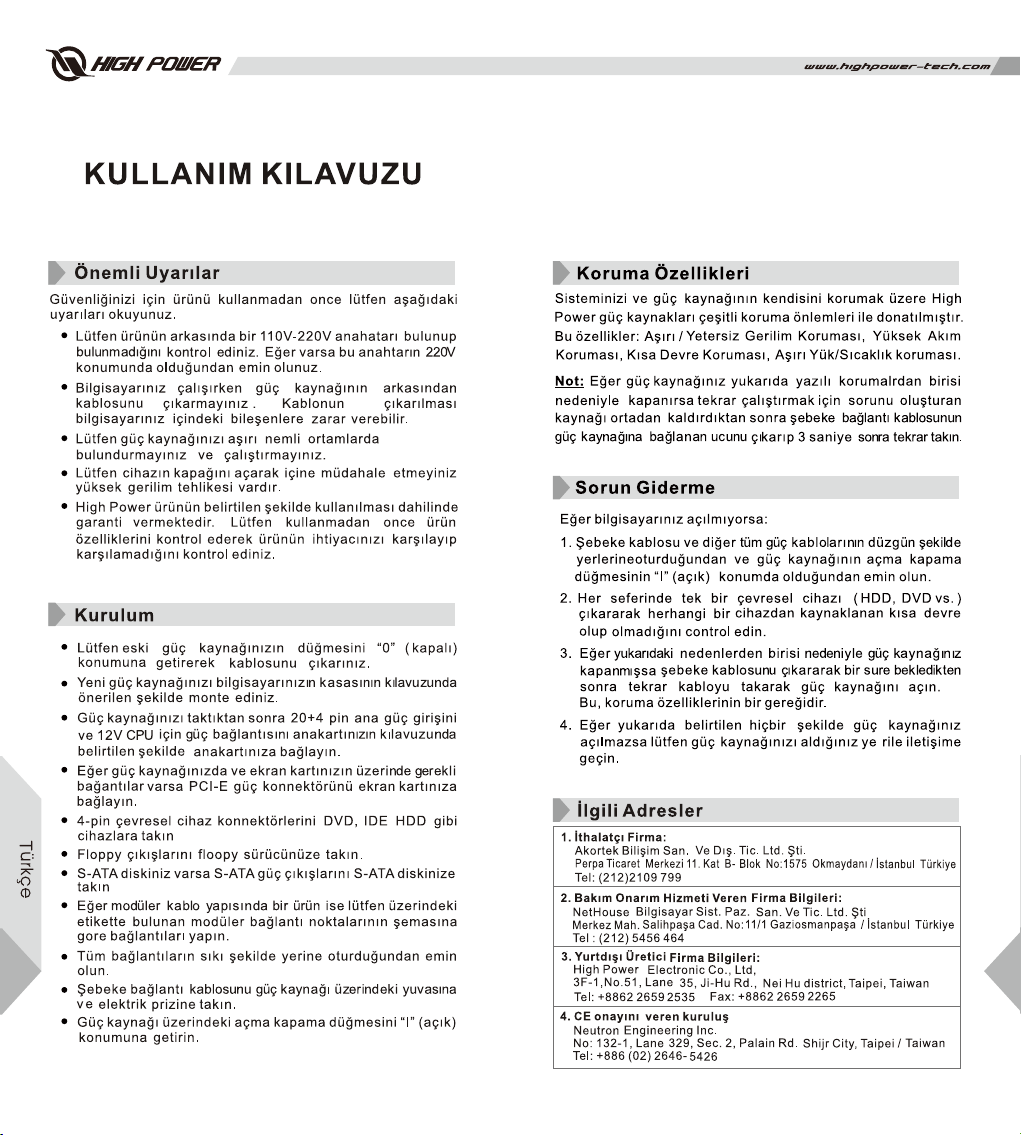

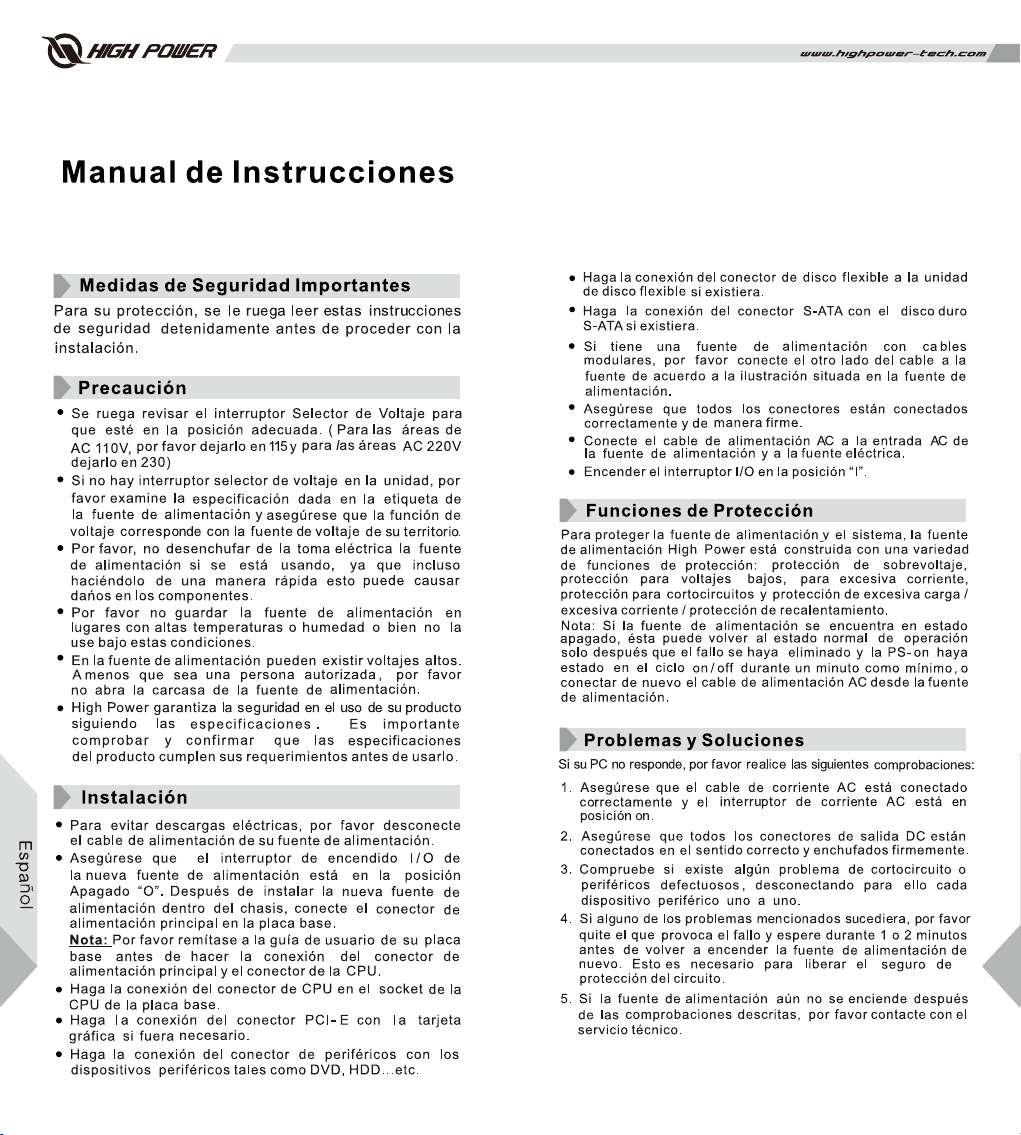

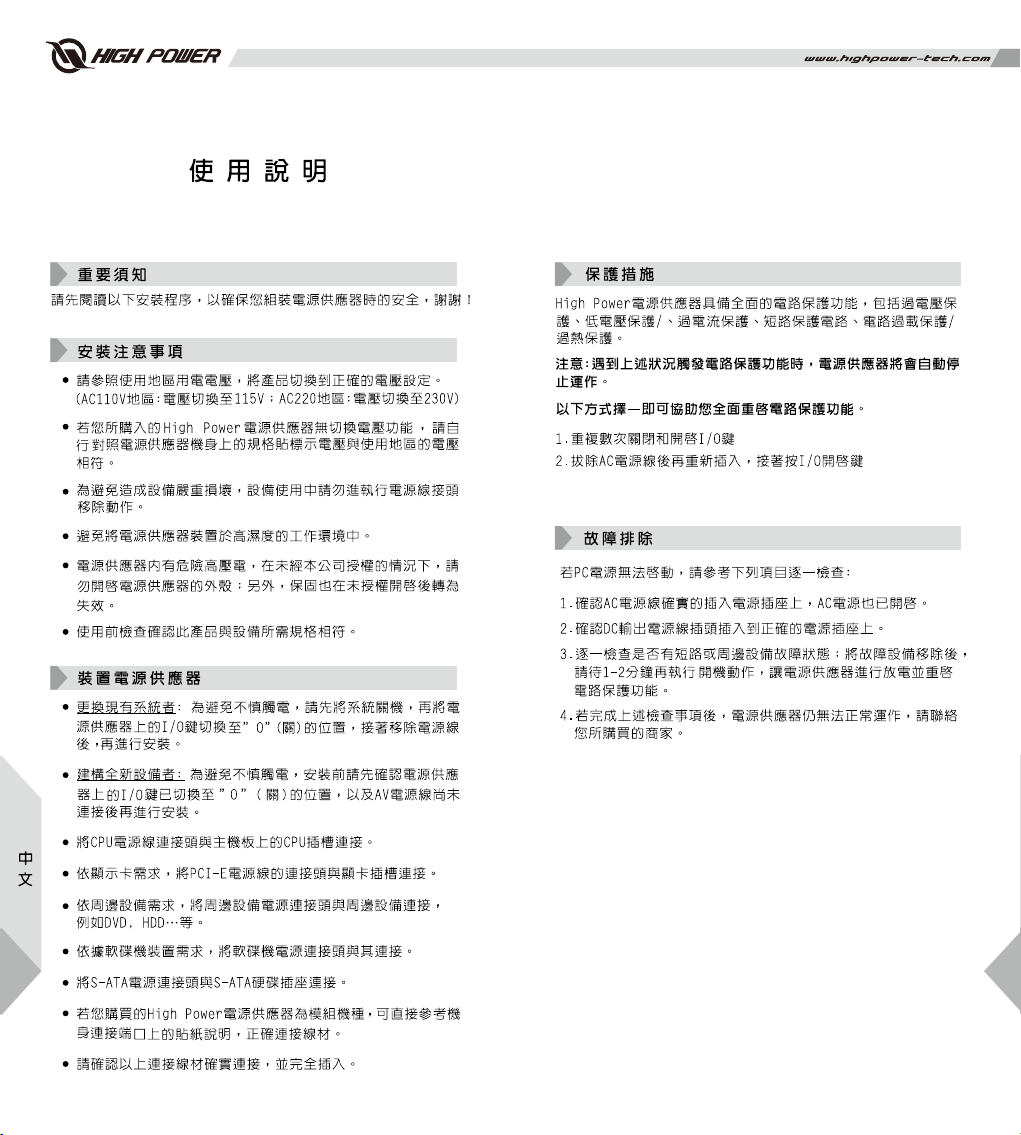

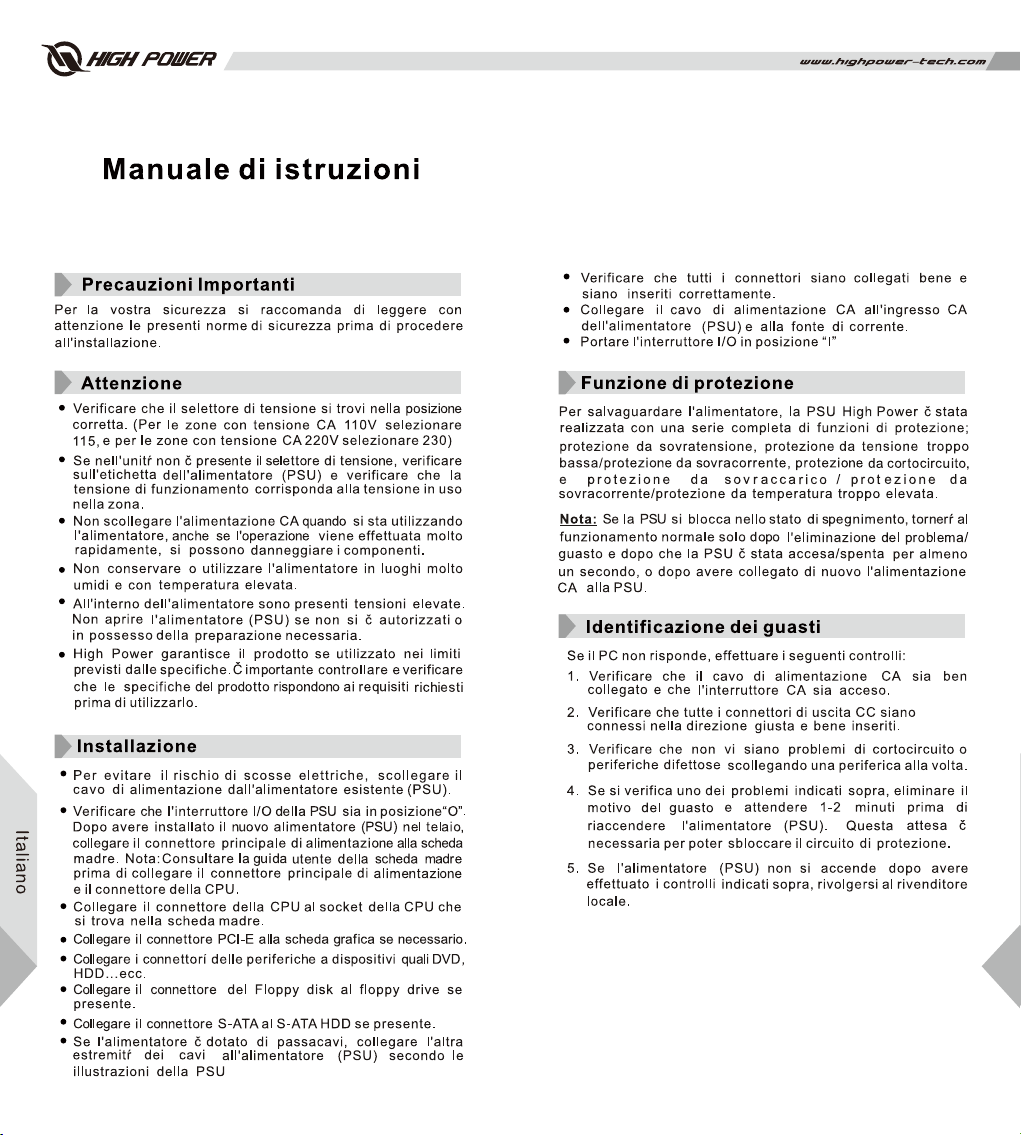

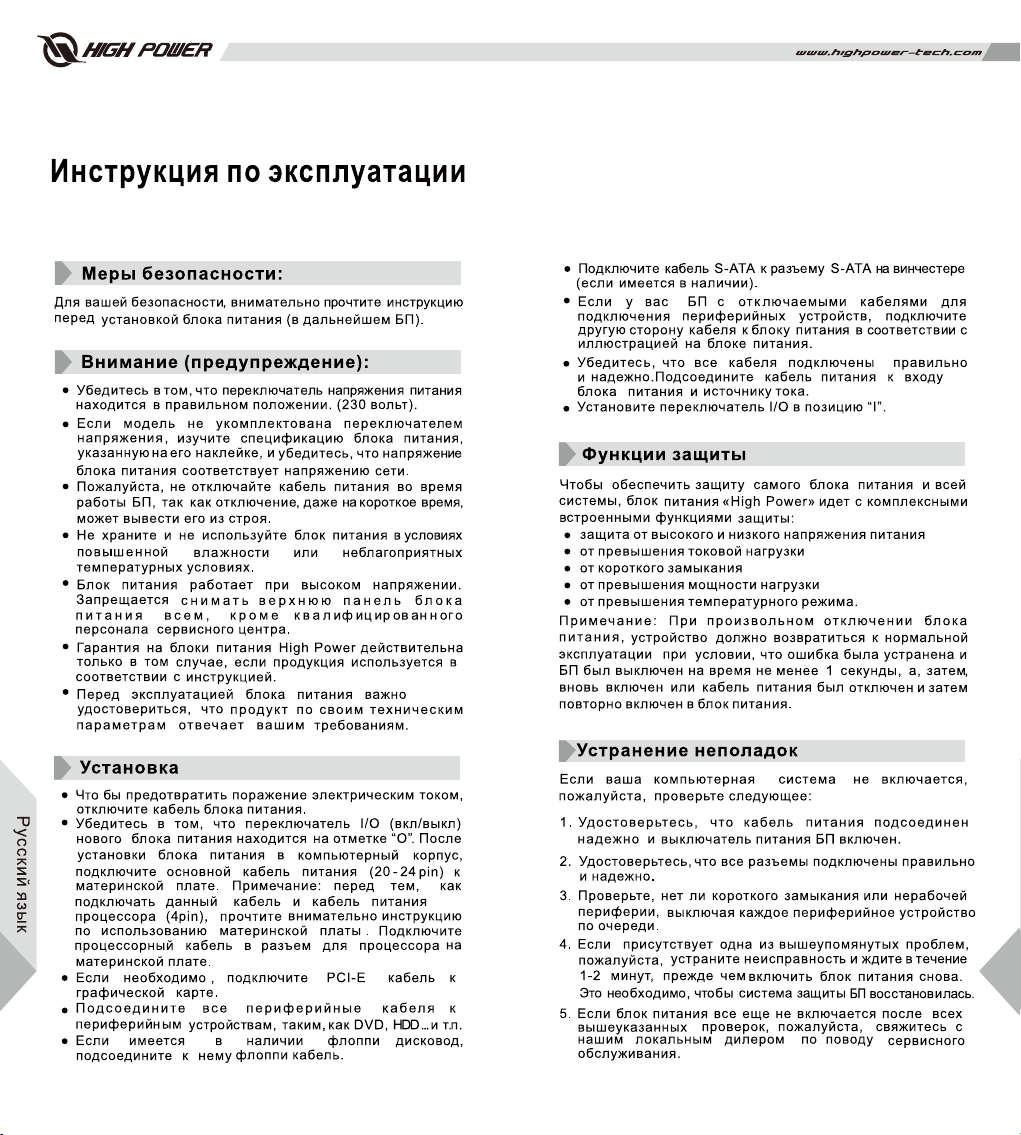

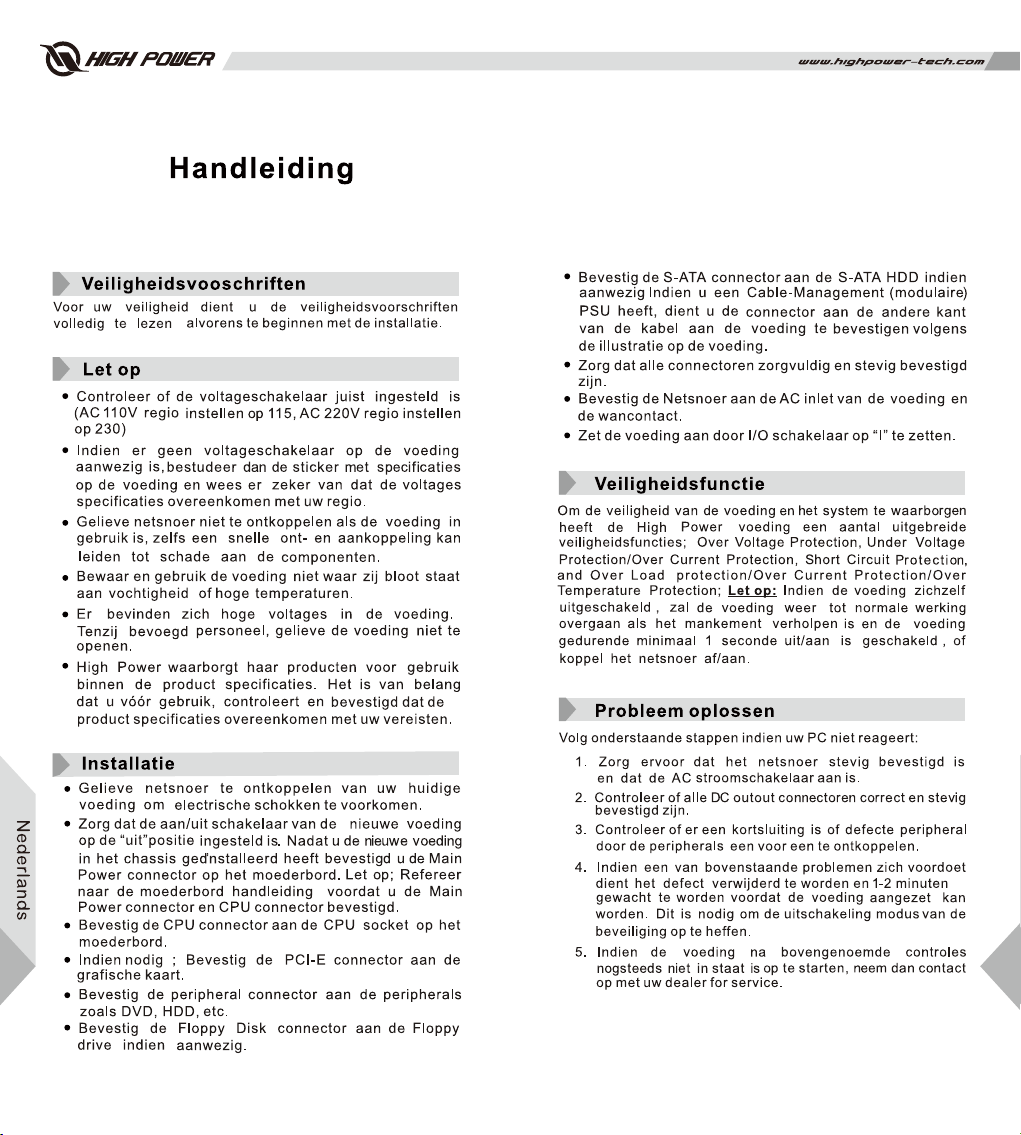

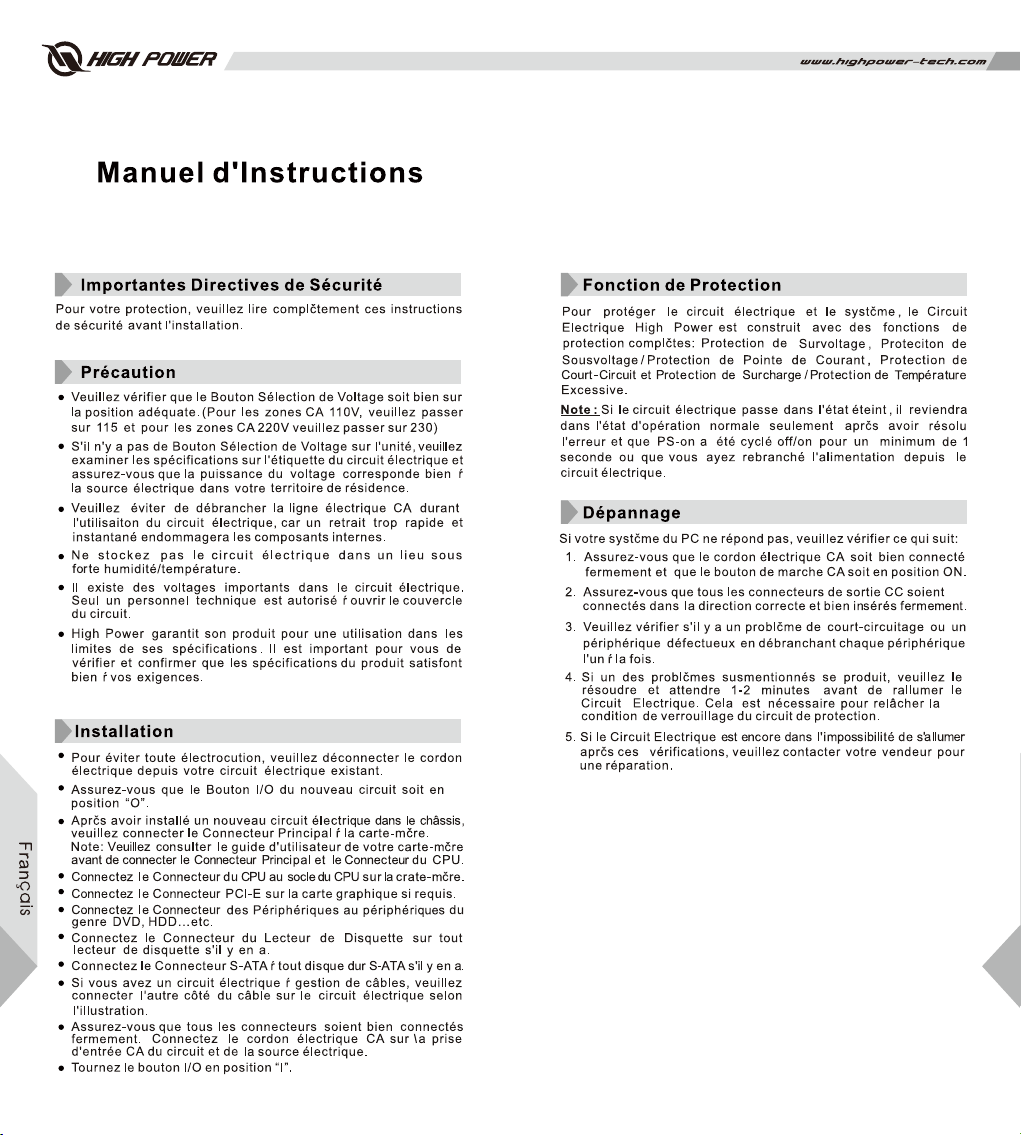

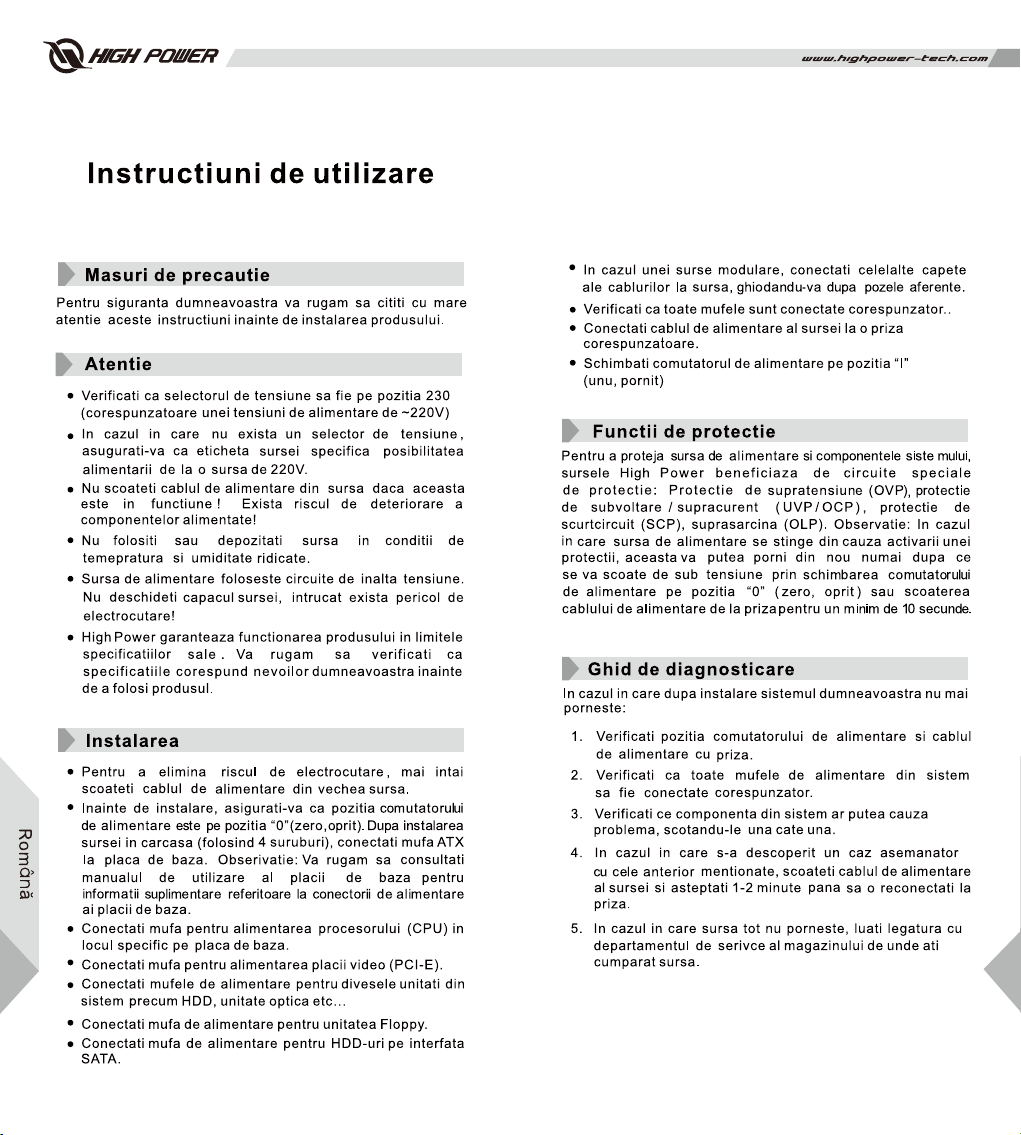

Instruction Manual

Important Safeguards

For your protection, please read these safety instructions completely before installation.

●

If your PSU is equipped with the modular cable management,

please refer to the instruction sticker attached on the PSU for the proper cable set.

●

Make sure all connectors are connected properly and firmly.

Caution

●

Please check the Voltage Select Switch to be switched at adequate position. (AC 110V area please switch to 115, AC 220V area switch to 230)

●

If there is no Voltage Select switch on the unit, please exam the specification on the PSU sticker and make sure the voltage function corresponds to the voltage source of your territory.

●

Please do not unplug the AC power line when the power supply is in use, even in a flash quick manner will cause damage to the components.

●

Please do not store the power supply in high humid

temperature place, or to be used in such condition.

Warning

●

Please do not open the PSU cover, High voltages exist in the power supply. Unless authorized personnel.

●

High Power warrants its product for use within the product specification. It is very important for you to check and confirm the product specification meets your requirements before use.

Protection function

To save guard the power supply and the system, the High Power PSU is built in with comprehensive protection functions; Over Voltage Protection, Under Voltage Protection/Over Current Protection, Short Circuit Protection, and Over Load protection/Over Temperature Protection.

Note: The PSU will be shut down if the protect function is triggered. To restore the PSU back to normal, please either switches off the I/O then on or unplugs the AC power cord and plug it again then.

Trouble shooting

If your PC system does not respond, please make following checks:

1. Make sure the AC power cord is connected firmly and the AC power switch is turned on.

2. Make sure all DC output connectors are connected in the right direction and plugged firmly.

3. Check whether there is any short circuit problem or defective peripherals by unplugging each peripheral device one at a

Installation

●

To prevent electrical shocks, please disconnect the power cord from your existing PSU.

●

Make sure the I/O switch of the new PSU is at off “O” position.

After install the new PSU into the chassis, connect the Main power connector to the mother board.

●

Note: Please refer to your motherboard user guide before connecting the Main power connector and CPU connector.

●

Connect the CPU connector to the CPU socket on

time.

4. If one of the above mentioned problems occurs, please remove the fault and wait for 1-2 minutes before you turn on the PSU again. This is necessary to release the latch condition of the protection circuit.

5. If the PSU is still unable to power up after above checks, please contact with your dealer for service.

motherboard.

●

1 2

Connect the PCI-E connector to the graphic card if needed.

●

Connect the Peripheral connector to peripheral devices such

as DVD, HDD…etc.

●

Connect the Floppy disk connector to the floppy drive if any.

●

Connect the S-ATA connector to the S-ATA HDD if any.

3 4
