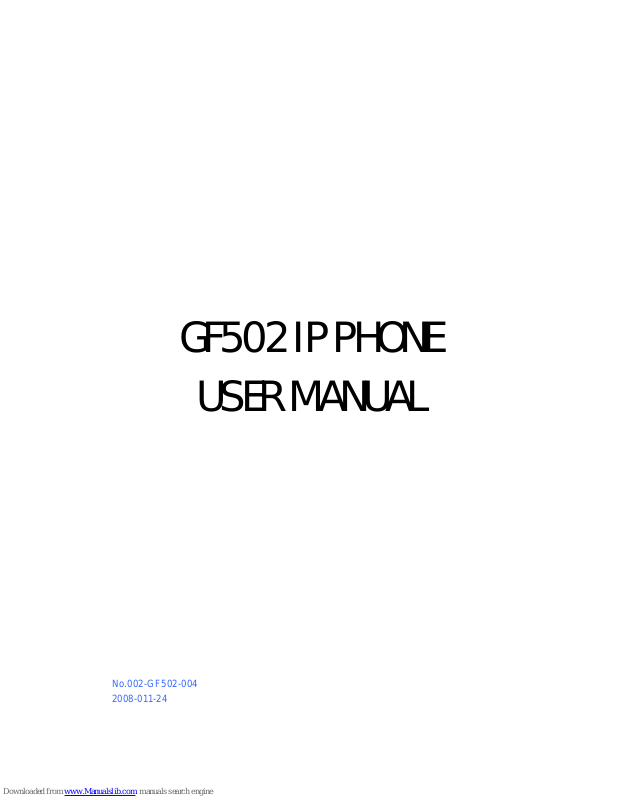

GF502 IP PHONE
USER MANUAL
No.002-GF502-004
2008-011-24
CONTENTS
PREFACE.....................................................................................................................1
◎ABOUT THIS MANUAL .......................................................................................................................1
◎AUDIENCE .........................................................................................................................................1
◎RELATED DOCUMENTATION ..............................................................................................................1
◎DOCUMENT CONVENTIONS ...............................................................................................................1
CHAPTER 1: AN OVERVIEW OF THE GF502 VOIP PHONE...........................2
◎INTRODUCTION ................................................................................................................................. 2
◎MAIN FEATURES................................................................................................................................2
◎SILKSCREEN ......................................................................................................................................3
◎DESCRIPTION OF KEYPAD..................................................................................................................4
◎NETWORKING PROTOCOL..................................................................................................................5
◎SUPPORT CODEC ............................................................................................................................... 6
◎HARDWARE PARAMETERS .................................................................................................................6
◎ENVIRONMENT ..................................................................................................................................6
CHAPTER 2: INSTALL THE GF502 VOIP PHONE..............................................8
◎THE CONNECTS OF THE BOX .............................................................................................................8
◎INSTALLATION PROCEDURE ...............................................................................................................8
CHAPTER 3: CONFIGURE THE GF502 VOIP PHONE....................................10
◎CONFIGURE VIA WEB UI ................................................................................................................10
3.1.1 Access web setting page........................................................................................................10
3.1.2 The logon page......................................................................................................................11
3.1.3 Current Configurations page ................................................................................................ 11
3.1.4 Basic Configurations page....................................................................................................13
3.1.5 Advanced Configurations page.............................................................................................16
3.1.6 Line Configurations ..............................................................................................................17
3.1.7 Updating Configurations page..............................................................................................19
3.1.8 QoS Configurations page......................................................................................................20
3.1.9 Provision Configurations page..............................................................................................20
3.1.10 User Management page ......................................................................................................20
3.1.11 Factory Reset page..............................................................................................................21
3.1.12 Rebooting System page........................................................................................................22
◎CONFIGURE VIA KEYPAD ................................................................................................................. 22
3.2.1 Function keys introduction....................................................................................................22
3.2.2 Text input...............................................................................................................................23
3.2.3 Main menu.............................................................................................................................23
3.2.4 Update menu .........................................................................................................................25
3.2.5 Forward menu.......................................................................................................................25
3.2.6 Other functions menu............................................................................................................25
CHAPTER 4: UPDATE THE FIRMWARE...........................................................27
◎UPDATE VIA KEYPAD ....................................................................................................................... 27
◎UPDATE VIA WEB ........................................................................................................................... 27
CHAPTER 5: USAGE OF THE PHONE................................................................28
◎TALK MODE AND OPERATIONS .........................................................................................................28
5.1.1 Communication mode............................................................................................................28
5.1.2 Operation of off hook............................................................................................................28
5.1.3 Operation of on hook.............................................................................................................28
◎MAIN BASE CALL FUNCTIONS ..........................................................................................................28
5.2.1 Making calls from t he G F502 VoIP phone............................................................................28
5.2.2 Speed dial..............................................................................................................................29
5.2.3 Answer a call.........................................................................................................................29
5.2.4 Reject a call...........................................................................................................................29
◎HANDLING CALLS FUNCTION ...........................................................................................................29
5.3.1 Call forward..........................................................................................................................29
5.3.2 Hold and retrieve a call.........................................................................................................30
5.3.3 Transferr ing calls..................................................................................................................30
5.3.4 Mute ......................................................................................................................................31
5.3.5 DND......................................................................................................................................31
5.3.6 Multi-line...............................................................................................................................31
5.3.7 Three-way..............................................................................................................................31
5.3.8 Conference ............................................................................................................................32
5.3.10 Message...............................................................................................................................32
5.3.11 Volume adjustment...............................................................................................................32
◎PHONE BOOK AND CALL LOG ...........................................................................................................32
5.4.1 Phone book............................................................................................................................32
5.4.2 Call log..................................................................................................................................33
◎OTHER FUNCTIONS ..........................................................................................................................34
5.5.1 Ping.......................................................................................................................................34
5.5.2 Lock.......................................................................................................................................34
1
GF502 VOIP PHONE
Preface
◎
About this Manual
This guide provides the information you need to understand, install, configure, and manage
the GF502 VOIP Phone on your network. It provides the required steps to get the GF502 VOIP
Phone up and running on a SIP network. Not all features listed are available by default. Contact
your network administrator or service provider to find out which features and services are
available to you on your system.
◎
Audience
Network engineers, system administrators and end users who need to understand how to
install and use the IP phone on a SIP network should review this guide. Prior knowledge of IP
telephony concepts is recommended.
◎
Related Documentation
z Dial Plan Guide For VoIP Device.pdf
The user guide of local dial plan for GF502 VoIP phone.
z Provisioning Guide for VoIP Device.pdf
The user guide of provisioning for GF502 VoIP phone.
◎
Document Conventions
This document uses the following conventions:
5Means reader be careful. In this situation, you might do something that could result in
equipment damage or loss of data.
1Means reader take note. Notes contain helpful suggestions or references to material not
covered in the publication.
2
GF502 VOIP PHONE
Chapter 1: An Overview of the GF502 VOIP Phone
◎
Introduction
The GF502 IP Phone provides voice communication over an IP network using the SIP
protocol. It functions much like a traditional analog telephone, allowing you to place and receive
phone calls and to access features such as mute, hold, forward, transfer, and speed dial. In addition,
because the phone is connected to network, it offers enhanced IP telephony features, including
access to network information and customizable features.
A GF502 VOIP Phone, like other
network devices, must be configured and managed.
◎
Main Features
z Support three sip accounts at the same time.
z Support multi-line.
z Support Static, DHCP and PPPoE mode.
z DHCP server and address pool.
z Support Bridge or NAT.
z Support QoS, ToS.
z Support SNTP.
z Support major G7.xxx CODEC.
z VAD, CNG, AEC, Jitter buffer.
z Support Local Dial Plan.
z Support Info, Inband and RFC2833 DTMF.
z Ring tones and tone set.
z Speed Dial, Phone Book, Call Log.
z Call Forward, Call Transfer.
z Three-Way and Conference.
z MWI
z Caller ID displays.
z DND, Mute, Hold.
z Provision function.
z Web UI management.
z Adjustable user password and super password.
z Adjustable volume of hands free and handset.
z Display logo.
3
◎
Silkscreen

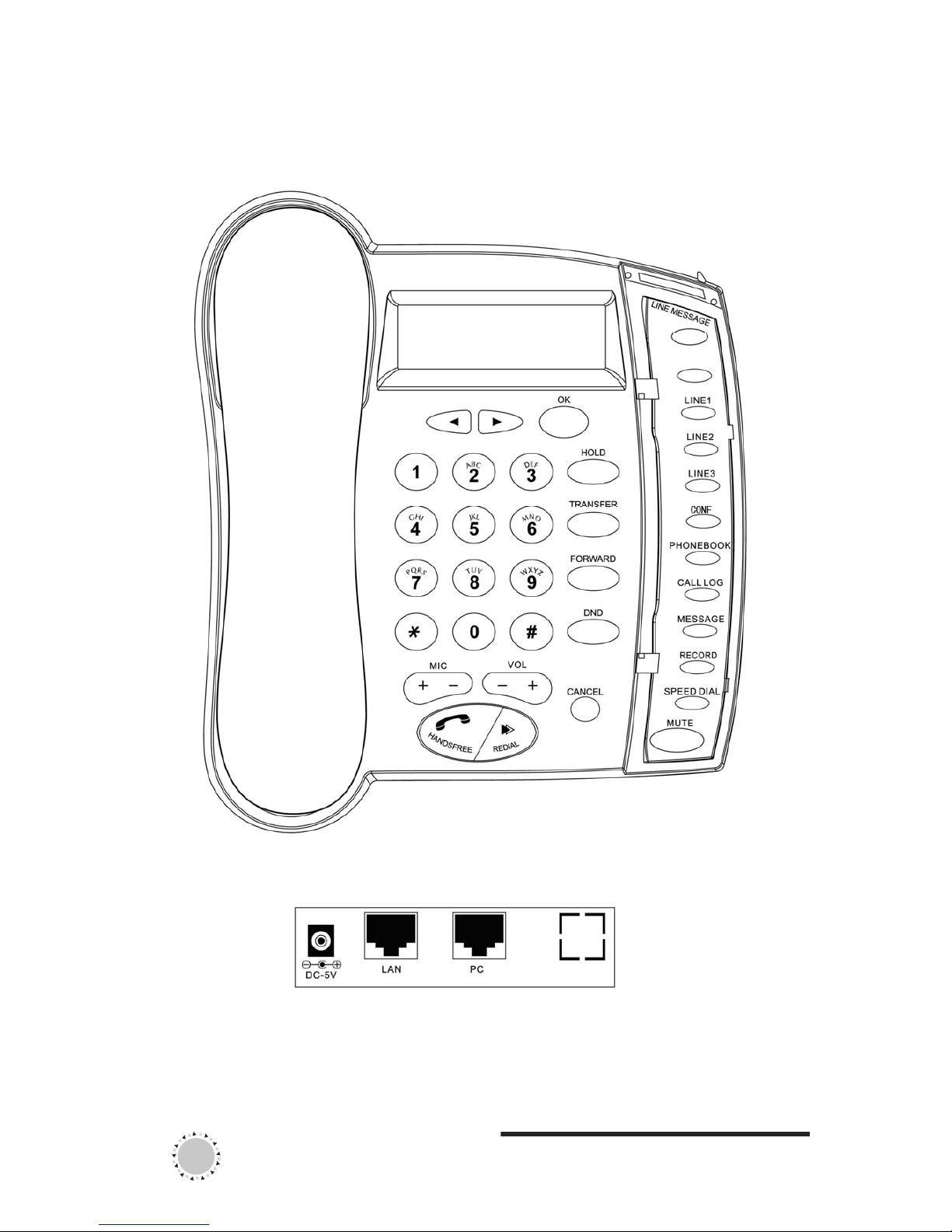

Figure1-1 GF502 SILKSCREEN
4
GF502 VOIP PHONE
◎
Description of Keypad
NO. TITLE DEFINE
1 OK
¾ Keep pace with the left word "OK", "Select" or
"YES" at the screen bottom
¾ Enter the menu
¾ Confirm the modification
2 EXIT
¾ Keep pace with the right word "Cancel", "Back" ,
"Exit" , "Clear" or "NO" at the screen bottom
¾ Quit the menu
¾ Cancel the modification
¾ Delete input digit
<
¾ Move the pointer to the option above
¾ When editing, move the pointer to the left digit
¾ Enter the phone book list when Idle
3
>
¾ Move the pointer to the option below
¾ When editing, move the pointer to the right digit
¾ Enter the phone book list when Idle
MIC + -
4
VOL + -
¾ When pick up the handset, adjust the handset
volume
¾ When press hands free, adjust the speaker volume
5 HANDSFREE
¾ Get ready for dialing in idle mode
¾ Receive a call
¾ Dial out when selecting a phonebook or call log
entry
6 REDIAL
¾ Dial out the last called number
¾ Switch the input mode between the number and the
character when editing
¾ Enter the list of number dialed
7 HOLD
¾ During the call, come into the hold mode
¾ Press and hold to upgrade
¾ Check the phone’s parameters of network
8 TRANSFER ¾ Transfer the call
9 FORWARD ¾ Configure forward type and number
10 DND ¾ Switch the DND mode on or off
LINE1
11
LINE2
¾ Receive the new call during the call
¾ Make a new call during the call
¾ Switch between different conversations
5
LINE3
LINE4
12 CONF
¾ Diagnose network status.
¾ Conference or Three-way
13 PHONEBOOK ¾ Enter the phone book menu.
14 History ¾ Enter the call log menu.
15 MESSAGE ¾ Access the voice mail
17 SPEED DIAL ¾ Configure speed dial numbers
18 MUTE
¾ Turn off the volume of the microphone during the
call
19 Dialing Pad
¾ Functions like a traditional telephone dialing pad.
¾ While inputting words, press number key
successively , and the current characters will change
in turn
¾ Press [#] after telephone number to ensure to dial
out
LINK LED
¾ Turn on if no service is available.
¾ Blinking if not all accounts are registered.
20
MESSAGE LED ¾ Turn on when there is MWI
21 LAN ¾ Interface to LAN or WAN
22 PC ¾ Interface to PC
23 PWR ¾ Interface of power supply
◎
Networking Protocol
The GF502 VOIP Phones support several industry-standard networking protocols required for
voice communication and data transmission.
¾ SIP: RFC3261
¾ DTMF: Inband, RFC2833, SIP Info
6
GF502 VOIP PHONE
¾ RTP: RFC1889
¾ RTCP: RFC3605, RFC3611
¾ DNS: RFC1035
¾ FTP: RFC9590
¾ TFTP: RFC1350
¾ HTTP: RFC1945, RFC2616
¾ SNTP: RFC1361, RFC2030
¾ SNMP: RFC1157
¾ STUN: RFC3489
¾ DHCP: RFC2131, RFC2132
¾ PPPoE: RFC2516
¾ NAT: RFC1631, RFC2663
◎
Support Codec
These phones support codec such as:
¾ G.711a
¾ G. 7 11 μ
¾ G.723.1 5.3/6.3
¾ G.729AB
◎
Hardware Parameters
The GF502 VOIP Phone hardware features:
Standard
¾ CPU: Infineon PSB21553
¾ Data Memory: 8MB SDRAM
¾ Software Memory: 2MB Flash memory
¾ Ethernet Port: 2 RJ-45 plugs, IEEE802.3 10/100 Base-T
¾ Power Adaptor: Input 110-250V, Output 5V DC, 1A
¾ Keypad: 36keys
¾ LCD: 4x20 char-based, white backlight
¾ LED: 2 LEDs
Optional
¾ Data Memory: 16MB/32MB SDRAM
¾ Software Memory: 4MB/8MB Flash memory
¾ PoE: 802.3af
¾ LCD: 128x64 Pixel-base with blue/white backlight
¾ Headset Port: 2.5mm plug set
◎
Environment
¾ Operating Temperature: 0℃ to 50℃（32℉ to 122℉）
¾ Storage Temperature: -10℃ to 60℃（14℉ to 140℉）
7
¾ Relative Humidity: 10%-90%, non-condensing
8
GF502 VOIP PHONE
Chapter 2: Install the GF502 VOIP Phone
This section provides instructions for installing the GF502 VOIP Phone. Before you perform
the installation, be sure you have met the following prerequisites:
¾ Planned the network and GF502 VOIP Phone configuration.
¾ Installed and configured the other network devices.
¾ 10BASE-T or 100BASE-T or better Ethernet cable. One cable is needed for each
Ethernet connection.
1After you install a phone, even if it is new, upgrade the phone to the current firmware image.
For information about upgrading, refer to Chapter 4.
◎
The Connects of the Box
The GF502 IP Phone includes these components on the phone or as accessories for the
phone:
Standard:
¾ Telephone base unit
¾ Bracket
¾ Handset
¾ Handset cord
¾ 5V Power adaptor
Optional:
¾ RJ-45 Ethernet cable
¾ Headset
¾ CD
¾ User's manual
◎
Installation procedure
Step 1 Fix the bracket to the back of phone, connect the handset with phone base unit using the
handset cord.
Step 2 Connect one end of a standard RJ45 Ethernet cable to the LAN port on the rear panel of
the GF502 VOIP Phone. Connect the other end to your IP network device such as a hub,
switch or directly to the Network. If your phone supports Power over Ethernet (PoE) ,
the GF502 VoIP IP phone can be powered from a switch via Ethernet cable, in which
case the external power adaptor is not needed.
Step 3 (Optional) Connect one end of a standard RJ45 Ethernet cable to the PC port on the rear
panel of the GF502 VOIP phone. Connect the other end to your PC.
9
1If you want your PC connect to network through the voip phone or you want to configure the
phone by PC port, perform this step.
Step 4 Insert the power adaptor cable into the 5V power adaptor cable receptacle on the phone.
Ensure that the power adaptor jack is snugly attached to the GF502 VOIP Phone.
10
GF502 VOIP PHONE
Chapter 3: Configure the GF502 VoIP Phone
Three different ways can be used to configure GF502 VoIP phone: web browser, phone
keypad and provision function. Configuring by provision function refer to Provisioning Guide for
VoIP Device.pdf.
◎
Configure via WEB UI
GF502 VoIP IP Phone has a built-in HTTP server for the user to do the configuration via web
browser. Editing the parameters on the web, then press “Apply” at lower right corner and reboot
the phone to make the change activated.
1Do press the “Apply” after changes have been done in one page. Most parameters need to
reboot the GF502 VoIP phone to take effect.
3.1.1 Access web setting page
You can access web page by the IP of LAN port or PC port. For a new GF502 VoIP phone the
default network mode is set to DHCP mode, the NAT switch and DHCP server are set to on.
Access through the PC port: Use Ethernet cable to connect GF502 VoIP phone’s PC port
and your computer. The default gateway address and subnet mask are 192.168.0.1 and
255.255.255.0. Set your computer’s IP to the network 192.168.0.x, subnet mask 255.255.255.0,
gateway 192.168.0.1. Open your web browser and key in 192.168.0.1. Then you will see the logon
page of the device.
Access through the LAN port: Press HOLD of keypad in idle mode to check the LAN port
IP. Open your web browser and key in the IP. Then you will see the logon page of the device.
1The default username and password is root/111111 for administrator and user/000000 for
user.
5Do remember the password of root if you have changed it. You can’t change it again if you
forget it and do not setting provision.
11

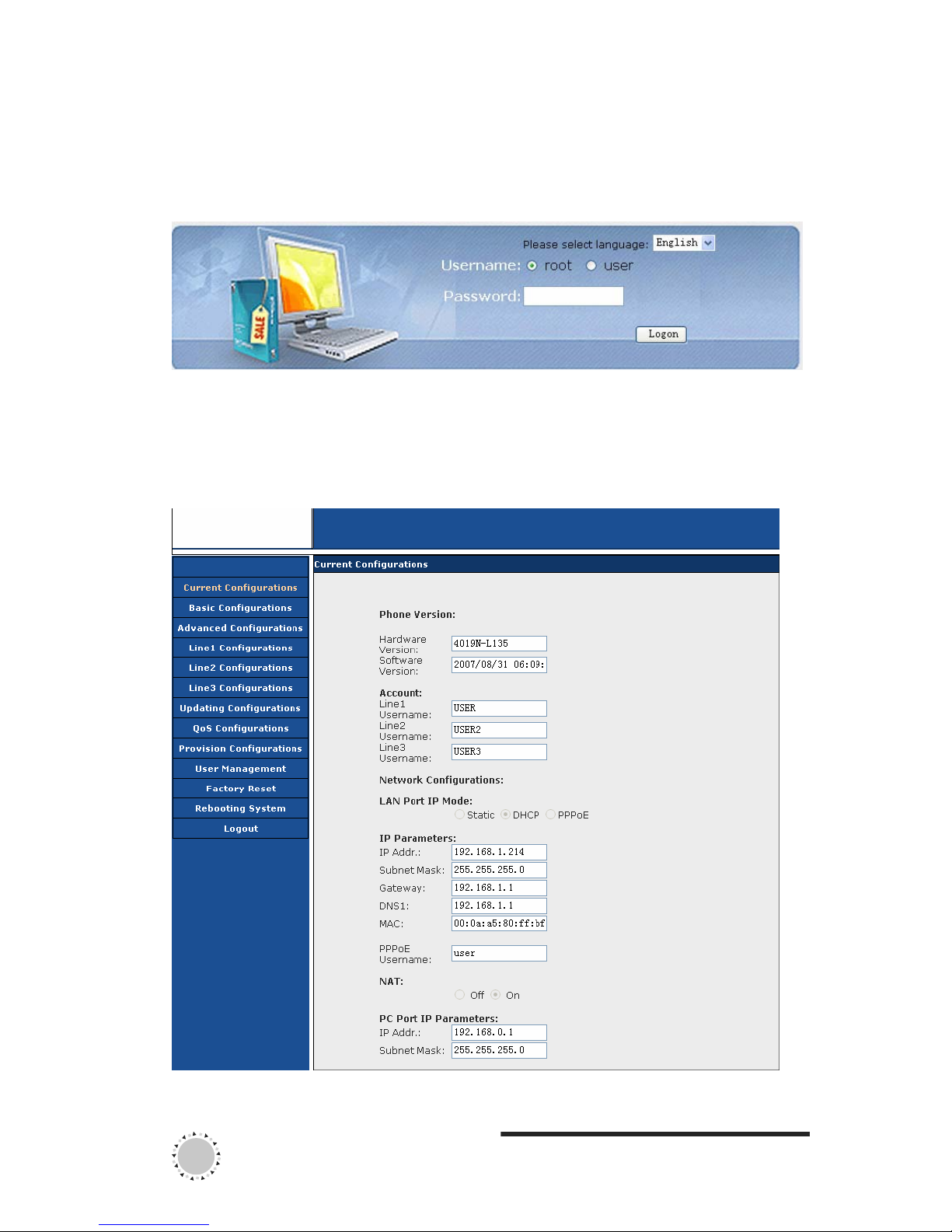

3.1.2 The logon page
Select the user name (user or root) and input password to logon. Root has no limit in view or
configure via browser.
3.1.3 Current Configurations page
After logon, the page will show the GF502 VoIP phone running state about firmware version,
accounts and network parameters.
Phone Version shows the hardware and the software version of this phone.
12
GF502 VOIP PHONE
Account shows the account username which is in using.
Network Configurations show the network mode, IP parameters and NAT.
13

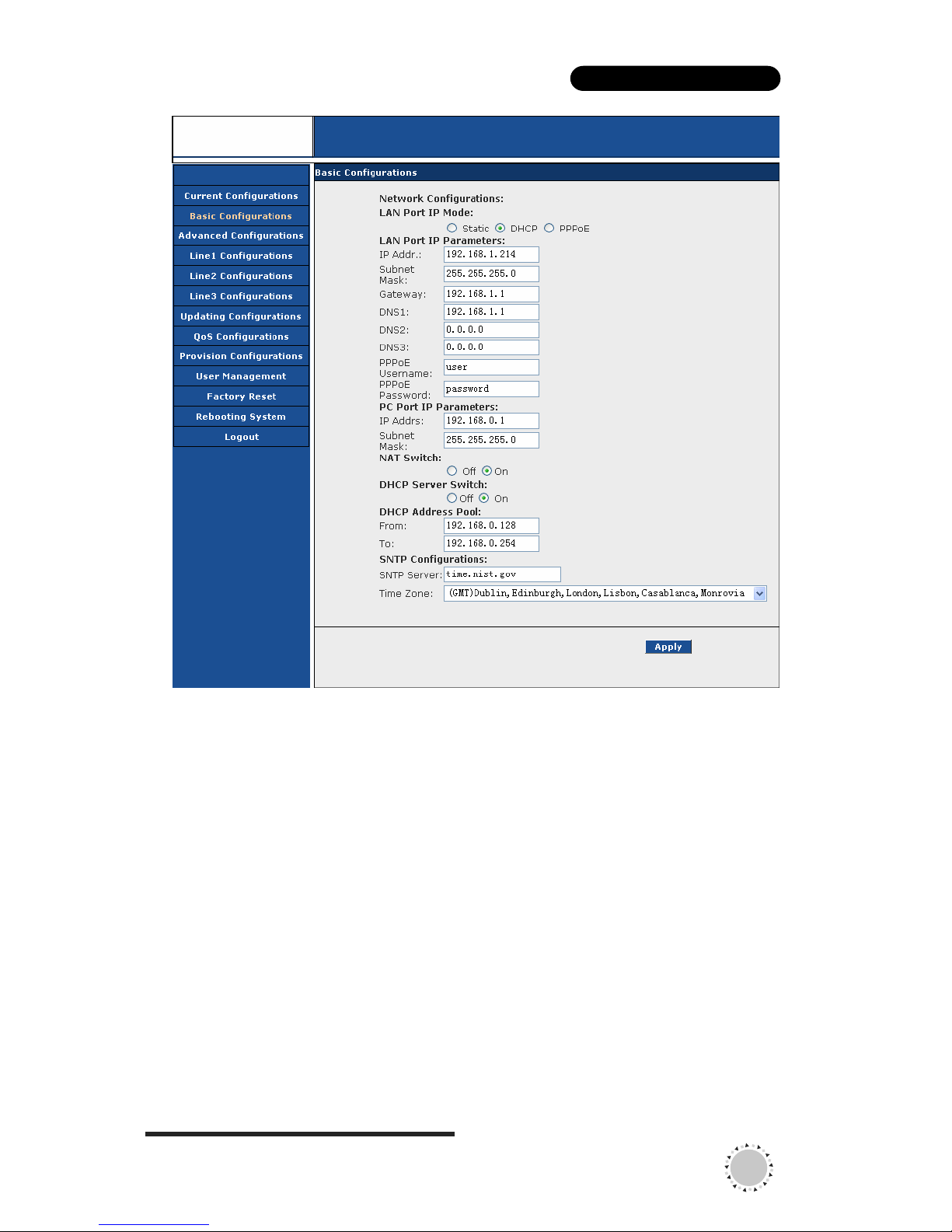

3.1.4 Basic Configurations page
In the Basic Configurations page, parameters about network, time server and time zone can
be set
1The NAT switch and DHCP server are set to “on” as default, if you would not use NAT of
phone, please set them to off. When the NAT switch is set to off, the network to PC will be set to
bridge mode.
¾ If the network administrator assigns your phone a static IP or the DHCP function has
been disabled (Generally company users using LAN network use this mode), please
refer to Static Mode.
¾ If the network administrator has enabled the DHCP function, and the phone get IP
address by DHCP, please refer to DHCP Mode.
¾ If you connect to the Internet directly by ADSL (Most home users and company users
without LAN use this mode), please refer to PPPoE Mode.
14
GF502 VOIP PHONE
¾ Configure Static IP:
----Enable Static;
----Set IP address in the IP A ddr. field.
----Set subnet mask in the Subnet Mask field;
----Set gateway IP address in the Gateway field.
----Set DNS IP address in the DNS1-3 field.
----Press Apply.
¾ Configure to dynamic obtain IP
----Enable DHCP.
----Press Apply
¾ Configure PPPoE:
----Enable PPPoE
----Enter PPPoE username and pin in the PPPoE username and PPPoE password.
----Press Apply
NAT Switch: Switch to Bridge mode (switch off) or NAT mode (switch on). The GF502 VoIP
15
phone won’t assign IP for its PC port in bridge mode and its PC and LAN port will be in
the same network.
PC Port IP Parameters: Set the IP and subnet mask for the NAT of PC port.
DHCP Server Switch: Enable the DHCP service in PC port.
DHCP Address Pool: Set the DHCP address for the DHCP service.
SNTP Configurations: Set the SNTP server and time zone. The default SNTP server is
“time.nist.gov” and the default time zone is GMT+0.
16
GF502 VOIP PHONE

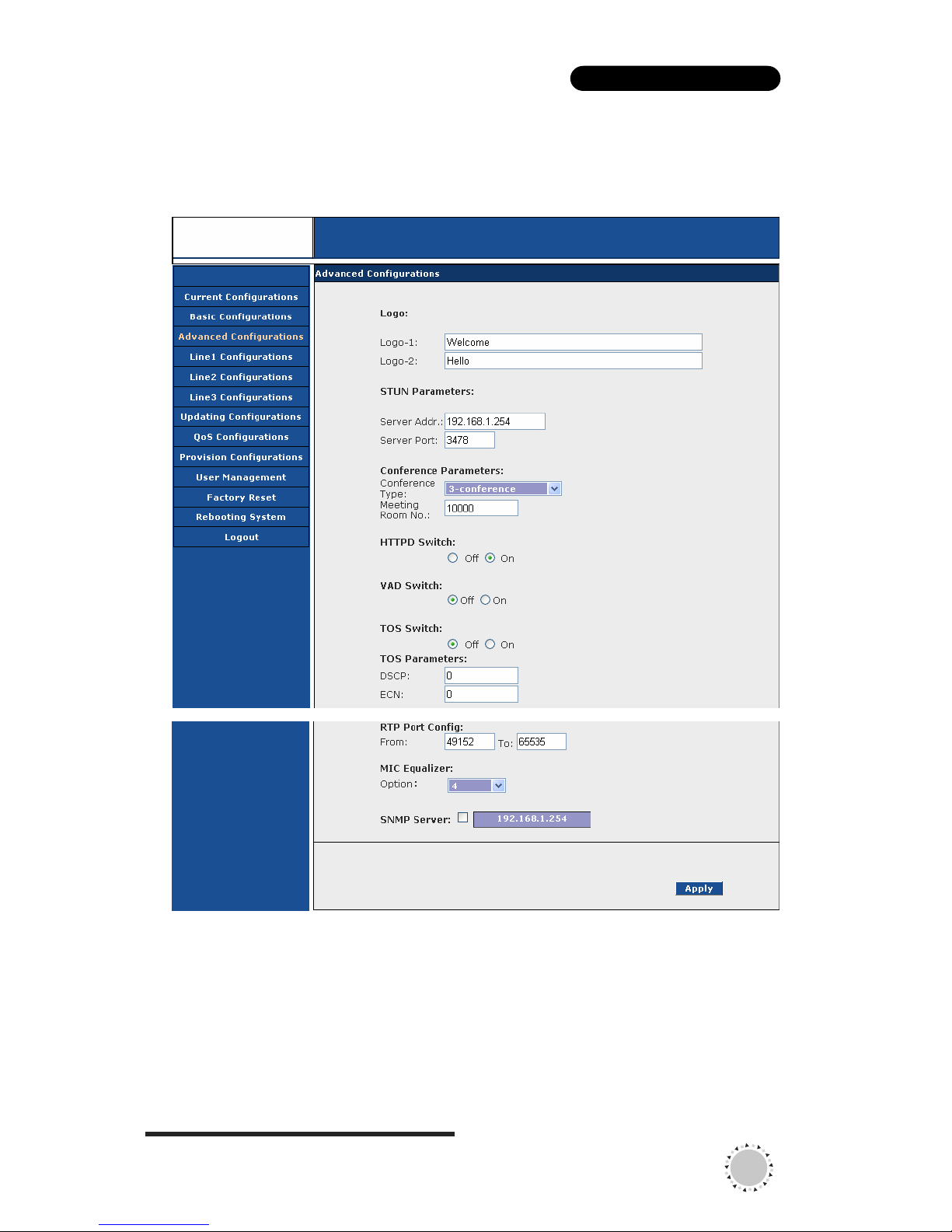

3.1.5 Advanced Configurations page
In this page, some common parameters can be configured.
Logo: These will be display in the second line and third line of LCD when idle.
STUN Parameters: Set STUN server address and port if necessary.
Conference Parameters: Set the conference type and the conference room number.
HTTPD Switch: Enable or disable the WEB access. If you can’t access the web, you can turn on
the switch via keypad.
VAD Switch: Enable or disable Voice Activity Detection.
ToS Switch/ToS Parameters: Set the parameters about ToS.
RTP Port Config: Set the RTP port range.
MIC Equalizer: Adjust the quality of sound.
17
SNMP Server: Enable or disable the SNMP service and set the service address.

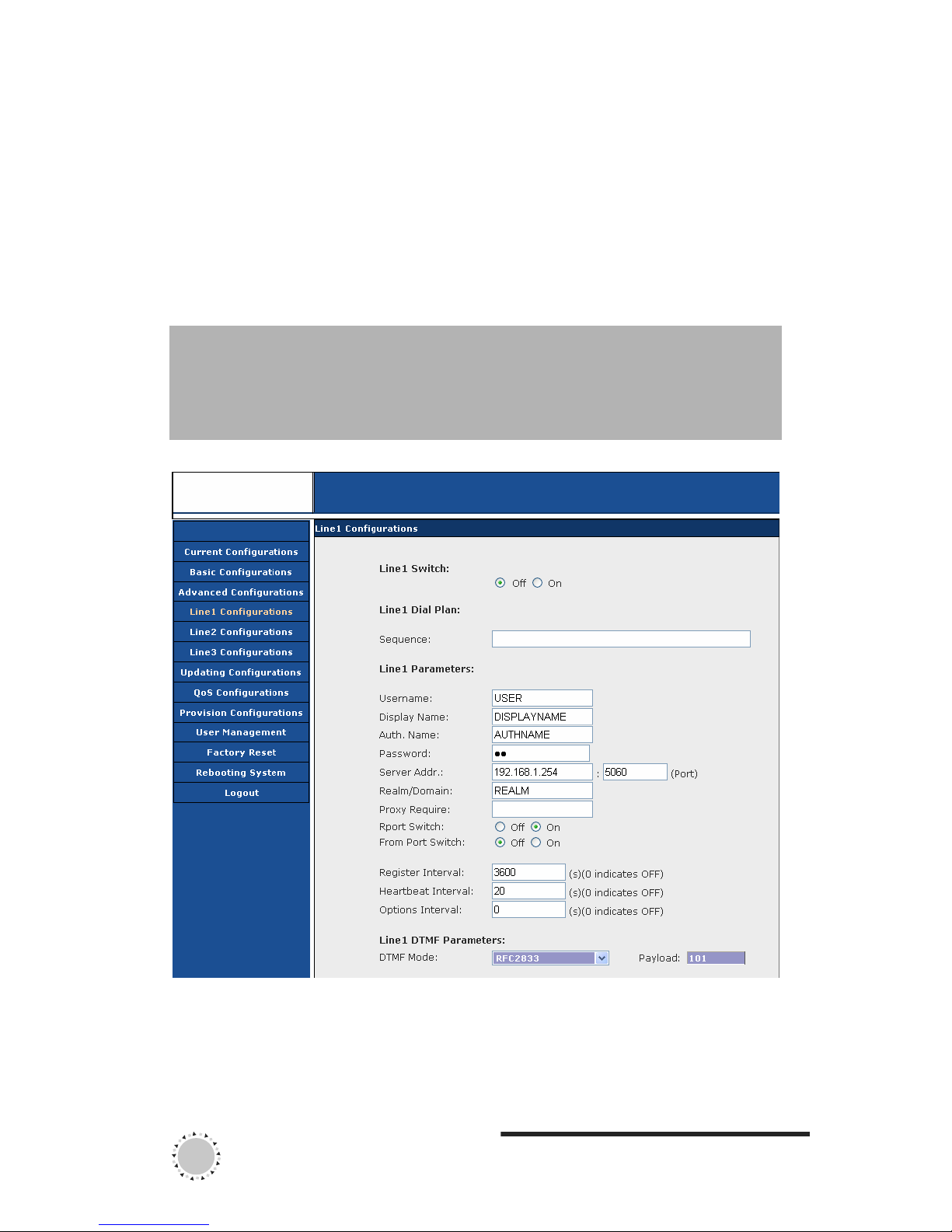

3.1.6 Line Configurations
Line1 Configurations, Line2 Configurations and Line3 Configurations are used to set
parameters of accounts from Line1 to Line3. If you have more than 1 account, configure them in
separate lines and make sure the line switch is “on”. If you just have one account, please set the
line switch of others line to “off”. If you don’t need STUN when registering or talking, please set
the “SIP STUN Switch” and “RTP STUN Switch” to off.
1Check with your service provider, whether or not it need Stun, whether it need to support
“rport” or port in from section of signal.
18
GF502 VOIP PHONE
Line1 Switch: Enable or disable this line’s register.
Line1 Dial plan: Set the sequence of this line’s dial plan.
Username: Username of your SIP account (Commonly the same as the phone number).
Display Name: The display name sent to callee, if sip provider doesn’t send a caller ID, this will
be shown on the LCD of callee.
Auth name: Commonly the same as the phone username.
Password: Password of your SIP account.
Server Addr.: Register address of SIP server and port.
Realm/Domain: SIP domain. Enter the sip domain if you know, otherwise the GF502 VoIP phone
will get the domain from signal maybe it is not correct.
Proxy Require: Some SIP service need this parameter.
Register Interval: Register expires time. The GF502 VoIP phone will auto configure this expire
time to the server recommended setting if it is longer from the SIP server.
Heartbeat Interval: Send heartbeat pack periodically to keep the channel.
Options Interval: Send option signal to SIP server periodically to detect if the SIP server is
available.
Line1 DTMF Parameters: DTMF signal sending mode and pay load. Support Inband, RFC2833
and Info.
Line1 Codec PRI: Setting the prefer codec in order. Support G729, G723, PCMU(G711u) and
PCMA(G711a).
19

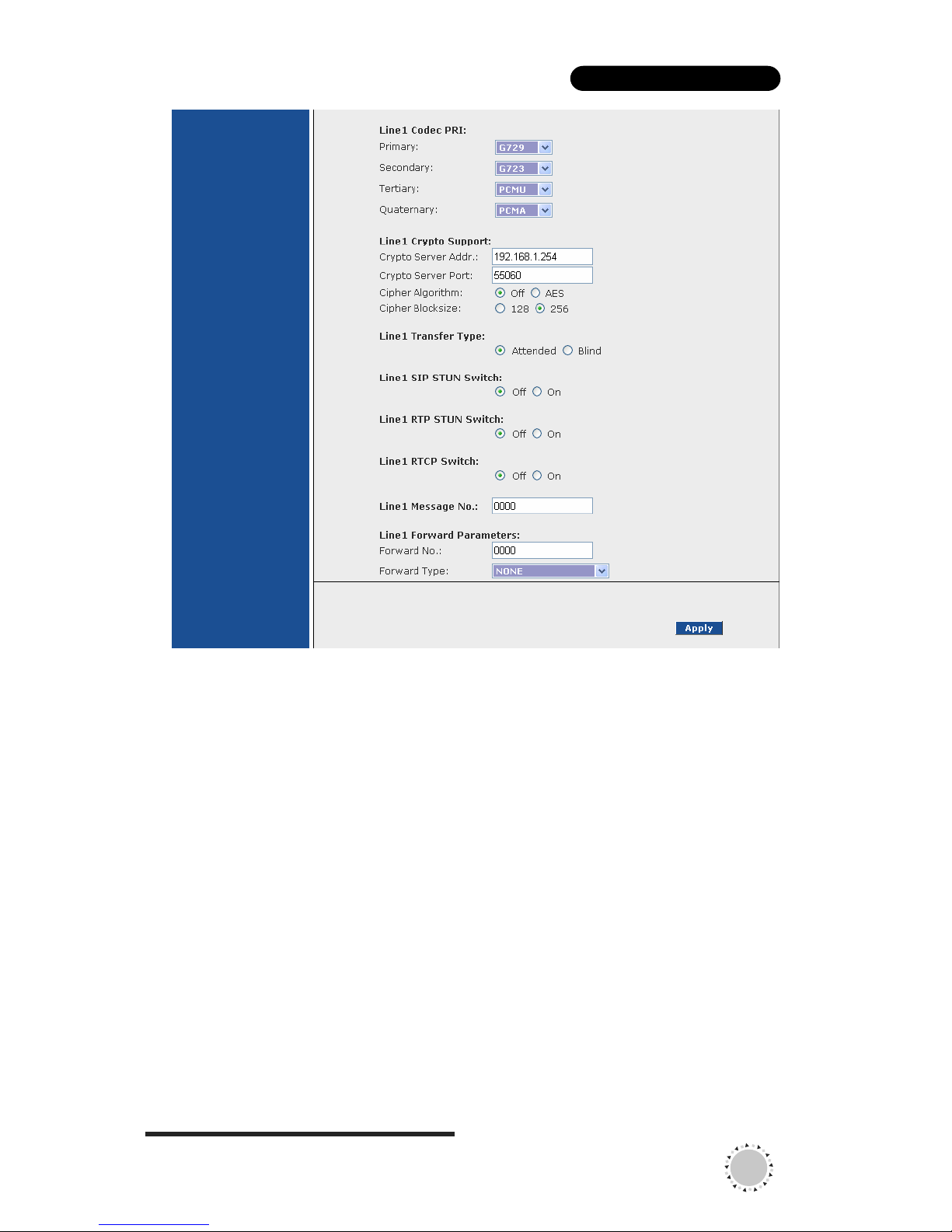

Line1 Crypto Support: Set the parameters to encrypt the signal. Need the SIP server support.
Line1 Transfer Type: Set the transfer type of this line: Attend or blind.
Line1 SIP STUN Switch: Stun switch of this line for signal.
Line1 RTP STUN Switch: Stun switch of this line for codec of voice.
Line1 RTCP Switch: Enable or disable the RTCP.
Line1 Message NO.: Set the line1 voice mail number.
Line1 Forward Parameters: Set the Forward type and number.

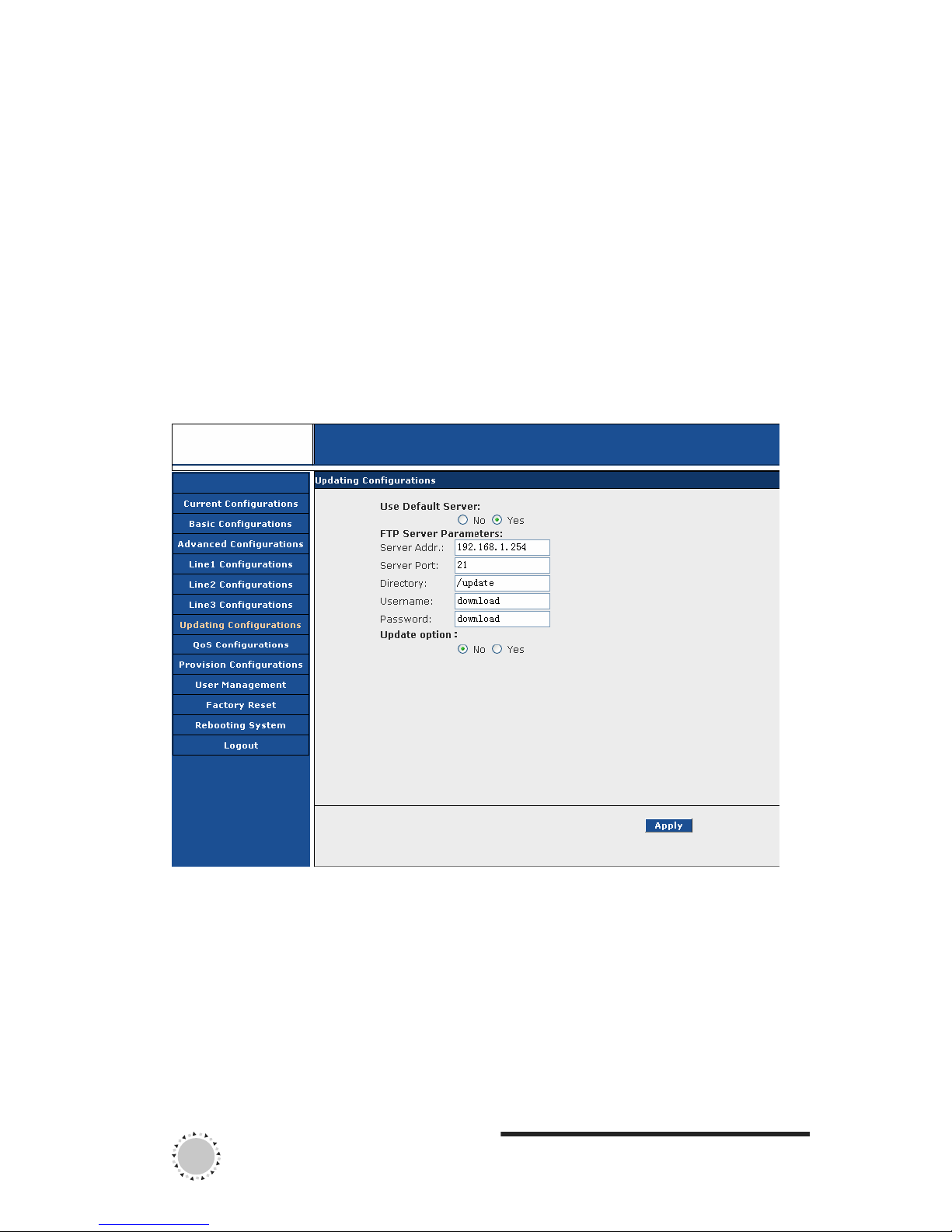

3.1.7 Updating Configurations page
The default path is our FTP server. If you want to use the default path, turn "Use Default
Server" to “Yes” and press “Apply”. If you want to use another server, select “No” and input the
parameters needed, and then press “Apply”.
Use Default Server: Set Using the default update server or not.
Server Addr.: The FTP server address of update server.
Server Port: The FTP server port of update server.
Directory: The file path of the version.ini in the update server. If the file is in the root path of FTP
server, fill in “/” or keep space.
Username: The login username of the FTP server.
Password: The login password of the FTP server.
Update option: Set “Yes” and press “Apply”, the phone will update immediately.
20
GF502 VOIP PHONE
3.1.8 QoS Configurations page
The GF502 VoIP phone implement QoS based on 802.1p, The QoS is used to mark the
network communication priority in the data link/MAC sub-layer. In this page parameters about
QoS can be configured.

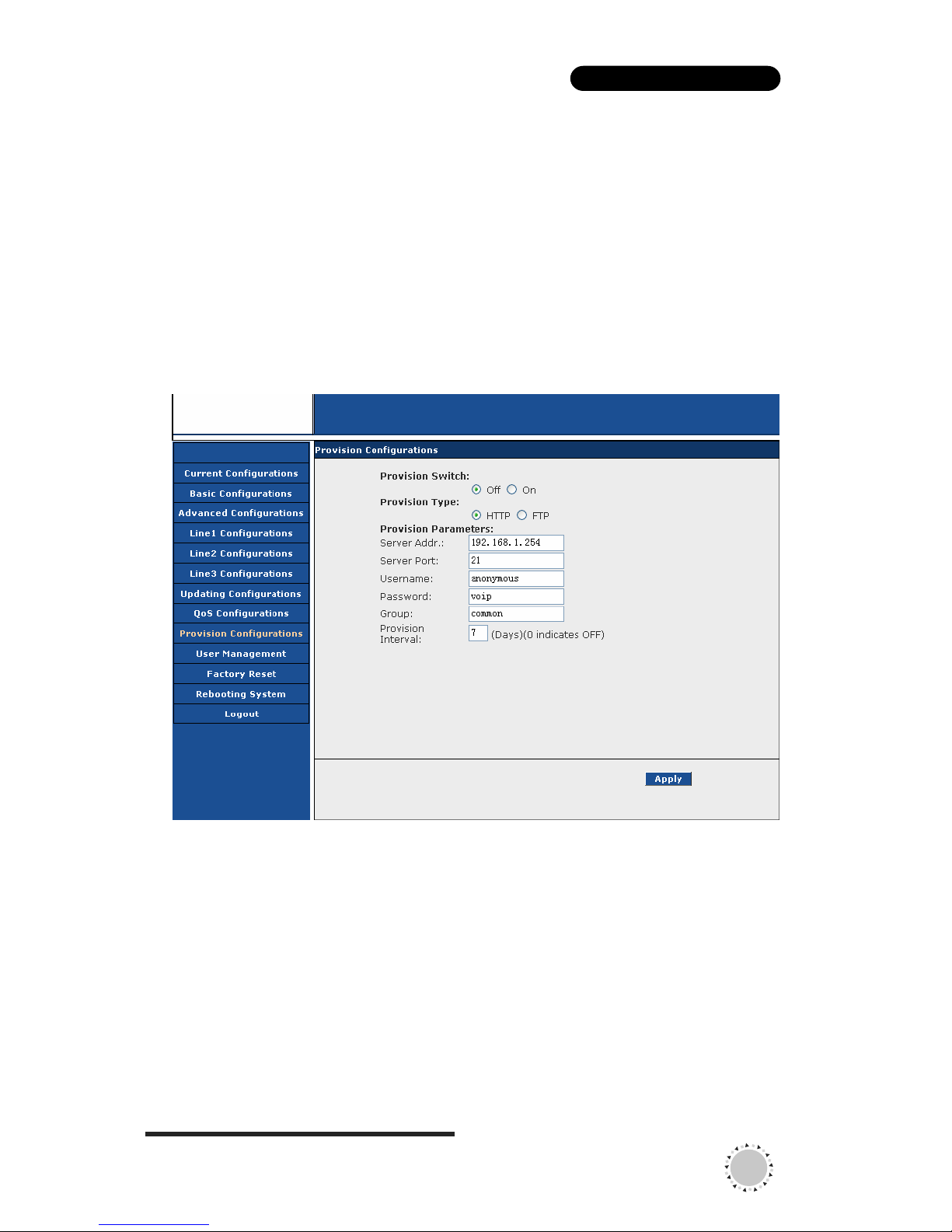

3.1.9 Provision Configurations page
If you do not use provision function, set the switch to “off”, else, set it to “on”. There are two
type provisions: HTTP and FTP mode. Select a mode and input correct value of provision
parameters. Do not forget to press “Apply” after changing.
Provision Switch: Enable or disable the provision function.
Provision Type: Select the provision type.
Server Addr.: Provision server address.
Server Port: Provision server access port.
Username: Provision server login username.
Password: Provision server login password.
Group: The folder’s name which you put the setting.ini in.
Provision Internal: Set the internal of provision function.

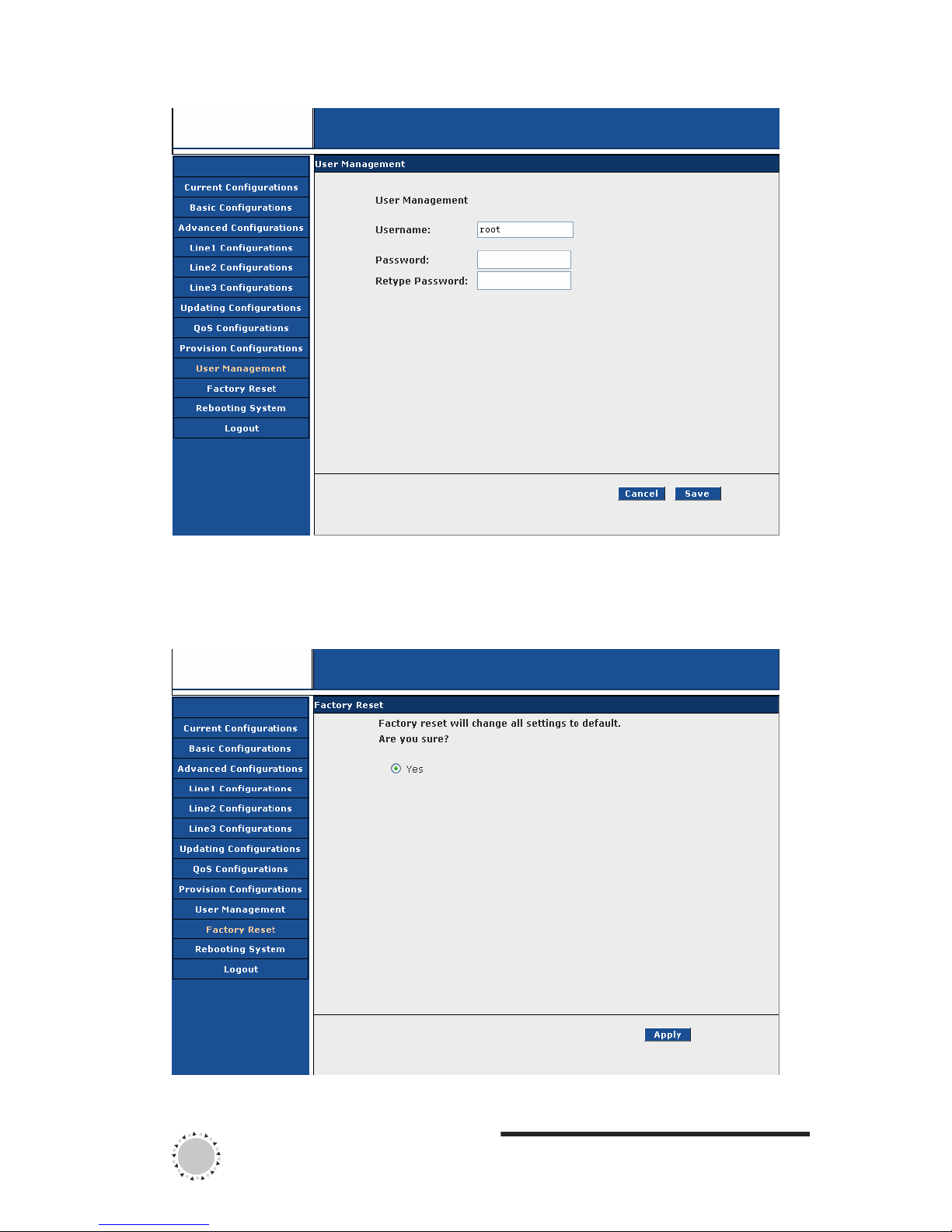

3.1.10 User Management page
Set WEB and keypad access account password of the GF502 VoIP phone.
21
3.1.11 Factory Reset page
In this page press “Apply” will restore all parameters to the factory default.
22
GF502 VOIP PHONE

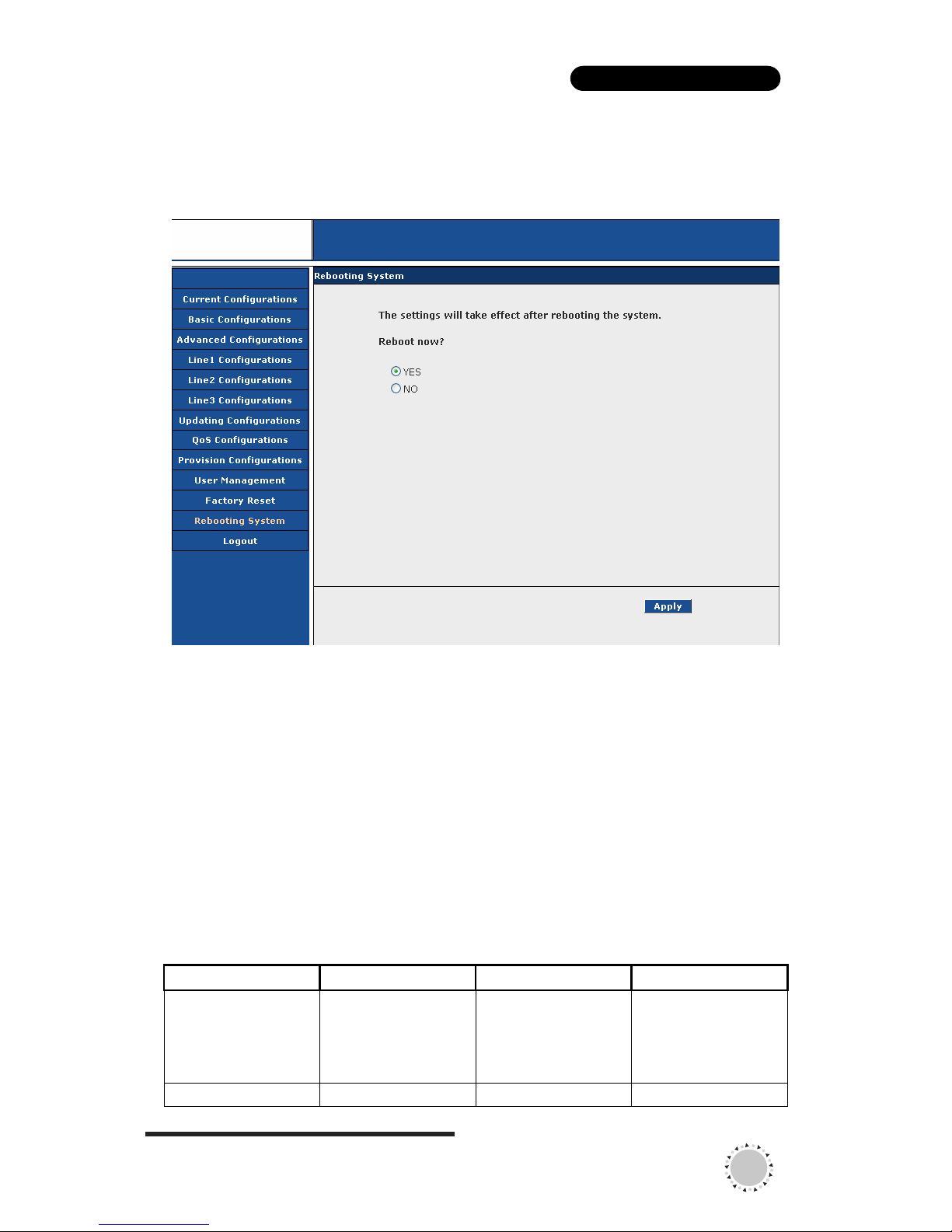

3.1.12 Rebooting System page
After all changes have been done, click “Rebooting System”, select “Yes”, then click
“Apply” to restart the device.
◎
Configure via keypad
There are several keypad menus on GF502 VoIP phone: main menu, update menu, forward
menu and other functions menus. To enter some menus you should input the password of “root” or
“user”. User password is for the “User” of main menu and forward menu; Root password is for the
“Root” of main menu and update menu. The passwords are the same to access to WEB. The
default usernames and passwords are root/111111 for administrator and user/000000 for user.
3.2.1 Function keys introduction
When using keypad and LCD to configure the settings of GF502 VoIP phone, following keys
will be used:
Keys Function Keys Function
OK Enter main menu and
submenu; Confirm
change
CANCEL Exit current menu;
Exit setting mode; Del
the char at left of
cursor
LEFT Turn over menu up; RIGHT Turn over menu
23
Move cursor left down; Move cursor
right
HOLD Enter the update menu FORWARD Enter the forward
menu
REDIAL Switch input type
when entering letters
3.2.2 Text input
When configuring the GF502 VoIP phone by keypad, sometime it is necessary to input
something. To select input method in the input interface by press REDIAL key: char (with
indicator “abc”) and numeric (with indicator “123”).
3.2.3 Main menu
At the idle mode, press OK to enter the main menu.
GF502 VoIP Phone Keypad Main Menu
Level 1 Level 2 Level 3 Level 4
STATIC
DHCP
External Mode
PPPoE
Ext ip address
Ext gw address
Ext subnet mask
Ext dns1
Ext dns2
External NIC
Ext dns3
PPPoE user ID
PPPoE password
PPPoE
PPPoE service name
NAT
DHCP Server
Int IP From
Int IP To
Int ip address
Network
NAT Settings
Int subnet mask
Ringing Tone
Ringing Volume
Tones
Side tone Volume
Date
User
Clock
Time
24
GF502 VOIP PHONE
GMT Offset
SNTP Server
Synchronization
User Password
Logo
Logo Settings
Logo2
Sip Switch
Proxy Server
Proxy Port
UserName
Auth Name
Password
Realm
Support rport
Register Interval
Heartbeat Interval
Options Interval
DTMF Mode
Sip1 Params
RFC2833 Payload
Encrypt server ip
Encrypt server port
Sip Encrypt depth
Crypto1 Params
SIP crypt
First Codec
Second Codec
Third Codec
Codec
Fourth Codec
Forward Type
SIP1 Settings
Forward1 Params
Forward No
SIP2 Settings (similar to SIP1 Settings)
SIP3 Settings (similar to SIP1 Settings)
RTP Port From
Rtp
RTP Port To
Conference Type
Conference
Conference Room
Httpd Httpd Switch
Provision Switch
Provision Type
Provision Server
Provision Port
Provision User
Provision Password
Root
Provision
Provision Group
25
Provision Interval
SNMP switch
SNMP
SNMP Server ip
Root Password
Reset
HD_TEST
3.2.4 Update menu
At the idle mode, press and hold the key HOLD for three seconds then input the root
password to enter the update menu.
Use default
FTP Serveraddr
FTP Port
FTP Path
FTP User
Update config
FTP Password
Update
UPDATE MENU
Version
3.2.5 Forward menu
At the idle mode, press FORWARD then input the user password to enter the forward menu.
Forward Type
Forward1 Parameters
Forward No
Forward Type2 Forward2 Parameters
Forward No2
Forward Type3
FORWARD MENU
Forward3 Parameters
Forward No3
3.2.6 Other functions menu
At the idle mode, press associated keys to enter the other functions menu
List
Search
Add
Phone Book
Erase
OTHER
FUNCTIONS
Call Log Missed
26
GF502 VOIP PHONE
Received
Dialed
Erase
Speed Dial
Ping
27
Chapter 4: Update the Firmware
5Do not cut off power during the upgrade. Maybe it will lead to fatal error. The LCD of
phone will show the upgrade process, when done the phone will reboot automatically. If
the phone doesn’t reboot, please reset power after the information “Please switch off” to
the LCD.
The GF502 VoIP phone uses a FTP server to download the firmware. The FTP server should
be ready and be able to accept connections.
First you need to configure the update parameters via WEB or keypad (refer to Chapter 3).
After the configuration has been done, there are two way to update.
◎
Update via keypad
Enter the update menu, move the cursor point to “Update” option, Press OK. The phone will
check new version and automatically download the firmware.
◎
Update via WEB
Enter the Updating Configurations page with browser. Set “Update Option” to “Yes” and
press “Apply”. The phone will check new version and automatically download the firmware.
28
GF502 VOIP PHONE
Chapter 5: Usage of the Phone
◎
Talk mode and operations
5.1.1 Communication mode
During a call if you want switch the talk mode, you can do the operation like this: Press H.F
key then replace handset from handset mode to hands free mode; just pick up handset from hands
free mode to handset mode
¾ Handset mode
¾ Hands free mode
¾ Headset mode(optional)
5.1.2 Operation of off hook
¾ Picking up the handset
¾ Press H.F key
¾ Press Line1-Line3 key
5.1.3 Operation of on hook
¾ Replacing the handset when handset mode
¾ Press H.F key when hands free mode
◎
Main base call functions
5.2.1 Making calls from the GF502 VoIP phone
On-hook dialing
In idle mode, there are several ways to show dial number.
¾ Use the keypad to input the number you wish to call
¾ Press REDIAL to display the last 99 phone numbers you called.
¾ Query phone book
¾ Query call log
And then you can trigger dialing by going off-hook
Off-hook dialing
Performing off-hook operation first, and then you can dial out by any one of following ways.
29
¾ Press digit keys
¾ Press REDIAL key
1In the off-hook dialing by pressing digital keys method, after the number press “#”, then the
number will be dial out directly, or else the phone will wait five seconds to dial the number out.
Maybe there will be impact when you dial number because of your local dial plan setting.
5.2.2 Speed dial
In the speed dial menu, select the memory key you wish to edit, press OK, key in the number
and then press OK to store the entry.
Press and hold one of the 0-9 key which store the number you want to dial in idle mode, the
GF502 VoIP phone will dial out the number.
1The speed dial function support the first registered account only.
5.2.3 Answer a call
When a call is coming, the caller number or alias is displayed, if the caller number is stored
in the phonebook, the associated name is displayed.
While the phone is ringing, you can perform off-hook action to answer the call. Incoming call
during talking refer to multi-line section.
5.2.4 Reject a call
Press the CANCEL to reject a call when the phone is ringing.
◎
Handling calls function
5.3.1 Call forward
The function of the Call Forward processed the line forwarding to another phone number.
The user can set the system to another phone number. When a call is coming, the system will
forward the line to another phone number that is set previously. The system supports four kinds of
ways to implement this function including “All”, “Busy”, “No Answer” and “Busy & NO
30
GF502 VOIP PHONE
Answer”.
All: Provided that a call is coming, the system will forward the line immediately.
Busy: A call is coming and the user is on a busy line. Then the system will forward the calling
line.
No Answer: On condition that the user does not respond to the calling, the system will forward
the line to another phone number.
Busy & NO Answer: The system forwards the call if either the line is already in use or the call is
not answered in time.
You can configure the forward function via web or keypad, Refer to Chapter 3: 3.1.6 or
3.2.5
5.3.2 Hold and retrieve a call
When you place a call on hold, only your phone can retrieve the call. To place a call on hold:
¾ Connect to the call(if not already connected)
¾ Press the HOLD key or press the relevant line key
When switch between calls, you do not have to press the HOLD key to go from one call to
the next. The phone will automatically put your current call on hold as soon as you press a new
line key.
To retrieve a held call, you can press HOLD or the relevant line key.
5.3.3 Transferring calls
Please set the transfer type via WEB or keypad: Attend Transfer or Blind Transfer.
Blind Transfer: A blind transfer is when you transfer a call directly to another extension
without consulting with the person receiving the call.
¾ Connect to the call you wish to transfer (if not already connected).
¾ Press TRANSFER
¾ Dial the desired phone number to which you want to transfer the current call.
¾ Hang up
1If you do not wish to transfer the call after pressing TRANSFER, press HOLD to retrieve
the call.
Attend Transfer: You want to consult with the person you are transferring the call to, before
you complete the transfer.
¾ Connect to the call you wish to transfer (if not already connected).
¾ Press TRANSFER
¾ Dial the desired phone number to which you want to transfer the current call.
¾ After connected, press TRANSFER again.
¾ If you do not wish to transfer the call, hang up the new connect. This disconnects the
31
new call, leaving the original call on hold, off-hook to retrieve the call.
1If you wish to do attend transfer, an idle line with no account is needed to make the new call.
5.3.4 Mute
During conversation, press the MUTE key to mute. You will still be able to hear the caller,
but they will not hear you. Press again will disable mute.
1If you place a muted call on hold, the phone will not take the call off mute when you
reconnect to the call.
5.3.5 DND
If DND “Do Not Disturb” function is enabled, when a call comes in, the caller hears a busy
signal. In idle mode, press DND will enable this function, to disable it press DND again. If DND
is enabled, DND will display on LCD.
5.3.6 Multi-line
The GF502 VoIP phone supports up to 3 lines. Each line can be separately operated various
services, including answer, call, hold, transfer etc. To switch between line/call pressing line keys.
Besides the current active line, all others are on hold by IP phone and can be resumed by pressing
associated line key. Press active line key will hold the call.
For example:
When you are communicating with one party and wish to make a brief to another party.
¾ Press a free line key (then you will hear dial tone, and the original call is held)
¾ Key in number you want to call and dial out
Answer an incoming call when another call is active
¾ The phone will assign a free line dedicated to the incoming call, and a call waiting tone
will ring.
¾ Press this line key, and the original line is held by phone automatically
5.3.7 Three-way
To make a three-way talk, make sure the conference type is set to three-way mode.
¾ Connect to the first party you wish to include in the conference (if not already
connected).
32
GF502 VOIP PHONE
¾ Change line to make a new call or pick up a new call.
¾ Press CONF to complete the three-way conference.
5.3.8 Conference
To make a conference by conference room number from service provider, make sure the
conference type is switched to conference mode, and the room number is set. Please check the
operations with your service provider
¾ Connect to the first party you wish to include in the conference (if not already
connected).
¾ Press CONF to place the current party into the conference room.
¾ Dial the new number of the person who you wish to add to the conference.
¾ After connected, press CONF to place the new party into the conference room.
¾ Repeat the two steps until all persons who you wish to add are in the conference room.
¾ Press CONF again to add yourself into the conference.
5.3.10 Message
This function is used to access voicemail number. It is mostly equal a speed dial key. You can
check the service and number with your service provider, and configure it via WEB.
Some call center show new messages and the number of messages in the LCD, for example:
Msg: 1/5 means that you have one new message and five old messages.
5.3.1 1 Volume adjustment
You can adjust the ring tone and side tone in the tone menu via keypad. There are five types
of ring tone and five levels of volume.
During conversation, you can adjust volume of microphone by “MIC +”or “MIC -” keys and
adjust volume of speaker by “VOL +” or “VOL –” keys.
◎
Phone book and call log
5.4.1 Phone book
In idle mode, press PHONE BOOK to access the phone book. You can view, add and delete
entry in the phonebook. You can also dial from phonebook. You can enter up to 200 entries into
the GF502 VoIP phone book by adding them manually, or by saving the number and name from
other lists stored on your phone.
33
1In the details interface of phone book, if the text can’t be display in one line, you can use the
MIC + - or VOL+ - to see the rest information.
¾ Add a entry to phone book
a. Add in idle mode: key in the number which you want to save when idle, then
press OK. In the next interface select an option (Tel, Mobile) where you want
save to and press OK. Input the name and press OK again to finish.
b. Add in phone book submenu: Select Add in the phone book menu, key in the
name and number step by step follow the direction on the LCD screen.
c. Add from call log: Access an entry of call log which you want to save and press
OK to operation options. Using the save option, select a location (Tel or Mobile)
and then input the name. Press OK to finish.
¾ View the list of directory
a. View in idle mode: Press LEFT or RIGHT key will enter the list of phone book
directly.
b. View in phone book submenu: Select List in the phone book menu.
1If the phone book list is empty, “No record” is displayed.
¾ Search for an entry: To search for an entry, you can use the Search of phone book
menu. Select to search by name or number.
1To search, you should key in the whole name or number now.
¾ Edit contact details: Select the contact you want to edit by list or searching. Scroll to
the desired name, TEL number or Mobile number. Press OK to edit.
¾ Delete contacts: In the Erase submenu of phone book, you can delete all contacts or
one by one. Select “All” to erase all phone book memory. Select “One by one” and
scroll to the desired entry you want to erase, press OK to delete it.
¾ Import and Export are not available now.
¾ Dial out from phone book: Dial from list of phone book, go off hook. The TEL number
will be dialed out (if there is no TEL number, the Mobile number will be dialed out).
Dial from details interface, scroll to the number you want to dial, and then go off hook.
5.4.2 Call log
In idle mode, press HISTORY to access the call log. You can view, edit, save and delete
entries in the call log. You can also dial from call log. There are three kinds of call logs: Missed
call, Received call and Dialed call. Each supports 99 entries. When reaching 99, the oldest will be
erased to place a new one.
34
GF502 VOIP PHONE
¾ View the call log: In the call log menu, scroll to the log you want to view and press OK
to access the log. Use LEFT and RIGHT keys to scroll between log entries. Press OK
will access the detail interface of the entry.
1If there is new missed call, “[x] Missed Call” will display on LCD, and the call log submenu
will directly access to missed call logs. In idle mode, press REDIAL key will directly access to
dialed call logs.
¾ Edit and Save: In the detail interface, scroll to “edit”, and press OK to edit the number.
Saving the number to phone book refer to 5.4.1 Phone Book.
¾ Erase the call log: To delete one entry, enter the detail interface, scroll to “erase” and
press OK. To delete a group or all entries, access to the main menu of call log. Select
“Erase”, scroll to the desired group which you want to delete, and then press OK.
◎
Other functions
5.5.1 Ping
In idle mode, press DIAG to access this function. You can use it to test the network.
5.5.2 Lock
In idle mode, press and hold MUTE key for three seconds, the phone will be locked. Key in
the password of root or user, the phone will be unlocked. If locked, you cannot dial out number
but you can still receiving incoming calls.
Loading...
