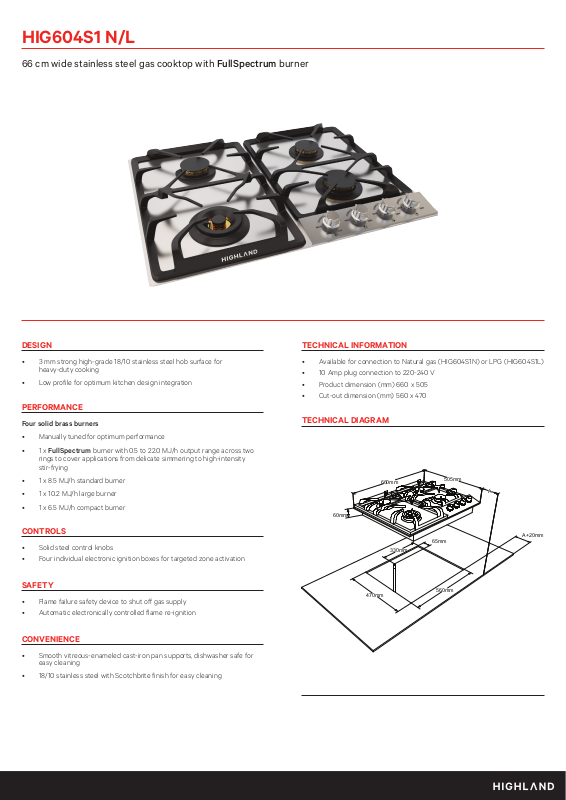

Highland HIG604S1N Specifications Sheet

mm

HIG604S1 N/L

66 cm wide stainless steel gas cooktop with FullSpectrum burner

DESIGN

• 3 mm strong high-grade 18/10 stainless steel hob surface for
heavy-duty cooking

• Low profile for optimum kitchen design integration

PERFORMANCE

Four solid brass burners

• Manually tuned for optimum performance

• 1 x FullSpectrum burner with 0.5 to 22.0 MJ/h output range across two
rings to cover applications from delicate simmering to high-intensity
stir-frying

• 1 x 8.5 MJ/h standard burner

• 1 x 10.2 MJ/h large burner

• 1 x 6.5 MJ/h compact burner

CONTROLS

• Solid steel control knobs

• Four individual electronic ignition boxes for targeted zone activation

SAFETY

• Flame failure safety device to shut o gas supply

• Automatic electronically controlled flame re-ignition

TECHNICAL INFORMATION

• Available for connection to Natural gas (HIG604S1N) or LPG (HIG604S1L)

• 10 Amp plug connection to 220-240 V

• Product dimension (mm) 660 x 505

• Cut-out dimension (mm) 560 x 470

TECHNICAL DIAGRAM

65mm

560mm

505mm

A

A+20

660mm

60mm

330mm

470mm

CONVENIENCE

• Smooth vitreous-enameled cast-iron pan supports, dishwasher safe for
easy cleaning

• 18/10 stainless steel with Scotchbrite finish for easy cleaning
