Highgear TrailDrop User Manual

TrailDrop TerraTech

INSTRUCTION MANUAL

1

english

FEATURES

Digital Compass

Time / Date

2 Time Zones

2 Alarms

Temperature with therma sensor technology

Chronograph

Timer

Backlight

Navigation Bezel

L.E.D Flashlight

Level Bubble

TerraTechTrailDrop

N

E

N

T

H

G

B

I

E

L

/

A

R

P

I

O

N

T

G

E

S

W

/

T

N

E

S

N

E

X

T

S

T

C

E

/

E

S

L

W

T

E

A

S

R

/

T

E

/

D

S

O

P

M

L

I

T

S

W

S

T

R

H

O

E

S

R

N

M

E

A

S

-

2 3

engl sh

english

LIGHT BUTTON

To activate flashlight LED

To read compass press

S1 at any time.

TIME

TEMPERATURE

CHRONO TIMER

ALARM

HOW TO USE ELECTRONIC COMPASS FEATURE

Compass must be calibrated before first use.
Press

S1 to take compass reading. For accurate reading, make sure to level the

compass using the level bubble.
CAUTION: The Digital Compass function is very sensitive to magnetic and elec-

tric fields. The direction will be affected by nearby magnetic or electronic
devices.

CALIBRATION: Allows user to align the Compass magnetic sensor with the
earth’s magnetic field so that the Compass can detect the correct direction. With
the declination angle added, the magnetic North will be adjusted by the clock­wise shift or anti-clockwise shift of this angle, giving you the true North reading.
The range of declination angle is 00 E to 99 E and 00 W to 99 W. The declination
angles for major world cities are listed on the following page.

DECLINATION: The difference in degrees, or angle, between North and mag­netic North.

TRUE NORTH: Also, known as geographic North, this is map North (North Pole)
MAGNETIC NORTH: The geographical region toward which all magnetic nee-

dles point. This point is 1300 miles south of the North. (This is why it’s important
to calibrate!)

The declination angles for major world cities are included.

S4

S3

S4

W

/

T

N

E

S

T

W

S3

S1

S2

N

E

N

S1

T

H

G

B

I

E

L

/

A

R

P

I

O

N

T

G

E

T

S

1

N

E

X

S

T

C

E

/

E

PM

S

L

T

E

A

S

R

/

T

E

/

D

S

O

P

M

L

I

T

S

W

S

T

R

H

O

E

S

R

N

M

E

A

S

-

S2

S3

4 5

english

english

HOW TO CALIBRATE COMPASS

• Press S1 to enter compass mode, then press and hold S4, "CAL" will be dis-

played.

• Holding the unit on a flat surface, rotate the unit three times 360 degrees
clockwise, each rotation lasting between 10-15 seconds, then press

S4 to

end calibration.

• Set the flashing digits in 00 degree to the declination in your area (S2 is for
adjusting and

S3 is for selecting), after the setting is complete press S4 to

set.

• To exit to another mode, press S3.

CITY DECLINATION ANGLE

Anchorage 22 E
Atlanta 4 W
Bombay 1 W
Boston 16 W
Calgary 18 W
Chicago 5 W
Denver 10 E
Jerusalem 3 E
London 4 W
Little Rock 3 E
Livingston, MT 14 W
Munich 1 E

CITY DECLINATION ANGLE

New York City 14 W
Orlando 5 W
Olso 2 W
Paris 2 W
Rio De Janeiro 21 W
San Francisco 15 E
Seattle 19 E
Shanghai 5 W
Toronto 11 W
Vancouver 20 W
Washington DC 10 W
Waterbury, CT 14 W

To locate declination angle in your city not listed in this chart, go to
www.ngdc.noaa.gov.

6 7

english

english

TEMPERATURE MODE

You can toggle between F or C display. You can also offset the displayed temper­ature -+4 degree from the detected temperature. For example, if the
TerraTech/TrailDrop shows 77F (detected temperature) and another thermometer
shows 74F then you can set the TerraTech/TrailDrop to show 74F (displayed tem­perature), and from then onwards, displayed temperature is offset by

-3 degrees from the detected temperature.

• Press

S2 for 3 seconds to toggle between F or C display

HOW TO OFFSET TEMPERATURE

• Press S3 until "TE" displays.

• Press

S4 for 3 seconds to start the offsetting process; the digits start to

flash. Press

S2 to adjust and press S3 to select. After the setting is complete

press

S4 to set.

NOTE: When unit is worn, body heat can cause an increase in temperature reading.

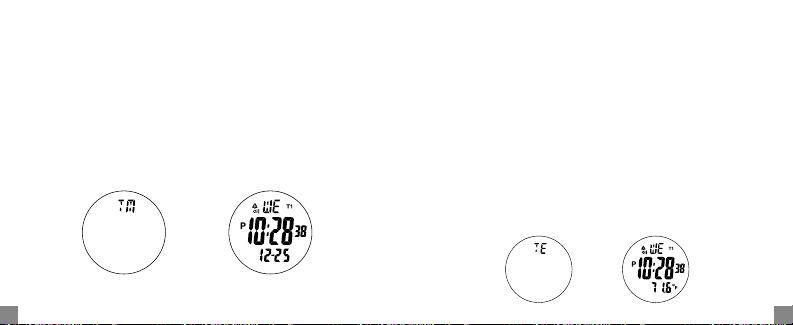

TIME MODE

Normal time mode displays the hour, minutes, seconds, month, date and day of
the week. You can also toggle between 12 hr and 24 hr time display. Also, you
can select two time zones, "T1" and "T2".

• Press

S3 until "TM" is displayed

• Press

S2 for 3 seconds to switch from "T1" and T2".

• Press

S4 for 3 seconds to make adjustment; the digits start to flash, then

press

S3 to select the position, when digits are flashing, press S2 to adjust

the seconds, minutes, hours, date, month, day of the week and year, and tog­gle between 12hr and 24hr time display. After the setting is complete press

S4 to set.

1 SEC AUTO

1 SEC AUTO

8 9

english

english

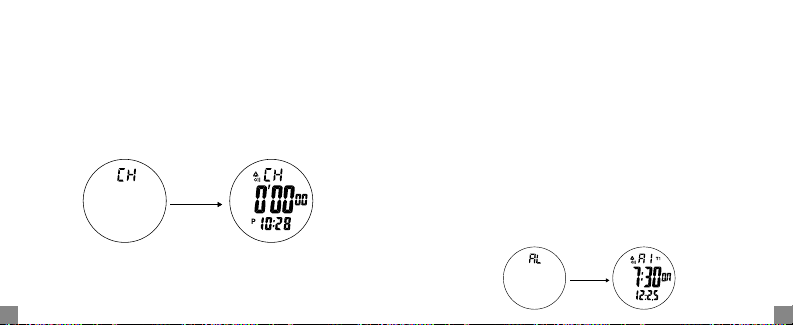

CHRONOGRAPH MODE

The chronograph counts up in 1/100 sec resolution with working range of 24
hours.

• Press S3 until "CH" is displayed.

• Press

S2 for start / split operation, press S2 again and "SPL" will be dis-

played when split is selected.

• Press S4 to stop the running chronograph, and hold S4 to reset the stopped

chronograph back to zero.

1 SEC AUTO

TIMER MODE

Timer mode present the count down time at the upper row and the current time
at the lower row.

"CS" Count Down Stop
"CR" Count Down Repeat
"CU" Count Down Up
Working range of the timer is 24 hours with the resolution of 1 second.

TO OPERATE TIMER MODE

• Press S3 to timer mode "TR".

• Press

S4 for 3 seconds to start setting timer time and timer function; the dig-

its start to flash.

• Press S3 to switch between seconds, minutes and hours, press S2 to adjust
desired numbers. Press

S3, when "CS" is flashing, press S2 to change to

"CR" or "CU" or remain with "CS" mode.

• Press S4 to exit setting, then press S2 to start timer and S4 to stop.

10 11

englis h

englis h

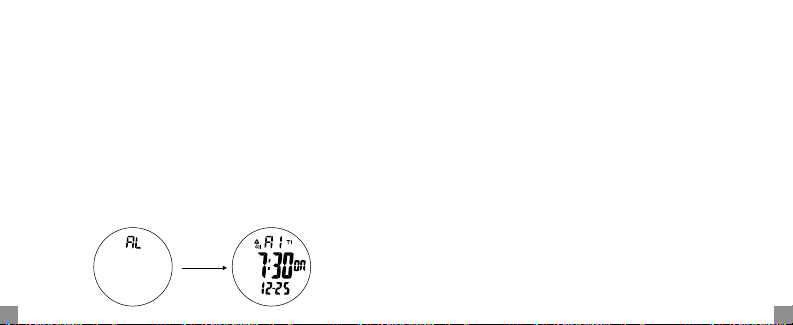

ALARM MODE Displays Hour and Minute Alarm Setting

Displays to set the desired hour and minute alarm. The alarm sound repeats
everyday if the alarm mark is in the "on" position. There are two alarms, "A1" and
"A2".

¥ Press

S3 until "AL" is displayed

¥ Press

S2 to select "AL" (chime), "A1" (alarm 1) and "A2" (alarm 2).

¥ Press

S2 for 3 seconds to toggle the alarm mark and chime mark on
("on" shown) or OFF ("- - " shown). When the chime mark is ON, there is a
beep sound every hour and confirmation key tone every time a button is
pressed.

¥ In "A1" or "A2" display, press

S4 for 3 seconds until the digits start flashing;

then press

S3 to select hour, minutes, month, day and T1/T2. Press S2 to

adjust desired number.

¥ Press S4 to set the Alarm and exit adjust mode.

BATTERY REPLACEMENT

If the LCD display or LED light is dim, replace the battery with the following;

LED Light: V392 x 3

TerraTech: 2032 x 1

TrailDrop: SR936SW x 2

REMARK: Compass mode EL backlight and LED flashlight cause large consump­tion of the battery power.
