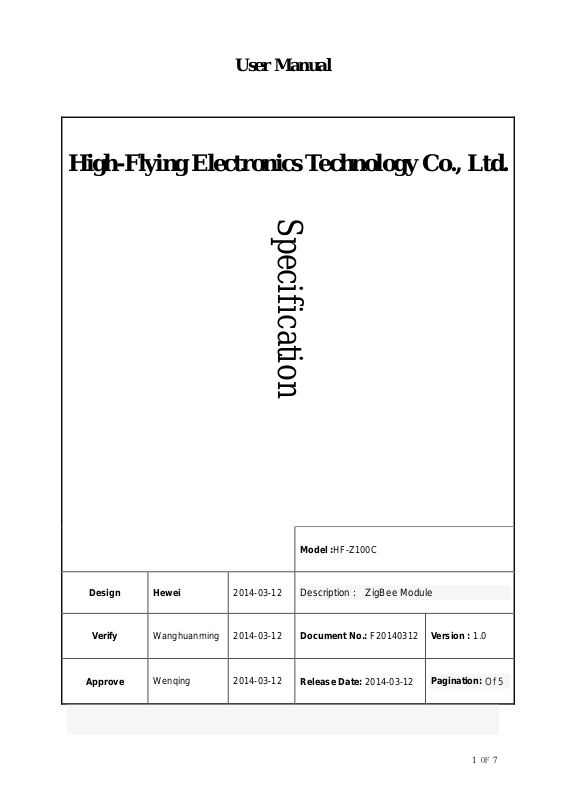

High Flying Electronics Technology HF Z100C User Manual

High-Flying Electronics Technology Co., Ltd.

Model :HF-Z100C

Design

Hewei

2014-03-12

Description : ZigBee Module

Verify

Wanghuanming

2014-03-12

Document No.: F20140312

Version : 1.0

Approve

Wenqing

2014-03-12

Release Date: 2014-03-12

Pagination:

Of 5

Specification

User Manual

1 OF 7

1 .Photo

User Manual

2 Product Description

HF-Z100C

HF-Z100C is a wireless communication device based on the latest IEEE802.15.4 standard
and Zigbee wireless communication protocol. When compared with the Bluetooth technology, it
comes with the advantages of low complexity, low power, low cost, self-organizing, and so on.
Since it is based on IEEE802.15.4 standard, it allows smooth connections among thousands of
tiny sensors that demand information exchange through radio waves between any two sensors,
with very little energy and high communication efficiency.

Application HF-Z100C module is widely applied to commercial building automation, home

automation control (including smart lighting, sensor, gateway etc that is used in smart home) and
instrument control as the focus. Commercial building can be completed automatically controlled

through HF-Z100C, administrators can effectively manage air conditioning, lighting, fire detection
systems, the switch control system, leading to cost reduction of energy consumption, as well as
labor cost. For the consumer, if the family has installed HF-Z100C module system can easily
monitor the overall operation of the home, effectively control electricity, water, gas usage outside,
they can have security features, for example, to install a wireless home sensors to monitor a
variety of different situations, once the investigation into the abnormal automatically issue a
warning.

2 OF 7

User Manual

3.

Product Features:

 Low power consumption in low-power standby mode, the standby time is more than 10

times the Bluetooth communication devices

 Low cost, by dramatically simplifying the protocol (less than Bluetooth 1/10), reducing

the requirement for communication controller, suitable for large-scale construction
applications

 Variable data rates, HF-Z100C works in the 2.4GHz band, providing 250 kbps raw data

rate using standard mode, or up to 2Mbps using Marvell proprietary mode, to meet the
application needs of various rates towards data transmission.

 close quarters, the transmission range is generally between 10 ~ 100m indoor, and up to

2km outdoor. After increasing the transmission power, the distance can be further
increased. This is the distance between adjacent nodes. If the route and through the
inter-node communication relay transmission distance will be farther

 short delay, faster response speed HF-Z100C, generally from sleep into working

condition just 15ms, nodes are connected into the network just 30ms, further saving
energy. Comparison, Bluetooth requires 3 ~ 10s, WiFi need 3 s

 high security, HF-Z100C provides three security modes, including no security settings,

using access control lists (Access Control List, ACL) to prevent illegal access to data and
the use of the Advanced Encryption Standard (AES 128) symmetric password to flexibly
determine their security attributes.

 wide range of applications for home and building networks, industrial control, wireless

meter reading, medical equipment, agricultural control and other occasions

3 OF 7
