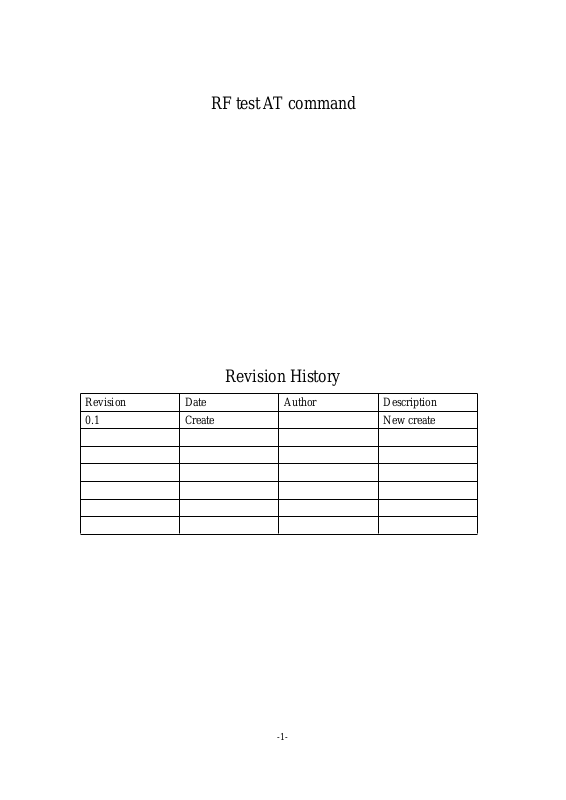

High Flying Electronics Technology HF LPB120 User Manual

RF test AT command

Revision History

Revision Date Author Description

0.1 Create New create

-1-

Contents

1. Introduction……………………………………………………………………4

2. Hardware connection………………………..………………………………4

3. RF testAT command Description……………………………………………...4

4. Example…………………………………………….. …………………………6

-2-

1. Introduction

In this section, we will focus on how to do RF test AT command inside MC300.
Users can use AT command through UART.

2. Hardware connection

Note

：According to the pictures of by method of jump line

3. RF test AT Command list

3.1 ICAT+RADIO_CHANNEL=n
set channel
n =[1~14]

3.2 ICAT+RADIO_RF_START
Enter RF TX Test Mode

3.3 ICAT+RADIO_RF_STOP
Stop RF TX Test Mode

3.4 ICAT+RADIO_RF_RATE=n
set TX rate format
N=0 ~ 38
