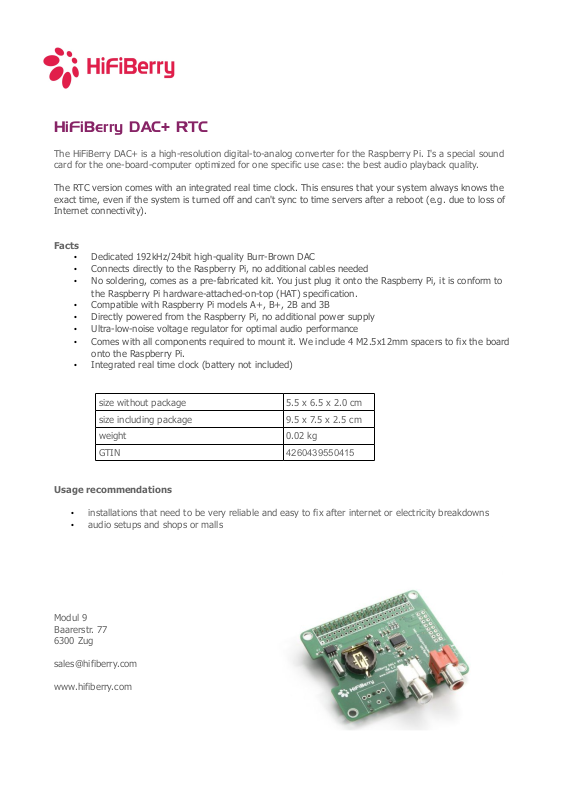

HiFiBerry DAC+ RTC
The HiFiBerry DAC+ is a high-resolution digital-to-analog converter for the Raspberry Pi. I's a special sound
card for the one-board-computer optimized for one specific use case: the best audio playback quality.
The RTC version comes with an integrated real time clock. This ensures that your system always knows the
exact time, even if the system is turned off and can't sync to time servers after a reboot (e.g. due to loss of
Internet connectivity).
Facts
• Dedicated 192kHz/24bit high-quality Burr-Brown DAC
• Connects directly to the Raspberry Pi, no additional cables needed
• No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it is conform to
the Raspberry Pi hardware-attached-on-top (HAT) specification.
• Compatible with Raspberry Pi models A+, B+, 2B and 3B
• Directly powered from the Raspberry Pi, no additional power supply
• Ultra-low-noise voltage regulator for optimal audio performance
• Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board
onto the Raspberry Pi.
• Integrated real time clock (battery not included)
size without package 5.5 x 6.5 x 2.0 cm
size including package 9.5 x 7.5 x 2.5 cm
weight 0.02 kg
GTIN
4260439550415
Usage recommendations
• installations that need to be very reliable and easy to fix after internet or electricity breakdowns
• audio setups and shops or malls
Modul 9
Baarerstr. 77
6300 Zug
www.hifiberry.com
